Model # 48624441 Official Craftsman 42" snow blade

Here are the diagrams and repair parts for Official Craftsman 48624441 42" snow blade, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |

Lawn Tractor Snow Blade Attachment Control Cable (replaces 746-0366, Af-49808p) 49808
#23

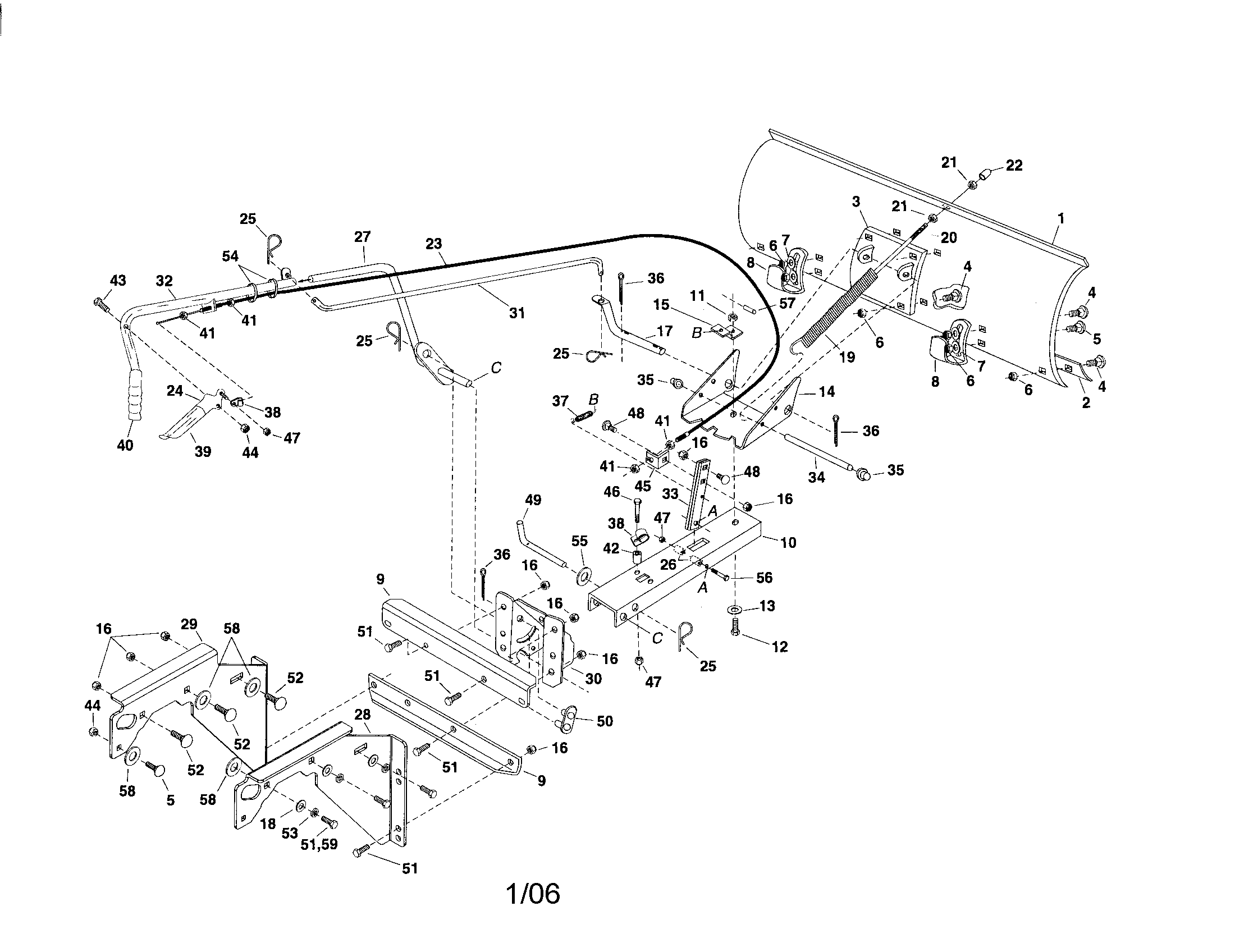

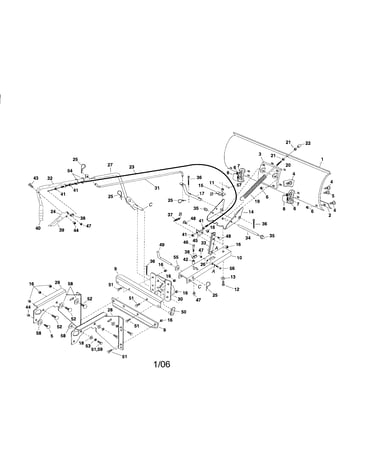

42" snow blade diagram

Lawn tractor snow blade attachment control cable (replaces 746-0366, af-49808p)

Part #49808

BEST SELLER
$22.35
18% OFF Phone Price : $27.35
In Stock
Lawn Tractor Snow Blade Attachment Lift Handle Rod Assembly 63033
#27

42" snow blade diagram

Lawn tractor snow blade attachment lift handle rod assembly

Part #63033

BEST SELLER
$30.22
14% OFF Phone Price : $35.22
In Stock
Lawn Tractor Snow Blade Attachment Wear Plate 23117
#2

42" snow blade diagram

Lawn tractor snow blade attachment wear plate

Part #23117

Replaced by #23117BL3

?
Manufacturer substitution
This part replaces 23117. Substitute parts can look different from the original.
BEST SELLER
$29.91
14% OFF Phone Price : $34.91
In Stock
Lawn Tractor Snow Blade Attachment Angle Lock Spring (replaces 732-0360, Af-43348) 43348
#37

42" snow blade diagram

Lawn tractor snow blade attachment angle lock spring (replaces 732-0360, af-43348)

Part #43348

BEST SELLER
$8.11
11% OFF Phone Price : $9.11
In Stock
Lawn Tractor Nut 47810
#44

42" snow blade diagram

Lawn tractor nut

Part #47810

BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Snow Blade Attachment Pivot Bracket 24023
#30

42" snow blade diagram

Lawn tractor snow blade attachment pivot bracket

Part #24023

Replaced by #24023BL1

?
Manufacturer substitution
This part replaces 24023. Substitute parts can look different from the original.
BEST SELLER
$31.10
14% OFF Phone Price : $36.10
In Stock
Lawn & Garden Equipment Nut 47189
#47

42" snow blade diagram

Lawn & garden equipment nut

Part #47189

This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Snow Blade Attachment Blade Pivot Rod (replaces Af-46065) 46065
#49

42" snow blade diagram

Lawn tractor snow blade attachment blade pivot rod (replaces af-46065)

Part #46065

This item is not returnable
$8.29
11% OFF Phone Price : $9.29
In Stock
Lawn & Garden Equipment Lock Washer, 3/8-in 43003
#53

42" snow blade diagram

Lawn & garden equipment lock washer, 3/8-in

Part #43003

This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Lawn & Garden Equipment Washer R19171616
#55

42" snow blade diagram

Lawn & garden equipment washer

Part #R19171616

Replaced by #596040101

?
Manufacturer substitution
This part replaces R19171616. Substitute parts can look different from the original.
This item is not returnable
In Stock
