Jenn-Air JDB9200CWX3 dishwasher Parts

For the Jenn-Air JDB9200CWX3 dishwasher, an air gap is a strong safeguard against dirty drain water siphoning back into the tub. Whether you need one depends on local plumbing code and how your drain hose is routed, but it is a reliable way to prevent backflow.

When an air gap is required (and when it is optional)

Local code is the deciding factor, but these are the most common situations:

• Required by code in many areas, especially when the dishwasher drains into a sink drain or garbage disposal
• Strongly recommended if you have recurring slow-drain issues or you want maximum backflow protection
• Often optional when a properly installed high loop is used and local code allows it
• More important if the sink can back up (clog-prone drain, disposal jams, heavy food soil)

Quick comparison: air gap vs high loop

Setup	What it does	Typical pros	Typical cons
Air gap	Physically breaks the drain connection to stop backflow	Best backflow protection; easy to inspect	Requires countertop/sink hole; can clog and need cleaning
High loop	Routes drain hose up high under the counter	No countertop device; simple	Not as robust as an air gap; must be routed correctly

If the dishwasher is not draining well

Your JDB9200CWX3 manual specifically calls out the air gap as a maintenance item: if you have a drain air gap, check and clean it when the dishwasher is not draining well. See the cleaning and maintenance guidance in the JDB9200CWX3 owner's manual.

Also check these common causes:

• Food debris in the filter system (upper filter assembly and lower filter)
• Kinked, crushed, or restricted drain hose
• Sink/disposal inlet plug not removed (new disposal installs)
• Partial blockage at the drain connection

Why it matters

Backflow can put wastewater back into the dishwasher, leading to odors, poor wash results, and potential overflow at the sink connection. An air gap adds a simple, visible layer of protection that helps keep the drain path sanitary.

Last updated: January 2026

A Jenn-Air dishwasher typically lasts 10 to 15 years with normal use and basic maintenance. For the Jenn-Air JDB9200CWX3, keeping the filter clean, using the right detergent, and fixing small issues early can help you reach the upper end of that range; see the JDB9200CWX3 user guide for care and troubleshooting.

Typical lifespan and what to expect

Most premium dishwashers (including Jenn-Air) fall into a similar lifespan range, but performance usually changes over time.

• 0 to 5 years: Mostly routine upkeep; occasional wear items
• 5 to 10 years: Higher chance of leaks, draining issues, or rack wear
• 10 to 15 years: More frequent repairs; wash system and electronic issues become more common
• 15+ years: Replacement often makes more sense than major repairs

Signs your dishwasher is nearing end of life

If you see these repeatedly, it often points to age-related wear in the wash system, drain system, or controls.

• Dishes stay gritty or cloudy even after cleaning the filter and spray arms
• Standing water or slow draining at the end of cycles
• Heating or drying performance drops (cool water, poor drying)
• Door won’t latch reliably or the door feels “heavy” or drops quickly
• Frequent error beeps, cycle interruptions, or inconsistent operation

Repair vs. replace: a quick guide

Use this as a practical decision tool for the JDB9200CWX3.

Situation	Usually makes sense to	Why
Unit is under ~10 years and problem is isolated	Repair	Lower total cost; good remaining service life
Unit is 10 to 15 years and needs multiple parts	Compare costs	Repairs can stack up quickly
Unit is 15+ years or has recurring leaks/electrical issues	Replace	Reliability and efficiency typically improve

Parts that commonly extend service life

These are common “keep it running” repairs on many dishwashers, including this model.

• Replace a weak latch such as the dishwasher door latch WPW10653840 if the door won’t close or cycles stop

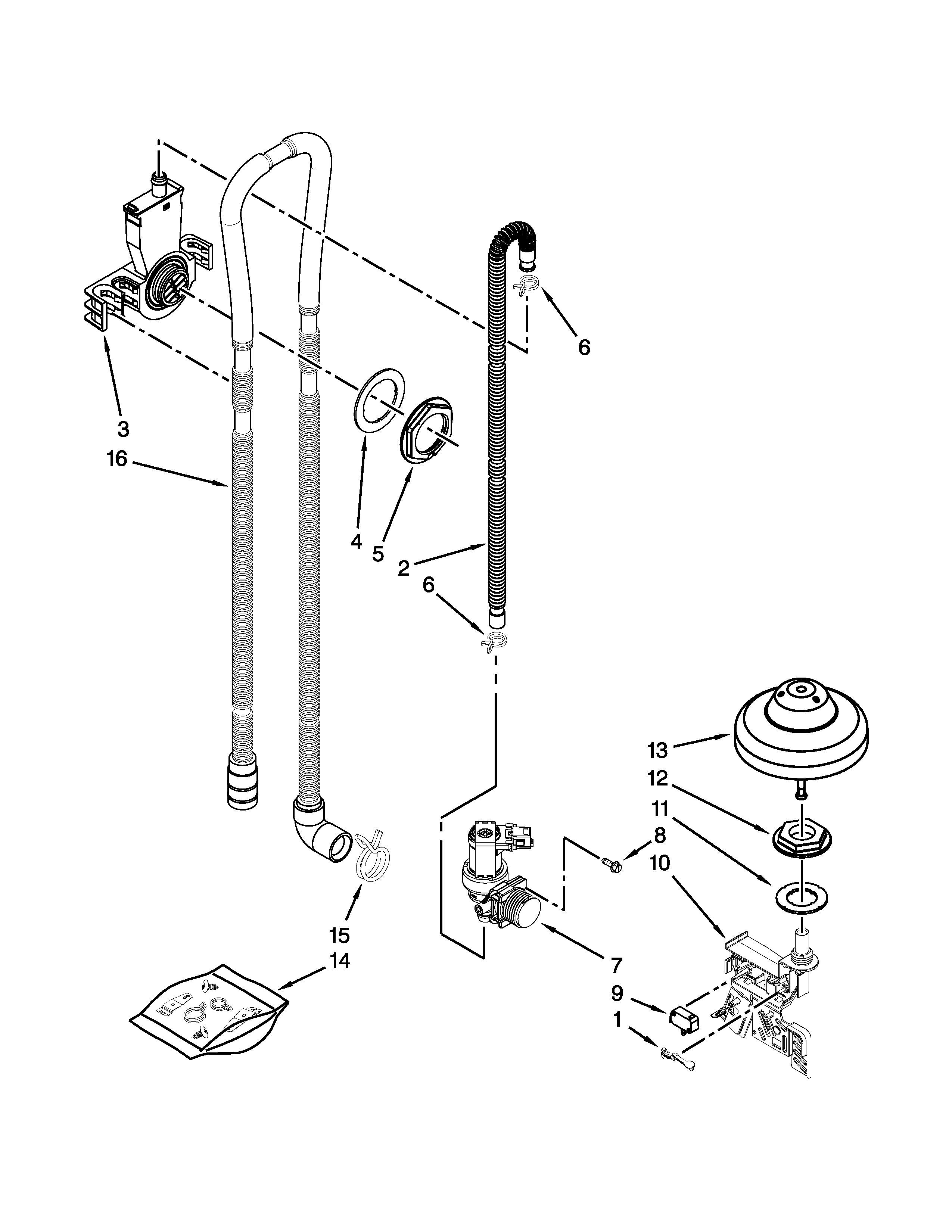

• Address draining problems by checking the dishwasher drain pump WPW10531320 and drain path
• Fix poor filling or no-fill symptoms by testing the dishwasher water inlet valve WPW10327249
• Restore drying and water-heating performance by servicing the element assembly W10703867

Why it matters

Dishwashers often fail gradually. Catching a drain, fill, or heating problem early can prevent secondary damage (like leaks or poor cleaning) and can keep the JDB9200CWX3 operating reliably for years.

Last updated: January 2026

If your Jenn-Air dishwasher model JDB9200CWX3 won’t drain and you don’t see a clog, the problem is usually a failed drain pump, a drain hose issue (kink, crack, or bad routing), or a control-related drain command problem. Use the checks in the JDB9200CWX3 user guide to confirm the correct drain setup and cleaning steps.

Quick checks that solve many “no blockage” drain problems

• Cancel/Drain the cycle and listen: a healthy drain pump typically sounds like a steady motor hum with water rushing out.
• Check the sink drain air gap (if your setup has one); the user guide notes to clean it when the dishwasher isn’t draining well.
• Inspect the drain hose routing under the sink: look for kinks, crushing, or a low loop that can let water flow back.
• Verify the garbage disposal inlet (if connected): make sure the dishwasher inlet plug was removed.
• Confirm the filter area is clean inside the tub; fine debris can restrict flow even when the hose looks clear.

Parts that commonly cause “won’t drain” with no visible clog

If the checks above don’t restore draining, these parts are the most common next suspects for JDB9200CWX3:

Symptom you notice	Most likely area	Common part to check for this model
Pump runs but drains slowly or intermittently	Drain path or weak pump	Dishwasher drain pump WPW10531320
Water backs up after draining	Hose routing or air gap/disposal connection	Dishwasher drain hose (inspect for kinks/cracks)
No drain sound at all during Cancel/Drain	Pump not getting power or failed pump	Drain pump, wiring, or control

Why it matters

A dishwasher that can’t drain leaves dirty water in the sump, which can cause poor cleaning, odors, and cycle interruptions. Fixing the drain issue early also helps protect the pump and motor assembly from running under abnormal conditions.

When to stop and schedule service

• The dishwasher hums but won’t move water (pump may be jammed or failing).
• You see leaks under the unit during a drain attempt.
• The unit never attempts to drain (possible wiring or control issue).

Last updated: January 2026

Yes. Jenn-Air dishwashers are generally considered high quality, and the JDB9200CWX3 is built as a premium dishwasher with features and service support designed for long-term use. Like any high-end dishwasher, performance stays best when it’s installed correctly and maintained per the JDB9200CWX3 user guide.

What “good quality” looks like in real use

We judge dishwasher quality by cleaning results, drying, noise control, and how consistently it runs without leaks or drain issues.

Common signs your dishwasher is performing like it should:

• Dishes come out clean without gritty residue
• The unit fills, washes, and drains completely each cycle
• The door closes firmly and stays latched
• Racks roll smoothly and adjust without binding
• No standing water remains in the bottom after the cycle

Maintenance that protects quality (and prevents common problems)

Even a premium dishwasher can seem “low quality” if water flow, heating, or draining is restricted.

We recommend these habits:

• Use the correct detergent type and avoid overfilling the dispenser
• Rinse heavy food soils off, but do not pre-wash to spotless (detergent needs some soil to work well)
• Clean the filter area regularly to prevent redepositing debris
• Run hot water at the sink before starting a cycle for better wash temperature
• If the dishwasher sits unused for extended periods, shut off water and power to reduce risk of property damage (vacation guidance is covered in the user guide)

Parts that commonly affect “quality” symptoms

If performance drops, these are the parts most often tied to the complaint.

Symptom	Often related to	Example part for this model
Not drying well, poor heating	Heating circuit	Element assembly W10703867
Won’t drain, water left in tub	Drain system	Dishwasher drain pump WPW10531320

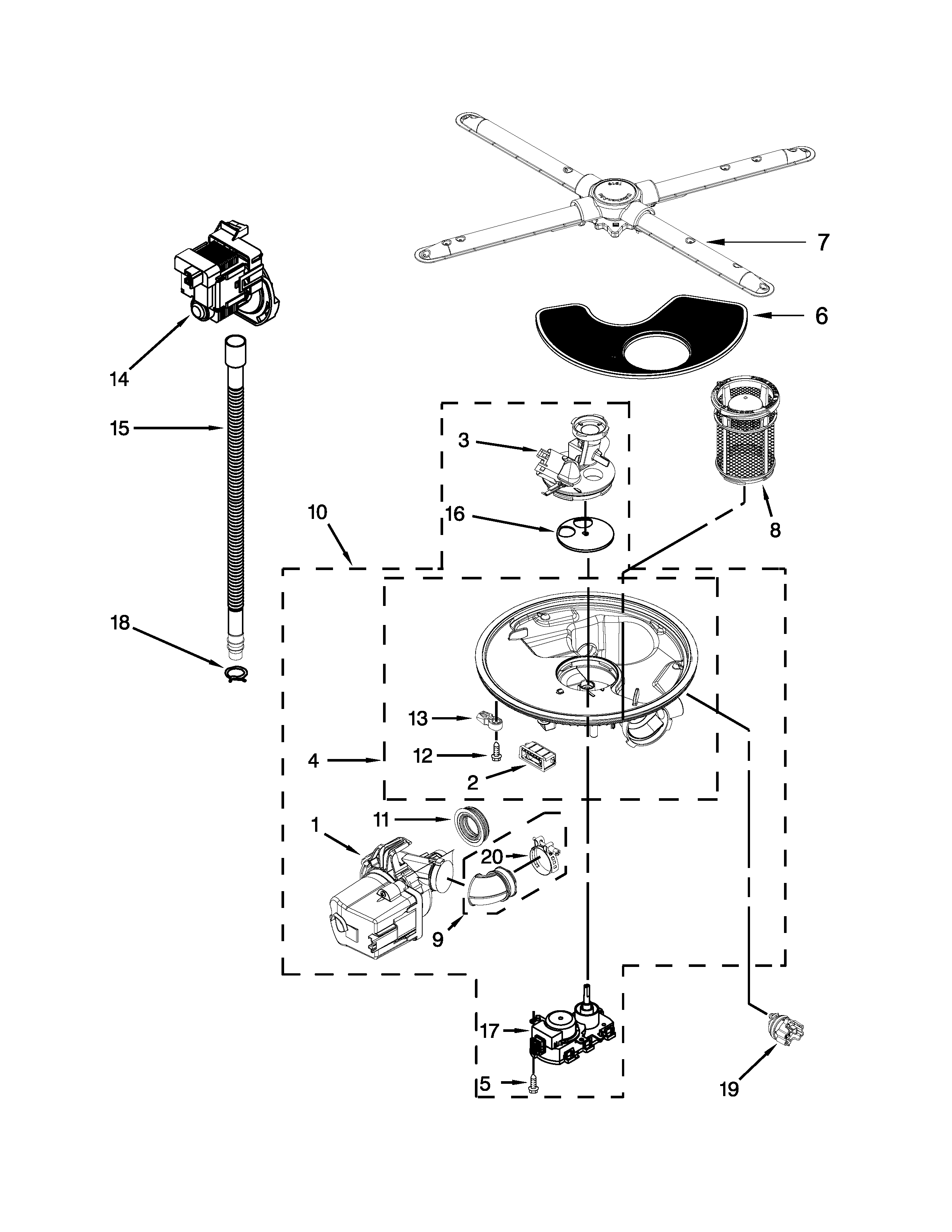

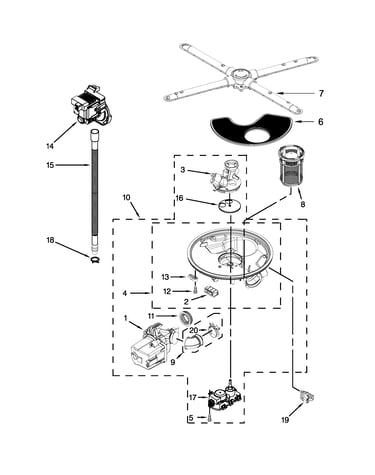

Weak wash, poor spray pressure	Wash circulation	Pump and motor assembly W10899563

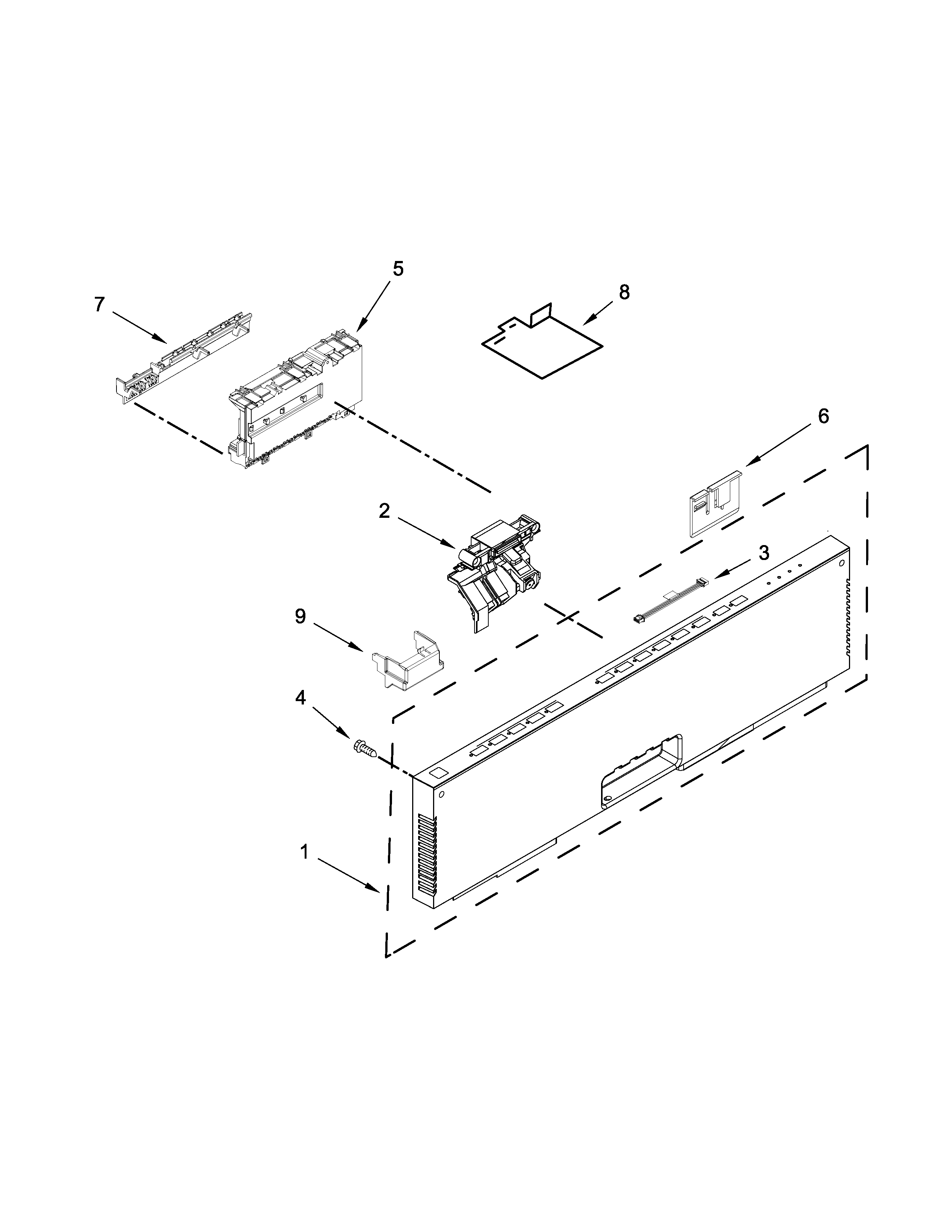

Door won’t close or pops open	Door latch system	Dishwasher door latch WPW10653840

Why it matters

A dishwasher can be “good quality” and still perform poorly if water temperature, filtration, or draining is off. Keeping the wash system clean and addressing early symptoms (like slow draining or weak washing) helps the JDB9200CWX3 stay quiet, efficient, and consistent.

Last updated: January 2026
