Craftsman 917276827 tractor Parts

Some Craftsman mowers use Briggs and Stratton engines, but it depends on the specific model and year. For Craftsman lawn tractor model 917276827, our operator information identifies it as a 20.0 HP, 42-inch deck tractor; confirm the exact engine manufacturer and model by checking the engine ID label and the 917276827 owner's manual.

How to tell what engine is on your Craftsman 917276827

Use these quick checks on the tractor itself (fastest and most accurate):

• Look for the engine shroud decal (often shows Briggs and Stratton, Kohler, or other branding).
• Find the engine model-type-code label (commonly on the valve cover, blower housing, or near the muffler).
• Match the engine label to the specifications/maintenance section in the manual.
• If the tractor cranks but will not start, verify spark, fuel, and air before assuming an engine brand issue.
• Keep the engine area clear of grass and debris to prevent overheating and performance problems.

Common engine brands you may see on Craftsman mowers

Craftsman has been sold with multiple engine suppliers across different mower lines.

Craftsman mower type	Common engine suppliers	What to check
Riding lawn tractor (like 917276827)	Briggs and Stratton, Kohler, others	Engine model-type-code label
Push mower	Briggs and Stratton, others	Engine cc label and model number

Why it matters

The engine brand determines the correct tune-up parts (spark plug, air filter, fuel filter), service specs, and troubleshooting steps. It also helps you order the right tractor parts that interact with starting and drive systems, such as the lawn tractor starter solenoid 582042802 if you are diagnosing a no-crank condition.

If you are troubleshooting starting issues

If you hear clicking or the engine spins but will not start, use a symptom-based guide to narrow it down:

• Single click, no crank: battery cables, solenoid, safety switches
• Rapid clicking: weak battery or poor cable connection
• Cranks but will not start: fuel delivery, spark, air filter restriction
• Dies when you release the brake: safety interlock circuit issue

For step-by-step help, use riding lawn mower engine clicks but doesnt turn over video or riding lawn mower engine spins but wont start video.

Last updated: February 2026

To look up the correct Craftsman model number for parts and manuals, we recommend finding the model and serial tag on your tractor first, then searching by that exact model number (for this unit, it’s 917276827). Using the full model number prevents ordering the wrong blade, belt, or electrical part.

Where to find the model number on a Craftsman riding tractor

On most Craftsman front-engine lawn tractors, the model and serial number label is on the frame under the seat area.

• Park on a flat surface, set the parking brake, and remove the key
• Lift the seat and look on the frame rails directly under the seat
• Check the underside of the seat if you do not see a label on the frame
• Write down the full model number and serial number exactly as shown
• Use the model number when searching parts diagrams and the 917276827 owner's manual

How to use the model number to get the right parts

Once you have the model number, match parts by description and application (mower deck, drive system, steering, electrical).

What you’re replacing	What to match	Example for model 917276827
Mower deck blade	Deck size and blade style	Lawn tractor 42-in deck high-lift blade 532138971

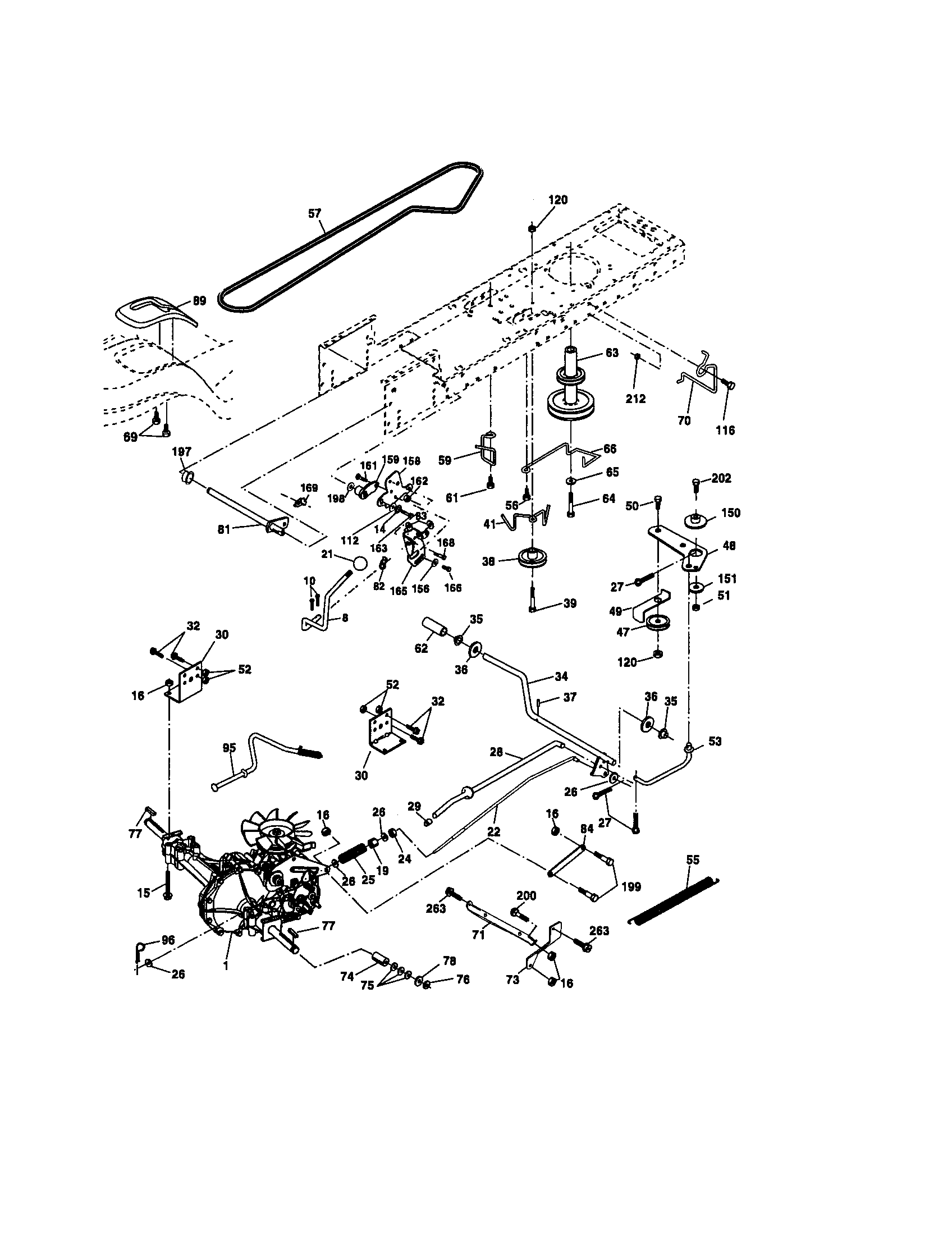

Ground drive belt	Length and width	Ground drive belt (commonly listed by size)
Starting issue part	Electrical function and fit	Starter solenoid (match by model)

Why it matters

Craftsman tractors often share similar names and deck sizes, but parts like blades, belts, and mandrel assemblies can vary by production run. Searching by the exact model number (917276827) keeps your parts list aligned with the correct diagrams and specifications.

Last updated: February 2026

For a Craftsman riding mower like model 917276827, the most reliable way to tell the model year is to use the product identification label (often under the seat or on the frame) and decode the date code printed on that label; then confirm the exact model and spec details in the 917276827 owner's manual.

Where to find the date code

Check these common locations on Craftsman front-engine lawn tractors:

• Under the seat pan (lift the seat and look on the frame)
• On the rear fender pan near the seat
• On the left or right frame rail
• Near the engine area on the chassis
• On a sticker or metal tag that also lists the model and serial

How the date code is typically formatted

Many Craftsman-built riding mowers use a 6-digit date code that reads as:

• MM = month
• DD = day
• YY = year

Example

If the label shows 072811, that decodes to July 28, 2011.

Code format	What it means	Example	Decoded date
MMDDYY	Month, day, year	072811	July 28, 2011

Confirm you are reading the right numbers

On the ID label, you may see several different numbers. Use this quick check:

• Model number: should match 917276827
• Serial number: longer string, unique to your tractor
• Date code: often 6 digits (MMDDYY) and may be near the serial

Why it matters

Knowing the model year helps us match the correct parts and service procedures for your Craftsman tractor, especially for deck components (blades, mandrels), belts, and electrical parts like the starter solenoid.

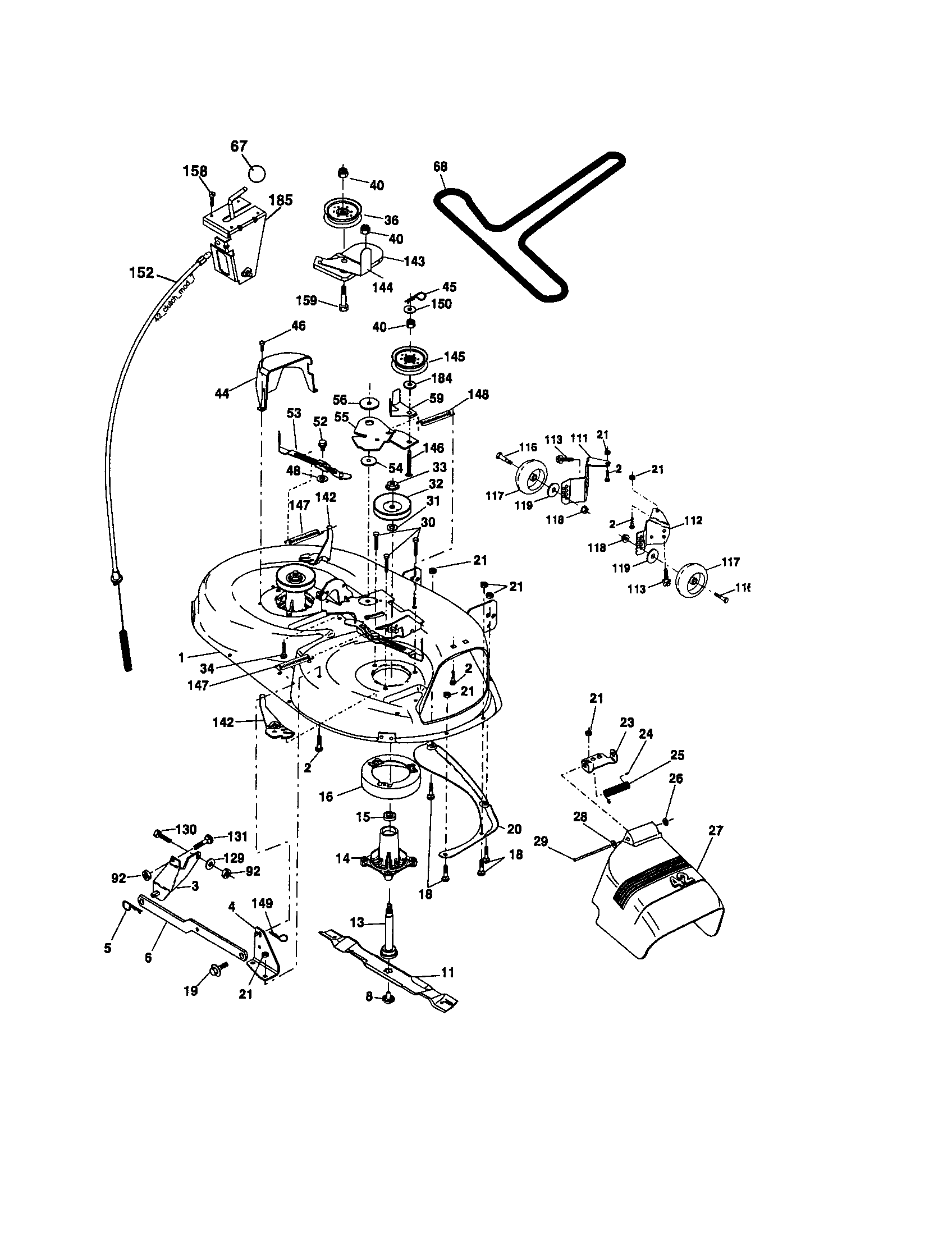

If you are ordering deck parts, match by model first, then verify deck size and configuration in the manual; for example, a 42-inch deck on this platform commonly uses parts like the lawn tractor mandrel housing 587819701.

Last updated: February 2026

Yes, it’s worth repairing the engine on your Craftsman tractor model 917276827 when the problem is a maintenance-type issue (fuel, spark, air, belts) and the tractor is otherwise solid; it’s usually not worth it when the engine has internal damage or the repair estimate approaches the cost of a replacement tractor.

Quick decision checklist

• Repair it when it’s a no-start caused by stale fuel, a loose spark plug wire, a dirty air filter, or basic tune-up needs.
• Repair it when the tractor still drives well and the deck and chassis are in good shape.
• Replace or retire it when the engine has low compression, heavy smoking, knocking, or metal-in-oil symptoms.
• Replace or retire it when the crankshaft is bent (often after striking an object) or the repair requires major internal labor.
• Repair it when the fix is a known wear item and you can do the work yourself.

What we see most often on model 917276827

The troubleshooting guidance for this tractor points to common, fixable causes such as fuel quality (stale/contaminated fuel), spark plug wire connection, dirty engine cooling fins/screen, clogged muffler, wiring issues, and carburetor adjustment. Those are typically “worth repairing” because they restore operation without rebuilding the engine. Use the 917276827 owner’s manual to follow the troubleshooting chart and service steps.

Cost-to-value rule of thumb

Use this simple comparison to decide quickly:

Situation	Typical best choice	Why
Starts poorly, runs rough, stalls, or backfires on shutdown	Repair	Often fuel, ignition, or carburetion related
Blades won’t rotate or cut is uneven	Repair deck system	Usually belt, mandrel, blade, or deck leveling
Knocking, seized engine, or major internal failure	Replace engine/tractor	High labor and parts cost vs. value

Parts that can make a “repair” worthwhile

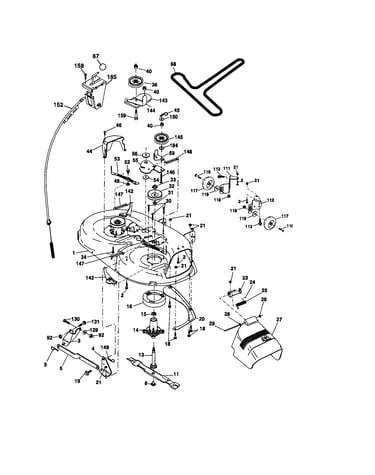

If the issue is in the cutting system (not the engine), replacing worn deck components often restores performance at a reasonable cost:

• Lawn tractor mandrel housing 587819701 (supports the blade mandrel assembly)
• Lawn tractor 42-in deck high-lift blade 532138971 (improves lift and discharge when correct for your setup)
• Lawn tractor ground drive belt, 1/2 x 82-in 532140294 (helps restore drive if slipping or worn)

Why it matters

A riding tractor like the Craftsman 917276827 is built from multiple systems (engine, drive, deck, safety interlocks). Many “engine problems” are actually maintenance or safety-related issues, and fixing the right root cause prevents repeat failures and avoids unnecessary engine replacement.

Last updated: February 2026

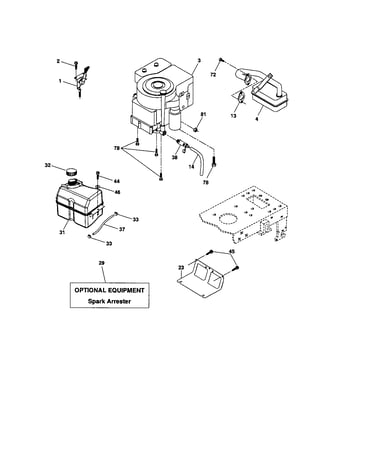

On the Craftsman lawn tractor model 917276827, the engine is built from fuel, air-intake, ignition, and internal rotating parts that work together to create combustion and turn the crankshaft. Your 917276827 owner's manual covers safe operation and the key controls tied to starting and running the engine.

Core lawn tractor engine parts (what they do)

• Fuel tank and fuel line: stores and delivers gasoline to the engine
• Carburetor: mixes fuel and air for combustion
• Air filter and air box: keeps dirt out of the intake air
• Throttle/choke control: adjusts engine speed and enriches fuel mix for cold starts
• Ignition system (spark plug, ignition coil, flywheel magnets): creates spark at the right time
• Starter system (battery, starter motor, solenoid): cranks the engine for electric start
• Engine internals (cylinder, piston, connecting rod, crankshaft, valves): convert combustion into rotation

Related tractor systems people often call “engine parts”

On riding mowers like the 917276827, several systems affect whether the engine starts and keeps running:

• Operator-presence and safety interlock switches (seat, brake, attachment clutch)
• Muffler and heat shielding (exhaust routing and heat control)
• Cooling fins and air screen (helps prevent overheating)
• Drive and attachment controls (clutch/brake pedal, motion control lever, attachment clutch lever)

Quick troubleshooting map (symptom to likely area)

Symptom	Most common area to check	Example part type
Clicks but won’t crank	Battery cables, solenoid, starter	Starter solenoid
Cranks but won’t start	Fuel delivery, carburetor, spark	Carburetor, spark plug
Starts then dies	Choke setting, dirty air filter, fuel restriction	Air filter, fuel line
Runs rough	Dirty carburetor, old fuel, fouled plug	Carburetor, spark plug

If you suspect a no-crank issue, the lawn tractor starter solenoid 582042802 is one of the common electrical components involved.

Why it matters

Knowing which parts belong to the fuel, air, and ignition systems helps you diagnose faster and buy the right replacement parts the first time, especially on a 20 HP, electric-start riding tractor.

Last updated: February 2026

On your Craftsman lawn tractor model 917276827, the product date code is typically printed on an ID label or stamped into a component; the most reliable place to confirm label locations and what each code means is the 917276827 owner's manual. For Craftsman batteries, the date code is commonly a 6-digit code printed or engraved on the battery case.

Common places to check on a riding lawn tractor

Look in these spots first (use a flashlight and wipe off dirt or grass buildup):

• Under the seat on the frame or fender pan
• On the chassis rail near the engine compartment
• Near the steering column area
• Around the rear frame by the transaxle
• On the battery case itself (top or side)

Battery and charger date codes (what to look for)

If you are checking a battery used with the tractor, the date code is usually:

• 6 digits long
• Printed or engraved directly into the plastic housing
• Located near the top of the battery case

If you are checking a charger, the date code is commonly found on the bottom of the unit.

Quick ID guide: date code vs. model/serial information

Marking you see	What it usually identifies	Where it’s commonly found
Date code (often 6 digits)	Manufacturing date	Battery case, charger base, or ID label area
Model number	Product family and configuration	Tractor ID label, manual cover
Serial number	Unique unit identifier	Tractor ID label

Why it matters

Knowing the date code helps us match the right maintenance schedule, confirm compatible parts (like blades and belts), and troubleshoot age-related issues such as hard starting, weak charging, or belt wear.

Last updated: February 2026
