Side-By-Side Refrigerator

Model # GSE25HMHEHES Official GE refrigerator

Here are the diagrams and repair parts for Official GE GSE25HMHEHES refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

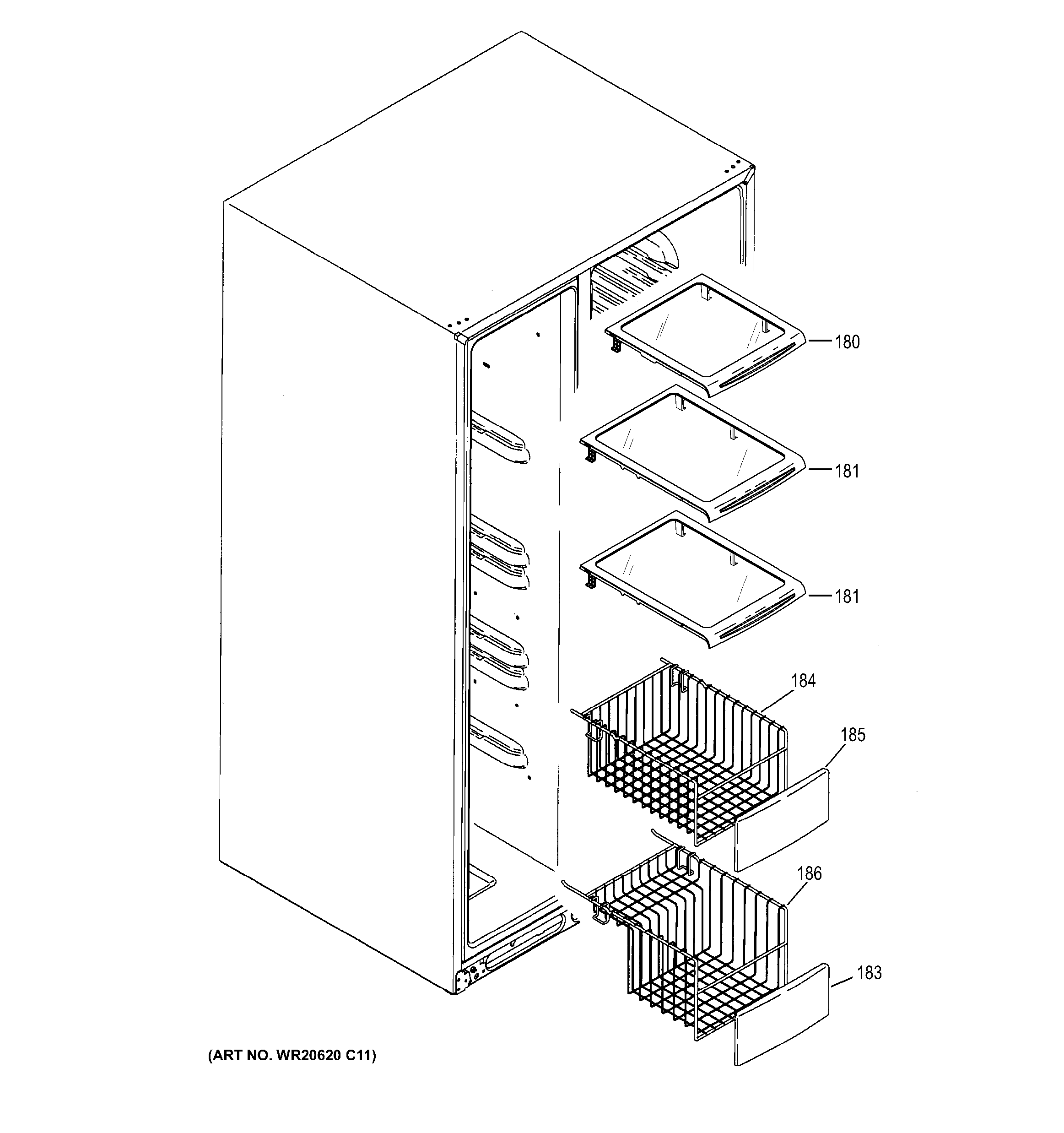

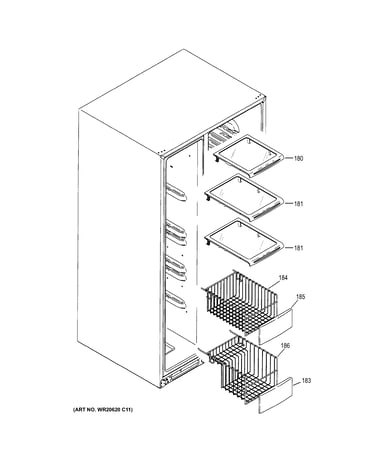

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 240 parts  |

Ge Refrigerator Water Filter (replaces 9970, Mwfpa) MWF
#790

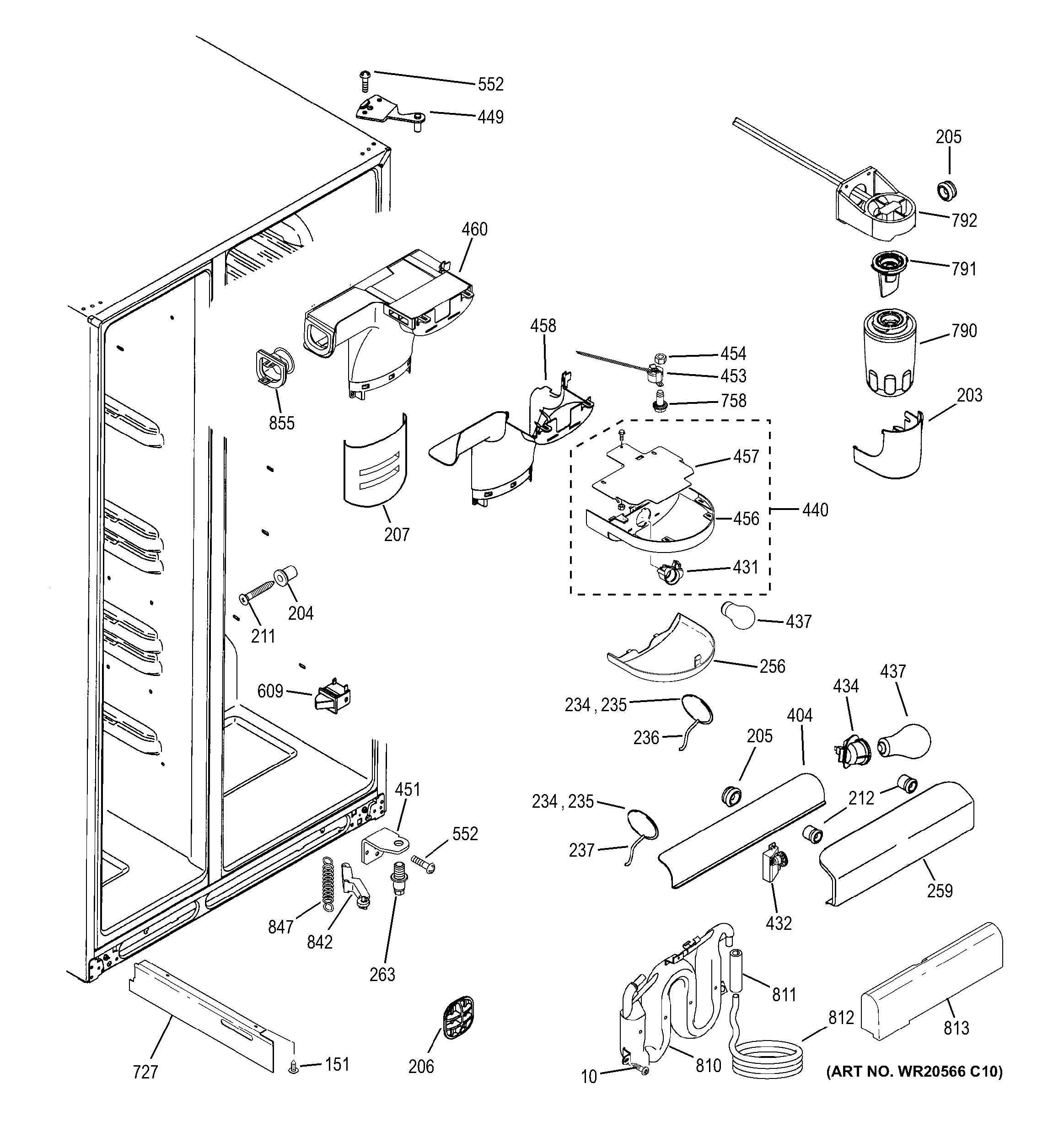

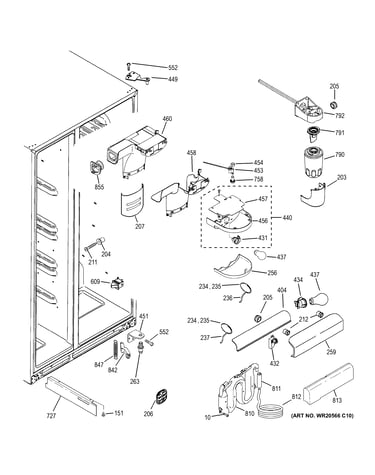

Fresh food section diagram

Ge refrigerator water filter (replaces 9970, mwfpa)

Part #MWF

BEST SELLER

Get free shipping with Automatic Reorder

In Stock
Refrigerator Ice Maker Kit (replaces Wr29x10001, Wr29x10002, Wr29x10080, Wr29x157, Wr29x158, Wr29x160, Wr29x185, Wr29x27993, Wr29x5181, Wr30x10043, Wr30x10109, Wr30x28702, Wr30x30972) WR30X10093
#820

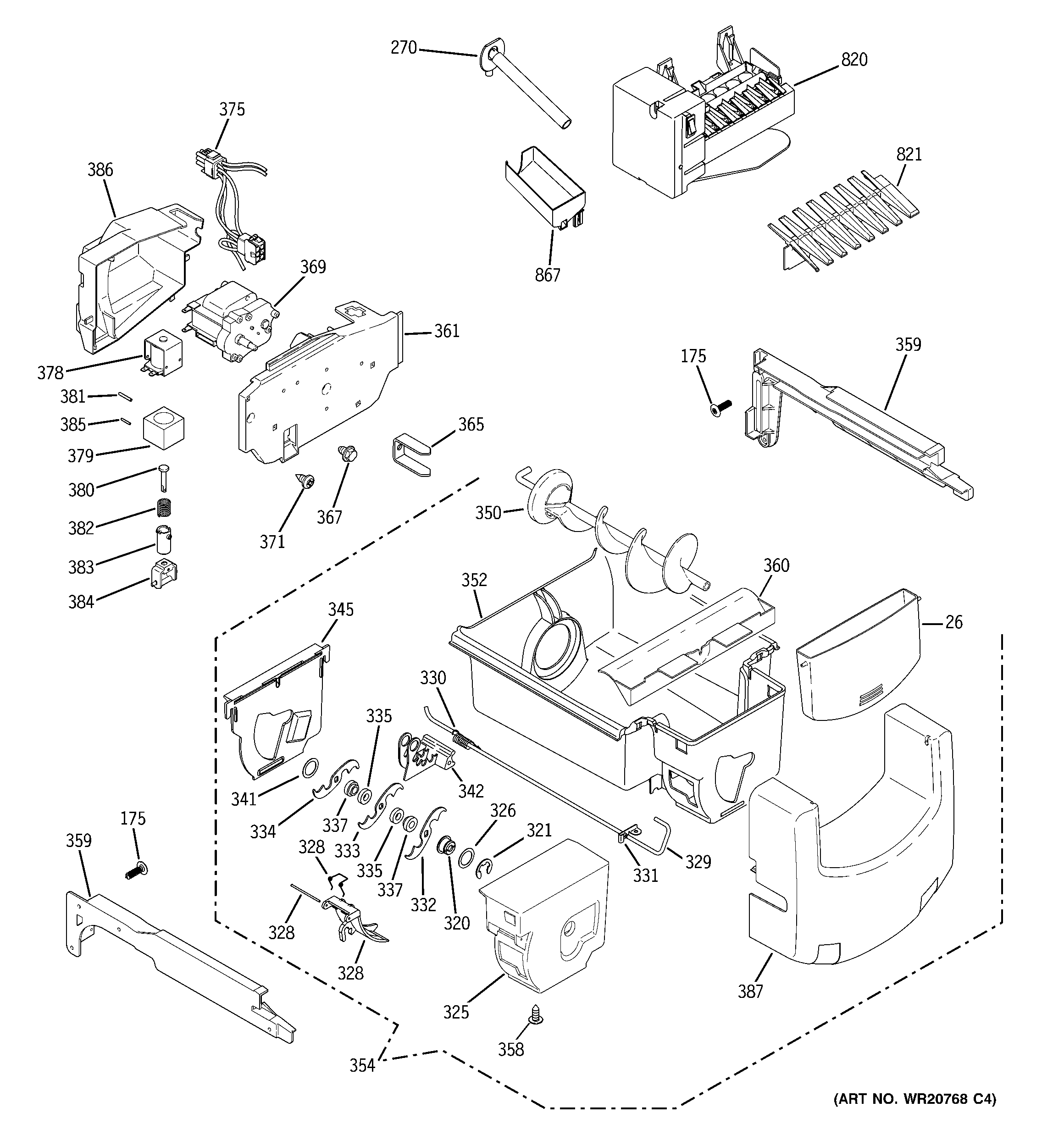

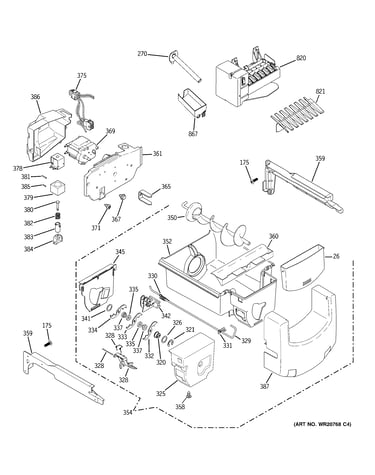

Ice maker & dispenser diagram

Refrigerator ice maker kit (replaces wr29x10001, wr29x10002, wr29x10080, wr29x157, wr29x158, wr29x160, wr29x185, wr29x27993, wr29x5181, wr30x10043, wr30x10109, wr30x28702, wr30x30972)

Part #WR30X10093

BEST SELLER
$187.55
5% OFF Phone Price : $197.55
In Stock
Refrigerator Run Capacitor WR55X24064
#729

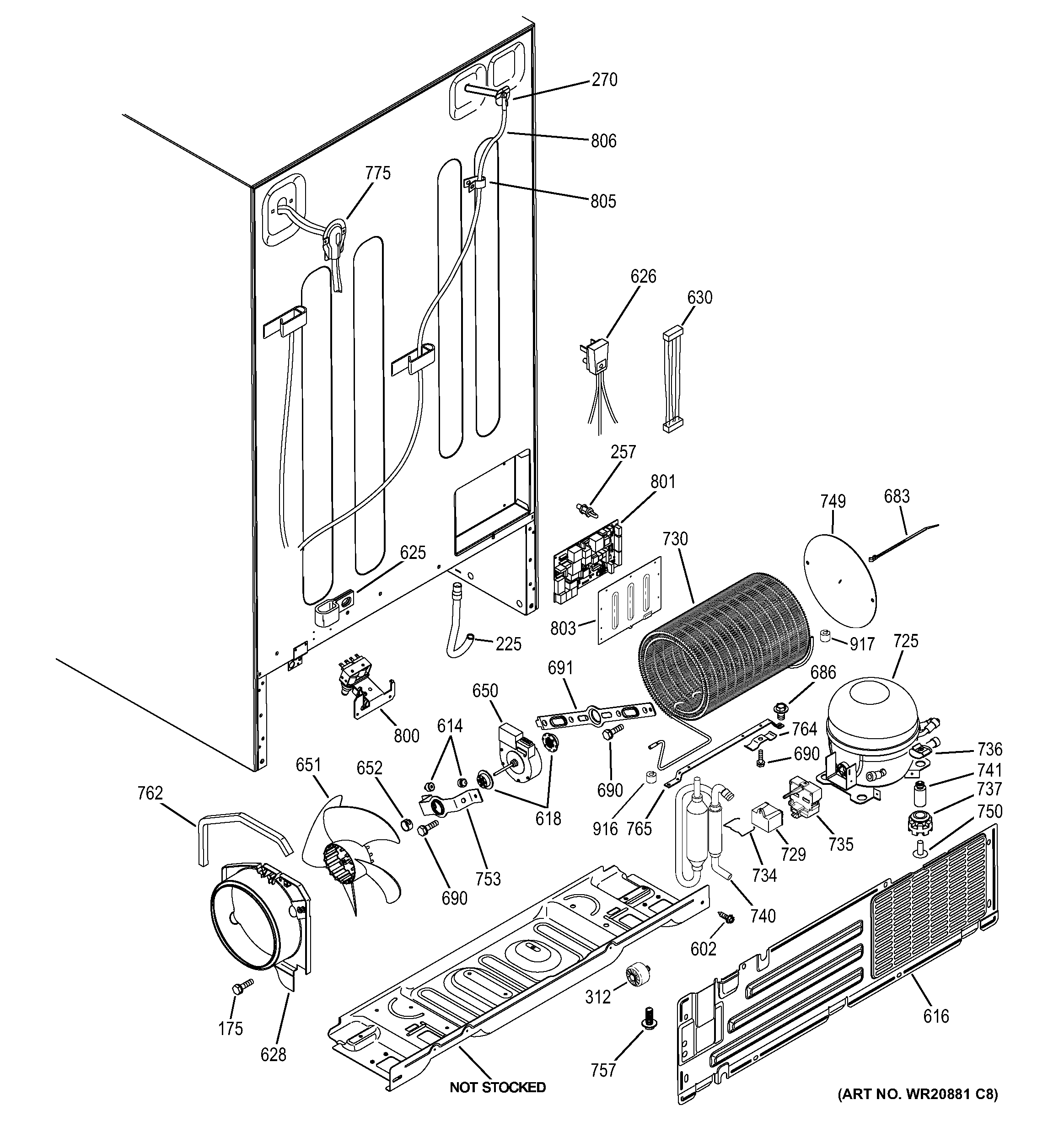

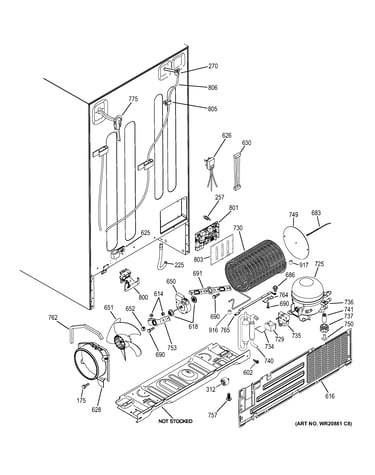

Machine compartment diagram

Refrigerator run capacitor

Part #WR55X24064

BEST SELLER
$25.26
17% OFF Phone Price : $30.26
In Stock
Refrigerator Defrost Heater (replaces Wr51x10030) WR51X10055
#230

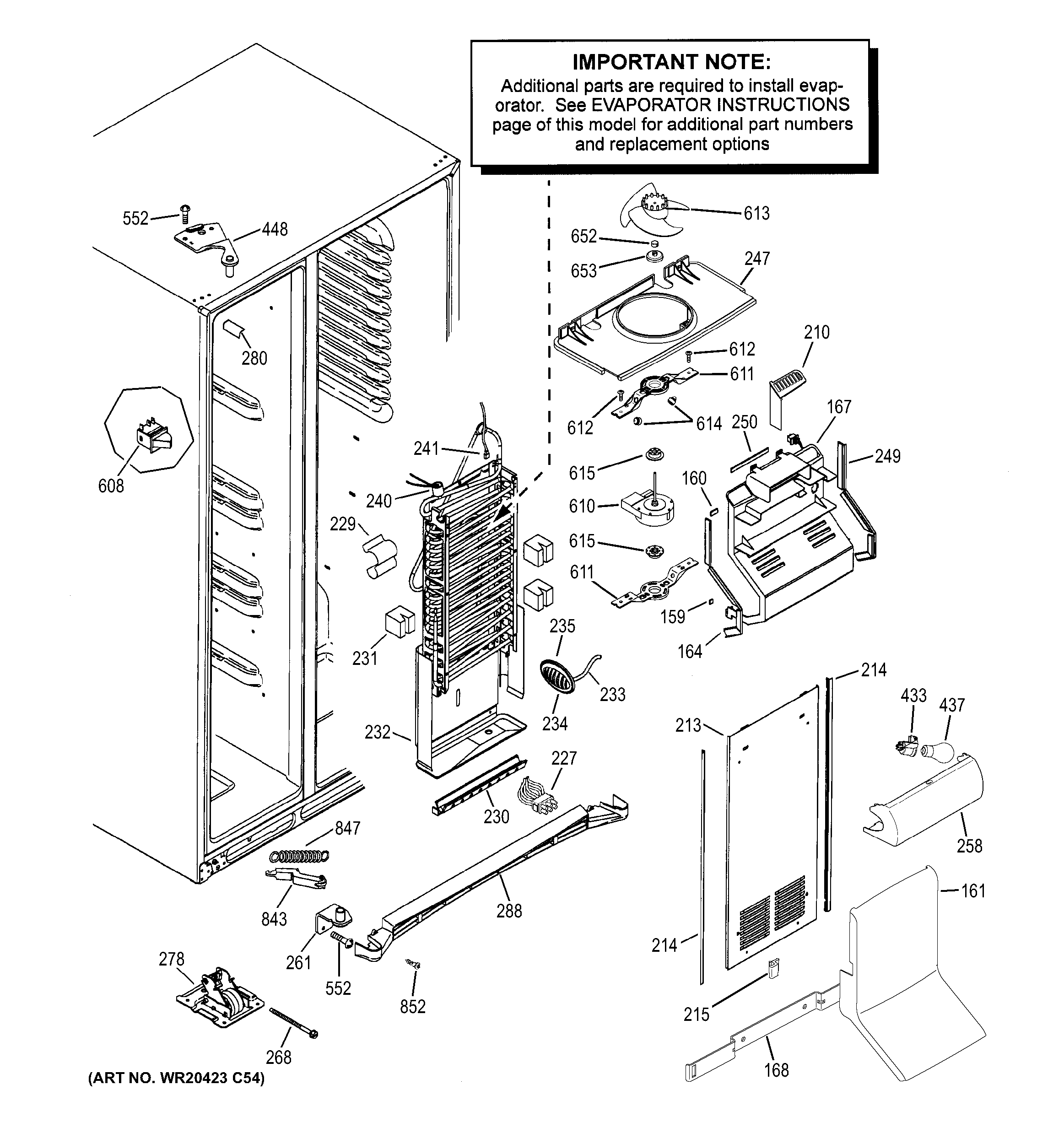

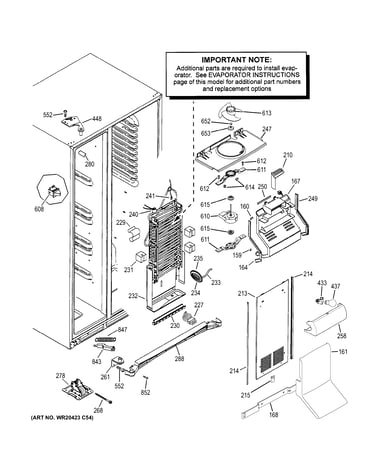

Freezer section diagram

Refrigerator defrost heater (replaces wr51x10030)

Part #WR51X10055

BEST SELLER
$92.64
5% OFF Phone Price : $97.64
In Stock
Refrigerator Door Bin Guard (replaces Wr71x10289) WR71X10761
#127

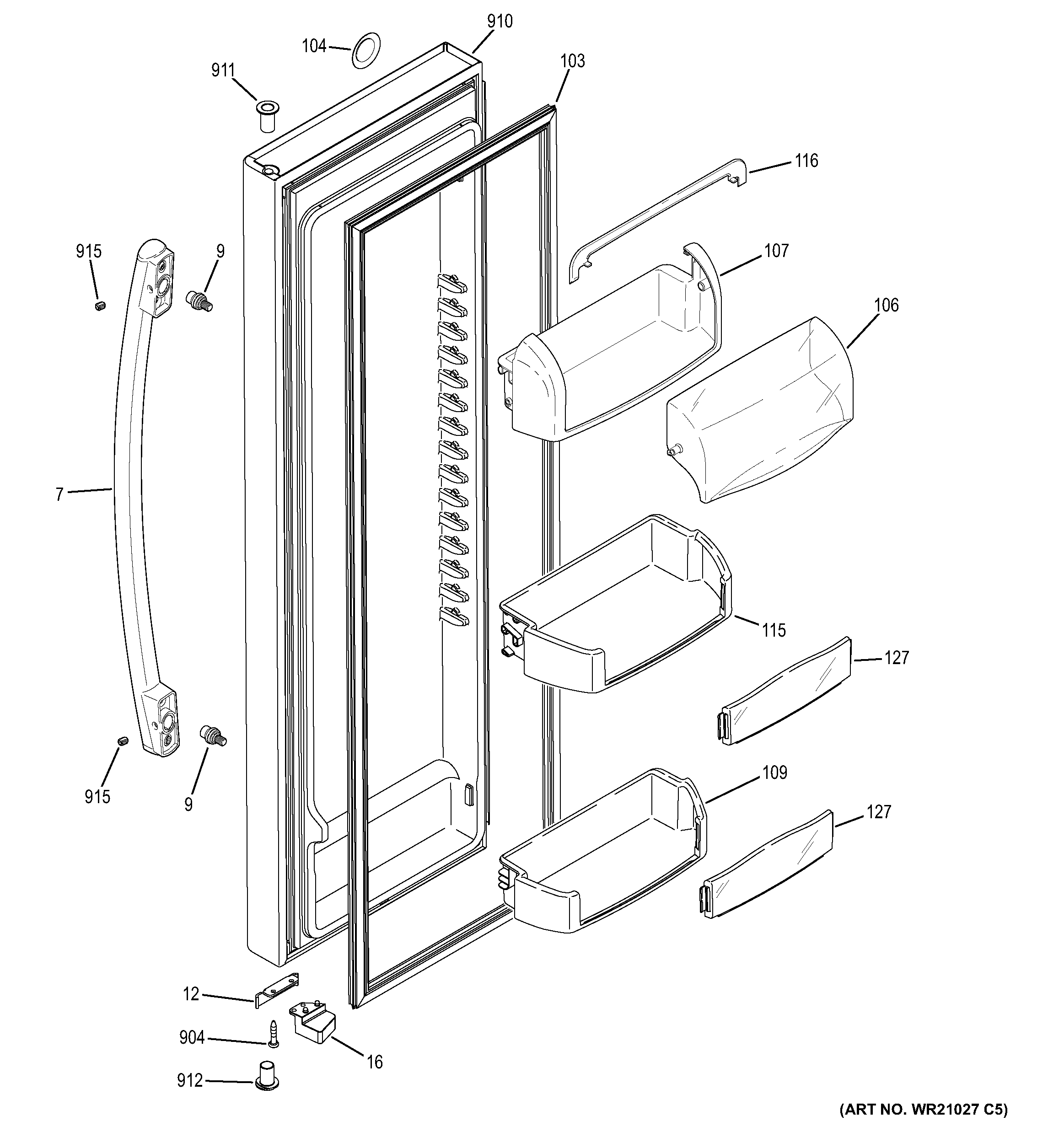

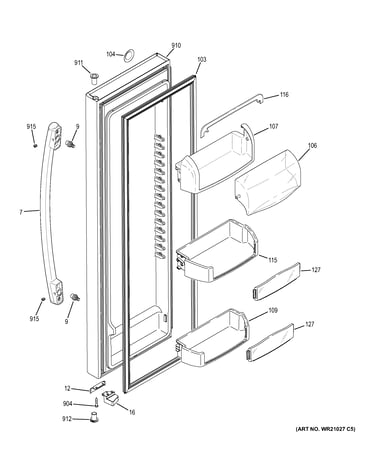

Fresh food door diagram

Refrigerator door bin guard (replaces wr71x10289)

Part #WR71X10761

BEST SELLER
$24.83
17% OFF Phone Price : $29.83
In Stock
Refrigerator Water Reservoir Assembly WR17X11440
#810

Fresh food section diagram

Refrigerator water reservoir assembly

Part #WR17X11440

BEST SELLER
$33.48
13% OFF Phone Price : $38.48
In Stock
Refrigerator Water Valve WR57X10040
#800

Machine compartment diagram

Refrigerator water valve

Part #WR57X10040

Replaced by #WR57X33326

?
Manufacturer substitution
This part replaces WR57X10040. Substitute parts can look different from the original.
BEST SELLER
$67.20
7% OFF Phone Price : $72.20
In Stock
Refrigerator Crisper Drawer Seal WR14X10059
#414

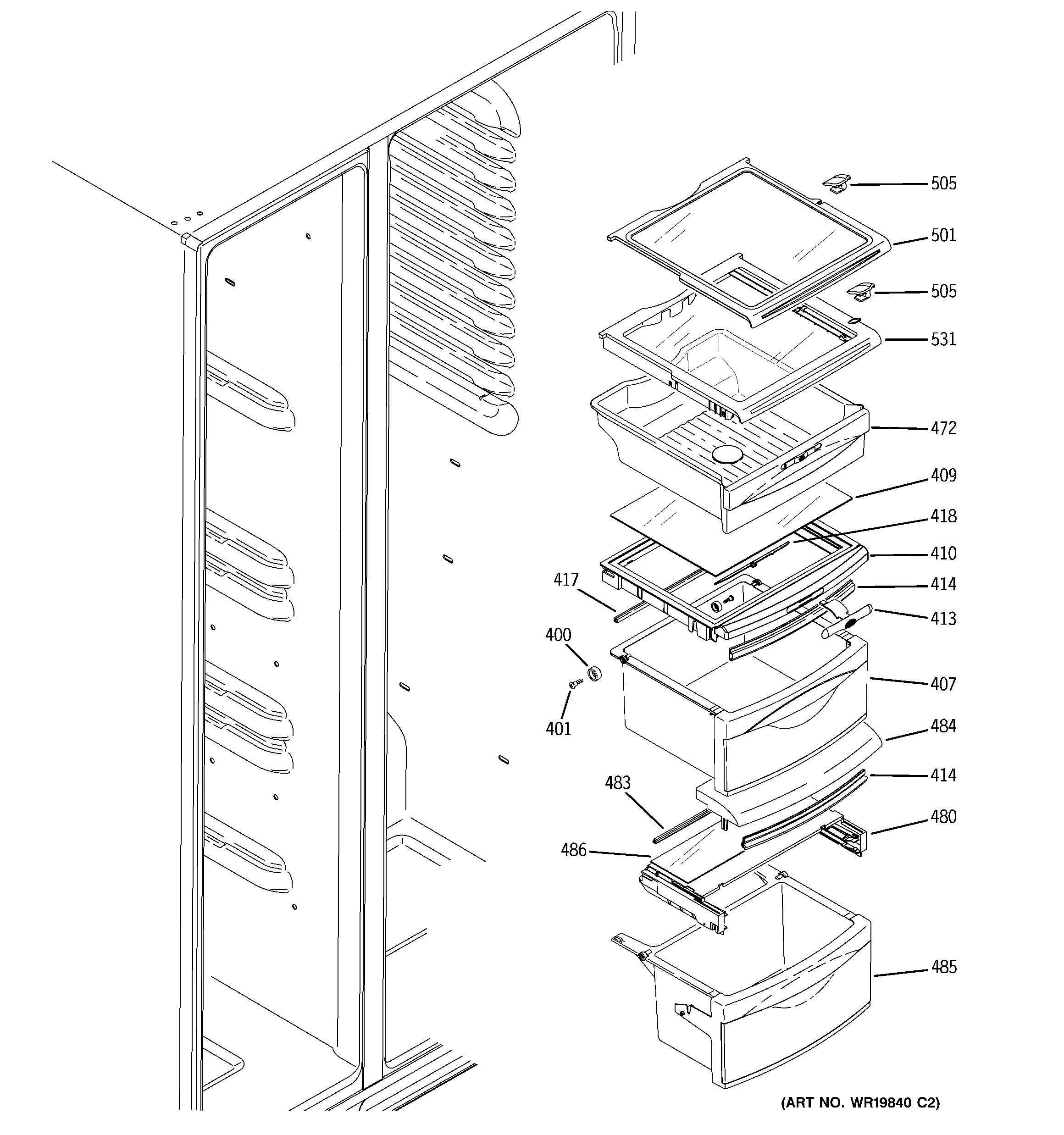

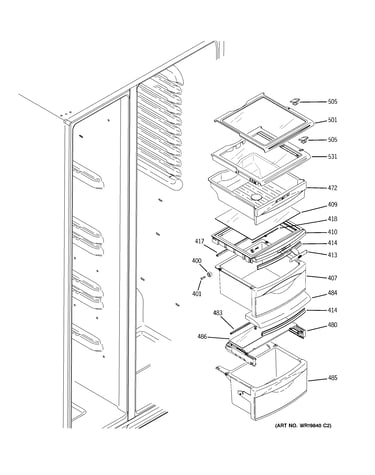

Fresh food shelves diagram

Refrigerator crisper drawer seal

Part #WR14X10059

BEST SELLER
This item is not returnable
$7.57
12% OFF Phone Price : $8.57
In Stock
Refrigerator Dispenser Lever Spring WR02X10585
#63

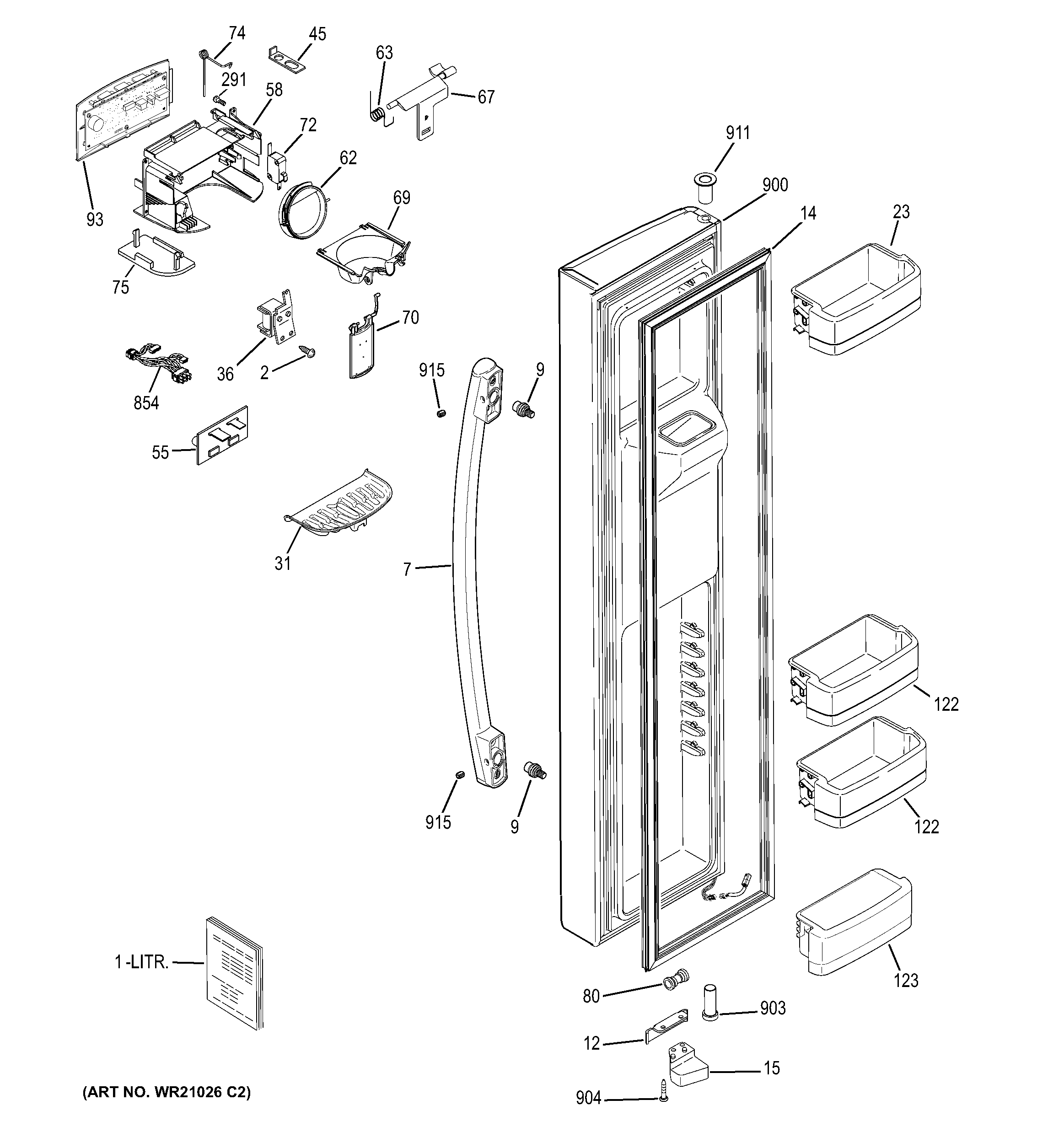

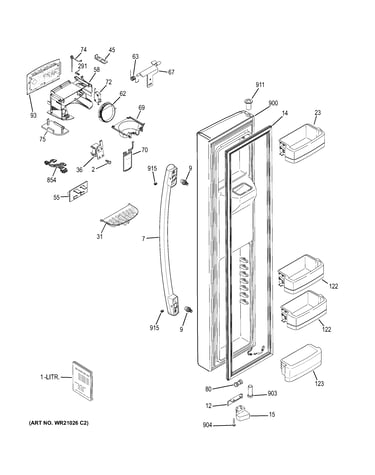

Freezer door diagram

Refrigerator dispenser lever spring

Part #WR02X10585

BEST SELLER
$7.91
11% OFF Phone Price : $8.91
In Stock
Refrigerator Door Bin, Center (replaces Wr71x10607) WR71X10973
#115

Fresh food door diagram

Refrigerator door bin, center (replaces wr71x10607)

Part #WR71X10973

BEST SELLER
$114.05
8% OFF Phone Price : $124.05
In Stock
