Model #LGR7648KT1 Whirlpool dryer

Here are the diagrams and repair parts for Whirlpool LGR7648KT1 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 166 parts

    Dryer Thermal Fuse, 195-degree F#7

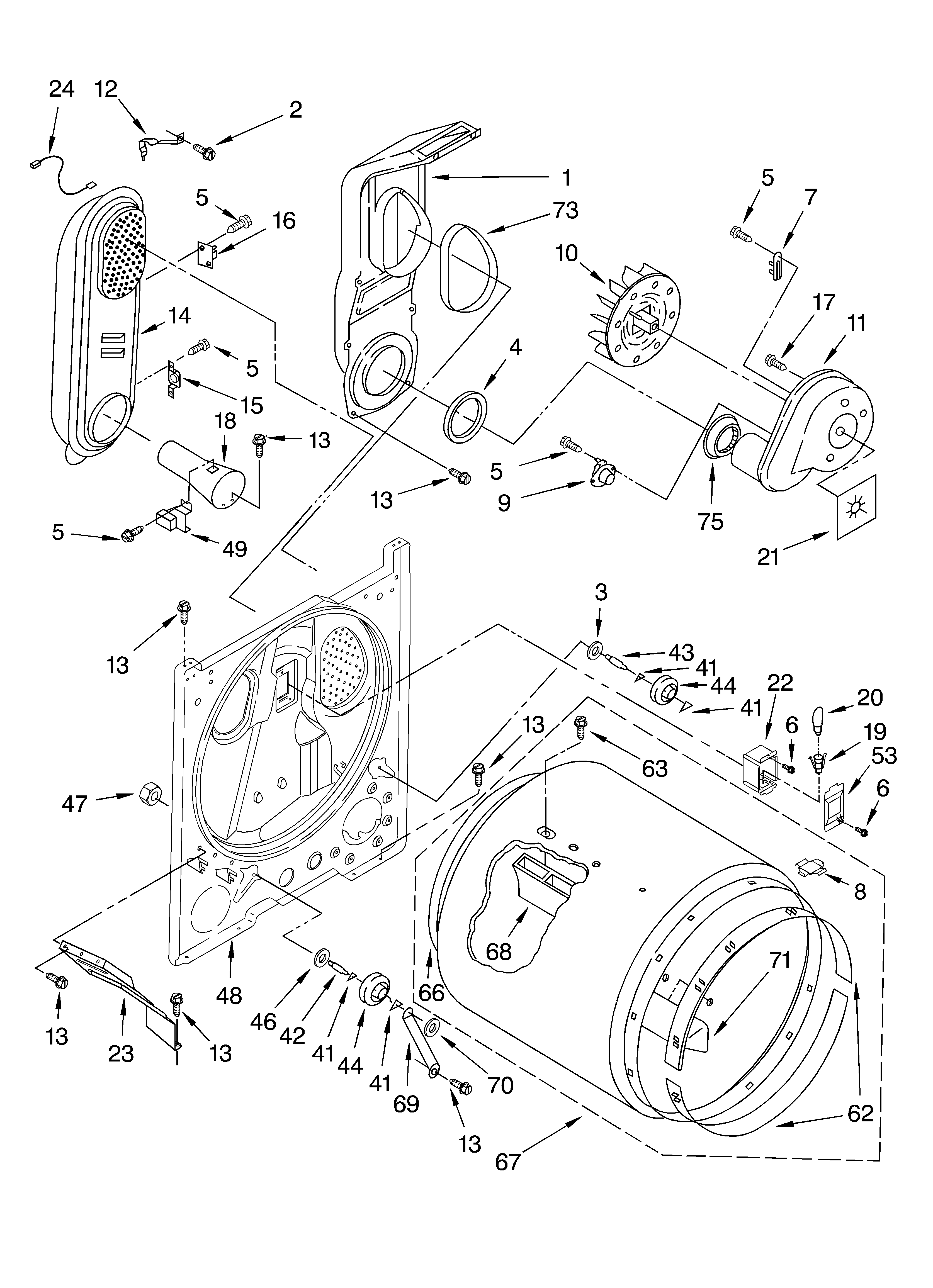

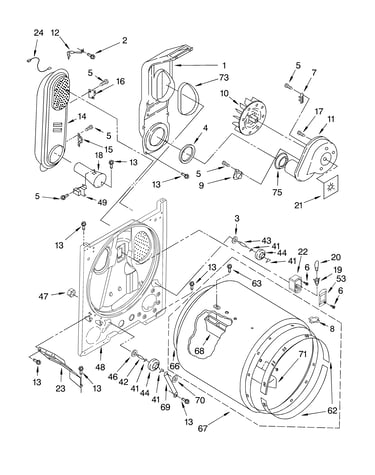

    Bulkhead Diagram

    Dryer thermal fuse

    Part #3392519
    Replaced by #WP3392519
    ?
    Manufacturer substitution
    This part replaces 3392519. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $19.29
    Dryer Repair Kit#NI

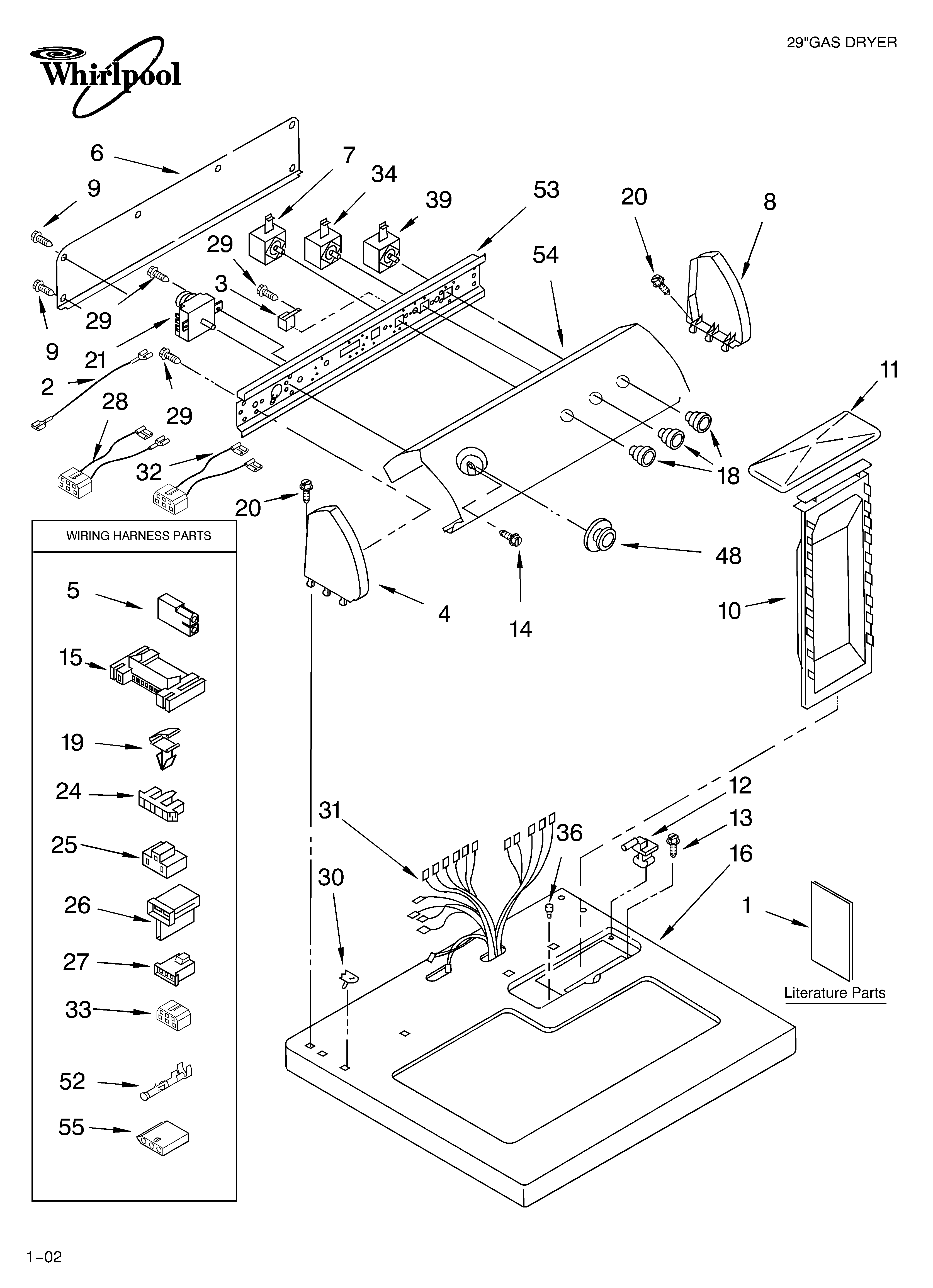

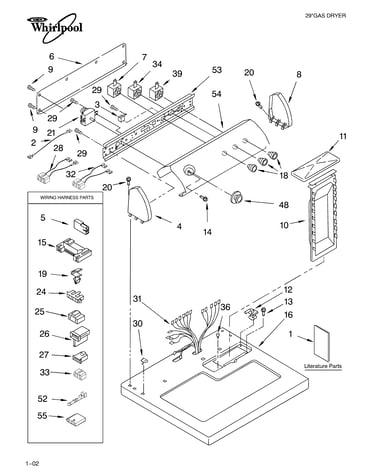

    Top and console/literature Diagram

    Dryer repair kit

    Part #279948
    Replaced by #4392065
    ?
    Manufacturer substitution
    This part replaces 279948. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $25.99 |
    45% OFF
    MSRP: $47.00
    Dryer Drum Support Roller Kit#44

    Bulkhead Diagram

    Support

    Part #3397588
    Replaced by #349241T
    ?
    Manufacturer substitution
    This part replaces 3397588. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $21.99
    Dryer Door Switch#10

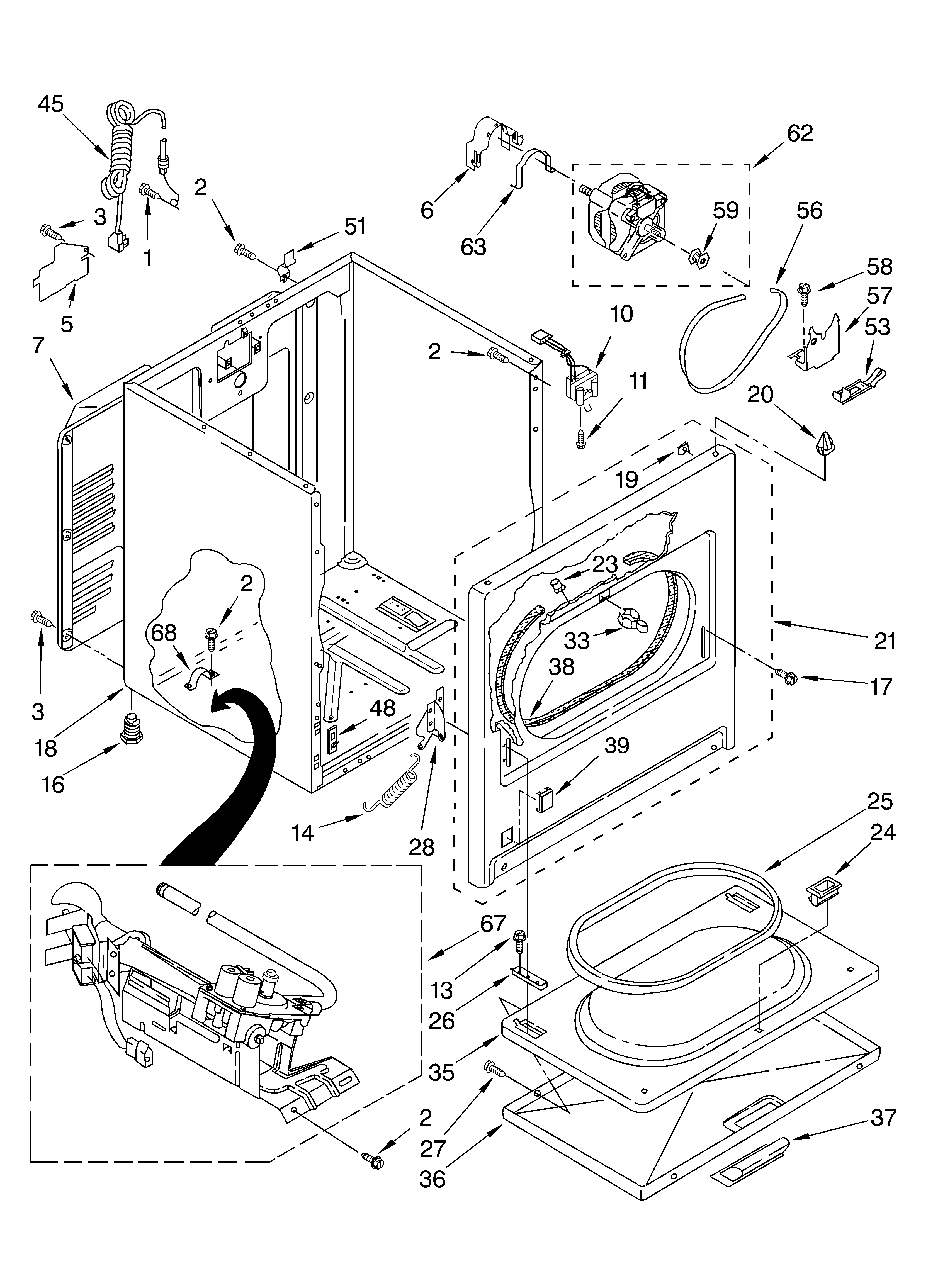

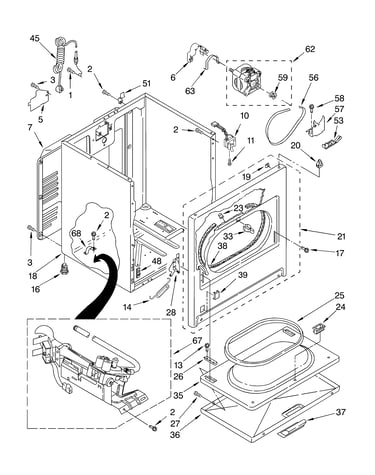

    Cabinet Diagram

    Dryer door switch

    Part #3406107
    Replaced by #WP3406107
    ?
    Manufacturer substitution
    This part replaces 3406107. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $27.89
    Dryer Door Latch Kit#33

    Cabinet Diagram

    Strike

    Part #696144
    Replaced by #279570
    ?
    Manufacturer substitution
    This part replaces 696144. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $6.19 |
    52% OFF
    MSRP: $13.00
    Dryer Door Seal#25

    Cabinet Diagram

    Dryer door seal

    Part #3390731
    Replaced by #W10906683
    ?
    Manufacturer substitution
    This part replaces 3390731. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $56.39 |
    10% OFF
    MSRP: $63.00
    Dryer Drive Motor#62

    Cabinet Diagram

    Motor

    Part #661654
    Replaced by #279827
    ?
    Manufacturer substitution
    This part replaces 661654. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $106.39 |
    18% OFF
    MSRP: $130.00
    Dryer Idler Pulley#53

    Cabinet Diagram

    Idler pulley

    Part #3394332
    Replaced by #WP691366
    ?
    Manufacturer substitution
    This part replaces 3394332. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $21.39
    Dryer Valve Coil Kit#14

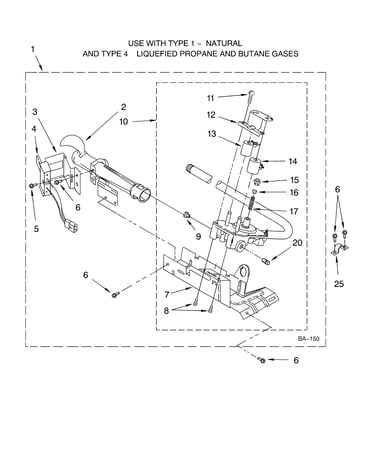

    8318272 burner Diagram

    Dryer gas valve coil kit

    Part #694539
    Replaced by #279834
    ?
    Manufacturer substitution
    This part replaces 694539. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $27.39
    Dryer Valve Coil Kit#13

    8318272 burner Diagram

    Dryer valve coil kit

    Part #694540
    Replaced by #279834
    ?
    Manufacturer substitution
    This part replaces 694540. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $27.39

    Symptoms common to all dryers

    Choose a symptom to see related dryer repairs.

    Main causes: bad drum support roller, damaged idler pulley, broken blower fan blade, worn drum glide bearing, bad drive motor
    Main causes: bad gas valve coils, broken heating element, tripped safety thermostat or fuse, bad operating thermostat, control failure
    Main causes: bad timer or electronic control board, door switch failure
    Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, blown thermal fuse, bad door switch
    Main causes: clogged exhaust vent, bad motor relay, loose dryer door catch, bad door switch, control system failure, faulty drive motor
