Whirlpool
Side-By-Side Refrigerator

Model #ED2PHEXMQ00 Official Whirlpool side-by-side refrigerator

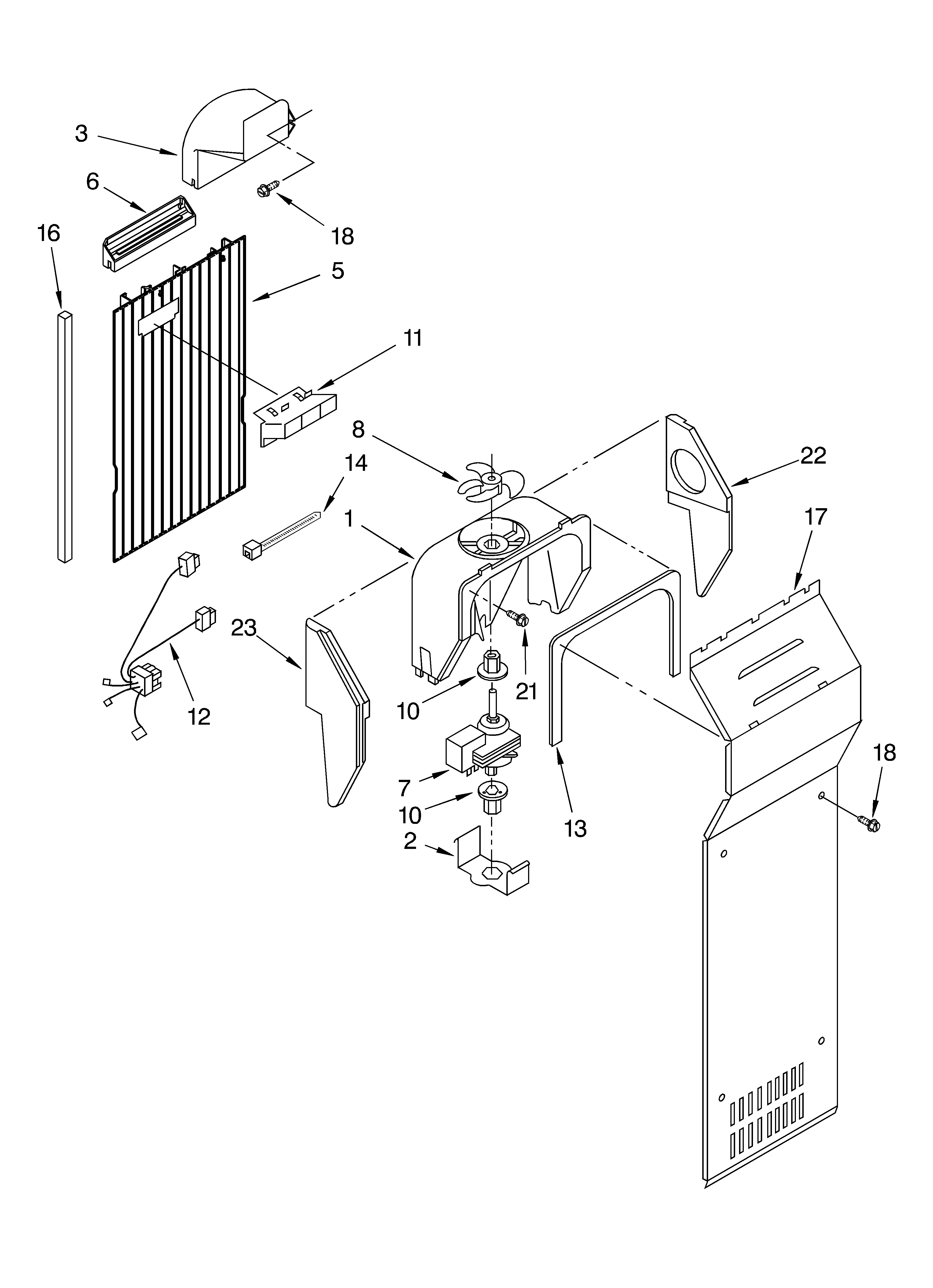

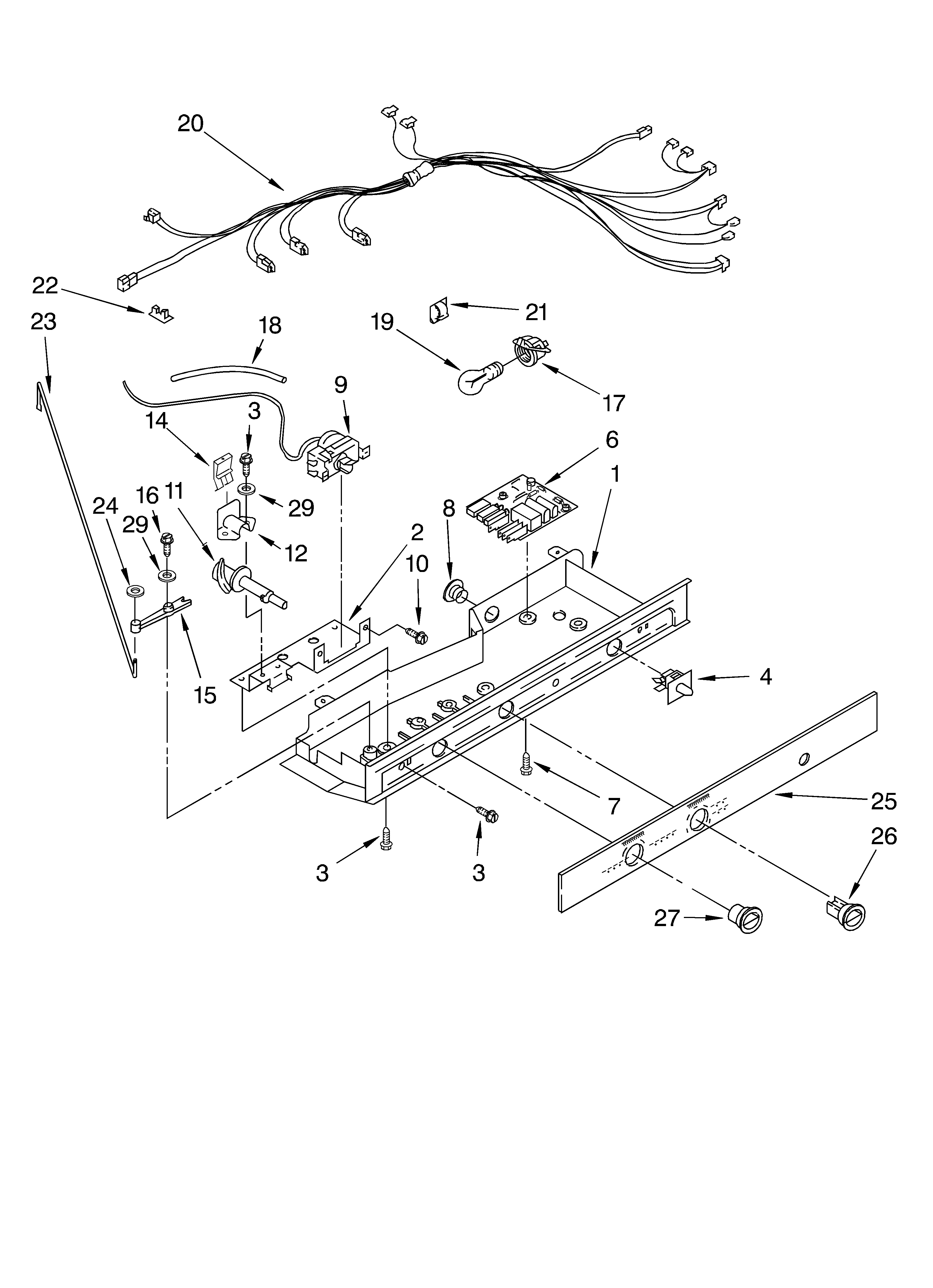

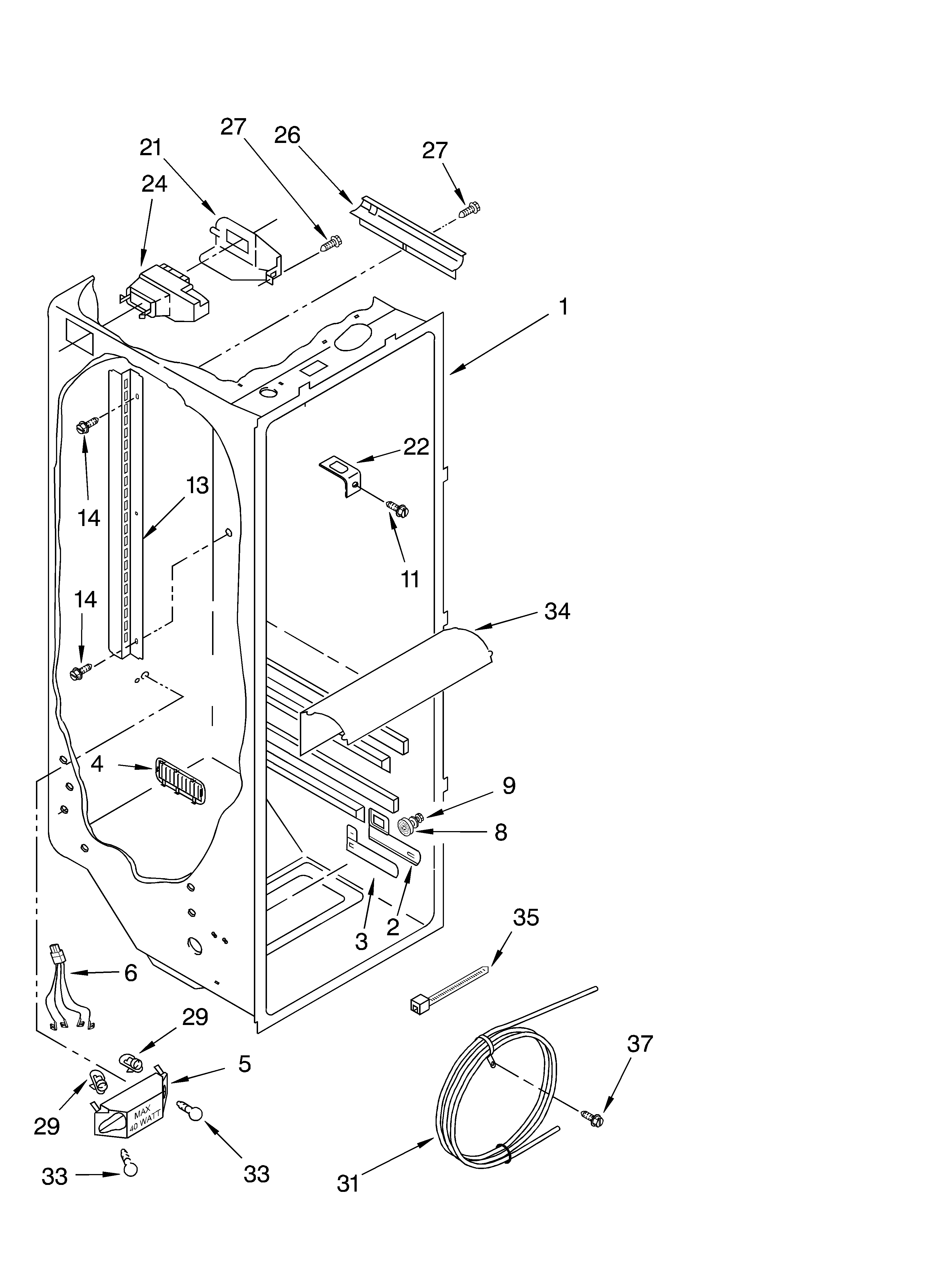

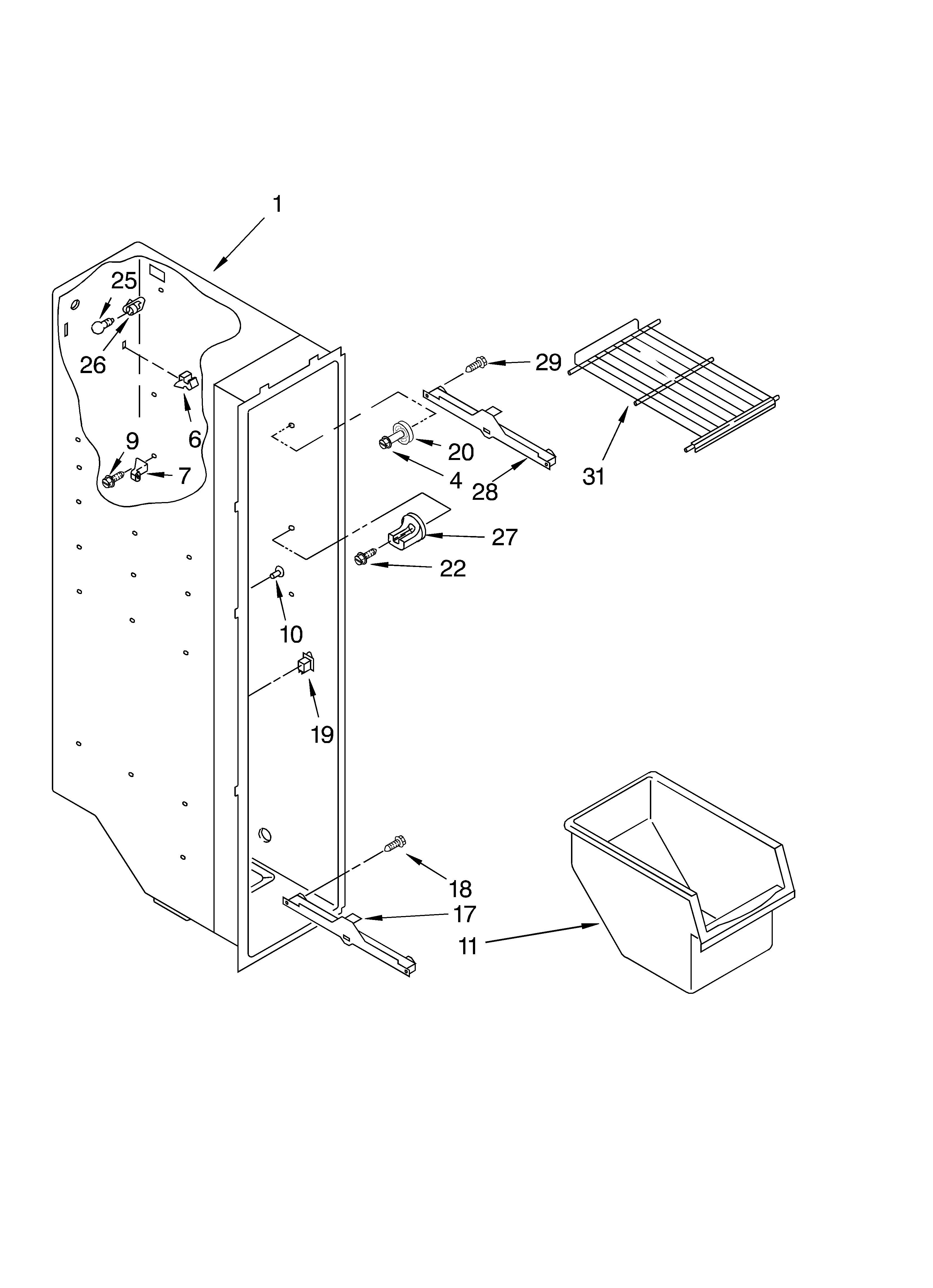

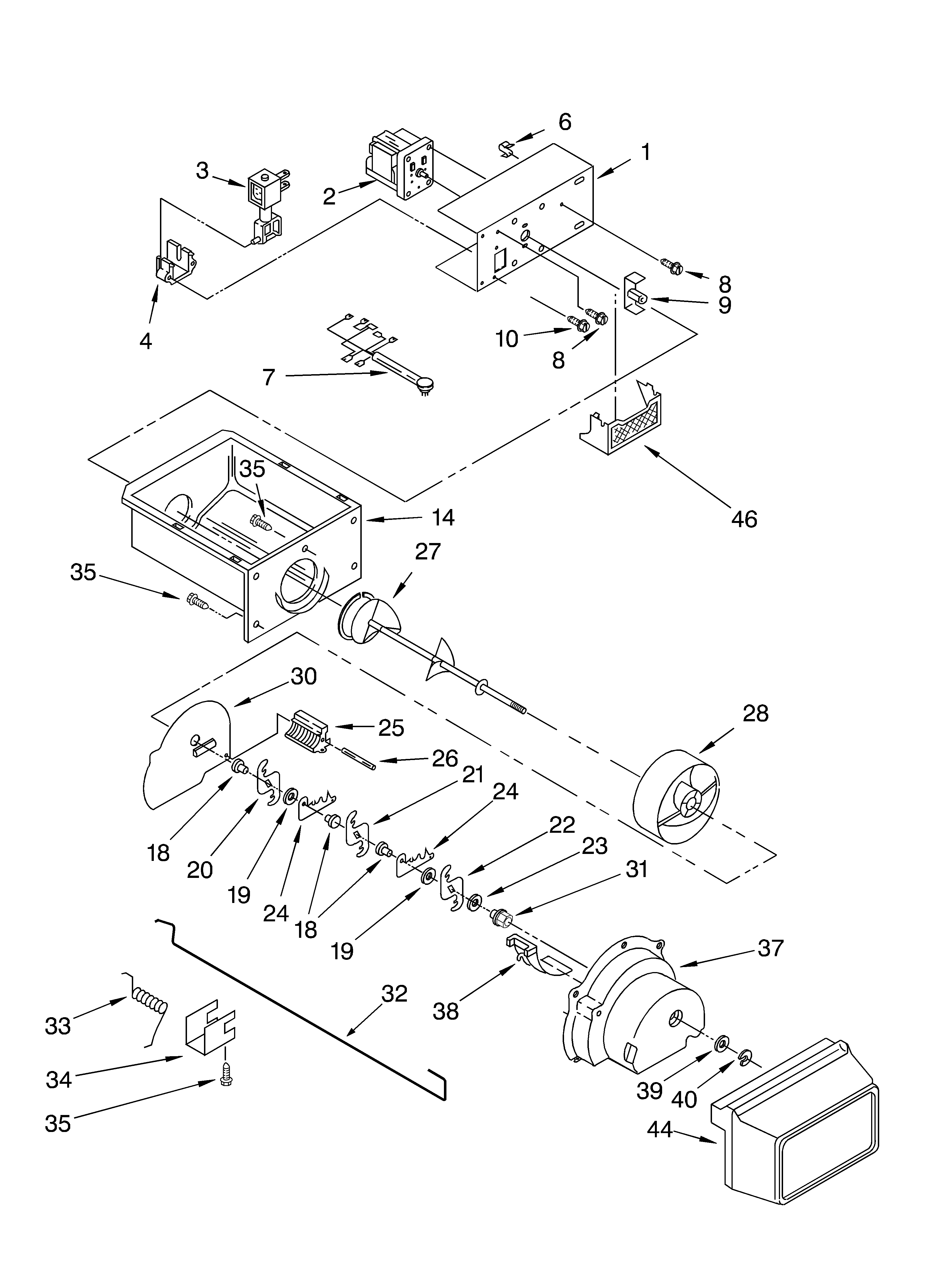

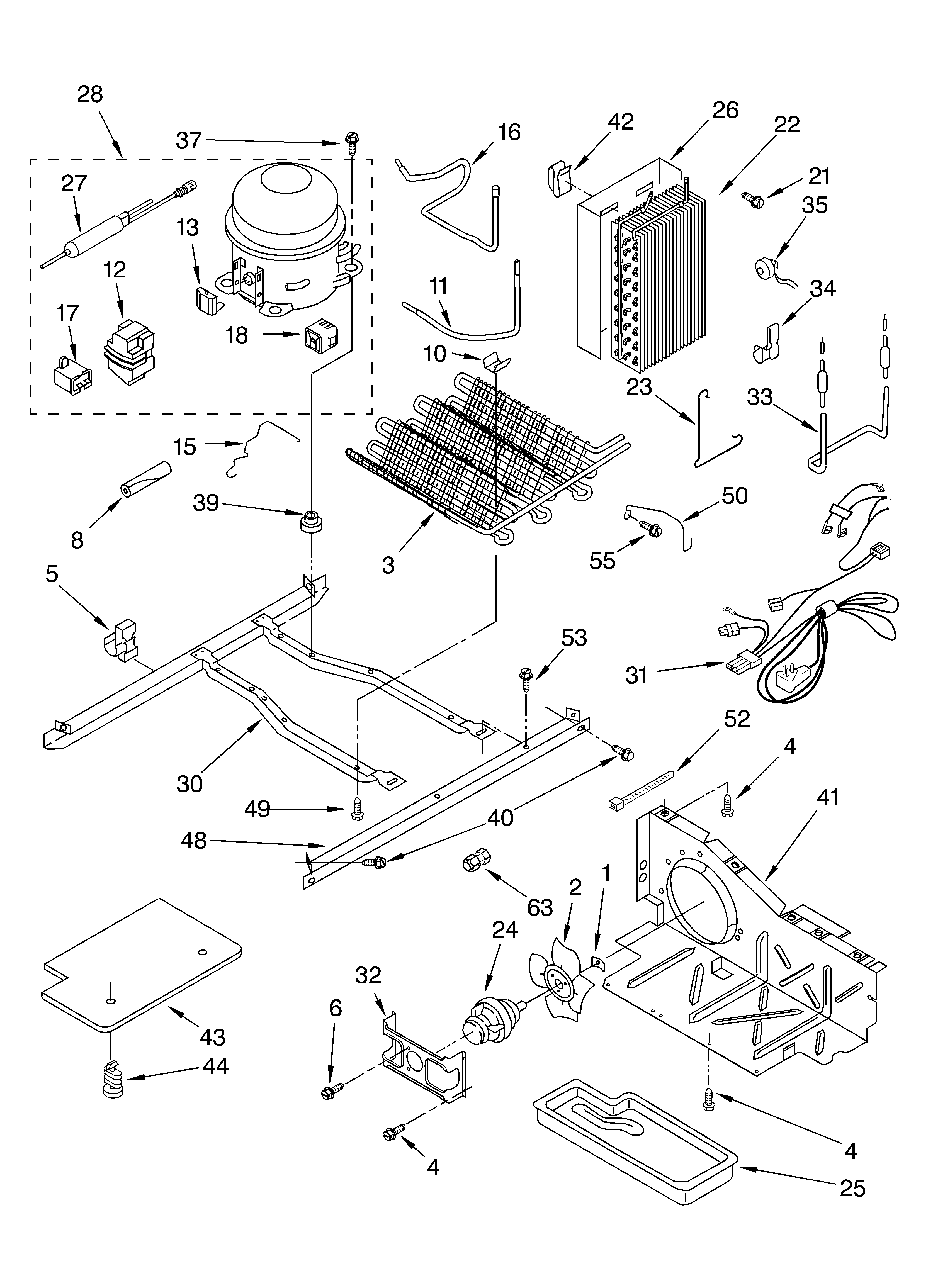

Here are the diagrams and repair parts for Whirlpool ED2PHEXMQ00 side-by-side refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guideError Codes
?
This is the number corresponding to the part on the diagram / schematic

Showing 10 of 345 parts

Whirlpool EveryDrop 5 Refrigerator Water Filter (replaces 4396510)#29

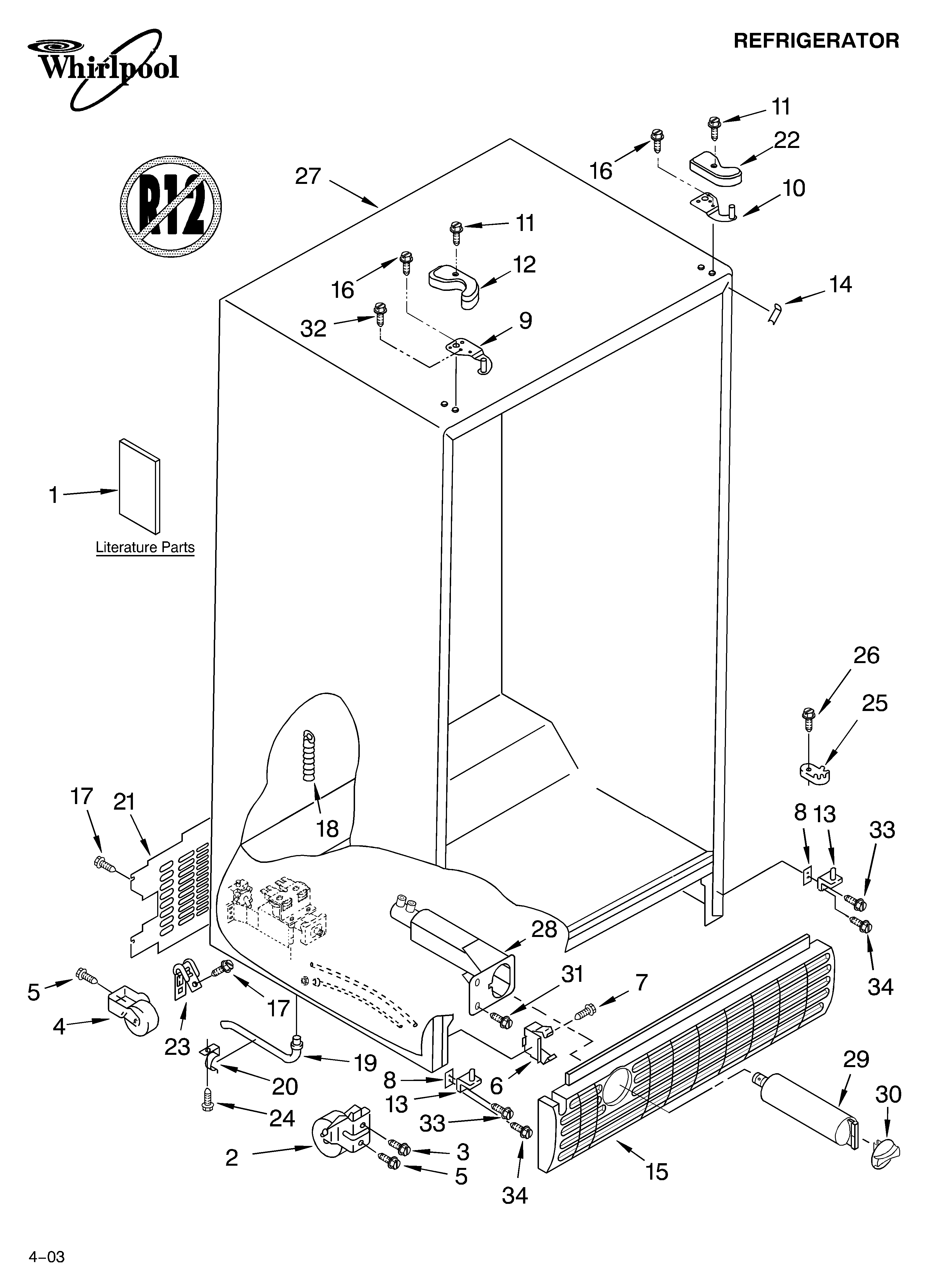

Cabinet parts Diagram

Refrigerator filter

Part #2255518
Replaced by #EDR5RXD1
?
Manufacturer substitution
This part replaces 2255518. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

In Stock
$59.99
Refrigerator Crisper Drawer (replaces 2188656)#6

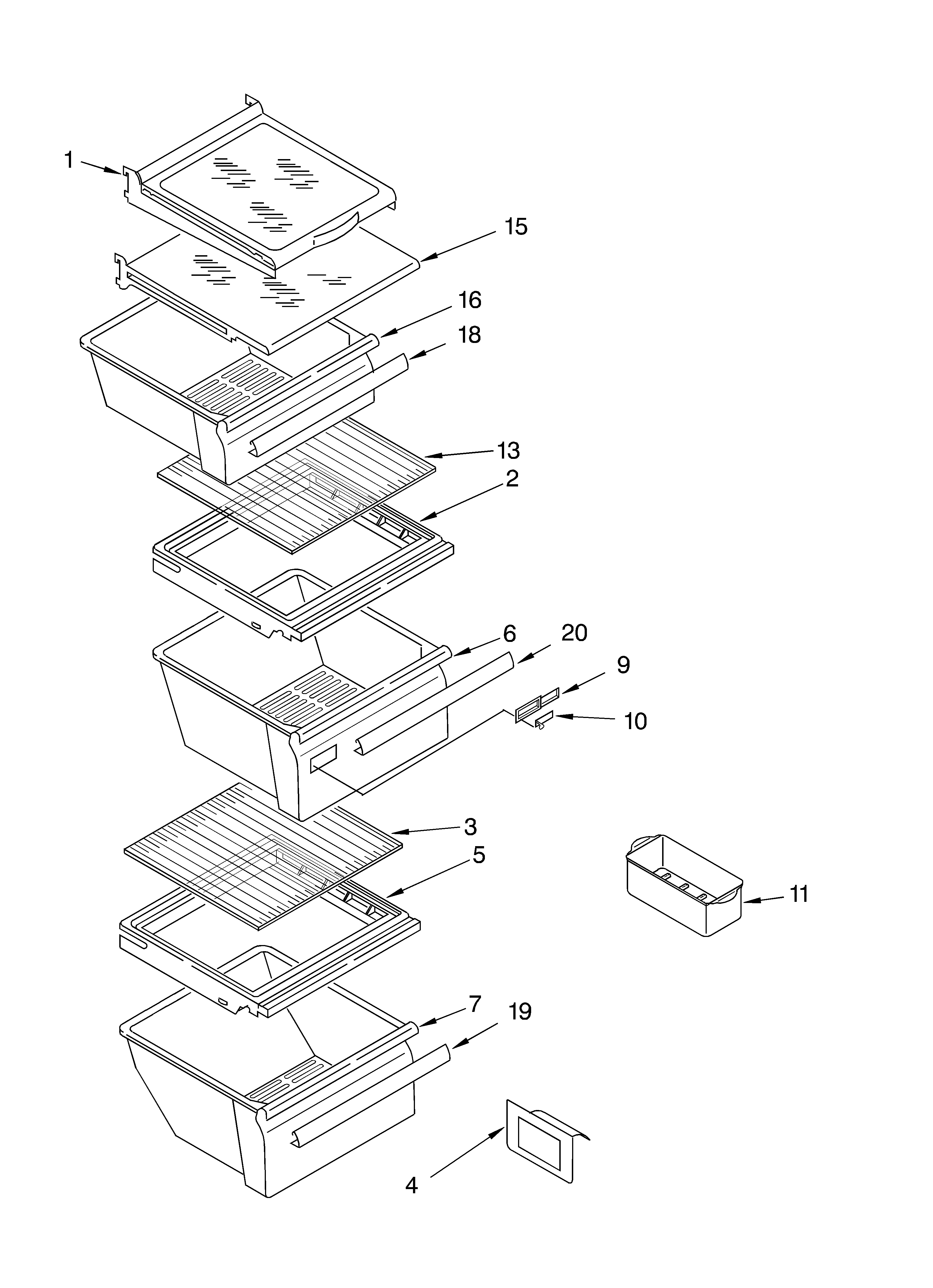

Refrigerator shelf parts Diagram

Refrigerator crisper pan

Part #2196160
Replaced by #WP2188656
?
Manufacturer substitution
This part replaces 2196160. Substitute parts can look different from the original.
BEST SELLER
In Stock
$61.99 |
23% OFF
MSRP: $81.00
Appliance Light Bulb, 40-watt (replaces 40A15-2PK, 60A, 60A15RVL, STD398091, WR02X12328, WX12X1510)

See All Related Diagrams

Light bulb

Part #527949
Replaced by #40A15
?
Manufacturer substitution
This part replaces 527949. Substitute parts can look different from the original.
BEST SELLER
In Stock
$7.75 |
11% OFF
Phone Price: $8.75
Refrigerator Door Closer Cam (replaces W10329686)#25

Cabinet parts Diagram

Refrigerator door closer cam

Part #2155311
Replaced by #WPW10329686
?
Manufacturer substitution
This part replaces 2155311. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
$5.40 |
16% OFF
Phone Price: $6.40
Refrigerator Ice Maker (replaces 4317913, 626636, 626670, 626687, 68972-4, 8114, 8114R, M626687, W10122496, W10190952, W10281545, W10632400)#100

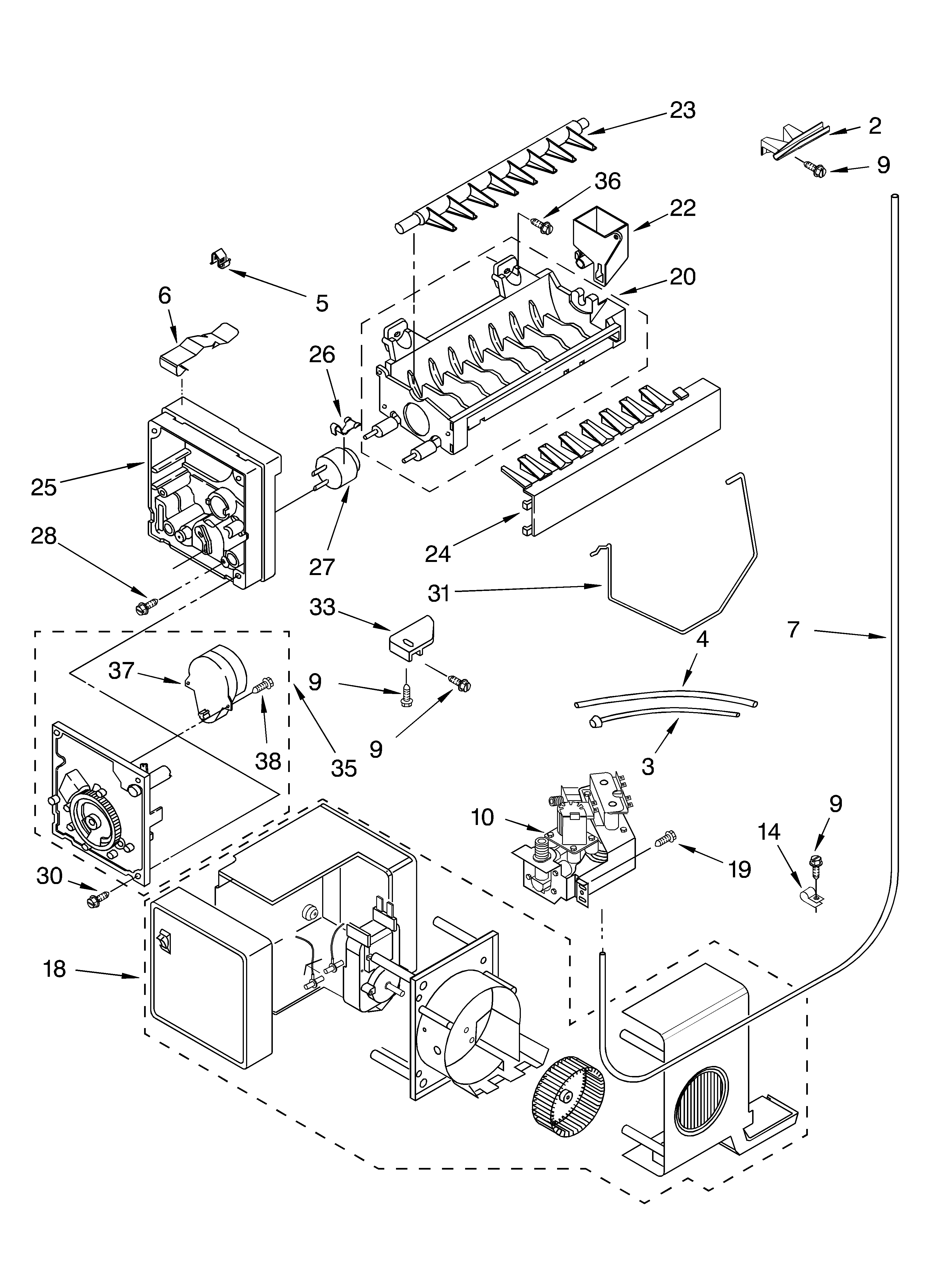

Icemaker parts, parts not illustrated Diagram

Refrigerator ice maker (replaces 4317913, 626636, 626670, 626687, 68972-4, 8114, 8114r, m626687, w10122496, w10190952, w10281545, w10632400)

Part #4317943
BEST SELLER
In Stock
$126.16 |
7% OFF
Phone Price: $136.16

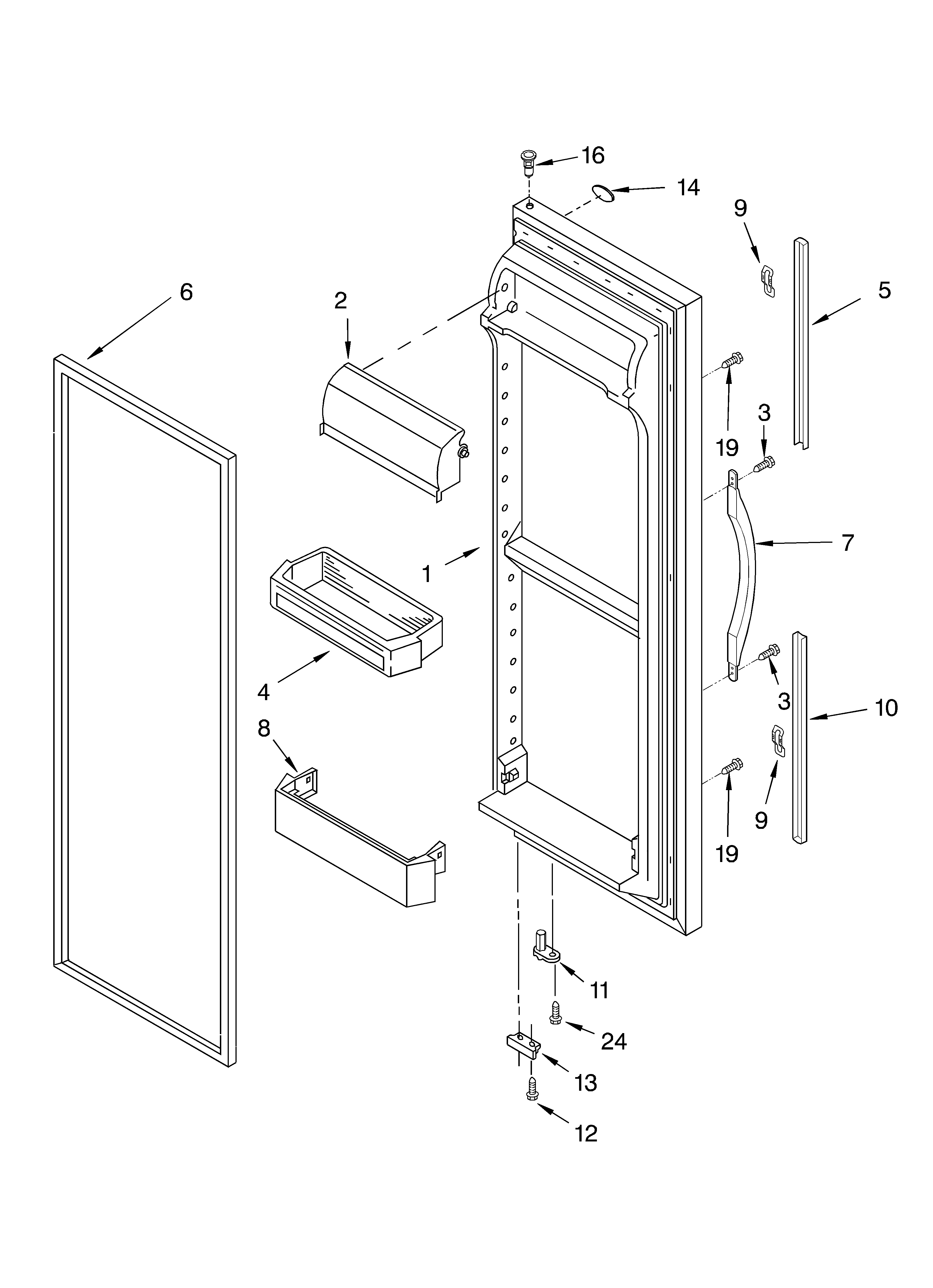

Refrigerator Door Bin (replaces 2156022)#8

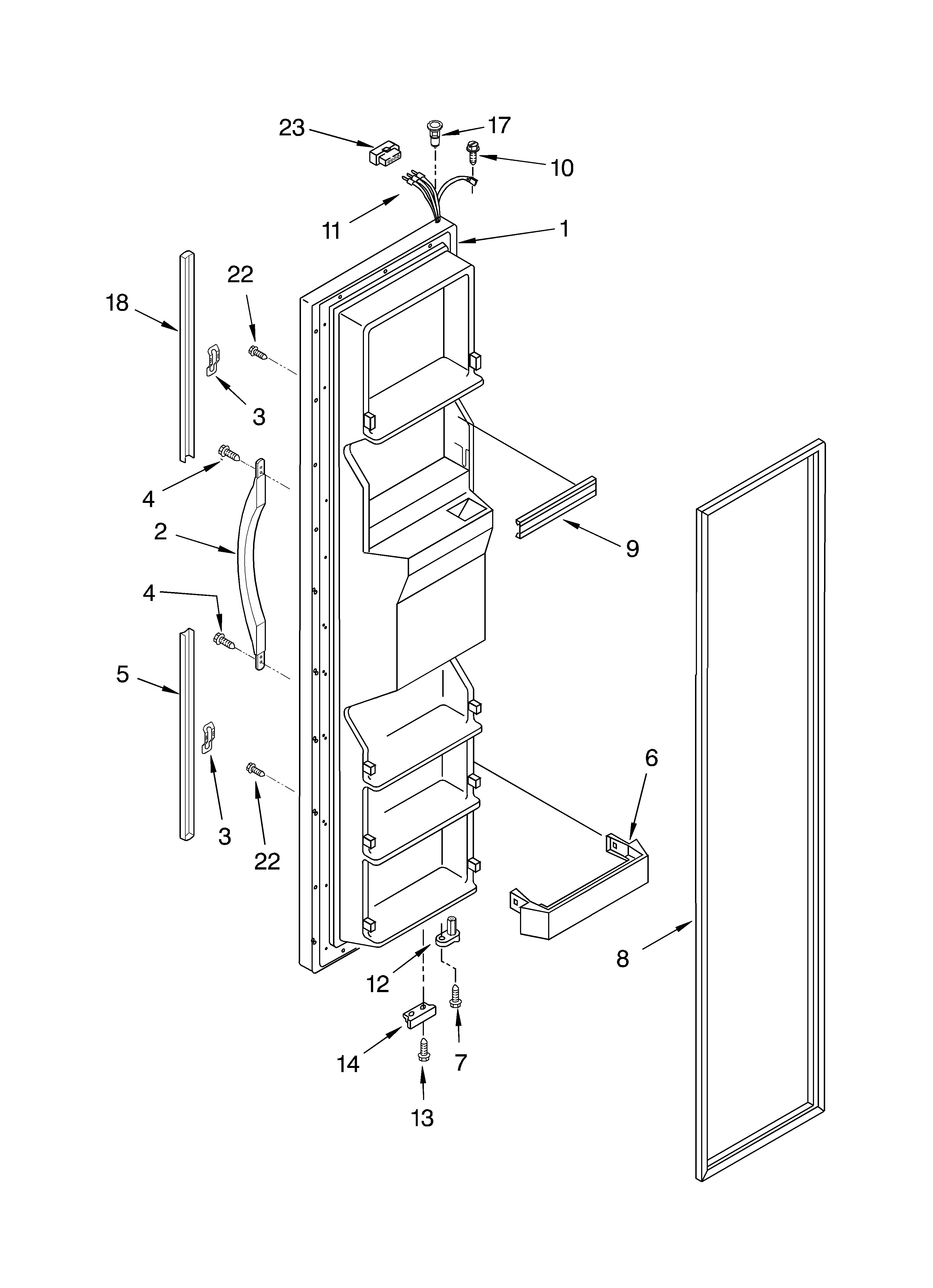

Refrigerator door parts Diagram

Refrigerator door bin

Part #2156022
Replaced by #WP2156022
?
Manufacturer substitution
This part replaces 2156022. Substitute parts can look different from the original.
BEST SELLER
In Stock
$38.08 |
12% OFF
Phone Price: $43.08
Refrigerator Crisper Drawer Cover Assembly (replaces 2311726, W10275293)#2

Refrigerator shelf parts Diagram

Refrigerator cover

Part #2209698
Replaced by #W10508993
?
Manufacturer substitution
This part replaces 2209698. Substitute parts can look different from the original.
BEST SELLER
In Stock
$112.45 |
13% OFF
MSRP: $130.00

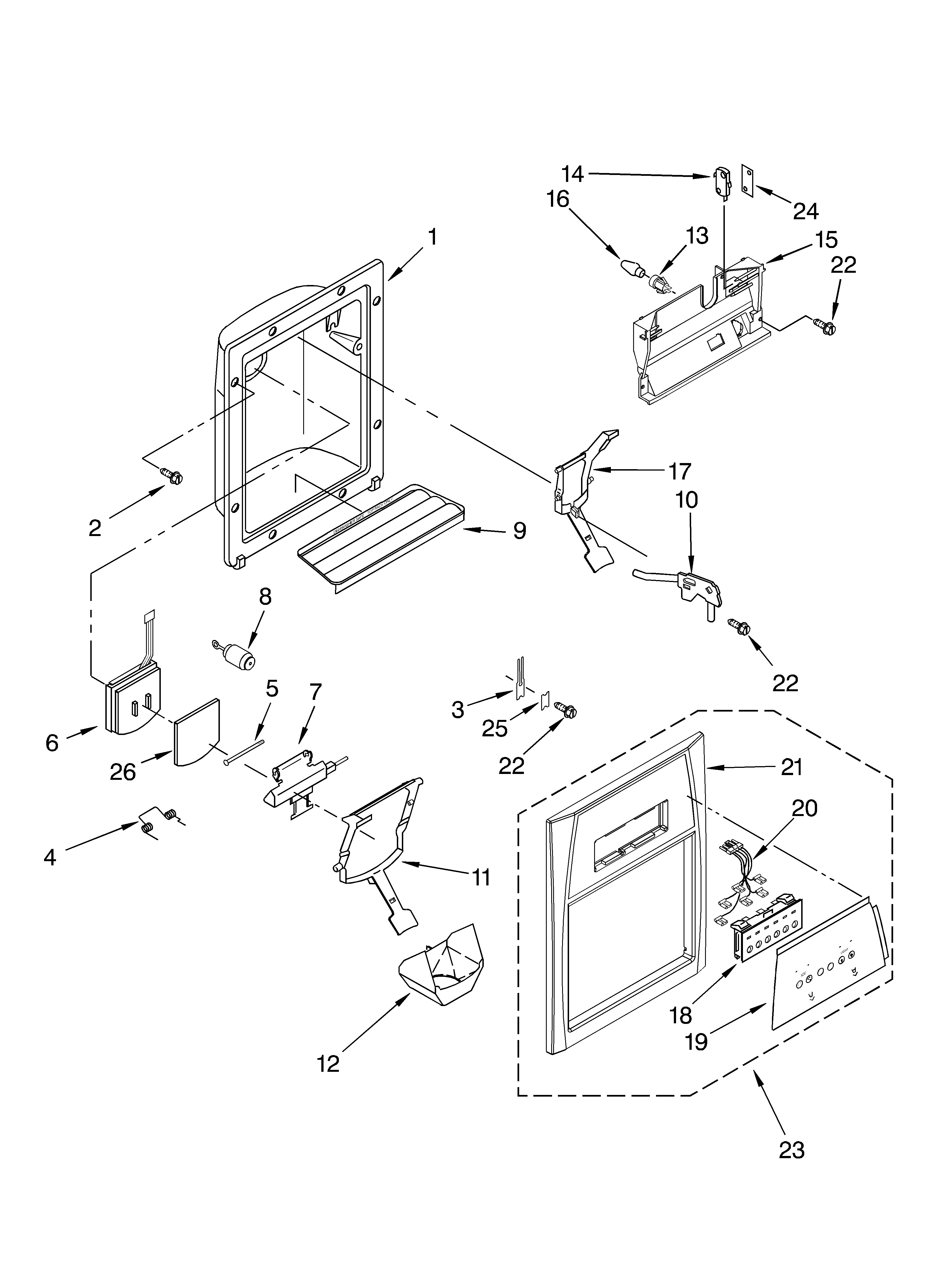

Refrigerator Dispenser Ice Chute Funnel (replaces 2180224)#12

Dispenser front parts Diagram

Refrigerator ice chute

Part #2180224
Replaced by #WP2180224
?
Manufacturer substitution
This part replaces 2180224. Substitute parts can look different from the original.
BEST SELLER
In Stock
$16.04 |
11% OFF
Phone Price: $18.04
Refrigerator Dispenser Control Bracket (replaces 2180226)#15

Dispenser front parts Diagram

Refrigerator bracket

Part #2183771
Replaced by #WP2180226
?
Manufacturer substitution
This part replaces 2183771. Substitute parts can look different from the original.
BEST SELLER
In Stock
$19.36 |
9% OFF
Phone Price: $21.36
Refrigerator Snack Drawer (replaces 2188655)#16

Refrigerator shelf parts Diagram

Refrigerator snack pan

Part #2196163
Replaced by #W11497323
?
Manufacturer substitution
This part replaces 2196163. Substitute parts can look different from the original.
BEST SELLER
In Stock
$108.69 |
16% OFF
MSRP: $130.00
