Whirlpool WGD9470WW2 gas dryer Parts

Yes. For your Whirlpool gas dryer model WGD9470WW2, searching by the full model number is the most reliable way to get compatible replacement parts because it matches the correct parts list and diagrams for your exact dryer.

• Use the complete model number exactly as shown on the dryer’s model/serial tag: WGD9470WW2.

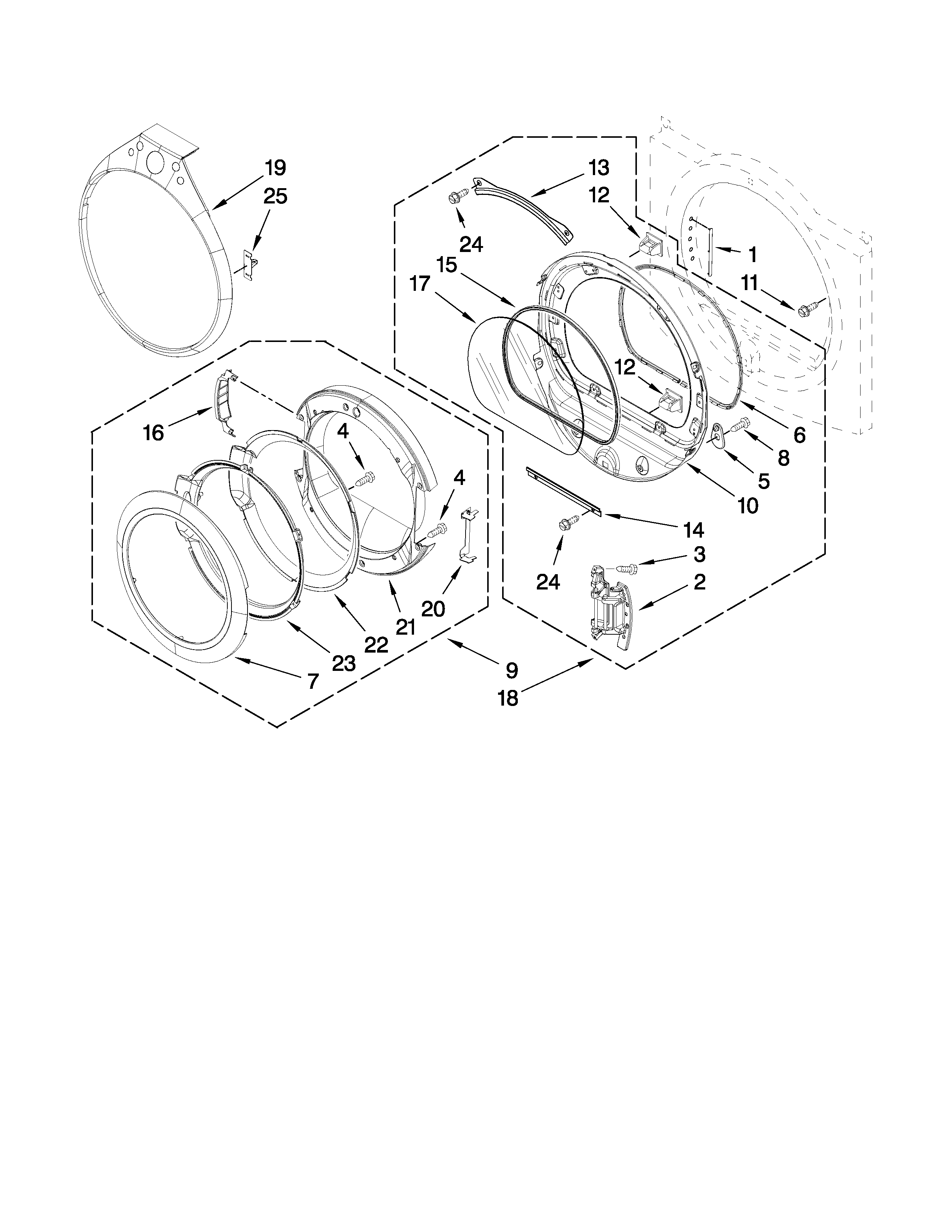

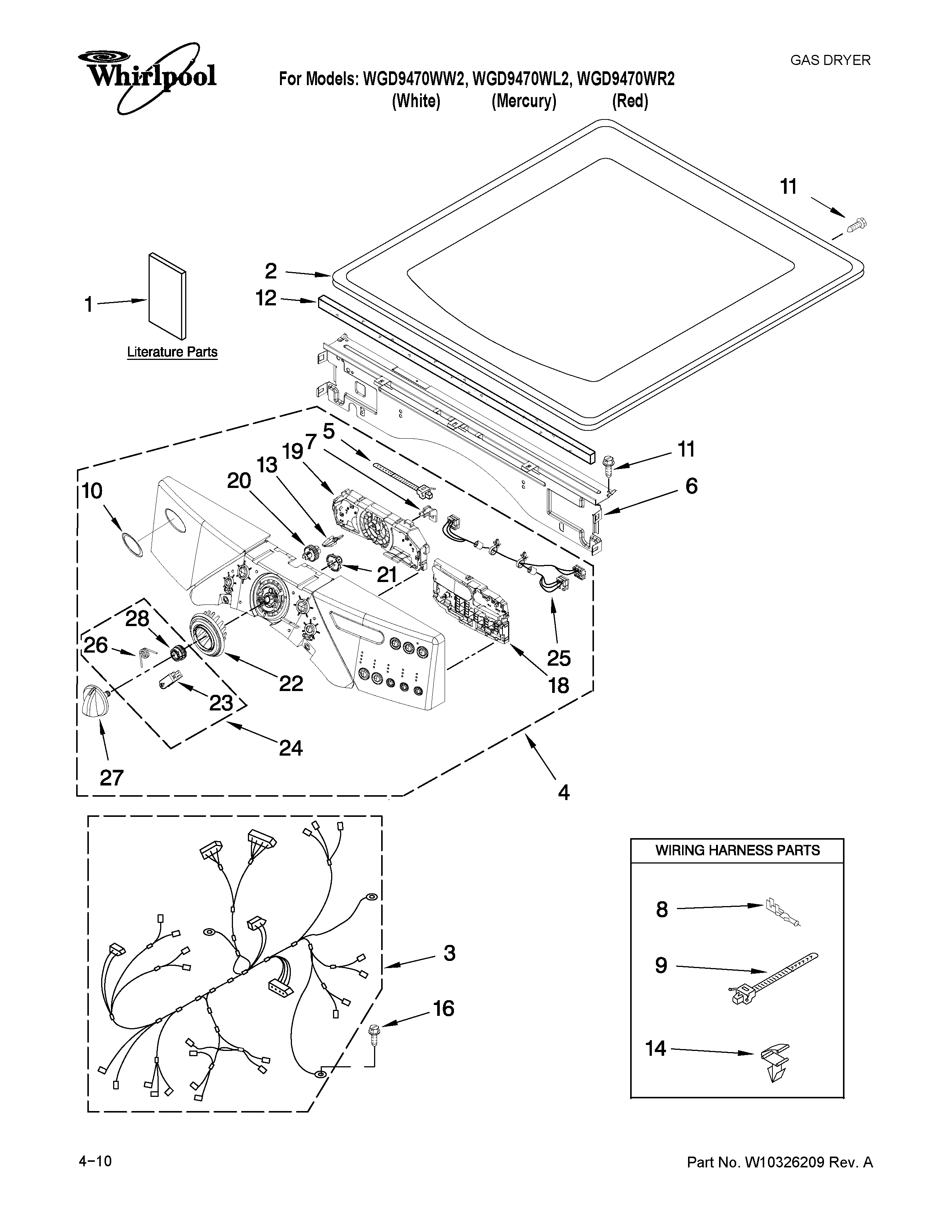

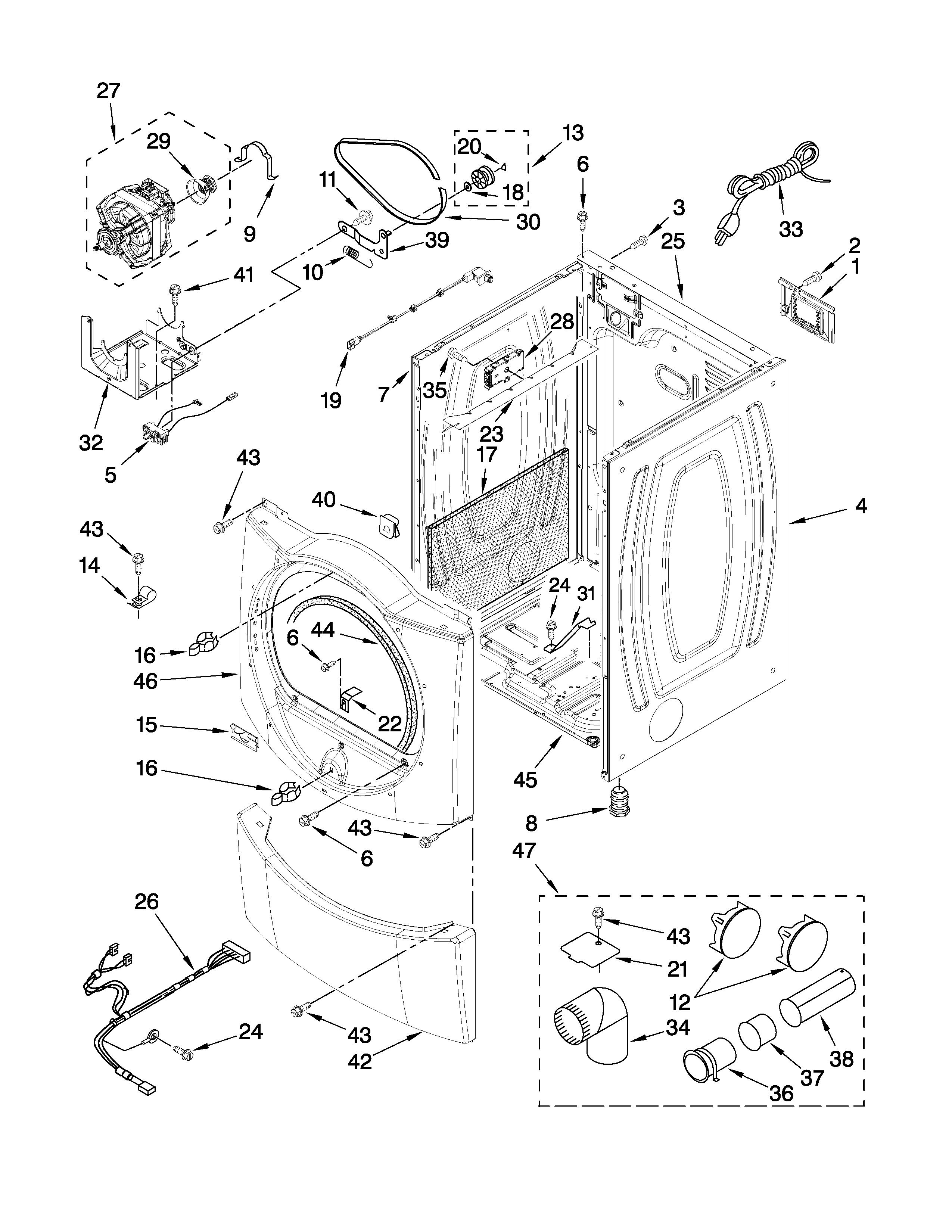

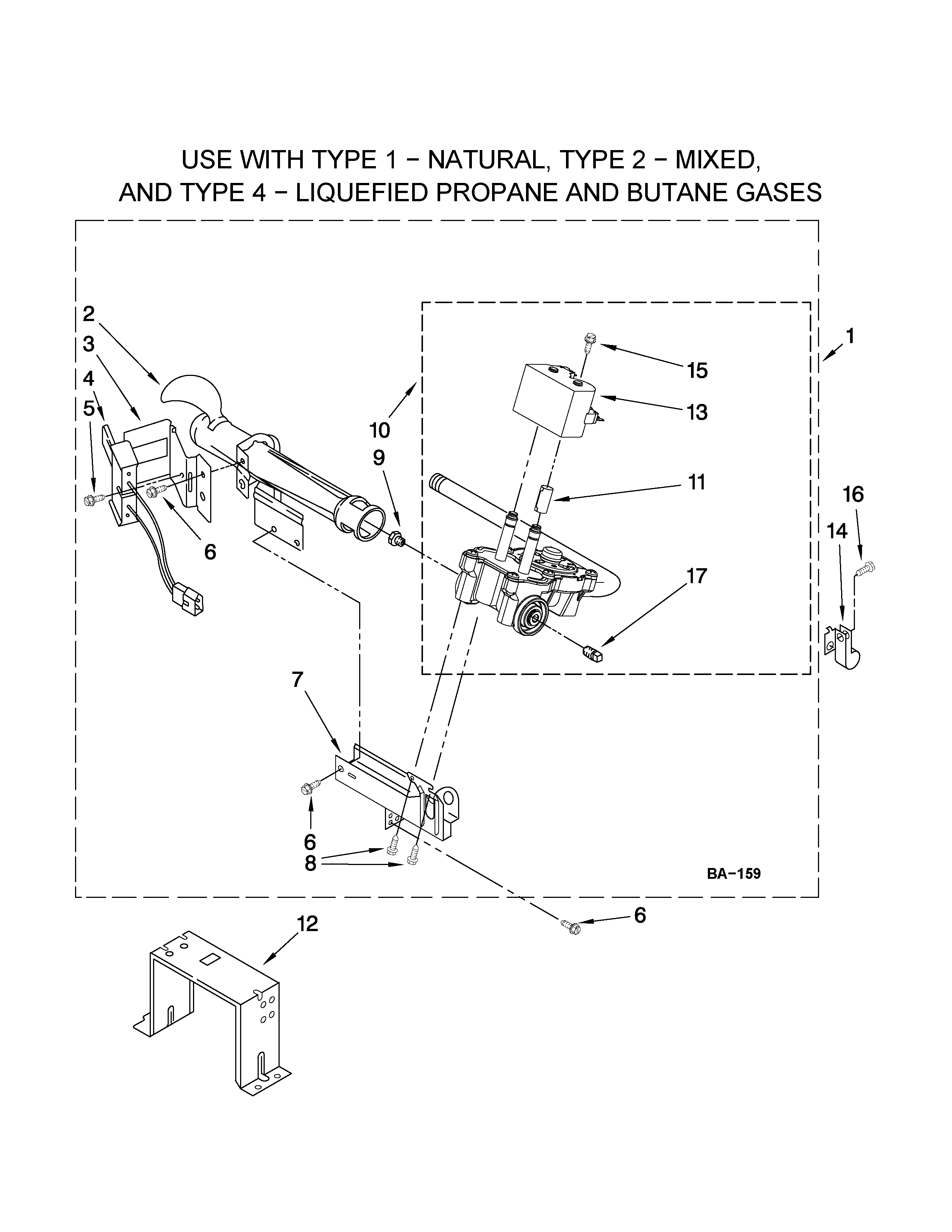

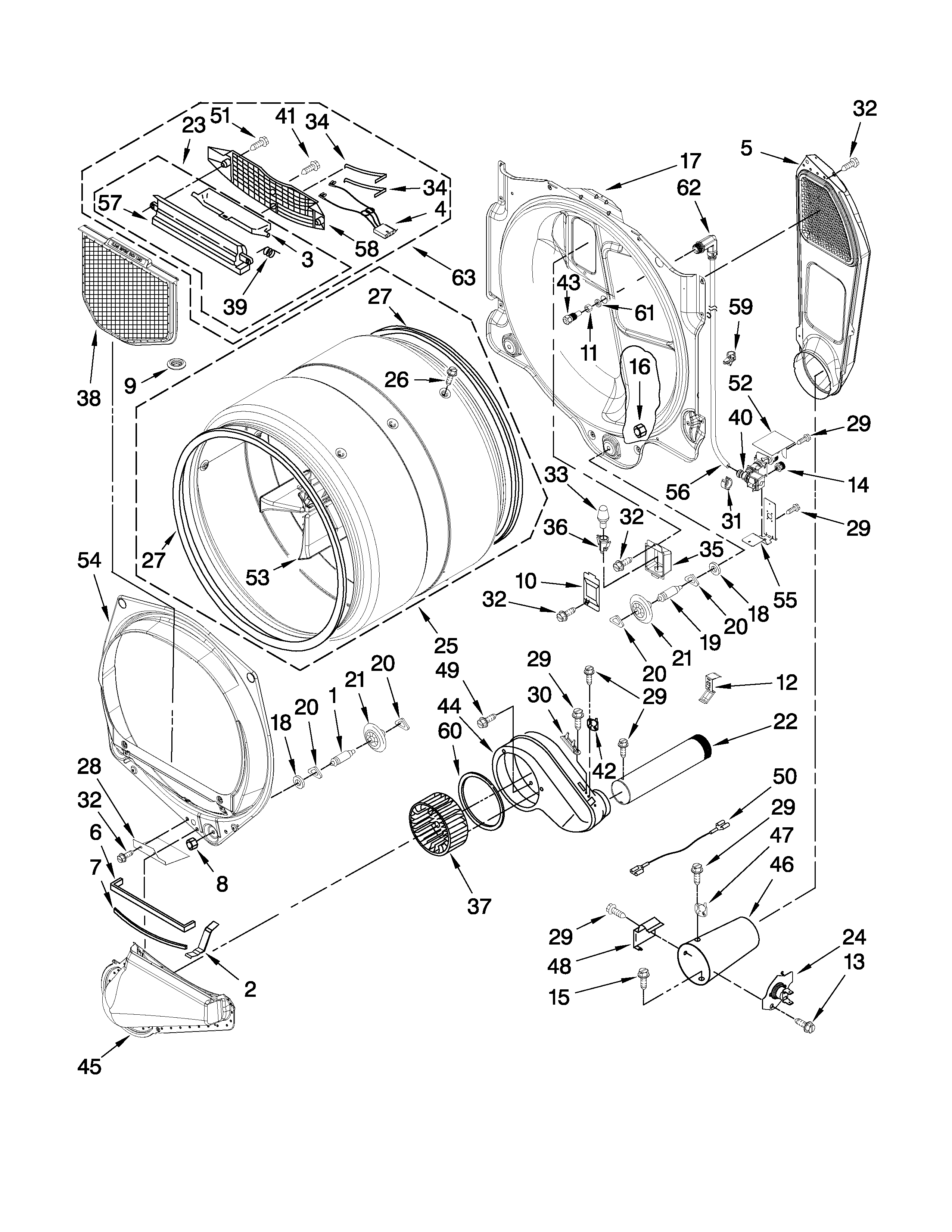

• Pull up the parts diagrams for the dryer, then identify the section (drum, burner, door, lint system).
• Match the part by name and ID before ordering (this prevents look-alike parts).
• If you are unsure, confirm the part using the exploded view and reference notes in the WGD9470WW2 owner's manual.
• For installation-related parts or conversions, double-check requirements in the WGD9470WW2 installation guide.

These are frequent wear items on Whirlpool gas dryers; searching by model helps you land on the exact match:

Whirlpool often uses similar-looking parts across multiple dryer series. Searching by WGD9470WW2 ensures the part you buy is designed to fit and function correctly, which helps avoid repeat repairs and drying performance problems.

Last updated: February 2026

A Whirlpool dryer typically lasts 10 to 13 years. For your Whirlpool WGD9470WW2 gas dryer, regular airflow maintenance (lint screen and venting) and avoiding overloads are the biggest factors that help it reach the high end of that range; see the WGD9470WW2 owner's manual for model-specific care guidance.

Most Whirlpool gas dryers land in this range under normal household use:

We recommend these habits to reduce wear on the drum, belt, and burner system:

• Clean the lint screen every load; replace a damaged screen such as screen W10120998 if it no longer seals or collects lint well.
• Keep the exhaust vent run short and clear; restricted airflow is the top cause of long dry times and overheating.
• Do not overload; overloading accelerates wear on the drive system (idler pulley, rollers, and motor).
• Listen for squealing or thumping; early replacement of wear parts can prevent bigger damage.
• If drying performance changes, check for error indications and operating tips in the WGD9470WW2 owner's manual.

These are frequent wear items on many Whirlpool dryers and are often addressed together:

• Drum support rollers (example: support WPW10314173)
• Idler pulley (example: dryer idler pulley 279640)
• Blower wheel (example: dryer blower wheel WP697772)
• Moisture sensing components (example: dryer moisture sensor WP3387223)

A bundled option like a dryer repair kit 4392067 is often used when multiple drum support parts are worn.

A dryer that is maintained for proper airflow and smooth drum rotation dries faster, runs cooler, and puts less strain on the motor, belt path, and gas burner components. That directly translates into fewer breakdowns and a longer service life.

Last updated: February 2026

Common problems we see on Whirlpool Duet-style dryers like model WGD9470WW2 fall into four buckets: the dryer will not start, the drum will not tumble, the dryer will not heat, or it makes unusual noises. Many “no heat” and “long dry time” complaints trace back to airflow restrictions and safety controls.

• Won’t start or stops mid-cycle: door not fully closed, Start not held long enough (some loads require holding Start 2 to 5 seconds), power supply issue
• Runs but no heat: gas ignition or flame sensing problem, or a power supply issue (some dryers can tumble even when heat is disabled)
• Not tumbling: belt and idler system issue, or a failed motor
• Squealing, thumping, or rumbling: worn drum support rollers, idler pulley wear, or objects caught at the drum edge
• Poor drying or long dry times: lint screen restriction, crushed/long venting, or a weak blower wheel

1. Confirm the door closes firmly and the Start button is pressed as directed in the WGD9470WW2 owner’s manual.
2. Check the home power supply; the manual notes that a diagnostic like L2 can indicate a supply issue affecting heat.
3. Clean the lint screen and verify strong airflow at the exterior vent hood.
4. Run the dryer for 5 minutes, then open the door and feel for heat (the installation instructions describe this check in the WGD9470WW2 installation guide).
5. If you hear squealing or rumbling, stop using the dryer until you inspect the drum support and belt path.

On a gas dryer, restricted airflow and worn drive components can cause overheating, nuisance shutdowns, repeated cycling issues, and premature wear on rollers, the idler pulley, and the motor.

Last updated: February 2026
