Model # 7MMVWX700XL2 Official Maytag washer

Here are the diagrams and repair parts for Official Maytag 7MMVWX700XL2 washer, as well as links to manuals and error code tables, if available.

By Schematic
By Part

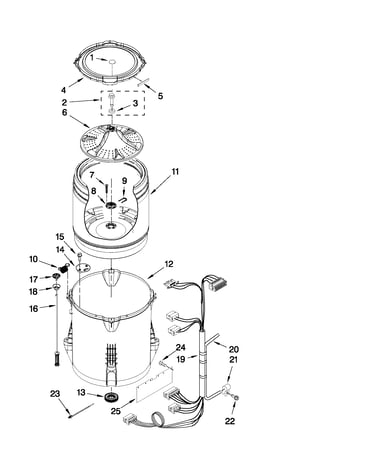

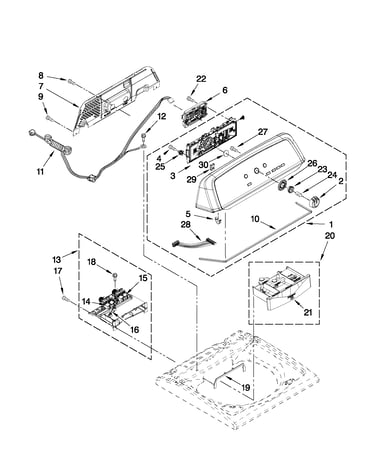

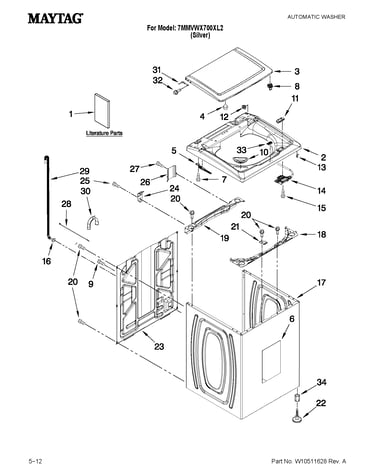

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for7MMVWX700XL2 Washer

  • Cam W10006353
    #11

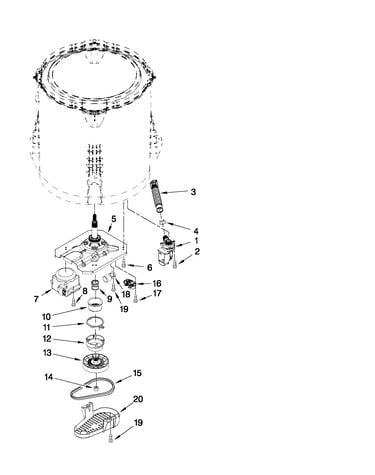

    Gearcase, motor and pump parts diagram

    Cam

    Part #W10006353

    Replaced by #W10721967

    ?
    Manufacturer substitution
    This part replaces W10006353. Substitute parts can look different from the original.
