In our Kenmore Elite dryer model 11095091402, the moisture sensor is two metal strips located on the inside of the dryer drum area. Clothes brush across these strips during Auto Dry cycles so the control can “sense” remaining moisture and adjust drying time; see the 11095091402 owner's manual.

How to spot it quickly

Look for a pair of narrow, parallel metal bars (often mounted on a small plastic holder) inside the drum opening area.

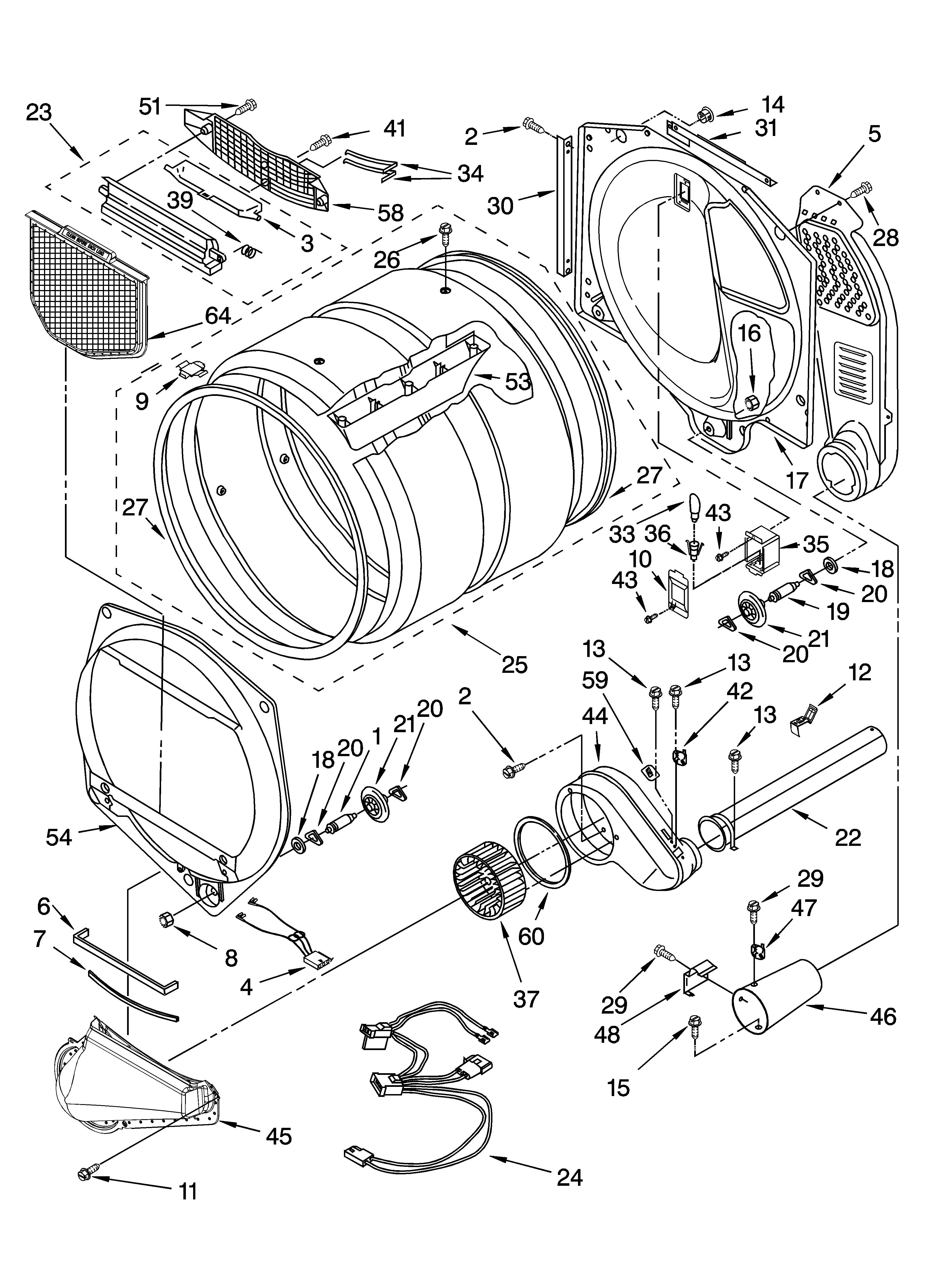

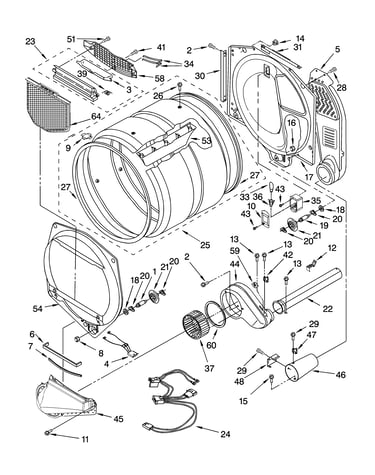

• Open the door and look along the inside front bulkhead (the front rim area the drum rotates against)
• The sensor is inside the drum area, not on the back panel
• It is easiest to see with the drum empty and a flashlight
• If your dryer has an internal lint screen housing, the sensor is typically near that housing

Why it matters (Auto Dry accuracy)

Auto Moisture Sensing uses the sensor strips to estimate dryness and adjust the remaining time display after the cycle starts. If the strips are coated with residue, the dryer can shut off too soon or run too long.

Common symptoms of a dirty or failing moisture sensor

• Auto Dry stops early and clothes feel damp
• Auto Dry runs long and clothes overdry
• Drying time seems inconsistent from load to load
• Timed Dry works normally but Auto Dry does not

Quick care checklist (safe, no disassembly)

• Clean the lint screen every load
• Wipe the sensor strips with rubbing alcohol on a soft cloth (dryer off and cool)
• Avoid excess dryer sheet residue (it can coat the strips)
• Confirm strong airflow at the outside vent

Moisture sensor basics

Item	What to expect	What you can do
Location	Inside the drum area on the front bulkhead	Use a flashlight to identify the two strips
Function	Detects moisture during Auto Dry cycles	Keep strips clean for accurate sensing
If damaged	Auto cycles become unreliable	Inspect wiring/strip condition during service

If you’re troubleshooting Auto Dry performance and the sensor checks out, the temperature sensing circuit can also affect results; a common related part is the dryer thermistor WP8577274.

Last updated: January 2026

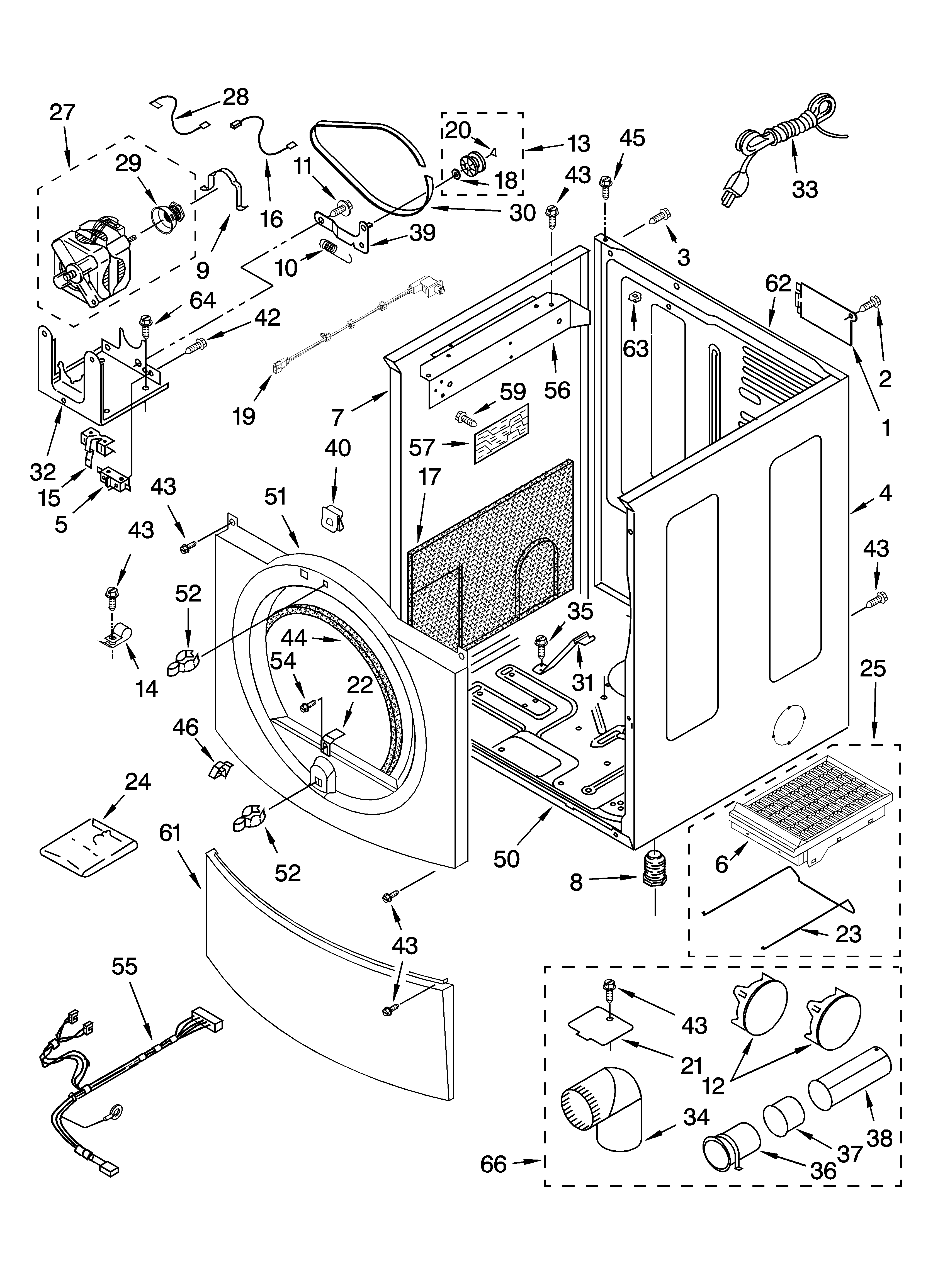

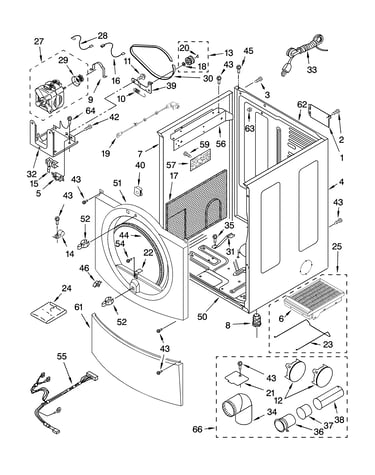

On the Kenmore Elite dryer model 11095091402, the model number is printed on the model and serial number label attached to the dryer cabinet. The most common spot is just inside the door opening on the cabinet frame; some units also place the label on the back near the top. See the 11095091402 owner's manual for the product record and label details.

Where to look first (fastest checks)

• Open the dryer door and look around the door opening on the cabinet frame.
• Check the inside edge of the door opening near the lint screen housing.
• If you do not see it inside the door area, check the back panel near the top.
• Wipe dust off the label area; the print can be faint.
• Write down both the model number and serial number for parts lookup and service.

What the label usually looks like

The label is typically a small sticker or metal tag that lists the model and serial number together.

What you need	Why you need it	Example for this dryer
Model number	Ensures correct parts fit	11095091402
Serial number	Helps identify production details	Varies by unit

Why it matters

We use the exact model number to match the correct Kenmore Elite dryer parts (like a drive motor, igniter, or thermistor) and to pull the right troubleshooting and maintenance instructions. Using only “Kenmore Elite” or “110 series” can lead to mismatched parts.

If the label is missing or unreadable

• Check the back panel area again with a flashlight.
• Look for a second sticker near the door opening or cabinet frame.
• Use your purchase paperwork if it lists the full model number.
• If you are ordering common wear items, confirm fit by matching the full model number first.

Last updated: January 2026

On Kenmore Elite dryer model 11095091402, the display can show a PF (power failure) message and E-series service codes (such as E1, E2, E3). PF usually means the cycle was interrupted; E-codes typically indicate a condition that needs service. See the 11095091402 owner's manual for the exact display behavior and reset steps.

Common code messages and what they mean

• PF (power failure): The drying cycle was interrupted by a power outage or power drop.
• E1 / E2 / E3 (service codes): The dryer is detecting a fault that typically requires service.
• No code but poor drying: Often points to airflow restriction (lint screen or venting), not an electronic fault.

What to do when you see PF

1. Press and hold START to restart the dryer cycle.
2. If PF returns, check the home power source (breaker, outlet fit, and power cord connection).
3. If the dryer is gas and there is no heat after it runs about 5 minutes, confirm the gas shutoff valve is open.

If the dryer shows E1, E2, or E3

These are treated as service codes for this Kenmore Elite dryer.

• Unplug the dryer for 1 minute, then restore power and try a cycle.
• If the code returns, schedule service.
• Avoid repeated restarts; it can mask an intermittent wiring or control issue.

Quick reference table

Display message	What it points to	Best next step
PF	Power interruption	Hold START to restart; check power supply
E1/E2/E3	Service fault	Power reset once; then service if it returns
Long dry times (no code)	Airflow restriction	Clean lint screen; check venting

Why it matters

Code messages help separate a simple interruption (like PF) from a true fault. For drying performance, airflow issues can mimic “no heat” symptoms, so checking the lint screen and exhaust venting saves time and prevents overheating.

Related help: Kenmore elite dryer error codes

Last updated: January 2026

For Kenmore Elite dryer model 11095091402, a hard reset is simply removing power long enough to clear the control: unplug the dryer (or switch the breaker off) for about 1 to 5 minutes, then restore power and start a cycle. If the control is locked or a cycle is stuck, you can also clear it from the console.

Reset steps we recommend (11095091402)

• Unplug the dryer (or turn the breaker off).
• Wait 1 to 5 minutes.
• Restore power.
• Close the door fully.
• Press and hold START for about 3 seconds to begin a cycle.
• If you need to stop and clear the current selection, press PAUSE/CANCEL twice.

For button sequences and feature details (Control Locked, PF code behavior, cycle clearing), use the 11095091402 owner's manual.

If the dryer still will not run after a reset

A reset clears the control, but it will not fix airflow restrictions or failed safety parts. Check these common causes next:

• Control Locked is enabled; press and hold AUTO DRY LEVEL for 3 seconds to unlock.
• The dryer shows PF (power failure); press and hold START to restart.
• The door is not latching; the dryer may not start if the door switch is not made.
• The exhaust vent is clogged; restricted airflow can cause long dry times and overheating.
• The dryer shuts down after being paused too long; if interrupted for more than about 5 minutes, reselect the cycle before restarting.

Quick guide: what each action does

What you do	What it’s for	What to expect
Unplug 1 to 5 minutes	Clears control memory	Dryer powers up “fresh”
PAUSE/CANCEL twice	Stops cycle and clears settings	Selection resets
Hold START 3 seconds	Starts or restarts a cycle	Motor/heat sequence begins
Hold AUTO DRY LEVEL 3 seconds	Toggles Control Locked	Lock light changes

Why it matters

On the 11095091402, many “won’t start” complaints are actually a locked control, a paused cycle that timed out, or an airflow problem. Resetting is a good first step, but checking the door latch and venting prevents repeat shutdowns and poor drying.

Last updated: January 2026
