Whirlpool LER5644JQ0 dryer Parts

If your Whirlpool dryer model LER5644JQ0 will not run at all (no motor, no heat), a blown thermal fuse is a top suspect. We confirm it by unplugging the dryer and checking the fuse for continuity with a multimeter; a good fuse reads near 0 ohms.

What you’ll typically see when the thermal fuse is blown

• Dryer will not start even though the controls look normal
• Drum light may work but the motor will not run
• Start button clicks but nothing happens
• Dryer may have overheated or had poor airflow before it failed
• Lint buildup or a crushed/blocked vent is often part of the root cause

How to test it (safe, reliable method)

1. Unplug the dryer (or switch off the breaker).
2. Access the thermal fuse area (commonly on the blower housing or exhaust duct on many Whirlpool electric dryers).
3. Pull the wires off the fuse terminals (grab the connector, not the wire).
4. Set your multimeter to ohms/continuity.
5. Touch one probe to each terminal.

Interpreting the meter reading

Meter result	What it means	What to do next
~0 ohms or continuity tone	Fuse is good	Check door switch, start switch, timer, motor circuit
OL, infinite, no tone	Fuse is blown	Replace the fuse and fix the airflow problem

Parts that commonly go with an overheat or no-heat diagnosis

A blown thermal fuse is often a symptom of overheating. For LER5644JQ0, these parts are commonly involved:

• Dryer thermal cut-off fuse kit 279816 (overheat protection components)
• Dryer operating thermostat WP3387134 (regulates normal operating temperature)
• Dryer thermostat WP3977767 (high-limit safety thermostat)
• Dryer blower wheel WP694089 (moves air; damage can reduce airflow)

Why it matters

Replacing the fuse without correcting airflow (lint restriction, long vent run, blocked exterior hood) can cause the new fuse to blow again. Restoring proper airflow helps drying performance and protects the heating circuit.

Last updated: February 2026

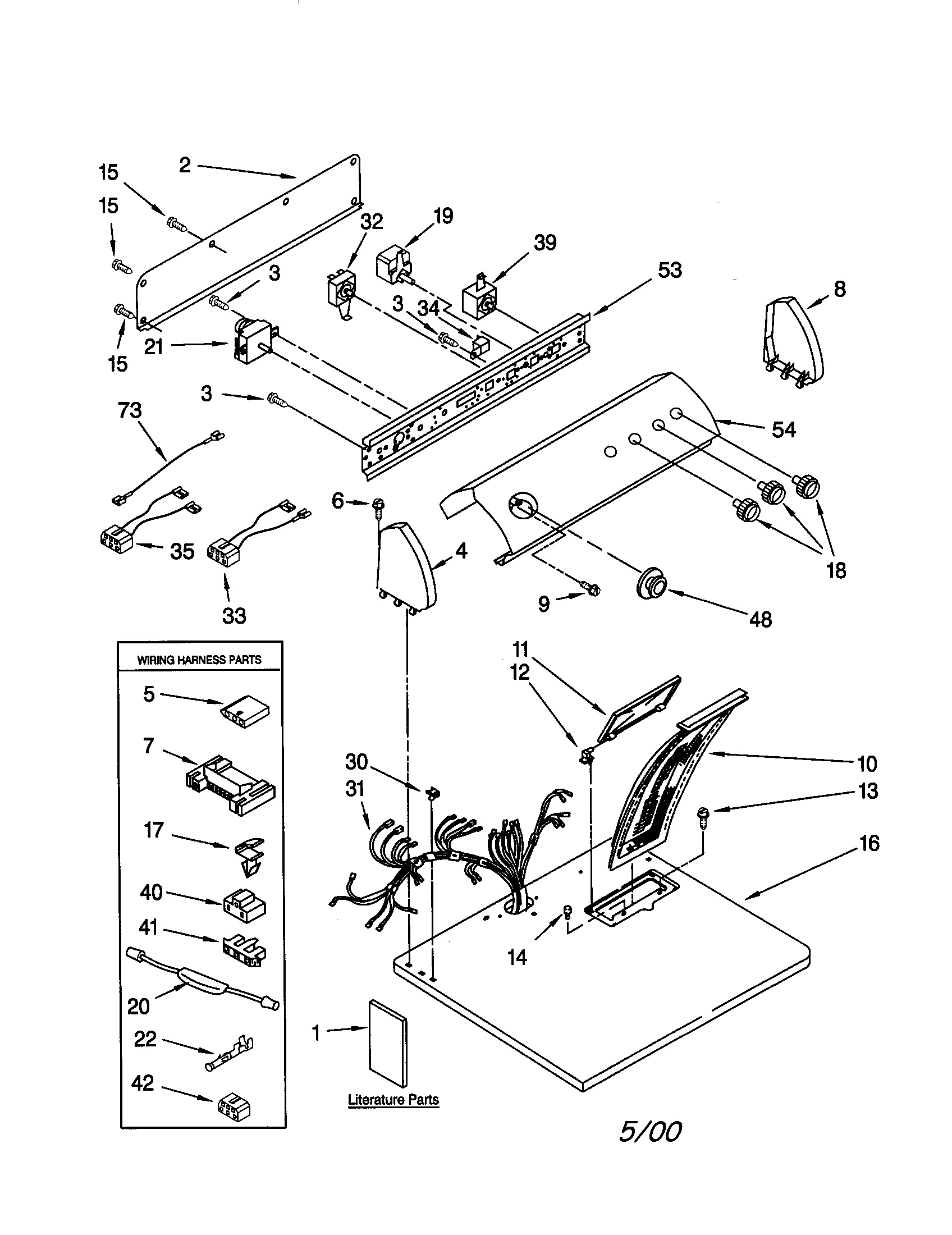

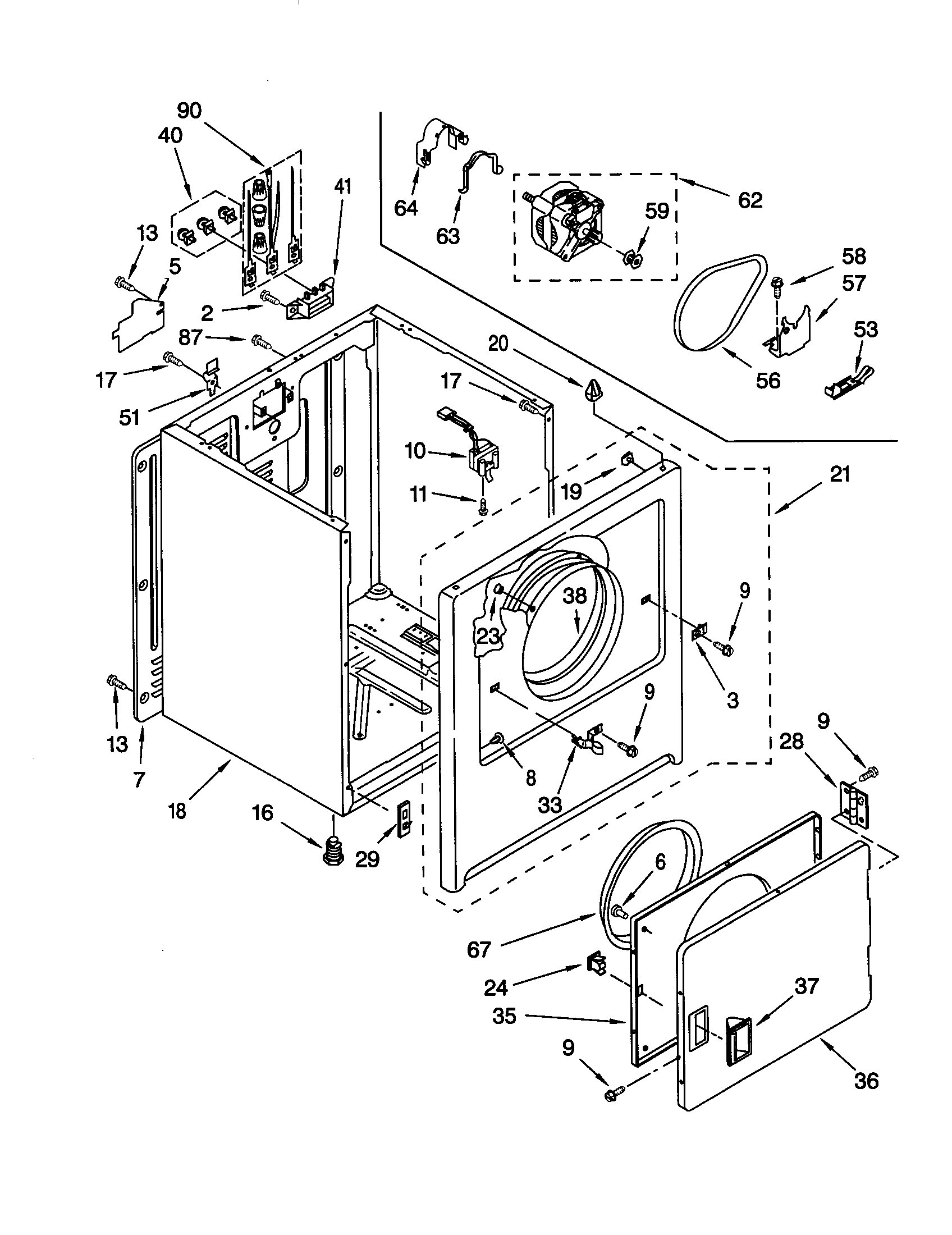

On the Whirlpool LER5644JQ0 dryer, the control console and top panel typically come off first; then you can release the front panel clips and remove the front panel screws. This gives you safe access to common service areas like the belt, drum, and blower housing.

Before you start (safety)

• Unplug the dryer from the wall outlet.
• If it is hard-wired, switch the breaker OFF.
• Wear cut-resistant gloves; cabinet edges are sharp.
• Use a container for screws so nothing drops into the cabinet.

Typical panel removal steps (LER5644JQ0-STYLE cabinet)

1. Remove the lint screen (if your lint screen is in the top panel opening).
2. Remove the screws that secure the control console (often at the console ends or along the back).
3. Rotate the console up and back (support it so you do not strain wiring).
4. Remove the screws holding the main top; slide the top back slightly and lift it off.
5. Insert a flat screwdriver between the upper and lower front panel seams to release the spring clips.
6. Remove the front panel mounting screws (usually inside the cabinet near the top corners).
7. Lift the front panel up and off the lower retaining tabs.

What you may need to disconnect

Item	When you disconnect it	Tip
Door switch harness	If the front panel has wiring	Label the connector before unplugging
Drum belt tension	If you are removing the drum	Release the idler arm first

Why it matters

Removing panels in the right order prevents broken plastic tabs, stripped screws, and damaged wiring. It also makes common repairs (belt, idler pulley, blower wheel, motor) much faster and safer.

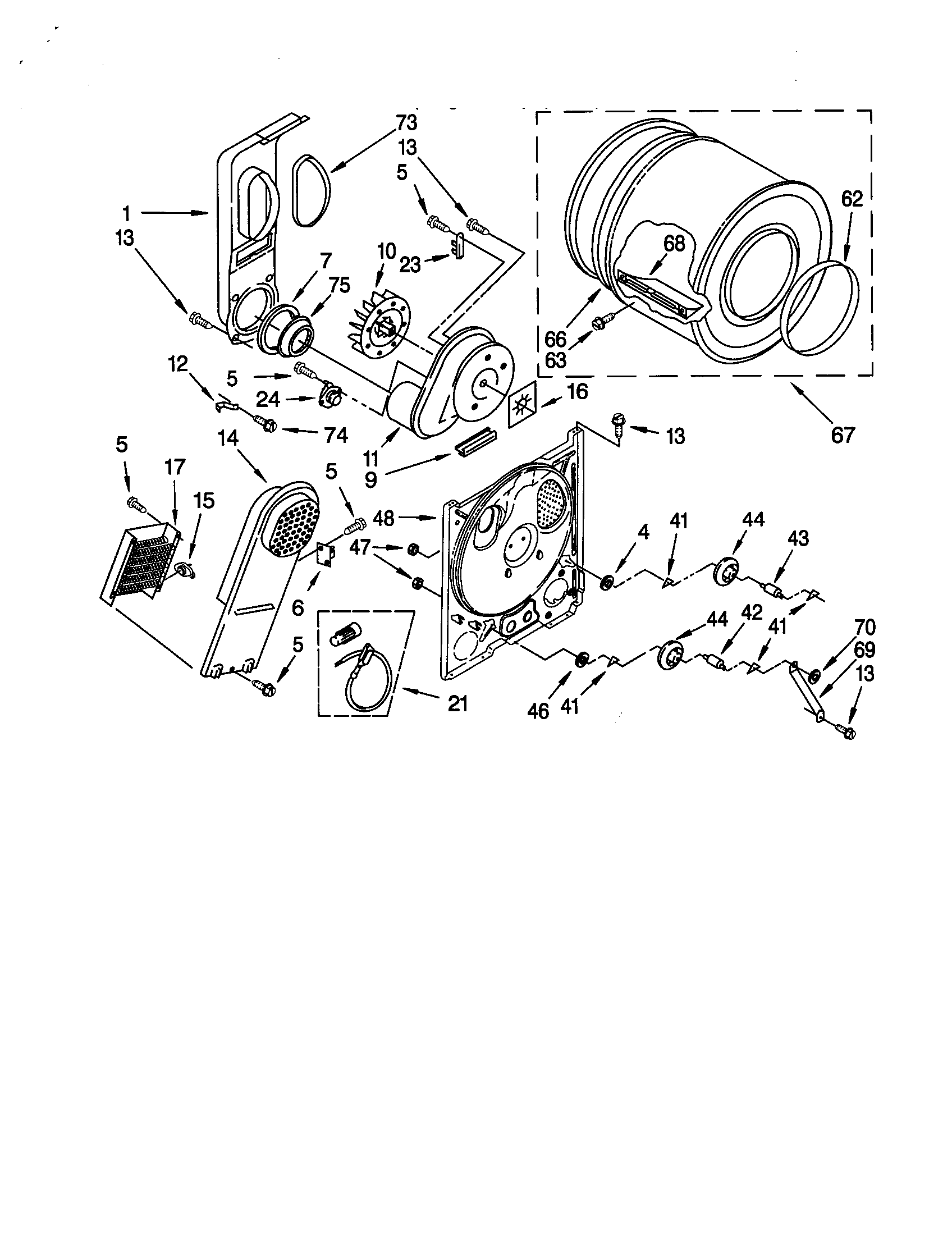

Parts commonly involved after panel removal

If you are opening the cabinet because the drum will not turn, squeals, or thumps, these are frequent wear items:

• Dryer drum belt 341241 (broken belt, drum not turning)
• Idler pulley WP691366 (squeal, belt slipping)
• Dryer blower wheel WP694089 (rattling, poor airflow)

Last updated: February 2026

On the Whirlpool dryer model LER5644JQ0, the F4 E4 code means low or no line voltage. The dryer is not getting the correct power supply, so the heater may not turn on; clearing the code does not fix the underlying power issue.

What to do first (safe, quick checks)

• Press any control pad to clear the code and try a cycle again.
• Confirm the dryer is plugged in fully and the cord is not loose.
• Check the home breaker: most electric dryers need a 2-pole (double) breaker; reset it fully OFF, then ON.
• If the drum tumbles but there is no heat, suspect a partial power loss (one leg of 240V missing).
• If the code returns, stop using heat cycles until power is corrected.

Power symptoms and what they usually mean

What you notice	What it often points to	What to check next
Dryer runs but no heat	Low/incorrect line voltage	Breaker, outlet, cord connections
Dryer will not start	No line voltage	Breaker, outlet, power cord
Code appears intermittently	Loose connection or weak supply	Terminal block, outlet tension

If power is good but the dryer still will not heat

Once correct voltage is confirmed at the outlet, a no-heat condition can also be caused by a failed heating circuit component. Common parts involved include:

• Dryer element 279838 (open heater)
• Dryer thermal cut-off fuse kit 279816 (overheat protection opened)
• Dryer operating thermostat WP3387134 (temperature control issue)
• Dryer thermostat WP3977767 (high-limit protection issue)

Why it matters

F4 E4 is a power-supply warning; running the dryer with incorrect voltage can prevent heating and can lead to repeated shutdowns. Correcting the electrical supply first avoids unnecessary part replacement and restores normal drying performance.

Related help: Whirlpool electronic control model dryer error codes

Last updated: February 2026
