Kenmore Elite 66514763N510 dishwasher Parts

On the Kenmore Elite dishwasher model 66514763N510, water use depends on the cycle you choose; most full wash cycles typically run in the 2.7 to 5.3 gallon range, while a quick rinse uses about 2.1 gallons. For the exact cycle chart and options, use the 66514763N510 owner’s manual.

Typical water use by cycle (what to expect)

High-efficiency Kenmore dishwashers save water by using advanced filtration and longer wash times. In the manual’s cycle chart, you’ll see these common ranges:

• Many full wash cycles: 2.7 to 5.3 gallons (10.4 to 20.2 L)
• Quick Rinse: about 2.1 gallons (8.1 L)
• Cycle time can increase when incoming water is cooler than 120°F (49°C)
• Heavier soil and added options can push water use toward the high end of the range
• Running the kitchen faucet hot before starting can help the dishwasher reach target temperature faster

Water use at a glance

Cycle type	Typical water use	Best for
Full wash cycles (varies by selection)	2.7 to 5.3 gal	Everyday loads, mixed soil
Quick Rinse	~2.1 gal	Rinsing dishes you will wash later

Why it matters

Water use is tied to cleaning performance and energy use. When the dishwasher starts with 120°F water at the inlet, it can clean effectively without extending the cycle to heat cooler water, which helps keep both time and utility costs under control.

Tips to reduce water use without sacrificing cleaning

• Use the cycle that matches the soil level; avoid heavy cycles for lightly soiled loads
• Scrape, do not pre-rinse; modern filtration is designed to handle food soil
• Run full loads so each gallon cleans more dishes
• Keep spray paths clear; avoid blocking the spray arm with tall pans
• Maintain the machine so it drains and fills correctly; a kinked or restricted drain can hurt performance (see the installation guide)

Last updated: February 2026

To hard reset the control on your Kenmore Elite dishwasher model 66514763N510, we use the built-in control reset: press and hold CANCEL/DRAIN twice to reset, then select a new cycle and press START/RESUME. This clears the current cycle and restarts the control logic (see the 66514763N510 owner's manual).

Quick reset steps (control reset)

• Open the door slightly to stop the cycle; wait for spraying to stop.
• Open the door fully.
• Press and hold CANCEL/DRAIN until the Cancel/Drain light turns on.
• Press and hold CANCEL/DRAIN twice to reset the control.
• Select your new cycle and options.
• Press START/RESUME, then close the door within a few seconds.

What this reset does (and does not do)

Action	What you’ll see	What it fixes
Cancel/Drain	Unit drains for about 2 minutes if water is present	Stuck cycle, standing water after cancel
Control reset (CANCEL/DRAIN twice)	Cycle clears; you can pick a new cycle	Glitches, unresponsive keys, cycle won’t restart
Power cycle (breaker off/on)	Display/lights reboot	Rare lockups after a surge (use after control reset)

If the dishwasher still will not start after resetting

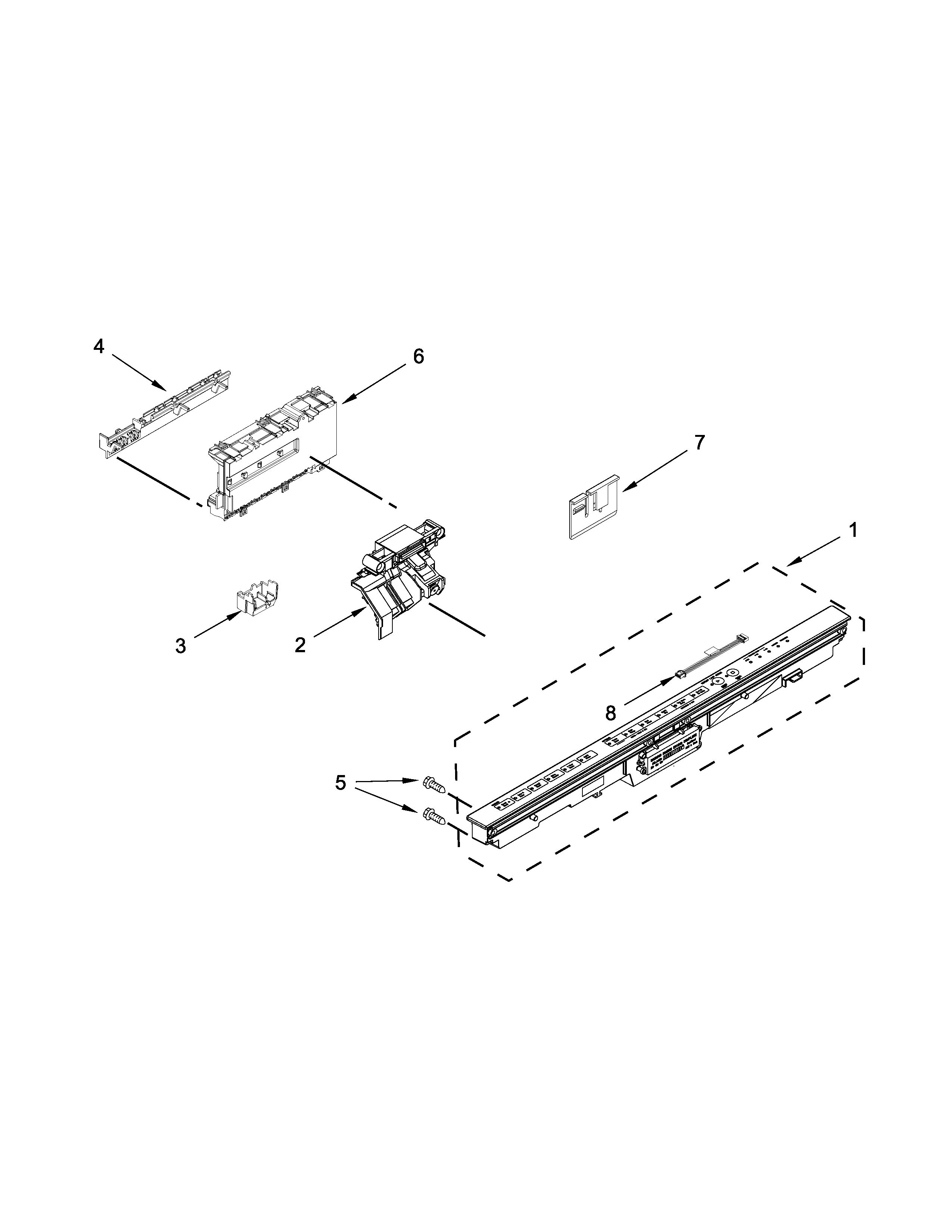

• Confirm the door closes and latches firmly; a weak latch can prevent starting (see dishwasher door latch WPW10653840).
• Make sure you are pressing START/RESUME and closing the door promptly.
• Check for a “service required” message or error code; use Kenmore 665 model dishwasher error codes to interpret it.
• Verify power at the outlet and that the breaker is on.
• If the tub is full of water and it will not drain, inspect the drain path and hose routing.

Why it matters

A proper control reset stops the current wash safely, drains if needed, and clears the control so you can restart cleanly. It also helps you separate a simple control glitch from a door latch, drain, or electrical issue.

Last updated: February 2026

Yes. Kenmore Elite is Kenmore’s premium line, and the Kenmore Elite dishwasher model 66514763N510 is built and marketed as a higher-end option with upgraded features and styling compared to standard Kenmore models; exact feature sets vary by model and configuration (see the 66514763N510 use and care guide).

What “high end” means for Kenmore Elite dishwashers

In our experience, “Elite” typically indicates a step up in areas that affect daily use:

• Quieter operation (more insulation and sound control)
• More wash coverage and targeted spray patterns
• Better drying performance (often tied to a heating element and rinse aid use)
• More flexible rack layouts and adjustability
• More premium exterior and control-panel styling

How to judge if your specific 66514763N510 is “high end” for your kitchen

Use these quick checks to compare it to other dishwashers you may be shopping against:

What to compare	What to look for	Why it matters
Wash performance	Soil removal on normal loads	Fewer rewashes and better results
Drying	Plastics drying, need for towel-drying	Convenience and time saved
Rack flexibility	Adjustable upper rack, smooth rollers	Fits tall items and loads easier
Reliability/repairability	Common wear parts available	Lower long-term ownership cost

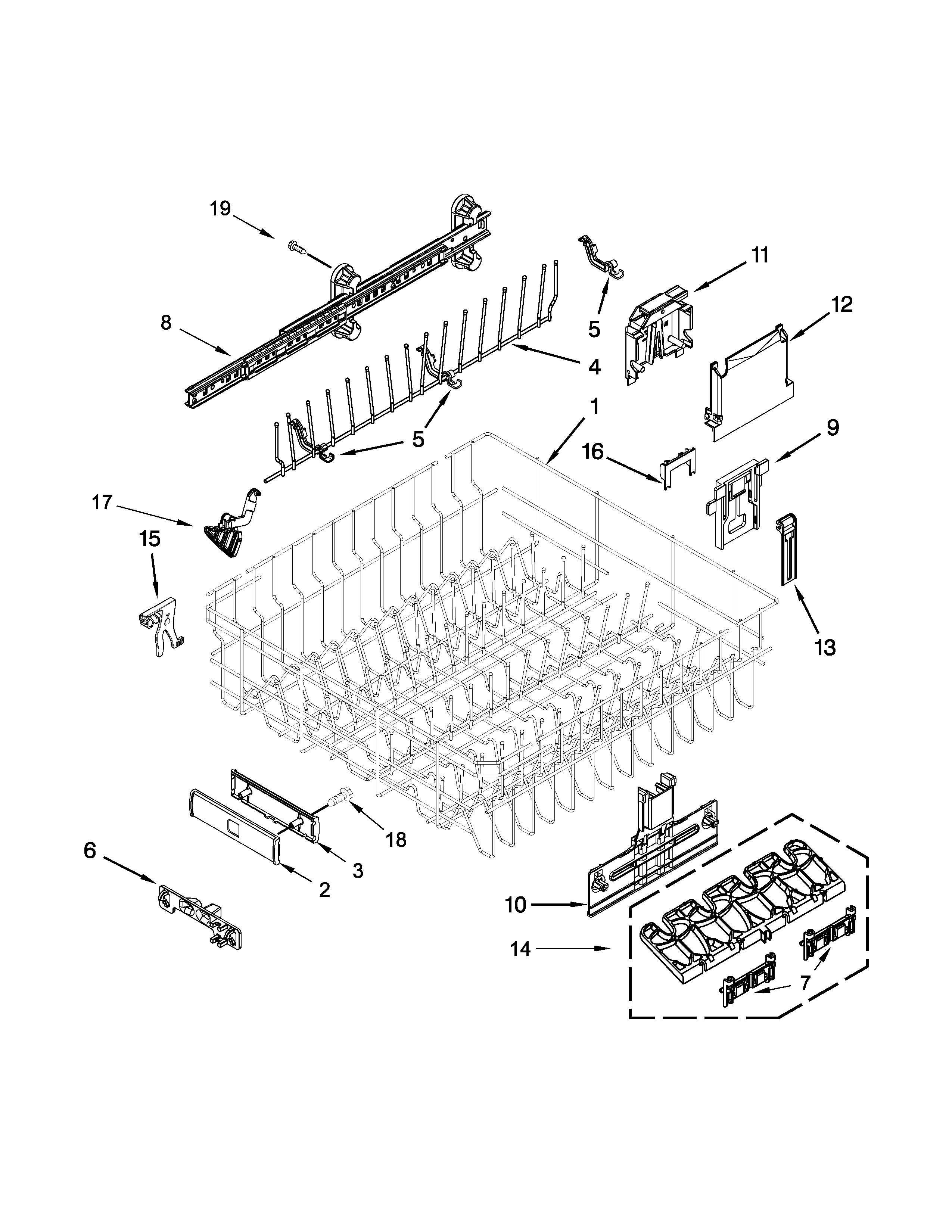

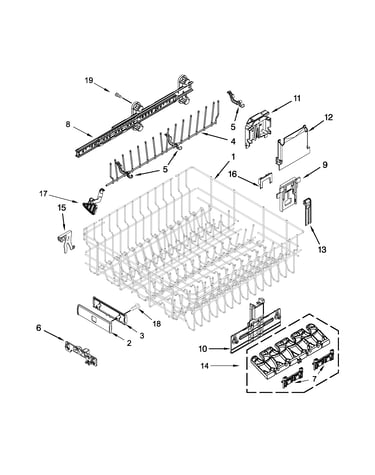

If your racks are hard to roll or won’t adjust smoothly, restoring rack hardware can make the dishwasher feel “premium” again. For example, the dishwasher dishrack adjuster WPW10546503 and the dishwasher dishrack roller assembly, lower WPW10195417 are common fit-and-function parts for this model.

Why it matters

“High end” is most noticeable in everyday outcomes: cleaner dishes, better drying, quieter cycles, and easier loading. Even a premium dishwasher can underperform if it is not loaded correctly, maintained, or if key wash components are worn.

Helpful next step

If you’re comparing features or trying to identify what your dishwasher supports (cycles, options, indicators), use the 66514763N510 use and care guide as your baseline reference.

Last updated: February 2026

Kenmore Elite dishwasher model 66514763N510 is a standard built-in dishwasher designed for full-size place setting capacity (typically 12 to 14 place settings). For the exact rack layout and loading guidance for your specific configuration, use the 66514763N510 use & care guide.

What “capacity” means for this dishwasher

Dishwasher capacity is measured in place settings, not cubic feet (that measurement is for washers and dryers). A place setting generally includes a dinner plate, salad plate, bowl, cup, saucer, and utensils.

Common factors that change real-world capacity:

• Rack design and tine spacing (how tightly dishes can nest)
• Upper rack height position (tall items vs. more plates)
• Third rack or silverware basket style (if equipped)
• Oversize cookware (sheet pans, mixing bowls, stock pots)

Quick capacity expectations (typical)

Dishwasher type	Typical capacity	Best for
Compact (18-inch)	8 to 10 place settings	Apartments, small kitchens
Standard (24-inch)	12 to 14 place settings	Most households
Large-tub / tall-tub	14+ place settings	Frequent entertaining

How to confirm your exact usable capacity at home

We recommend using your racks and basket setup as the “final answer” because accessories and rack positions affect what fits.

• Load the lower rack with dinner plates facing the center
• Load bowls and small plates in the upper rack
• Place glasses and mugs so they do not block the spray arm
• Use the silverware basket so spoons do not nest together
• Run a cycle and confirm spray coverage (no dry spots)

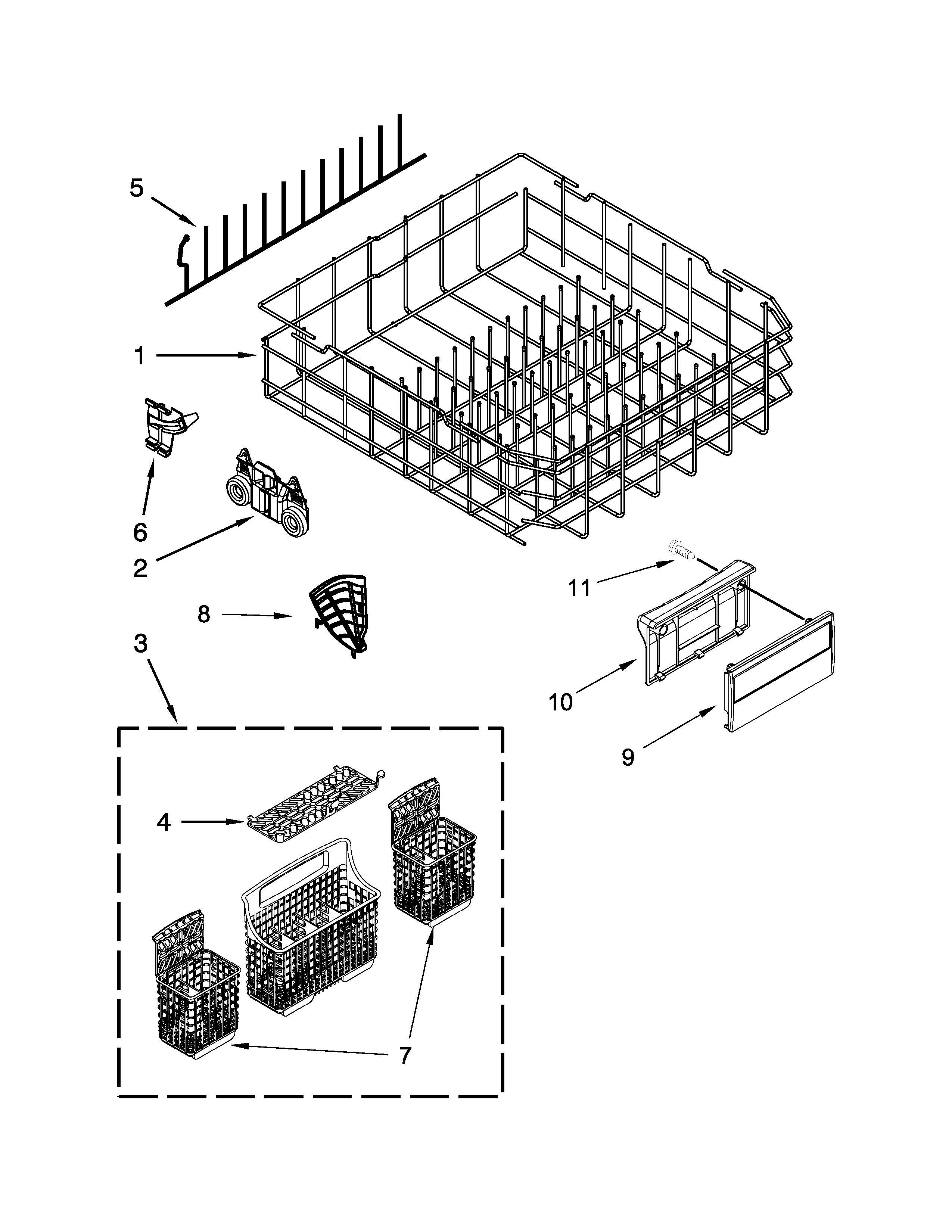

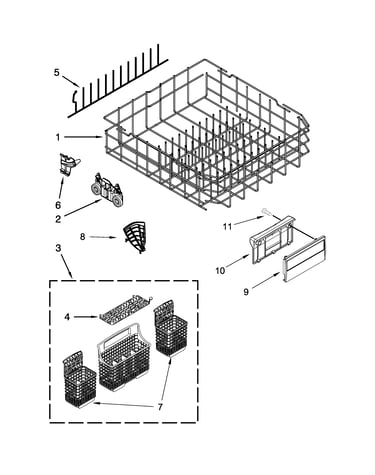

If your racks are hard to slide or don’t hold items securely, worn rollers or adjusters can reduce usable capacity. For example, the dishwasher dishrack roller assembly, lower WPW10195417 helps the lower rack roll smoothly and stay aligned.

Why it matters

Knowing the place setting capacity helps you choose the right cycle, avoid overloading (which causes poor cleaning), and protect key parts like the spray arm, racks, and pump from blocked movement.

Last updated: February 2026

On a Kenmore Elite dishwasher, error code F2E2 means the user interface (keypad) is not communicating correctly with the main control. On model 66514763N510, this typically shows up as buttons not responding, beeping with no start, or the cycle stopping because the controls cannot “talk” to each other. See the 66514763N510 owner's manual for the reset and control-lock steps used on this platform.

What to try first (quick fixes)

• Power reset: turn off the breaker for 1 minute, then restore power.
• Cancel/Drain: press Cancel/Drain (or the model’s cancel sequence) to clear a stuck cycle.
• Control lock: make sure Control Lock is off; a locked panel can look like a keypad failure.
• Dry the console area: if the panel was wiped with a very wet cloth, let it dry fully.
• Check for a “stuck key”: press each key once; a jammed key can trigger F2E2.

What usually causes F2E2

F2E2 is almost always a control-side problem, not a wash motor or drain issue.

Likely cause	What you’ll notice	Typical fix
Keypad/user interface fault	Some keys do nothing or act “random”	Replace the user interface/console assembly (model-specific)
Loose or oxidized ribbon/connector	Intermittent beeping, works after reset	Reseat connector(s) with power off
Moisture intrusion in console	Error after cleaning or steam	Dry out; correct sealing; replace UI if damaged
Main control board issue	No response even after reset	Replace main control (model-specific)

When a part replacement is more likely

Plan on a control repair when you see any of these:

• F2E2 returns immediately after a breaker reset
• Multiple keys fail at once
• The dishwasher starts only sometimes, then stops and beeps
• The display/indicators behave erratically

If the dishwasher also will not start because the door is not being recognized as closed, check the dishwasher door latch WPW10653840 since a door-latch problem can prevent normal operation.

Why it matters

The user interface and main control coordinate every function (fill, wash, heat, and drain). When communication fails, the dishwasher may stop mid-cycle, not start at all, or ignore selections, which can lead to poor cleaning and incomplete draining.

For model-specific diagnostics and button sequences, use the installation guide for safety and access notes before servicing.

Last updated: February 2026

Kenmore is a brand name, and the 665 model prefix on Kenmore Elite dishwasher model 66514763N510 identifies it as a Whirlpool-built dishwasher (Kenmore-branded, Whirlpool-manufactured). For operating and care details specific to this unit, use the 66514763N510 use and care guide.

How we identify the manufacturer for Kenmore model numbers

Kenmore appliances are made by different manufacturers; the easiest way to tell who built yours is the model prefix.

• 665 prefix: Whirlpool-built dishwasher platform
• Other Kenmore prefixes can indicate different manufacturers (varies by product type)
• The full model number on the rating label is the best identifier for parts matching
• The use and care guide often groups models by prefix (for example, 665.1476*)

Quick reference: what “665” means

What you see	What it indicates	Why it matters
Kenmore Elite 66514763N510	Whirlpool-built dishwasher	Helps match the correct parts and service procedures
Manual listing 665.1476*	Same model family	Confirms you are using the right instructions

Why it matters when ordering parts or troubleshooting

Knowing the Whirlpool-built platform helps you choose the right replacement parts and follow the right repair steps for common issues like poor cleaning, leaking, or a door that will not latch.

If you are diagnosing a symptom, the Kenmore 665 model dishwasher error codes guide is a fast way to interpret what the control is reporting before you replace parts.

Last updated: February 2026
