Do Craftsman mowers use Briggs and Stratton engines?
Yes, many Craftsman mowers and lawn tractors use Briggs and Stratton engines. For Craftsman lawn tractor model 917271851, the owner's manual identifies a Briggs & Stratton engine model 407777 (type 0167-E1), so this specific tractor is Briggs-powered.
What this means for parts and service
Engine brand matters most when you are buying tune-up parts or looking up engine-specific specs.
- Use the engine model and type (not just the tractor model) when ordering engine parts like carburetor gaskets, air filter components, or starter parts.
- Use the tractor model number for chassis and deck parts like belts, blades, and mandrel components.
- If you are unsure which engine you have, confirm it on the engine shroud label and compare it to the manual.
- Keep the engine model/type handy for oil, spark plug, and adjustment specs.
Quick ID: tractor model vs. engine model
| What you are identifying | Where to find it | Example for this unit |
|---|---|---|
| Tractor model number | Tractor ID tag and documentation | 917271851 |
| Engine model and type | Engine label and manual engine section | 407777, type 0167-E1 |
Related parts you might replace on this tractor
If you are doing routine mowing maintenance, these tractor-side parts are commonly replaced (separate from engine parts):
- Deck blade: husqvarna lawn tractor mulching blade 532134149
- Ground drive belt: v-belt 532138255
- Ignition key: molded ignition key 532140403
Why it matters
Matching the correct engine family prevents wrong tune-up parts and incorrect service settings. Matching the correct tractor model prevents wrong deck and drive components, which helps restore proper cutting performance and safe operation.
For engine identification details and the engine model listing, use the 917271851 owner's manual.
Last updated: January 2026
What are the most common issues with 917271851?
The most common issues we see on the Craftsman 917271851 front-engine lawn tractor involve the mower deck drive system (belt, idlers, mandrels), starting and key problems, and steering or tire wear. Most symptoms trace back to normal wear parts and simple adjustments outlined in the 917271851 owner's manual.
Common problems and what they usually mean
- Blades will not engage or deck stops under load: worn or stretched deck belt, weak idler spring, or a sticking idler arm.
- Poor cut quality or uneven mowing: dull/bent blade, worn mandrel bearings, or deck not leveled.
- Squealing, burning smell, or belt slipping: belt glazing, misrouted belt, or a failing idler pulley.
- No-start or intermittent start: damaged key, loose battery cables, or a safety switch issue.

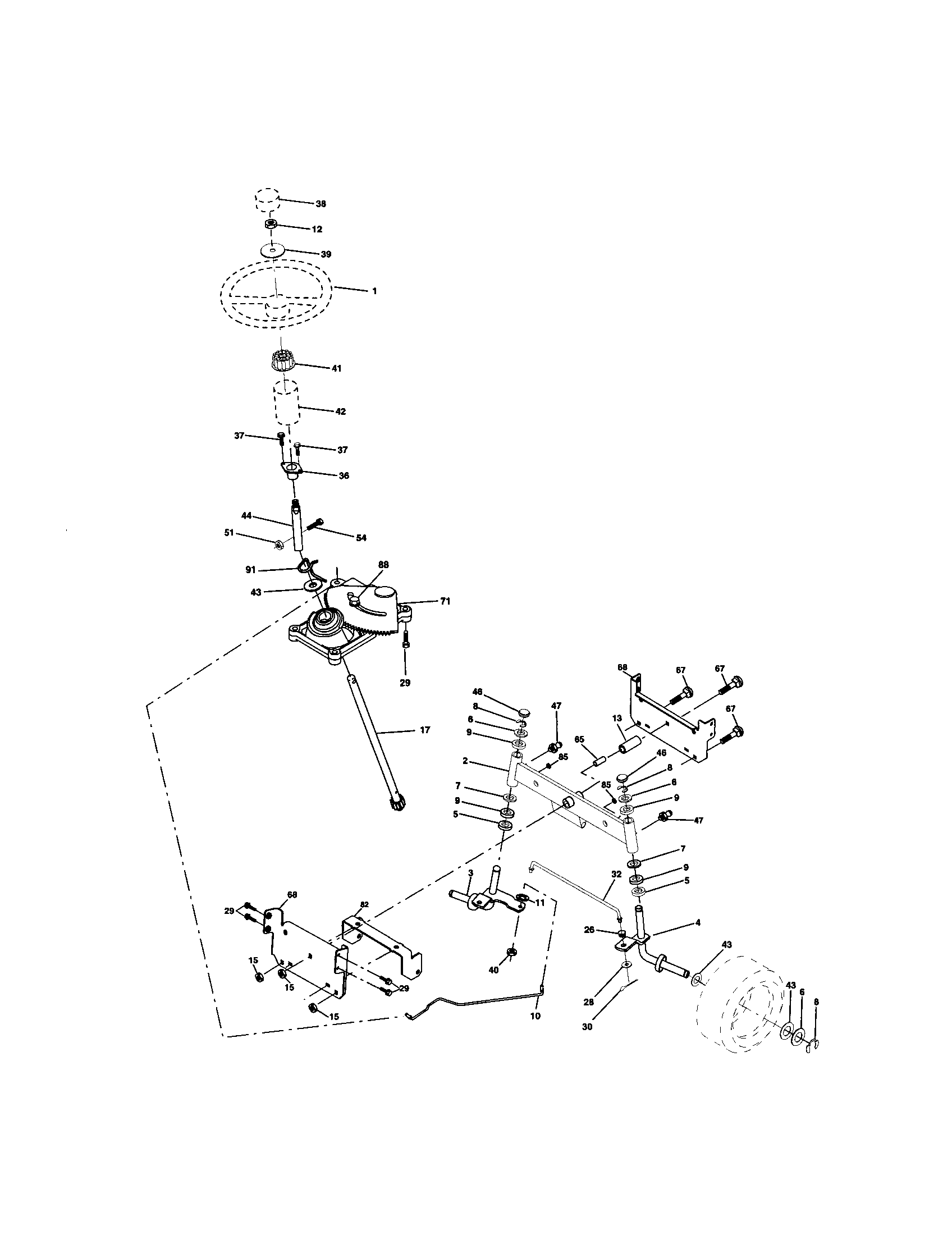

- Loose steering or wandering: worn steering linkage components or front tire issues.
Parts that commonly wear on this model
These are frequent replacement items for deck and starting complaints:
- V-belt 532138255 (deck drive belt)
- Lawn tractor blade idler pulley 532139245 (keeps belt tension)
- Lawn tractor blade idler spring 532169022 (maintains idler force)
- Husqvarna lawn tractor mandrel assembly 532130794 (blade spindle assembly)
- Molded ignition key 532140403 (starting and key wear)
Quick checks before you replace parts
- Park on level ground, set parking brake, remove the key, and disconnect the spark plug wire.
- Inspect the belt for cracks, glazing, or missing chunks; confirm correct routing.
- Spin each blade pulley by hand; roughness or wobble points to a mandrel issue.
- Check idler pulley alignment and that the idler arm moves freely.
- Verify blade condition and that the deck is level side-to-side.
Symptom-to-part cheat sheet
| Symptom | Most likely area | Common part examples |
|---|---|---|
| Deck will not stay engaged | Belt tension/drive | Belt, idler pulley, idler spring |
| Vibration or rumbling at blades | Spindles/mandrels | Mandrel assembly |
| Key turns but nothing happens | Starting controls | Ignition key, wiring/safety switches |
| Uneven cut | Deck setup/blades | Blade, deck leveling |
Why it matters
A slipping belt or worn mandrel can quickly damage pulleys and reduce cut quality. Catching wear early keeps the mower deck, transaxle drive, and engine load where they should be.
Last updated: March 2026

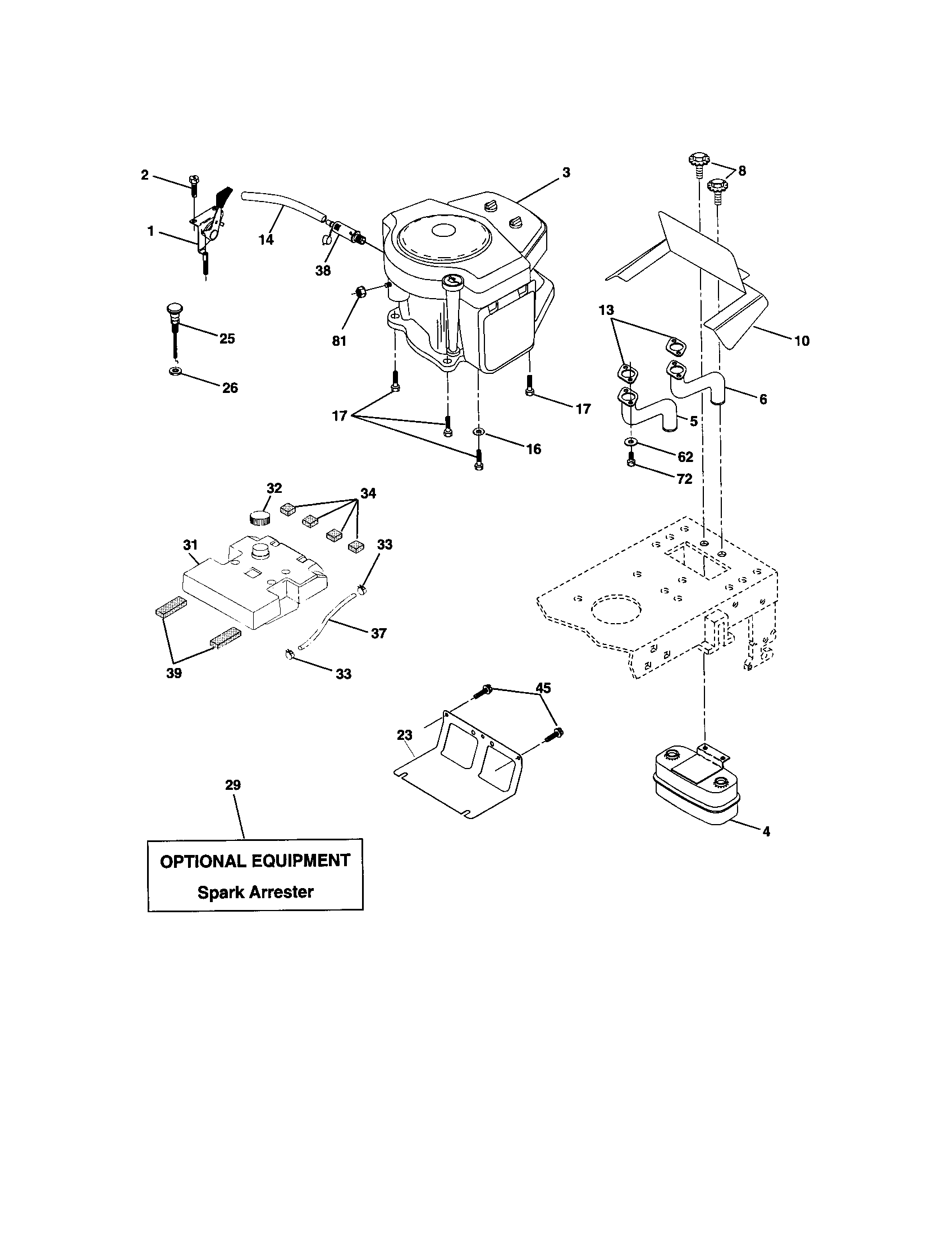

What model number is the Craftsman 917271851 engine?
For the Craftsman lawn tractor model 917271851, the engine is a Briggs & Stratton model 407777 with type number 0167-E1. You can confirm this in the engine breakdown section of the 917271851 owner's manual.
Where to find the engine model on the tractor
We recommend checking the engine identification label on the engine itself; it lists the model and type exactly as needed for parts lookup.
- Look for a sticker or stamped tag on the blower housing or valve cover area
- Record both the model and type numbers (both matter)
- Clean off grass and oil film so the numbers are readable
- Match what you see to the manual listing before ordering engine parts
Engine identification: what the numbers mean
| Item | For model 917271851 | Why it matters |
|---|---|---|
| Engine manufacturer | Briggs & Stratton | Helps you use the correct engine parts diagrams |
| Engine model number | 407777 | Identifies the engine family |
| Type number | 0167-E1 | Identifies the exact configuration (carb, governor, charging, etc.) |
Why it matters
Using only “Craftsman 917271851” is great for tractor chassis and deck parts, but engine service parts (like carburetor components, gaskets, starter parts, and fuel system items) often require the Briggs & Stratton model and type to ensure the correct match.
Last updated: January 2026
