Yes, replacing the engine on your Craftsman lawn tractor model 917275670 is worth it when the tractor’s deck, steering, and drive components are still solid and the engine cost stays well below the price of a comparable replacement tractor. If multiple major systems are worn out, replacement usually makes more sense.

Quick decision checklist

• The mower deck is not rusted through and still cuts evenly after cleaning and leveling
• The tractor drives smoothly (no slipping, grinding, or loss of motion)
• Steering and brakes feel tight and controllable
• You can do basic service safely (blades are sharp; shut off engine and remove key before work)
• The engine failure is isolated (not paired with electrical, fuel, and drivetrain issues)

Cost and effort: what to compare

Use this simple comparison to decide where your money goes.

Option	Best when	Typical downside
Replace engine	Chassis, deck, and transaxle are in good shape	Higher up-front cost, install time
Repair existing engine	Problem is minor (fuel, spark, carburetor, compression)	Can become time-consuming
Replace tractor	Several big-ticket parts are also failing	Higher total spend, setup time

Before you commit: rule out “not an engine” problems

Many “bad engine” symptoms are caused by maintenance or safety circuits. We recommend checking these first using the 917275670 owner’s manual.

• Verify fresh fuel and correct throttle position (mowing is typically done at full throttle)
• Check oil level and air filter condition
• Inspect spark plug and make sure the plug wire is tight
• Confirm safety interlock operation (seat switch, brake, PTO engagement)
• Clean grass and debris buildup around the engine and under the deck (buildup can create overheating and fire risk)

Why it matters

A new engine can extend the life of a good Craftsman chassis for years, but it will not fix poor cutting from a worn deck, vibration from damaged blade hardware, or drive issues from belt or transaxle wear. Doing a quick condition check first prevents spending engine money on a tractor that still will not perform.

Last updated: February 2026

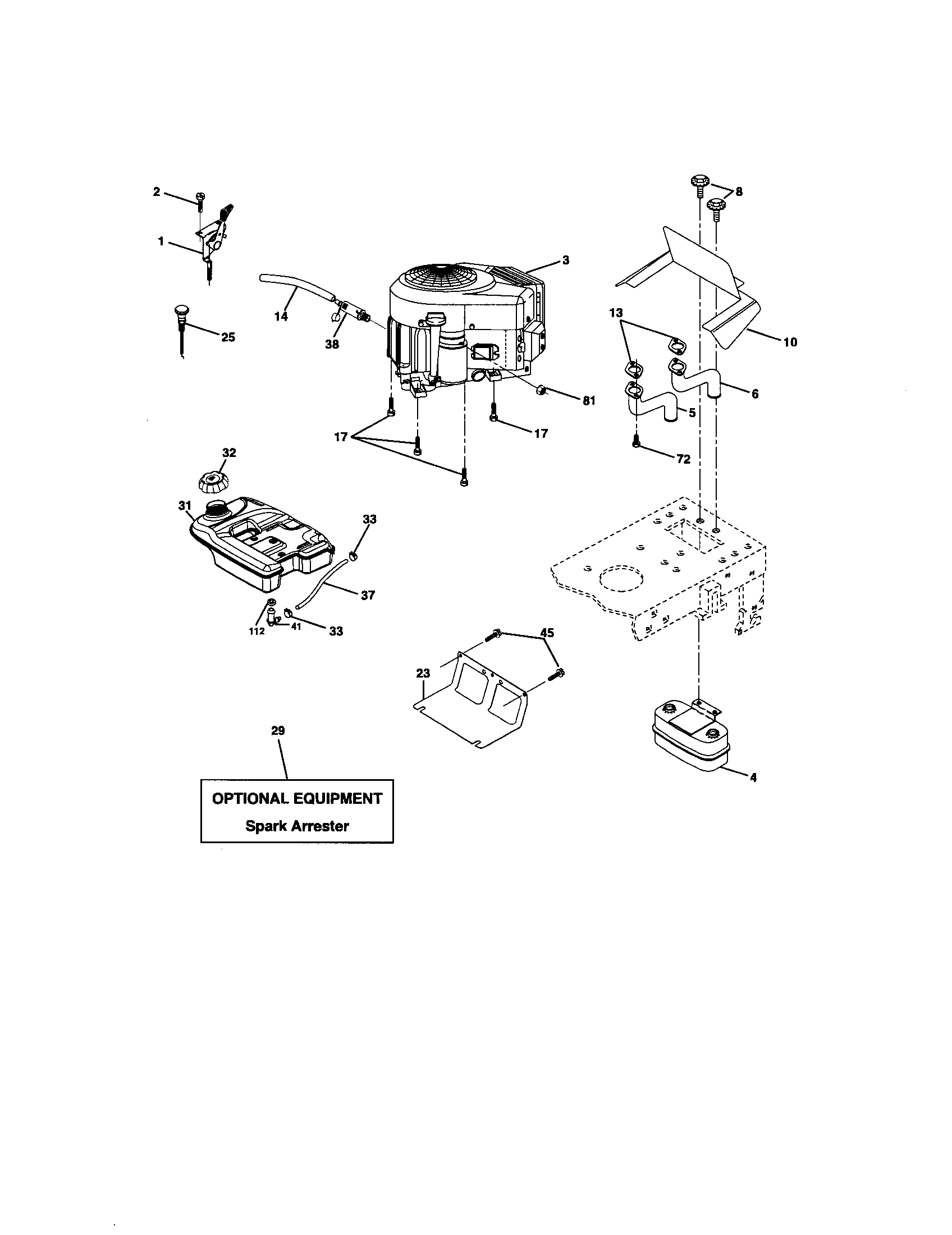

The Craftsman lawn tractor model 917275670 uses a 24.0 HP engine (as listed in the owner’s manual). This model is also labeled as a low-emission engine design, so following the correct starting, throttle, and choke procedures in the manual helps it run and charge the battery properly. See the 917275670 owner's manual.

What we can confirm for model 917275670

From the manual for Craftsman 917275670, we can confirm these engine-related details:

• Engine power rating: 24.0 HP
• Mower deck size shown on the manual cover: 42 in
• Starting system: electric start
• Engine type note: low-emission engine (operates differently than older designs)
• Operating tip: run at full throttle for best mowing performance and battery charging

Engine brand and model: where to find it

The owner’s manual confirms horsepower and operating guidance, but the exact engine manufacturer and engine model number are typically found on the engine ID label (on the blower housing, valve cover area, or near the starter).

Use this quick checklist:

• Look for a sticker or stamped tag that lists Model, Type, and Code (common on Briggs and Stratton)
• Record the full engine model information before ordering ignition, carburetor, or starter parts
• Match parts by engine model, not only by tractor model

Quick reference table

Item	What to use it for	Where to find it
Tractor model number (917275670)	Deck, chassis, steering, belts, PTO parts	Tractor frame tag, manual
Engine model/type/code	Tune-up and engine-specific parts	Engine ID label
Deck size (42 in)	Blades, mandrels, deck belt selection	Manual and deck tag

Why it matters

Many Craftsman tractors share similar frames and decks, but engines can vary by production run. Confirming the engine ID prevents wrong-part returns for common repairs like starting issues, charging problems, and tune-ups.

Last updated: February 2026

For the Craftsman lawn tractor model 917275670, we use standard 4-cycle engine oil; it ships from the factory filled with summer-weight oil, and you switch to the correct viscosity for cold weather using the chart in the 917275670 owner's manual.

Recommended oil type and viscosity

Your tractor uses a 4-stroke (4-cycle) engine, so use 4-cycle engine oil (never 2-cycle mix oil). For best results, match viscosity to temperature.

• Warm weather: use the manual’s summer-weight recommendation
• Cold weather: change to the viscosity shown in the manual’s oil viscosity chart for easier starting
• Use a quality oil rated for small engines (common choices include SAE 30 for warm temps and 5W-30 for colder temps, depending on the chart)
• Keep the oil at the proper level on the dipstick; do not overfill

How to check and fill oil (quick steps)

The manual’s process is straightforward and helps prevent low-oil damage.

• Park the tractor on level ground
• Remove the oil fill cap/dipstick, wipe clean
• Reinsert and tighten, wait a few seconds, then remove and read
• Add oil until the dipstick reaches the FULL mark
• Recheck after adding; stop at FULL (do not overfill)

Oil selection guide (typical)

Use this as a quick reference, then confirm with the manual’s viscosity chart.

Outdoor temperature	Typical viscosity used on many lawn tractors	Notes
Above ~40°F	SAE 30	Common “summer-weight” choice
Around 0°F to 40°F	5W-30	Easier cranking in cold weather
Below 0°F	0W-30 or 5W-30 (synthetic)	Best cold-start performance

Why it matters

Correct oil viscosity keeps the engine properly lubricated at startup and under load. Oil that is too thick in cold weather can make starting difficult; oil that is too thin in heat can reduce protection.

Last updated: February 2026

For the Craftsman front-engine lawn tractor with a 42-inch mower deck on this page, the model number is 917.275670 (commonly written without the dot as 917275670). You can confirm it on the cover and model identification sections in the owner's manual.

Where to find the model number on the tractor

We recommend matching the tractor’s ID label to the manual so you order the right parts (blades, belts, mandrel parts) for the correct 42-inch deck setup.

• Check the product identification label under the seat or near the rear fender area
• Look for a long number starting with 917
• Match the label to the manual listing for 917.275670
• Use the full model number when searching parts diagrams
• If your tractor says 917.275670, it is the same as 917275670 for parts lookup

Model number vs. deck size (quick check)

A “42” description usually refers to the mower deck cutting width, not the tractor model by itself.

What you see	What it means	Example for this tractor
42-inch deck	Cutting width	42" mower deck
917.275670	Tractor model number	Craftsman 917275670
Blade part listing	Deck-compatible blade options	Lawn tractor 42-in deck high-lift blade 532138971

Why it matters

Parts like the blade drive belt, mandrel shaft, and blades vary by deck design and production run. Using the exact model number 917275670 helps ensure the correct Craftsman parts fit and install properly.

Last updated: February 2026

Craftsman model 917275670 does not have a single “model year” printed in the documentation; Craftsman 917-prefix lawn tractors were produced across multiple years. The most reliable way to date your exact tractor is to use the product identification label on the machine and cross-check it with the 917275670 owner's manual.

How to find the build date for your exact tractor

Use these checks to identify the manufacturing date information that applies to your specific unit:

• Locate the product ID label (commonly under the seat, on the rear fender pan, or on the frame rail).
• Record the model number (917275670) and the serial number exactly as shown.
• Look on the label for a date code or manufacture date line (format varies by production run).
• Compare your tractor’s configuration to the manual diagrams (hood, chassis, and mower deck layout).
• If the tractor has replacement major assemblies (deck, transaxle, hood), rely on the frame ID label as the deciding identifier.

What we can confirm from the manual

The manual confirms the tractor identification and key configurations used for parts matching.

Manual detail we can verify	What it helps with
Model number shown as 917.275670	Confirms you are using the correct parts breakdown

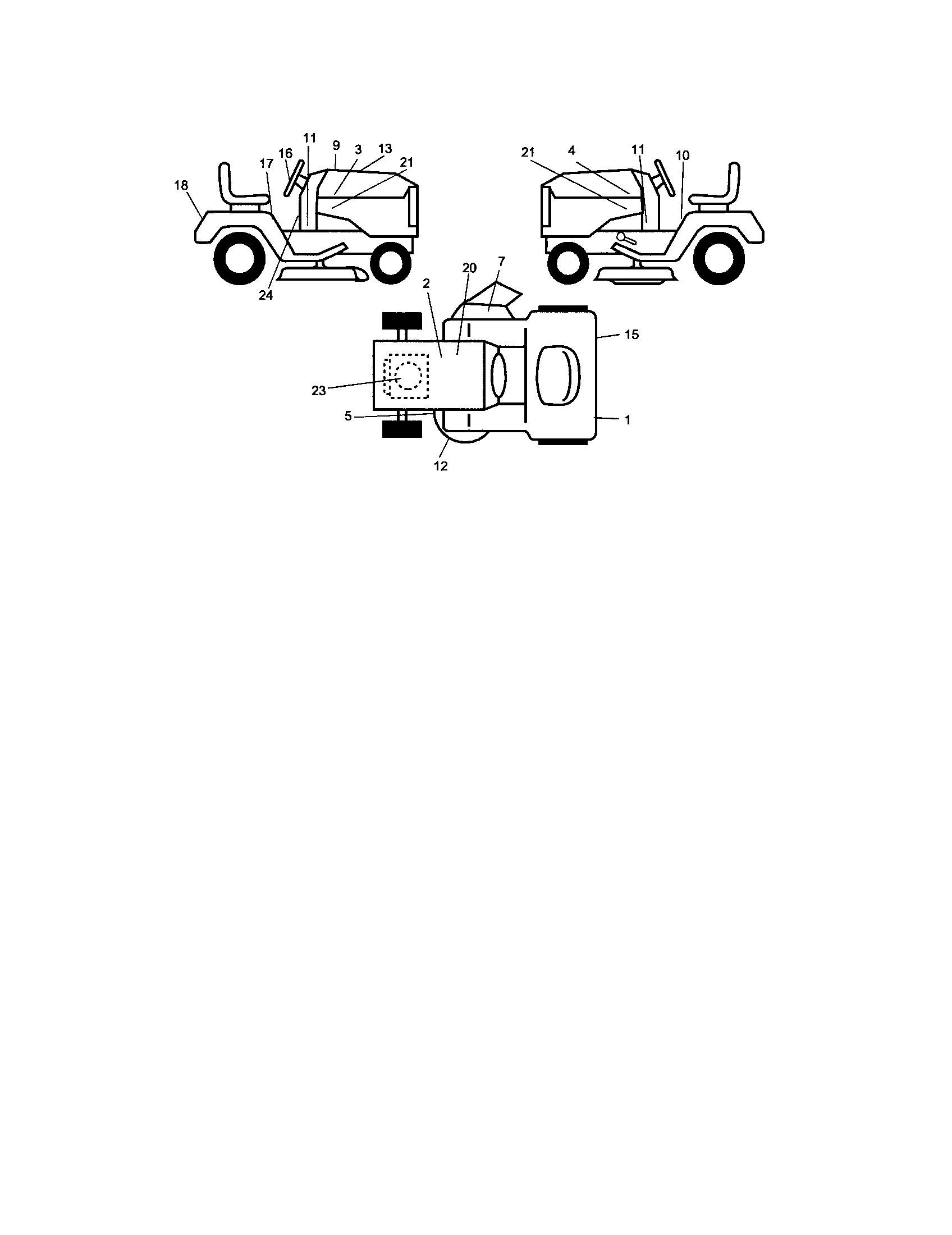

Mower deck section and decals list	Helps match deck style and decal set
Component dimensions noted in inches	Helps with hardware and fit checks

Why it matters

Craftsman tractors with similar styling can use different belts, blades, PTO switches, and deck parts depending on the production run. Dating the tractor by the ID label prevents ordering the wrong components.

Last updated: February 2026
