Kenmore 66513229N411 dishwasher Parts

Common problems on the Kenmore 66513229N411 dishwasher include not starting, not draining, poor cleaning, spotting from hard water, leaks, and weak drying. Most issues trace back to loading, water temperature (target 120°F), a clogged filter or spray arm, or a door that is not fully latched (see the 66513229N411 owner's manual).

Most common symptoms and what usually causes them

• Dishwasher will not start or stops mid-cycle: door not fully closed/latched, Control/Lock enabled, cycle not selected, or power issue (breaker/fuse).
• Won't drain: clogged filter, blocked drain path, kinked hose, or a failing drain pump.

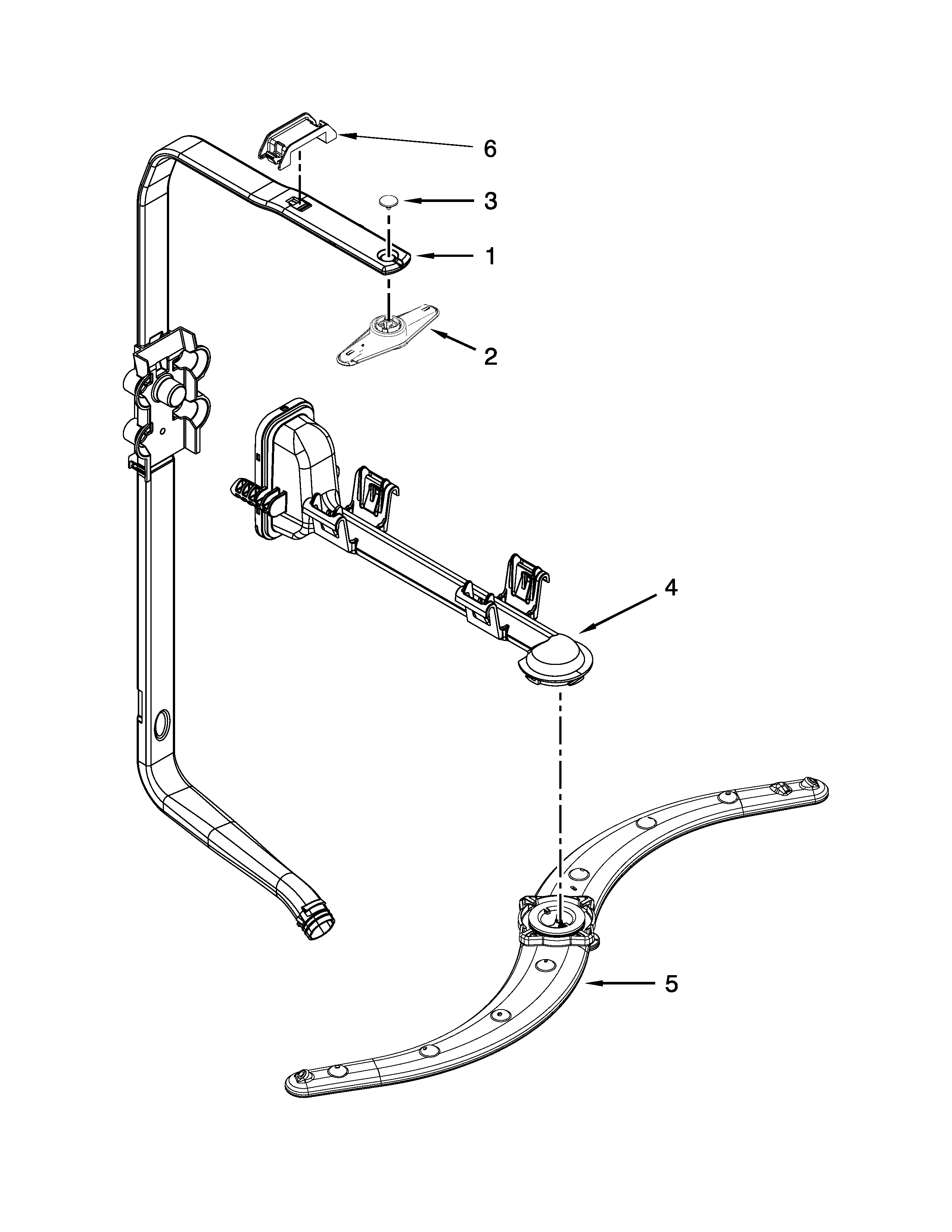

• Poor cleaning: blocked spray nozzles, overloaded racks, low water temperature, or heavy soil not being filtered.
• Cloudy or spotted dishes: hard water, not enough rinse aid, too much or too little detergent.
• Leaks: loose hose connections, damaged door seal area, or overfill protection float issues.
• Poor drying: low incoming water temperature, no rinse aid, or heating circuit problems.

Quick checks we recommend first (fast, no tools)

1. Close the door firmly; if Start/Resume is blinking, press START/RESUME and close the door within 3 seconds.
2. Confirm Control/Lock is off and a cycle is selected.
3. Verify hot water supply; incoming water should be about 120°F (49°C).
4. Check the bottom of the tub for debris around the filter and overfill float.
5. Inspect rack movement; broken adjusters or wheels can prevent proper loading and door closure.

Parts that commonly fix these problems

Symptom	Common part involved	Example part for this model

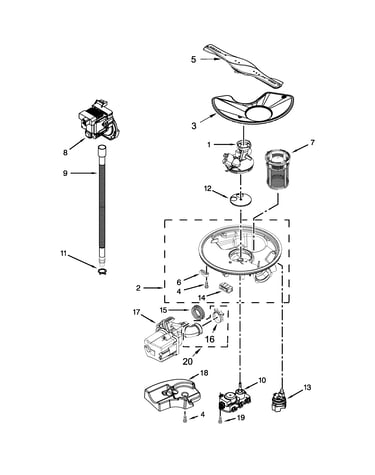

Won’t drain	Drain pump or drain hose	Dishwasher drain pump WPW10348269

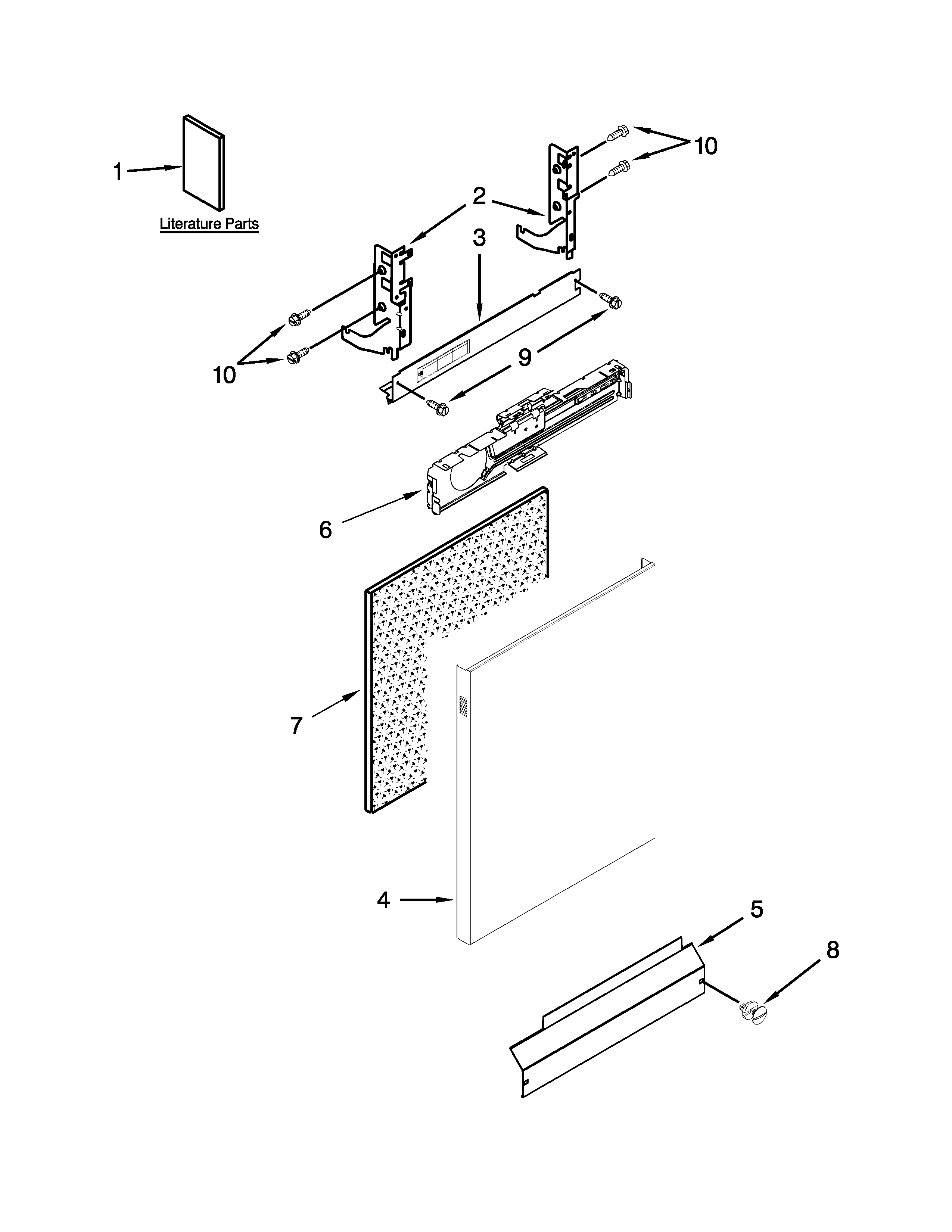

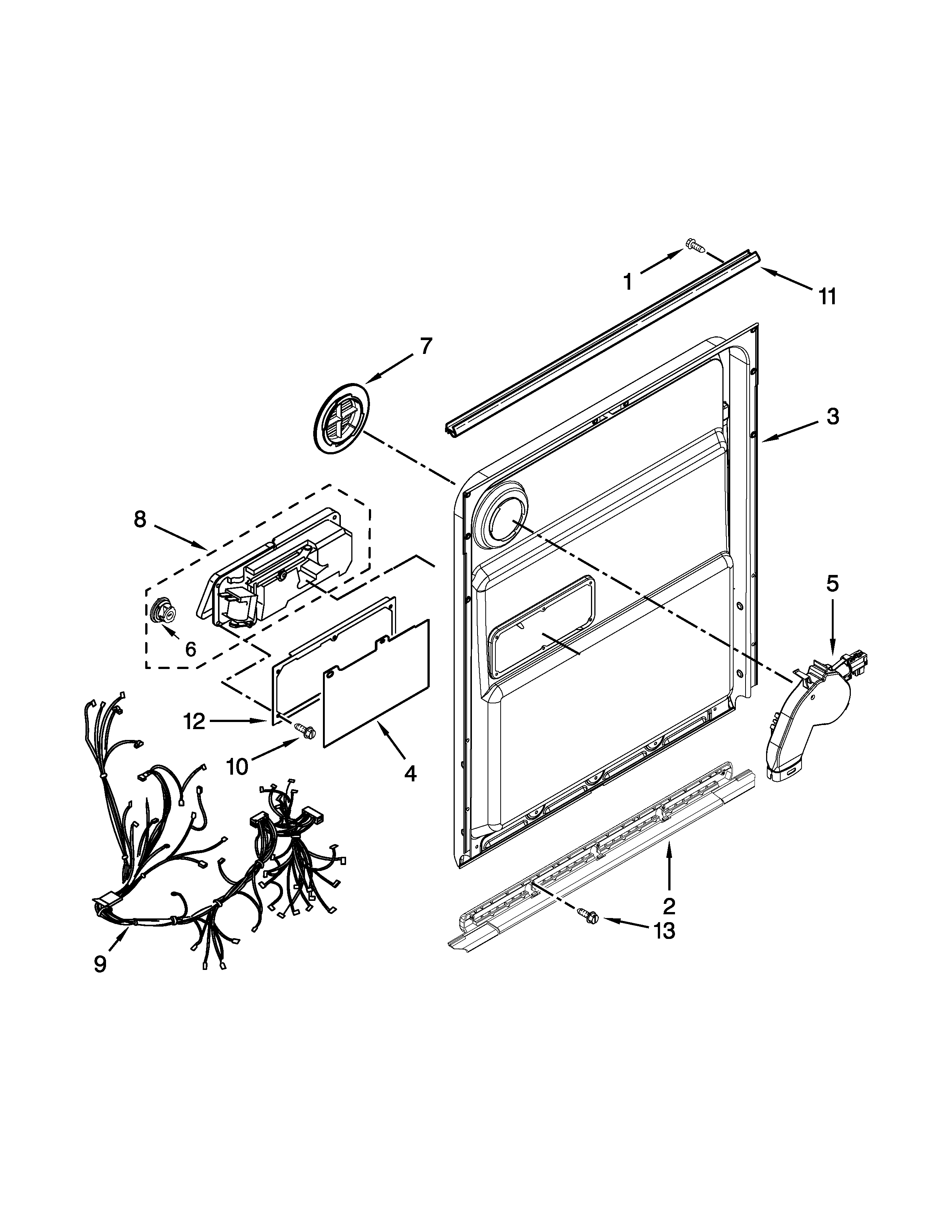

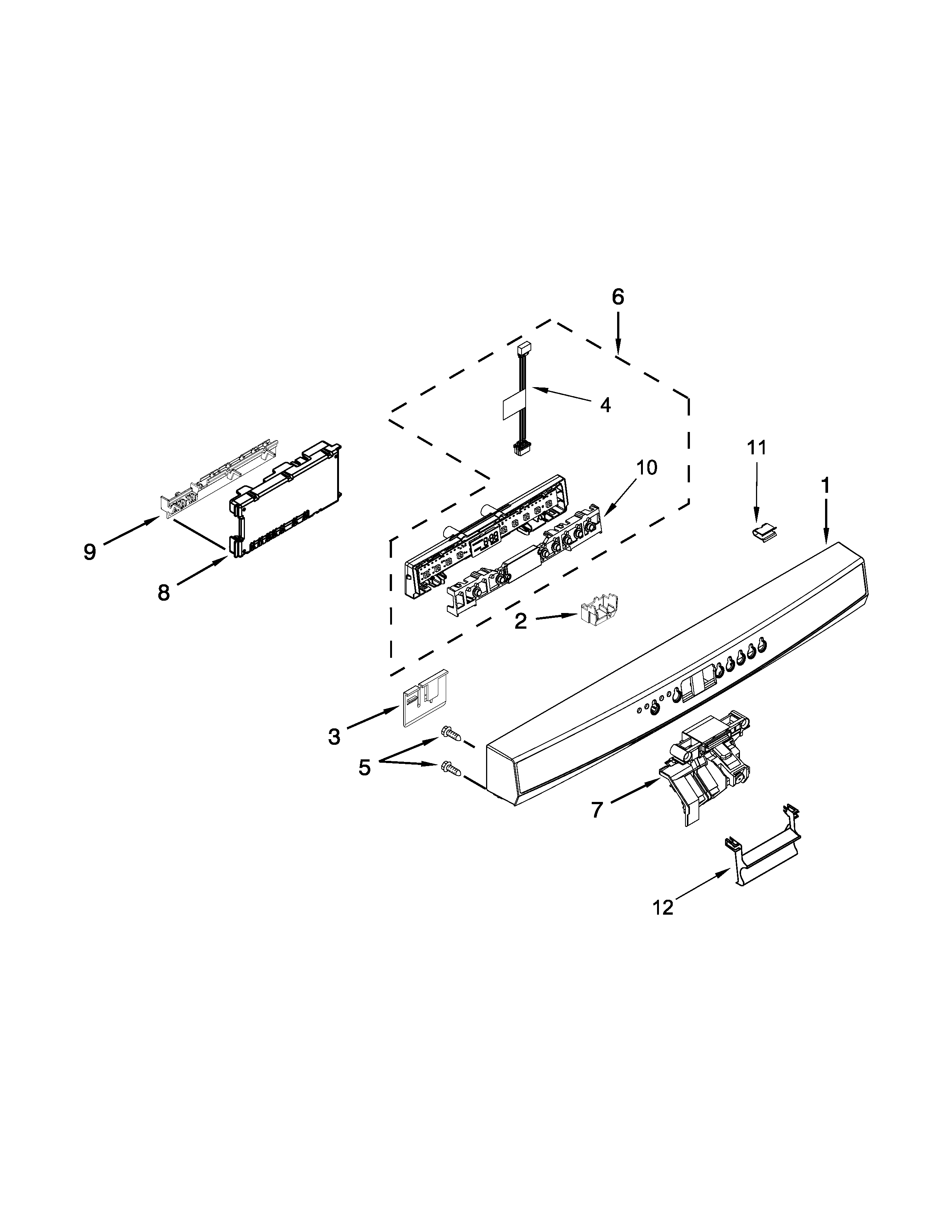

Won’t start	Door latch	Dishwasher door latch WPW10653840
Poor drying	Heating element	Element assembly W10703867

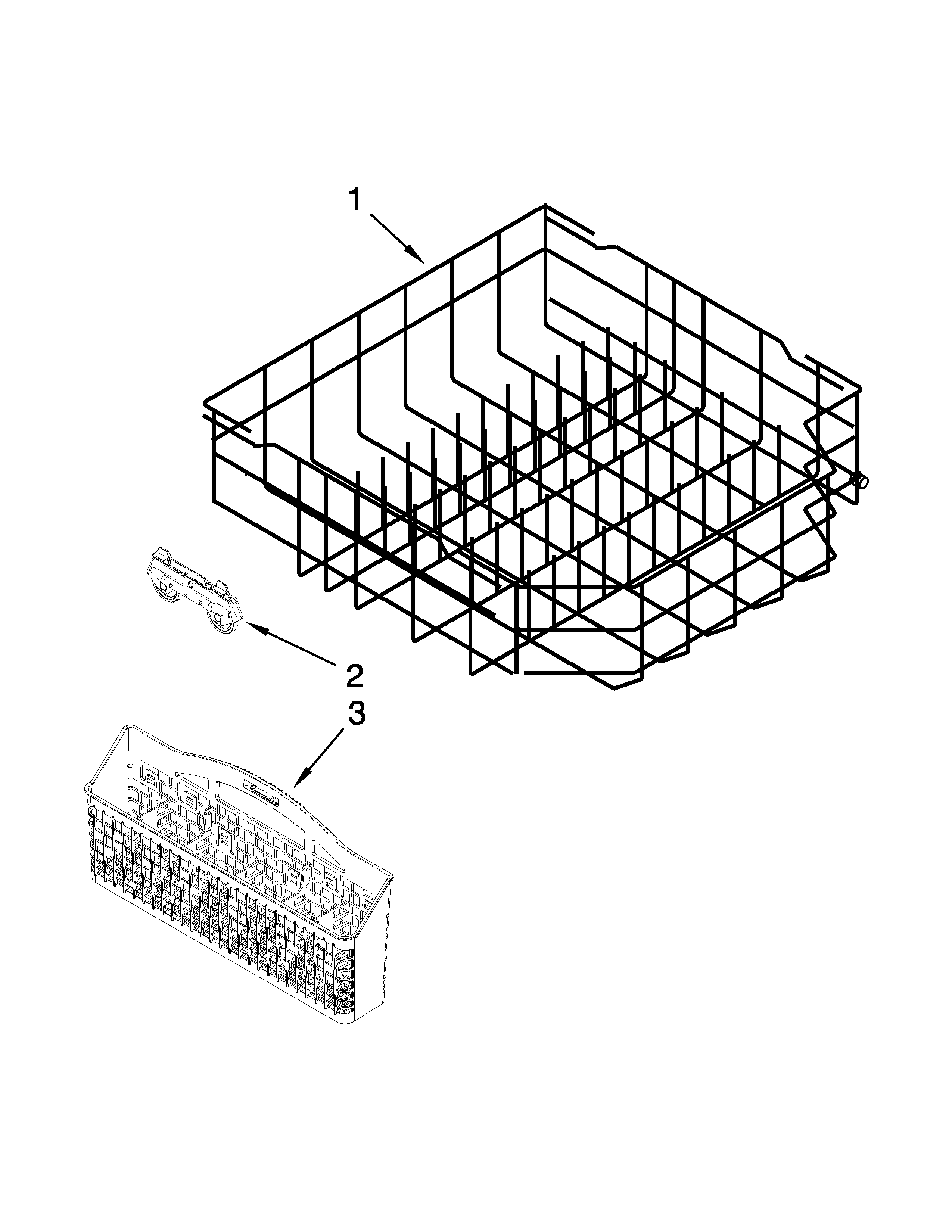

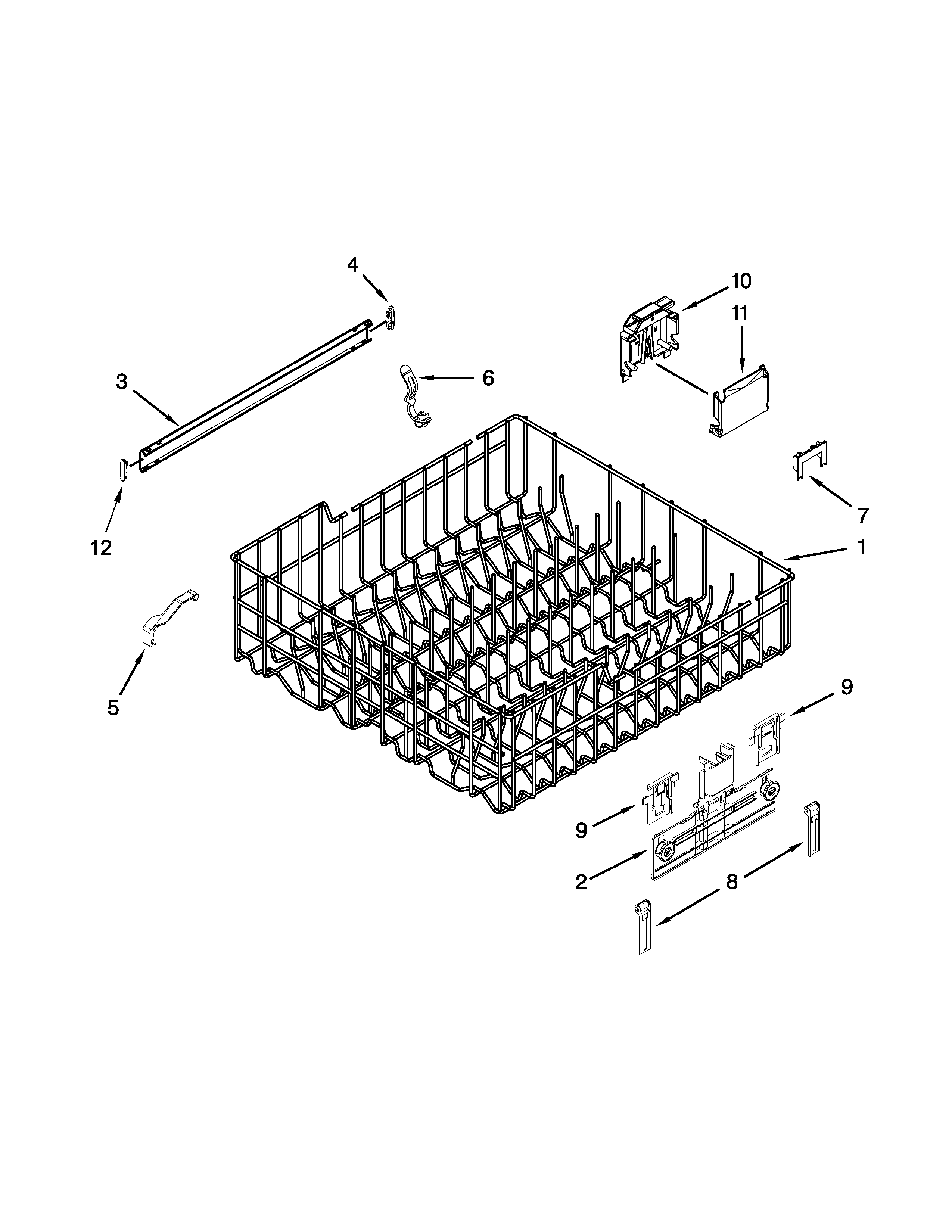

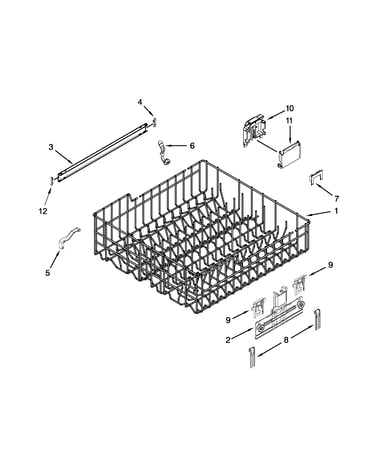

Rack won’t slide/align	Rack adjuster or wheel	Dishwasher rack adjuster W10712395

Why it matters

Catching the simple causes first (door latch, Control/Lock, water temperature, loading, and filter/spray arm blockage) prevents repeat cycle failures, reduces spotting, and helps protect the pump and heating system from extra strain.

For code-related symptoms (blinking lights, won’t run), use the Kenmore 665 model dishwasher error codes reference to match the display or light pattern to the most likely fix.

Last updated: January 2026

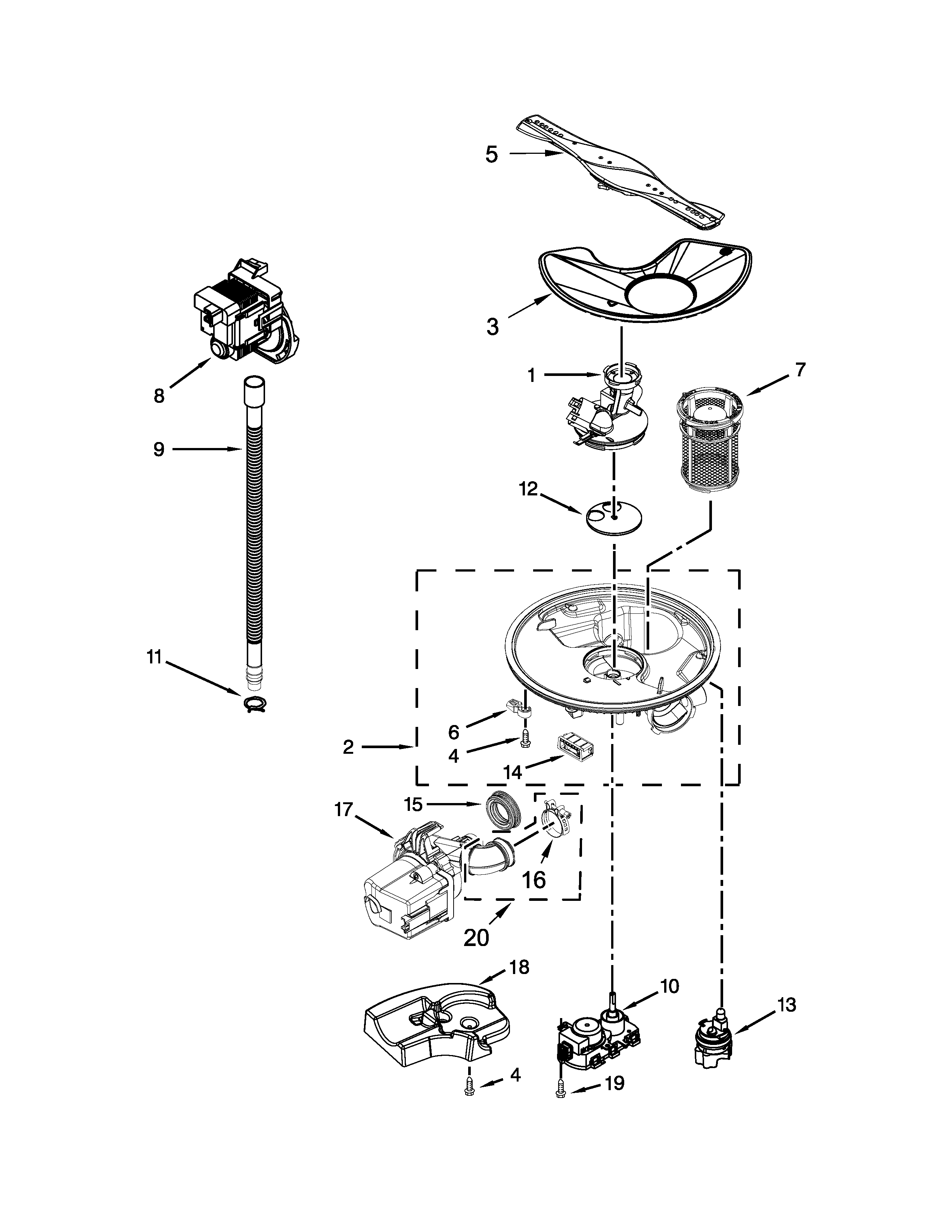

On the Kenmore dishwasher model 66513229N411, the removable Ultra Wash HE filters are located at the bottom center of the tub, under the lower dishrack. You access them from inside the dishwasher by pulling out the lower rack and lifting out the filter assemblies.

How to find and remove the filter

1. Pull out the lower dishrack so you can see the sump area at the bottom.
2. Look for the round filter assembly in the bottom center.
3. Remove the filters:

• Turn the upper filter assembly about 1/4 turn counterclockwise, then lift it out.
• Grasp the lower filter in the circular opening, lift slightly, then pull forward to remove.
• Rinse both filters under running water until soils are removed.
• Use a soft brush only if needed (hard water deposits or stuck-on soil).

For diagrams and the exact removal steps for this model, use the 66513229N411 owner's manual.

Reinstalling the filter correctly

Reinstalling matters as much as cleaning because a loose filter can cause poor cleaning and allow debris into the pump.

• Set the lower filter under the locating tabs so the round opening lines up.
• Insert the upper filter assembly into the lower filter opening.
• Rotate the upper filter clockwise until it drops and locks.
• If the upper filter still turns freely, keep turning clockwise until it locks.

Quick check table

What you see	What it means	What to do
Upper filter turns freely	Not locked	Turn clockwise until it drops and locks
Food/debris on dishes	Filters likely dirty or loose	Clean and reinstall both filters
Grit in bottom of tub	Soil not being captured	Inspect lower filter seating under tabs

Why it matters

The Ultra Wash HE filtration system helps keep food soil out of the wash water and protects the pump; cleaning the filters monthly helps your Kenmore dishwasher maintain strong wash performance and low noise.

Last updated: January 2026

To reset your Kenmore dishwasher model 66513229N411, we recommend canceling the current cycle and restarting it using the START/RESUME procedure described in the 66513229N411 owner's manual. This clears many control glitches and gets the dishwasher running again.

Quick reset steps (most common)

• Press CANCEL/DRAIN (or CANCEL) to stop the current cycle.
• Wait about 1 minute.
• Close the door fully.
• Press START/RESUME, then close the door within 3 seconds (this timing matters on many Kenmore 665 models).
• Let the dishwasher run the drain portion, then select a new cycle.

If the buttons seem unresponsive

These checks fix most “control panel not working” complaints:

• Make sure the door is latched; the dishwasher will ignore many inputs if the latch is not engaged.
• Turn off power at the breaker for 2 minutes, then restore power.
• Confirm Control Lock is not enabled (check the control panel labels and the 66513229N411 owner's manual for the exact key sequence).
• If the dishwasher is mid-cycle, use START/RESUME to continue rather than pressing multiple keys.
• If the door will not latch consistently, inspect the dishwasher door latch WPW10653840.

What “reset” actually does

A reset typically:

• Cancels the active cycle
• Runs a short drain (if needed)
• Returns the control to a ready state so you can select a new cycle

Symptom	What to try first	Likely area
Won’t start after closing door	START/RESUME then close within 3 seconds	Door latch, control logic
Stuck with water in tub	Cancel/Drain, then check drain path	Drain hose, drain pump
Random beeps or odd behavior	Breaker reset for 2 minutes	Control, user interface

Why it matters

Using the correct cancel and START/RESUME sequence prevents partial-cycle issues (like water remaining in the tub) and avoids repeated button presses that can look like a control failure.

Last updated: January 2026

On Kenmore dishwasher model 66513229N411, an E15 code means the dishwasher has detected water in the base pan and the leak/overflow protection has been triggered, so the unit may stop or drain to prevent further leaking. Check the steps in the 66513229N411 owner's manual.

What to do first (safe, quick checks)

• Turn off power at the breaker and shut off the water supply.
• Pull the toe-kick panel and look for water in the base area.
• If there is standing water, dry it out and look for the source (hose, pump, valve, door seal area).
• Run a short cycle and watch for drips underneath (only after everything is dry and reassembled).
• If the dishwasher is overfilling, check that the overfill protection float moves freely.

Common causes of E15 on this Kenmore dishwasher

• Loose or leaking drain hose connection
• Leaking water inlet valve or fill connection
• Leak at the sump area or pump seals
• Oversudsing from the wrong detergent (hand soap or too much detergent)
• Door leak from loading issues (spray deflection) or a sealing problem

Parts that are often involved

If you find the leak source, these model-matched parts are common fixes:

Symptom you see	Most likely area	Example model-matched part

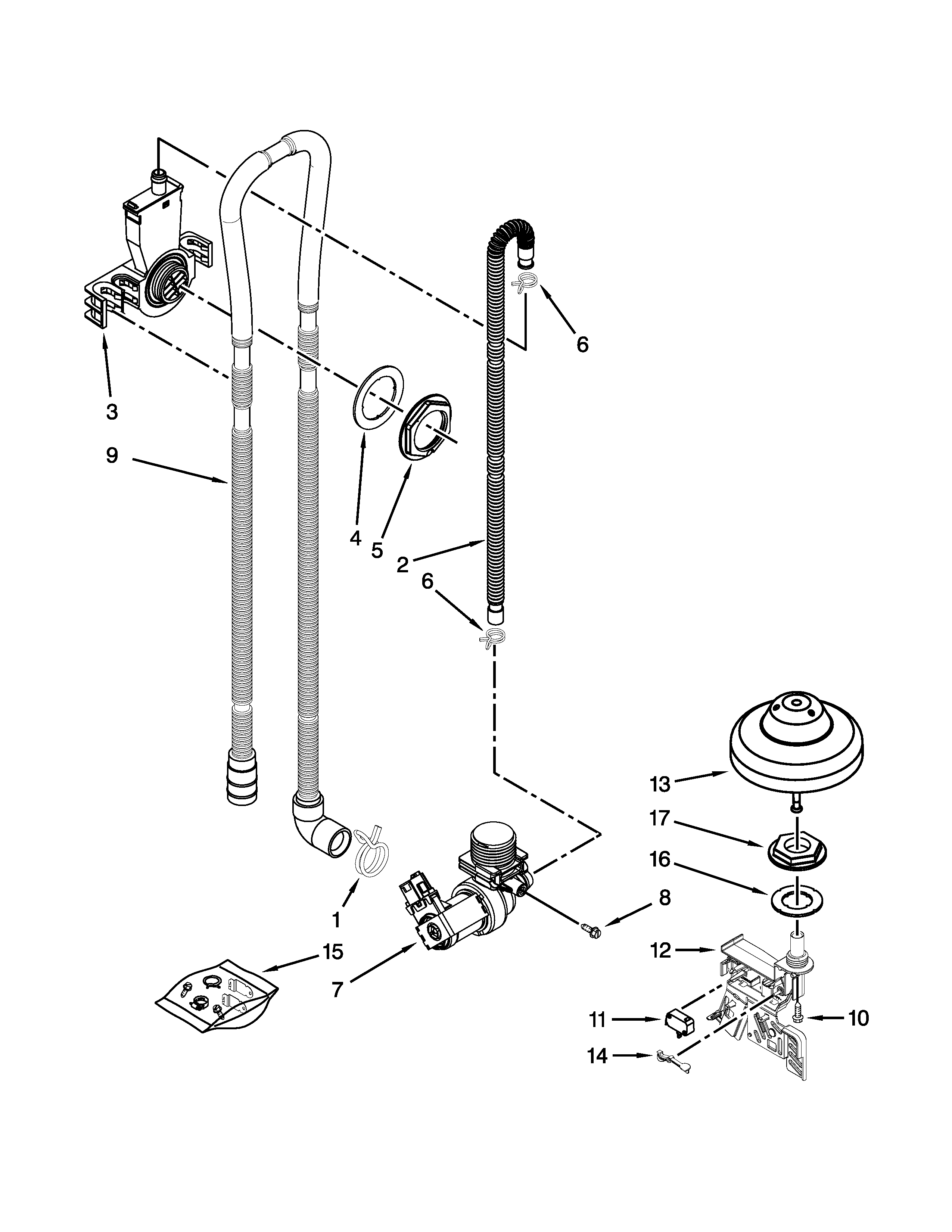

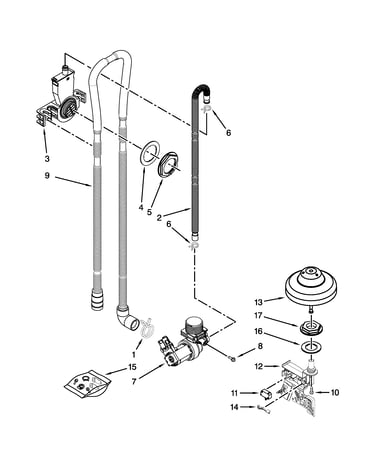

Water appears during fill	Fill system	Dishwasher water inlet valve W11175771
Water appears during drain	Drain system	Dishwasher drain pump WPW10348269
Water appears mid-wash, under tub	Sump/pump seals	Dishwasher sump and seal assembly WPW10455268

Why it matters

E15 is a protection response, not just a “nuisance code.” Water in the base pan can lead to repeated shut-downs, poor cleaning, and ongoing leaks that can damage surrounding cabinets and flooring.

Helpful reference

For code meaning and model-family troubleshooting steps, use Kenmore 665 model dishwasher error codes.

Last updated: January 2026
