No. GE dishwashers are not all the same size; most built-in models (including many like GE GDF620HGJ0WW) are designed for a standard 24-inch cabinet opening, but GE also makes compact 18-inch models and some dimensions (height and depth) vary by model and installation method. Check the GDF620HGJ0WW owner's manual for the exact cutout and product dimensions.

What sizes you will commonly see

Most GE dishwashers fall into a few common fit categories:

• Standard built-in: typically about 24 inches wide
• Compact built-in: typically about 18 inches wide
• Height variations: many units are adjustable to fit standard openings, but the exact min/max height differs by model
• Depth variations: depth can change depending on handle style and how the unit sits relative to the cabinet face

How to confirm fit before you buy or install

Use these checks to avoid clearance problems with cabinets, countertops, and the door swing:

• Measure the cabinet opening width at the front and back
• Measure the opening height from floor to underside of countertop
• Measure opening depth to the back wall, accounting for plumbing and wiring
• Confirm the dishwasher door can open without hitting adjacent drawers or pulls
• Verify leveling leg adjustment range and toe-kick clearance in the GDF620HGJ0WW installation guide

Quick comparison: standard vs compact built-in

Type	Typical width	Best for
Standard built-in	~24 in.	Most full-size kitchens
Compact built-in	~18 in.	Apartments, small kitchens, tight cabinet runs

Why it matters

Dishwashers are built to fit cabinet openings, not just to match a brand. Even small differences in height, depth, or door style can affect installation, noise insulation fit, and whether the door seals correctly.

Last updated: January 2026

Yes. On the GE GDF620HGJ0WW dishwasher, an FTD (fail to drain) error commonly happens when water cannot leave the tub fast enough, and a clogged drain path is one of the most frequent reasons. Use the steps below to clear restrictions and restore normal draining; see the GDF620HGJ0WW owner's manual for model-specific checks.

What to check first (fast, no-parts steps)

• Cancel the cycle and wait a minute; then try a drain or cancel-drain function.
• Remove standing water as needed so you can inspect the sump area safely.

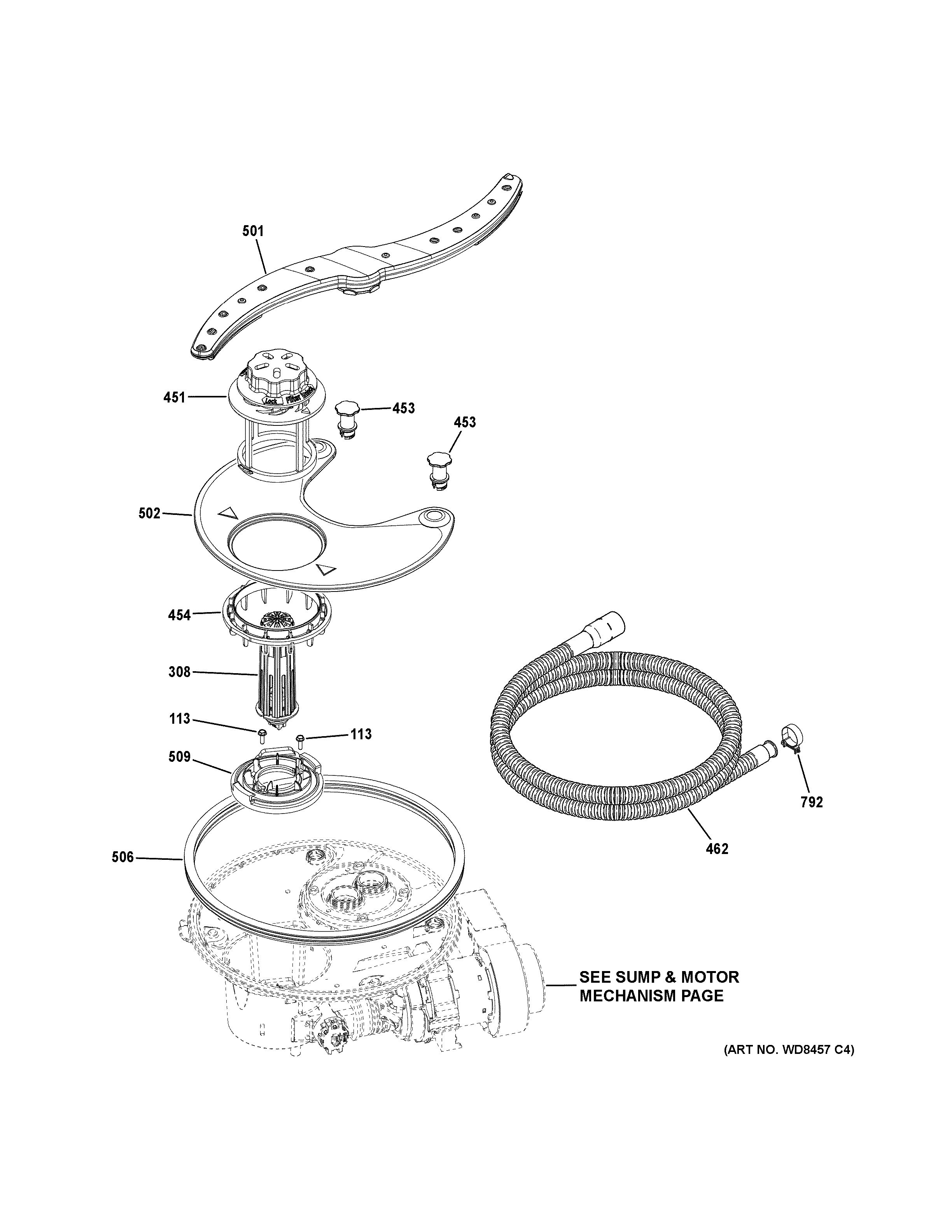

• Clean the filter area and sump inlet; food debris here can block the drain pump intake.
• Check the sink/disposal connection; a blocked disposal inlet or knockout plug can stop draining.
• Inspect the drain hose routing for kinks, crushing, or a low spot that traps water.

Common causes and likely fixes

What’s clogged or restricted	What you’ll notice	Typical fix
Filter or sump inlet	Water remains in tub, debris visible	Clean filter/sump area
Drain hose	Slow drain, gurgling, intermittent FTD	Straighten hose, clear blockage
Sink/disposal connection	Dishwasher drains poorly right after install	Clear disposal inlet/air gap

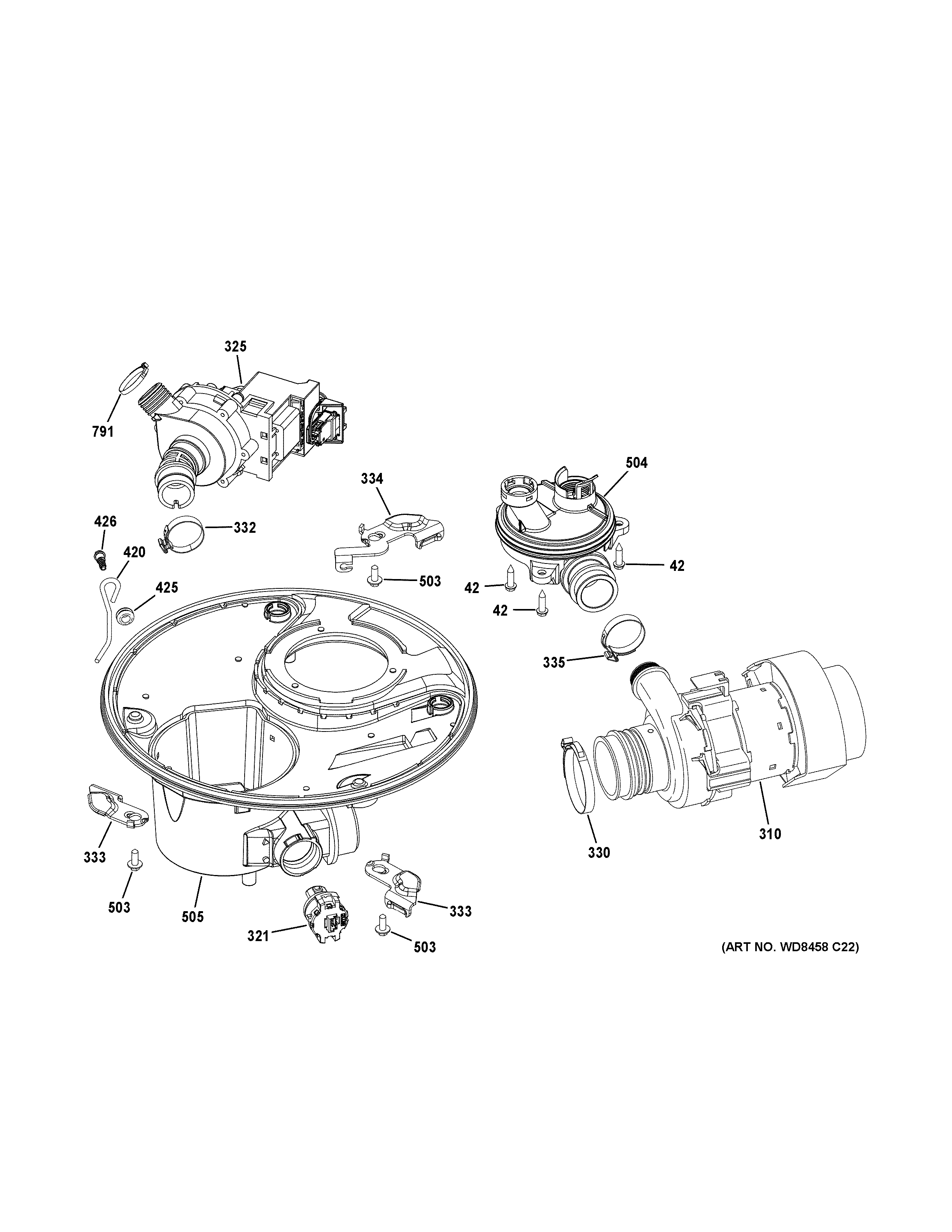

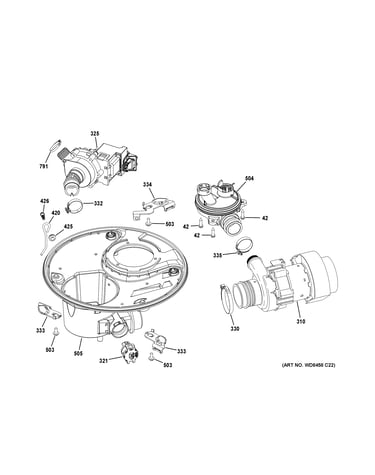

Drain pump area	Hums but won’t drain	Clear obstruction at pump inlet

When a part is more likely than a clog

If the drain path is clear but the dishwasher still shows FTD, the issue is often a weak pump, a restriction inside the hose, or a control-related drain problem.

• If the hose is split, brittle, or internally blocked, replace the dishwasher drain hose WD24X10062.
• If the unit hums during drain but moves little or no water after clearing debris, check for an obstruction at the pump and consider professional diagnosis.

Why it matters

FTD is a protection signal: if the dishwasher cannot drain, it may stop mid-cycle to prevent overflow, poor wash performance, and odor from stagnant water.

Related troubleshooting

For code meanings and next steps, use GE electronic dishwasher error codes.

Last updated: January 2026

An H2O error on your GE GDF620HGJ0WW dishwasher points to a water-fill problem: the dishwasher is not getting enough water, fast enough. We fix it by confirming the water supply is fully on, the fill path is not restricted, and the overfill protection (float) is not stuck.

Quick checks that solve most H2O errors

• Make sure the shutoff valve under the sink is fully open.
• Straighten any kinks or crushing in the water supply line.
• Verify the dishwasher door closes and latches firmly (a poor latch can stop a fill).
• Remove the toe panel and check for obvious leaks or a wet base that could trigger protection.
• Power reset: turn the breaker off for 2 minutes, then back on.

Step-by-step: water supply and fill system

1. Confirm hot water is available: run the kitchen hot faucet until it is hot, then start a cycle.
2. Check the inlet screen: shut off water, disconnect the supply line at the inlet valve, and clean debris from the small screen.
3. Check the float: inside the tub, lift and release the float; it should move freely and click the switch.
4. Look for slow fill causes: clogged screen, low water pressure, or a partially closed valve.

Parts that commonly cause an H2O error

If the supply is good and the error returns, these parts are the usual suspects.

Symptom	Most likely area	Example part for this model
No/very slow fill, supply is on	Water inlet valve or inlet screen restriction	(Valve varies by configuration; confirm by model lookup)
Overfill protection stuck	Float/float switch	Dishwasher float switch WD21X10519
Fills but stops early or acts erratic	Control sensing or control logic	Dishwasher electronic control board WD21X24899

Why it matters

A dishwasher that cannot fill correctly will not wash or heat properly, and repeated fill errors can leave dishes dirty and extend cycle time. Fixing the water-fill path first prevents unnecessary control board or pump replacements.

Helpful references

• Use the GDF620HGJ0WW owner's manual for model-specific reset steps and cycle behavior.
• If you see a code along with H2O, match it using GE electronic dishwasher error codes.
