Maytag PSD267LHES refrigerator Parts

For a Maytag PSD267LHES side-by-side refrigerator, the most commonly replaced parts are typically in the water and ice system, the cooling airflow system, and door sealing and lighting. These parts wear from normal use and are also the first places to check when you have warm temperatures, leaks, or no ice.

Most common refrigerator parts that get replaced

These are the parts we see replaced most often on side-by-side models like PSD267LHES:

• Refrigerator water filter (clogging, slow water flow, bad taste or odor)

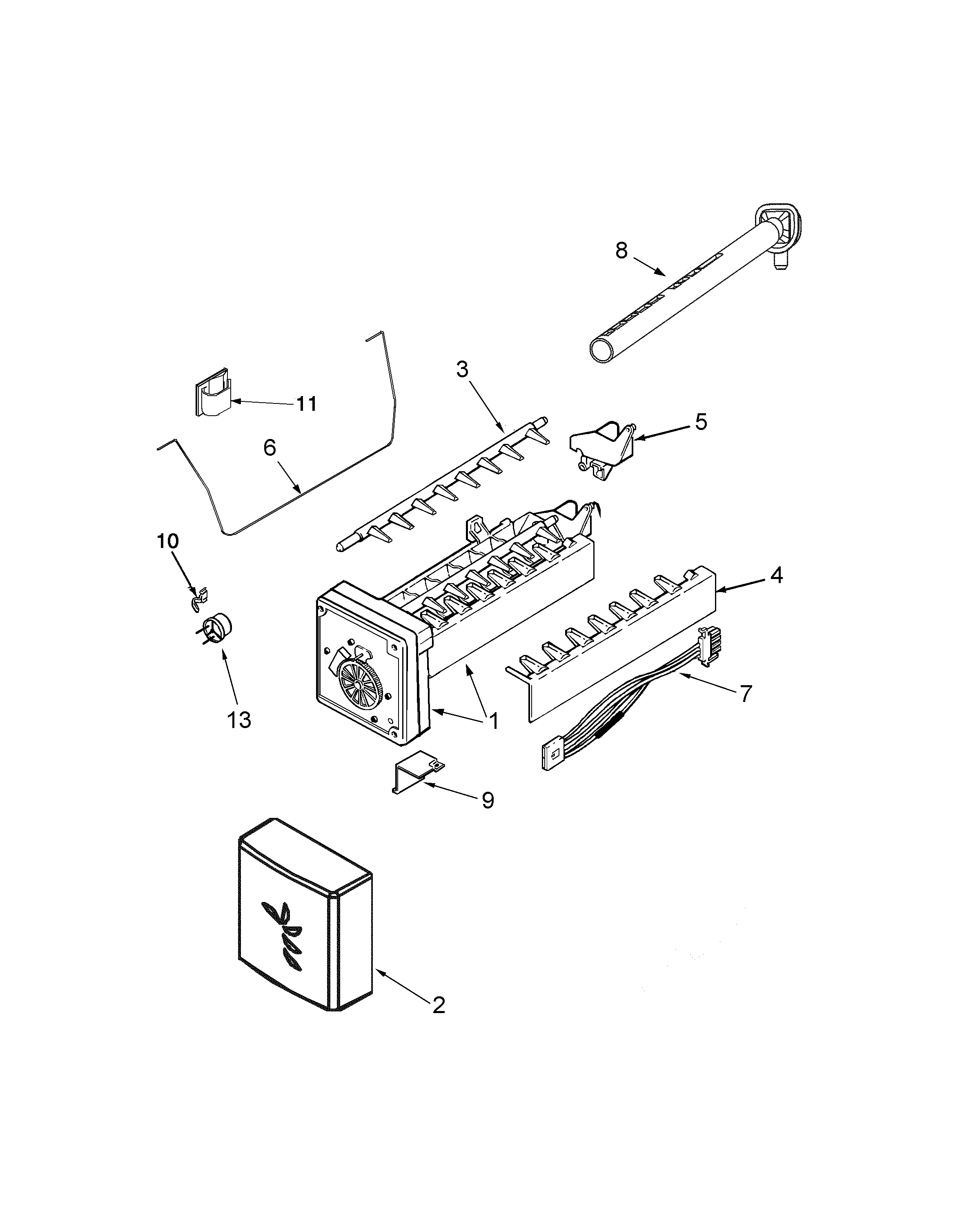

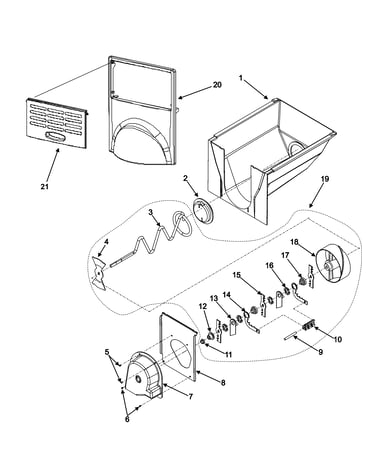

• Ice maker assembly (no ice, small cubes, jammed harvest)
• Evaporator fan motor and fan blade (warm fridge, weak airflow, noisy operation)

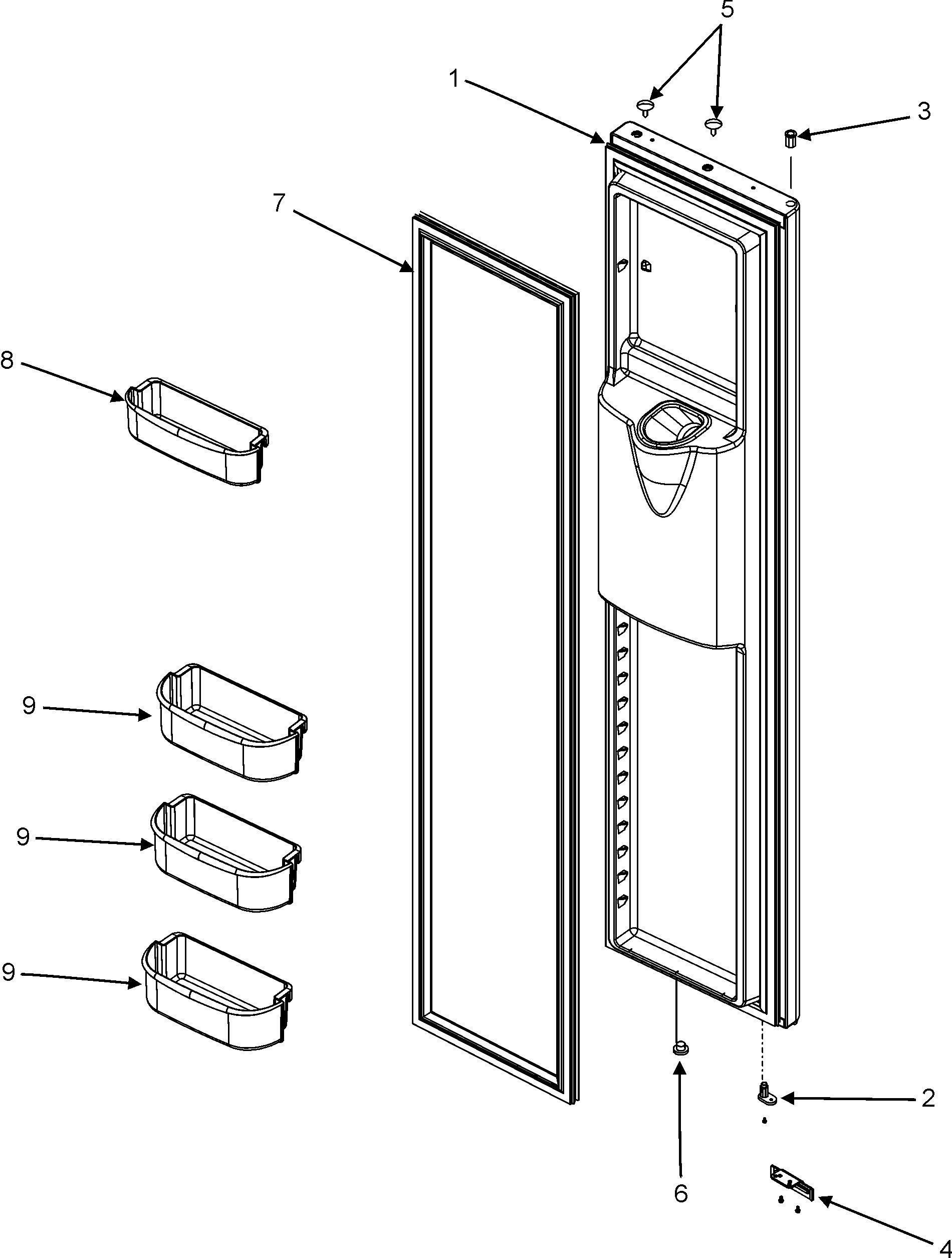

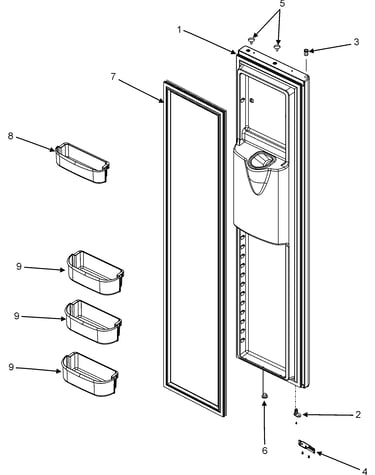

• Door gasket (frost buildup, sweating, temperature swings)
• Light switch or light socket (interior lights not working)

Quick symptom-to-part guide (PSD267LHES)

Symptom	Most likely area	Example parts for this model
No ice or poor ice production	Ice maker system	Refrigerator ice maker D7824706Q
Slow water at dispenser, bad taste	Filtration	Refrigerator water filter EDR4RXD1
Fridge warm but freezer cold, loud fan noise	Evaporator airflow	Evaporator motor, evaporator fan blade
Frost around door, moisture on gasket	Door sealing	Refrigerator door gasket
Light stays off or won’t turn off	Door switch/lighting	Refrigerator light switch, light socket

What to check before you order a part

We recommend these quick checks to avoid replacing a good part:

• Confirm temperatures: freezer near 0°F, fresh food near 37°F
• Make sure vents are not blocked by food packages
• Listen for the evaporator fan running when the doors are closed
• Inspect door gaskets for gaps, tears, or hardened sections
• For water and ice issues, replace the filter first and purge air from the dispenser

Why it matters

Replacing the right “high-wear” part first can restore cooling performance, prevent food spoilage, and reduce strain on expensive components like the compressor.

For step-by-step help on one of the most common fixes, use our guide: how to replace the water filter in a Maytag refrigerator.

Last updated: February 2026

The five main parts that make a refrigerator cool are the compressor, condenser, expansion device, evaporator, and a temperature control (thermostat/control board). In a Maytag PSD267LHES side-by-side, these work together to move heat out of the cabinet and keep food at safe temperatures.

The core cooling system (the “big 5”)

• Compressor: pumps refrigerant through the sealed system (the “heart” of cooling)
• Condenser: releases heat to the room as refrigerant condenses
• Expansion device (capillary tube/valve): drops pressure so refrigerant can get cold

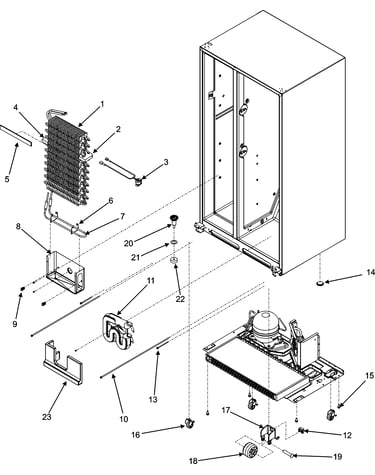

• Evaporator: absorbs heat inside the freezer/refrigerator as refrigerant boils
• Temperature control (thermostat or electronic control): tells the system when to run

Common supporting parts you will also hear about

These are not part of the “big 5,” but they are frequent service items because they affect airflow, temperature stability, and leaks:

• Evaporator fan and motor (moves cold air through the compartments)
• Defrost system (heater and control board to prevent frost buildup)
• Door gaskets (keep warm, humid air out)
• Water filter and filter head (improves water quality and protects water flow)

Quick “what it does” comparison

Part	Primary job	Common symptom when it fails
Compressor	Circulates refrigerant	Warm fridge/freezer, clicking, won’t start
Condenser	Dumps heat to room air	Poor cooling, hot cabinet sides
Expansion device	Lowers refrigerant pressure	Weak cooling, uneven temps
Evaporator	Absorbs heat inside	Warm temps, frost pattern issues
Temperature control	Cycles cooling on/off	Too warm or freezing food

Why it matters

Knowing the “big 5” helps you separate cooling-system problems (sealed system, compressor, condenser) from airflow/defrost problems (fans, frost buildup, gaskets). That saves time when troubleshooting and helps you choose the right repair path.

Parts on this model page that relate to these systems

For Maytag PSD267LHES, these parts on our page commonly tie into cooling performance:

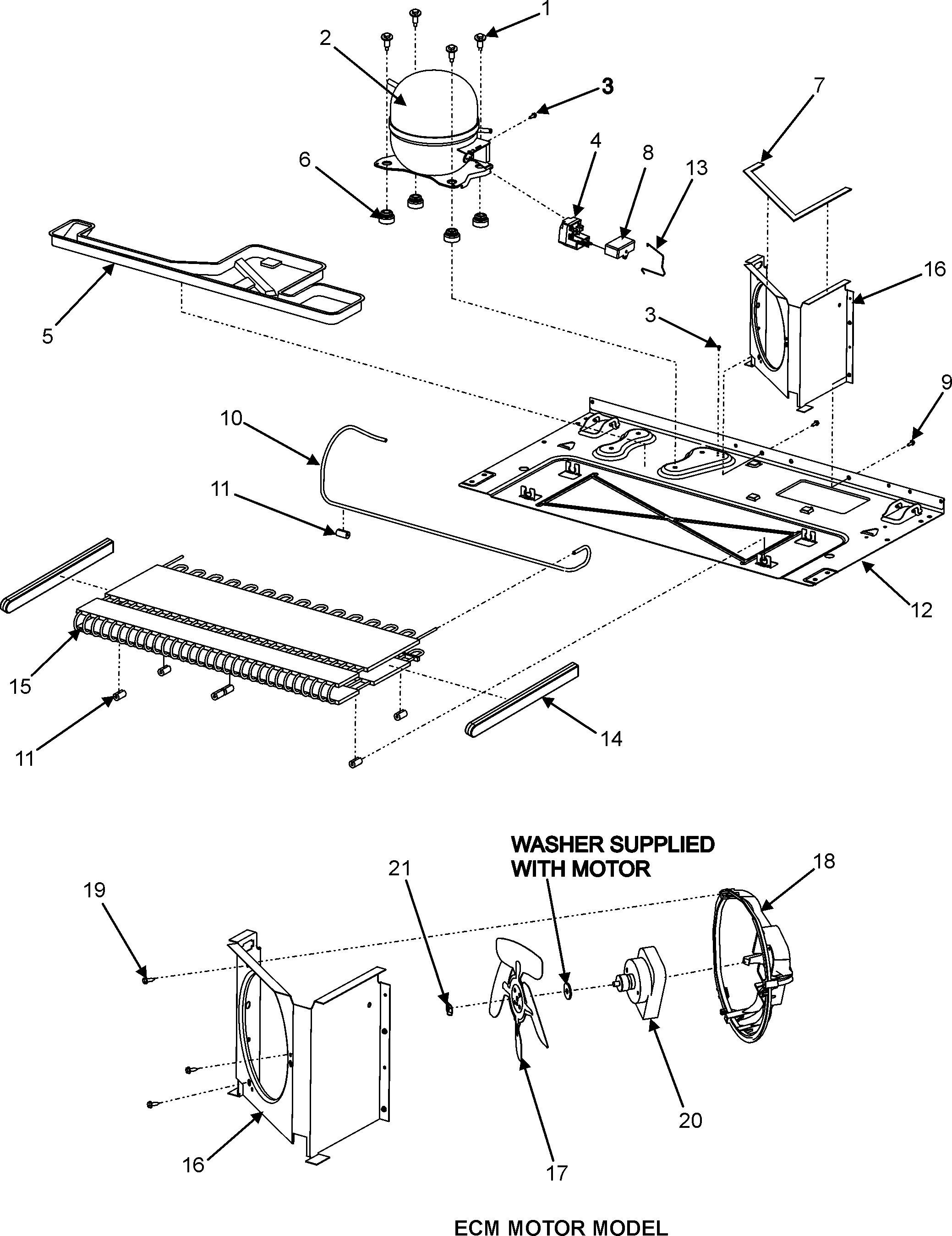

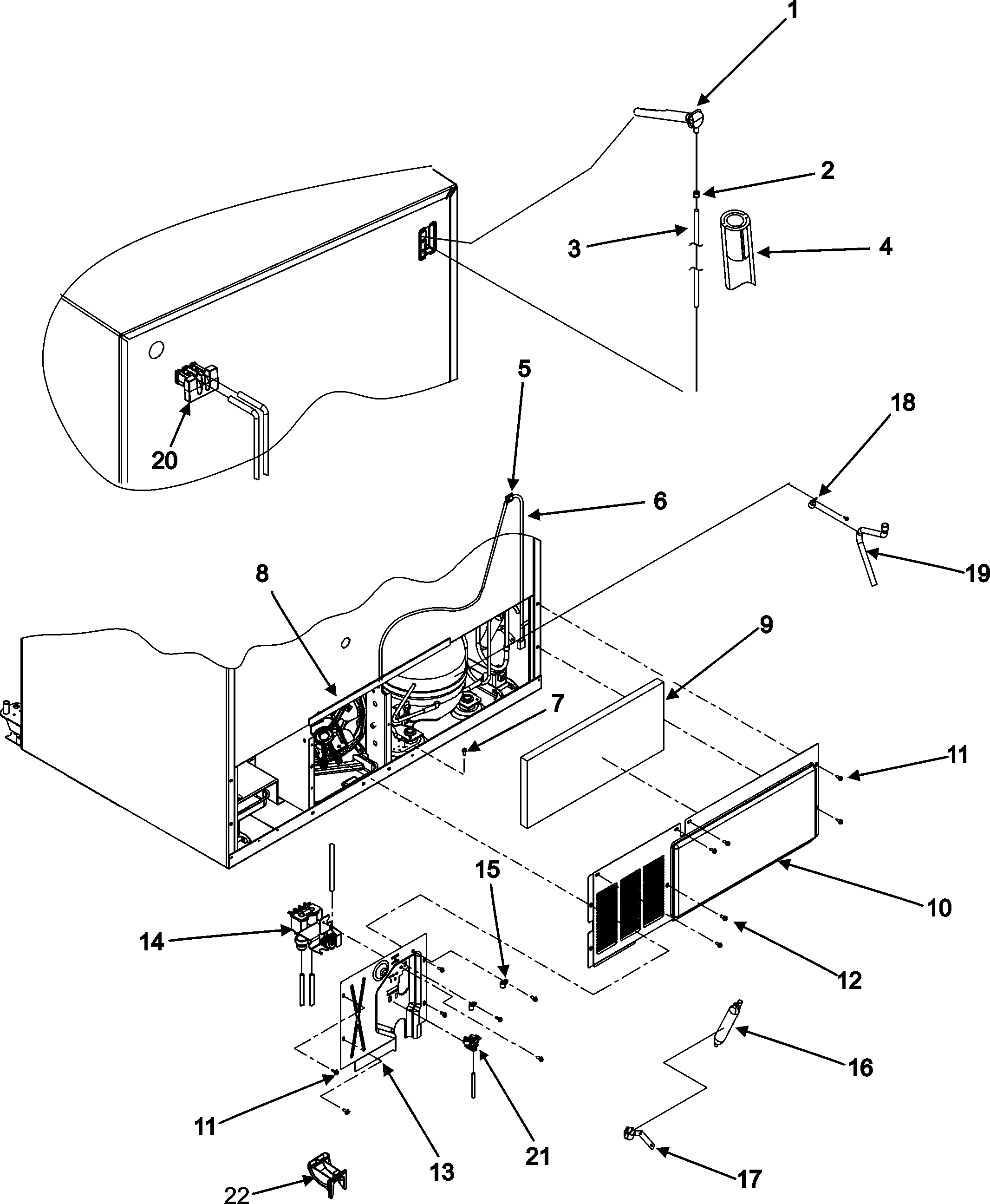

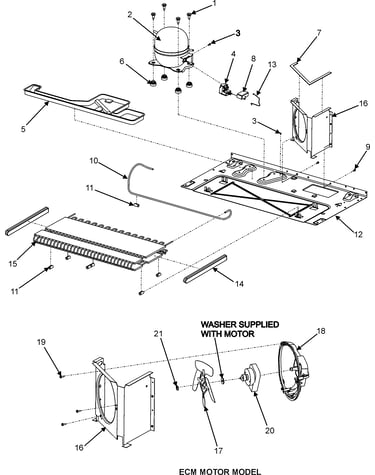

• Refrigerator compressor W10160407
• Refrigerator thermostat WP627985

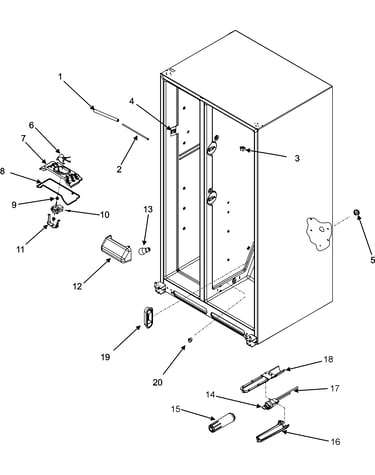

• Evaporator motor WPW10128551
• Refrigerator adaptive defrost board W11227239
• Refrigerator door gasket W10840101

Last updated: February 2026

Yes. Maytag side-by-side refrigerators like model PSD267LHES are a solid choice when you want easy access to both fresh food and frozen items, plus convenient in-door ice and water. Overall performance depends most on proper temperatures, clean airflow, and keeping the water and ice system maintained.

What “good” means for a side-by-side refrigerator

A good side-by-side typically delivers consistent cooling, usable storage, and reliable dispensing. For most households, the biggest advantages are convenience and organization.

Common strengths

• Narrow door swing compared with many French door designs
• In-door ice and water can free up shelf space in the freezer
• Easy access to frequently used items at eye level
• Strong day-to-day temperature stability when vents stay clear

Common tradeoffs

• Narrower shelves can limit wide platters and pizza boxes
• Ice and water features add parts that need periodic service
• Door seals and airflow issues can affect efficiency if neglected

Quick maintenance checklist (keeps performance “good”)

• Replace the water filter on schedule; a clogged filter can slow dispensing and affect ice production
• Keep food from blocking air vents in both compartments
• Clean spills promptly to prevent odors and sticky dispenser parts
• Check door gaskets for gaps, tears, or areas that do not seal flat
• If ice output drops, inspect the ice maker and water supply connection

Parts that most often affect satisfaction

Symptom	Most likely area	Example part for PSD267LHES
Slow water flow, odd taste	Filtration	Refrigerator water filter EDR4RXD1
No ice or small batches	Ice maker system	Refrigerator ice maker D7824706Q
Warm fridge, noisy airflow	Evaporator fan	Evaporator motor WPW10128551
Interior light issues	Door switch/socket	Refrigerator light switch W11396033

Why it matters

Side-by-side refrigerators depend on steady airflow and a well-maintained water system. When filters, fans, and door seals are kept in good shape, you get better temperature control, fewer ice and water problems, and more efficient operation.

For step-by-step filter help, use our guide: how to replace the water filter in a Maytag refrigerator.

Last updated: February 2026

You can get replacement parts for your Maytag PSD267LHES side-by-side refrigerator directly from the parts list for this model on Sears PartsDirect, then match parts by description and part ID to ensure the correct fit (for example, water filter, ice maker, door gasket, or evaporator fan parts).

Best way to find the right part for PSD267LHES

• Confirm the model number on the refrigerator’s ID tag is PSD267LHES.
• Use the model’s parts list to locate the exact part by section (ice maker, dispenser, cooling, lighting, water system).
• Match by part ID and part name, not just by appearance.
• If you are replacing a water filter, match the filter type used in your housing.
• If symptoms point to a cooling airflow issue, check evaporator fan components and related parts.

Common Maytag PSD267LHES parts customers replace

Symptom or need	Common part type	Example part on this model page
Bad taste or slow water flow	Water filter	Refrigerator water filter EDR4RXD1
No ice or small cubes	Ice maker assembly	Refrigerator ice maker D7824706Q
Door not sealing, frost buildup	Door gasket	Refrigerator door gasket W10840101
Warm fridge section, noisy fan	Evaporator fan motor	Evaporator motor WPW10128551

Why it matters

Using the correct Maytag PSD267LHES replacement part helps restore proper cooling, ice production, and water dispensing while preventing repeat failures caused by mismatched fittings, incorrect electrical connectors, or poor door sealing.

Helpful DIY guidance

• For filter replacement steps and reset tips, use how to replace the water filter in a Maytag refrigerator.
• For ice production troubleshooting before you order parts, use common refrigerator ice maker problems and solutions.

Last updated: February 2026
