On Kenmore Elite dishwasher model 66576972K602, error code F2E2 points to a keypad or user interface (UI) problem, most often a stuck key or lost communication between the UI and the main electronic control. Start by resetting power and checking the console for moisture or a jammed button; then follow the diagnostic steps in the owner's manual.

What to do first (quick checks)

• Turn off power at the breaker for 1 minute, then restore power and try a cycle.
• Press each key on the control panel to confirm none feel stuck.
• Wipe the console dry; moisture can cause false key presses.
• Close the door fully and press START/RESUME to see if the cycle resumes.
• If the dishwasher is unresponsive, confirm the house breaker is on and the door is latched.

Troubleshooting steps that match common Kenmore 665-series behavior

The manual troubleshooting guidance for this platform focuses on basic operation checks (power, door latch, cycle selection) and indicates that a control-related malfunction may require service attention. Use these steps to narrow it down:

• If the dishwasher stops mid-cycle, check for a door that is not fully latched.
• If START/RESUME is flashing, press START/RESUME again after closing the door.
• If the dishwasher will not run at all, verify power and reset the breaker.

Parts that are commonly involved (when symptoms match)

If F2E2 returns after a reset and the keypad acts erratically, these parts are often part of the fix on this model family:

Symptom you see	Most likely area	Example part on this model page
Buttons do not respond or act “pressed”	User interface/console	(Console/UI may be separate from the main control)
Random beeping, cycle changes by itself	UI or wiring connection	Check harness connections during inspection
Dishwasher dead or intermittent power	Power feed or control	Dishwasher electronic control WPW10084141

Why it matters

A true F2E2 condition can prevent the dishwasher from starting, interrupt cycles, or cause incorrect cycle selection. Addressing it early helps avoid repeated cycle failures and protects the electronic control from ongoing input faults.

Last updated: February 2026

For a Kenmore Elite dishwasher model 66576972K602, the most reliable “hard reset” is to cancel the current cycle and clear the control indicators using CANCEL/DRAIN, then restart a new cycle. This stops the wash action, drains if needed, and returns the controls to a ready state (similar to a reset). See the owner's manual.

Reset steps (control-panel reset)

• Open the door slightly to pause the cycle; wait for spraying to stop.
• Press CANCEL/DRAIN.
• Close the door; the dishwasher runs a drain for about 2 minutes if needed.
• When the Cancel light turns off, open the door.
• Select a new cycle and options.
• Press START/RESUME (top-control models: press Start/Resume and firmly close the door).

If the dishwasher still will not respond

These checks fix the most common “locked up” or no-start situations after a reset:

• Make sure the door is fully latched; a weak latch can prevent Start/Resume.
• On top-control models, close the door within about 3 seconds after pressing Start/Resume (otherwise press Start/Resume again).
• Confirm the dishwasher has power at the outlet and the breaker is on.
• If the unit is completely dead (no lights), a failed thermal fuse is a common cause; see fuse W10258275.

What “hard reset” means on this model

Reset type	What it does	When to use it
CANCEL/DRAIN reset	Clears cycles/options and drains water if needed	Stuck cycle, wrong cycle selected, needs restart
Power reset (breaker off/on)	Reboots the control by removing power	Control is unresponsive after Cancel/Drain

Why it matters

Canceling and draining first prevents restarting with standing water, clears cycle indicators, and helps the control accept a new cycle selection. It also reduces the chance of poor wash results from restarting mid-cycle.

Last updated: February 2026

On a Kenmore Elite dishwasher like model 66576972K602, an E25 code points to a drain problem, most often a blocked drain pump area, a restriction in the drain path, or a drain pump cover that is loose or not seated correctly. Use the steps in the owner's manual to confirm the correct drain and care checks.

What to check first (fast, no tools)

• Cancel the cycle and let the dishwasher try to drain.
• Check the tub bottom for standing water.
• Remove and clean the filter area (food debris and labels commonly cause E25-style drain faults).
• Check the sink drain and garbage disposal connection for a clog.
• If you have an air gap, check it for blockage and clean it.

Drain path checklist (most common causes)

A drain fault is usually one of these:

• Blocked drain hose (kinked, pinched, or clogged). Consider replacing the dishwasher drain hose 8269144A if it is brittle, split, or won’t flush clear.
• Restricted drain connection at the sink/disposal (especially after a new disposal install).
• Drain pump area jammed by glass, bone fragments, or seeds.
• Control not seeing proper drain because the unit is not getting power consistently; check the house breaker and door latch.

Quick symptom guide

What you notice	What it usually means	What to do
Water left in tub after cycle	Drain restriction	Clean filter, check hose routing, clear sink/disposal port
Humming during drain	Pump trying but blocked	Check pump area for debris; reseat covers/screens
Drains sometimes, not always	Partial clog or kink	Inspect hose for high loop, kinks, and buildup

Why it matters

A restricted drain can leave dirty water in the sump, trigger repeated error codes, and cause poor wash results. Clearing the drain path early helps protect the pump and keeps cycles completing normally.

Last updated: February 2026

On a Kenmore Elite 66576972K602 dishwasher, service code F4E1 points to a wash motor or circulation pump problem (the dishwasher is not moving water through the spray arms correctly). Fixes typically involve checking for a jam, wiring issue, or replacing the circulation pump/motor assembly.

What to check first (fast, no parts)

• Turn off power at the breaker for 1 minute, then restore power and try a short cycle.
• Confirm the door is fully closed and latched; a poor latch can interrupt operation.
• Make sure the tub has water early in the cycle (after a couple minutes); the installation guide describes checking for water in the bottom of the tub during a test run.
• Inspect the spray arms for blockage and confirm they spin freely.
• Check the filter area and sump for debris (glass, labels, seeds) that can stall the wash motor.

Likely repair if the code returns

If the dishwasher fills but you do not hear strong wash action (or the spray arms never move), the circulation system is the most common cause.

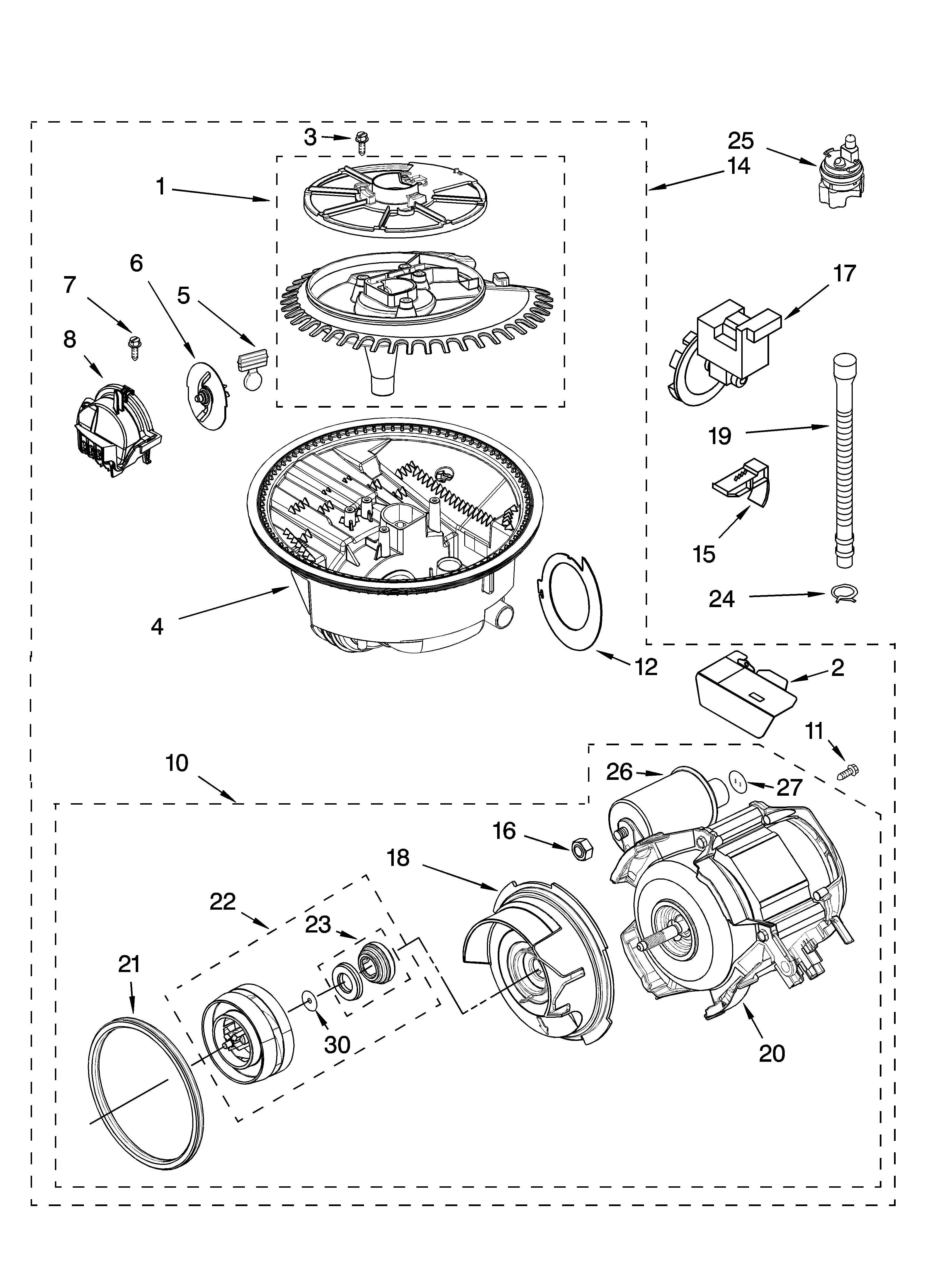

Common related parts for this model include:

• Motor WPW10757217 (circulation pump assembly)
• Pump motor WPW10780877 (sump and motor assembly)
• Dishwasher electronic control WPW10084141 (less common, but possible if the motor is good)

Reset and confirm the repair

Many Kenmore 665-series dishwashers clear stored faults after you run a complete cycle, but some require a keypad sequence to exit diagnostics after a repair.

Use this quick confirmation checklist:

• Dishwasher fills with water within the first few minutes
• Strong spray sound is present during wash
• Spray arms rotate and dishes get wet
• No error code returns on the next 1 to 3 cycles

Why it matters

When the wash motor cannot circulate water, cleaning performance drops immediately and the dishwasher may stop mid-cycle. Addressing the cause early helps prevent repeat shutdowns and protects the sump area from overheating.

For model-specific cycle behavior and indicator lights, use the owner's manual.

Last updated: February 2026

Yes, repairing a Kenmore Elite dishwasher like model 66576972K602 is worth it when the problem is a single failed part and the tub is sound; common repairs (drain hose, inlet valve, fuse, pump) typically restore performance for far less than replacement and avoid a full reinstall.

Quick way to decide

We use these practical checkpoints to decide repair vs. replace:

• The dishwasher is under 10 years old and has been reliable overall.
• The issue is one clear failure (no power, won’t fill, won’t drain, poor wash).
• The stainless tub and inner door are not leaking.
• The repair is a standard part swap (no cabinet or flooring damage).
• You can confirm symptoms and diagnostics in the owner's manual.

Repairs that are usually worth it on this model

These are common, straightforward fixes for a 665-series Kenmore Elite dishwasher:

• No power or dead control: check the thermal protection and replace the fuse W10258275 if it tests open.
• Won’t fill or fills slowly: replace the dishwasher water inlet valve WPW10158389.
• Won’t drain or leaves water: inspect for kinks/clogs and replace the dishwasher drain hose 8269144A if restricted.
• Weak wash or noisy circulation: circulation or sump motor issues can point to the motor WPW10757217 or pump motor WPW10780877.

Cost and effort comparison

Situation	Typical outcome	Usual recommendation
Single part failure (valve, hose, fuse)	Fast restore, low labor	Repair
Rack rust or rack damage	Improves usability, avoids new unit	Repair
Multiple major symptoms (fill + drain + heat issues)	Higher parts cost, more downtime	Compare total repair cost to replacement
Tub or inner door leak	Structural issue	Replace

Why it matters

A dishwasher replacement often adds hidden work (removing the old unit, leveling, anchoring, reconnecting water and drain, and checking for leaks). If your 66576972K602 only needs a targeted part, repair keeps your kitchen setup intact and reduces waste.

Last updated: February 2026
