Speed Queen SDE107WF dryer Parts

Yes. Speed Queen makes clothes dryers, and your SDE107WF is a Speed Queen dryer model. We support this model with replacement parts such as timers, switches, lint filters, and exhaust components to help keep the dryer running safely and drying efficiently.

What “Speed Queen dryer” means for SDE107WF

Speed Queen is the brand; SDE107WF is the specific dryer model number. When ordering parts or troubleshooting, matching the model number helps ensure the correct fit and electrical compatibility.

Common parts customers replace on this dryer

• Lint screen and airflow parts when drying times get longer
• Timer components when cycles will not advance
• Switches when the dryer will not start or will not run consistently
• Duct and exhaust parts when airflow is restricted

Helpful parts to know (examples)

Symptom	Likely area	Example part for SDE107WF
Dryer will not start	Controls, switches	Speed queen switch D512973
Clothes take too long to dry	Lint screen, venting	Speed queen lint filter D503980W
Cycle will not advance	Timer	Speed queen dryer timer D501757P
Poor airflow at outlet	Exhaust path	Speed queen exhaust 528P3

Why it matters

Using the correct Speed Queen parts for SDE107WF helps restore proper heat and airflow, prevents repeat failures, and keeps cycle times consistent, especially in higher-use settings.

Quick checks that solve many “dryer problems”

• Clean the lint screen before every load
• Confirm strong airflow at the exterior vent hood
• Keep the exhaust duct run short and free of kinks
• Avoid overloading; it restricts airflow through the drum
• If drying is slow, follow dryer takes a long time to dry

Last updated: February 2026

Common problems on the Speed Queen SDE107WF dryer are long dry times from restricted airflow, no heat from a heating circuit failure, and a no-start condition caused by a failed switch or timer. We start with lint and vent checks, then test the start and control components.

Most common symptoms and likely causes

• Dryer takes too long to dry: lint screen blocked, vent duct crushed or clogged, exhaust outlet restricted
• No heat: airflow restriction causing overheating, heater circuit issue, loose/burned wiring
• Won’t start: door/start switch issue, timer/control failure, power supply problem
• Stops mid-cycle: overheating from poor venting, intermittent switch or timer contacts
• Unusual noise or thumping: drum or support wear, foreign object in drum area

Quick checks we recommend first (before parts)

1. Clean the lint screen after every load and wash it with mild soap if you see fabric softener film.
2. Run a timed cycle with the vent disconnected briefly (only if you can vent safely); stronger airflow points to a vent restriction.
3. Confirm the cycle and temperature settings match the load (heavy loads need higher heat and longer time).
4. Check the power supply: electric dryers need full voltage; a partial power loss can make the motor run but reduce or eliminate heat.

Parts that commonly fix “won’t start” complaints

If the dryer has power but won’t run, these are frequent culprits on commercial-style dryers:

• Speed queen switch D512973 (often used for door or start circuit switching)
• Speed queen dryer timer D501757P (failed timer contacts can prevent the motor circuit from energizing)

What to replace based on the symptom

Symptom	Most likely first fix	Next step if not fixed
Long dry times	Clean lint screen and venting	Inspect exhaust path and internal ducting
No heat	Restore airflow, check settings	Test heater circuit and wiring
Won’t start	Check door closure and switch	Test timer/control and power supply

Why it matters

Airflow problems do more than slow drying; they also raise operating temperatures, which can trigger shutdowns and shorten the life of heating and control components.

Last updated: February 2026

A Speed Queen dryer like model SDE107WF is built around an airflow system (blower, heater, venting), a tumbling system (drum and supports), and controls/safety devices (timer, switches, thermostats). Knowing these main assemblies helps you pinpoint why a dryer will not start, will not heat, or takes too long to dry.

Main dryer parts (what they do)

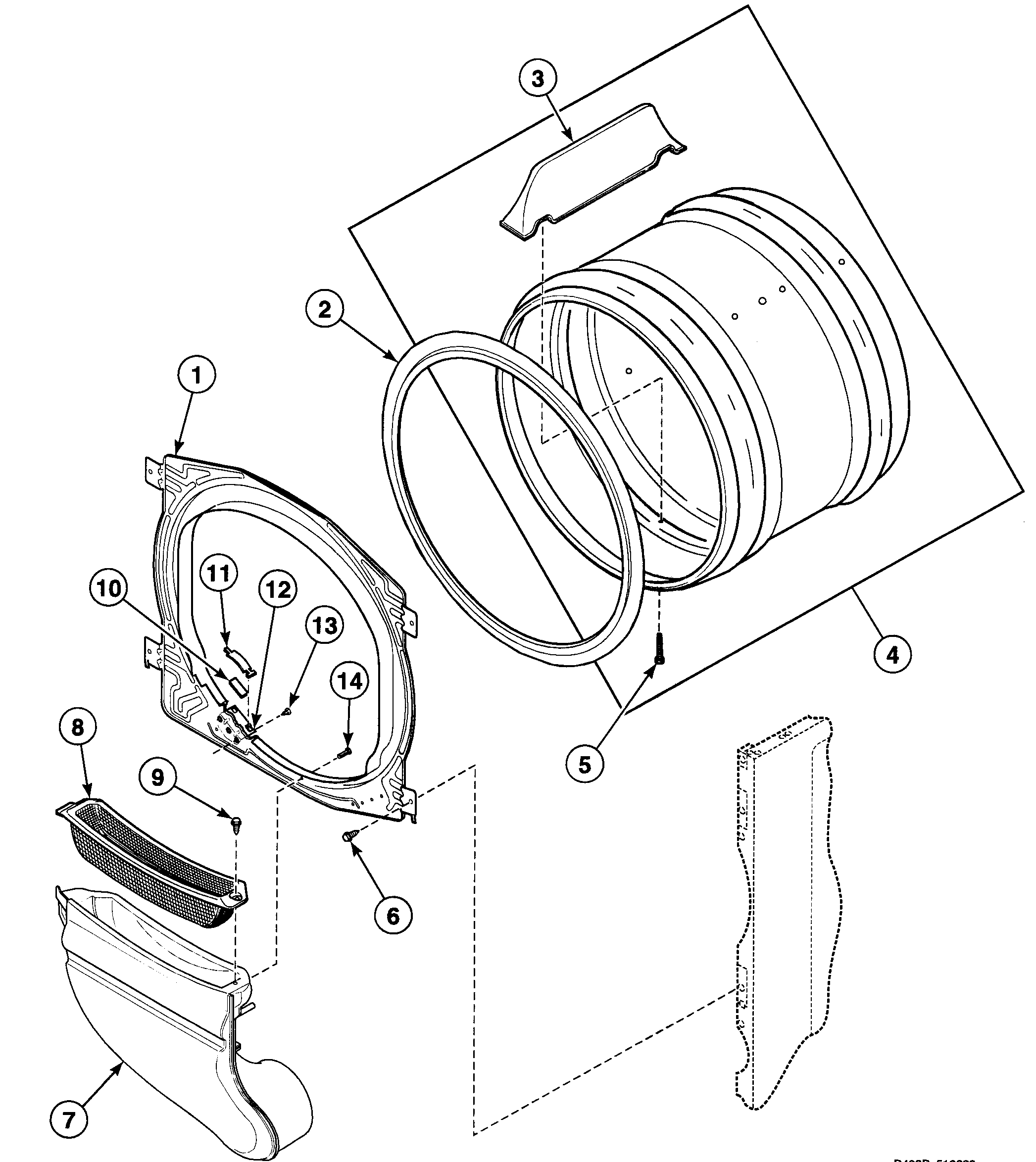

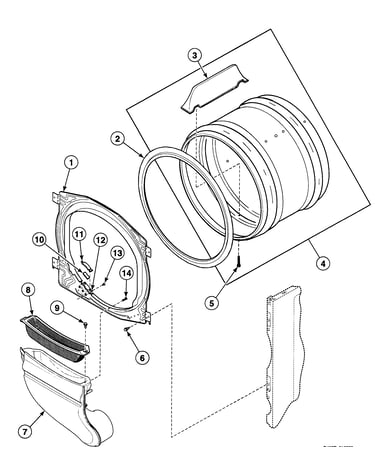

• Drum (cylinder): holds clothes and tumbles them for even drying.

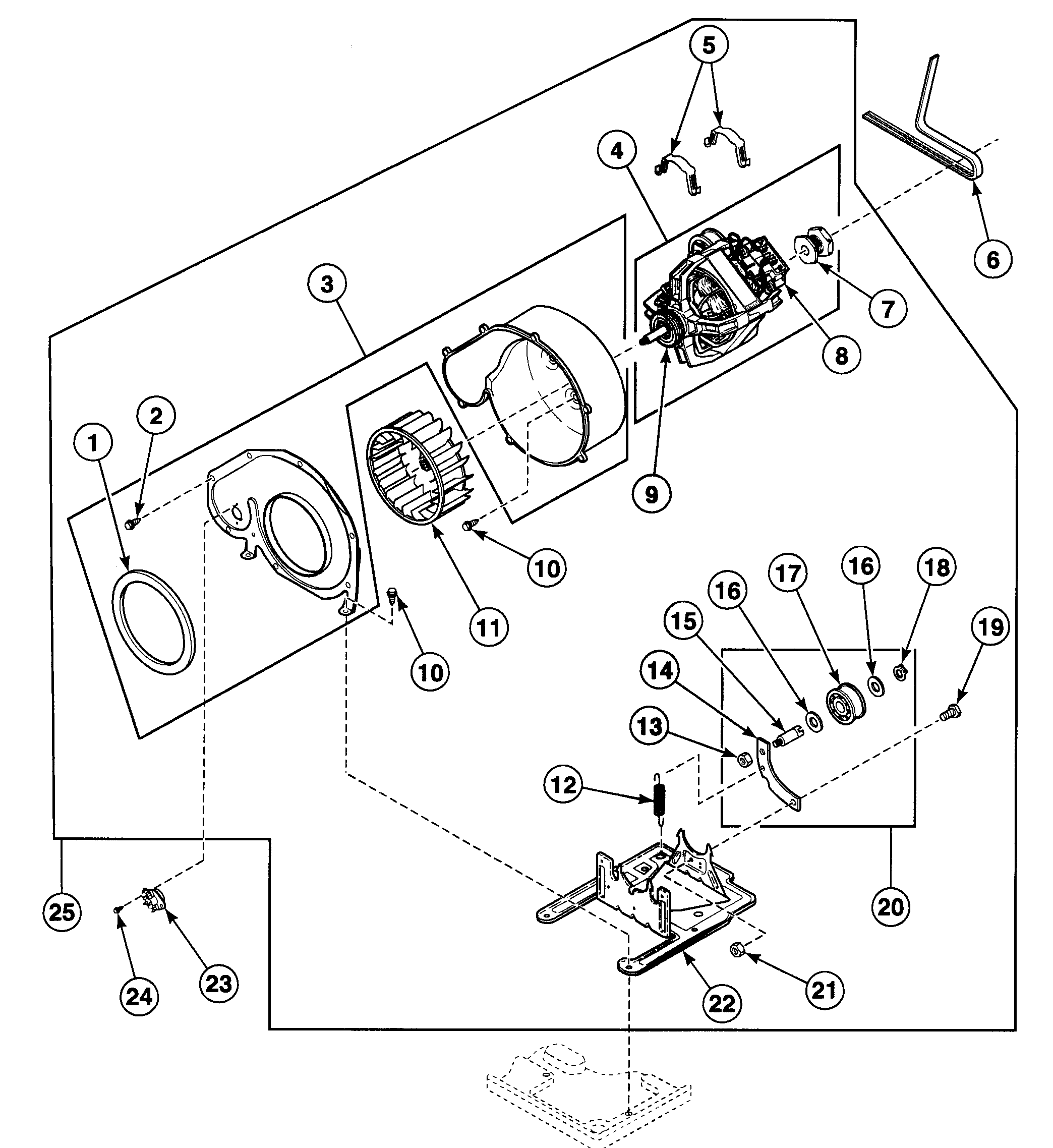

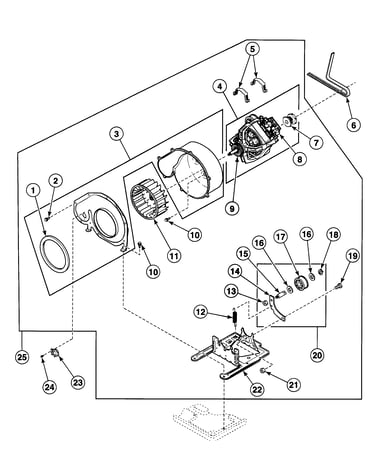

• Drive system: motor, belt, and idler pulley turn the drum.
• Airflow system: blower wheel pulls air through the drum and pushes it out the exhaust duct and vent.

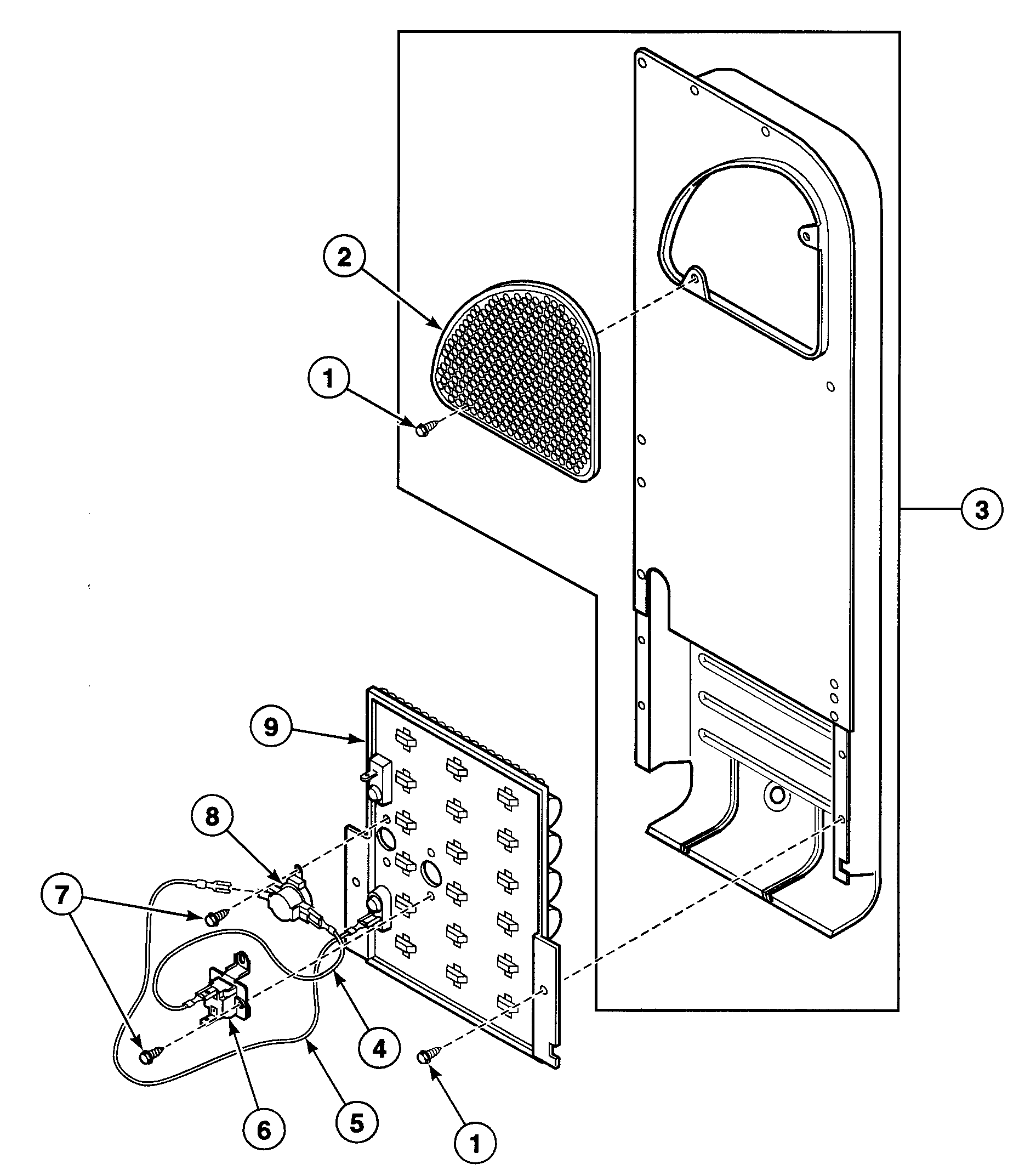

• Heating system: electric heating element or gas burner assembly (depending on dryer type).

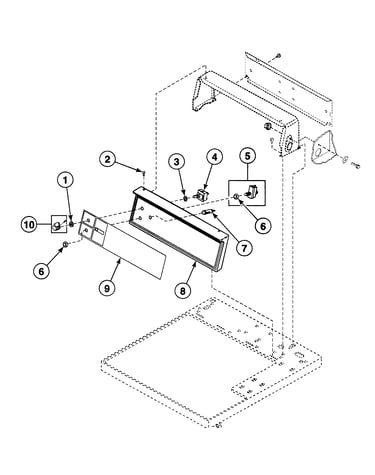

• Controls: timer or electronic control board, plus cycle selector components.
• Safety and temperature control: thermal fuse, thermostats, thermistor, and high-limit devices.
• Lint handling: lint screen and lint ducting to keep airflow moving.

Common SDE107WF-RELATED parts you may see on our parts list

These are examples of parts listed for this model that relate to core dryer functions:

Dryer function	Example part on this model	What it affects
Cycle control	Speed queen dryer timer D501757P	Cycle length, advancing through timed cycles
Airflow and lint	Speed queen lint filter D503980W	Drying time, overheating prevention
Air routing	Speed queen exhaust 528P3	Venting path, airflow restriction issues

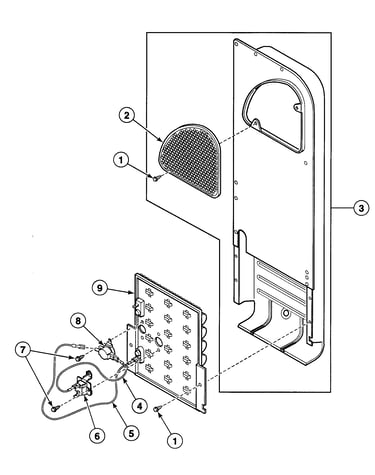

Heat delivery	Speed queen heatr duct D510705P	Directing heated air into the drum

Why it matters for troubleshooting

Most dryer symptoms map to one of three systems:

• Long dry times: usually airflow restriction (lint screen, exhaust duct, vent) or weak heat.
• No heat: heating system or temperature safety devices.
• No tumble or won’t start: door switch, timer/control, motor, belt, or a safety interlock.

For a practical breakdown of assemblies and how they work together, use our what are the main parts of a clothes dryer guide.

Last updated: February 2026

If your Speed Queen SDE107WF dryer runs but clothes stay damp, the most common cause is restricted airflow (lint screen or venting). Next, confirm the cycle and load size; if airflow and settings are correct, a heating or timer-related failure is likely.

Quick checks that fix most “not drying” problems

• Clean the lint screen before every load; replace a damaged or missing screen with the Speed queen lint filter D503980W.

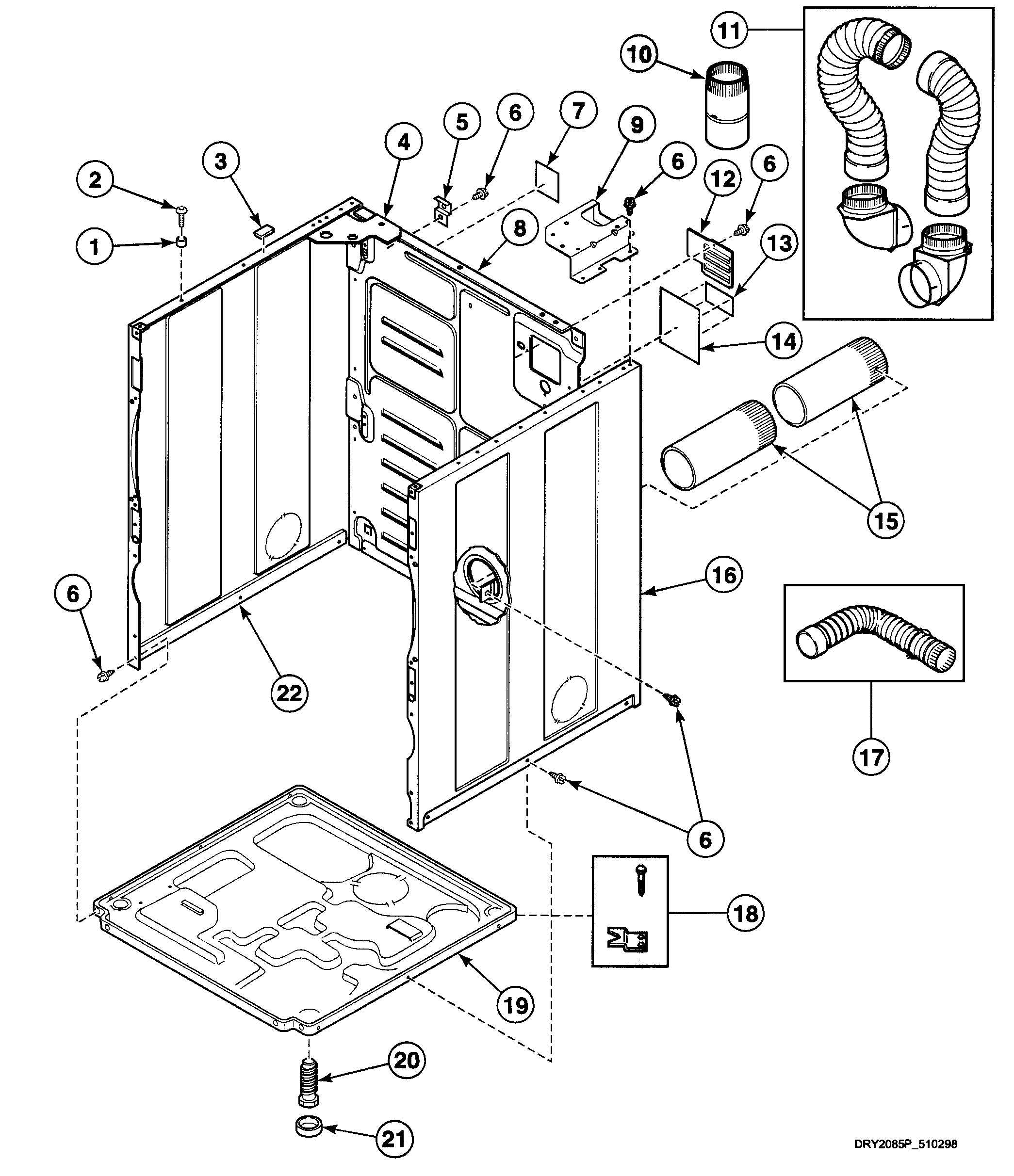

• Check the exhaust path: crushed flex vent, clogged wall duct, blocked outside hood, or a stuck damper.
• Run a timed dry cycle (not auto) to rule out sensor or control behavior.
• Reduce load size; bulky items need more space for tumbling.
• Verify the drum is tumbling normally; poor tumbling can mimic “no heat” drying.

Airflow vs heat: what the symptoms usually mean

What you notice	Most likely cause	What to do first
Dryer feels hot but takes forever	Vent restriction	Clean venting and check outside hood flap
Dryer runs, no heat at all	Heat circuit issue	Confirm airflow first, then move to heat diagnostics
Dries sometimes, inconsistent	Timer/control or airflow	Try timed dry; inspect vent and damper

Parts that commonly relate to drying performance on this model

Restricted airflow is the top culprit, but these model-listed parts can also be involved depending on symptoms:

• Speed queen exhaust 528P3 (damaged or leaking exhaust path can reduce airflow)
• Speed queen damper 58786 (a stuck damper can choke airflow)
• Speed queen dryer timer D501757P (can cause short heat time or cycle issues)
• Speed queen dryer timer motor D512017P (timer may not advance correctly)

Why it matters

Poor drying is usually an airflow problem; it wastes energy, overheats components, and can shorten the life of parts like the timer and ducting. Restoring proper venting typically brings drying times back to normal quickly.

Last updated: February 2026

If your Speed Queen SDE107WF dryer is not working at all (no lights, no start, no drum movement), the most common causes are a power supply problem at the outlet or breaker, a door not fully closed, or a failed start or door switch. Start with power and door checks first.

Quick checks (most fixes)

• Reset the dryer by unplugging it for 2 minutes, then plug it back in.
• Check the house breaker(s); many electric dryers use a 2-pole breaker, and one side can trip.
• Confirm the dryer cord is fully seated in the receptacle and the outlet is not loose.

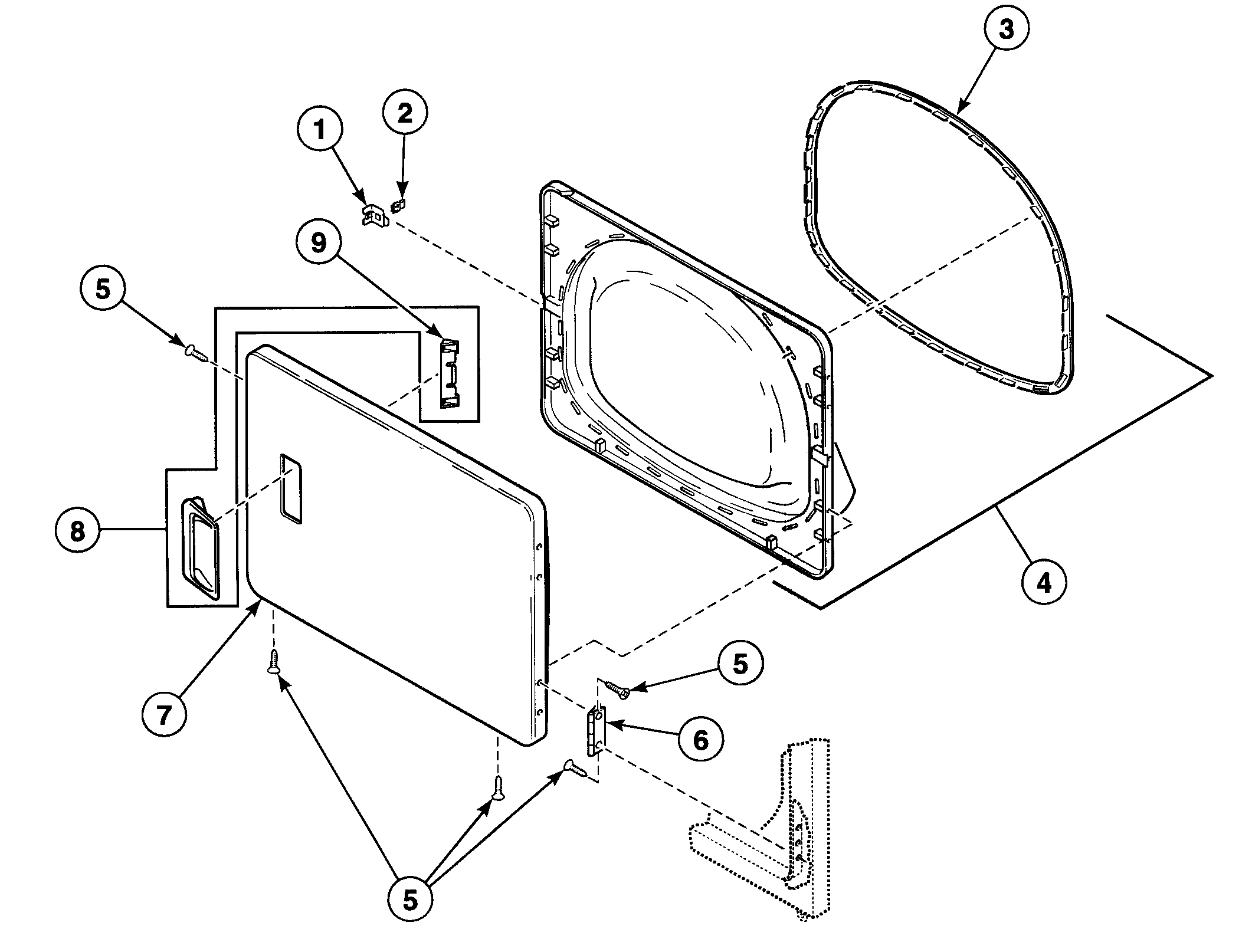

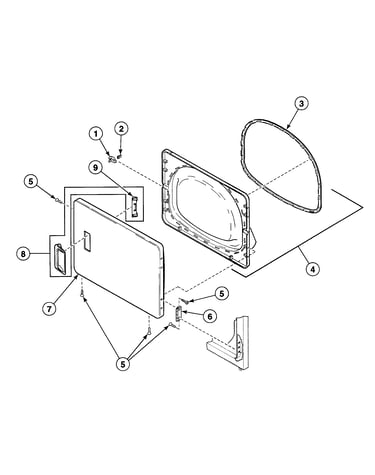

• Close the door firmly; a misaligned door can keep the motor from running.
• Try a different cycle and press Start with the door closed.

What to test next (by symptom)

Symptom	Most likely area	What to do
Completely dead	Power supply, outlet, cord	Verify breaker, outlet, and cord connection
Has power but will not start	Door switch, start switch, timer	Check door latch feel; consider switch/timer testing
Hums but will not run	Motor circuit, drum jam	Stop and inspect for binding; do not keep trying
Runs but stops quickly	Venting restriction, overheating	Clean lint path and venting before replacing parts

Parts that commonly cause a “won’t start”

If power is good and the door is closing properly, these parts are common suspects on dryers like the SDE107WF:

• Speed queen switch D512973 (often used for start or door switch functions)
• Speed queen dryer timer D501757P (can fail and prevent the motor circuit from energizing)
• Speed queen dryer timer motor D512017P (can stall timing and affect cycle operation)

Why it matters

A dryer that will not start is usually a simple electrical interlock or power issue. Fixing the root cause first prevents unnecessary part replacement and helps avoid overheating problems caused by restricted airflow.

For airflow-related issues that can make a dryer act “not working,” follow dryer takes a long time to dry and how to clean and maintain your clothes dryer.

Last updated: February 2026
