KitchenAid KFXS25RYBL1 refrigerator Parts
Here are the diagrams and repair parts for KitchenAid KFXS25RYBL1 refrigerator, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM

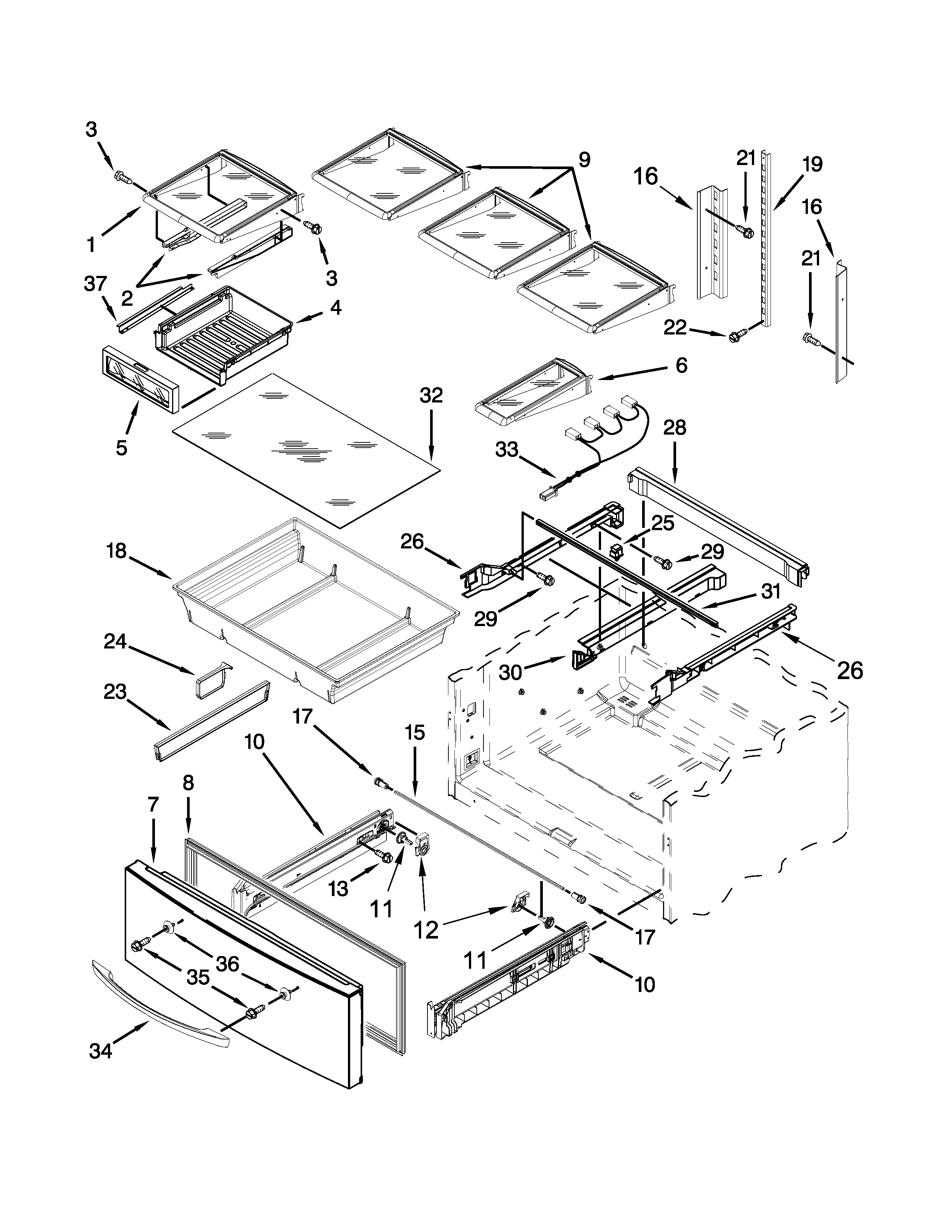

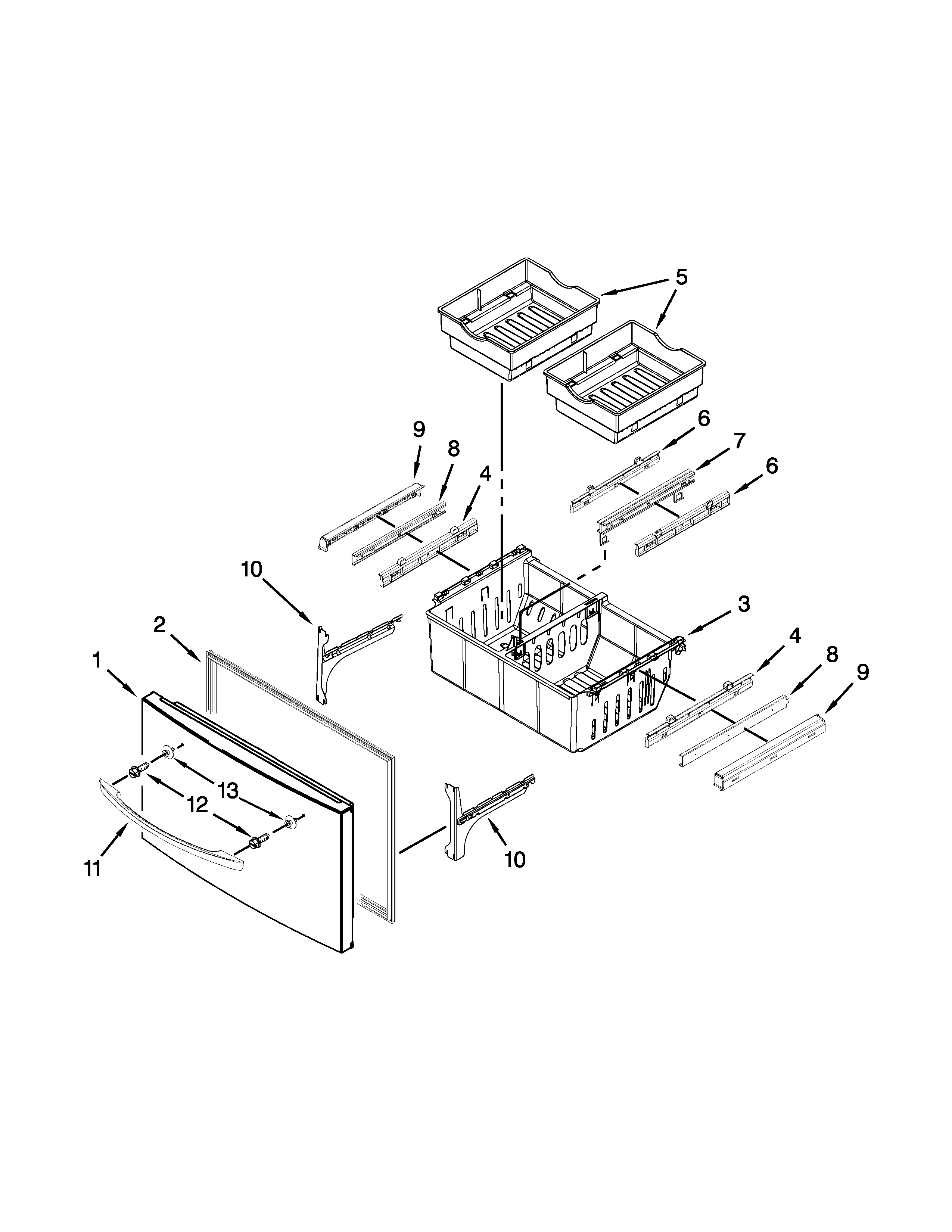

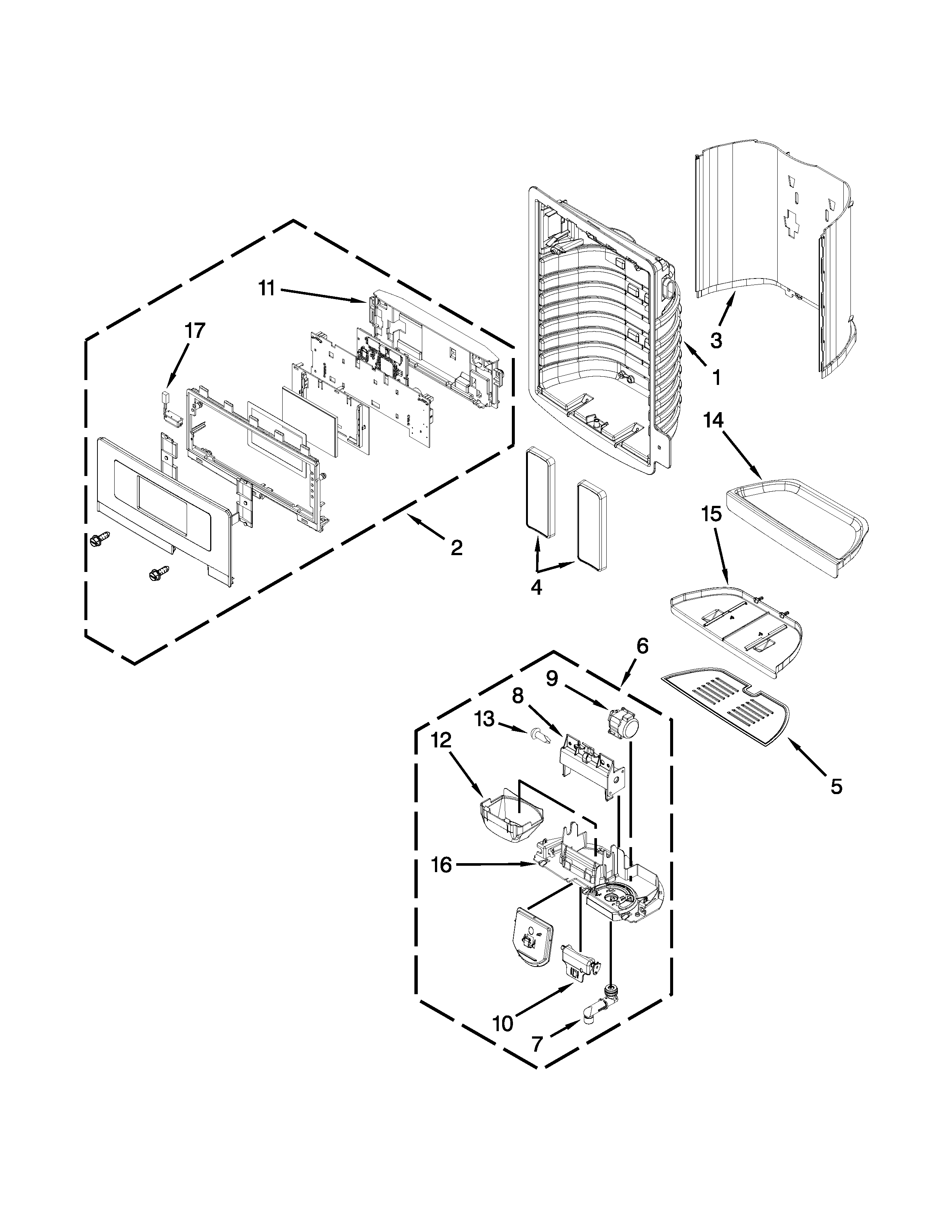

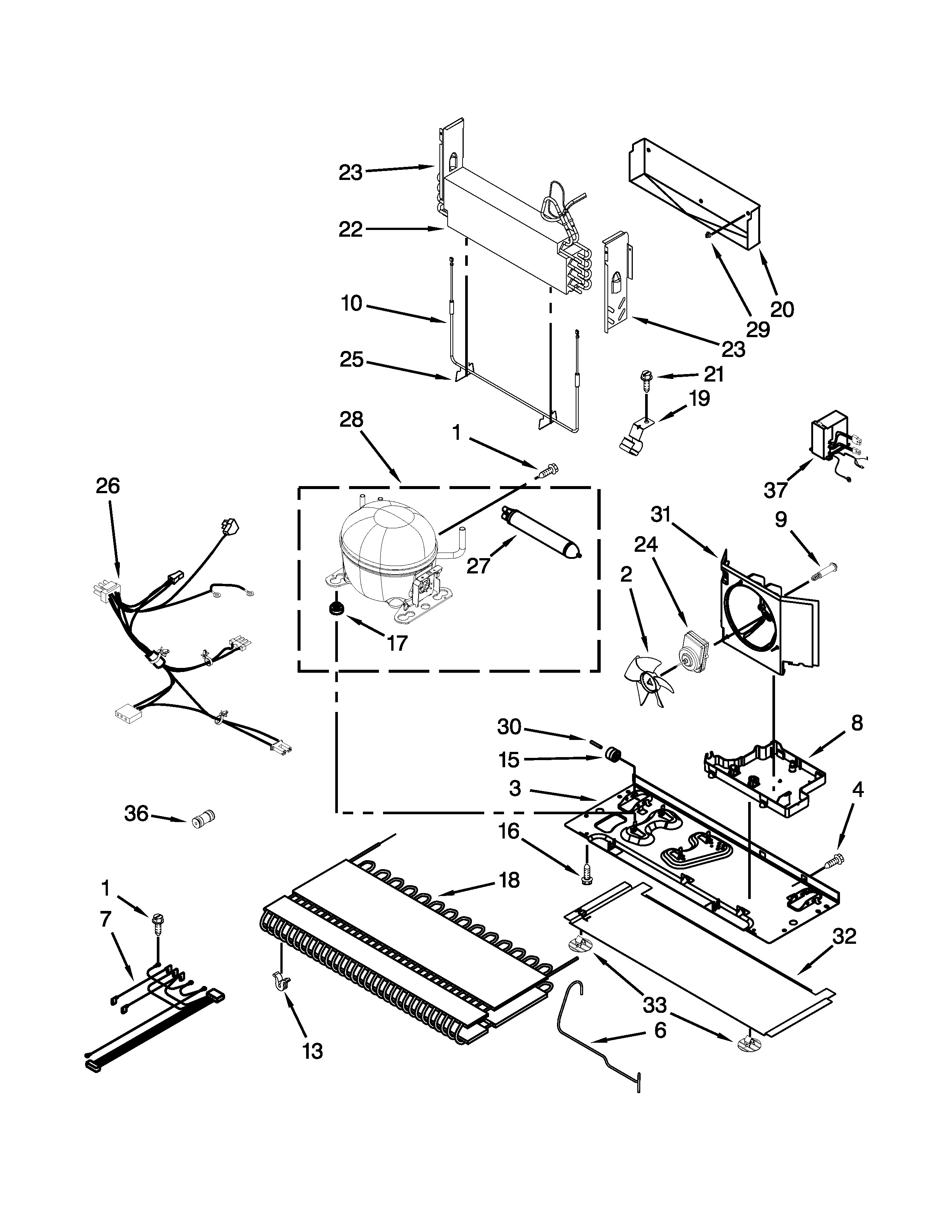

Browse Parts for KFXS25RYBL1 Refrigerators

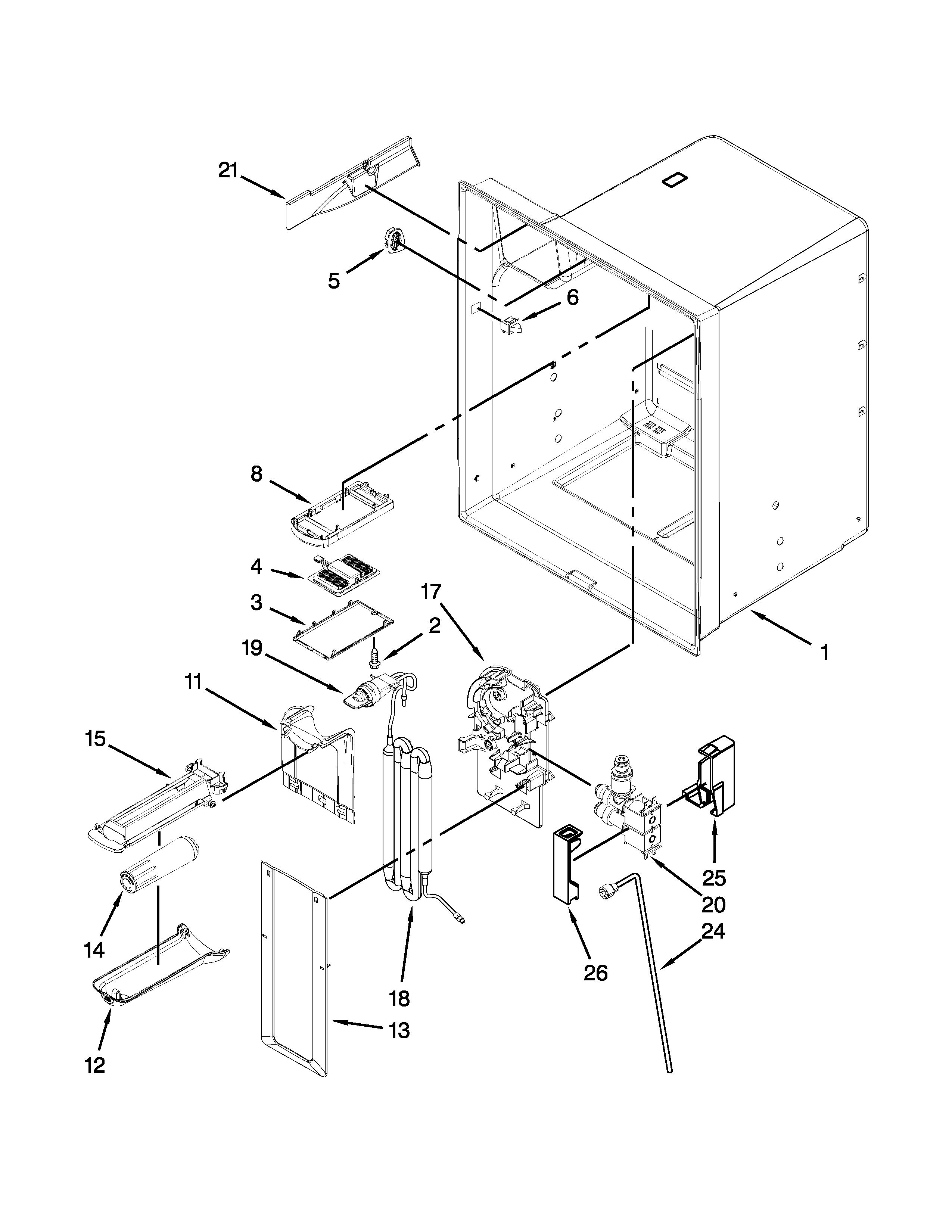

Refrigerator liner parts diagram
Refrigerator Water Filter
Part #UKF8001AXXGet free shipping with Automatic ReorderReplaced by #EDR4RXD1
Manufacturer substitutionThis part replaces UKF8001AXX. Substitute parts can look different from the original.In Stock$61.639% OFF Phone Price : $67.63
Qty

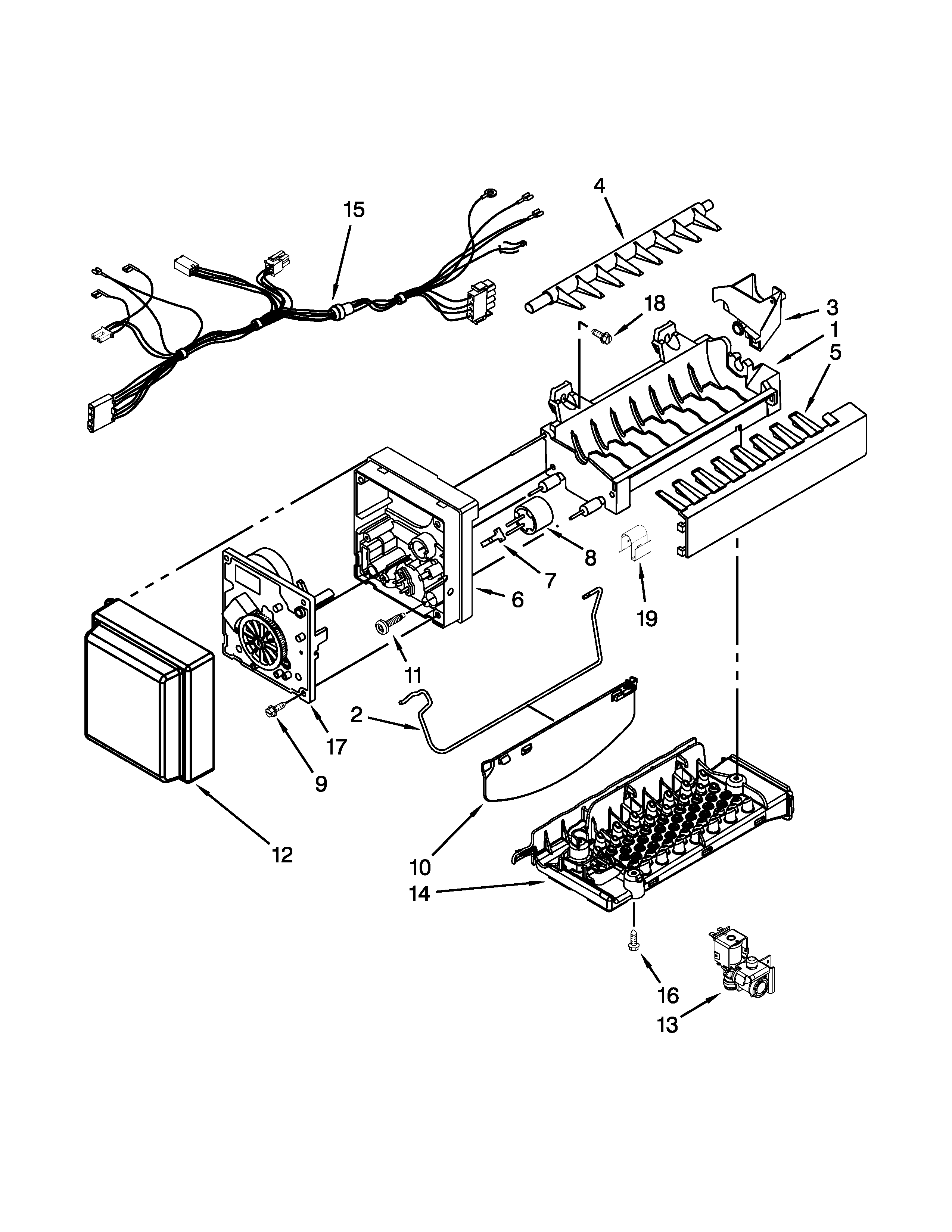

Icemaker parts diagram
Refrigerator Ice Maker Assembly
Part #W10300024Replaced by #WPW10300024

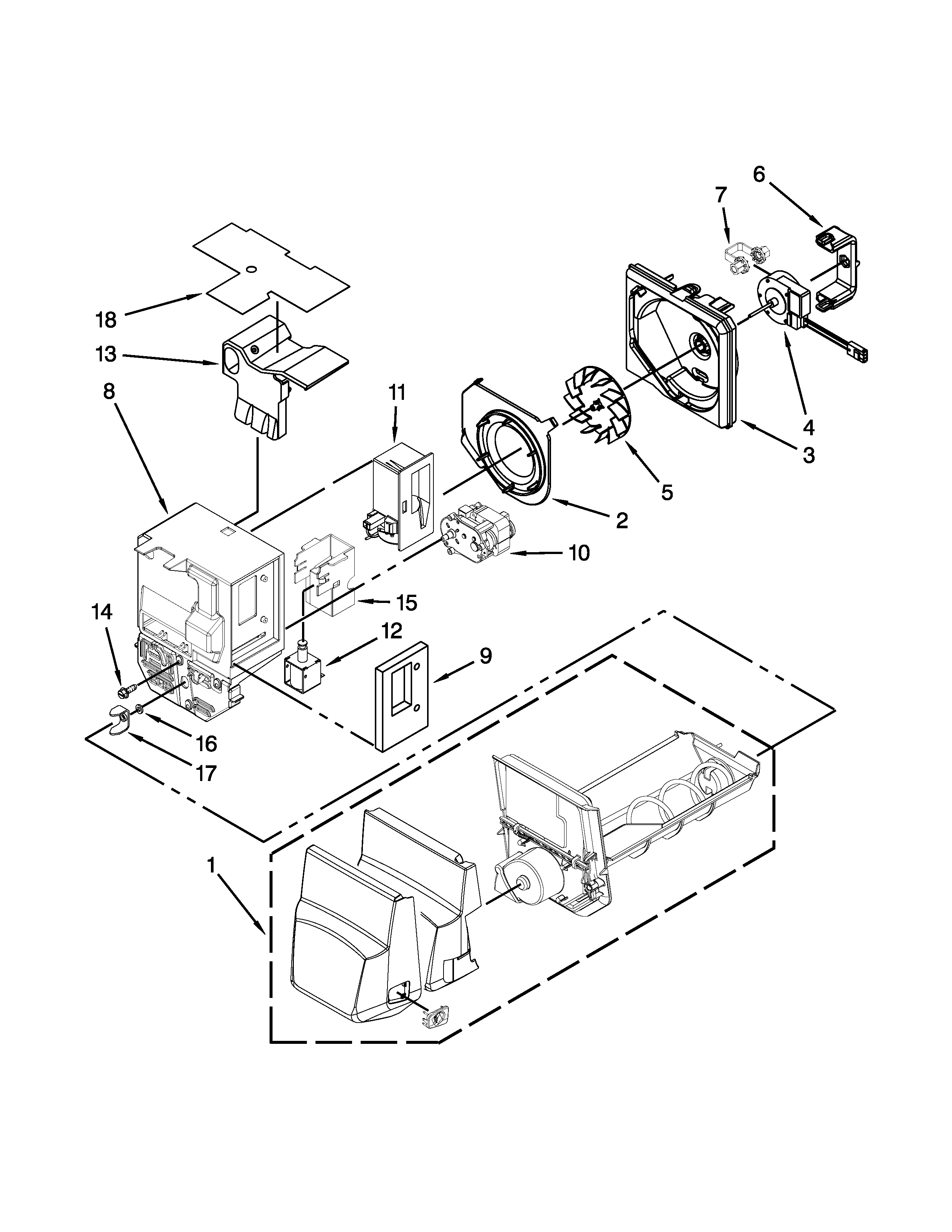

Manufacturer substitutionThis part replaces W10300024. Substitute parts can look different from the original.In Stock$155.587% OFF Phone Price : $167.58QtyMotor and ice container parts diagram
Refrigerator Motor
Part #W10309868Replaced by #W11671282

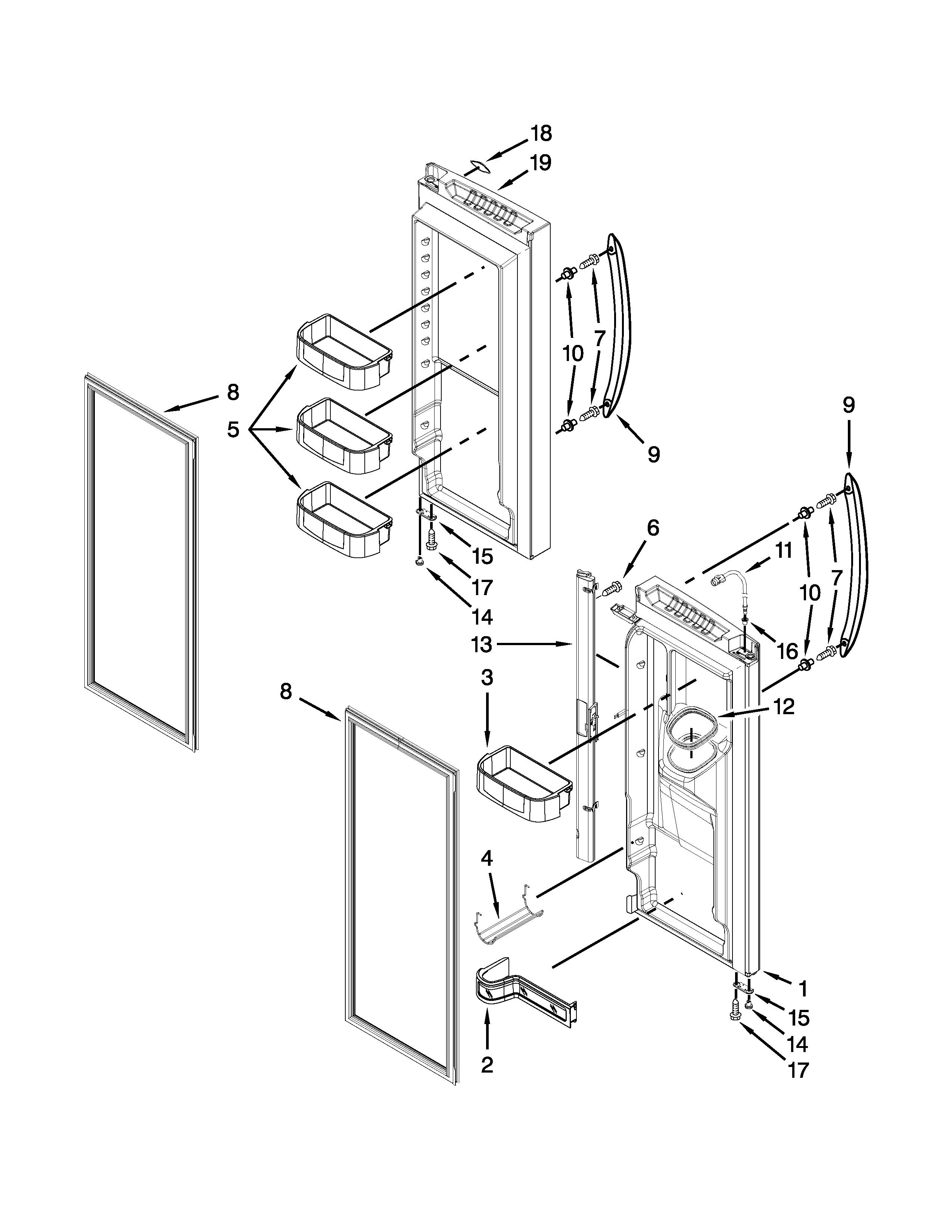

Manufacturer substitutionThis part replaces W10309868. Substitute parts can look different from the original.In Stock$225.30QtyRefrigerator door parts diagram
Refrigerator Gasket Panel
Part #W10294127Replaced by #W10830274

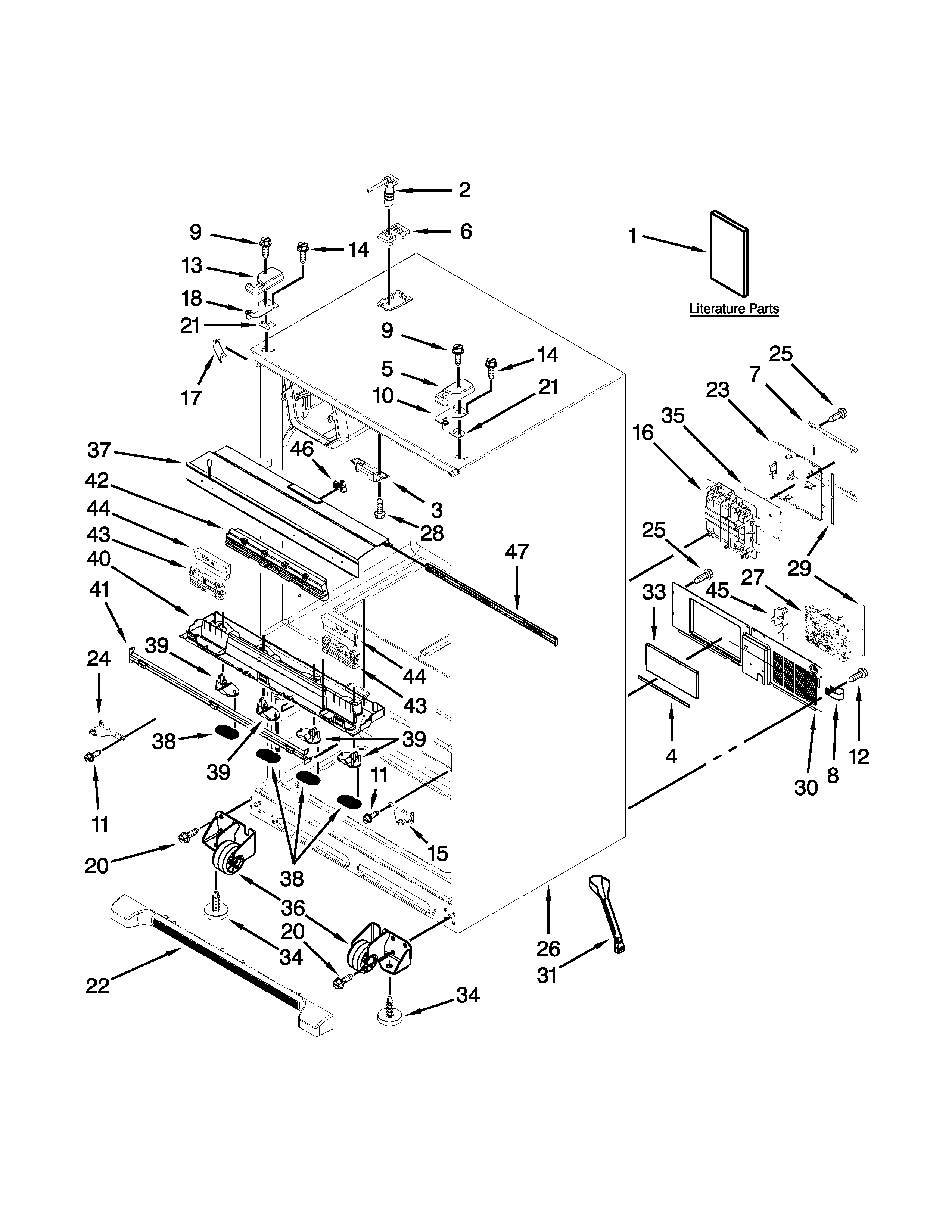

Manufacturer substitutionThis part replaces W10294127. Substitute parts can look different from the original.In Stock$123.129% OFF Phone Price : $135.12QtyCabinet parts diagram
Refrigerator Water Tube
Part #12961401Replaced by #W11415785
Manufacturer substitutionThis part replaces 12961401. Substitute parts can look different from the original.In Stock$48.8911% OFF Phone Price : $54.89QtyCabinet parts diagram
Refrigerator Electronic Control Board
Part #W10226427Replaced by #WPW10226427

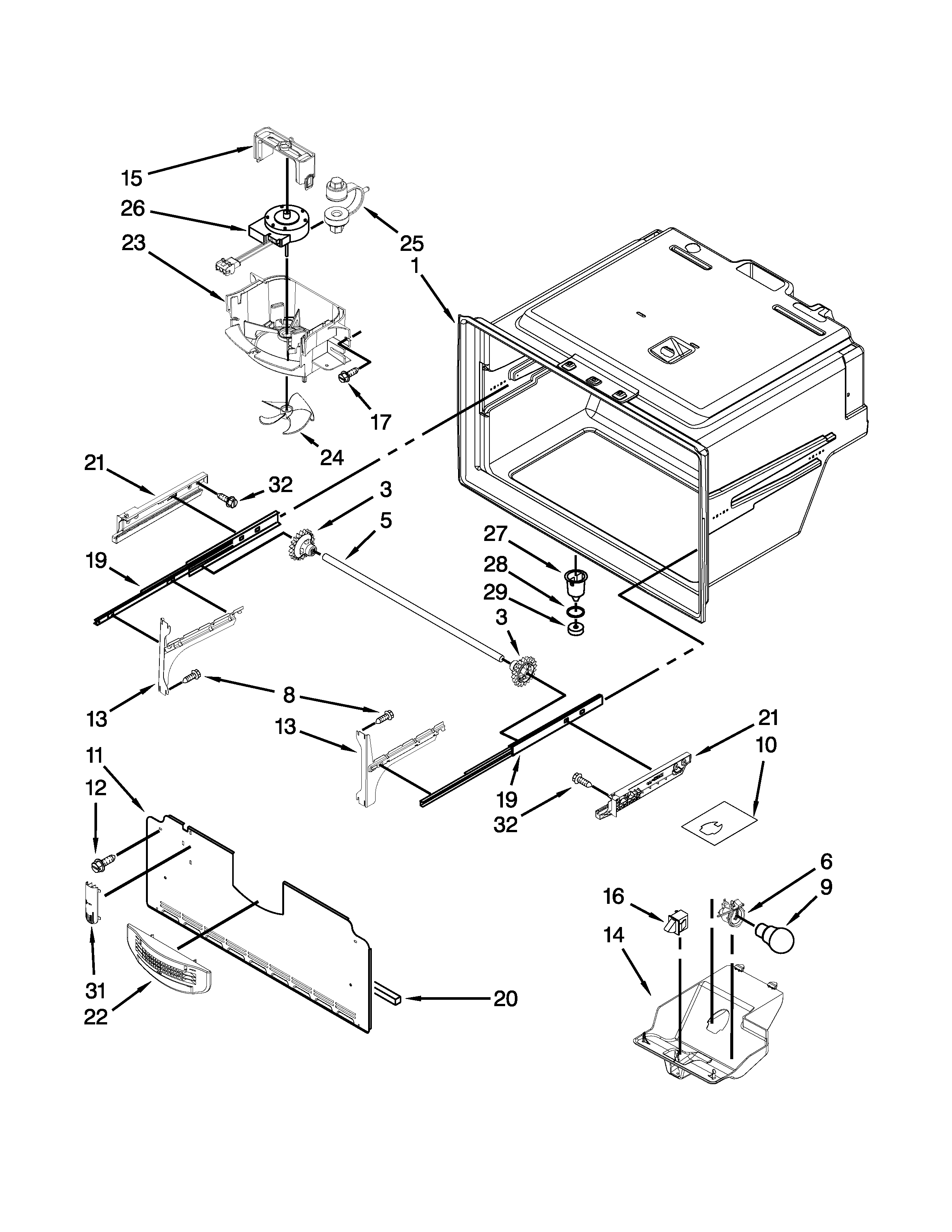

Manufacturer substitutionThis part replaces W10226427. Substitute parts can look different from the original.In Stock$238.785% OFF Phone Price : $250.78QtyFreezer liner parts diagram
Refrigerator Light Bulb
Part #2255743Replaced by #W11679940
Manufacturer substitutionThis part replaces 2255743. Substitute parts can look different from the original.In Stock$39.4313% OFF Phone Price : $45.43QtyFreezer liner parts diagram
Refrigerator Freezer Slide Rail
Part #W10120018Replaced by #W11658402
Manufacturer substitutionThis part replaces W10120018. Substitute parts can look different from the original.In Stock$198.70QtyRefrigerator liner parts diagram
Refrigerator Water Filter Bypass
Part #12664501SPGet free shipping with Automatic ReorderReplaced by #W11395888
Manufacturer substitutionThis part replaces 12664501SP. Substitute parts can look different from the original.In Stock$25.0919% OFF Phone Price : $31.09QtyOptional parts (not included) diagram
Spray Paint (white)
Part #350930Replaced by #350930
Manufacturer substitutionThis part replaces 350930. Substitute parts can look different from the original.This item is not returnableIn Stock$26.0019% OFF Phone Price : $32.00Qty
