Amana
Side-By-Side Refrigerator

Model # ARS2666AB-PARS2666AB0 Official Amana side-by-side refrigerator

Here are the diagrams and repair parts for Official Amana ARS2666AB-PARS2666AB0 side-by-side refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

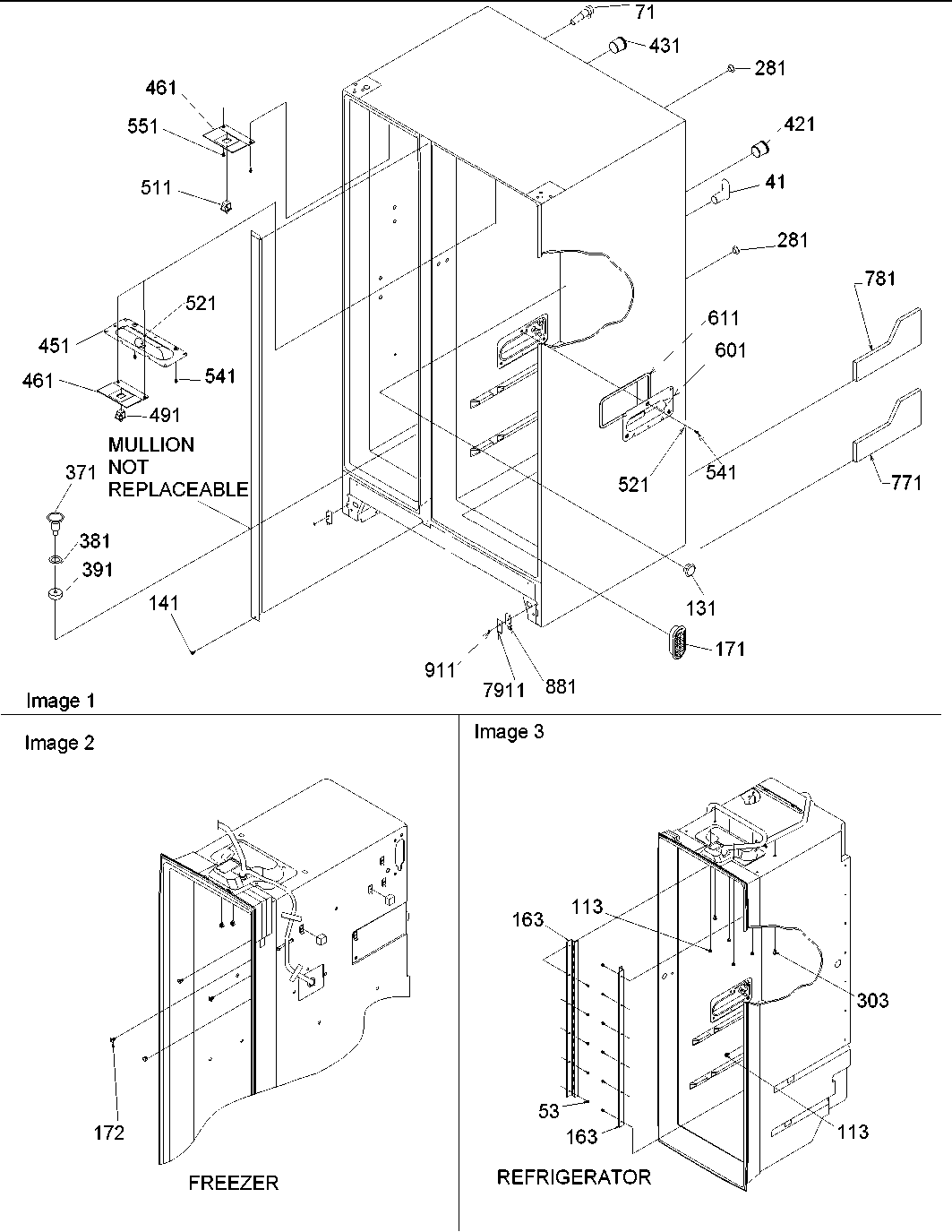

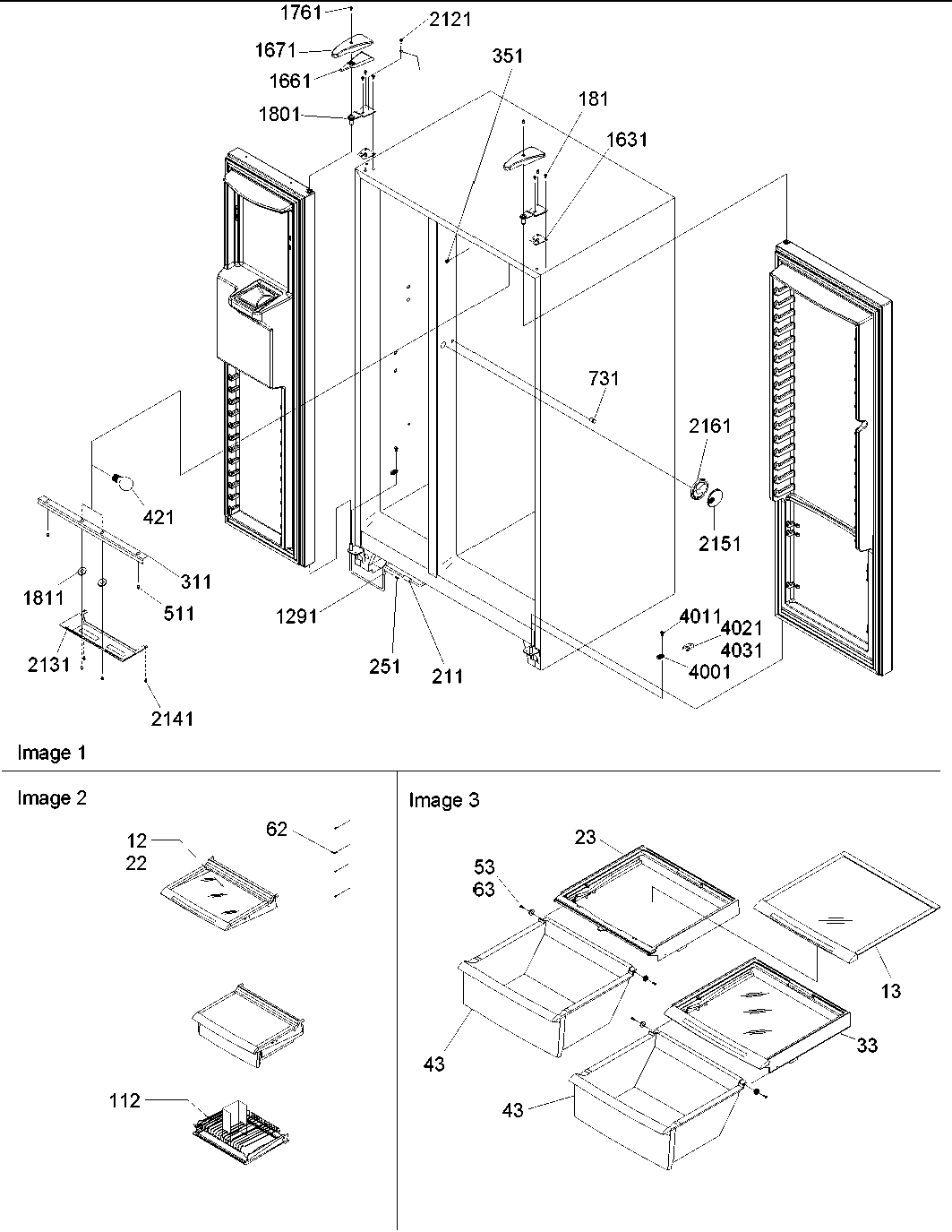

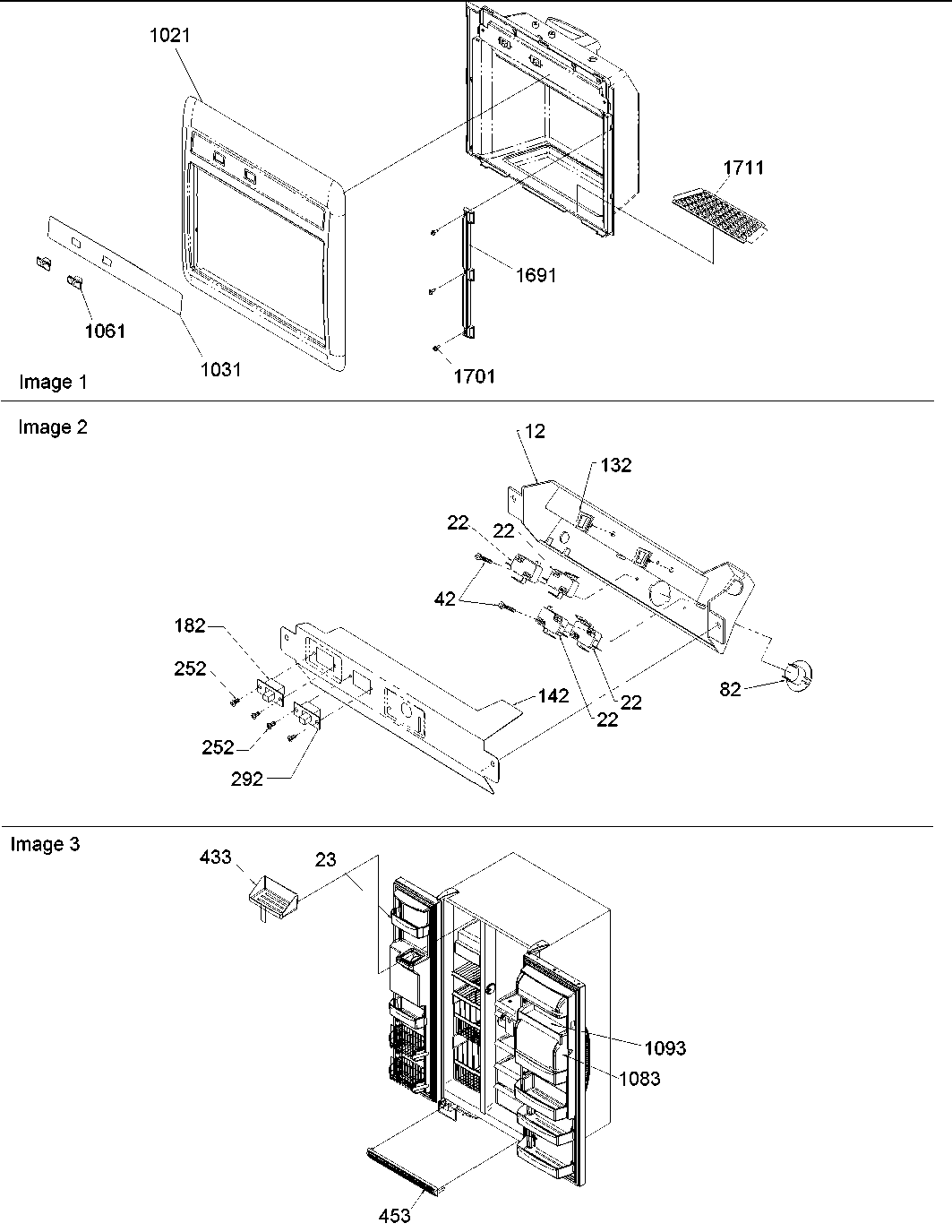

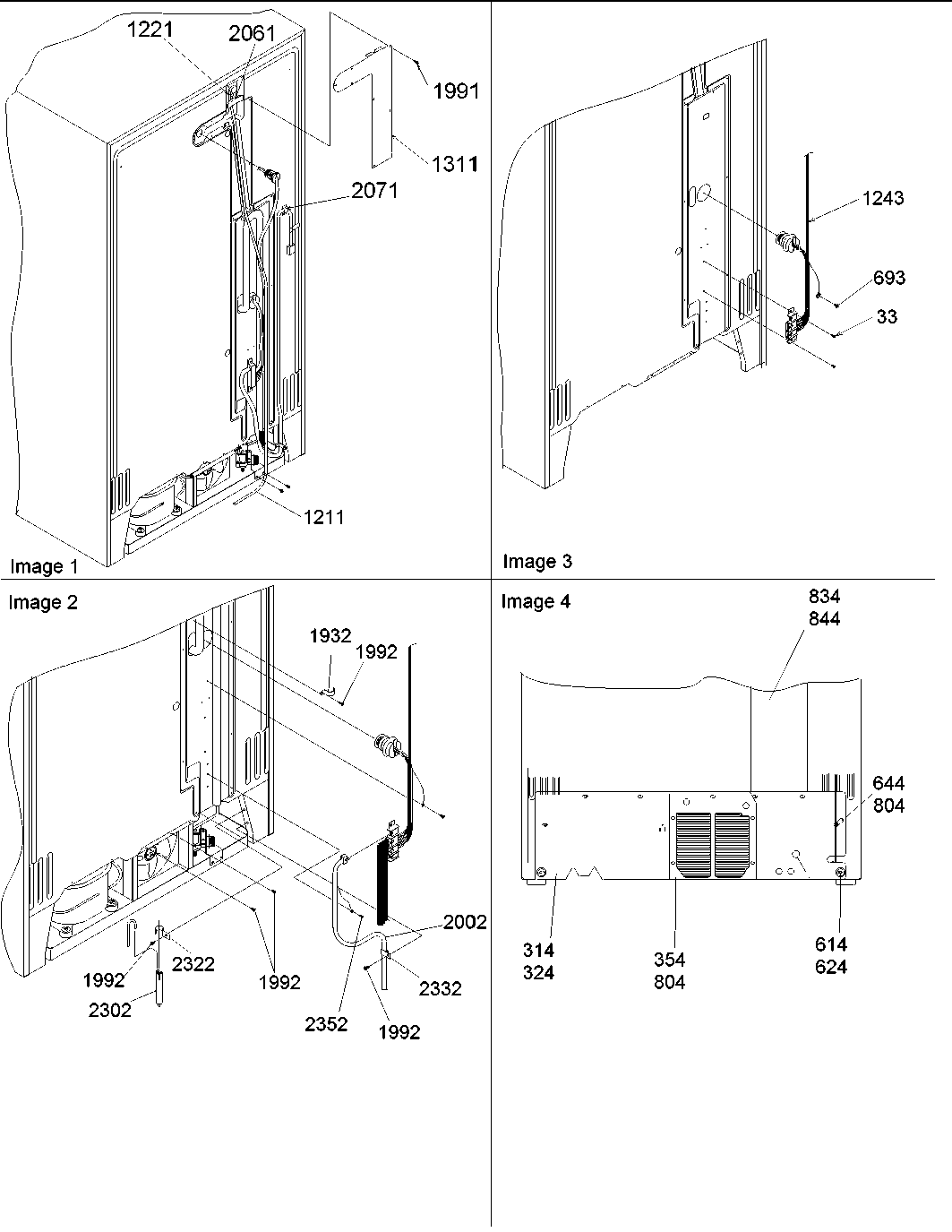

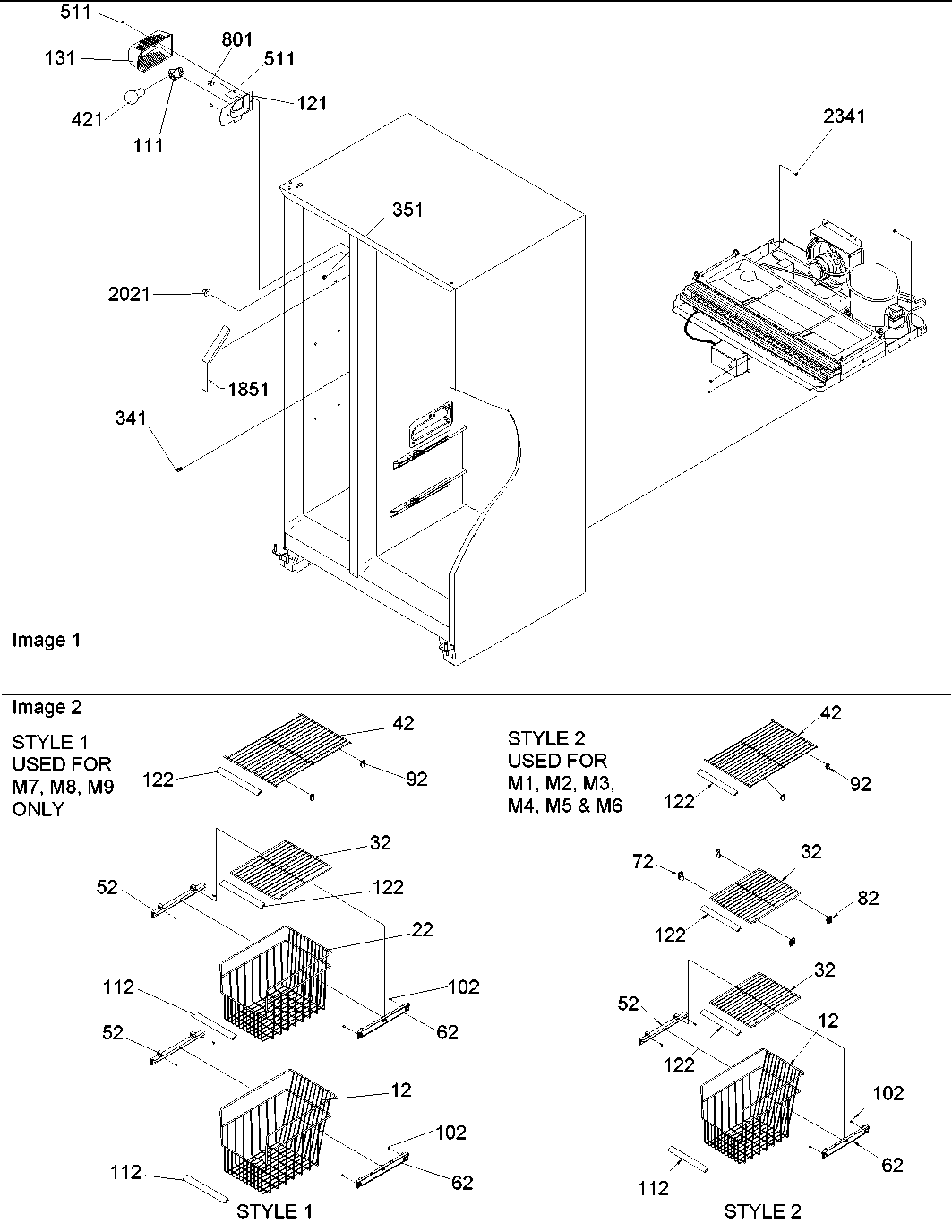

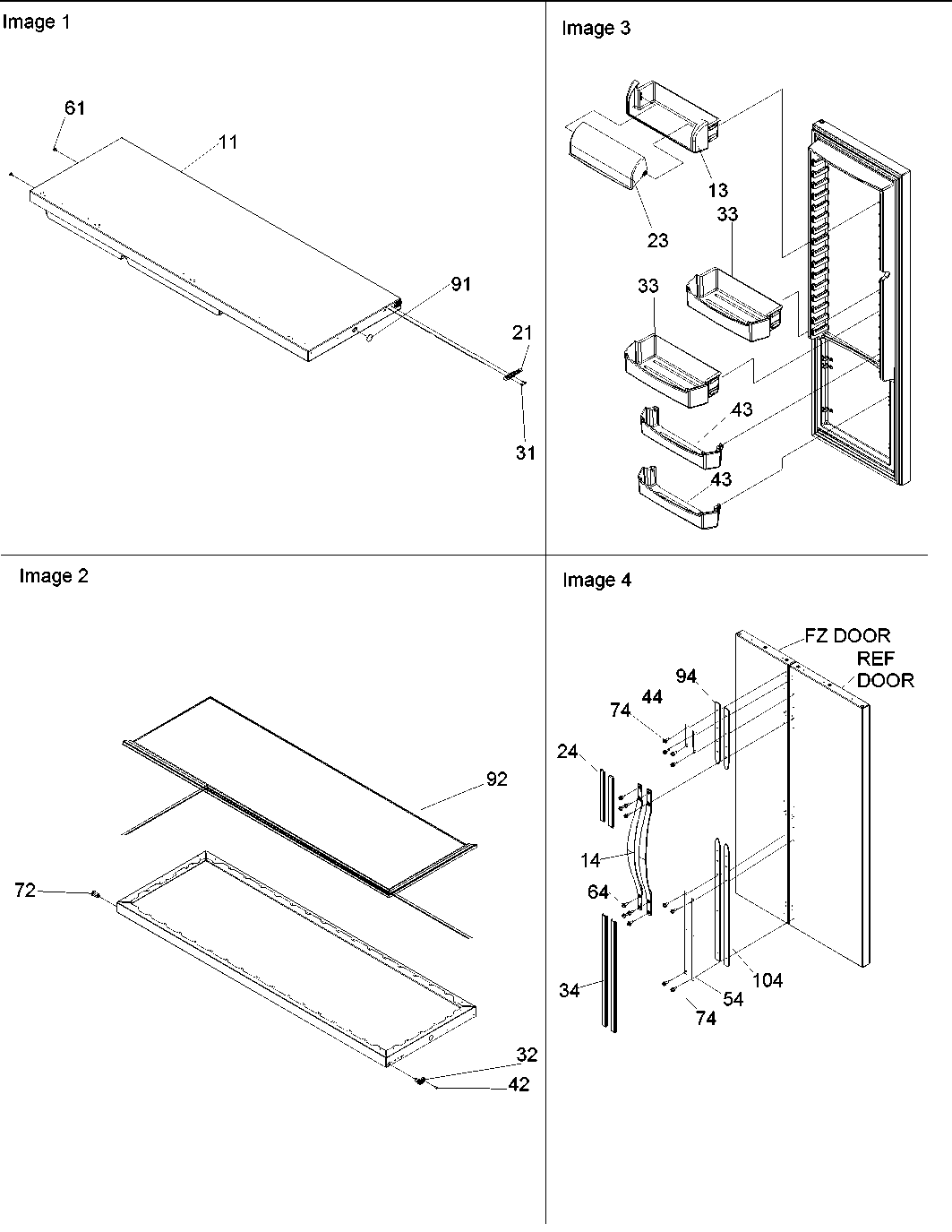

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 350 parts  |

Refrigerator Ice Maker D7824705
#261

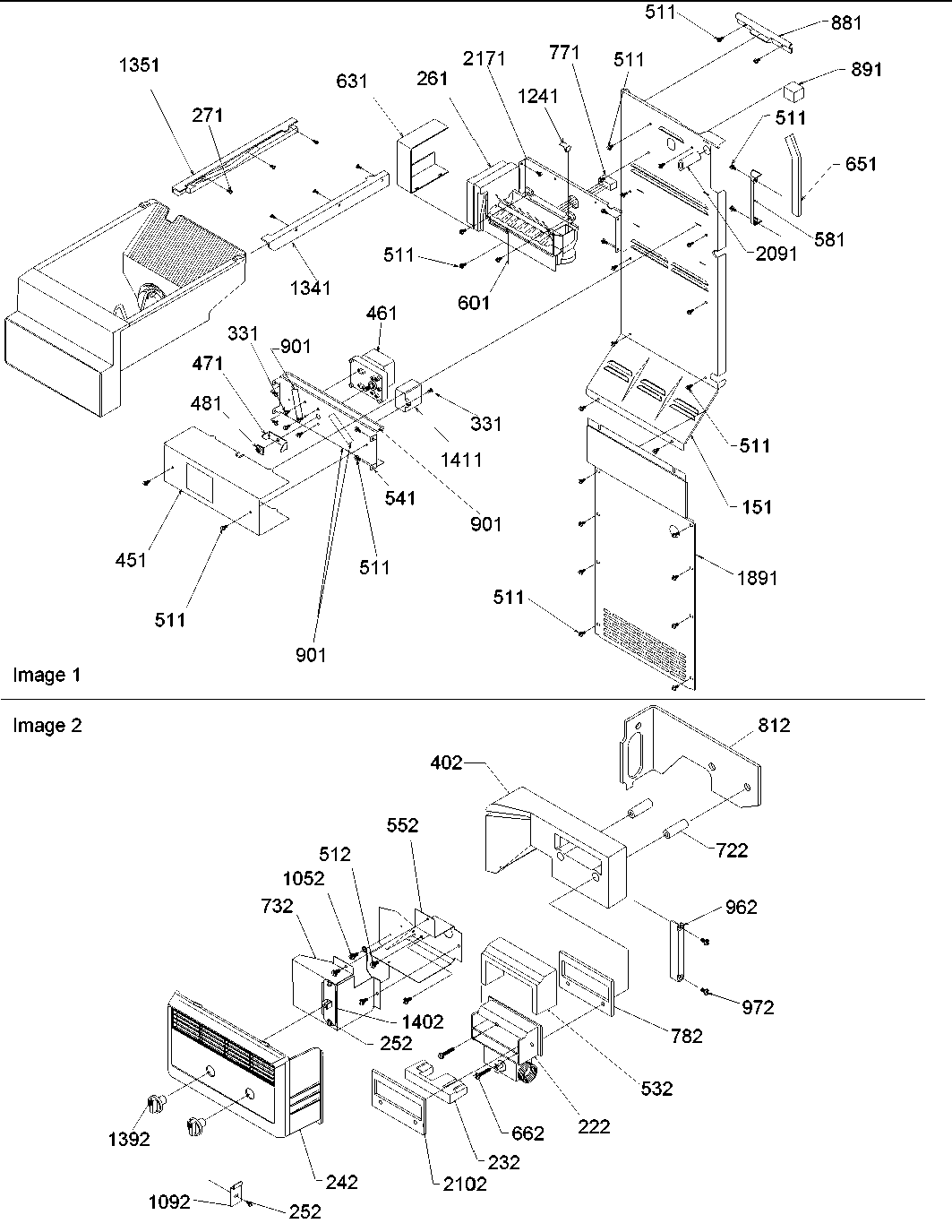

Ice maker/control assy diagram

Refrigerator ice maker

Part #D7824705

Replaced by #D7824706Q

?
Manufacturer substitution
This part replaces D7824705. Substitute parts can look different from the original.
BEST SELLER
$105.19
12% OFF MSRP : $120.00
In Stock
Refrigerator Blade 12217201
#42

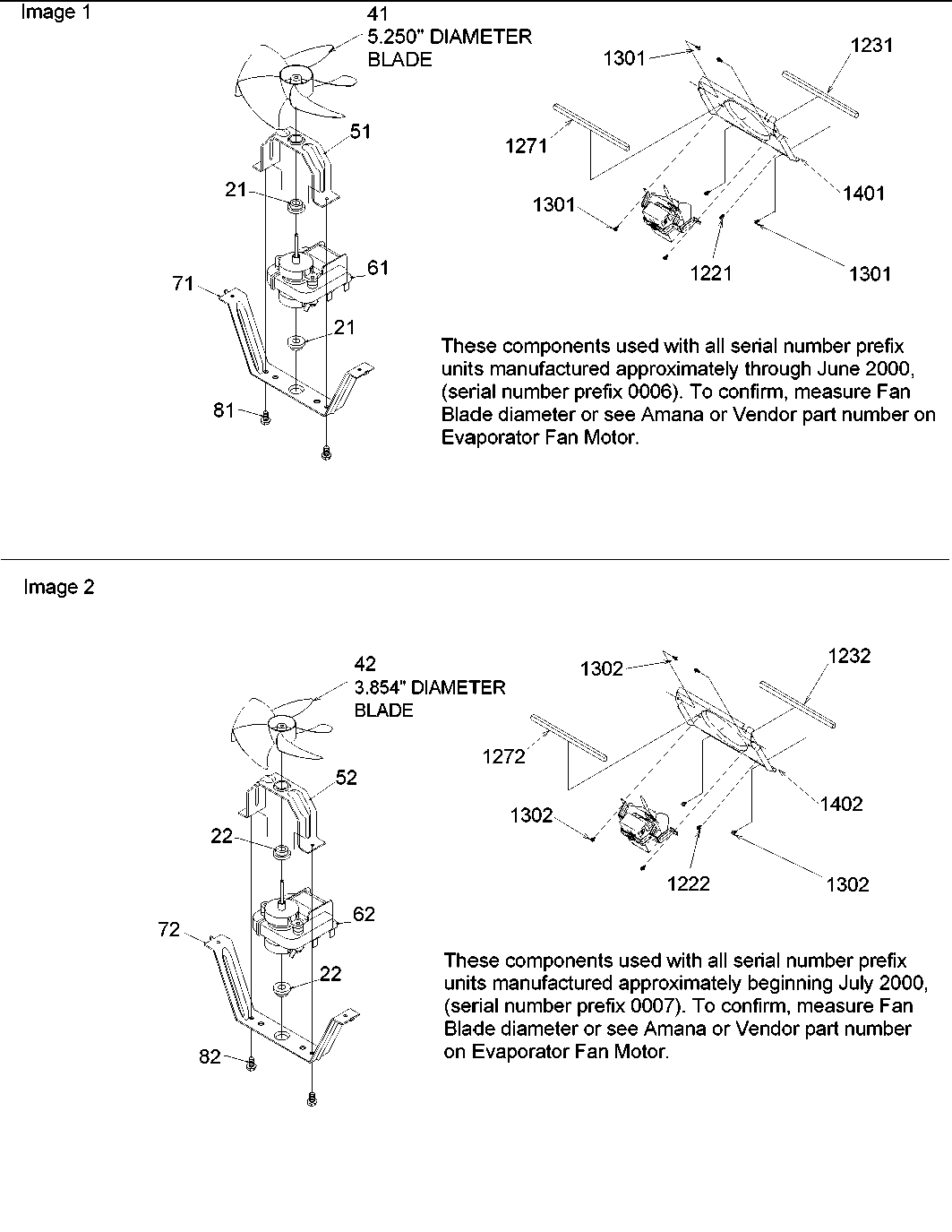

Evaporator fan shroud & motor assemblies diagram

Refrigerator blade

Part #12217201

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Bulb A3079001
#137

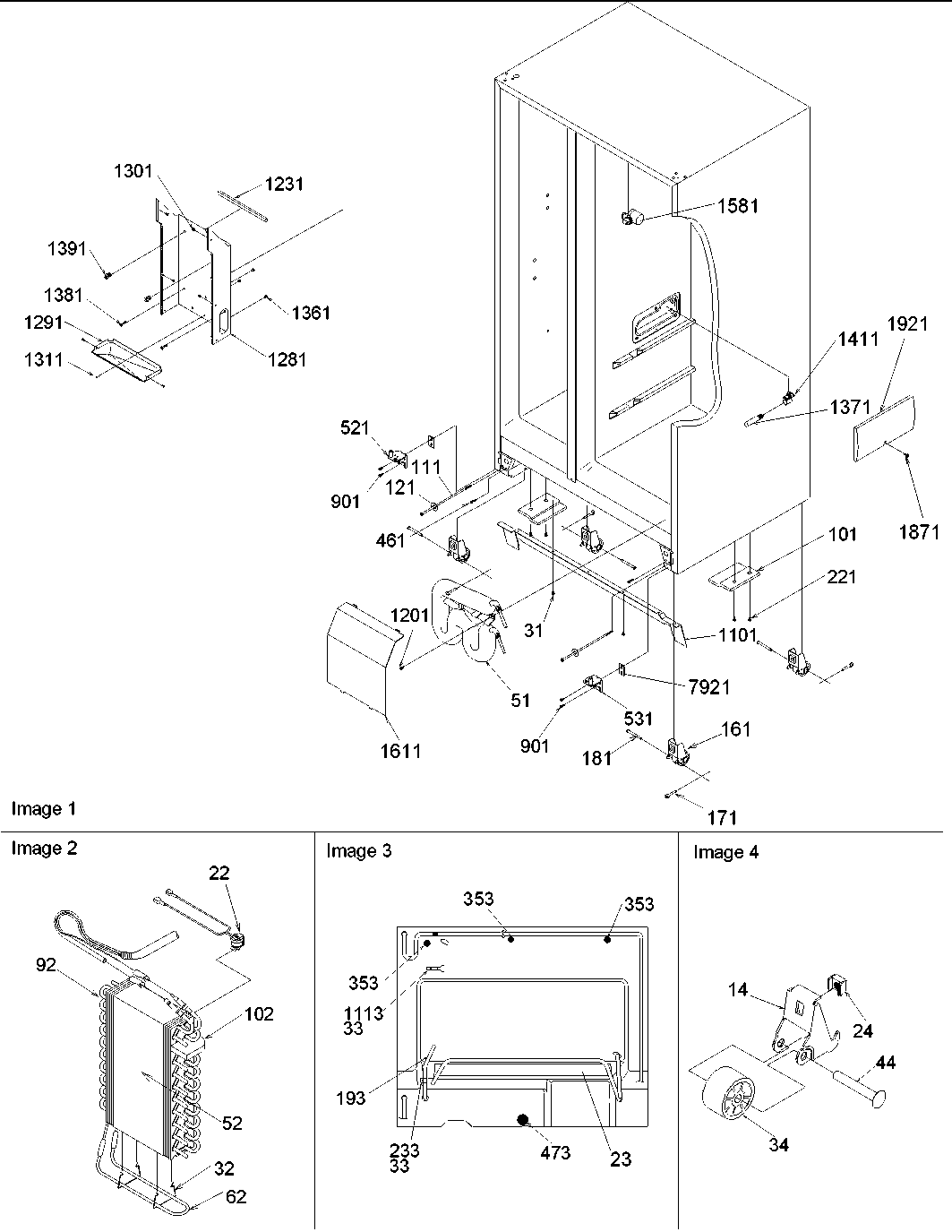

Drain, rollers & evap assy diagram

Refrigerator bulb

Part #A3079001

Replaced by #WPA3073101

?
Manufacturer substitution
This part replaces A3079001. Substitute parts can look different from the original.
BEST SELLER
$18.12
10% OFF Phone Price : $20.12
In Stock
Refrigerator Ptc Relay 10097202
#251

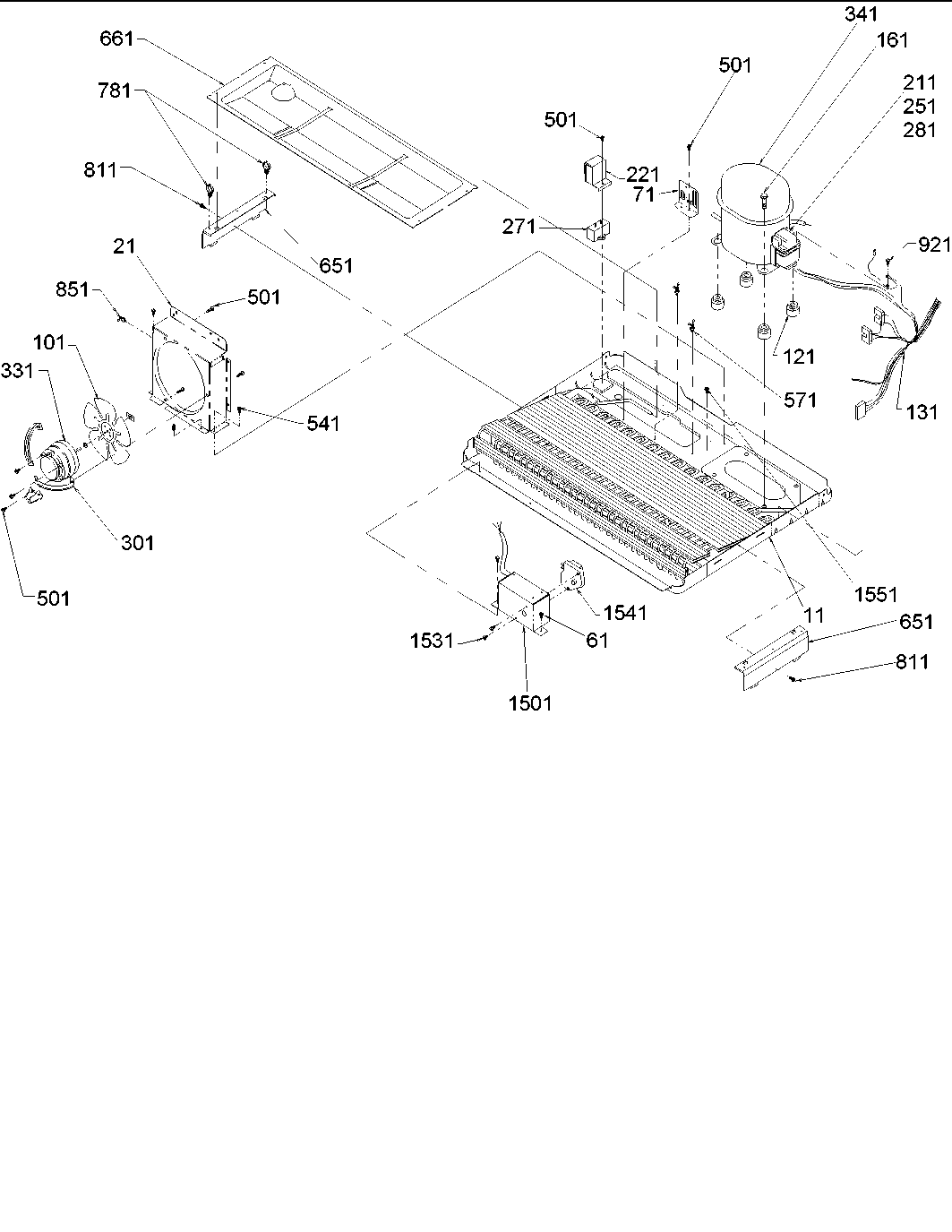

Machine compartment diagram

Refrigerator ptc relay

Part #10097202

Replaced by #WPW10189190

?
Manufacturer substitution
This part replaces 10097202. Substitute parts can look different from the original.
BEST SELLER
$74.73
25% OFF MSRP : $100.00
In Stock
Fitting M0753001
#133

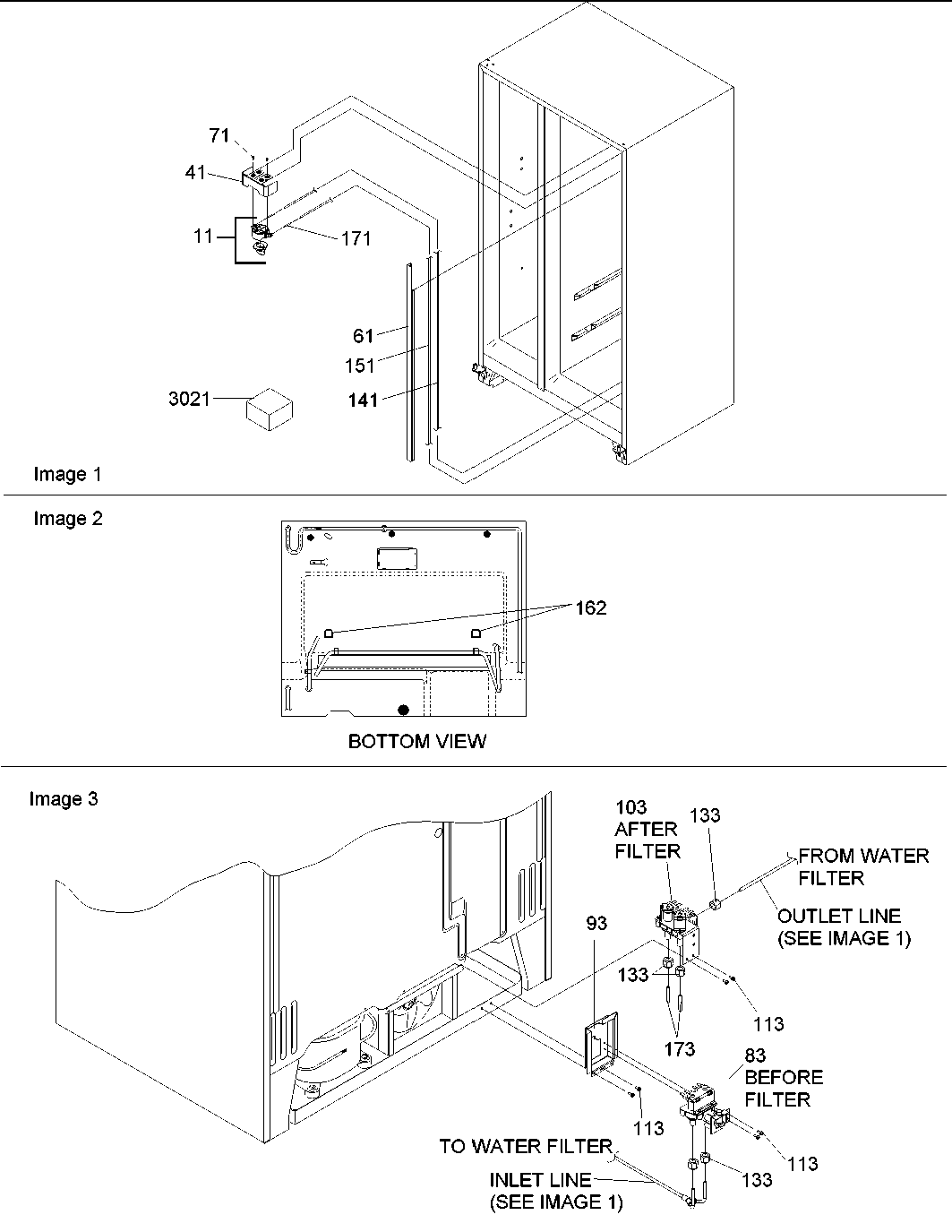

Water filter assy diagram

Fitting

Part #M0753001

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Light Bulb M0360001
#61

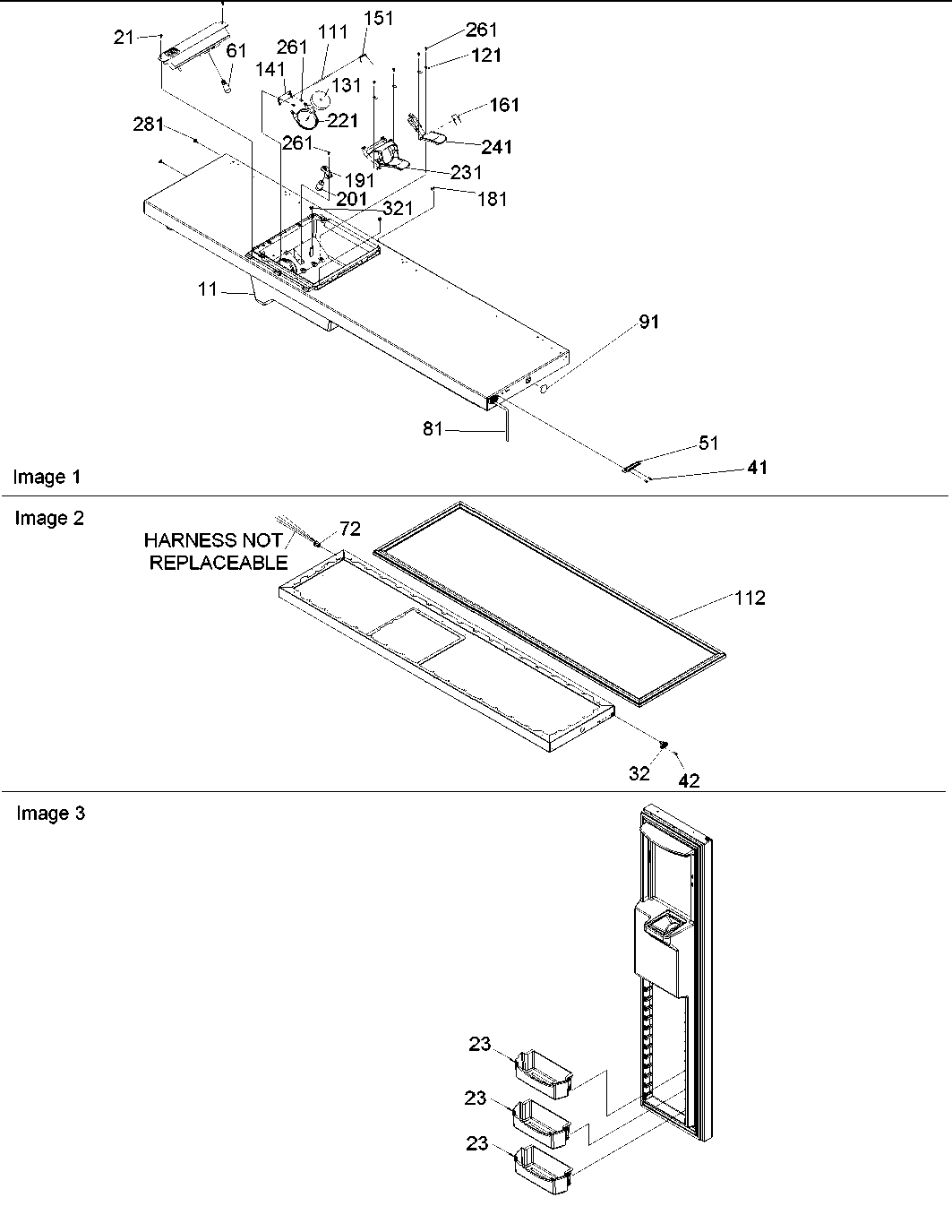

Freezer door diagram

Refrigerator light bulb

Part #M0360001

The manufacturer no longer makes this part, and there's no substitute part

Helix End Cap D7749401
#61

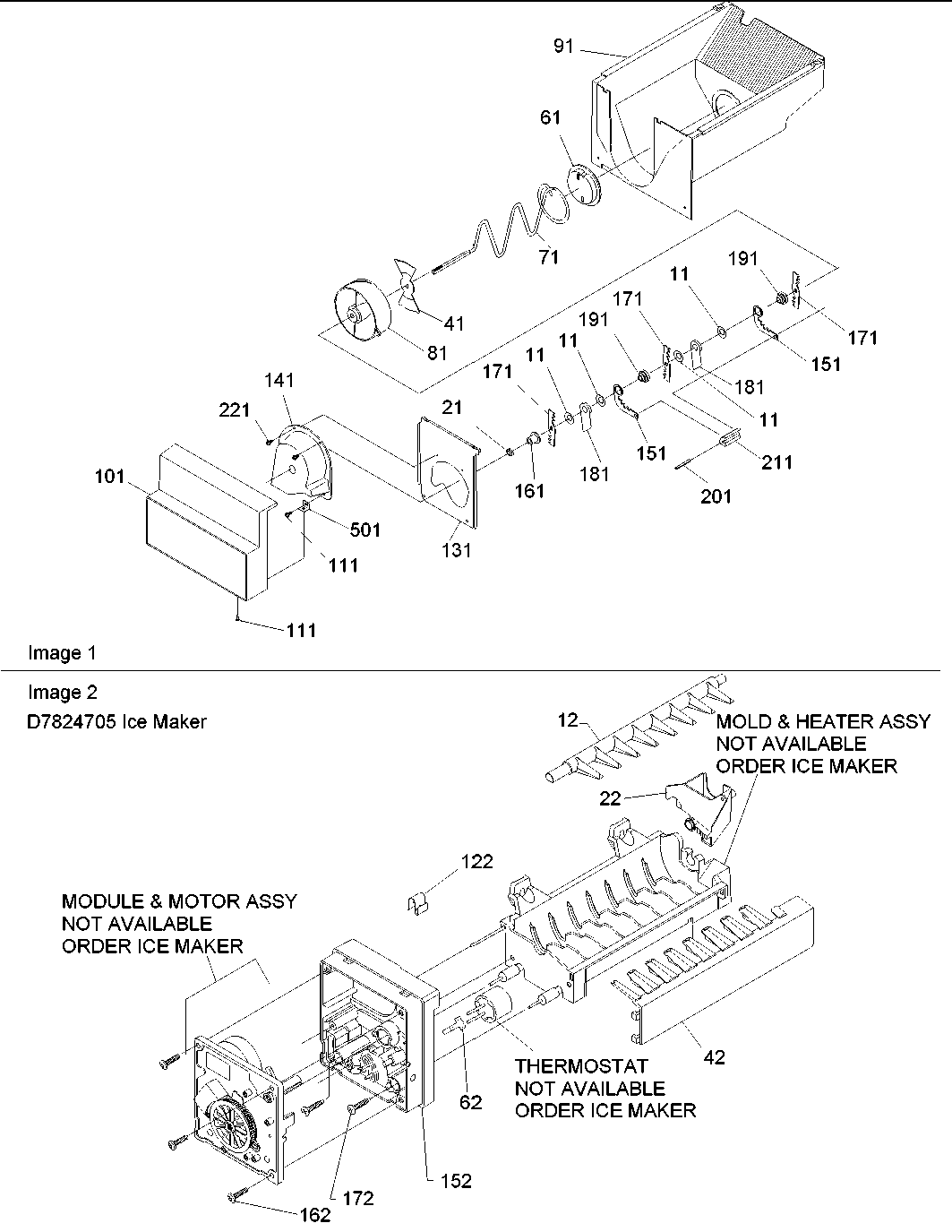

Ice bucket auger & ice maker parts diagram

Helix end cap

Part #D7749401

Replaced by #WPD7749401

?
Manufacturer substitution
This part replaces D7749401. Substitute parts can look different from the original.
This item is not returnable
$22.49
18% OFF Phone Price : $27.49
In Stock
Refrigerator Roller 10450602
#34

Drain, rollers & evap assy diagram

Refrigerator roller

Part #10450602

Replaced by #WP10450603

?
Manufacturer substitution
This part replaces 10450602. Substitute parts can look different from the original.
This item is not returnable
$6.49
13% OFF Phone Price : $7.49
In Stock
Refrigerator Wheel 10114703
#81

Ice bucket auger & ice maker parts diagram

Refrigerator wheel

Part #10114703

Replaced by #WP67002052

?
Manufacturer substitution
This part replaces 10114703. Substitute parts can look different from the original.
$35.58
12% OFF Phone Price : $40.58
In Stock
Refrigerator Screw M0214931
#54

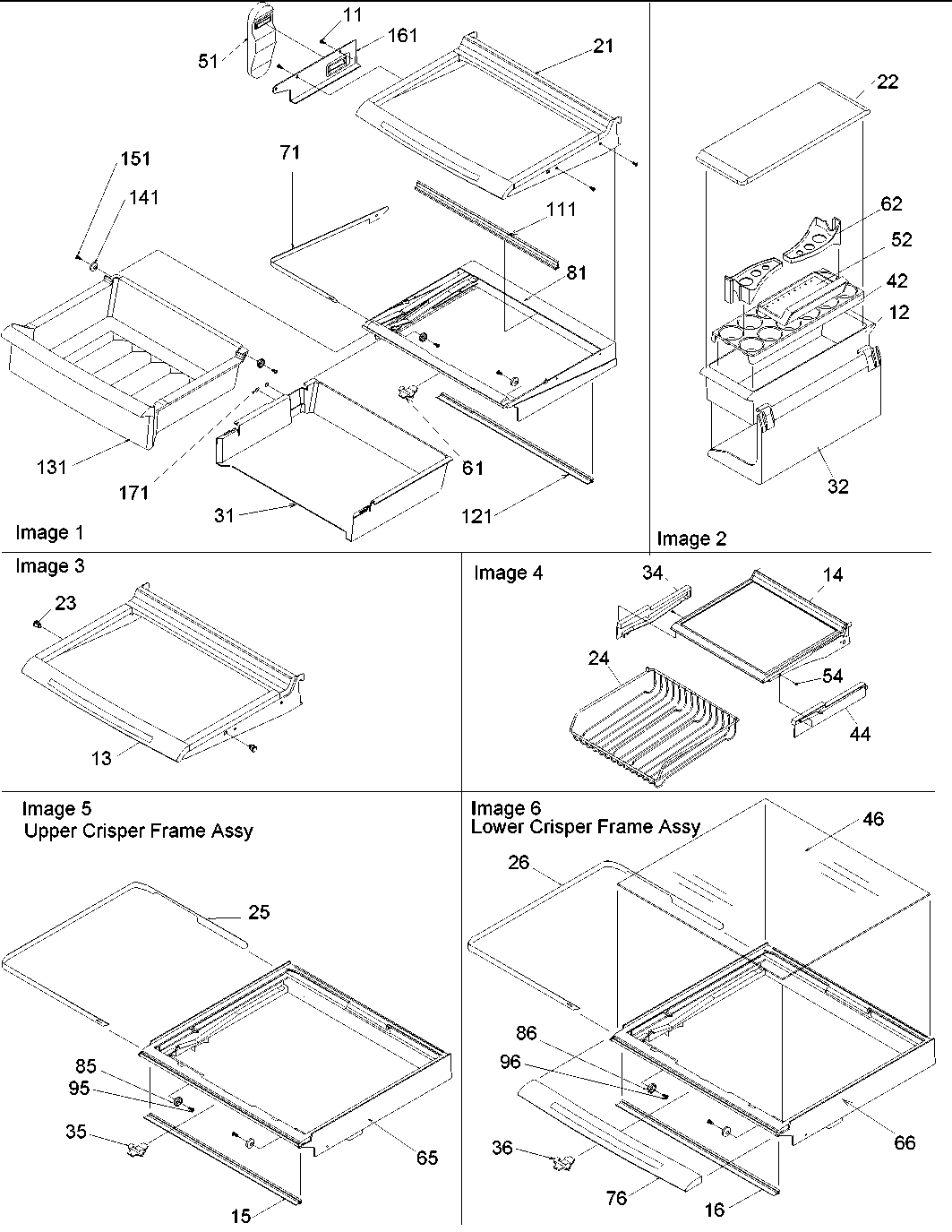

Deli, shelves & crisper assy diagram

Refrigerator screw

Part #M0214931

Replaced by #W11233072

?
Manufacturer substitution
This part replaces M0214931. Substitute parts can look different from the original.
$16.79
11% OFF Phone Price : $18.79
In Stock
