Kenmore Elite 41781102002 dryer Parts

On a Kenmore Elite dryer like model 41781102002, the model number is printed on the rating label. You’ll usually find that label when you open the dryer door, either on the door opening (cabinet frame) or on the back of the dryer near the top.

Most common places to check

• Open the dryer door and look along the door opening on the cabinet frame
• Check the inside edge of the door itself (near the hinge or latch side)
• Look on the back panel of the dryer, near the top
• If your dryer is stacked, check the visible edges around the door opening first

What the label looks like

The rating label typically includes:

• Model number (for example, 41781102002)
• Serial number
• Electrical or gas information (depending on your dryer)
• Brand name (Kenmore)

Quick tips so you don’t miss it

• Use a flashlight and wipe dust off the label so the numbers are readable
• Write the model number exactly as shown; it helps match the correct diagrams and parts
• If the label is worn, take a close-up photo and zoom in to read it

Why it matters

The model number is how we match the correct Kenmore Elite dryer parts and troubleshooting info to your exact build. Even small model number differences can change which belt, heating parts, or sensors fit.

What you need	Where to find it	Why it’s used
Model number	Rating label	Identifies the correct parts list
Serial number	Rating label	Helps confirm production details

For more model-specific identification details, use the 41781102002 owner’s manual.

Last updated: January 2026

For Kenmore Elite dryer model 41781102002, common error codes include PF (power failure) and several F codes that point to a specific circuit or component such as the control board, user interface, heater relay, or thermistor. Use the code to narrow troubleshooting before replacing parts; see the 41781102002 owner's manual.

Common Kenmore Elite dryer error codes (and what they mean)

Here are the most common codes you may see on this style of Kenmore Elite dryer:

• PF: Power failure or power interruption
• F:01: Main electronic control board failure
• F:02: Keypad or user interface failure
• F:20: Heater relay failure
• F:22 / F:23: Outlet thermistor failure
• F:24 / F:25: Inlet thermistor failure

What to do first when an error code appears

Before replacing any parts, we recommend these quick checks:

• Unplug the dryer (or switch off the breaker) for 2 to 5 minutes, then restore power and retest
• Confirm the outlet has correct power and the cord is secure (PF often points to a supply issue)
• Clean the lint screen and check airflow; restricted venting can contribute to overheating-related faults
• Reseat any accessible wire connections at the user interface and main control (loose plugs can mimic failures)
• If the code returns immediately, troubleshoot the specific circuit the code identifies

Parts that commonly relate to heat and temperature codes

If you are seeing heater or thermistor-related codes, these model-compatible parts are often involved:

Symptom or code family	Common suspect	Example model-compatible part
F:20 (heater relay) or no heat	Heating circuit	Frigidaire dryer heating element 134792700
F:22, F:23, F:24, F:25 (thermistor)	Temperature sensing	Kenmore dryer thermistor 134711300
Overheating, shuts off, long dry times	Safety limit devices or airflow	Kelvinator dryer high-limit thermostat 3204267

Why it matters

Error codes help prevent guesswork. Matching the code to the correct system (power, controls, heat, or temperature sensing) saves time, avoids unnecessary part returns, and helps restore safe drying performance.

Last updated: January 2026

To hard reset your Kenmore Elite dryer model 41781102002, unplug the power cord (or switch the breaker off) for 1 to 5 minutes, then restore power and try a normal cycle. This clears many temporary control glitches, but it will not fix airflow restrictions or failed heating and safety parts.

Hard reset steps (safe and effective)

• Turn the dryer OFF.
• Unplug the dryer from the wall outlet (preferred) or turn the circuit breaker OFF.
• Wait 1 to 5 minutes.
• Restore power.
• Close the door firmly and press Start.
• If the control is still unresponsive, verify the outlet has power and the breaker is fully reset.

For model-specific control behavior and cycle selection, follow the 41781102002 owner's manual.

If a reset does not help, check these common causes

A “reset” often seems to work only because the dryer cools down; the underlying issue is usually heat or airflow related.

• Lint screen clogged or not seated correctly (clean every load)
• Vent duct crushed, too long, or packed with lint (clean the full run)
• Overheating protection opened (high-limit thermostat or thermal limiter)
• No heat from a failed heating circuit component
• Drum not turning due to a broken belt

Quick symptom-to-likely-cause table

What you notice	What it usually points to	What to check next
Dryer runs but no heat	Heating circuit problem or airflow restriction	Venting, then heater and thermostats
Dryer stops mid-cycle	Overheating or power interruption	Venting, breaker, thermal protection
Hums but drum will not turn	Belt or drum support issue	Belt, rollers, idler system
Dead control panel	Power supply or control issue	Outlet, breaker, door switch, UI

Parts that commonly relate to “won’t heat” or “stops” complaints

If you are troubleshooting heat or shutdown issues on this model, these are common wear or safety parts:

• Dryer inlet thermal limiter 137032600 (opens if the heater area overheats)
• Kelvinator dryer high-limit thermostat 3204267 (limits temperature to prevent overheating)

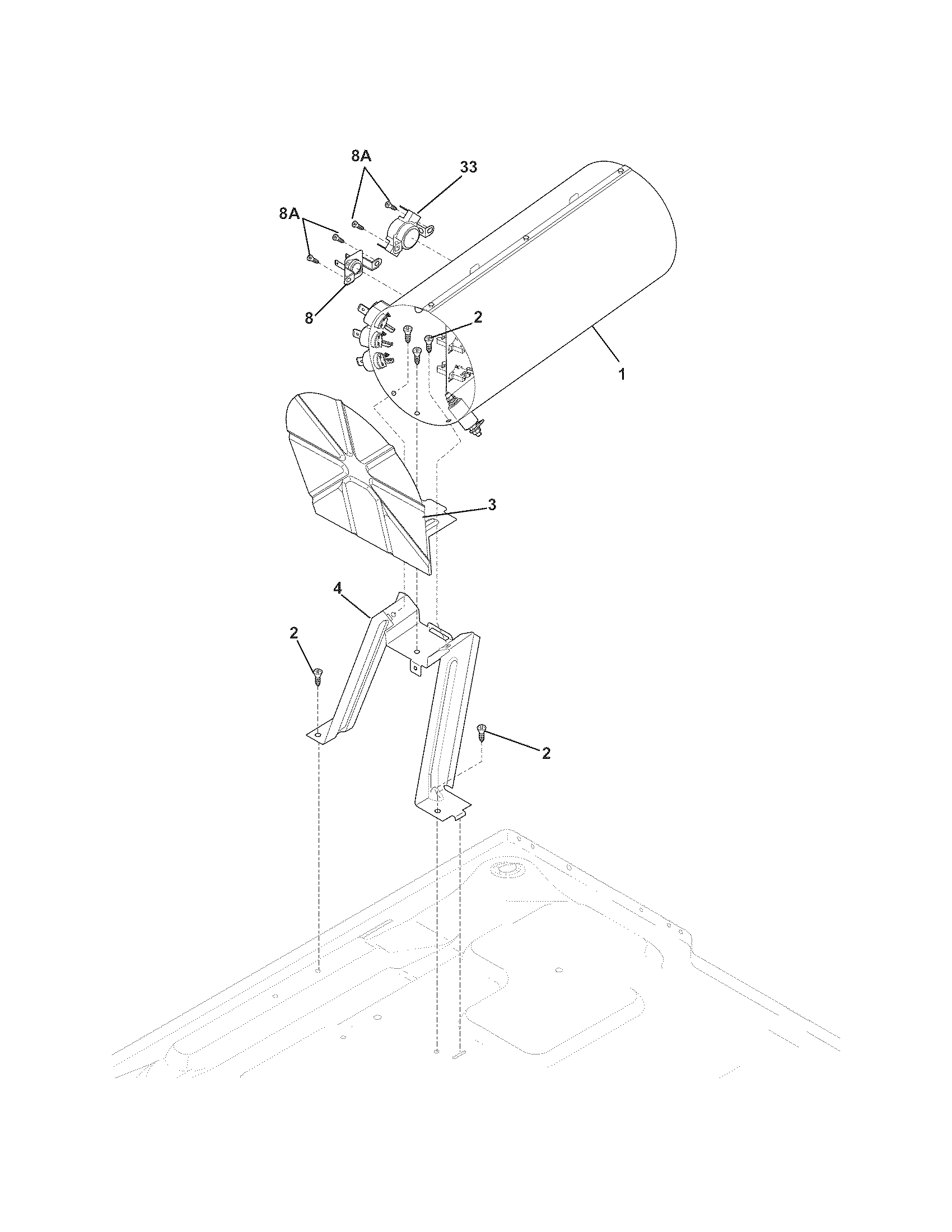

• Frigidaire dryer heating element 134792700 (creates heat for drying)

Why it matters

Hard resets are great for clearing a stuck electronic control, but repeated overheating trips can damage components and increase dry times. Fixing airflow and heat issues protects the dryer, improves performance, and reduces energy use.

Last updated: January 2026

On Kenmore Elite dryer model 41781102002, the AF code means the dryer is detecting restricted airflow. Clearing lint buildup and fixing venting issues usually resolves it and helps the dryer heat properly, dry faster, and avoid overheating.

What to check first (most common fixes)

• Clean the lint screen before every load; wash it with warm water and a soft brush if fabric softener residue is present.
• Inspect and clean the lint duct inside the cabinet and the exhaust outlet at the back of the dryer.
• Check the vent hose for kinks, crushing, or long runs; replace plastic or foil vent with rigid or semi-rigid metal.
• Make sure the outside vent hood opens freely and is not blocked by lint, snow, or a bird nest.
• Run a timed dry cycle and confirm strong airflow outside; weak airflow points to a vent restriction.

Quick airflow test

Test	What you do	What it means
Lint screen check	Start a cycle and confirm air is pulling through the screen area	Weak pull suggests lint duct or blower restriction
Outside vent check	Feel airflow at the exterior vent hood	Weak flow suggests clogged vent line or hood
Vent-off test (temporary)	Disconnect vent and run briefly (electric only; follow safety guidance)	If airflow improves, the home venting is restricted

Parts that can contribute to AF symptoms

Restricted airflow is usually venting, but internal airflow problems can also trigger AF. If the dryer is noisy, takes too long to dry, or the drum turns but airflow feels weak, these parts are common suspects:

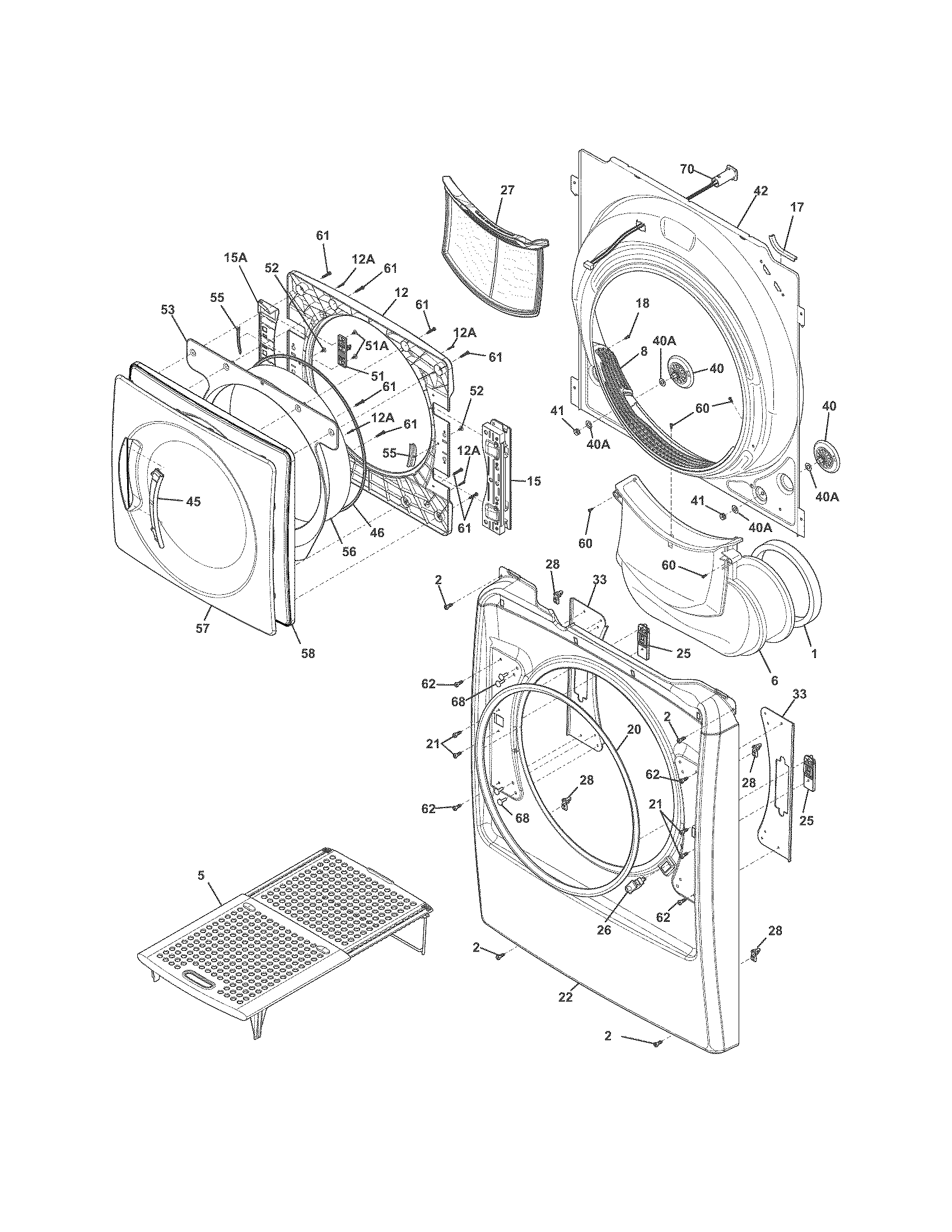

• Kenmore dryer lint screen 134793600 (if torn, warped, or not sealing well)

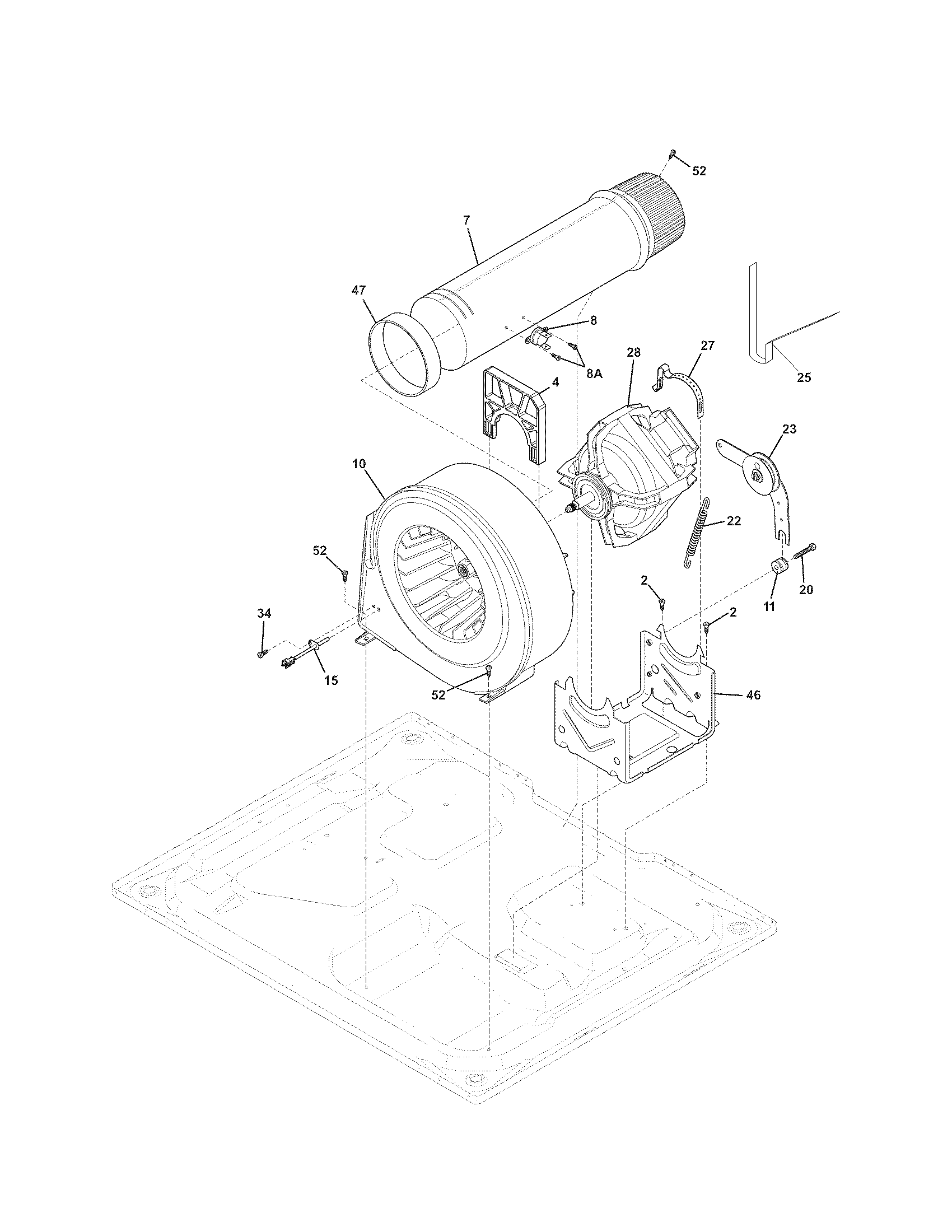

• Frigidaire dryer blower wheel and housing assembly 134690800 (if the blower wheel is clogged, loose, or damaged)

Why it matters

Good airflow carries moisture out of the drum. When airflow is restricted, clothes dry slowly, temperatures rise, and safety thermostats can trip. Keeping the vent path clear protects the heating system and improves efficiency.

Model-specific reference

For venting requirements, cleaning points, and any reset steps for your exact control panel, follow the 41781102002 owner’s manual.

Last updated: January 2026
