Whirlpool WRF555SDFZ01 bottom-mount refrigerator Parts

Yes, a bottom-mount refrigerator like the Whirlpool WRF555SDFZ01 is better for many kitchens because the fresh-food section sits at eye and waist level, so you reach everyday items (milk, produce, leftovers) without bending as often; the freezer stays in a lower pull-out drawer.

Bottom-mount designs tend to feel more convenient day to day because the refrigerator compartment is the most-used space.

• Easier access to fresh foods and beverages
• Less bending for common items; better ergonomics for frequent cooking
• Freezer storage is organized in drawers or bins (good for bulk items)
• Wide refrigerator shelves make it easier to see what you have
• Works well for households that meal prep and use produce often

Here is a quick comparison to help you decide based on how you use your refrigerator.

A bottom-mount only performs its best when it can breathe and the doors can open fully. For the WRF555SDFZ01, we follow the spacing and location guidance in the WRF555SDFZ01 owner's manual.

• Leave clearance around the cabinet for ventilation
• Keep room behind the refrigerator for airflow and water line routing (if equipped)
• Avoid placing it next to strong heat sources
• Make sure there is enough side clearance for the door swing

If you are trying to make your bottom-mount setup work better (taste, ice, water, and usability), these model-matched parts are commonly replaced:

• Refrigerator water filter EDR4RXD1 for water and ice quality

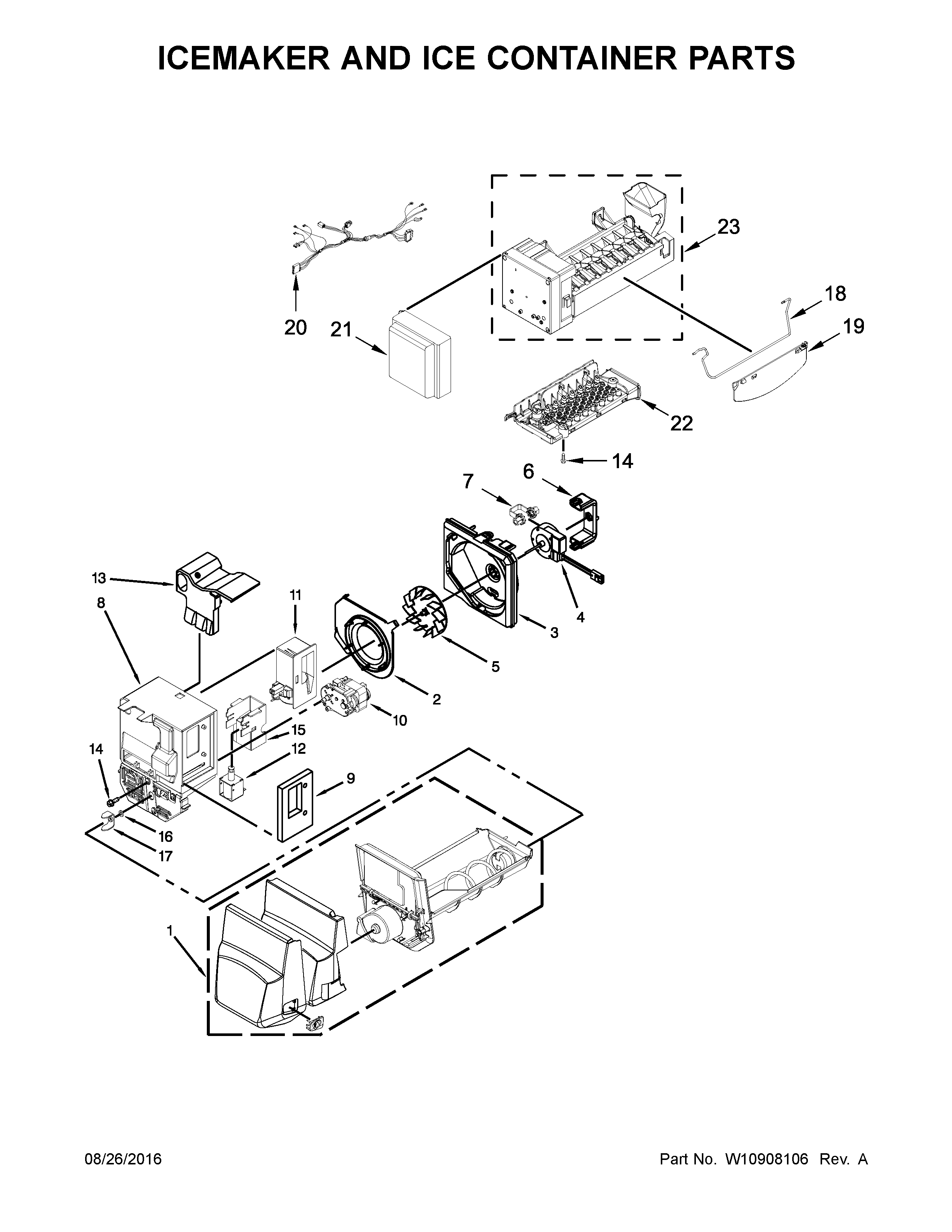

• Refrigerator ice maker assembly WPW10300024 if ice production is inconsistent

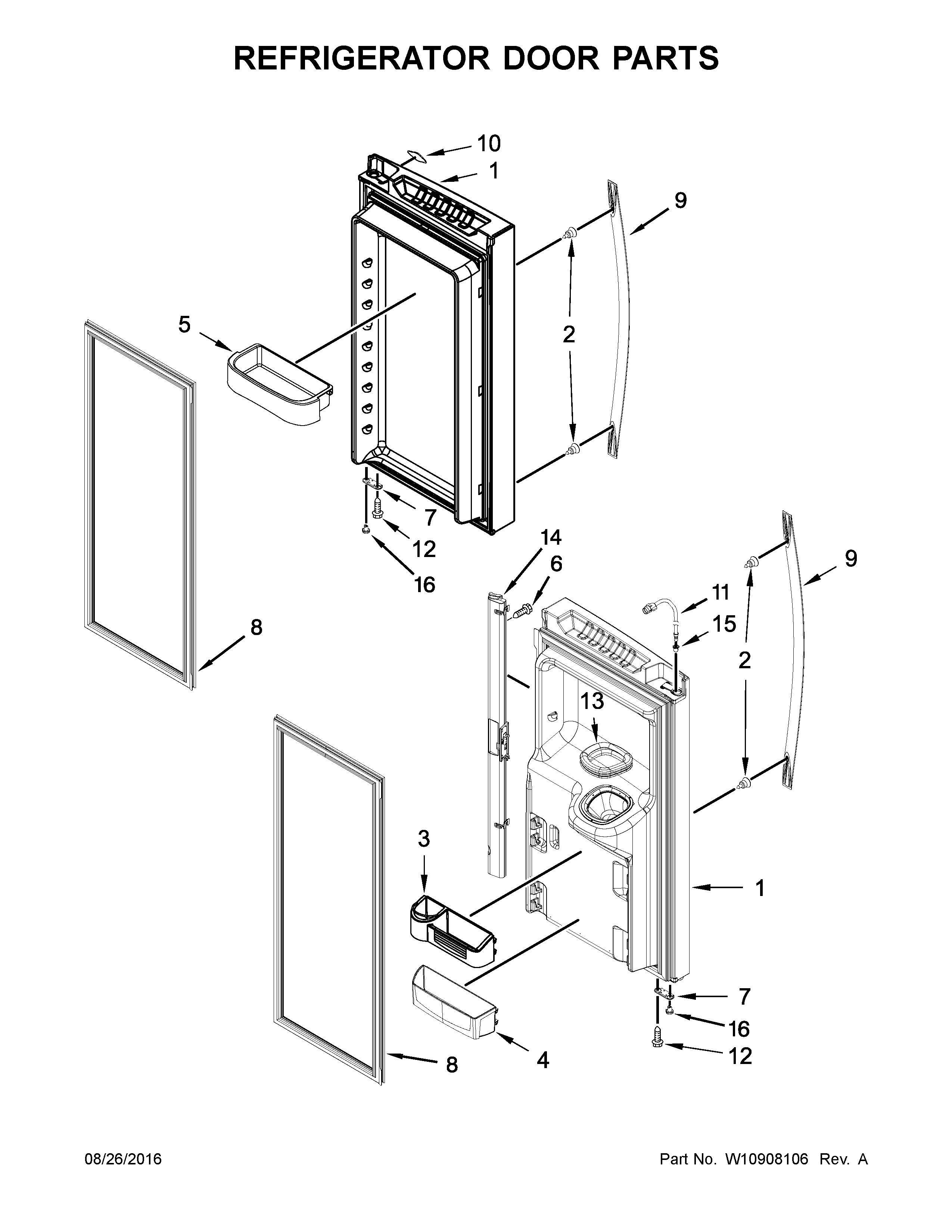

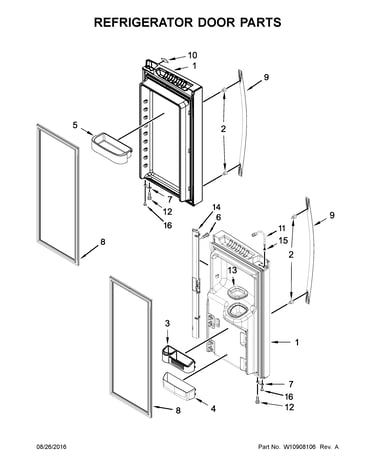

• Whirlpool refrigerator door gasket, right (gray) W10830055 if the door does not seal tightly

You can order replacement parts for your Whirlpool WRF555SDFZ01 from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

On your Whirlpool WRF555SDFZ01 bottom-mount refrigerator, a leak at the bottom right front is usually caused by defrost water missing the drain path and spilling into the freezer floor, or by a door seal issue letting warm air create excess frost that later melts and runs forward.

• Clogged defrost drain: Ice, food particles, or sludge blocks the drain so meltwater overflows.
• Frozen drain trough: The drain is clear but the trough or drain opening is iced over.
• Door not sealing: A gap in the gasket pulls in humid air, creating heavy frost and extra meltwater.
• Freezer drawer not closing fully: Bins, a shifted drawer front, or rails can prevent a tight close.
• Refrigerator not level: If the cabinet tilts forward, water is more likely to run out the front.

1. Check the freezer drawer seal: Close a dollar bill in the gasket area; it should resist pulling out.
2. Look for frost patterns: Heavy frost near the right side often points to an air leak at the gasket.
3. Inspect the drain area: Remove the freezer items and look for a sheet of ice on the freezer floor.
4. Clear the drain (basic approach): Melt visible ice with warm air (hair dryer on low) and flush with warm water using a turkey baster.
5. Confirm the doors were reinstalled correctly: If the doors were recently removed, recheck alignment and water line routing using the owner's manual.

If you find a sealing problem, replacing the gasket is a common fix for recurring frost and leaks.

A recurring leak can refreeze into thick ice, restrict airflow, and force longer run times. Fixing the drain path or door seal early helps protect cooling performance and reduces future ice buildup.

If you need to order replacement parts for WRF555SDFZ01, use the parts list for your model or search by model number on Sears PartsDirect.

Last updated: February 2026

Bottom-freezer refrigerators like the Whirlpool WRF555SDFZ01 keep fresh food at eye level, but the tradeoffs are higher purchase cost, more bending to reach frozen items, and a freezer layout that can be harder to sort through. They can also be more prone to drain and defrost-related water issues if maintenance is neglected.

• More bending and lifting: you reach down for frozen foods, ice, and heavy items.
• Deep drawer organization: items can stack up and get buried, especially in lower baskets.
• Higher upfront cost: bottom-mount designs often cost more than basic top-freezer models.
• Freezer access is less convenient: frequent freezer users may find the drawer slower than a swing door.
• More moving parts in the lower section: drawer glides, rails, and seals can wear and affect closing.

Bottom-mount units can be less forgiving if airflow and drainage are not kept in good shape.

• Keep door seals clean so warm air does not create excess frost.
• Do not overpack the freezer drawer; it can prevent full closure.
• Watch for water under the refrigerator; it often points to a drain or defrost issue.
• If the door is left open, the Door Ajar Alarm on this model sounds after about 5 minutes (helpful, but it also signals a common real-world annoyance: drawers not fully shut).

Choosing a freezer style affects daily ergonomics, food visibility, and how often you deal with frost, odors, and water puddles. If your household uses the freezer constantly, the bottom drawer design can feel less convenient even though the refrigerator section is more comfortable.

For model-specific features, alarms, and door and drawer adjustment guidance, use the WRF555SDFZ01 owner's manual. If you are shopping replacement parts for this model, we list them on the parts page and you can also search by model number on Sears PartsDirect.

Last updated: February 2026

The most common Whirlpool refrigerator problem is a cooling performance issue (warm fridge, soft ice, or temperature swings) caused by restricted airflow or heat not being released properly. On the Whirlpool WRF555SDFZ01, the most frequent root causes we see are dirty condenser coils, door seal leaks, and ice maker or water system interruptions.

• Fresh food section warms up but freezer seems OK
• Freezer warms up and ice production slows or stops
• Frost buildup on the back wall of the freezer
• Water under the crisper drawers or on the floor
• Ice tastes off, cubes are small, or dispenser flow is weak

1. Confirm temperatures: set refrigerator to about 37°F and freezer to about 0°F.
2. Clean airflow paths: make sure vents inside are not blocked by food packages.
3. Clean condenser area: dust buildup underneath or behind the unit commonly causes poor cooling.
4. Check door sealing: look for gaps, wrinkles, or areas that do not grip a dollar bill.
5. Reset after a power event: unplug for 2 minutes, then restore power and allow 24 hours to stabilize.

If basic checks do not help, these model-matched parts are often involved in cooling, leaking, or ice issues:

Cooling problems usually get worse over time: the compressor and fans run longer, food safety becomes a concern, and ice maker performance drops. Fixing airflow, sealing, and filtration early helps the Whirlpool WRF555SDFZ01 hold steady temperatures and reduces strain on major components.

For control settings, troubleshooting steps, and operating tips, follow the guidance in the owner's manual. For diagnostic help when the display shows a fault, use Whirlpool refrigerator error codes.

You can order WRF555SDFZ01 replacement parts from the parts list for this model, or search by model number on Sears PartsDirect.
