Kenmore Elite
Dehumidifier

Model #40554550410 Kenmore Elite dehumidifier

Here are the diagrams and repair parts for Kenmore Elite 40554550410 dehumidifier, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileOwner’s manual

Showing 10 of 41 parts

Power Cord

#10.3

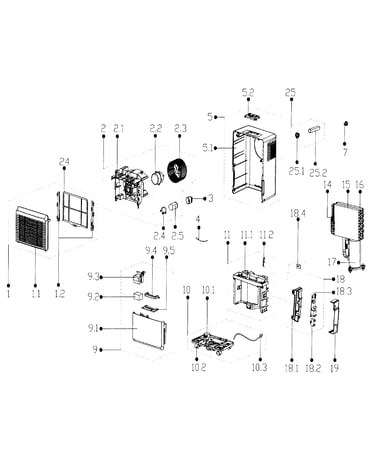

Main assy Diagram

Power cord

Part #202402260186

The manufacturer no longer makes this part, and there's no substitute part

Dehumidifier Caster

#10.2

Main assy Diagram

Dehumidifier caster

Part #202726790001

The manufacturer no longer makes this part, and there's no substitute part

Capacitor

#18.2

Main assy Diagram

Capacitor

Part #202401100977

The manufacturer no longer makes this part, and there's no substitute part

Handle

#9.4

Main assy Diagram

Handle

Part #201126590162

The manufacturer no longer makes this part, and there's no substitute part

Condenser

#15

Main assy Diagram

Condenser

Part #201526790059

The manufacturer no longer makes this part, and there's no substitute part

Capillary Pipe

#14

Main assy Diagram

Capillary pipe

Part #201626790129

The manufacturer no longer makes this part, and there's no substitute part

Panel Fr

#1

Main assy Diagram

Panel fr

Part #2011267A0324

The manufacturer no longer makes this part, and there's no substitute part

Fan

#2.3

Main assy Diagram

Fan

Part #201100100064

The manufacturer no longer makes this part, and there's no substitute part

Compressor

#17

Main assy Diagram

Compressor

Part #201402200440

The manufacturer no longer makes this part, and there's no substitute part

Dehumidifier Drain Plug

#7

Main assy Diagram

Dehumidifier drain plug

Part #202726590142

The manufacturer no longer makes this part, and there's no substitute part

Symptoms common to all dehumidifiers

Choose a symptom to see related dehumidifier repairs.

Main causes: clogged drain hose, drain hose not properly connected
Main causes: weak or dead batteries, out of range, radio frequency interference
Main causes: dirty air filter, clogged grill, dehumidifier placed too close to the wall, dehumidifier too small for the space
Main causes: loose fan motor mounting screws, loose compressor mounting bracket screws, bad fan, faulty compressor
Main causes: dehumidifier too small for the space, bad humidity sensor, faulty evaporator thermistor, low refrigerant, bad compressor
Main causes: lack of electrical power, wiring failure, electronic control board failure, user interface control failure
Main causes: collection bucket not installed correctly, cracked collection bucket, loose drain hose connection
Main causes: collection bucket not installed, collection bucket full of water
Main causes: room temperature below 65 degrees Fahrenheit, control system failure
