How to replace a dehumidifier electronic control board

How to replace a dehumidifier electronic control board

This DIY repair guide explains how to replace the electronic control board in a dehumidifier. The electronic control board activates the compressor and fan. It also monitors the temperature and humidity, turning the dehumidifier on and off to keep the humidity level you set. If the dehumidifier won't start at all or if the compressor or fan don't turn on and off as expected, replace the electronic control board with the manufacturer-approved dehumidifier part.

Follow the steps in this guide to replace the electronic control board in Kenmore and LG dehumidifiers.

Quick links
Tools required
Phillips screwdriver
Work gloves
Repair difficulty
Time required
45 minutes or less
Repair difficulty
Time required
45 minutes or less

Instructions

  1. 01.

    Disconnect power

    Unplug the power cord from the wall outlet.

  2. 02.

    Remove the collection bucket

    Pull the water collection bucket out of the front of the dehumidifier case.

    PHOTO: Remove the collection bucket.

    PHOTO: Remove the collection bucket.

  3. 03.

    Remove the air filter

    Pull the air filter out of the bottom of the front grille.

    Tip: Clean the air filter if it’s dirty.
    PHOTO: Remove the air filter.

    PHOTO: Remove the air filter.

  4. 04.

    Remove the front grille

    Remove the 2 screws at the bottom of the front grille that secure it to the frame.

    Lift the front grille carefully up and off of the front of the frame and set the front grille down in front of the dehumidifier. The wire harness for the user interface control board is still attached on the back of the front grille. Keep the front grille directly in front of the dehumidifier to avoid damaging the user interface control board wire harness.

    PHOTO: Remove the screws.

    PHOTO: Remove the screws.

    PHOTO: Pull the front grille up and off.

    PHOTO: Pull the front grille up and off.

  5. 05.

    Remove the back panel

    Remove the screws that secure the back panel to the dehumidifier.

    Carefully pry out a bottom corner of the back panel and pull the back panel off of the dehumidifier.

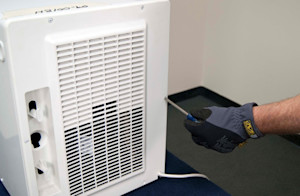

    PHOTO: Remove the screws holding back panel.

    PHOTO: Remove the screws holding back panel.

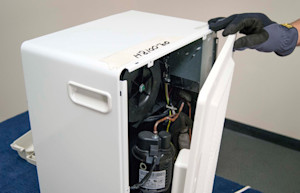

    PHOTO: Remove the back panel.

    PHOTO: Remove the back panel.

  6. 06.

    Remove the outer case

    Remove the screws that secure the outer case to the dehumidifier.

    Pull the outer case off the dehumidifier.

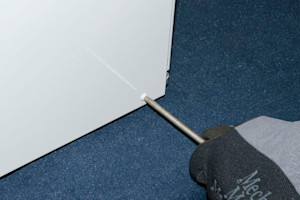

    PHOTO: Remove the side screws.

    PHOTO: Remove the side screws.

    PHOTO: Remove the front screws.

    PHOTO: Remove the front screws.

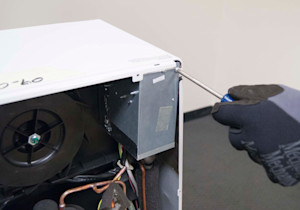

    PHOTO: Remove the screw from the control box.

    PHOTO: Remove the screw from the control box.

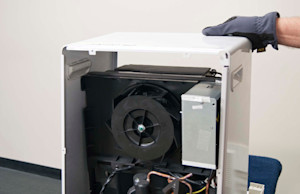

    PHOTO: Remove the outer case from the dehumidifier.

    PHOTO: Remove the outer case from the dehumidifier.

  7. 07.

    Remove the fan capacitor

    Remove the screw that fastens the fan capacitor to the side of the control box.

    Move the fan capacitor up and out of the way to access the electronic control board in the control box.

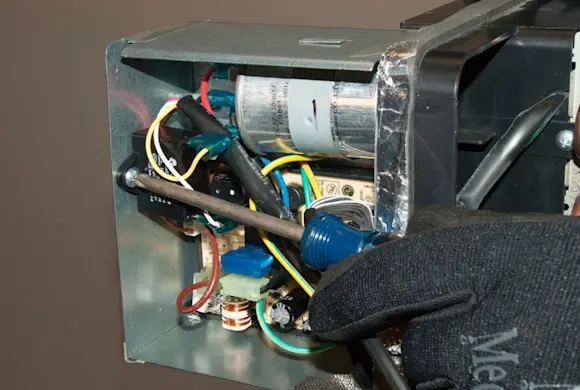

    PHOTO: Remove the mounting screw from the fan capacitor.

    PHOTO: Remove the mounting screw from the fan capacitor.

  8. 08.

    Remove the electronic control board

    Remove the mounting screws that fasten the electronic control board in the control box.

    Pull the electronic control board out to a position in front of the control box to access the wires attached to the electronic control board.

    Take a digital picture or label the wires connected to the electronic control board so you can attach them correctly to the new electronic control board.

    Remove all wires connected to electronic control board and discard the electronic control board.

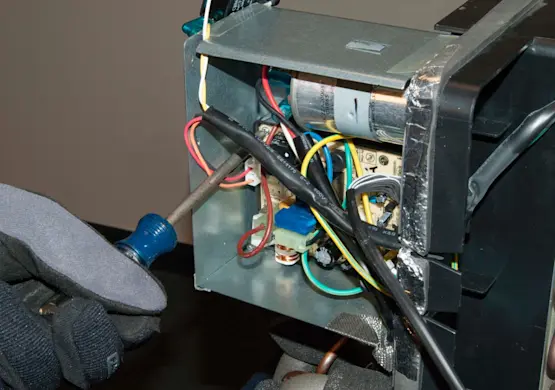

    PHOTO: Remove the mounting screws from the control board.

    PHOTO: Remove the mounting screws from the control board.

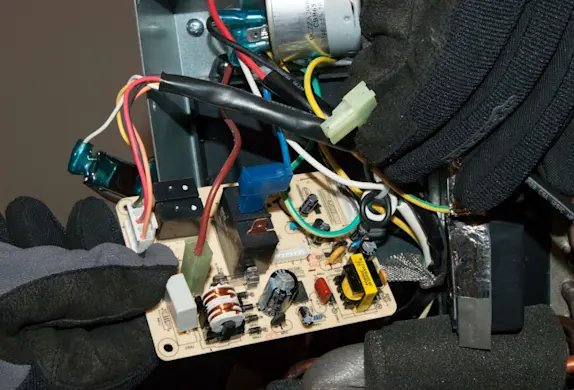

    PHOTO: Remove the wires from the electronic control board.

    PHOTO: Remove the wires from the electronic control board.

  9. 09.

    Install the new electronic control board

    Connect all of the wires to the new electronic control board using your digital photo or labels as a guide.

    Position the new electronic control board in the control box and secure it with the mounting screws.

  10. 10.

    Reinstall the fan capacitor

    Position the fan capacitor in the cabinet and secure it using the mounting screws.

  11. 11.

    Reassemble the dehumidifier

    Position the outer case on the dehumidifier and secure it using the mounting screws.

    Reinstall the back panel on the dehumidifier and secure it with the mounting screws.

    Place the front grille on the dehumidifier and secure it with the mounting screws.

    Push the filter back onto the front grille.

    Reinstall the collection bucket in the front of the dehumidifier.

  12. 12.

    Restore power

    Plug the dehumidifier into the wall outlet.

Warning: Undertaking repairs to appliances can be hazardous. Use the proper tools and safety equipment noted in the guide and follow all instructions. Do not proceed until you are confident that you understand all of the steps and are capable of completing the repair. Some repairs should only be performed by a qualified technician.
