Model #SHE45M02UC/53 Official Bosch dishwasher

Here are the diagrams and repair parts for Bosch SHE45M02UC-53 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

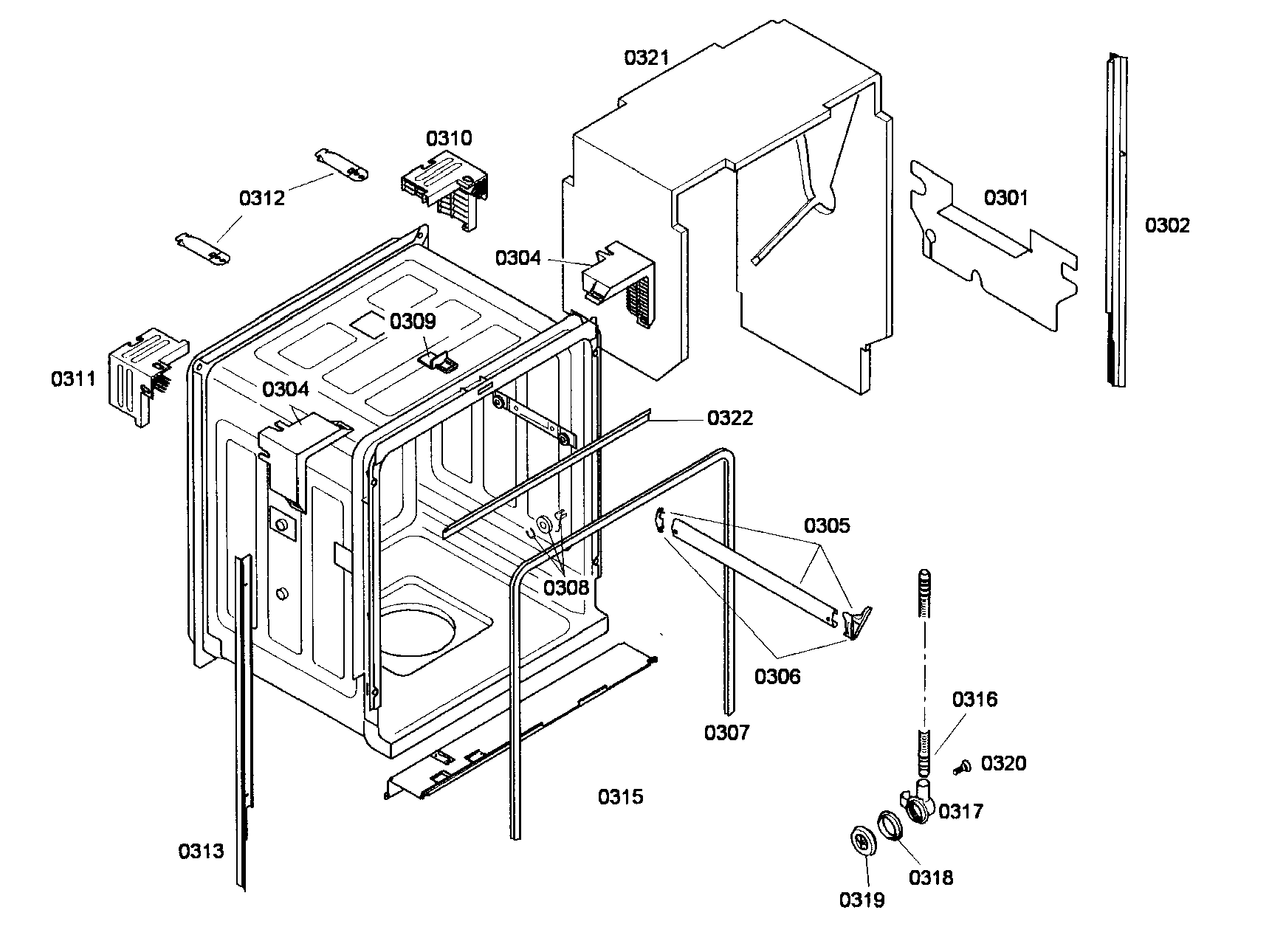

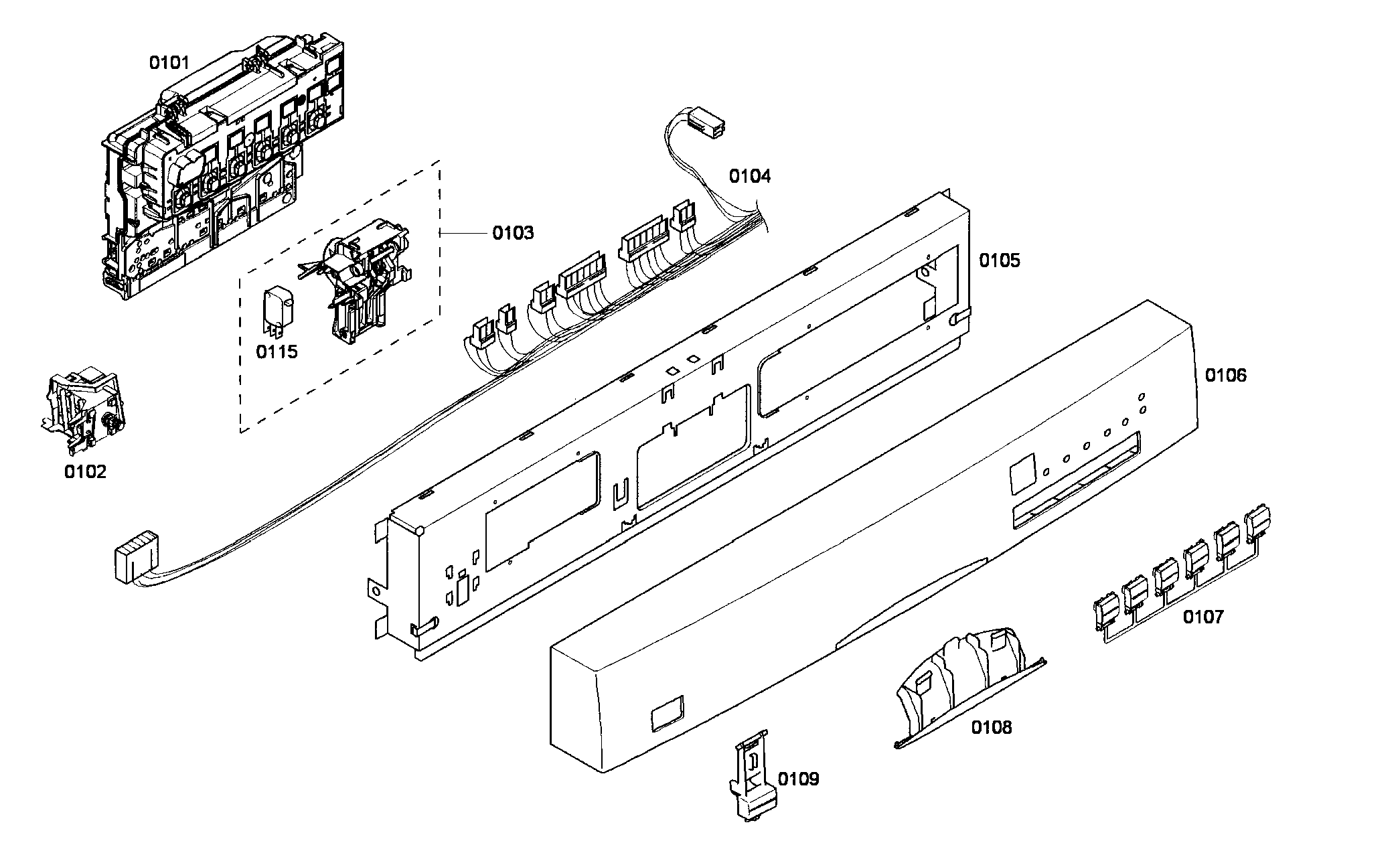

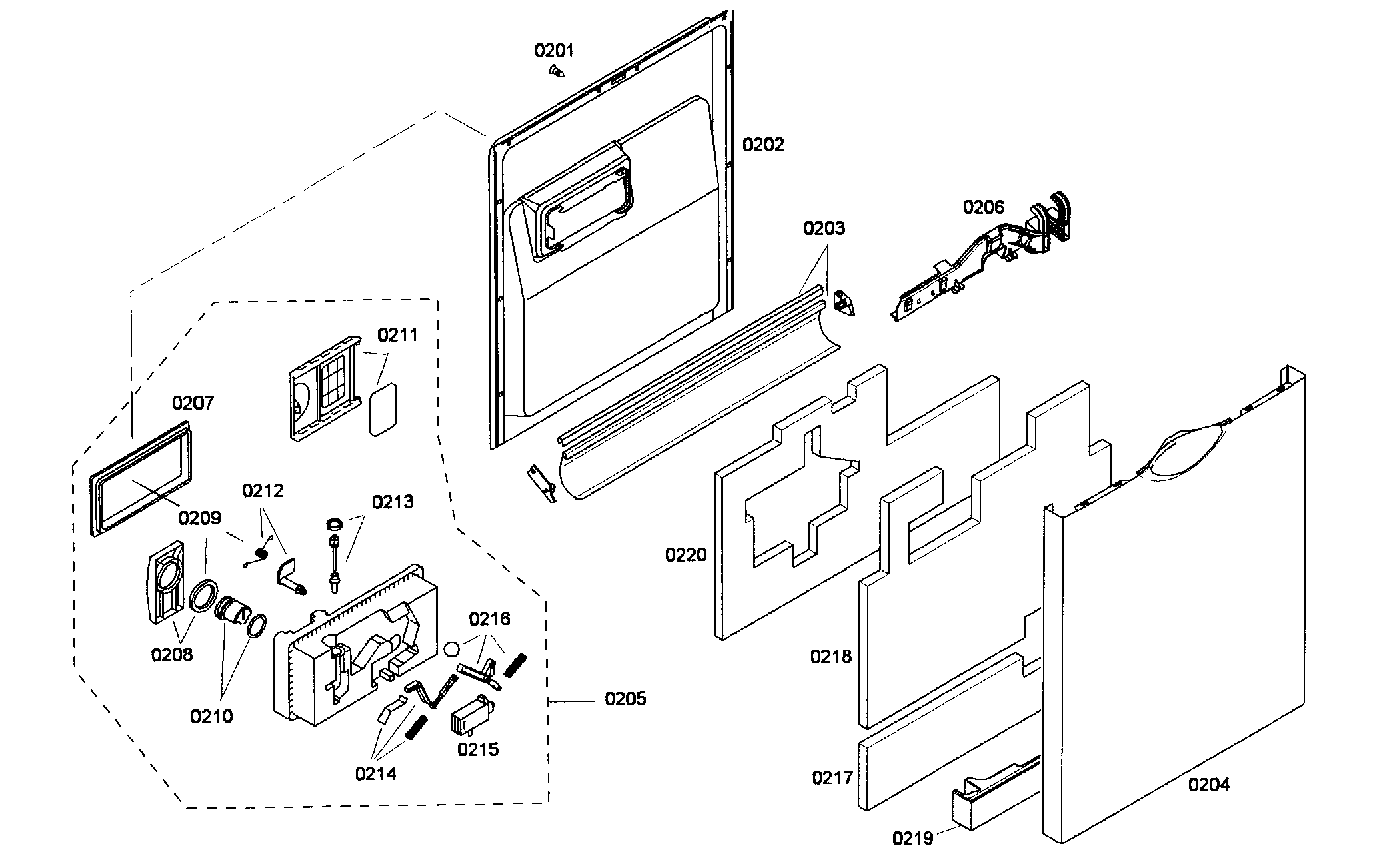

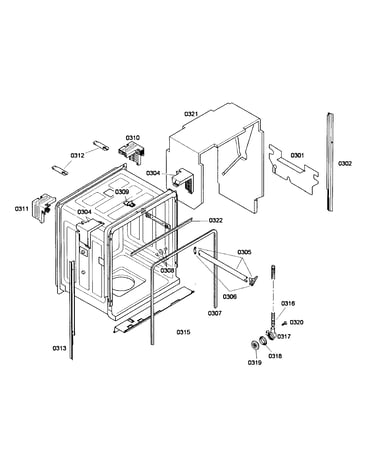

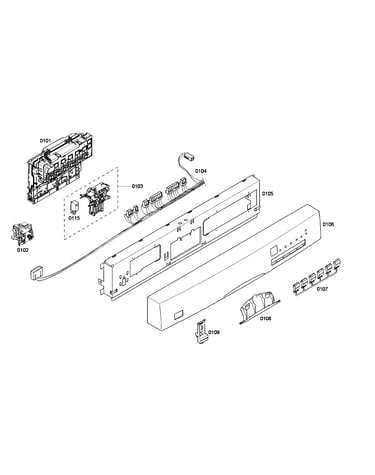

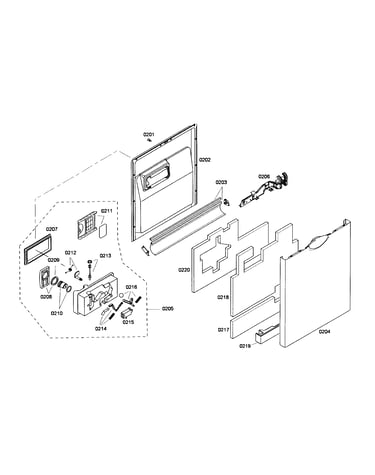

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guideOwner’s manual
Search within this model
Parts List

Showing 10 of 142 parts

Dishwasher Dishrack, Lower#617

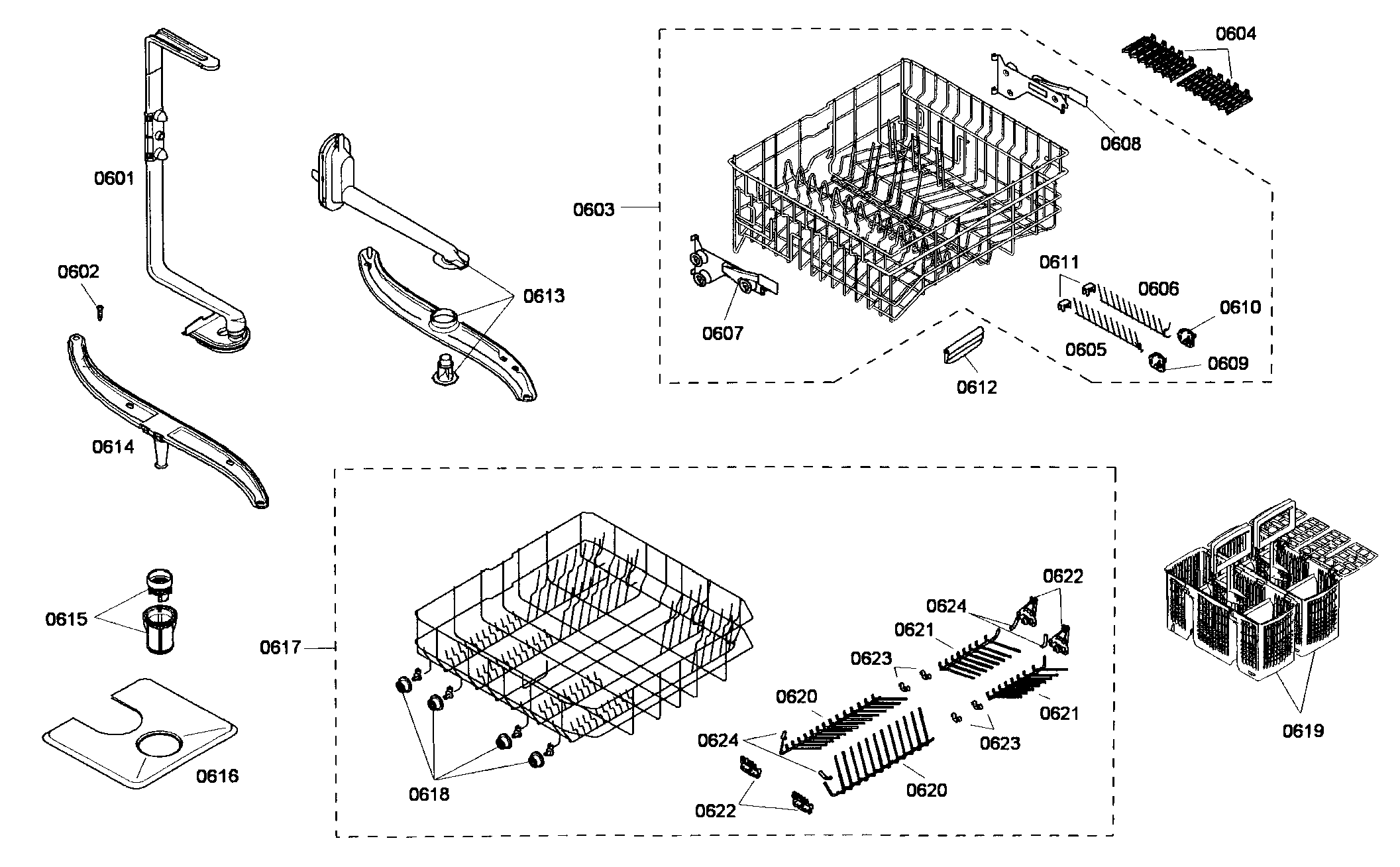

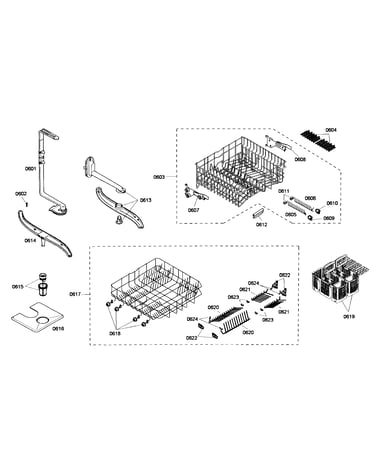

Racks assy Diagram

Dishwasher lower rack

Part #249276
Replaced by #00249276
?
Manufacturer substitution
This part replaces 249276. Substitute parts can look different from the original.
BEST SELLER
Back Order
$252.57 |
$10.00 OFF
Phone Price: $262.57
Dishwasher Filter#615

Racks assy Diagram

Diswasher mesh filter

Part #615079
Replaced by #00615079
?
Manufacturer substitution
This part replaces 615079. Substitute parts can look different from the original.
BEST SELLER
In Stock
$25.69 |
16% OFF
Phone Price: $30.69
Dishwasher Tine Row Clip#623

Racks assy Diagram

Tine latch

Part #418498
Replaced by #00418498
?
Manufacturer substitution
This part replaces 418498. Substitute parts can look different from the original.
This item is not returnable
In Stock
$6.49 |
13% OFF
Phone Price: $7.49
Dishwasher Drain Pump (replaces 00184178, 167082K, 642239)#417

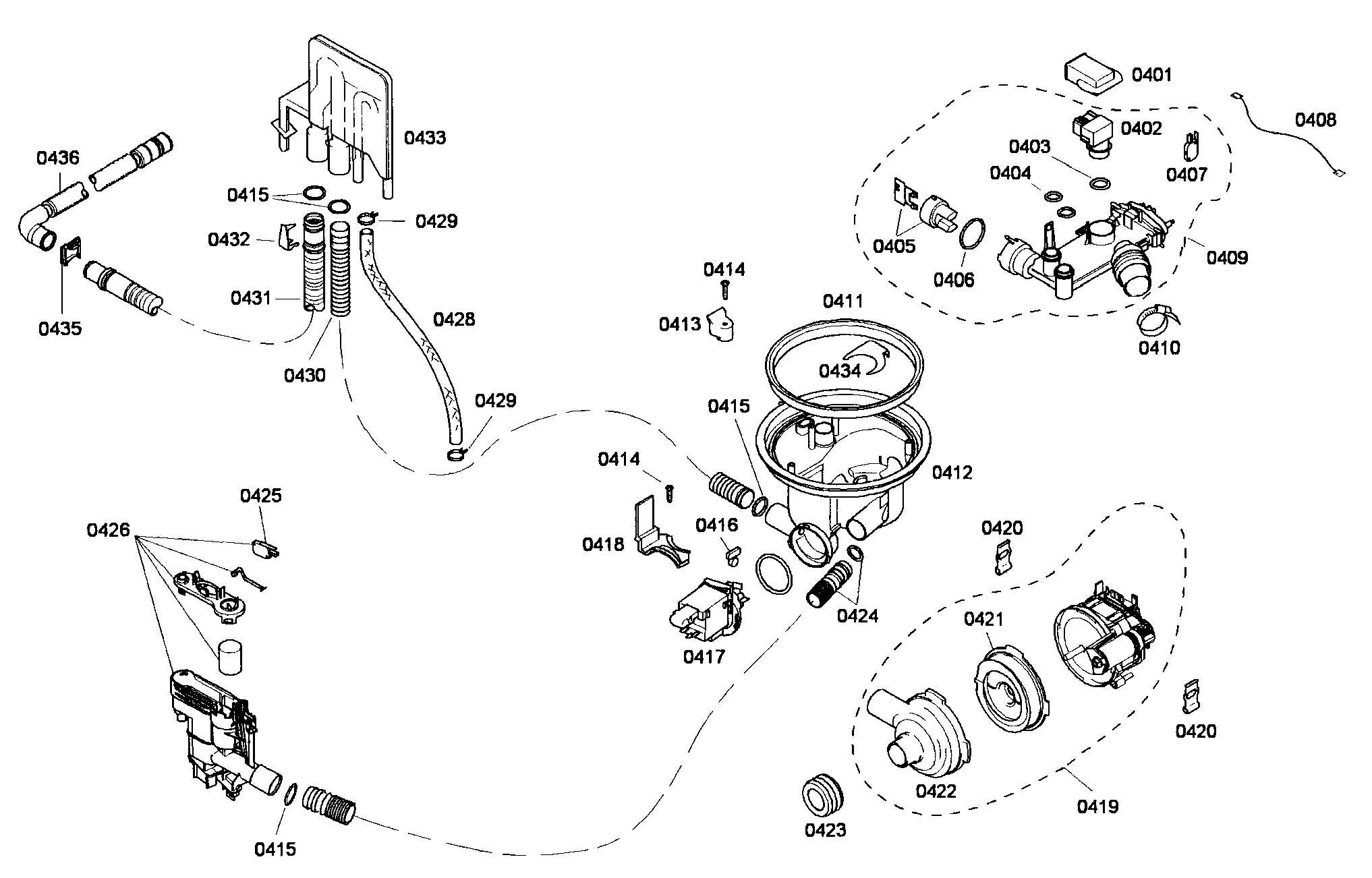

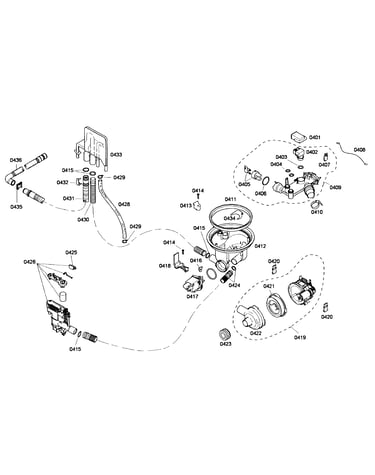

Pump assy Diagram

Drain pump

Part #642239
Replaced by #00642239
?
Manufacturer substitution
This part replaces 642239. Substitute parts can look different from the original.
In Stock
$116.18 |
8% OFF
Phone Price: $126.18
Dishwasher Tine Row Pivot Clip (replaces 00418499, 00420199, 428344)#622

Racks assy Diagram

Flip tine

Part #418499
Replaced by #00428344
?
Manufacturer substitution
This part replaces 418499. Substitute parts can look different from the original.
In Stock
$32.39 |
13% OFF
Phone Price: $37.39
Dishwasher Tine Row Pivot Clip (replaces 00418499, 00420199, 428344)#624

Racks assy Diagram

Sleeve

Part #420199
Replaced by #00428344
?
Manufacturer substitution
This part replaces 420199. Substitute parts can look different from the original.
In Stock
$32.39 |
13% OFF
Phone Price: $37.39
Dishwasher Hose Clamp (replaces 00417502, 00606311, 172272)#410

Pump assy Diagram

Hose clamp

Part #172272
Replaced by #00172272
?
Manufacturer substitution
This part replaces 172272. Substitute parts can look different from the original.
In Stock
$18.72 |
10% OFF
Phone Price: $20.72
Dishwasher Terminal Block (replaces 640476)#512

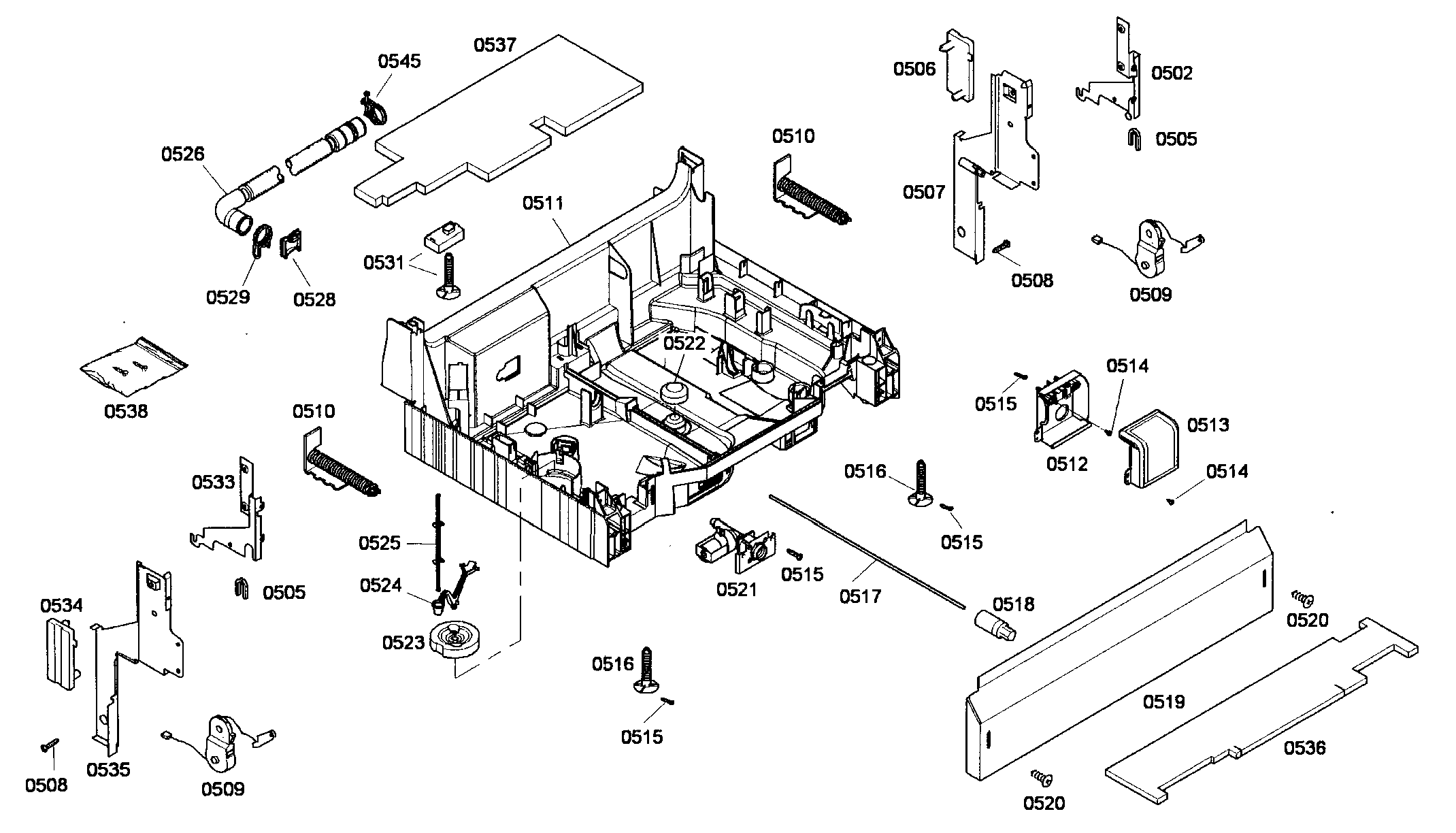

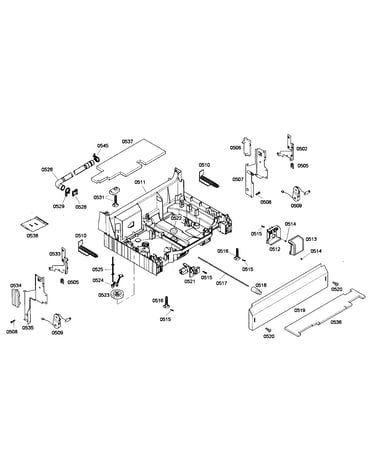

Base assy Diagram

Dishwasher terminal block

Part #640476
Replaced by #00640476
?
Manufacturer substitution
This part replaces 640476. Substitute parts can look different from the original.
In Stock
$26.59 |
16% OFF
Phone Price: $31.59
Dishwasher Door Cable Kit (replaces 00426067, 618605)#509

Base assy Diagram

Roller

Part #618605
Replaced by #00618605
?
Manufacturer substitution
This part replaces 618605. Substitute parts can look different from the original.
In Stock
$83.99 |
6% OFF
Phone Price: $88.99
Dishwasher Leveling Leg#516

Base assy Diagram

Foot

Part #617585
Replaced by #00609843
?
Manufacturer substitution
This part replaces 617585. Substitute parts can look different from the original.
In Stock
$15.40
