Model #GI6SARXXF05 Official Whirlpool refrigerator
Here are the diagrams and repair parts for Whirlpool GI6SARXXF05 refrigerator, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:

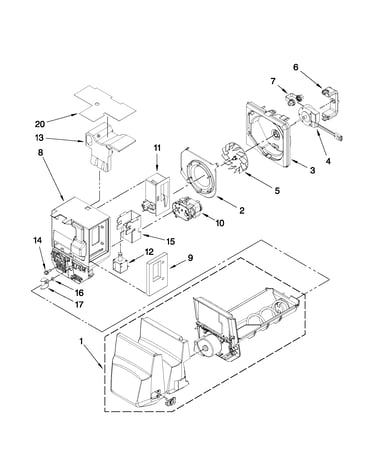

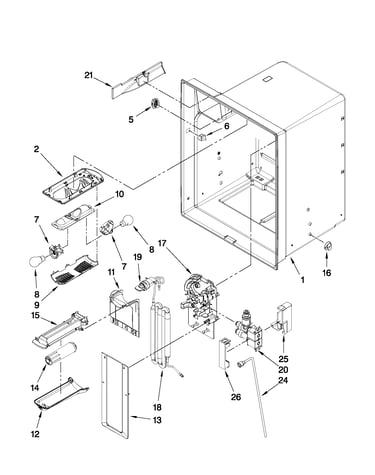

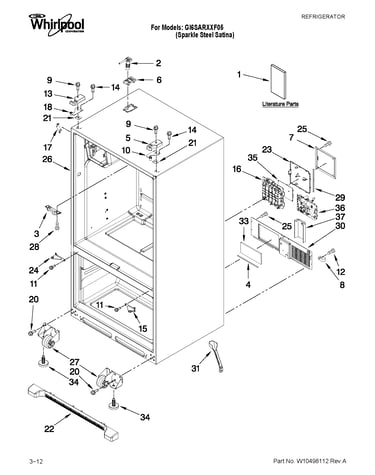

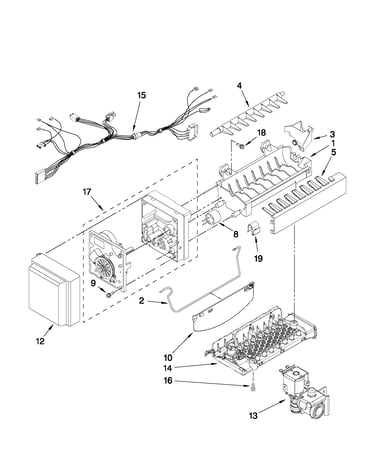

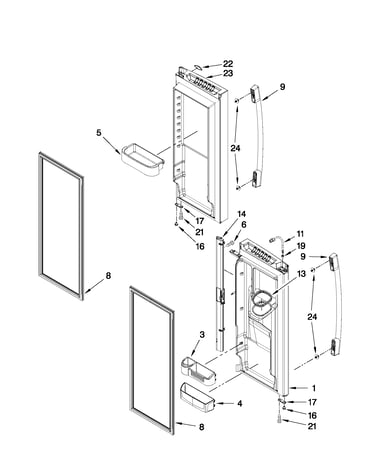

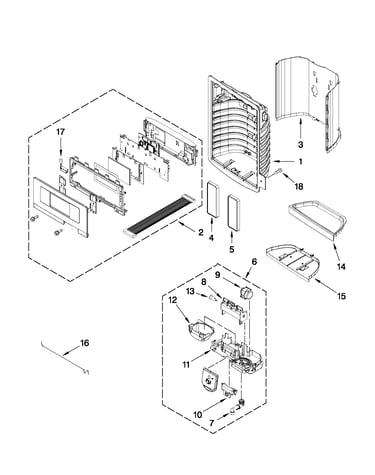

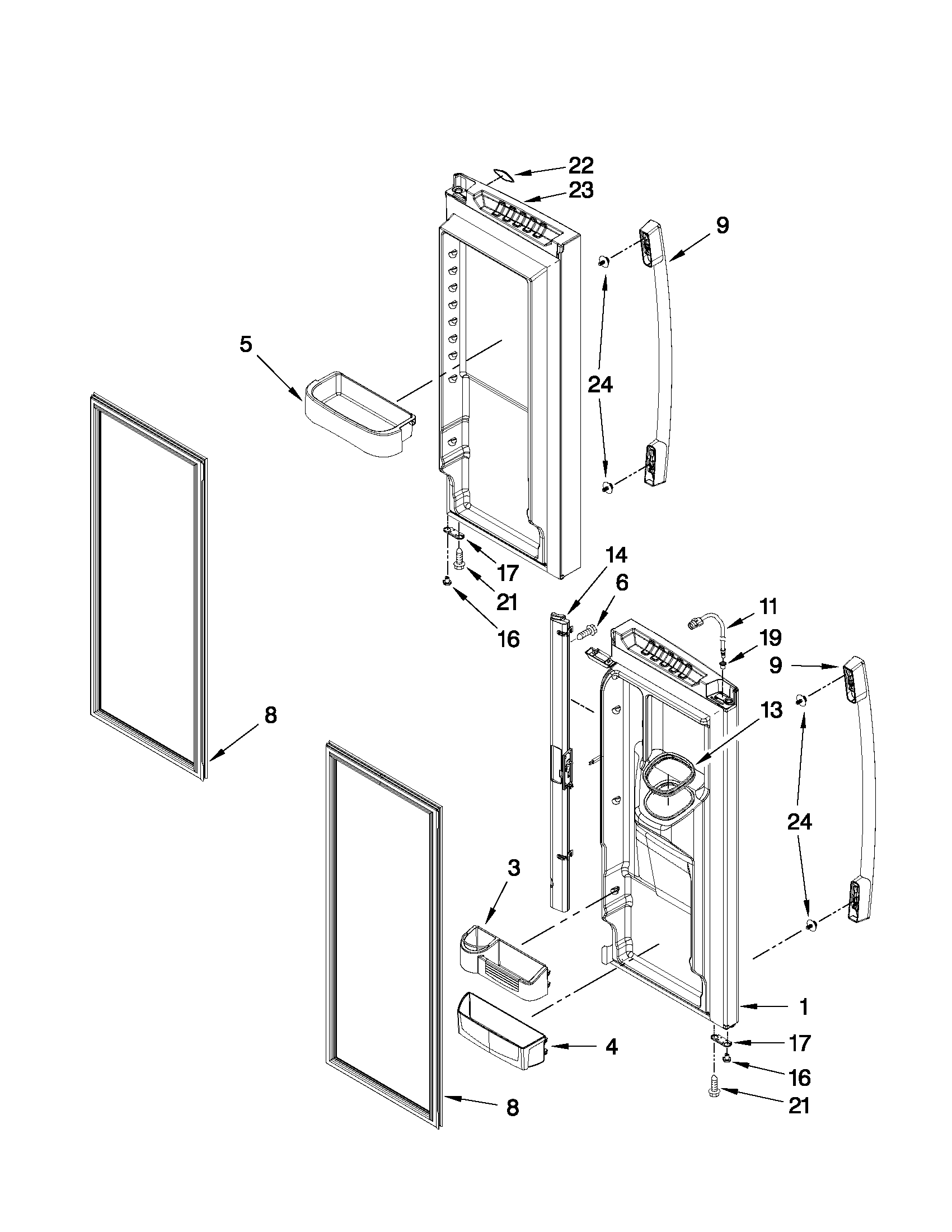

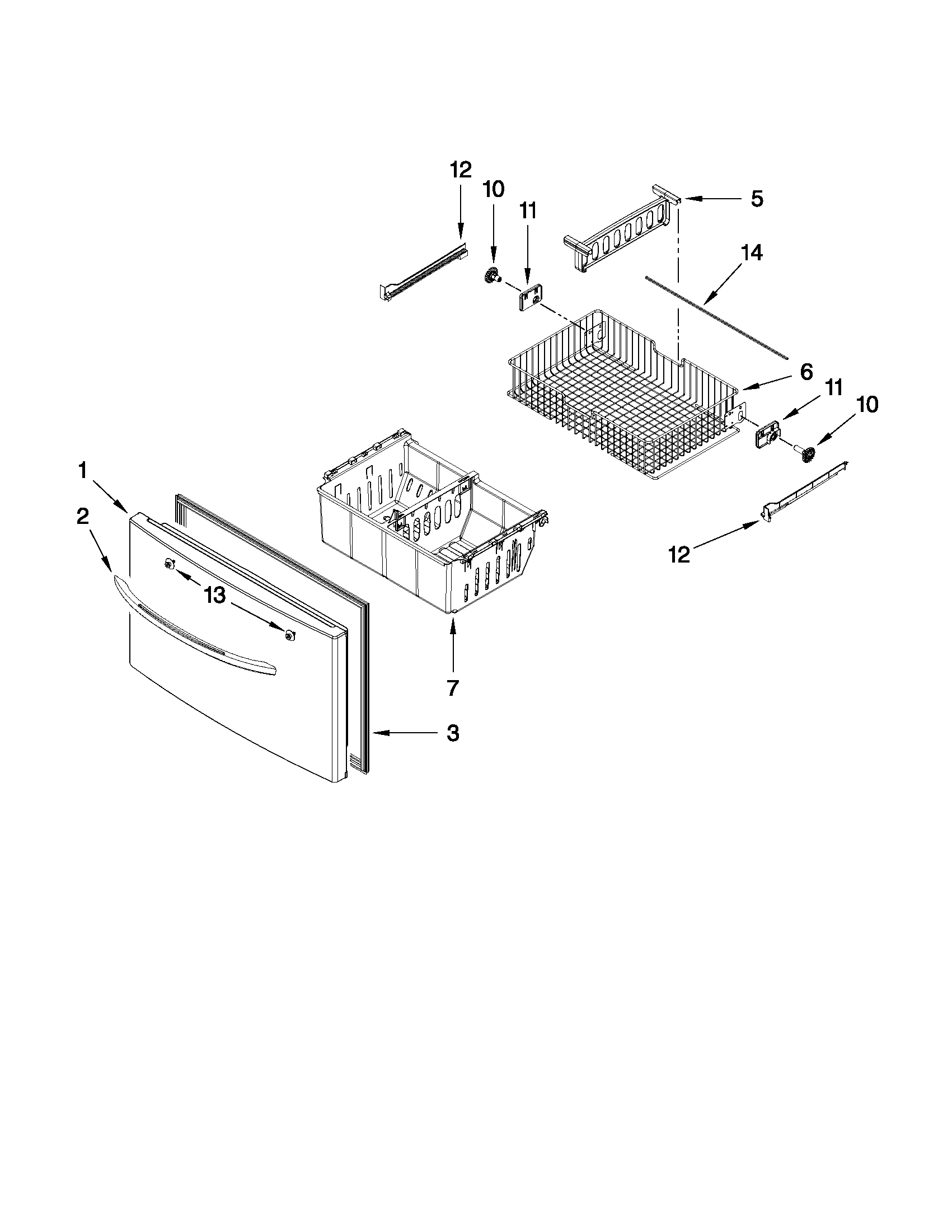

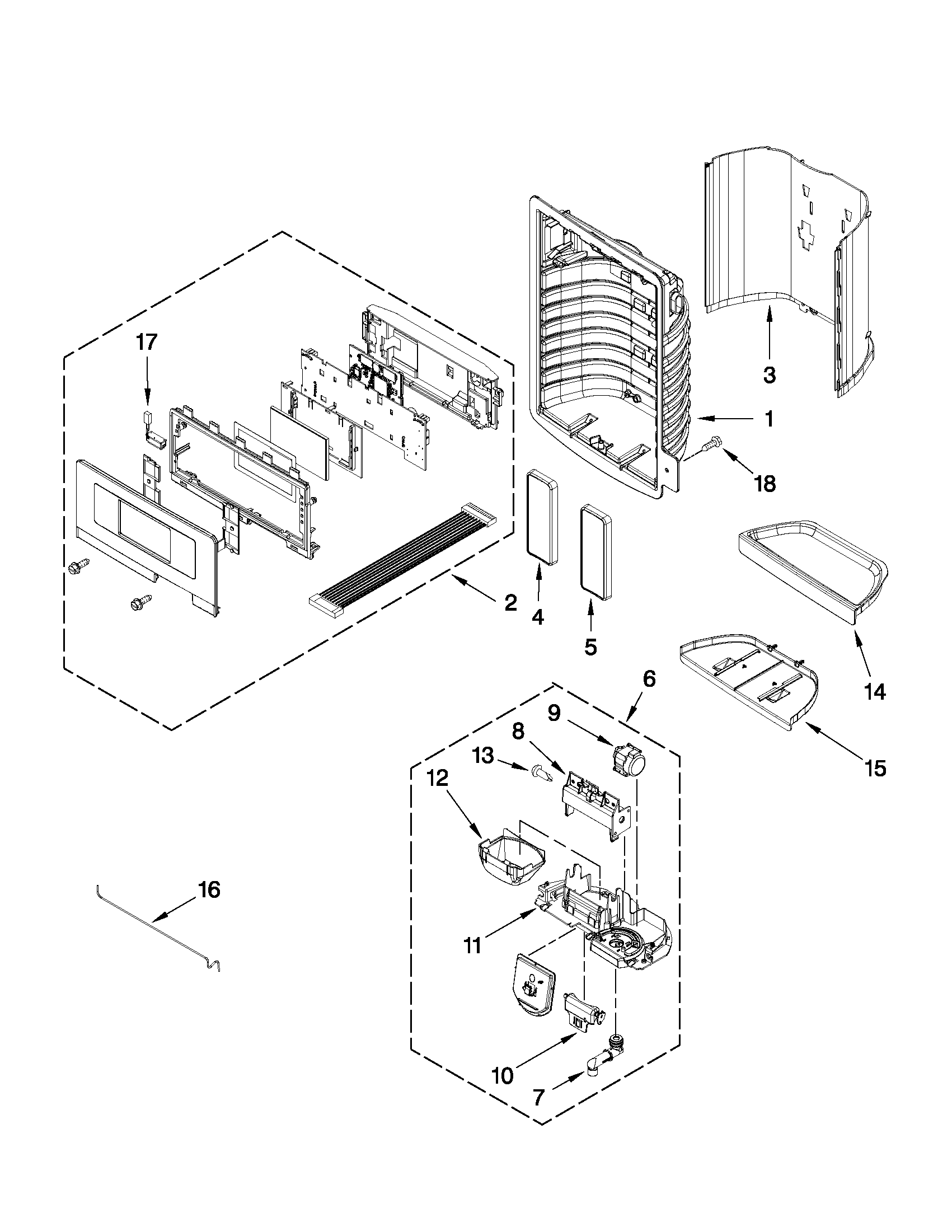

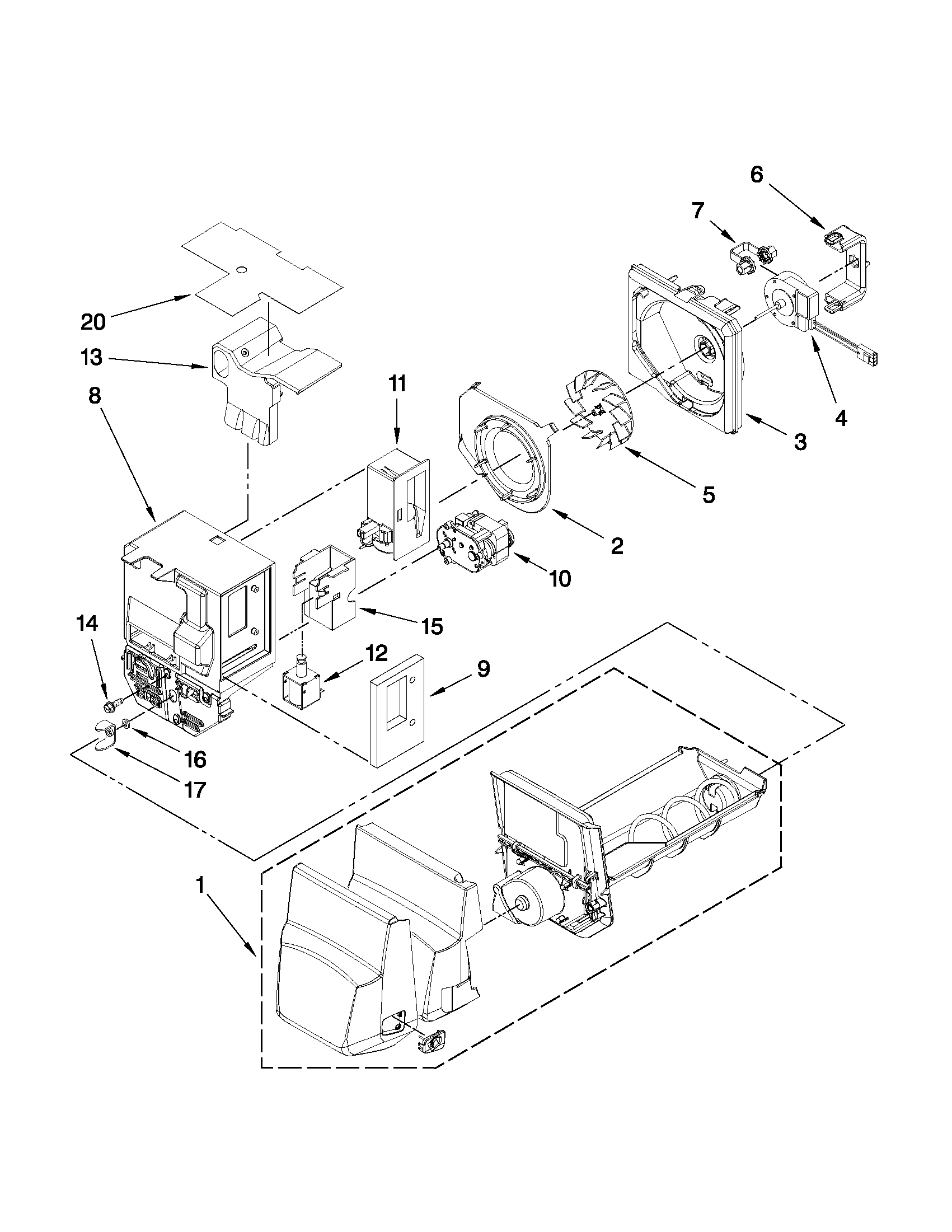

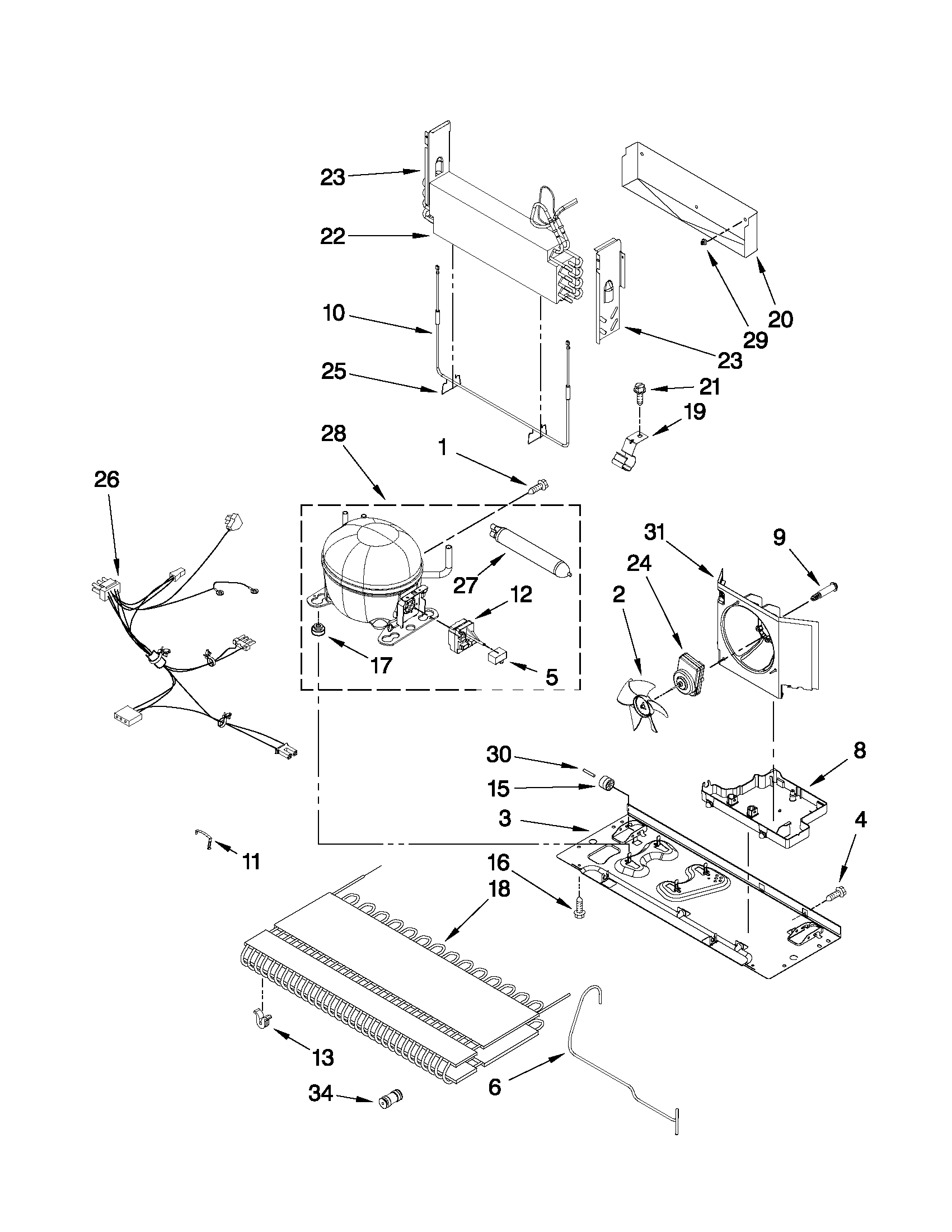

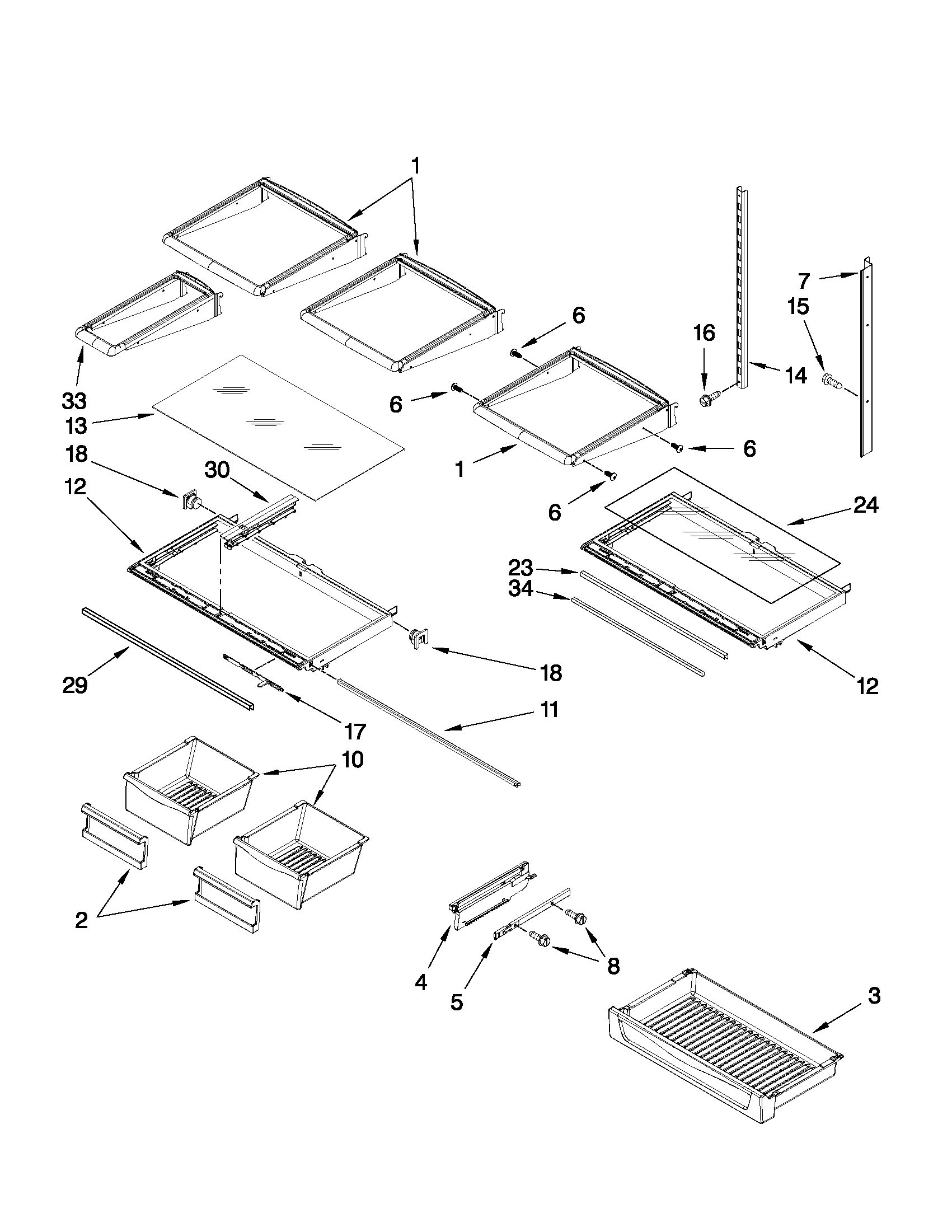

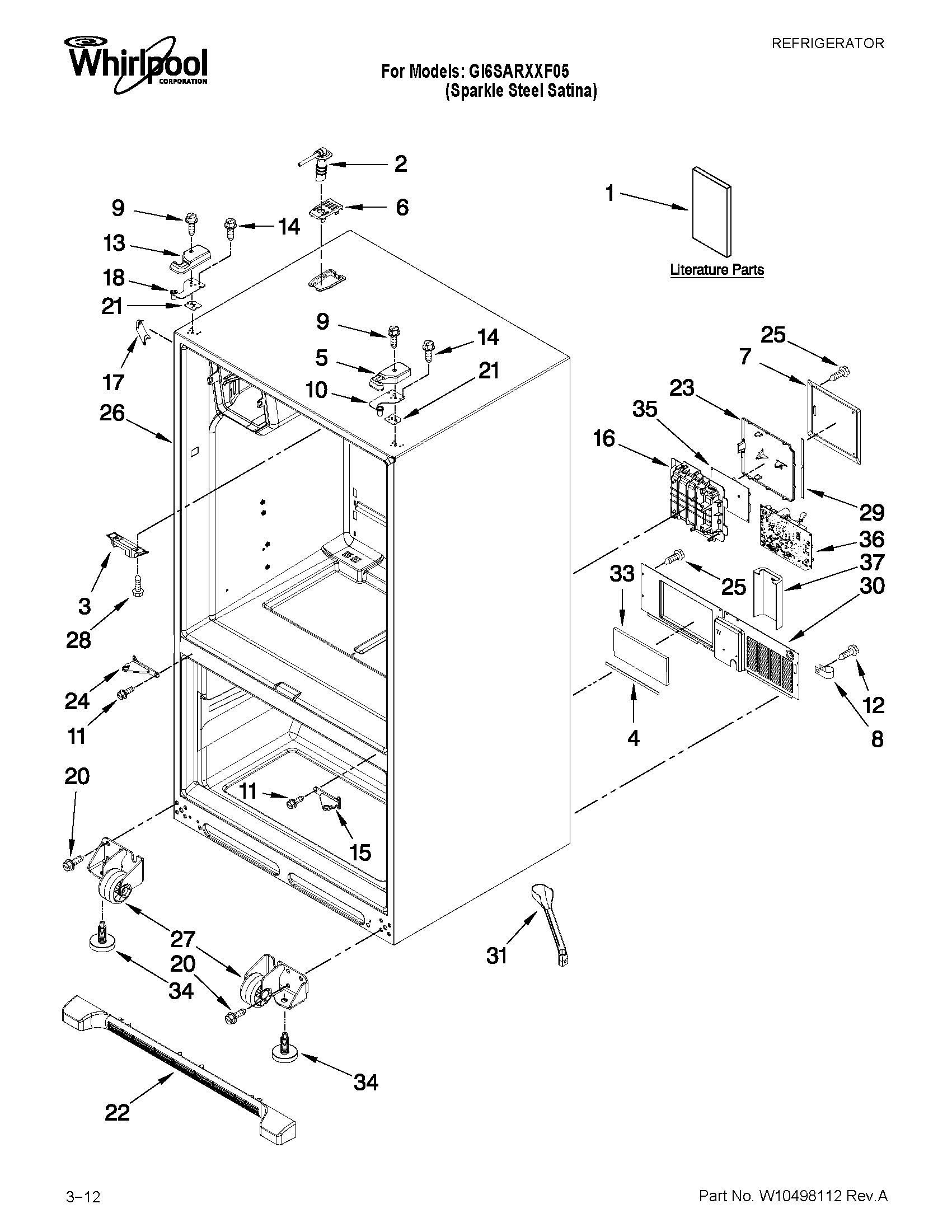

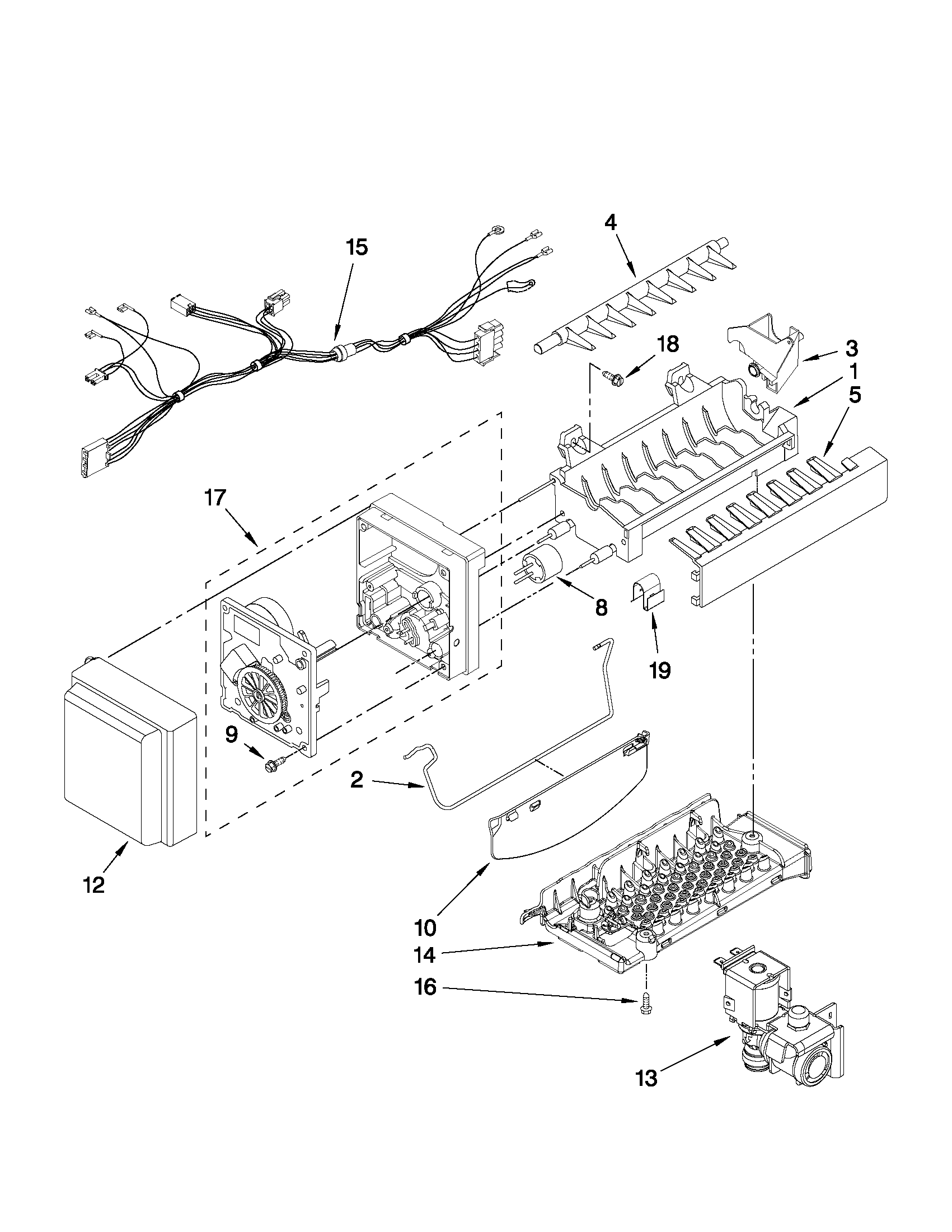

- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.

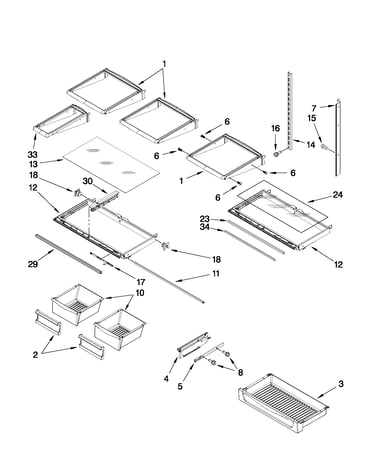

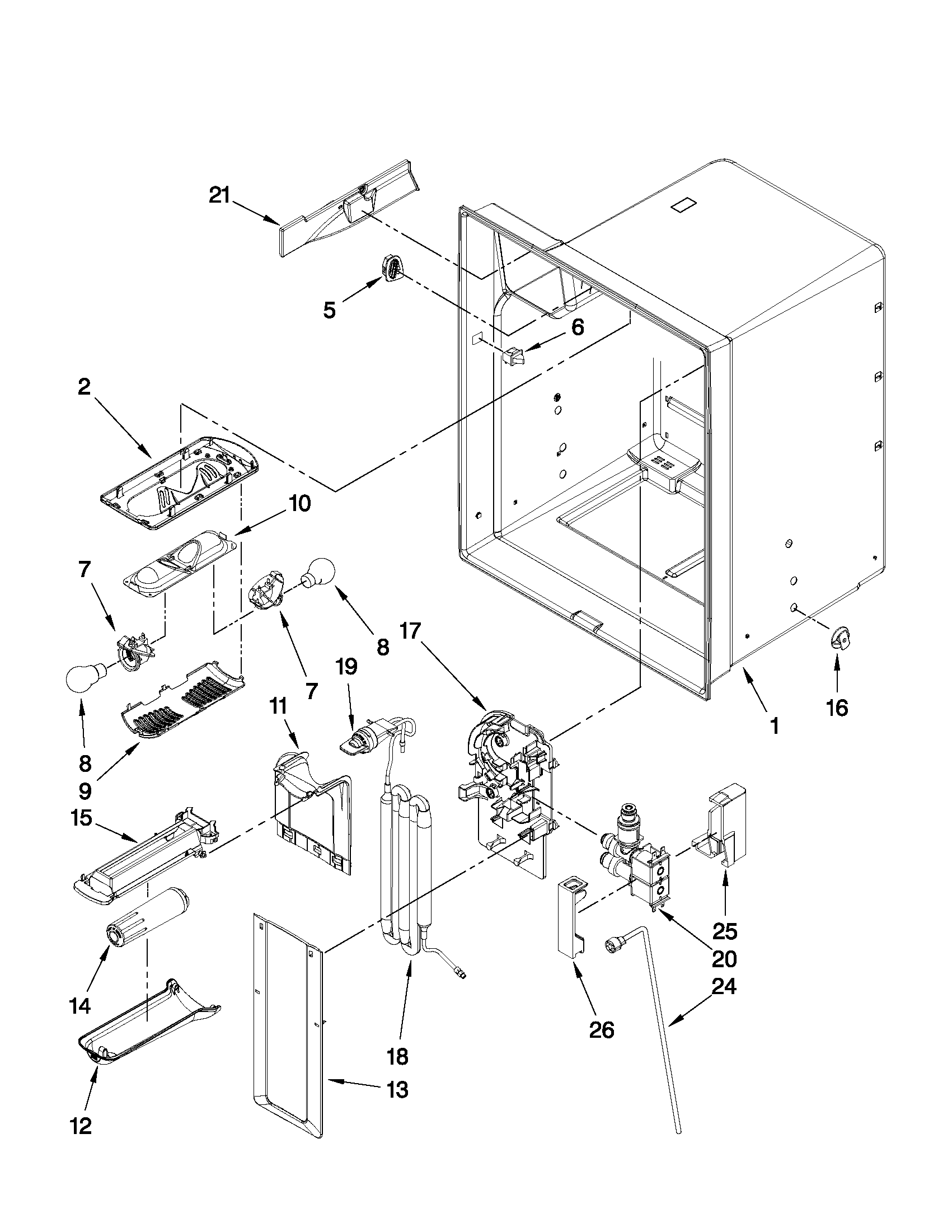

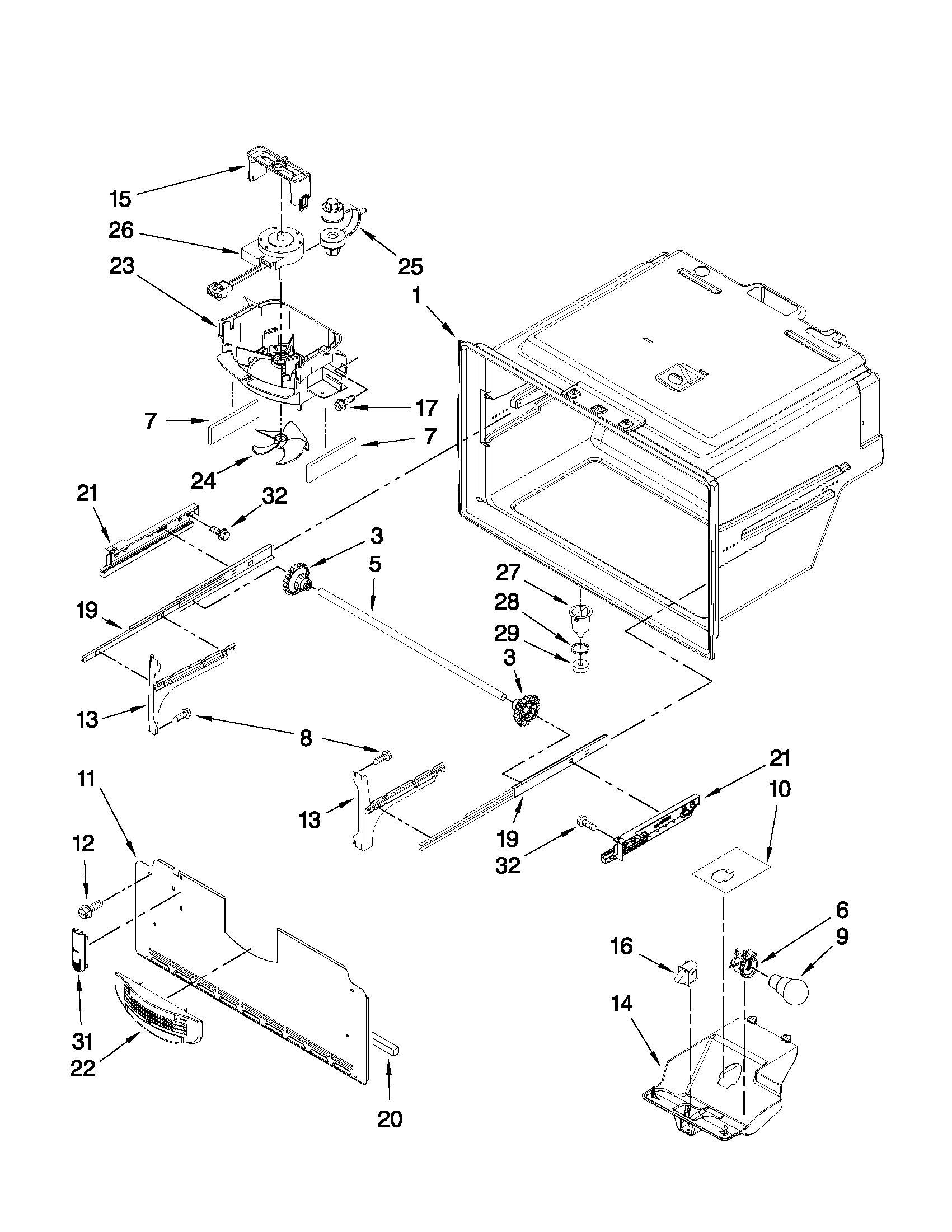

Model Diagram and Schematics
Search within this model
?
This is the number corresponding to the part on the diagram / schematic
Parts List
Showing 10 of 252 parts
Refrigerator water filter
Part #UKF8001
Replaced by #EDR4RXD1
?
Manufacturer substitution
This part replaces UKF8001. Substitute parts can look different from the original.
