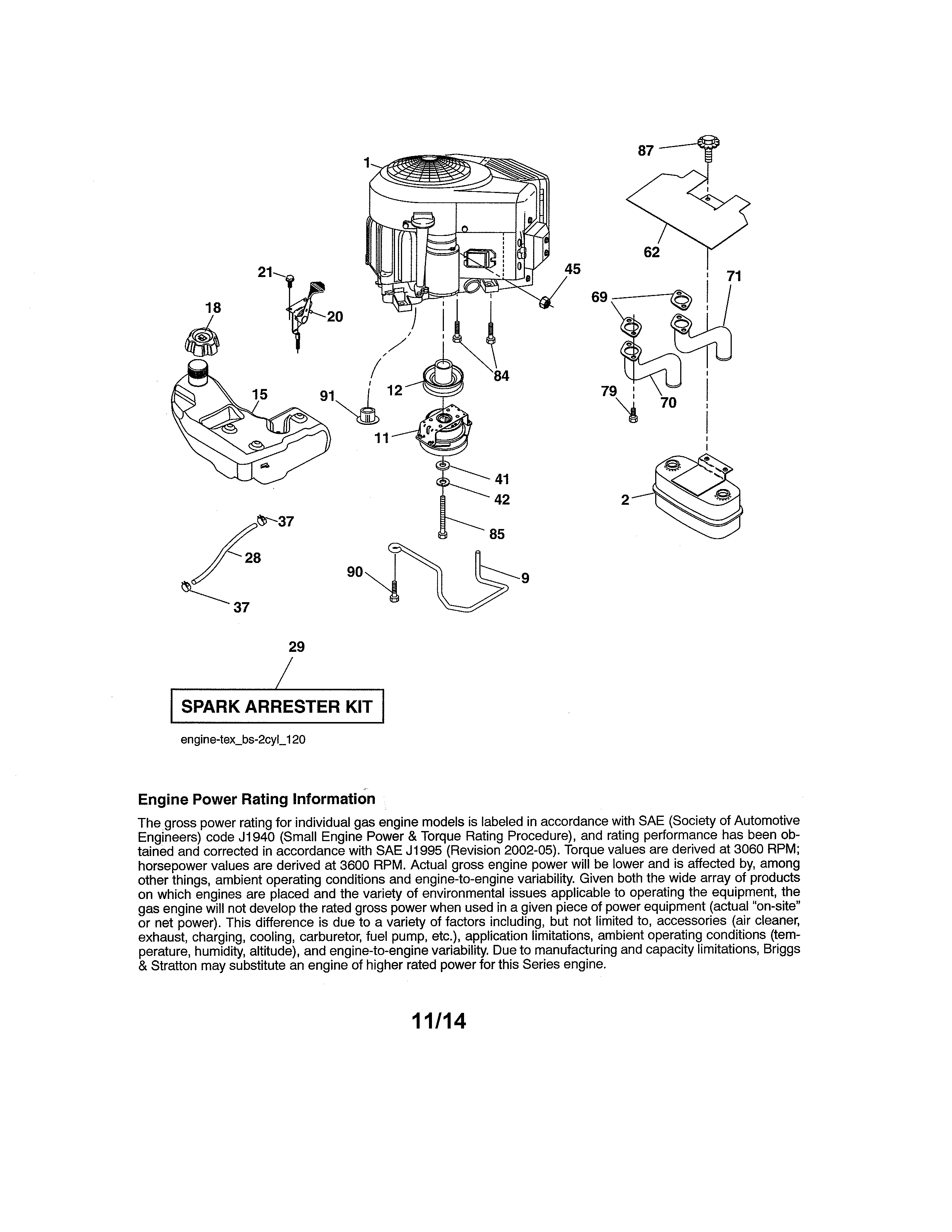

Do Craftsman mowers use Briggs and Stratton engines?
Some Craftsman mowers use Briggs and Stratton engines, but it depends on the specific Craftsman model and product line. For Craftsman front-engine lawn tractor model 917288583, the correct way to confirm the engine manufacturer is to check the engine identification label and the engine section in the 917288583 owner's manual.
How to tell what engine is on your Craftsman 917288583
Use these quick checks to identify the engine brand and exact engine model:
- Look for an engine ID label on the blower housing, valve cover, or near the starter
- Record the engine model, type, and code (common on Briggs and Stratton engines)
- Check the tractor’s parts diagrams and specs in the 917288583 owner's manual
- Compare the engine label info to your air filter cover and muffler layout (often brand-specific)
- If you are ordering parts, match by engine model (not just tractor model)
Common engine brands you may see on Craftsman mowers
Craftsman has used multiple engine suppliers across different years and mower types.
| Craftsman mower type | Common engine brands | What to verify before buying parts |
|---|---|---|
| Push mower | Briggs and Stratton, Honda-style, others | Engine model and carburetor/air filter style |
| Riding mower / lawn tractor | Briggs and Stratton, Kohler, others | Engine model/type code and crankshaft specs |
| Zero-turn (varies) | Kawasaki, Kohler, others | Engine model and fuel system configuration |
Why it matters
Engine parts (starter, carburetor, air filter, ignition coil, solenoid) are matched to the engine manufacturer and engine model, not just the Craftsman tractor model number. Confirming the engine ID first prevents wrong-part returns and starting or performance issues.
Last updated: February 2026

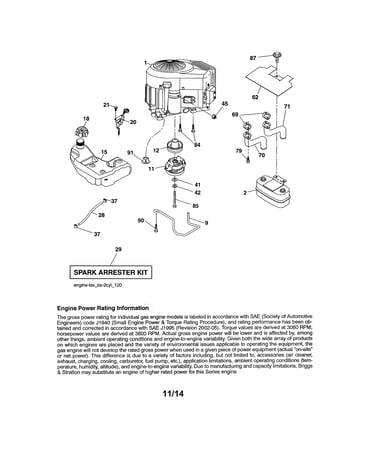

How many horsepower is a 420cc Craftsman engine?
A 420cc Craftsman riding-mower style engine is typically in the mid-teens for horsepower; most are about 13 to 15 HP depending on the engine family and whether the rating is listed as gross or net. For the exact spec on your tractor, use the engine ID label and the 917288583 owner's manual.
What 420cc usually translates to
Displacement (420cc) is cylinder volume; horsepower depends on governed RPM, tuning, and the rating method.
Common reasons the same 420cc engine shows different HP numbers:
- Gross vs net horsepower rating
- Different governed RPM settings
- Emissions and fuel tuning differences
- Accessory loads (charging system, PTO clutch)
- Model-year changes within the same engine family
How to confirm the correct horsepower on your Craftsman tractor
On Craftsman model 917288583, the most reliable way to confirm horsepower is to match the engine’s model/type code to the specifications.
- Find the engine model/type code on the engine shroud or valve cover area
- Record the tractor model number: 917288583
- Compare the engine code to the specifications section in the manual
- Use the engine code when ordering engine-related parts (filters, ignition, carburetion)
- If you are troubleshooting starting, verify battery and starting circuit components such as the lawn tractor starter solenoid 582042802
Typical range (for 420cc mower engines)
| Engine size | Typical configuration | Typical horsepower |
|---|---|---|
| 420cc | Single-cylinder OHV | 13 to 15 HP |
Why it matters
Using the correct horsepower and engine family helps you choose the right tune-up parts and settings (spark plug, air filter, governed RPM) and prevents mismatches when diagnosing PTO load, belt slip, or hard-start conditions.
Last updated: February 2026
What model number is the Craftsman 917288583?
The model number for this Craftsman front-engine lawn tractor is 917288583. You will typically find it on the product identification label (often under the seat, on the frame near the engine, or along the rear fender area); match the full number exactly when ordering parts or using the 917288583 owner's manual.
Where to find the model number on the tractor
Check these common label locations on Craftsman riding mowers and tractors:
- Under the seat pan or on the seat support
- On the frame rail near the engine compartment
- Near the rear fender or hitch plate area
- Under the hood on the chassis (less common)
- On a sticker or metal tag with model and serial information
Model number vs. product/series name (why the wording can be confusing)
Some tractors are marketed with a series name (for example, “YS4500”), but parts lookup and manuals rely on the numeric model number.
| What you see | Example | What to use for parts/manuals |
|---|---|---|
| Model number | 917288583 | Use this |
| Series/marketing name | YS4500 (varies by tractor) | Use only as a description |
| Serial number | Unique to your unit | Helpful for production details |
Why it matters
Using the exact model number 917288583 helps us match the correct diagrams and parts for your specific deck, drive system, and steering components. That prevents ordering a belt, pulley, or mandrel that looks similar but fits differently.
Last updated: February 2026
What size belt goes on a Craftsman 917288583?
For Craftsman model 917288583, belt size depends on which belt you mean (deck/blade drive vs ground drive). For this model, a listed belt option is 1/2 in wide x 92-2/5 in long for the ground drive or blade drive application; confirm the routing and belt path in the 917288583 owner's manual before ordering.
Identify which belt you need
Most front-engine lawn tractors use at least two belts, and they are not interchangeable.

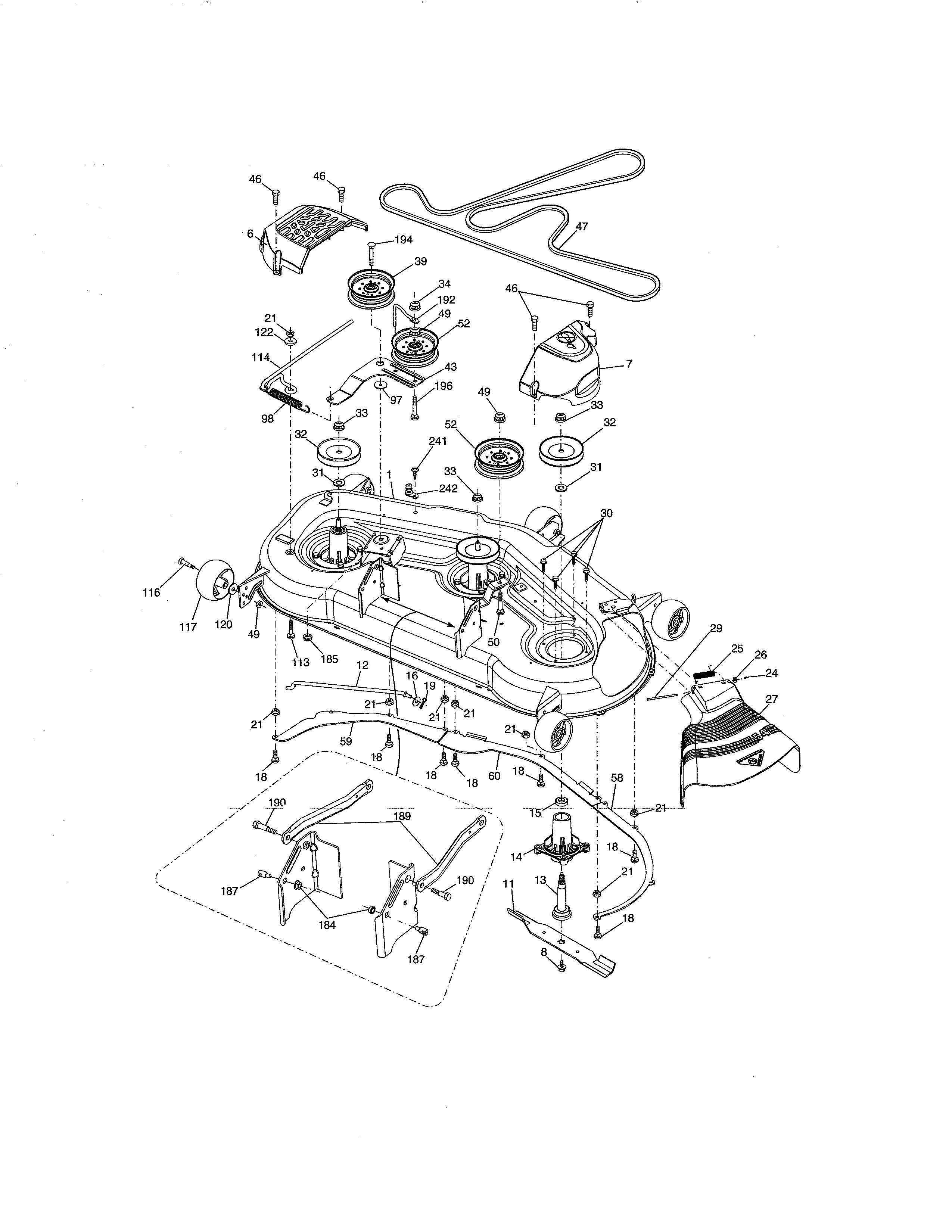

- Deck (blade drive) belt: runs the mower deck blades
- Ground drive belt: drives the transaxle for forward/reverse movement
- PTO clutch to deck belt path: may share routing with the deck belt depending on deck design
Belt option shown for this model
The parts list for this model includes a belt described as:
Quick reference
| Belt type (common) | Typical symptom when bad | What to verify |
|---|---|---|
| Deck (blade drive) belt | Blades slip, squeal, uneven cut | Deck size, pulley layout, belt guards |

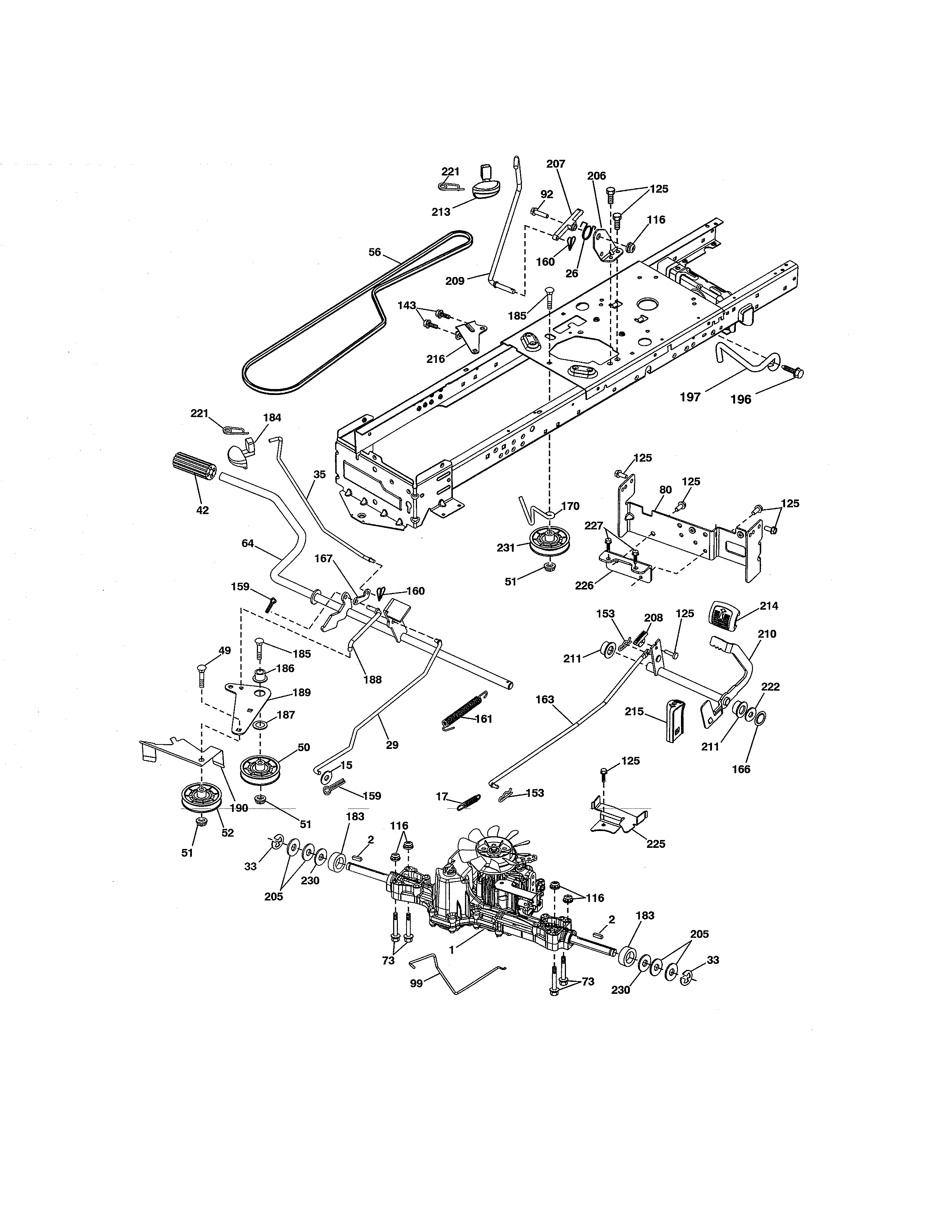

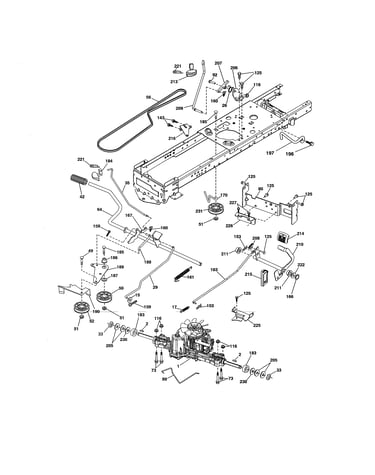

| Ground drive belt | Tractor barely moves or won’t move | Transaxle pulley, idlers, correct routing |
How we recommend confirming the correct belt size
- Check the belt routing decal (often under the hood or on the deck)
- Match the belt to the correct diagram in the 917288583 owner's manual
- Compare the old belt’s width and outside length (belts stretch, so use it as a guide, not the final word)
- Inspect idler pulleys for wobble or noise (a bad idler can shred a new belt)
- Make sure belt keepers and guards are not bent into the belt path
Why it matters
Using the wrong length can prevent proper tensioning; too long slips and burns, too short overloads idlers and spindle bearings. Correct sizing and routing protects the deck pulleys, mandrel assemblies, and the transaxle drive system.
Last updated: February 2026
What year did Craftsman make the 917288583?
Craftsman model 917288583 was produced in the early 2010s, most commonly 2011 through 2013. To confirm the exact year for your specific tractor, use the product ID/serial label on the frame and cross-check it with the identification information in the 917288583 owner's manual.
How to confirm the exact year on your tractor
Use the tractor’s ID tag and (if equipped) the engine code; together they pinpoint the build timeframe.
- Locate the product ID/serial label (often under the seat, on the frame rail, or near the rear fender)
- Verify the full model number is 917288583 (no missing digits)
- Record the serial number exactly as shown
- Check the engine label for a model/type/code (common on Briggs and Stratton engines)
- Compare the label details to the identification section in the 917288583 owner's manual
What the model number tells you (and what it does not)
The 917 prefix identifies a Craftsman tractor model family; it does not directly translate to a single calendar year.
| Identifier | What it tells us | What to use it for |
|---|---|---|
| 917288583 model number | Tractor series/configuration | Pulling correct parts diagrams and lists |
| Serial number | Production sequence | Narrowing the manufacturing window |
| Engine code | Engine build date | Cross-checking the tractor’s timeframe |
Why it matters
The correct year range helps us match the right parts and diagrams for your Craftsman front-engine lawn tractor, especially for items that change by production run such as a PTO switch, drive belt routing, or deck hardware.
Last updated: February 2026
