Model #41790042990 Kenmore dryer

Here are the diagrams and repair parts for Kenmore 41790042990 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

    Showing 10 of 107 parts

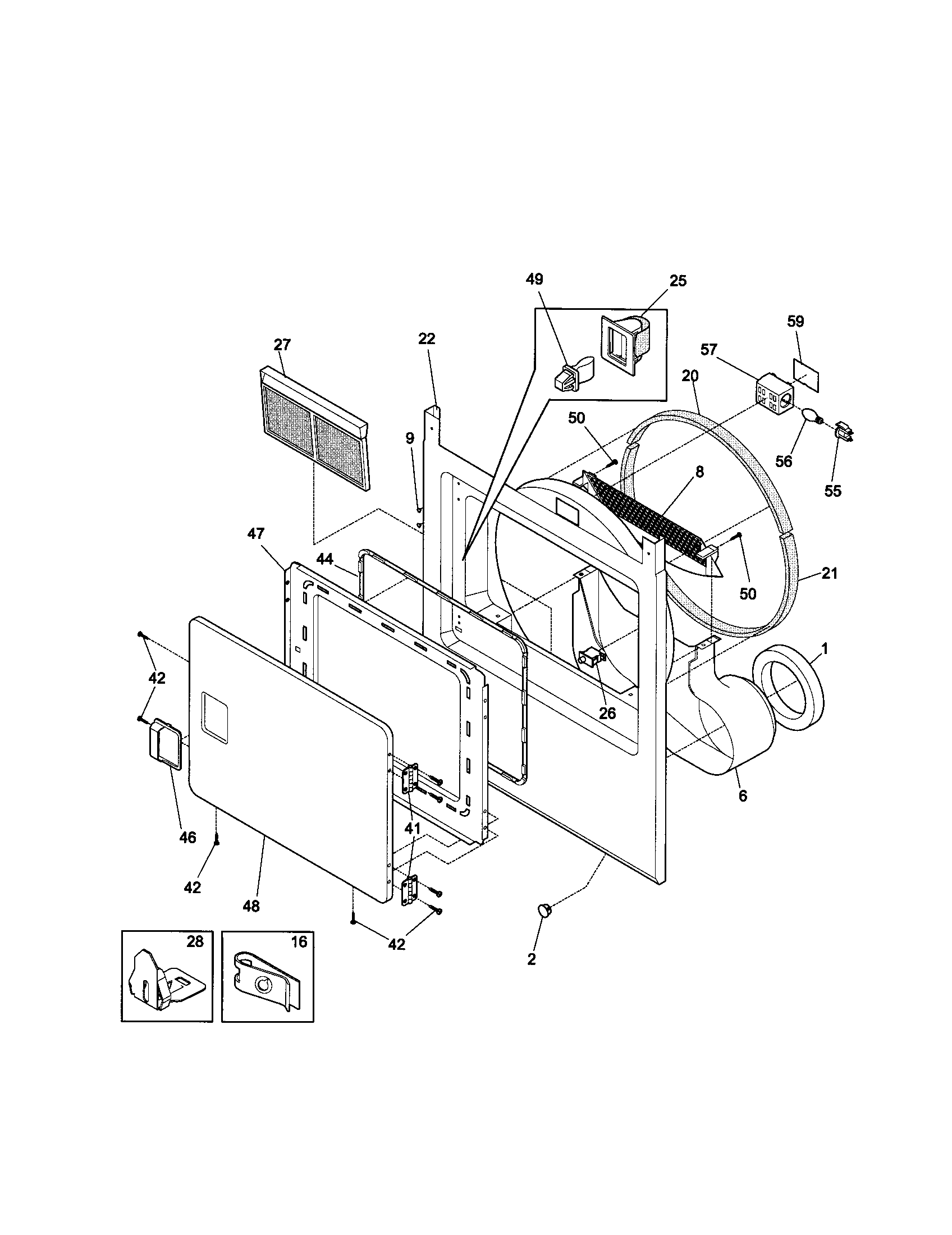

    Dryer Door Catch

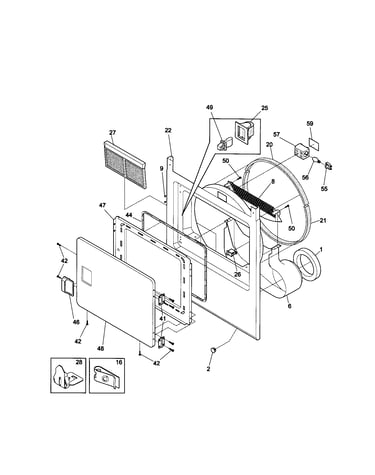

    Door Diagram

    Dryer door catch

    Part #131658800

    In Stock

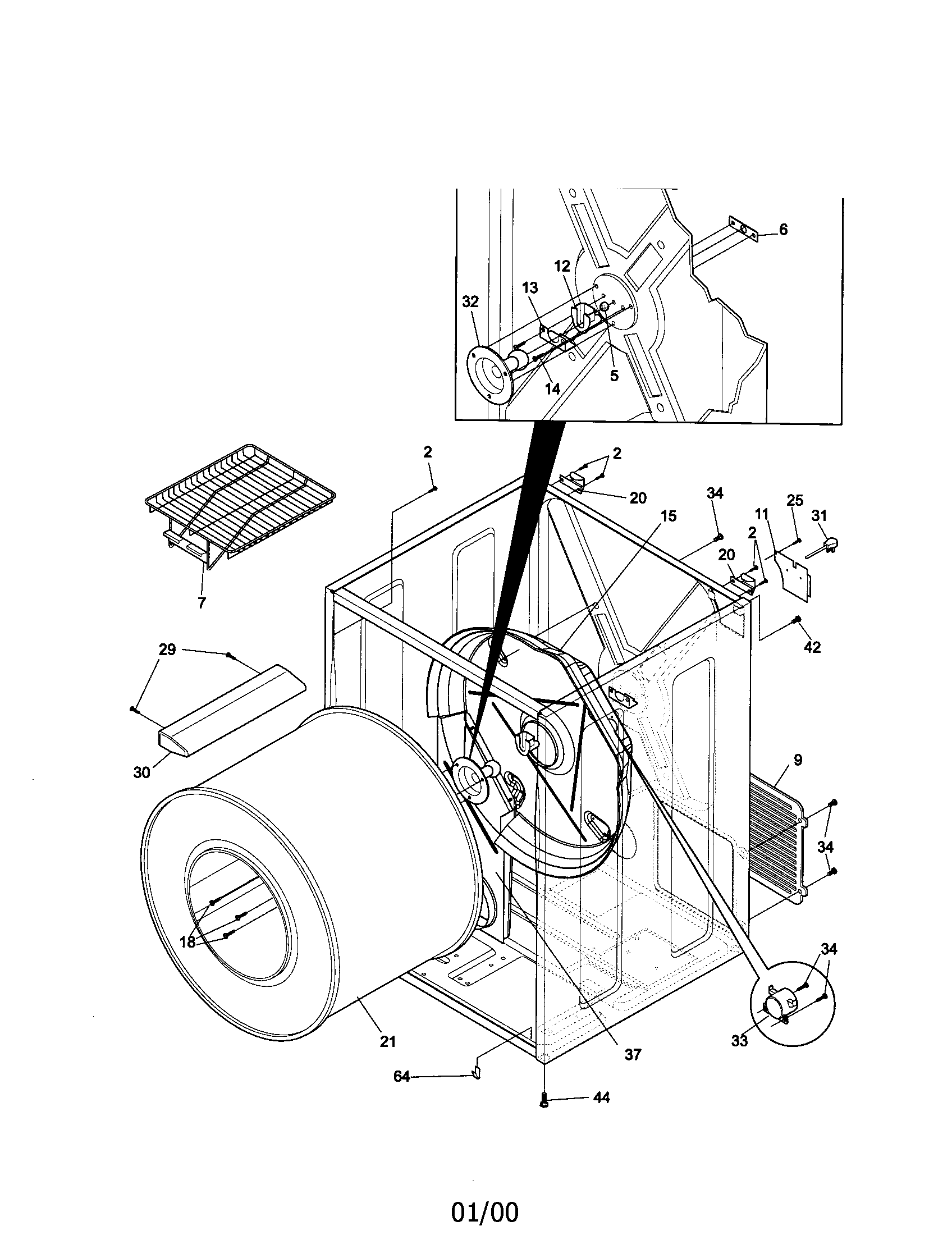

    Dryer Drum Bearing Kit


    All parts Diagram

    Dryer drum bearing kit

    Part #5303281153

    In Stock

    Dryer Drum Support Shaft


    Drum assembly Diagram

    Dryer drum support shaft

    Part #131777700
    $56.99 |
    7% OFF
    MSRP: $61.00

    In Stock

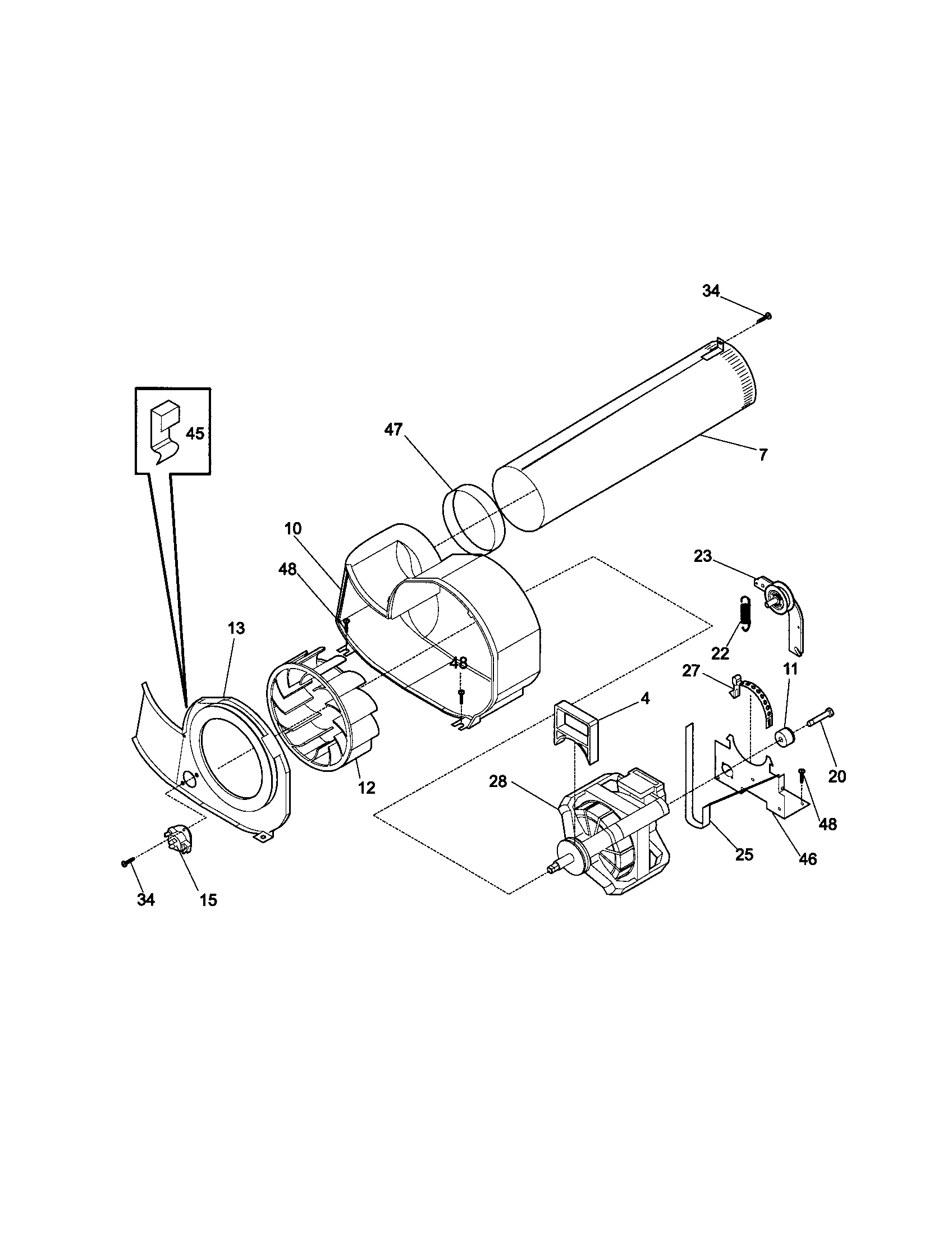

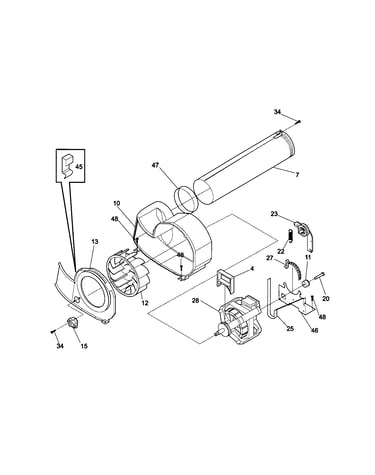

    Dryer Drive Motor


    Fan housing Diagram

    Dryer drive motor

    Part #131560100

    In Stock

    Dryer Grounding Ball


    Drum assembly Diagram

    Dryer grounding ball

    Part #5303281019

    In Stock

    Dryer Rear Bearing Clip


    Drum assembly Diagram

    Dryer rear bearing clip

    Part #5303281020

    In Stock

    Dryer Idler Spring


    Fan housing Diagram

    Dryer idler spring

    Part #131601000
    $20.99 |
    42% OFF
    MSRP: $36.00

    In Stock

    Dryer Exhaust Duct Seal


    Fan housing Diagram

    Dryer exhaust duct seal

    Part #131633300
    $32.99 |
    30% OFF
    MSRP: $47.00

    In Stock

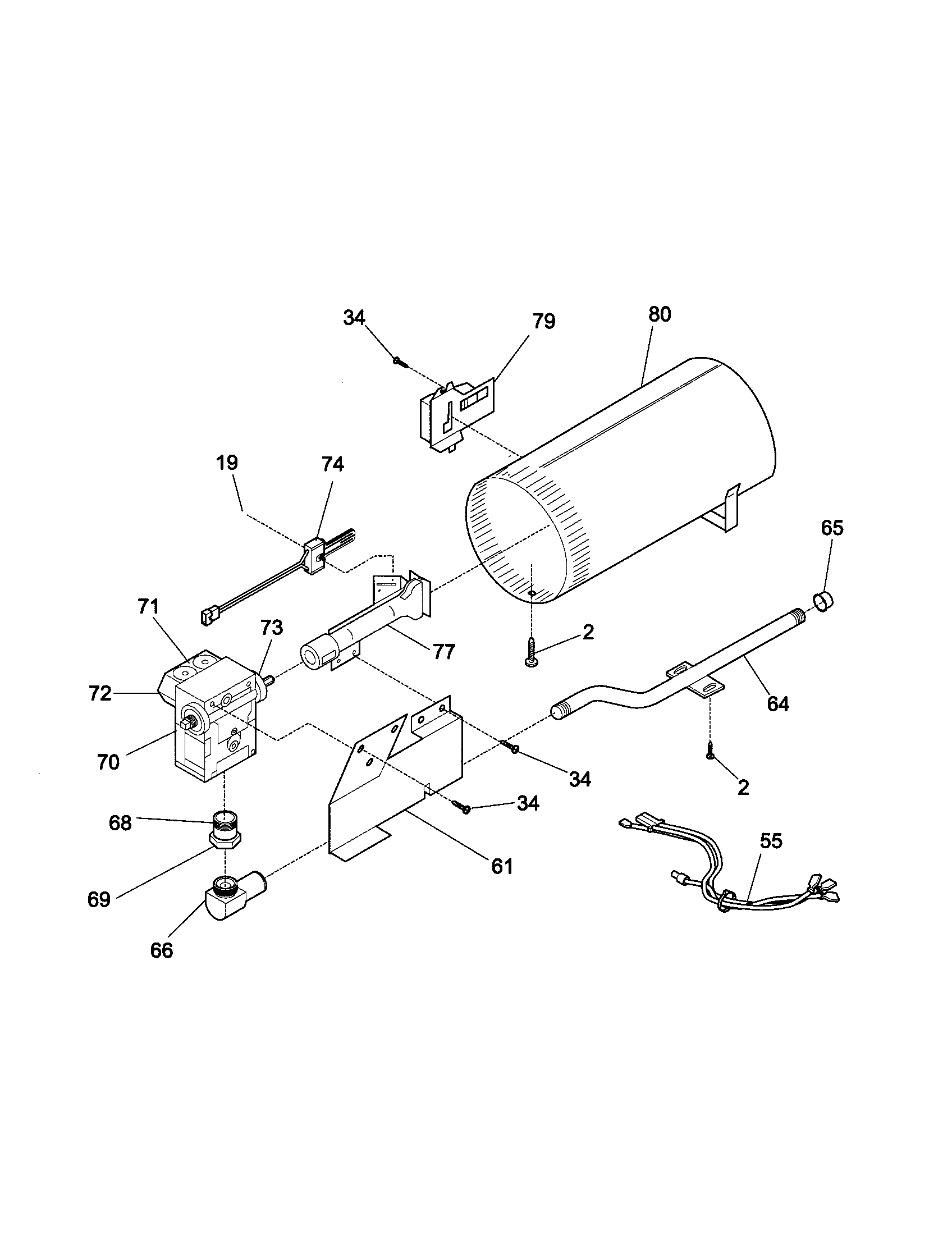

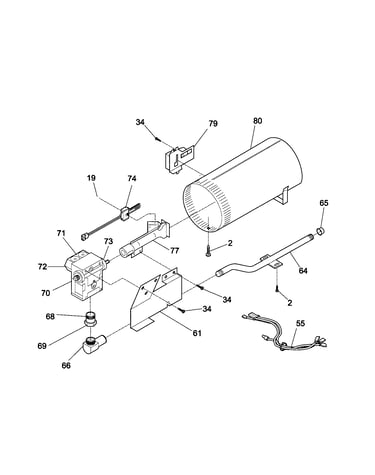

    Dryer Burner Orifice


    Burner tube Diagram

    Dryer burner orifice

    Part #5303207410
    $40.50 |
    26% OFF
    MSRP: $55.00

    In Stock

    Dryer Drum Baffle Screw


    Drum assembly Diagram

    Dryer drum baffle screw

    Part #131382300
    This item is not returnable
    $7.38 |
    17% OFF
    MSRP: $8.90

    In Stock
