Amana
Bottom-Mount Refrigerator

Model # ARB2117BB-PARB2117BB1 Official Amana bottom-mount refrigerator

Here are the diagrams and repair parts for Official Amana ARB2117BB-PARB2117BB1 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

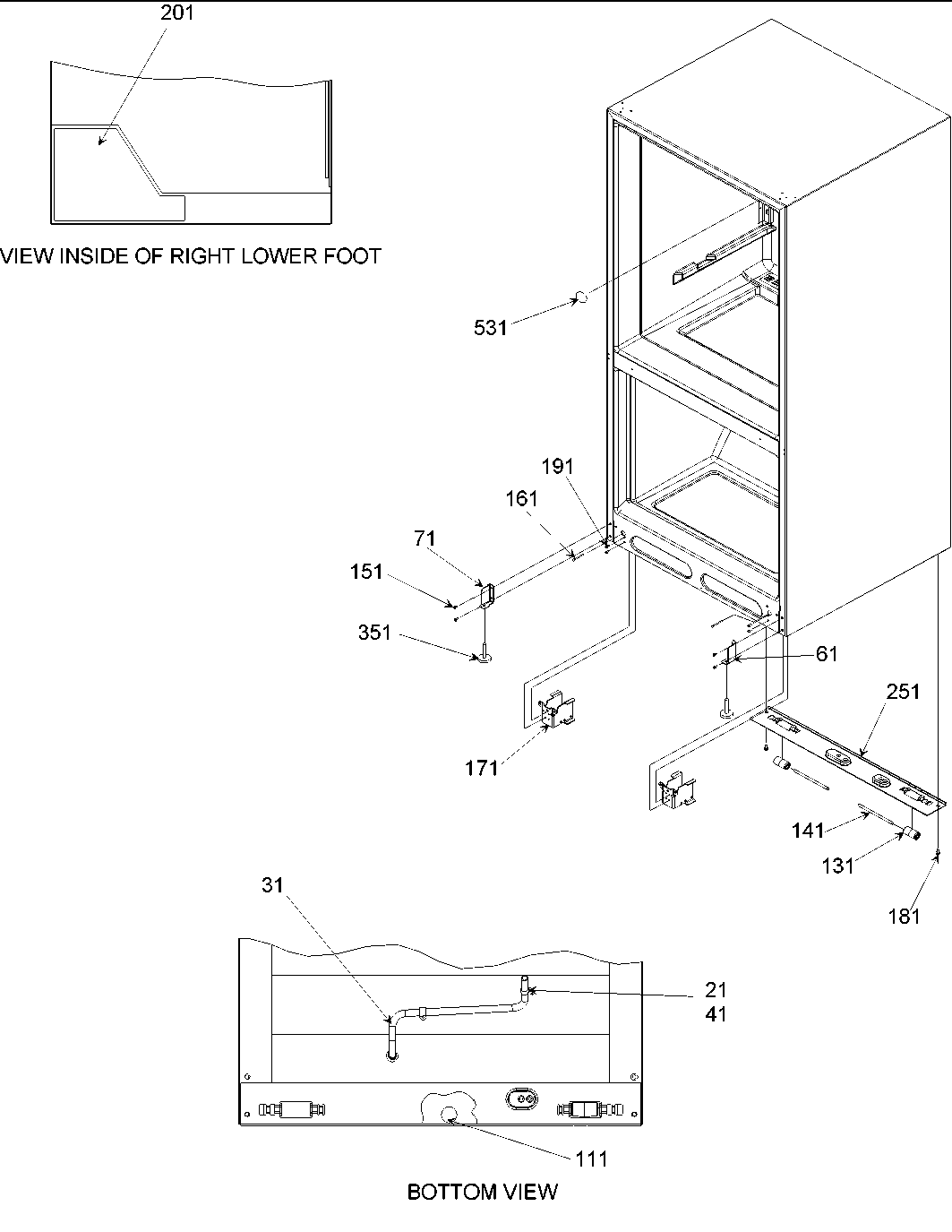

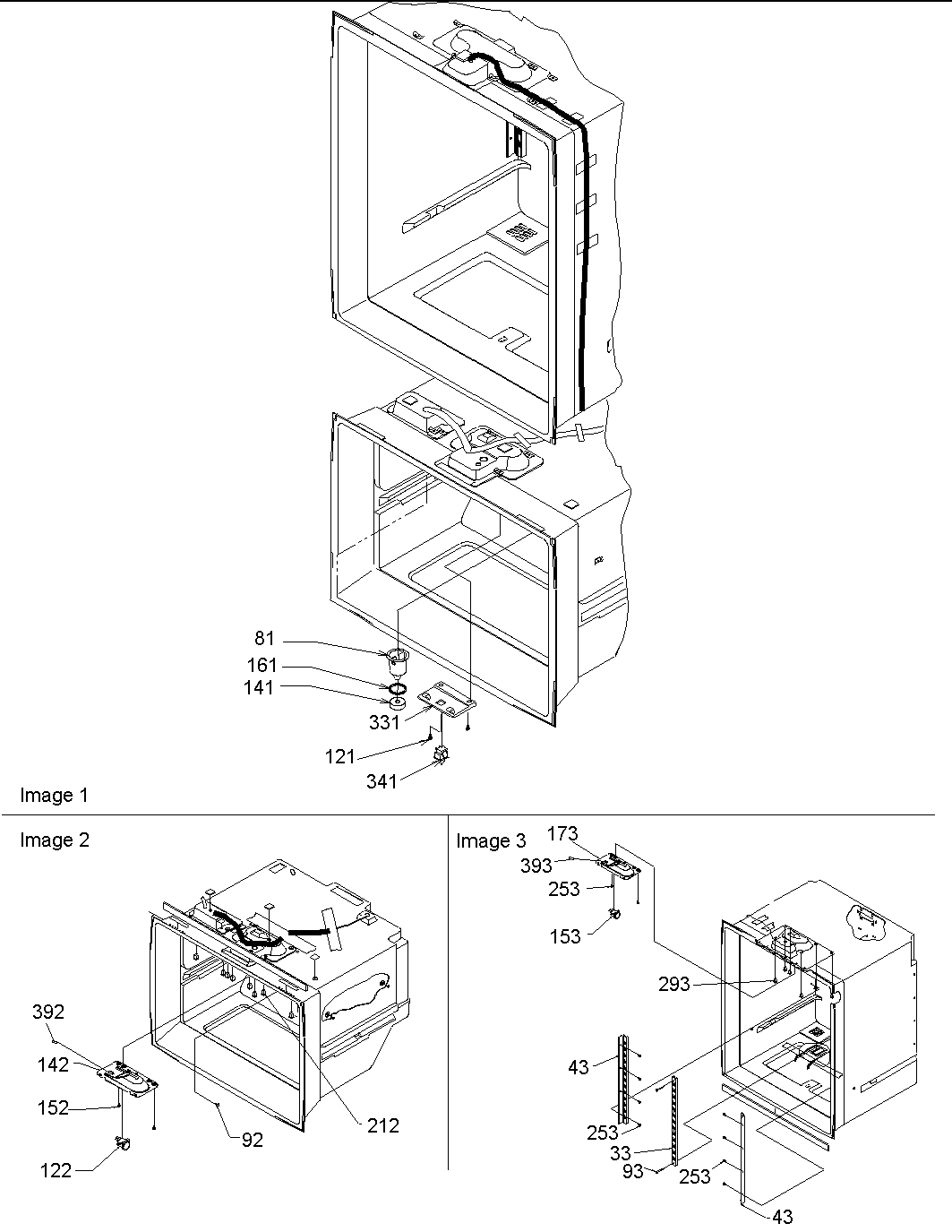

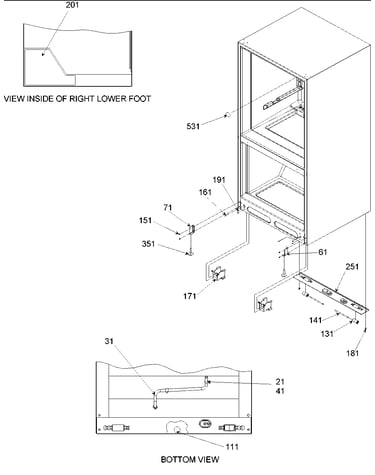

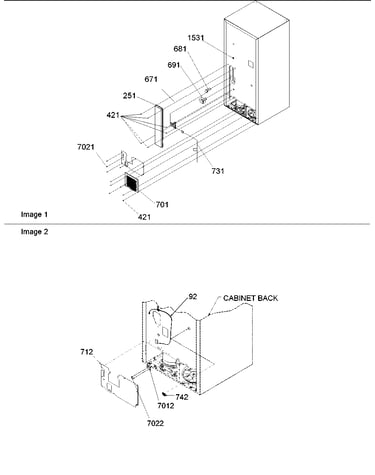

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 238 parts  |

Refrigerator Lamp, 40-watt, 115 To 125-volt A0282803
#301

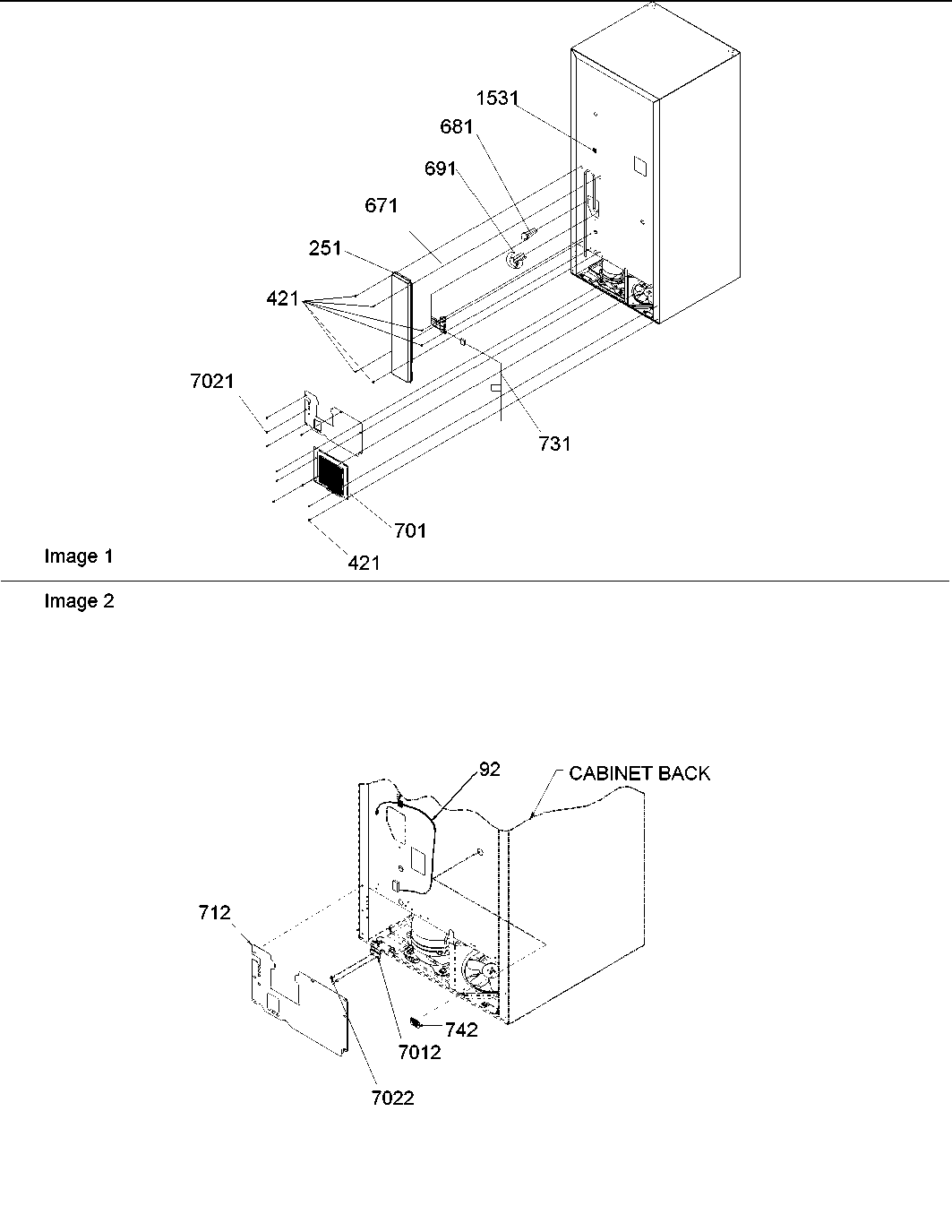

Miscellaeous information diagram

Refrigerator lamp, 40-watt, 115 to 125-volt

Part #A0282803

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Switch C3680310
#361

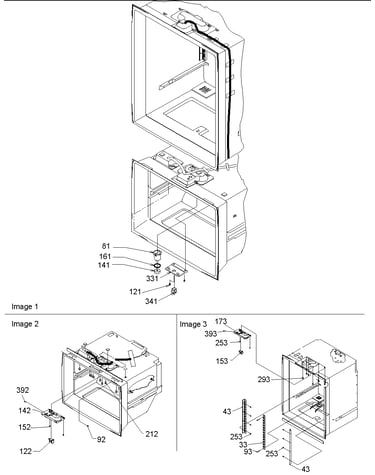

Controls & light covers diagram

Refrigerator switch

Part #C3680310

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Ice Maker D7824705
#122

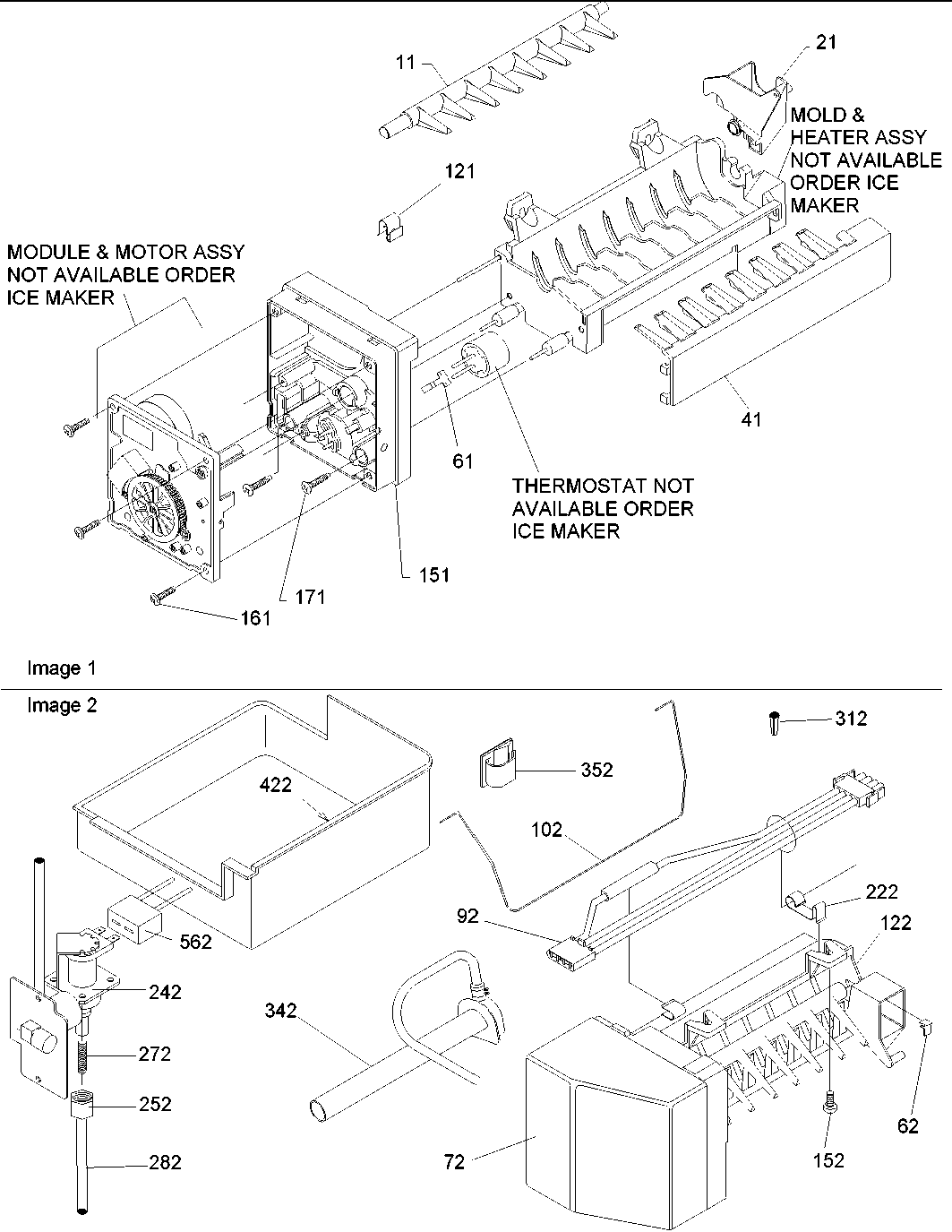

Ice maker assy & parts diagram

Refrigerator ice maker

Part #D7824705

Replaced by #D7824706Q

?
Manufacturer substitution
This part replaces D7824705. Substitute parts can look different from the original.
BEST SELLER
$105.19
12% OFF MSRP : $120.00
In Stock
Refrigerator Blade 12217201
#22

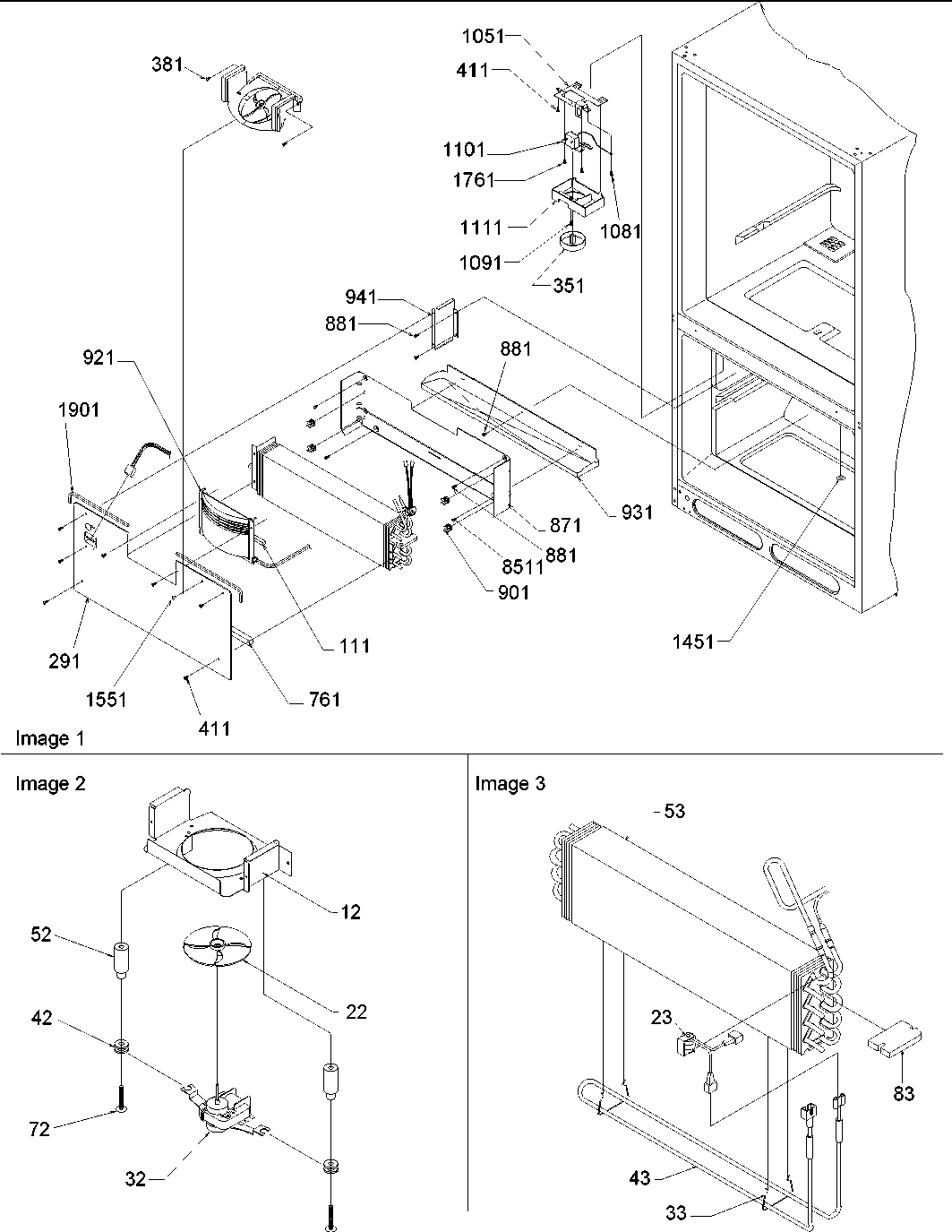

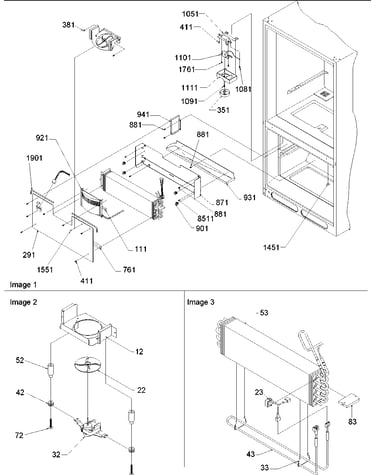

Evaporator & freezer control assy diagram

Refrigerator blade

Part #12217201

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Capacitor C8931612
#132

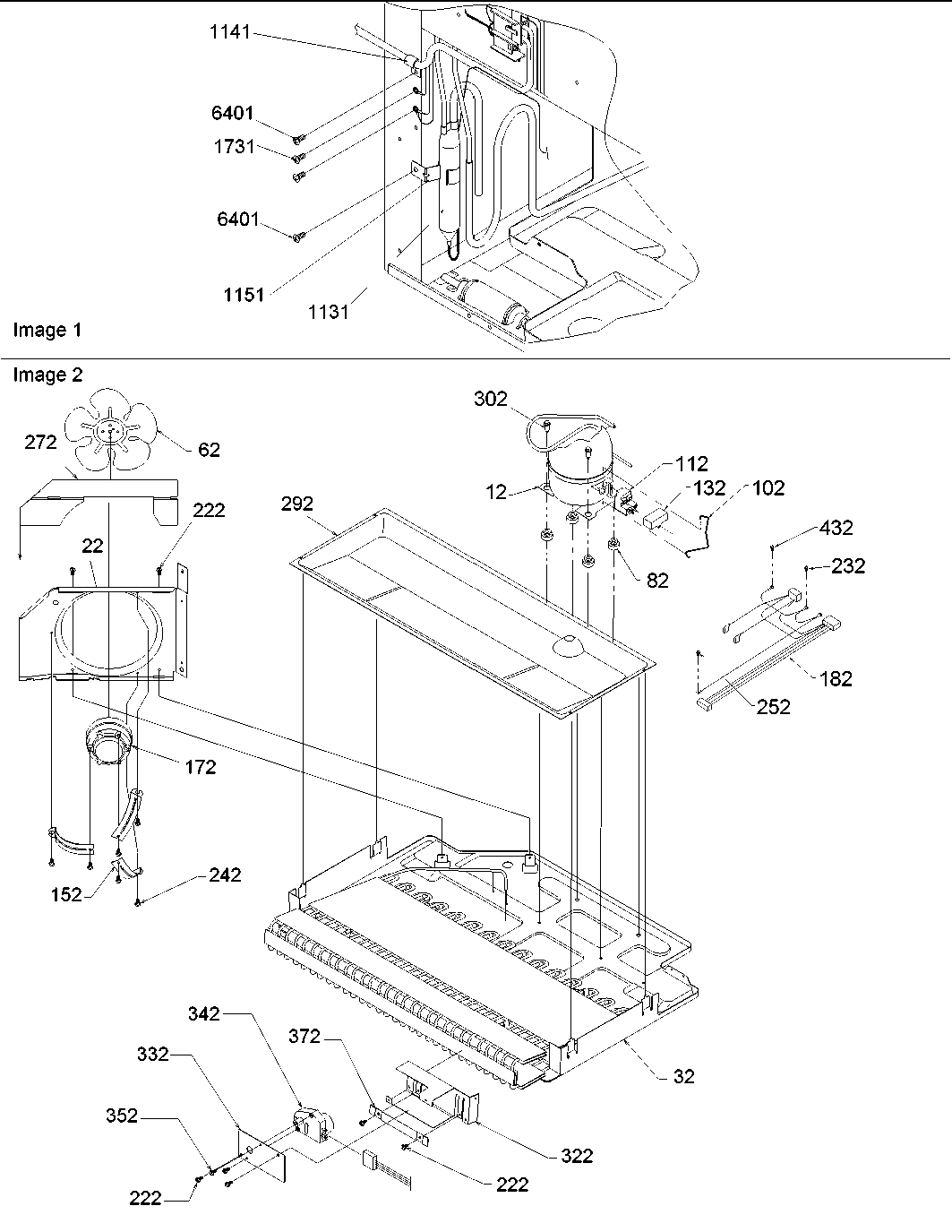

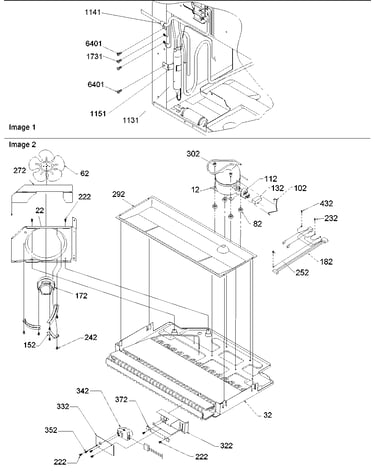

Machine compartment diagram

Refrigerator capacitor

Part #C8931612

Replaced by #W10613606

?
Manufacturer substitution
This part replaces C8931612. Substitute parts can look different from the original.
BEST SELLER
$53.44
30% OFF MSRP : $76.00
In Stock
Refrigerator Door Gasket (black) 12550101
#62

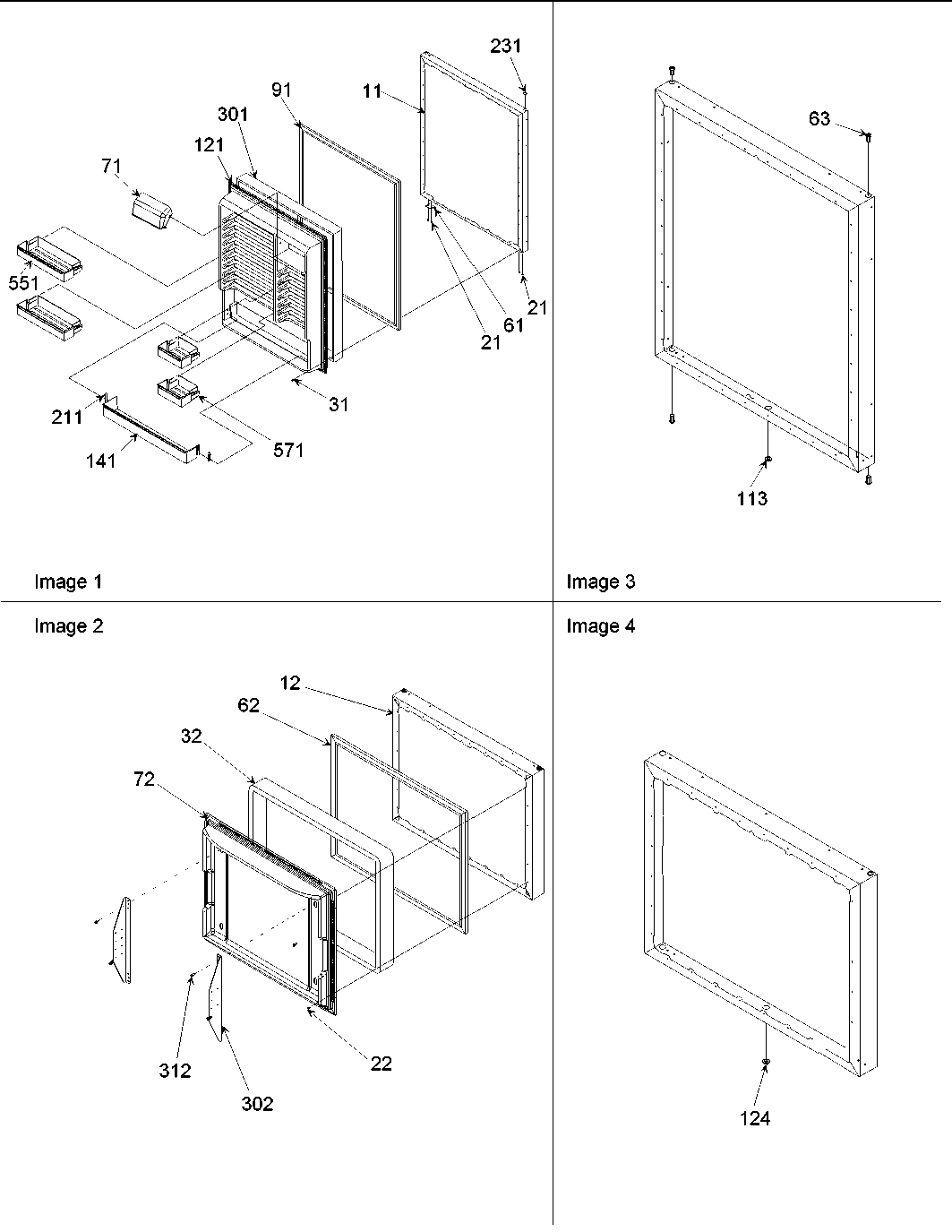

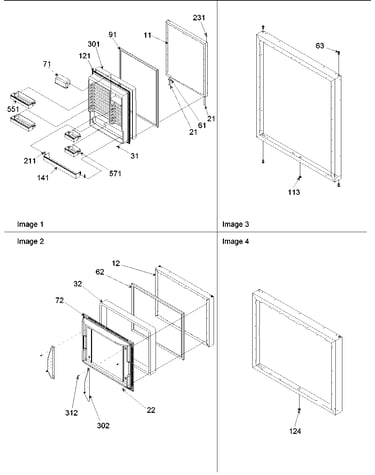

Door assy diagram

Refrigerator door gasket (black)

Part #12550101

Replaced by #WP12550101Q

?
Manufacturer substitution
This part replaces 12550101. Substitute parts can look different from the original.
BEST SELLER
$108.24
8% OFF Phone Price : $118.24
In Stock
Fitting M0753001
#252

Ice maker assy & parts diagram

Fitting

Part #M0753001

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Thermostat 10442411
#23

Evaporator & freezer control assy diagram

Refrigerator thermostat

Part #10442411

The manufacturer no longer makes this part, and there's no substitute part

Ice Tray Gen D7725402
#103

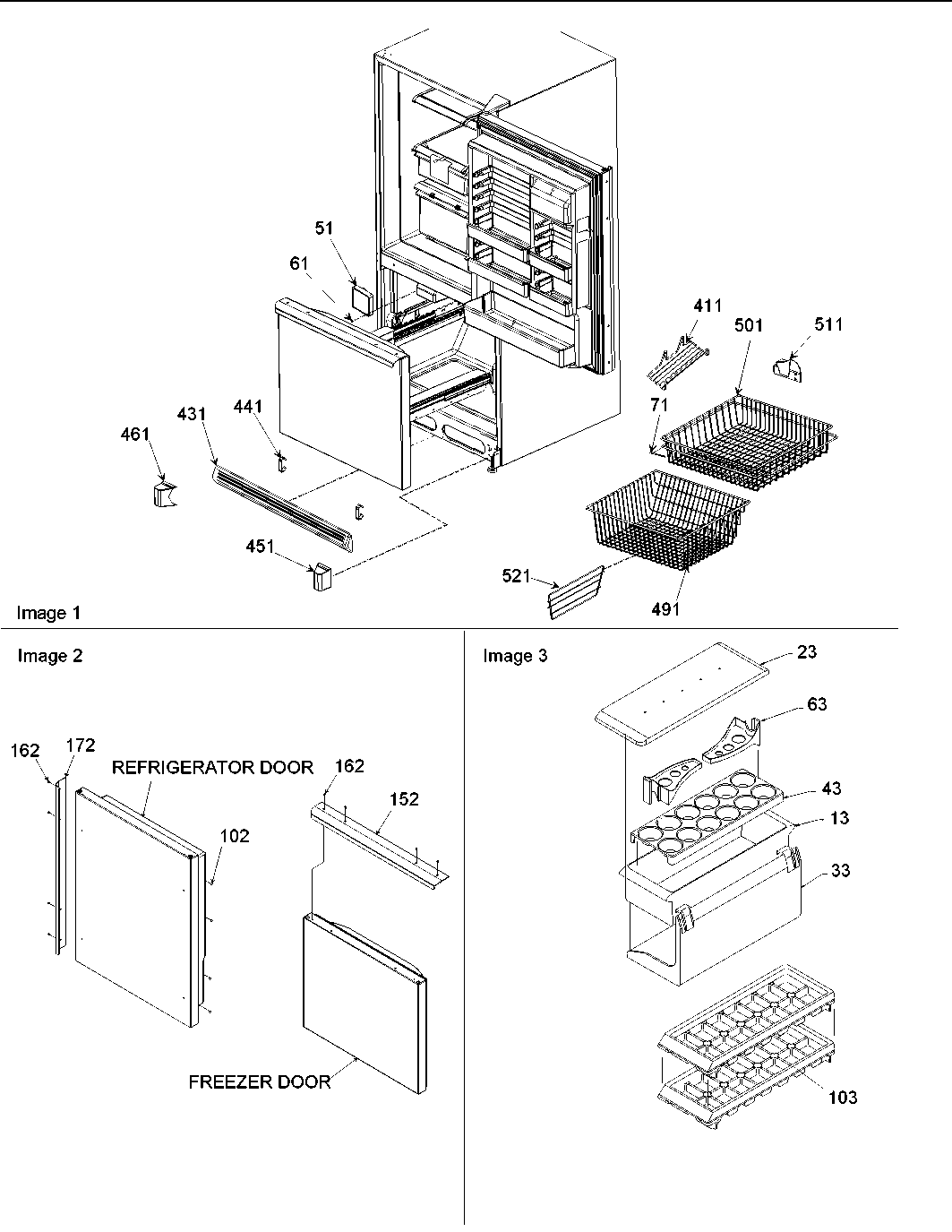

Door handles & accessories diagram

Ice tray gen

Part #D7725402

Replaced by #WP841180A

?
Manufacturer substitution
This part replaces D7725402. Substitute parts can look different from the original.
This item is not returnable
$7.19
12% OFF Phone Price : $8.19
In Stock
Refrigerator Screw M0214931
#53

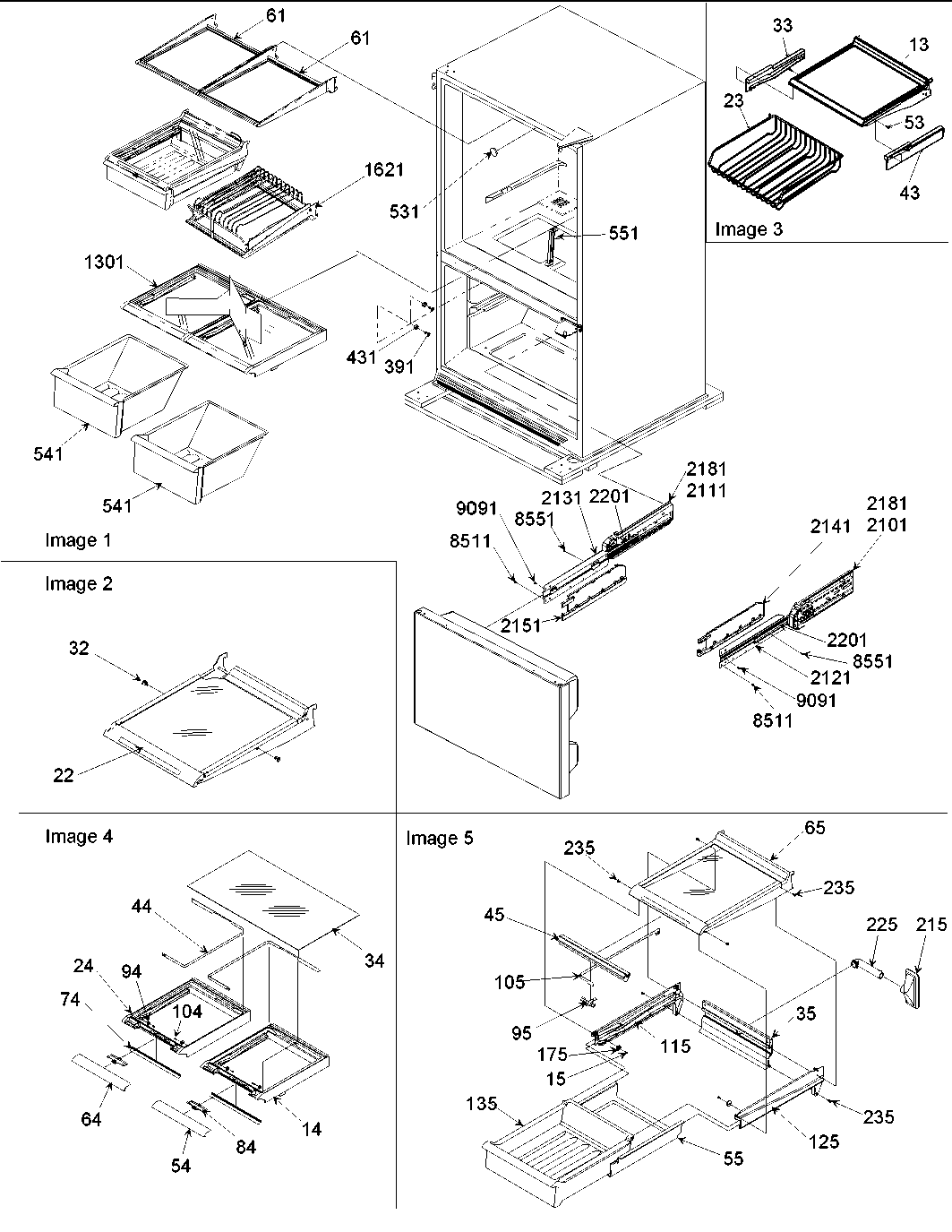

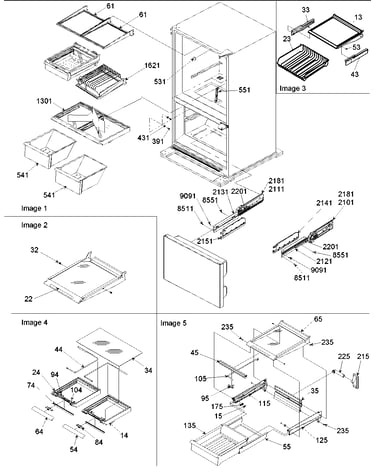

Shelving assy diagram

Refrigerator screw

Part #M0214931

Replaced by #W11233072

?
Manufacturer substitution
This part replaces M0214931. Substitute parts can look different from the original.
$16.79
11% OFF Phone Price : $18.79
In Stock
