KitchenAid KFCS22EVMS3 refrigerator Parts

A bottom-mount refrigerator (like KitchenAid model KFCS22EVMS3) keeps the fresh-food compartment on top at eye level and puts the freezer in a lower drawer. This layout reduces bending for everyday refrigerated items while still providing full freezer storage below.

How a bottom-mount layout is organized

• Top section: fresh foods (most-used items)
• Bottom section: freezer drawer or pull-out basket system
• Typical door style: French doors or a single refrigerator door on top
• Common benefit: easier access to produce, dairy, and leftovers
• Common tradeoff: you bend more often for frozen foods

Bottom-mount vs. top-mount: quick comparison

Feature	Bottom-mount refrigerator	Top-mount refrigerator
Fresh-food access	Higher, easier reach	Lower, more bending
Freezer access	Lower drawer	Upper swing door
Best for	Frequent fresh-food use	Frequent freezer use

Why it matters for daily use and maintenance

Bottom-mount designs tend to encourage better organization of fresh foods because shelves are at a comfortable height. For service and care, it also helps to follow the model-specific handling and installation guidance in the KFCS22EVMS3 owner's manual, especially when removing heavy glass shelves or adjusting door alignment.

Tips to get the most from a bottom-mount refrigerator

• Set temperatures to the recommended starting points and allow 24 hours after installation for full cooling.
• Leave ventilation clearance (commonly about 1/2 inch at the top and back) so the compressor can run efficiently.
• Keep the unit slightly tilted back so doors close smoothly after loading groceries.

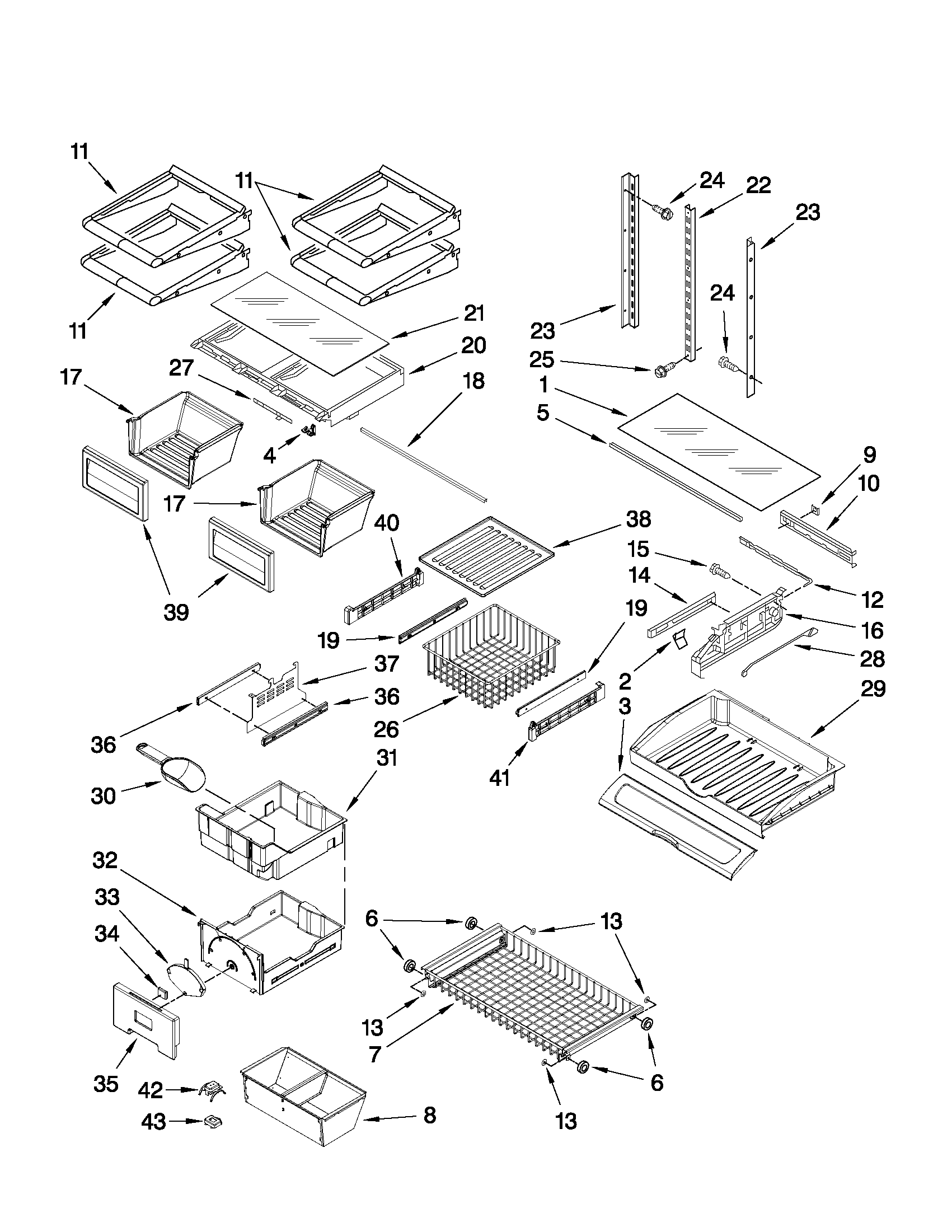

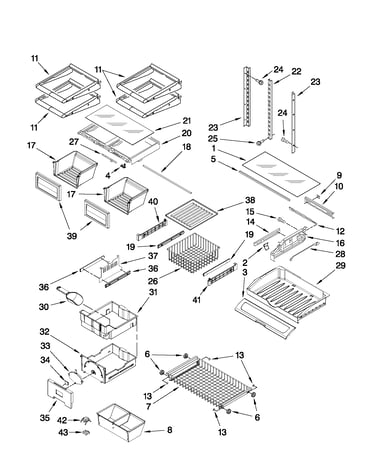

• Use extra care when removing glass shelves; tempered glass can shatter into small pieces if impacted.
• If your model has an ice maker, plan extra space behind the refrigerator for the water line connection.

Last updated: January 2026

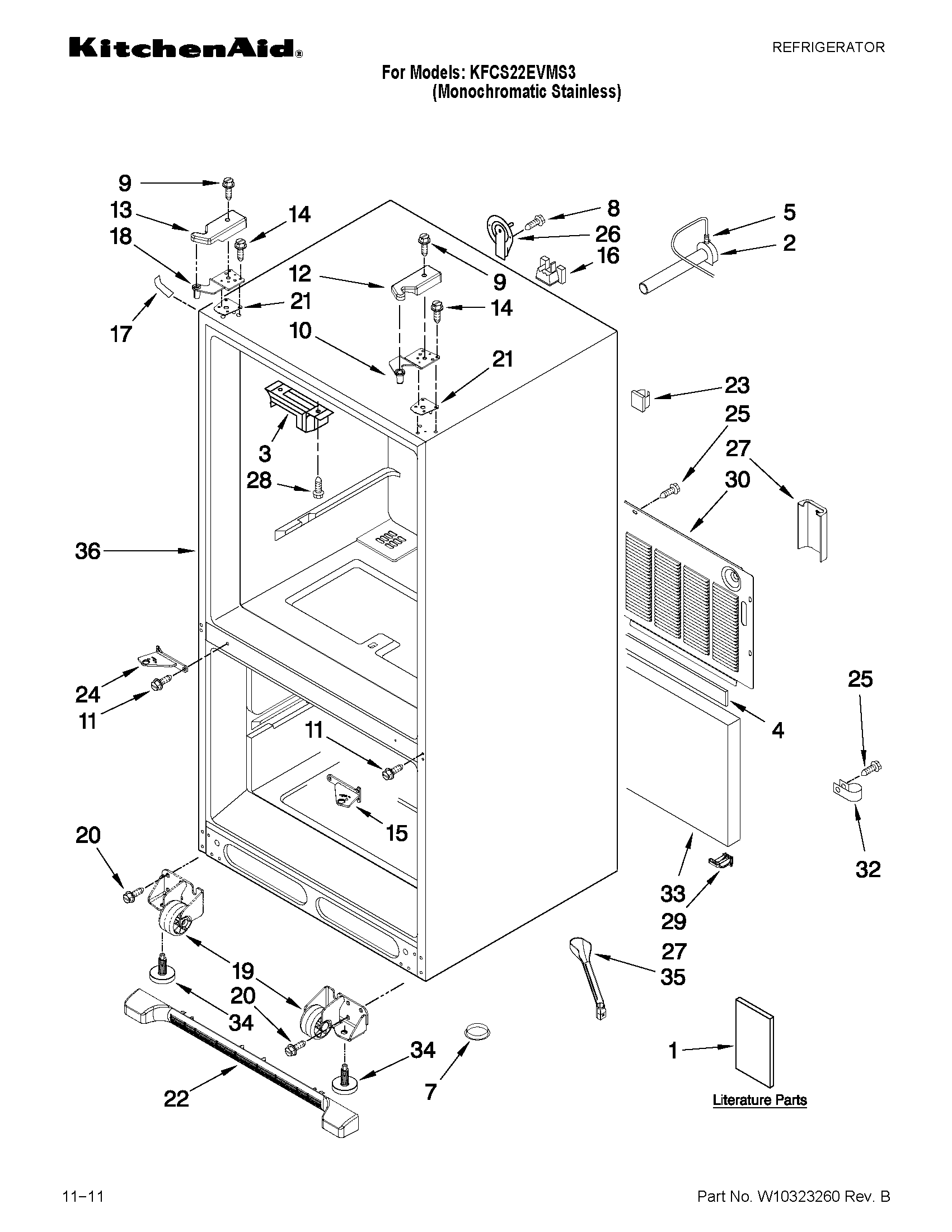

On the KitchenAid KFCS22EVMS3 bottom-mount refrigerator, we remove the bottom grille (base grille or toe grille) by gripping it firmly and pulling it straight toward us to release the snaps. This gives access to the front leveling screws and the condenser area; see the KFCS22EVMS3 owner's manual.

Steps to remove and reinstall the bottom grille

• Unplug the refrigerator if you will be cleaning or working near wiring.
• Stand in front of the unit and locate the grille at the very bottom of the cabinet.
• Grasp the grille firmly with both hands (near the ends).
• Pull the grille straight toward you to pop it off the retaining clips.
• Set it aside on a soft surface to avoid scratches.
• To reinstall, align the grille with the lower frame and press until it snaps into place.

When you typically remove the grille (and what to do next)

Removing the base grille is a common first step for leveling and basic maintenance.

Task	What you do after the grille is off	Tool you may need
Level the refrigerator	Turn the front leveling screws to raise or lower the cabinet	1/4-in hex driver
Clean the condenser area	Vacuum dust from the grille and the open area behind it	Vacuum with soft brush
Check for airflow blockage	Remove lint, pet hair, or debris restricting airflow	None

Why it matters

A properly installed base grille helps protect components and supports good airflow across the condenser. Keeping the area behind the grille clean can help the refrigerator cool efficiently and reduce run time.

Last updated: January 2026

For KitchenAid model KFCS22EVMS3, the most common issues we see are ice maker problems and cooling complaints (warm temperatures, frost buildup, or water leaks). These are often tied to airflow restrictions, a clogged drain path, or a failing evaporator fan system; use the KFCS22EVMS3 owner's manual to match symptoms to the right checks.

Most common symptoms customers report

• Ice maker stops making ice or makes ice slowly
• Refrigerator section warms up while freezer seems OK
• Frost buildup on the freezer back wall
• Water puddles under the refrigerator or inside the fresh food section
• Unusual fan noise or rattling from the freezer area
• Compressor seems to run “too much” (especially after frequent door openings)

Quick checks we recommend first (no parts guessing)

1. Confirm power and basic operation: the manual notes the unit may run longer with warm room temps, frequent door openings, or large food loads.
2. Check airflow: make sure vents are not blocked by food packages.
3. Clean condenser area: dust buildup commonly reduces cooling efficiency.
4. Look for drain issues: if you see puddles, inspect for ice or debris around the drain path.
5. Listen for the evaporator fan: if airflow is weak or you hear grinding, the fan system is a prime suspect.

Parts that commonly relate to these symptoms on KFCS22EVMS3

Symptom	Common area to inspect	Example part for this model

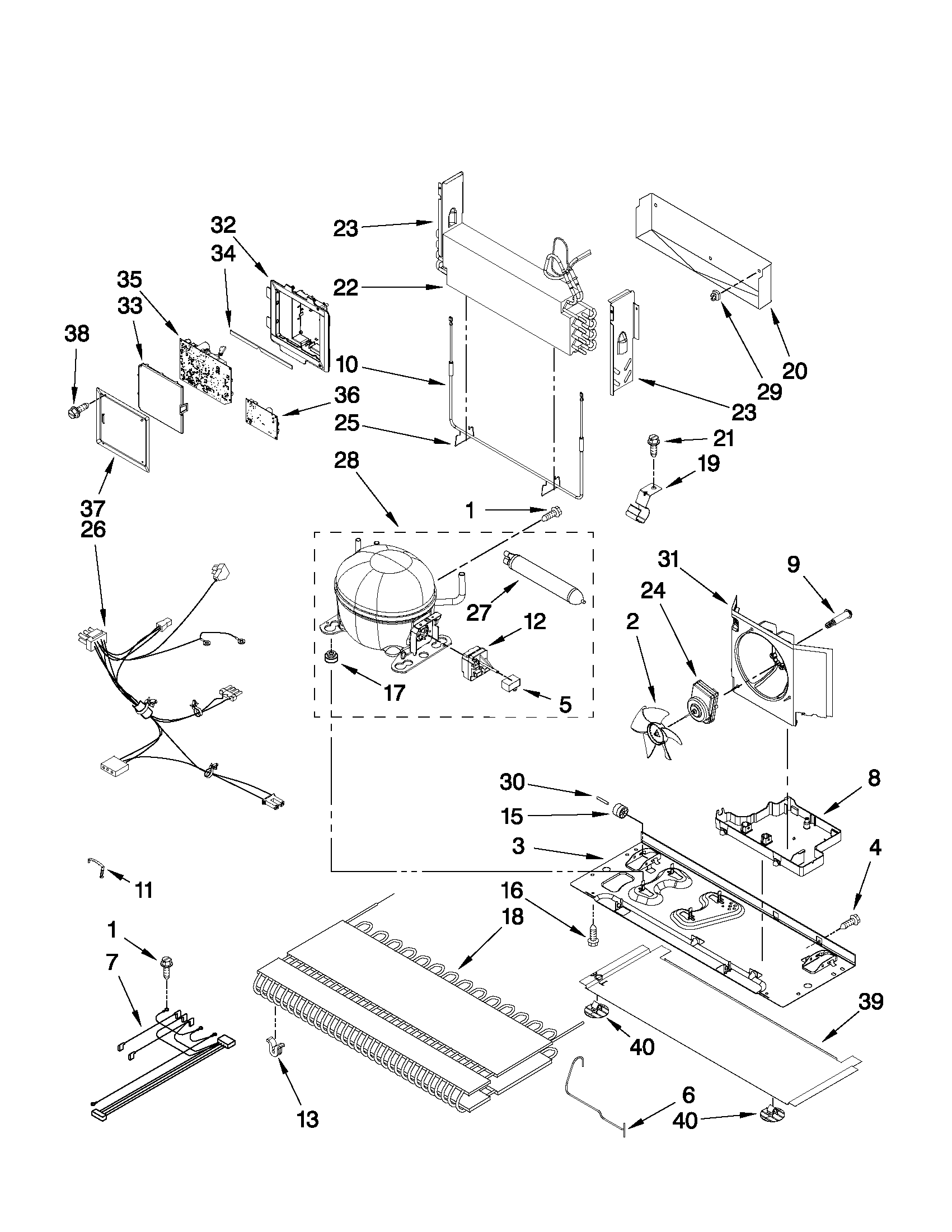

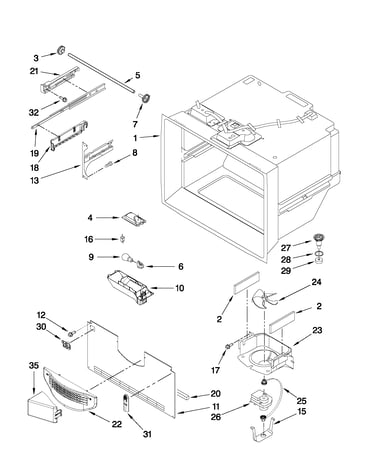

Warm fridge, weak airflow	Evaporator fan system	Refrigerator evaporator fan motor WPW10128551

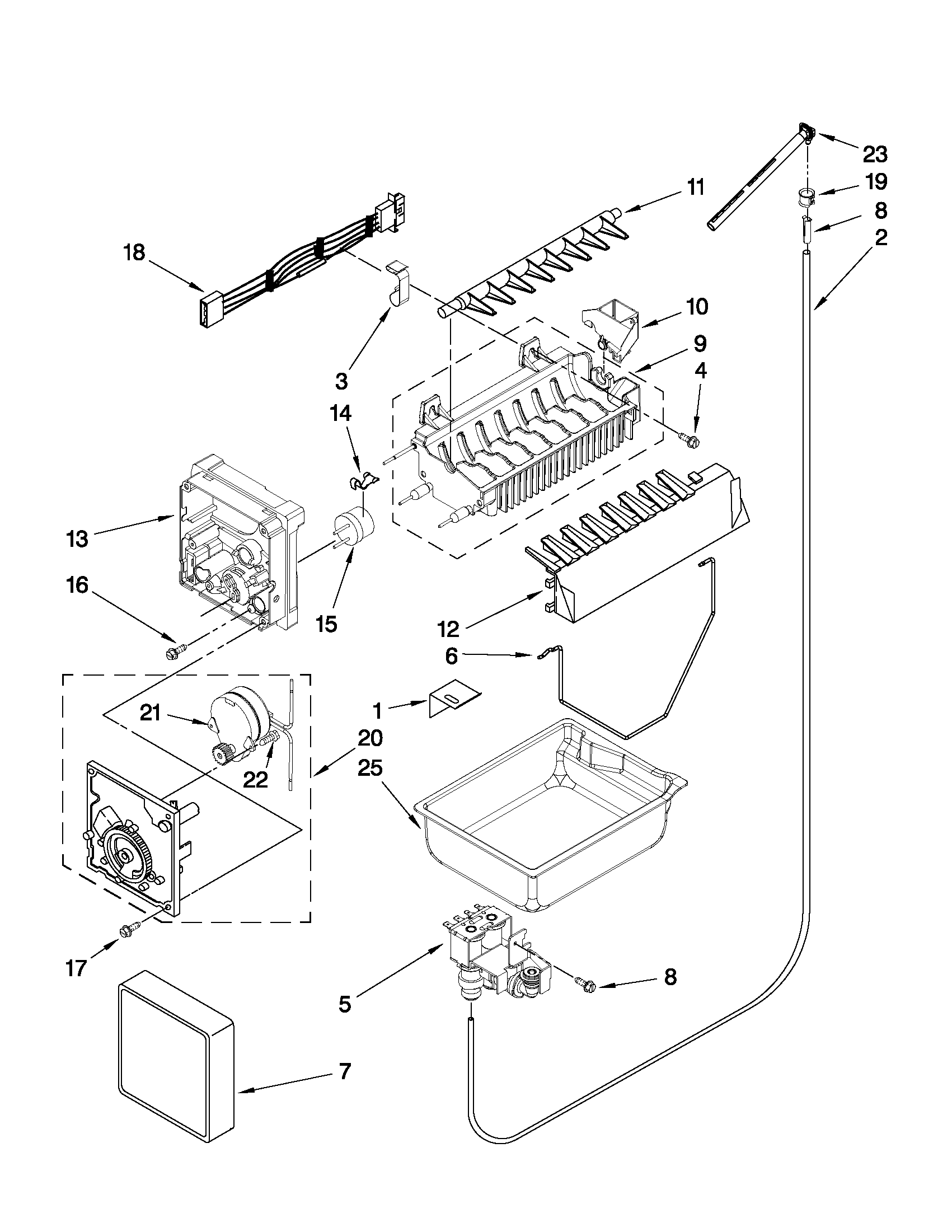

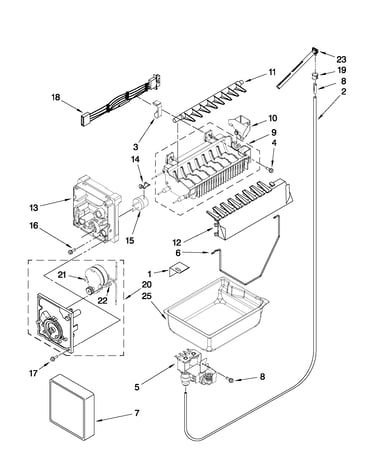

Ice maker not producing	Ice maker assembly and water supply	Refrigerator ice maker D7824706Q
Water dispenser/ice issues	Water inlet valve	Refrigerator water inlet valve assembly WP12544124

Why it matters

Ice maker and cooling problems can cascade: poor airflow can cause temperature swings, frost buildup, and longer run times. Catching a fan, drain, or water-supply issue early helps protect food quality and reduces strain on sealed-system components.

Helpful DIY guidance

• Common refrigerator ice maker problems and solutions
• How to fix your evaporator cooling fan
• How to diagnose a faulty refrigerator water inlet valve

Last updated: January 2026

A bottom leak on your KitchenAid refrigerator model KFCS22EVMS3 usually comes from a clogged or frozen defrost drain that overflows, or from a small leak in the ice maker or water supply tubing that runs down to the base. Use the checks below to pinpoint the source.

Quick checks (fastest way to narrow it down)

• Water under crisper drawers: defrost drain is backing up.
• Ice sheet on freezer floor: drain froze during defrost.
• Water only after ice maker runs: inlet valve or tubing connection leak.
• Drips near filter or rear tubing: loose fitting or cracked line.
• Water in the bottom front area: drain pan spill or drain overflow.

What to do next (safe, common fixes)

• Unplug the refrigerator before removing panels or working near wiring.
• Thaw any ice blocking the drain; then flush the drain with warm water until it flows freely.
• Inspect the drain line at the back for kinks, splits, or a loose connection; replace if damaged (see refrigerator drain tube W10619951).
• Check the household water line and fittings for slow seepage; snug fittings and replace cracked tubing.

Symptom-to-cause guide

What you notice	Most likely cause	Best next step
Water under crispers	Clogged/frozen defrost drain	Thaw and flush drain path
Water on floor near front	Drain pan spill or drain overflow	Verify drain flow to pan
Leak during ice maker fill	Loose fitting or inlet valve issue	Inspect tubing and valve area
Drip near rear water line	Supply line seepage	Tighten or replace tubing

Why it matters

Water at the base can damage flooring and often signals restricted defrost drainage; that restriction can lead to ice buildup and airflow problems that reduce cooling performance.

For access points, safety notes, and model-specific guidance, follow the KFCS22EVMS3 owner's manual.

Last updated: January 2026
