Kenmore Elite 59676572600 bottom-mount refrigerator Parts

Bottom-freezer refrigerators like Kenmore model 59676572600 are not “bad” by design, but they can seem to have more complaints when airflow is restricted, door gaskets do not seal tightly, or the unit is not level. Those issues make the refrigerator run longer and can lead to warm temperatures, frost, or poor ice production; see the owner's manual for model-specific checks.

• Food temperature too warm: dirty condenser coils, doors not closing, controls set incorrectly
• Runs a lot or seems loud: normal compressor hum, restricted airflow from overcrowding, dirty coils
• Frost buildup or moisture: door gasket not sealing, doors left open, frequent openings
• Slow water flow or hollow ice cubes: low household water pressure (reverse osmosis systems can contribute)
• Ice maker not making ice: ice maker shutoff arm off position, water supply issue, or a failed ice maker

1. Confirm doors seal and close securely; clean gaskets and remove anything blocking the door.
2. Level the refrigerator so doors self-close and seal consistently.
3. Clean condenser coils (a major cause of long run times and warm temps).
4. Avoid overcrowding; good air circulation helps the top refrigerator section cool evenly.
5. Give defrost time; if lights are on but the compressor is off, the unit may be in defrost mode (wait about 40 minutes).

When a bottom-mount refrigerator runs longer due to dirty coils, poor door sealing, or restricted airflow, temperatures drift and the compressor works harder. Fixing the root cause improves food safety, reduces frost and moisture, and helps energy efficiency.

You can order replacement parts for your Kenmore 59676572600 from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

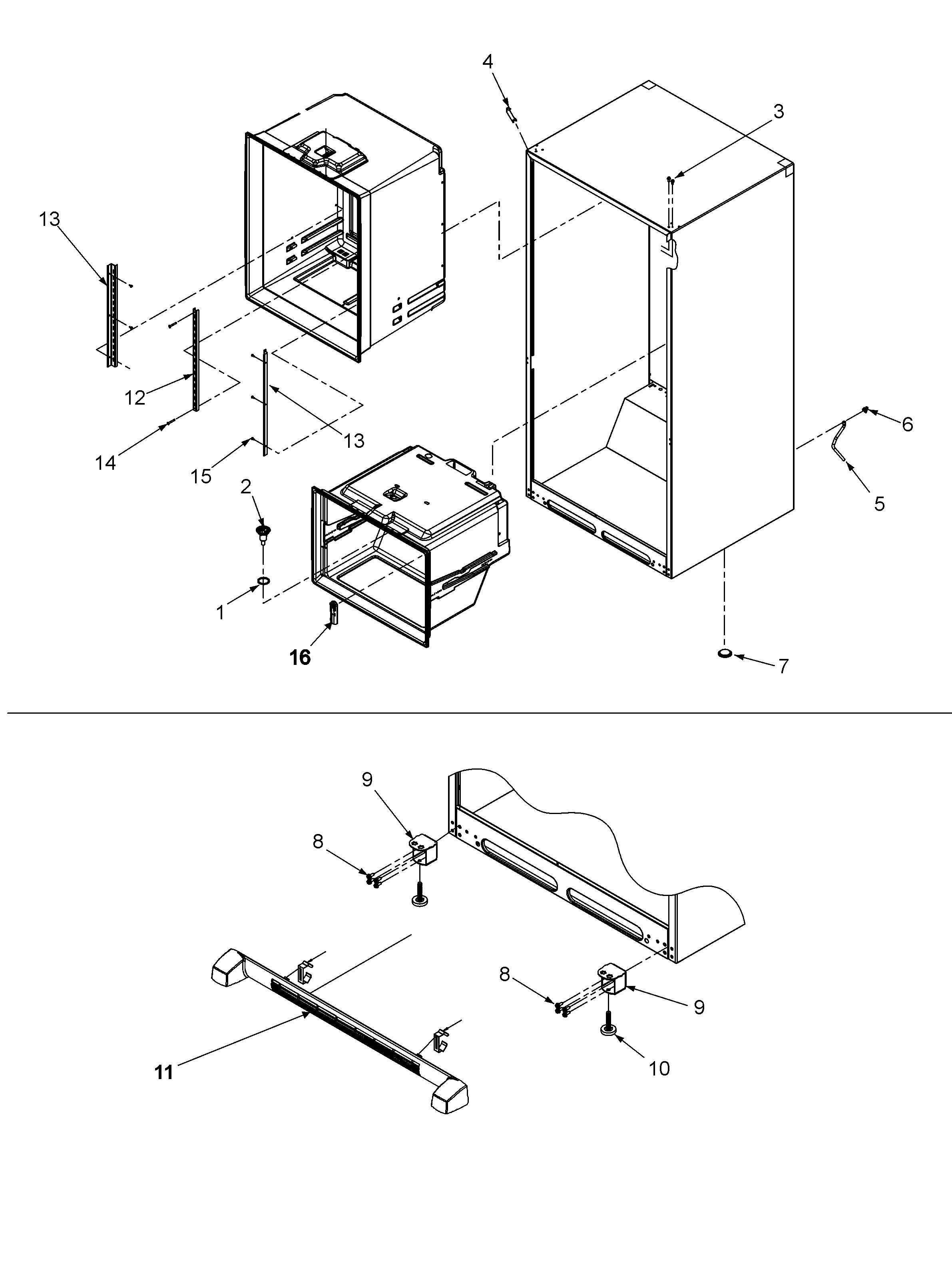

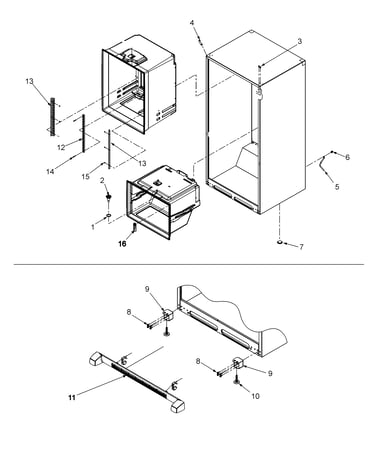

To raise your Kenmore Elite 59676572600 bottom-mount refrigerator, use the built-in leveling system: remove the toe grille, then turn the front and rear adjustment screws to lift the cabinet and set the correct tilt. This improves door sealing and airflow.

Follow the leveling steps in the owner's manual. In general, you will:

• Pull off the toe grille (toe kick) to access the adjusters.
• Use a 1/4-inch hex head driver to turn the front adjustment screws to raise or lower the front.
• Turn the rear adjustment screws to raise or lower the rear.
• Set the refrigerator so the front is slightly higher than the back (a small forward tilt helps doors close).
• Turn the stabilizing legs down until they are firmly against the floor.
• Recheck level side-to-side with a carpenter’s level.

Flooring and clearances affect how “high” the refrigerator can sit and still fit correctly.

A platform is only for special situations (uneven floors, thick carpet, clearance issues). If you use one, it must be rigid and allow airflow.

• Use a sturdy, level base (plywood platform with proper support).
• Do not block the rear airflow area.
• Keep the refrigerator stable; no wobble.
• Avoid raising it so high that doors or drawers bind.

Proper height and leveling help the door gaskets seal, reduce vibration noise, and maintain consistent refrigerator and freezer temperatures. It also helps ensure the cabinet has the ventilation space it needs.

If you need replacement parts while you are adjusting or moving the unit, you can shop model-specific parts on this page or search by model number on Sears PartsDirect.

Last updated: February 2026

Your Kenmore Elite refrigerator’s model number is printed on the model and serial number sticker inside the fresh food (refrigerator) section; for model 59676572600, the manual points to the left interior wall. Use that exact model number to match the correct parts and diagrams in our catalog.

Check these common locations on Kenmore Elite bottom-mount refrigerators:

• Inside the refrigerator compartment on the left wall (most common)
• On an inside side wall near the crisper drawer area
• On the door frame (open the fresh food door and look along the inner frame)
• Behind the lower toe grille or kick plate (less common)

For the exact location and how the label is referenced for recordkeeping, use the owner's manual.

Kenmore Elite model numbers are typically a long number string. For this refrigerator family, you may see a prefix like 596. followed by additional digits.

• Ensures you get parts that fit your exact door style, dispenser setup, and ice maker configuration
• Prevents ordering the wrong electrical parts (switches, start device, defrost components)
• Helps match the correct wiring diagram and troubleshooting steps

Use the model number to find the right parts list; then match parts by part ID and part number.

Once you confirm your model number, you can order parts from the list for Kenmore Elite 59676572600, or search by model on Sears PartsDirect. Common examples on this page include the refrigerator ice maker D7824706Q and the refrigerator start device W10613606.

Last updated: February 2026

Yes. Kenmore Elite is Kenmore’s higher-end line, and your Kenmore Elite bottom-mount refrigerator model 59676572600 is positioned as a premium option with upgraded design and performance compared with standard Kenmore models.

Kenmore Elite typically focuses on features and build choices that feel more premium in everyday use, such as:

• More refined finishes and styling
• Better temperature management and food storage features
• Quieter operation compared with basic models
• More convenience features (ice maker, specialty drawers, improved lighting)
• Higher replacement-part value because components are often more feature-rich

For model 59676572600, the most practical way to confirm what makes it “Elite” is to match the features on your unit to the feature list and care guidance in the owner's manual.

• Look for specialty storage zones (pantry/deli drawers, crisper design)
• Confirm whether your unit uses an in-door or internal ice maker
• Listen for fan noise consistency (evaporator fan and condenser fan)
• Check door sealing and alignment (a premium unit still needs good gasket contact)
• Review recommended maintenance intervals (cleaning coils and gaskets)

Higher-end refrigerators still rely on routine care to stay efficient. For this model, regular cleaning of door gaskets and condenser coils helps maintain cooling performance and energy efficiency (the manual calls out periodic cleaning guidance). Use the owner's manual for the correct cleaning methods and what to avoid on finishes.

If you are maintaining or restoring performance, these model-matched parts are commonly shopped:

• Refrigerator ice maker D7824706Q (ice production issues)
• Refrigerator light switch W11396033 (light not working when door opens)
• Refrigerator start device W10613606 (compressor start or clicking symptoms)

For ordering, use the parts list for model 59676572600, or search by model number on Sears PartsDirect.

Last updated: February 2026

Common problems we see on the Kenmore Elite bottom-mount refrigerator model 59676572600 include weak cooling or temperature swings, frost buildup from door-seal or defrost issues, unusual fan noise, and water leaks tied to drain or water-supply problems. The 59676572600 owner's manual also calls out frequent running from dirty coils, door not closing, and low water pressure.

• Warm fridge or freezer: dirty condenser coils, blocked vents, evaporator airflow problem, or a start-device issue
• Runs too often: doors opened often, hot/humid room, dirty coils, controls set too cold, or door not sealing
• Frost buildup: door not closing fully, gasket leak, or defrost system trouble
• Loud noises: fan blade rubbing ice, loose fan blade, or normal operating sounds
• Water leaks or slow water/ice: clogged drain, kinked tubing, or low water pressure

• Clean condenser coils and confirm airflow around the cabinet
• Make sure the refrigerator is level so doors align and seal
• Check gaskets for gaps; remove bins or drawers that prevent full closing
• Verify water pressure is in the 35 to 100 psi range for proper dispenser and ice maker performance

Most “not cooling,” “frost,” and “leak” complaints trace back to airflow restriction, door sealing, or water-supply setup. Fixing those basics first prevents repeat problems and unnecessary part swaps.

For ordering, use the parts list for model 59676572600 on this page, or search by model number on Sears PartsDirect.

Last updated: February 2026
