Craftsman 917252600 lawn tractor Parts

To identify your Craftsman riding mower, we use the product identification label to confirm the exact model number. On model 917252600, the label is typically located under the seat; flip the seat forward and look for the model number on the underside area.

Where to find the model number on a riding mower

Most Craftsman front-engine lawn tractors place the ID label in one of these spots:

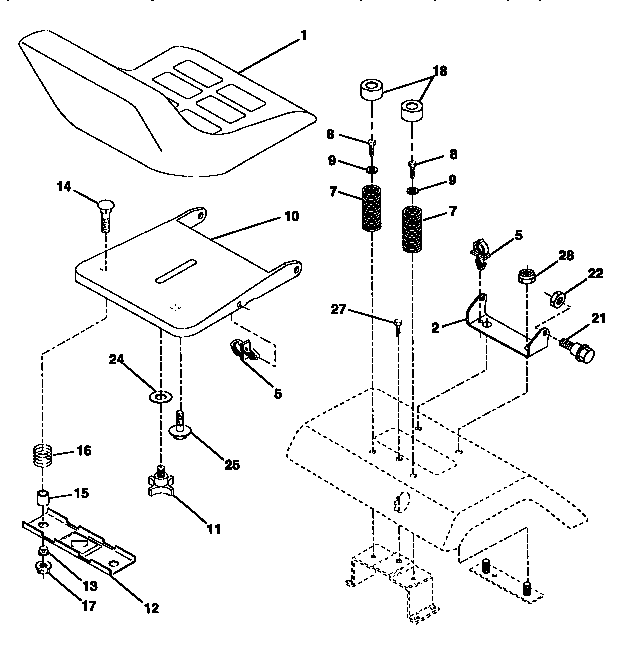

• Under the seat (flip the seat forward and check the underside)
• On the rear fender pan near the seat base
• On the frame rail near the engine compartment
• Near the transaxle area on the frame

What to write down (and why)

Record these items exactly as shown on the label:

• Model number (for example, 917252600)
• Product number (if listed)
• Serial number
• Engine model/type/code (often on the engine itself)

Why it matters

The model number tells us which parts diagrams and replacement parts match your tractor. The engine numbers help match tune-up parts and engine-specific items.

Quick check: model number vs. engine numbers

Item	Where it’s found	What it’s used for
Tractor model number (917252600)	Product ID label under/near seat	Deck, belts, steering, chassis parts
Engine model/type/code	Engine shroud or valve cover area	Spark plug, air filter, carburetor-related parts

Next step after you find the model number

Once you confirm the model, we recommend starting with the most common wear items for cut quality and drive performance:

• Inspect blades for bends, cracks, and dull edges
• Check deck belt condition and tension
• Check ground drive belt for glazing or stretching

If you are replacing a worn deck belt or blade, match by model first, then by part ID. For example, the lawn tractor drive belt 532144200 and the husqvarna lawn tractor mulching blade, 21-in 532134149 are listed parts for model 917252600.

Last updated: February 2026

Yes; replacing the engine on your Craftsman lawn tractor model 917252600 is worth it when the deck, steering, and drive system are still solid and the total swap cost stays well below the price of a comparable new rider. If the deck shell or transaxle is worn out, replacement makes more sense.

Quick decision checklist

• Deck shell is not rusted through; spindles are not loose or noisy
• Tractor drives strongly (no slipping, whining, or loss of pull)
• You can match the engine mounting pattern and crankshaft size without fabrication
• You can handle a half-day to full-day DIY job (or pay labor)
• Total cost stays under about 50% of a similar replacement tractor

Cost and condition guide (typical)

What you find	What it means	Best next step
Deck and drivetrain are strong	Chassis is worth saving	Replace engine
Only belts/blades are worn	Normal wear	Replace wear parts
Drive is weak or noisy	High risk of another major repair	Price drivetrain first
Multiple major systems worn	Costs stack quickly	Replace tractor

Parts we often address during an engine swap

• If traction is poor, replace a worn ground drive belt like the v-belt 532138255
• If the deck slips or squeals, replace the lawn tractor drive belt 532144200
• If the deck vibrates or rumbles, inspect spindles and consider the husqvarna lawn tractor mandrel assembly 532130794

Why it matters

An engine swap can add years of service to a good Craftsman chassis; checking the deck and transaxle first prevents spending engine money on a tractor that is already near end-of-life.

Helpful DIY guidance

• Use the how to tune up a riding lawn mower video to rule out fuel, spark, and air issues first
• If it only clicks or cranks slowly, follow the jump starting a riding lawn mower battery video

Last updated: February 2026

Common problems we see on Craftsman riding mowers like model 917252600 include no-start or hard-start issues, poor cutting quality from deck and blade wear, drive belt slipping, steering looseness, and fuel system leaks or restrictions. Most of these problems trace back to normal wear, neglected maintenance, or impact damage.

Most common symptoms and what they usually mean

• Clicks but won’t crank: weak battery, bad connections, starter solenoid, or safety switch issue
• Cranks but won’t start: stale fuel, clogged fuel line/filter, dirty carburetor, fouled spark plug
• Cuts uneven or leaves strips: dull/bent blades, deck out of level, worn mandrel bearings

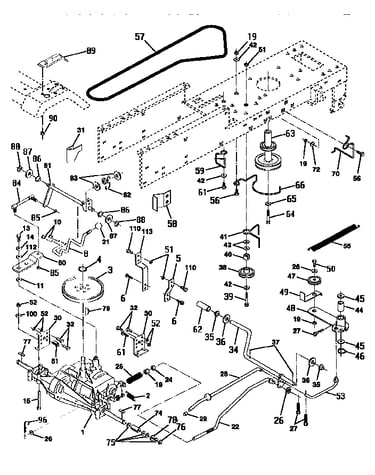

• Mower won’t move or slips under load: worn ground drive belt, idler/pulley wear, transaxle issues
• Excess vibration or loud deck noise: damaged blade, loose hardware, failing mandrel assembly
• Fuel smell or leaking: cracked fuel line, loose clamps, or a failing tank

Parts that commonly wear on this model

If your symptom matches, these are frequent replacement items for Craftsman 917252600:

• Husqvarna lawn tractor ground drive belt, 1/2 x 95-in 532138255 (loss of drive, slipping)
• Lawn tractor blade drive belt, 1/2 x 88-in 532144200 (deck won’t engage, belt squeal)
• Husqvarna lawn tractor mandrel assembly 532130794 (deck rumble, wobble, uneven cut)
• Husqvarna lawn tractor mulching blade, 21-in 532134149 (poor cut, tearing grass)
• Fuel tank assembly 532151346 (fuel leaks, cracked tank)

Quick checks we recommend before buying parts

1. Verify the PTO is off, brake is fully pressed, and the operator presence switch is engaged.
2. Inspect belts for glazing, cracking, or slack; check pulleys for wobble.
3. Check blade condition and tightness; look for deck damage and buildup.
4. Confirm fresh fuel and a clean air filter; replace the spark plug if it is fouled.

Troubleshooting guide by symptom

Symptom	Most likely cause	Best next step
Clicks, no crank	Battery/cables/safety circuit	Use riding lawn mower engine clicks but doesnt turn over video
Cranks, won’t start	Fuel/air/ignition	Use riding lawn mower engine spins but wont start video
Uneven cut	Deck level, blades, mandrels	Use how to level a riding lawn mower deck for an even cut video
Slips or won’t move	Ground drive belt/pulleys	Inspect belt routing and tension

Why it matters

Catching belt, blade, and mandrel wear early prevents secondary damage to the deck, pulleys, and spindles, and it keeps your Craftsman lawn tractor cutting evenly and driving safely.

Last updated: February 2026

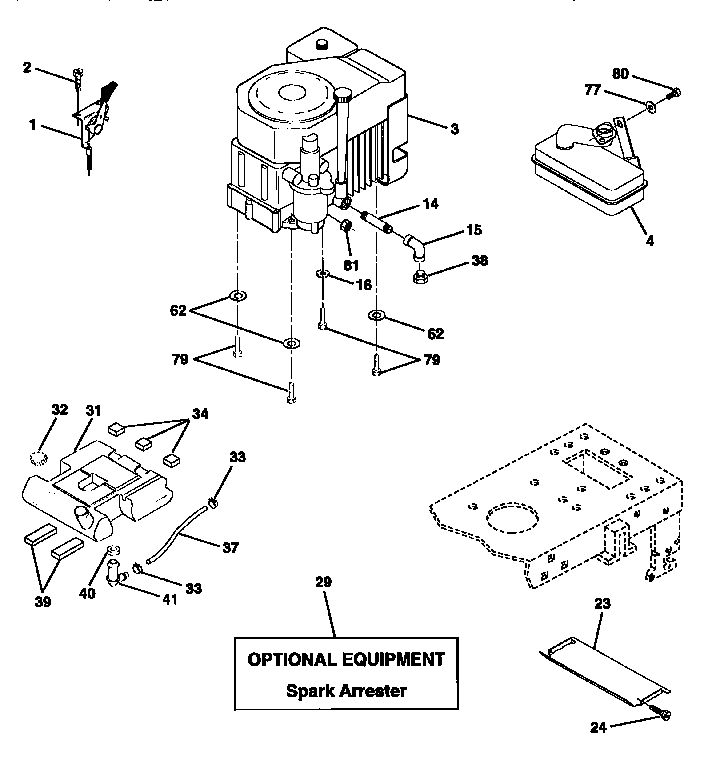

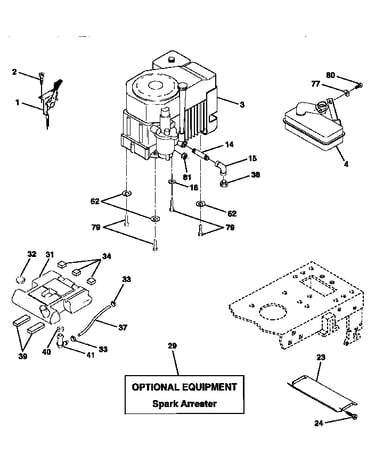

For Craftsman lawn tractor model 917252600, the exact engine make and horsepower depend on the specific engine installed on your tractor; most units in this class use a single-cylinder gasoline engine (commonly Briggs & Stratton or similar) designed to power a 42-inch style cutting deck and a gear or hydro drive system.

How to identify the engine on model 917252600

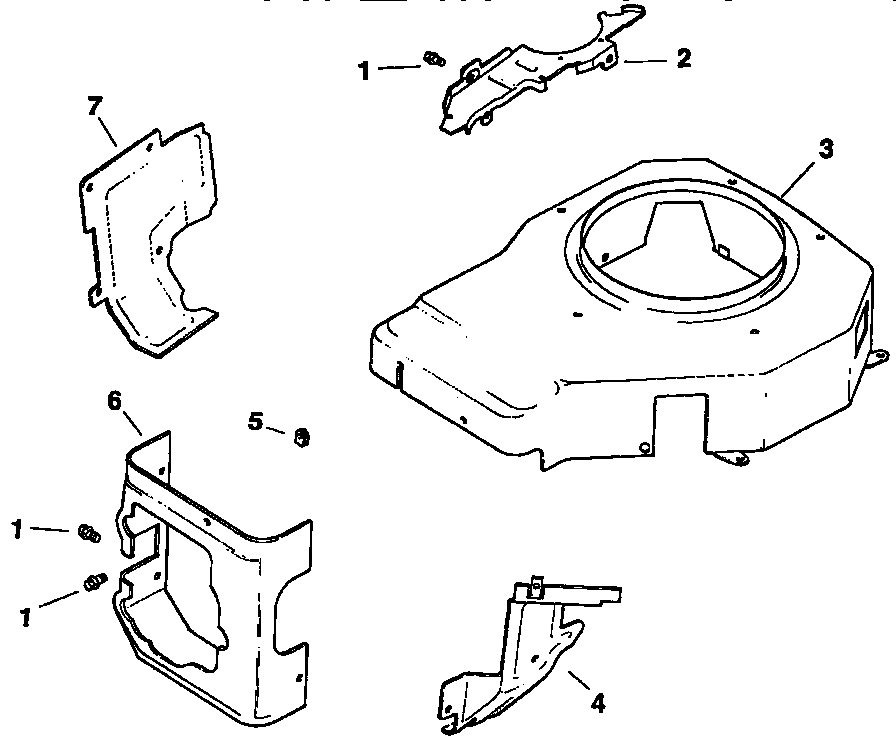

Use the engine’s ID tag, not the mower model number. On most front-engine riding mowers, the engine label is on the blower housing, valve cover area, or near the starter.

• Look for engine brand (Briggs & Stratton, Kohler, Tecumseh, etc.)
• Record the engine model, type, and code (or spec number)

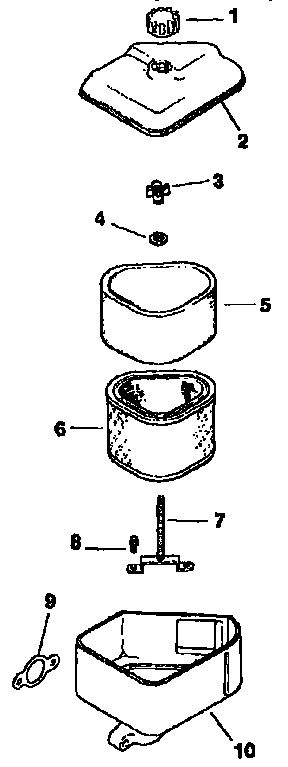

• Match the carburetor, air filter, spark plug, and starter to the engine ID, not the tractor ID
• If the label is missing, note cylinder count (single vs twin) and shaft orientation (vertical shaft is typical)
• Check for signs of fuel issues (stale gas, clogged filter) before assuming an engine failure

What “kind of engine” usually means (quick reference)

Most Craftsman front-engine lawn tractors like the 917252600 fall into these common engine categories:

Engine type	What it’s used for	What you’ll notice
Single-cylinder gas	Typical residential mowing	More vibration, simpler design
V-twin gas	Heavier mowing, smoother running	Quieter, smoother, often more torque
Vertical-shaft mower engine	Standard for riding mower decks	Belt-driven deck and pulleys

Why it matters

The engine identification determines the correct tune-up parts and troubleshooting path. For example, a no-start or hard-start complaint is often fuel, spark, or safety interlock related, not the tractor chassis.

If the engine clicks but won’t turn over, follow riding lawn mower engine clicks but doesnt turn over video. If it spins but won’t start, use riding lawn mower engine spins but wont start video.

Last updated: February 2026

Craftsman model 917252600 is a model number, not a date code, so it does not directly tell the year. To identify the year, we use the tractor’s product identification label (often under the seat or on the frame) and decode the manufacture date shown there.

Where to find the build date on a Craftsman lawn tractor

Look for a sticker or metal tag that includes a serial number and a date or date-coded string.

Common locations on model 917252600 tractors:

• Under the seat pan (lift the seat)
• On the rear frame near the hitch plate
• On the left or right frame rail under the footrest
• Near the engine compartment on the chassis

How the date code is typically formatted

Many Craftsman riding mowers and tractors use a 6-digit date format on the ID label:

• First 2 digits: month
• Next 2 digits: day
• Last 2 digits: year

Quick examples

Date code	Interprets as	Year
072811	July 28, 2011	2011
031905	March 19, 2005	2005
102214	October 22, 2014	2014

Why it matters

Knowing the build year helps us match the correct Craftsman parts and specs for your exact tractor configuration (deck, belts, mandrel style, and steering components can vary by production run).

Parts that commonly vary by production run

If you are ordering parts after you confirm the build year, these are frequent “fit depends on date” items:

• Deck drive and ground drive belts
• Blades and mandrel components
• Steering linkage parts

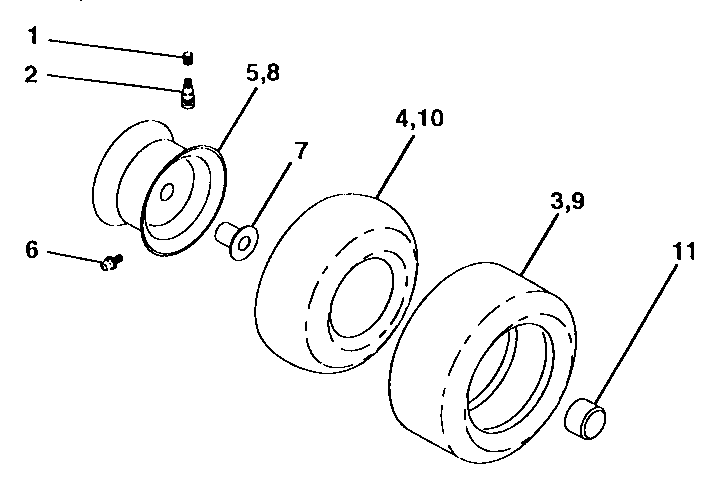

• Wheels, tires, and axle hardware

If you are replacing a deck component, match what is on your tractor now. For example, confirm whether your deck uses the same style as the husqvarna lawn tractor mulching blade, 21-in 532134149 before ordering.

Last updated: February 2026
