Model #LER6620PQ0 Whirlpool dryer

Here are the diagrams and repair parts for Whirlpool LER6620PQ0 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guideOwner’s manual

    Showing 10 of 130 parts

    Dryer Drum Belt#56

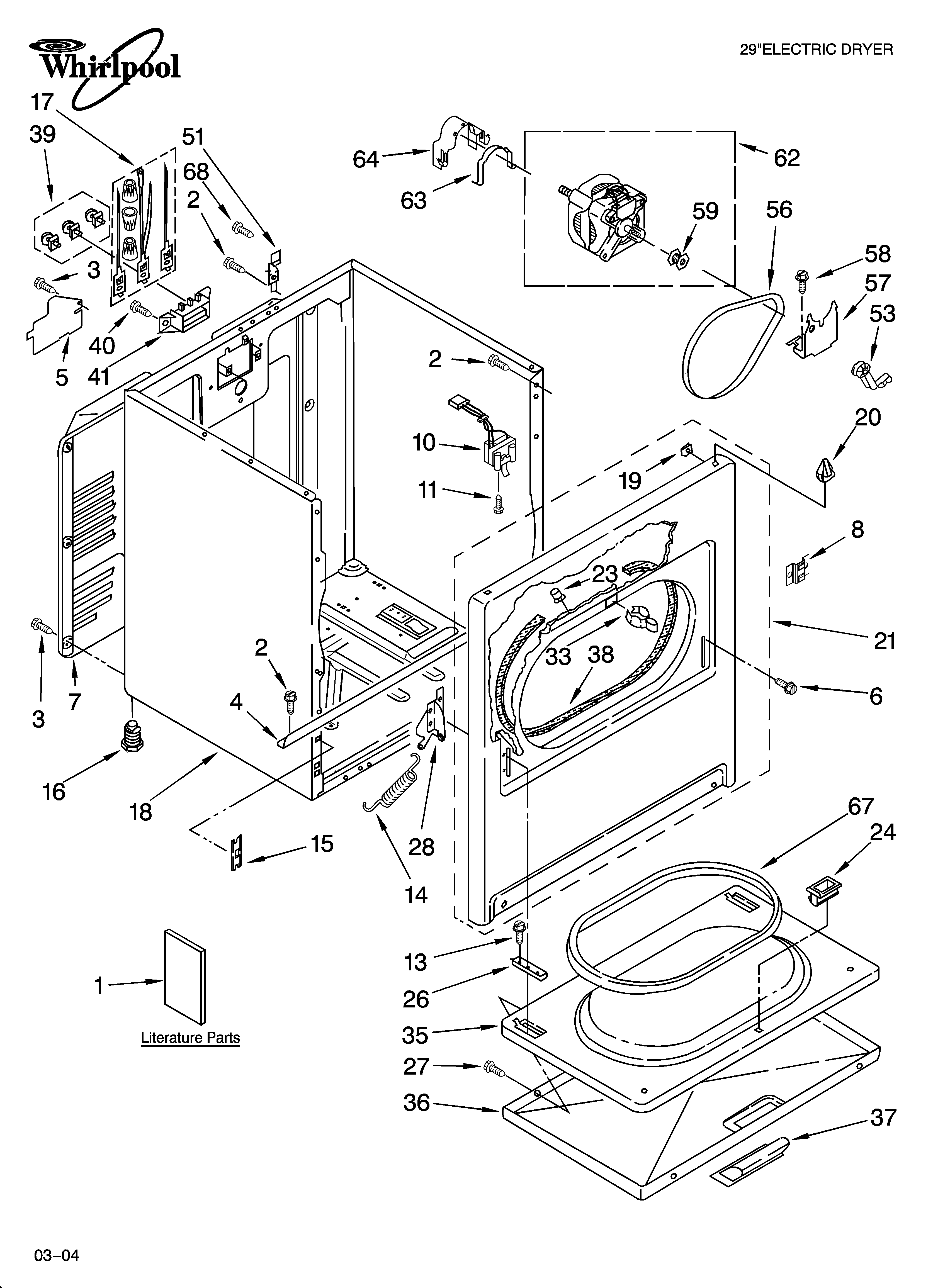

    Cabinet parts Diagram

    Drum belt

    Part #8066065
    Replaced by #341241
    ?
    Manufacturer substitution
    This part replaces 8066065. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $17.49
    Dryer Heating Element#17

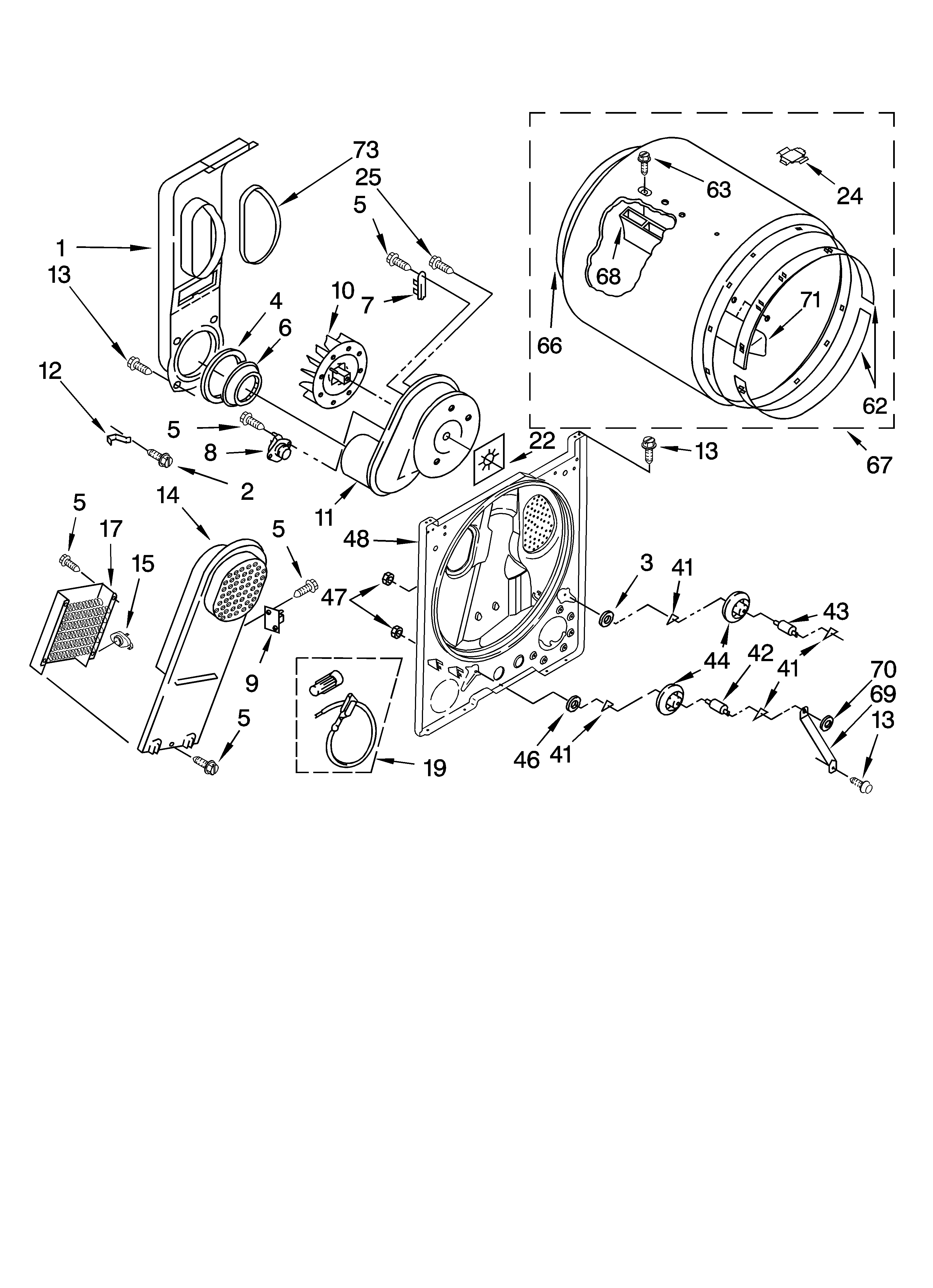

    Bulkhead parts Diagram

    Dryer element

    Part #3403585
    Replaced by #279838
    ?
    Manufacturer substitution
    This part replaces 3403585. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $69.99
    Dryer Thermal Fuse, 195-degree F#7

    Bulkhead parts Diagram

    Dryer thermal fuse

    Part #3392519
    Replaced by #WP3392519
    ?
    Manufacturer substitution
    This part replaces 3392519. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $19.99
    Dryer Repair Kit#NI

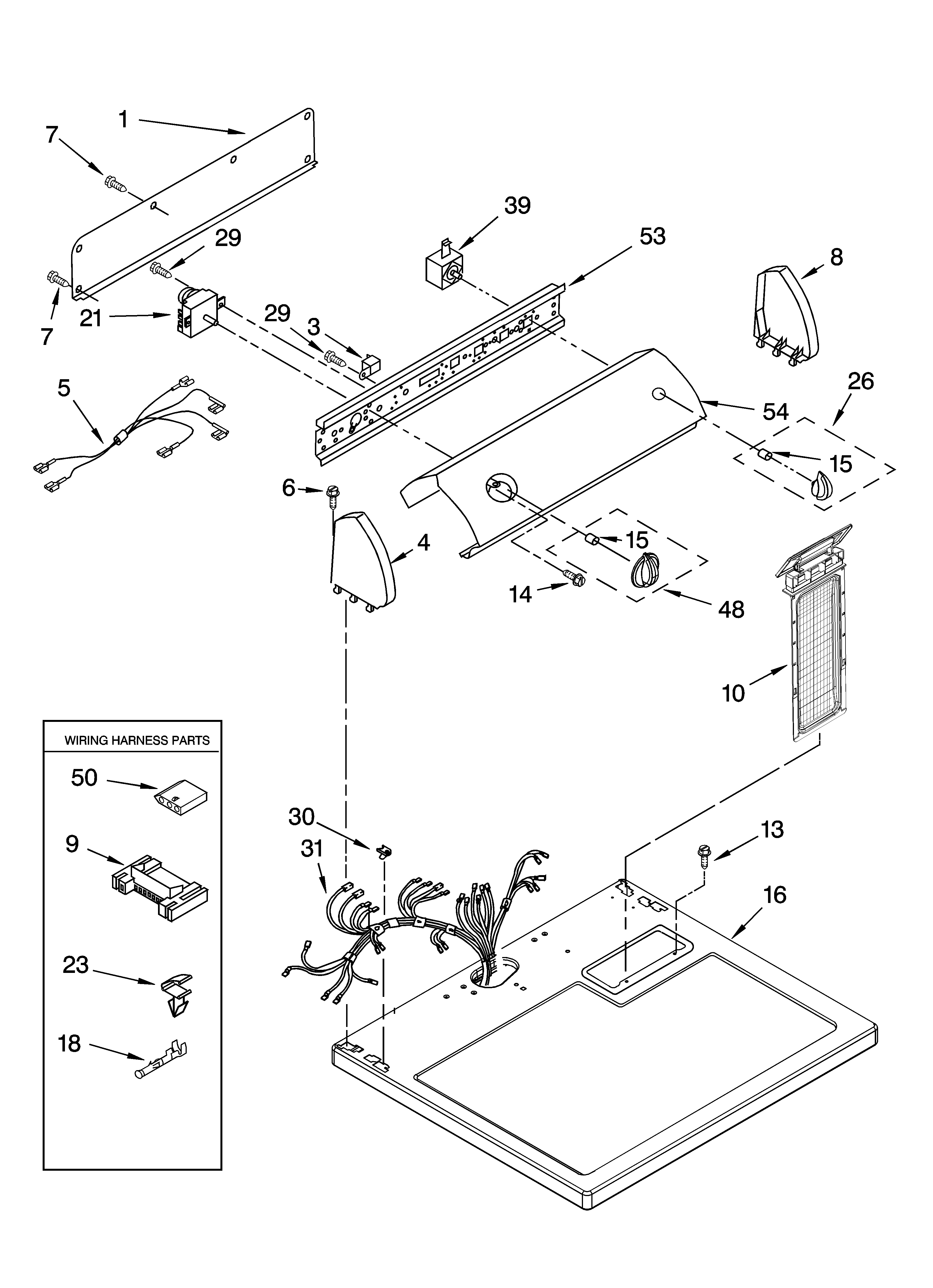

    Top and console parts Diagram

    Dryer repair kit

    Part #279948
    Replaced by #4392065
    ?
    Manufacturer substitution
    This part replaces 279948. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $27.09 |
    42% OFF
    MSRP: $47.00
    Dryer Door Switch#10

    Cabinet parts Diagram

    Dryer door switch

    Part #3406107
    Replaced by #WP3406107
    ?
    Manufacturer substitution
    This part replaces 3406107. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $28.89
    Dryer Drum Support Roller Kit#44

    Bulkhead parts Diagram

    Support

    Part #3397588
    Replaced by #349241T
    ?
    Manufacturer substitution
    This part replaces 3397588. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $21.99
    Dryer Lint Screen (White)#10

    Top and console parts Diagram

    Screen (white)

    Part #8557857
    Replaced by #WPW10717210
    ?
    Manufacturer substitution
    This part replaces 8557857. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $58.89
    Dryer Door Latch Kit#33

    Cabinet parts Diagram

    Strike

    Part #696144
    Replaced by #279570
    ?
    Manufacturer substitution
    This part replaces 696144. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $6.39 |
    51% OFF
    MSRP: $13.00
    Dryer Drive Motor#62

    Cabinet parts Diagram

    Dryer motor

    Part #8538262
    Replaced by #279827
    ?
    Manufacturer substitution
    This part replaces 8538262. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $106.39 |
    18% OFF
    MSRP: $130.00
    Dryer Idler Pulley#53

    Cabinet parts Diagram

    Dryer idler pulley

    Part #691366
    Replaced by #WP691366
    ?
    Manufacturer substitution
    This part replaces 691366. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $22.19
