If your Kenmore dryer model 11087561603 runs but won’t heat (or takes much longer to dry), the heating element is a top suspect. We confirm it by doing a quick “heat check” during a Timed Dry cycle, then testing the element for continuity with a multimeter; a failed element typically shows no continuity.

1. Run a heat check (matches the steps in the 11087561603 owner's manual): start a Timed Dry heated cycle (not Air Only). After about 5 minutes, open the door and feel for heat.

2. Verify power and airflow, because either one can mimic a bad element:

• Make sure the dryer is on a 240V supply (electric dryers need 240V).
• Check both household fuses or breakers (many electric dryers use two).
• Confirm the vent is not crushed or kinked and the dryer is level.

Safety first: unplug the dryer (and shut off the breaker) before opening panels.

• Access the heater terminals (location varies by design; use the 11087561603 owner's manual for panel access guidance).
• Set your multimeter to ohms/continuity.
• Touch probes to the element terminals.
• Good element: shows continuity (a steady reading, often in a low-to-mid ohms range).
• Bad element: shows no continuity (open circuit, infinite/OL).

A restricted vent or a tripped safety device can stop heat and can also overheat the heater housing. Fixing airflow issues first helps prevent repeat failures after replacing a heating element.

Last updated: January 2026

For Kenmore dryer model 11087561603, replacing the heating element typically costs $70 to $120 for parts if you do it yourself, and about $200 to $400 total when you include professional labor. Your exact total depends on whether any wiring or safety fuses also need replacement.

If your dryer overheated or had a restricted vent, we often see additional parts needed along with the element:

• Dryer heating element WP3387747
• Dryer thermal cut-off fuse kit 279973
• Dryer heating element wire kit 279457
• Dryer vent cleaning supplies (not a dryer part, but often necessary)

A “no heat” complaint is not always the heating element. We recommend these quick checks first:

• Clean the lint screen and confirm strong airflow at the outside vent hood.
• Verify the dryer is getting full power (many electric dryers can run on partial power but not heat).
• Check for a clogged vent or crushed exhaust pipe that can cause overheating.
• If the dryer smells “new” after a repair, a brief odor from a new electric heating element can be normal for the first cycle.

For model-specific access steps and safety notes, follow the 11087561603 owner’s manual.

A restricted vent can overheat the heater housing and repeatedly blow thermal protection devices, turning a one-part repair into a repeat failure. Fixing airflow first helps the new heating element last.

Last updated: January 2026

Replacing a switch on Kenmore dryer model 11087561603 typically costs $50 to $150 when a technician supplies the part and labor; DIY is usually $15 to $60 for the part. The exact total depends on which switch failed (door switch vs. start switch) and access time.

• Switch part: $15 to $60 (most dryer switches fall in this range)
• Labor: 0.5 to 1.0 hour for many models
• Service call/diagnostic: commonly added if you have not confirmed the failed part
• Extra parts: terminals, harness repair, or a latch if the door is not closing correctly

These steps match common “won’t start” causes listed for this model family in the 11087561603 owner's manual:

• Verify the door closes firmly and the latch engages
• For electric dryers, check both household fuses/breakers (many use two)
• Press and hold Start for about 1 second
• Unplug the dryer and inspect for loose wire connectors at the door-switch area
• If the drum turns but there is no heat, troubleshoot heating components (for example the dryer thermal cut-off fuse kit 279973) separately

A failed door switch can stop the dryer from running at all because it is a safety interlock. Confirming power and door-latch operation first prevents paying for the wrong part or an unnecessary service call.

Last updated: January 2026

OEM part number 279838 is a dryer heating element used on many Whirlpool built electric dryers; it is not the heating element we match to Kenmore dryer model 11087561603. For this model, the correct heating element is 3387747 (part ID WP3387747).

We match by model first because Kenmore 110 series dryers can use different heater housings and terminal layouts.

• Confirm the full model number on the door frame label: 11087561603

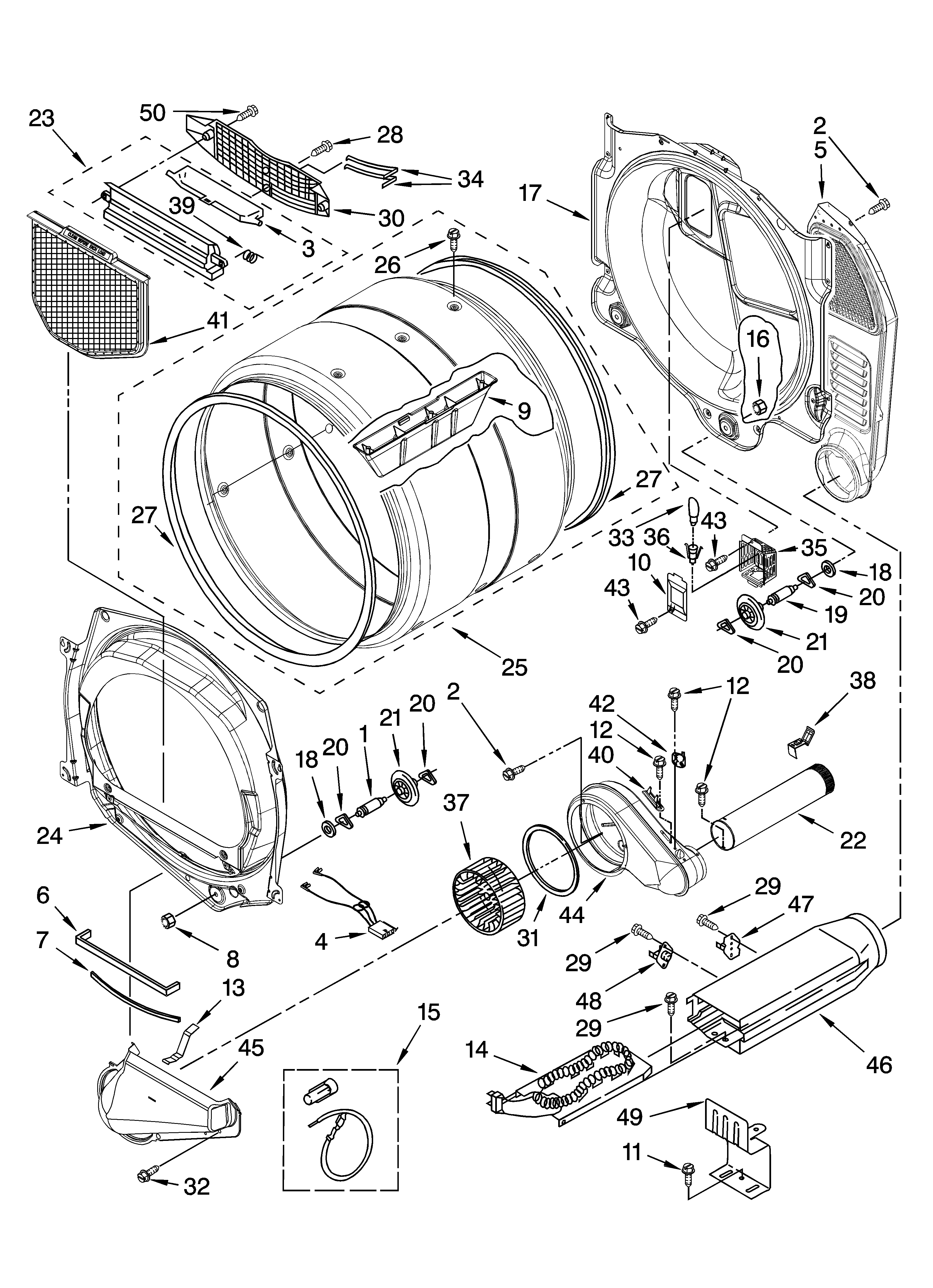

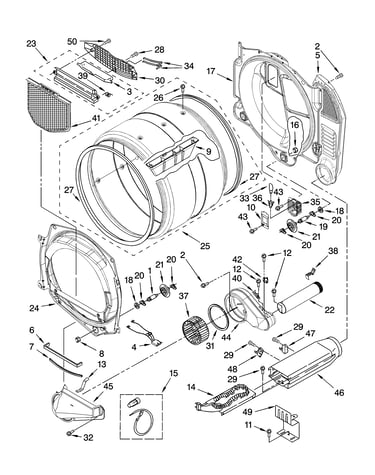

• Use the parts diagram to identify the heater assembly used in your exact build
• Compare mounting points and terminal orientation to your original element
• Check the element coil for an open circuit with a multimeter
• Inspect wiring for heat damage before installing a new element

Using the model matched heating element prevents fit issues (wrong housing, terminals, or mounting) and helps restore proper heat output and cycle performance. It also reduces repeat failures caused by poor connections or overheating.

For wiring notes, access panels, and safety steps, follow the 11087561603 owner's manual.
