Model # LMV1683ST/00 Official LG microwave

Here are the diagrams and repair parts for Official LG LMV1683ST-00 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

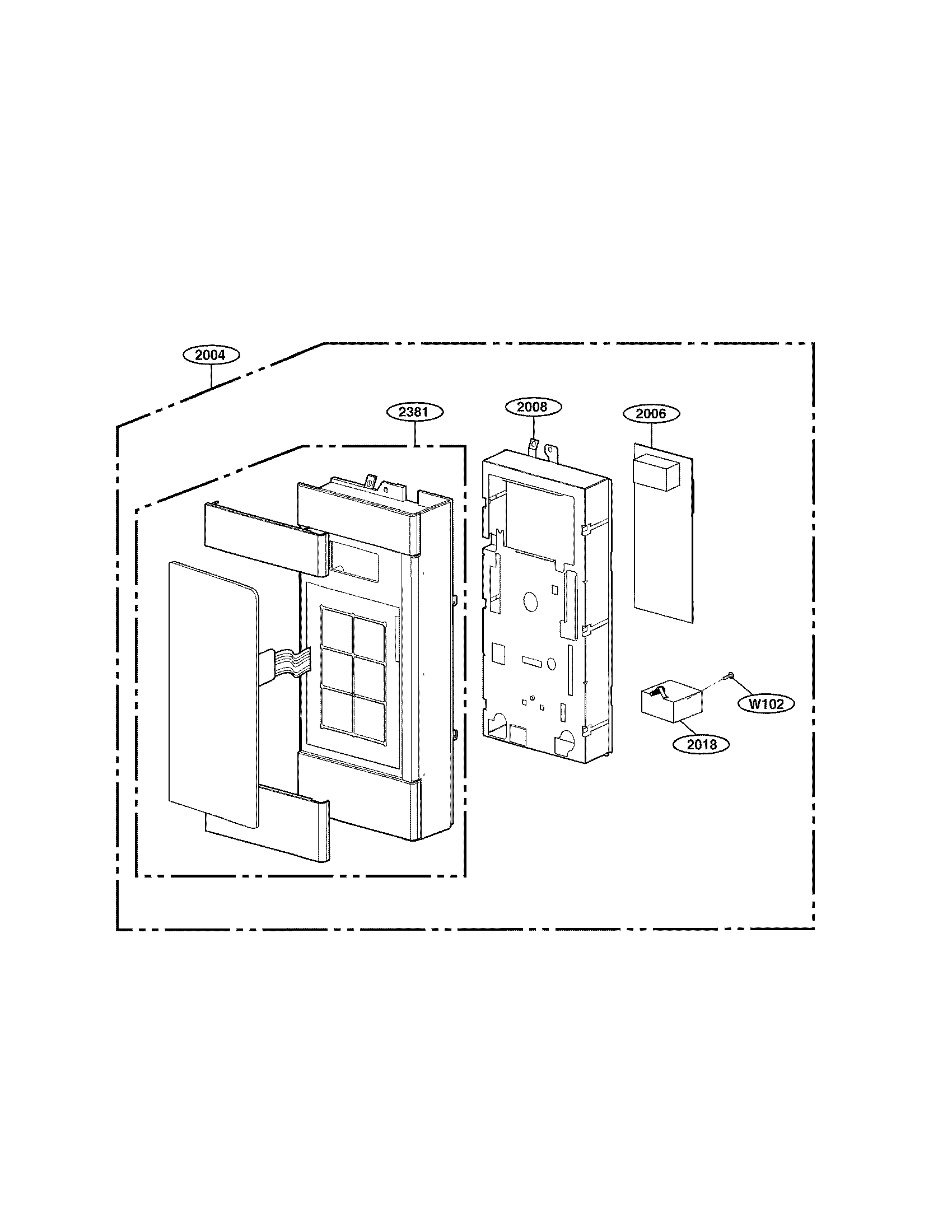

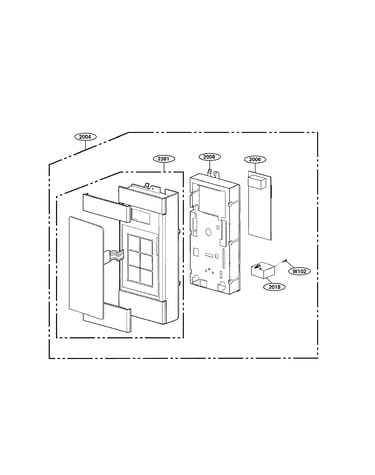

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |

Magnetron 2B71165P
#5009

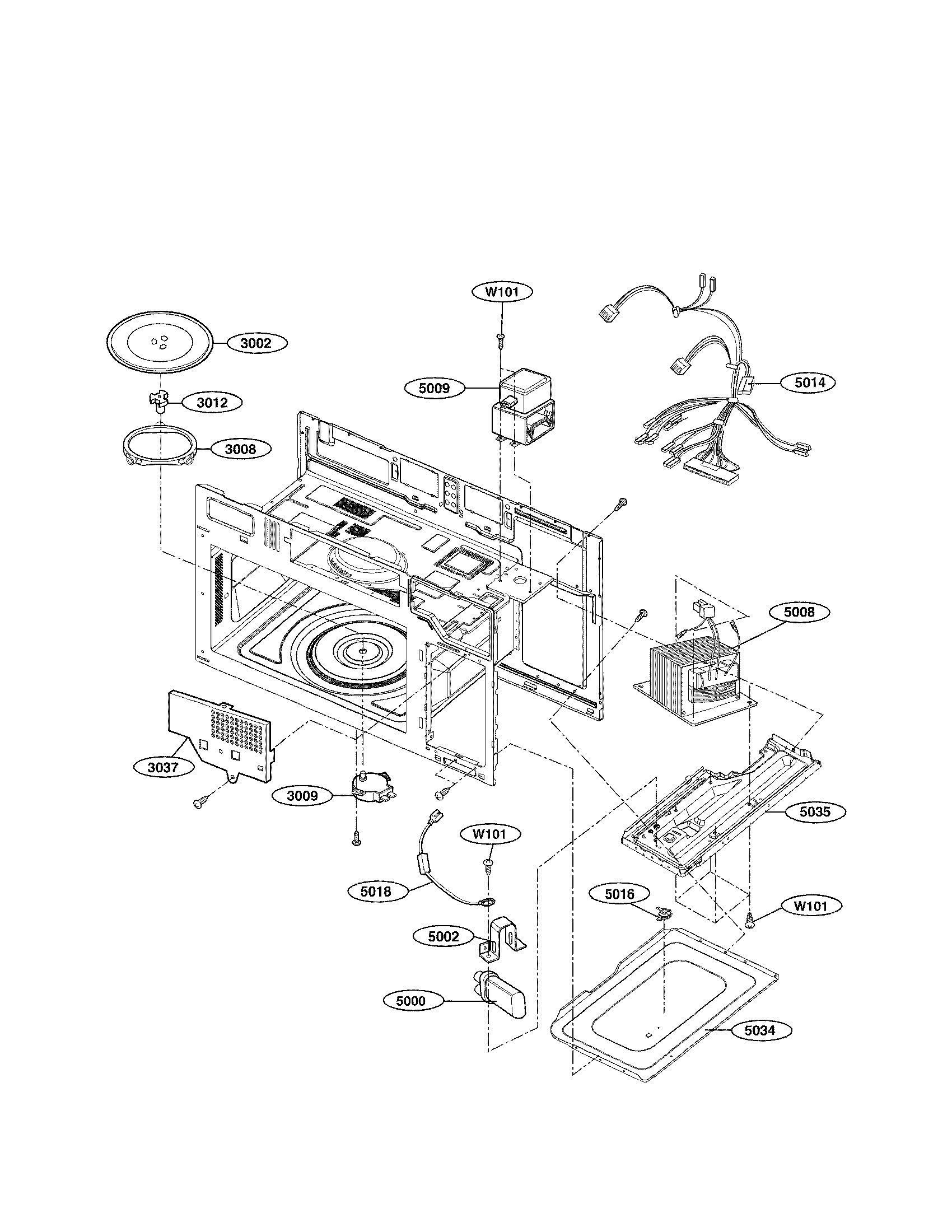

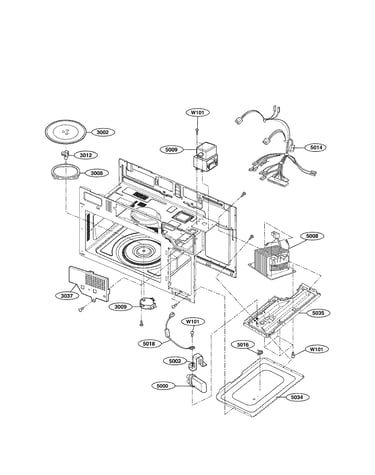

Interior parts i diagram

Magnetron

Part #2B71165P

The manufacturer no longer makes this part, and there's no substitute part

Cable Assembly 6851W1A002B
#5018

Interior parts i diagram

Cable assembly

Part #6851W1A002B

Replaced by #6021W3B001V

?
Manufacturer substitution
This part replaces 6851W1A002B. Substitute parts can look different from the original.
BEST SELLER
$8.73
10% OFF Phone Price : $9.73
In Stock
Microwave Light Bulb (replaces 3b70067f, 6912w3q001a, 6912w3q001d) 6912W1Z004B
#3028

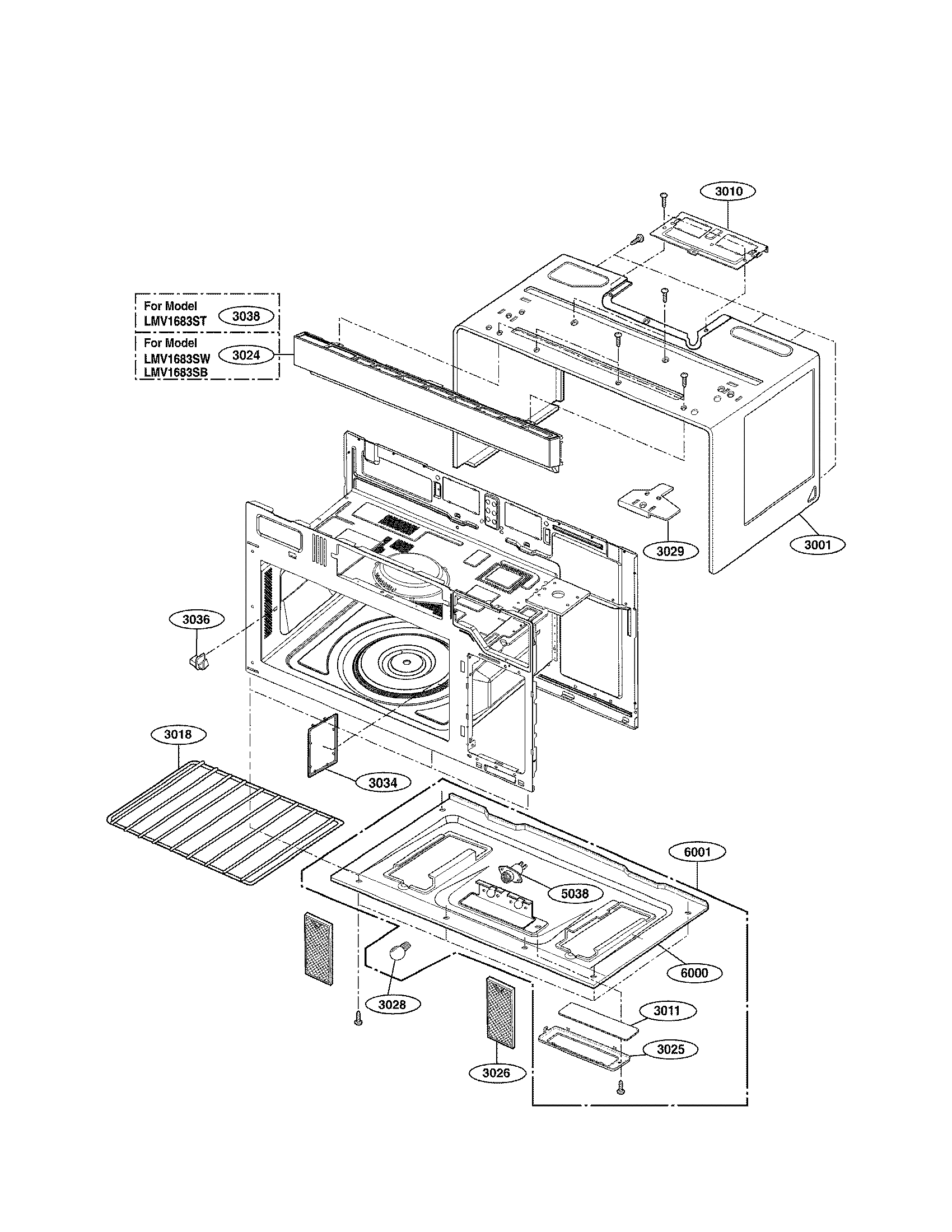

Oven cavity parats diagram

Microwave light bulb (replaces 3b70067f, 6912w3q001a, 6912w3q001d)

Part #6912W1Z004B

BEST SELLER
$9.85
9% OFF Phone Price : $10.85
In Stock
Capacitor 0CZZW1H001Q
#5000

Interior parts i diagram

Capacitor

Part #0CZZW1H001Q

Replaced by #0CZZW1H004C

?
Manufacturer substitution
This part replaces 0CZZW1H001Q. Substitute parts can look different from the original.
BEST SELLER
$27.47
15% OFF Phone Price : $32.47
In Stock
Microwave Charcoal Filter 2B72706D
#5037

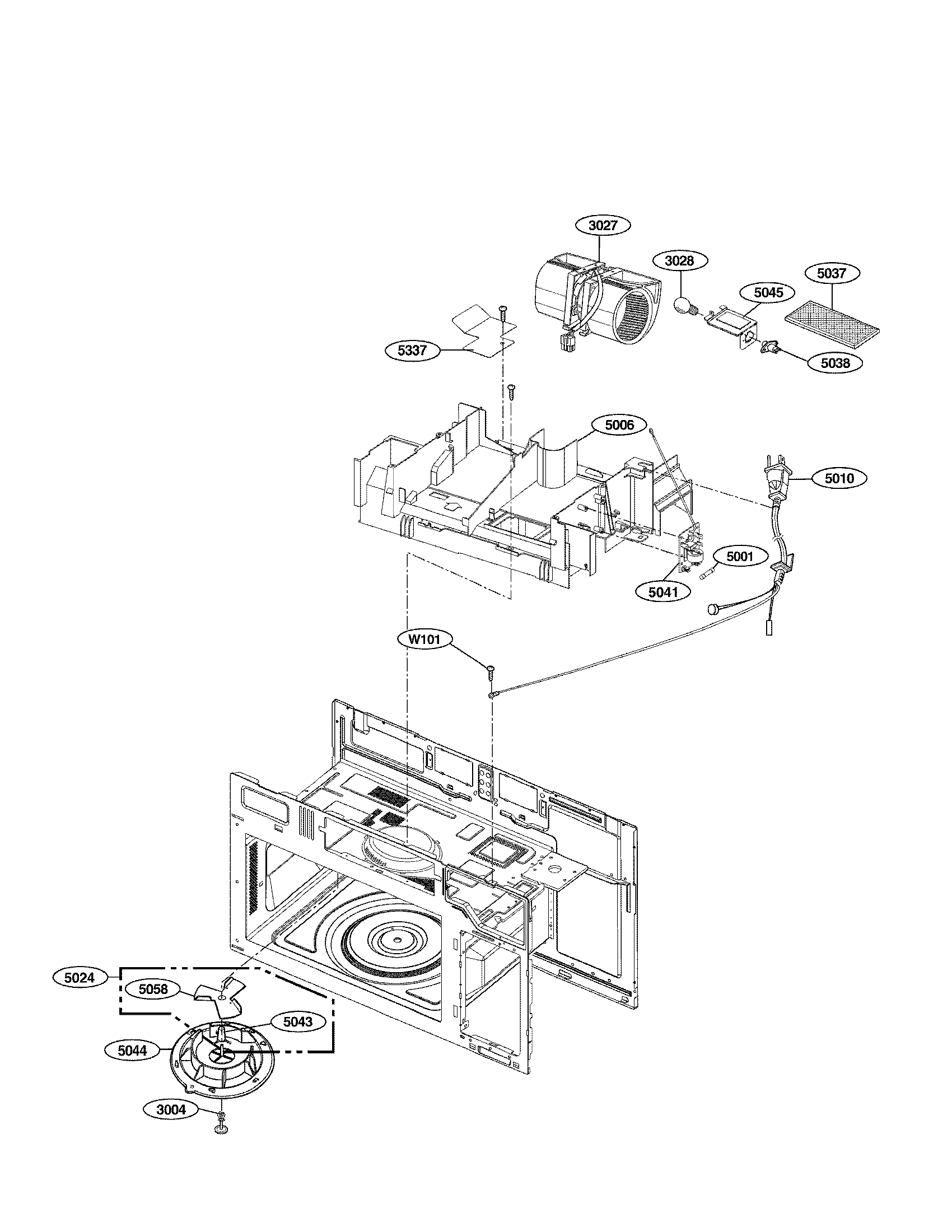

Interior parts ii diagram

Microwave charcoal filter

Part #2B72706D

Replaced by #5230W1A011E

?
Manufacturer substitution
This part replaces 2B72706D. Substitute parts can look different from the original.
BEST SELLER
$15.64
11% OFF Phone Price : $17.64
In Stock
Microwave Door Interlock Switch (replaces 6600w1k003d) 6600W1K001D
#4002

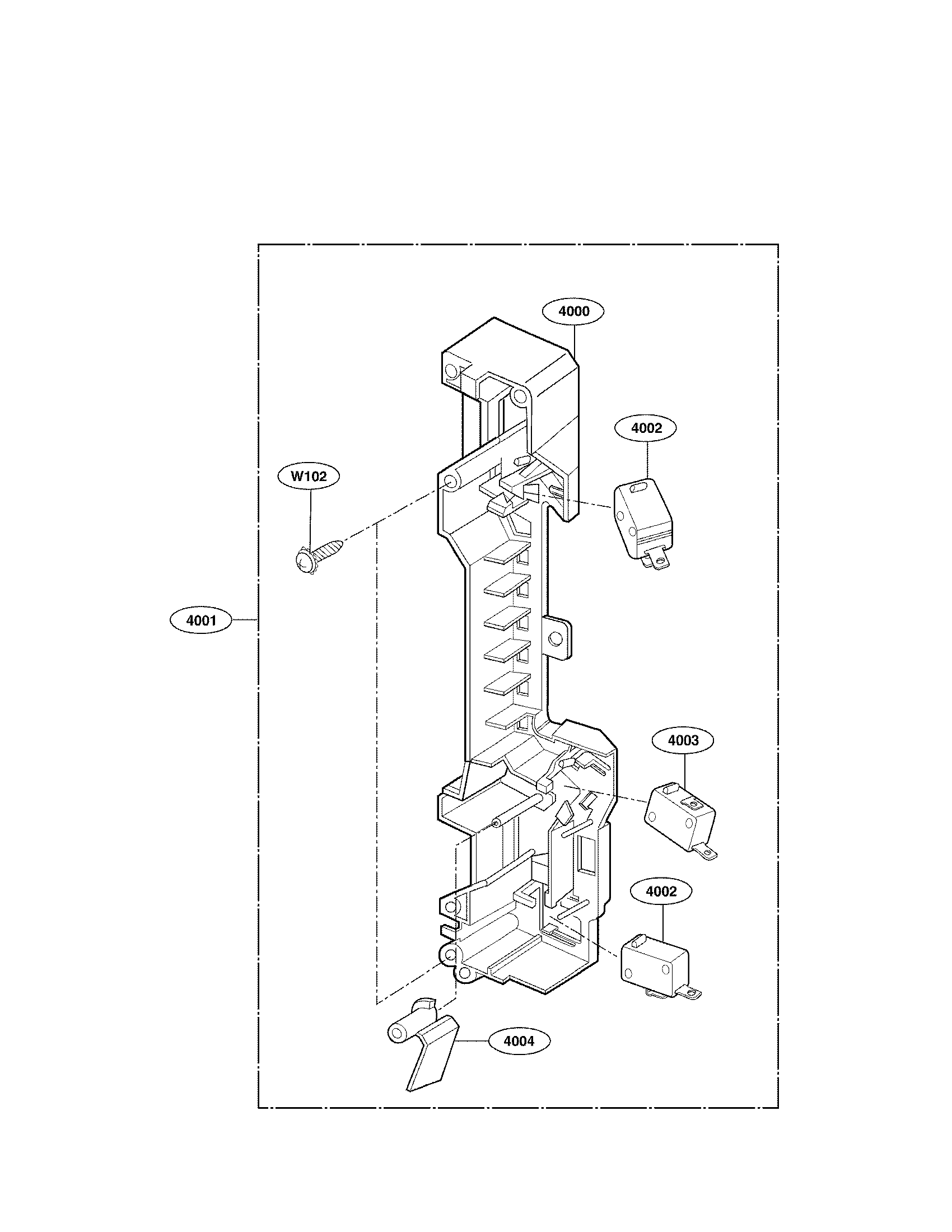

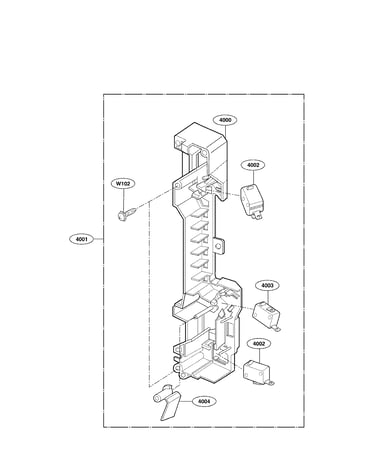

Latch board parts diagram

Microwave door interlock switch (replaces 6600w1k003d)

Part #6600W1K001D

BEST SELLER
$10.05
17% OFF Phone Price : $12.05
In Stock
Microwave Fuse 3B74133K
#5001

Interior parts ii diagram

Microwave fuse

Part #3B74133K

BEST SELLER
$7.62
12% OFF Phone Price : $8.62
In Stock
Stirrer Cover 3550W1A126A
#5044

Interior parts ii diagram

Stirrer cover

Part #3550W1A126A

Replaced by #3550W1A126D

?
Manufacturer substitution
This part replaces 3550W1A126A. Substitute parts can look different from the original.
BEST SELLER
$14.64
12% OFF Phone Price : $16.64
In Stock
Microwave Mounting Plate 3300W0A045A
#6008

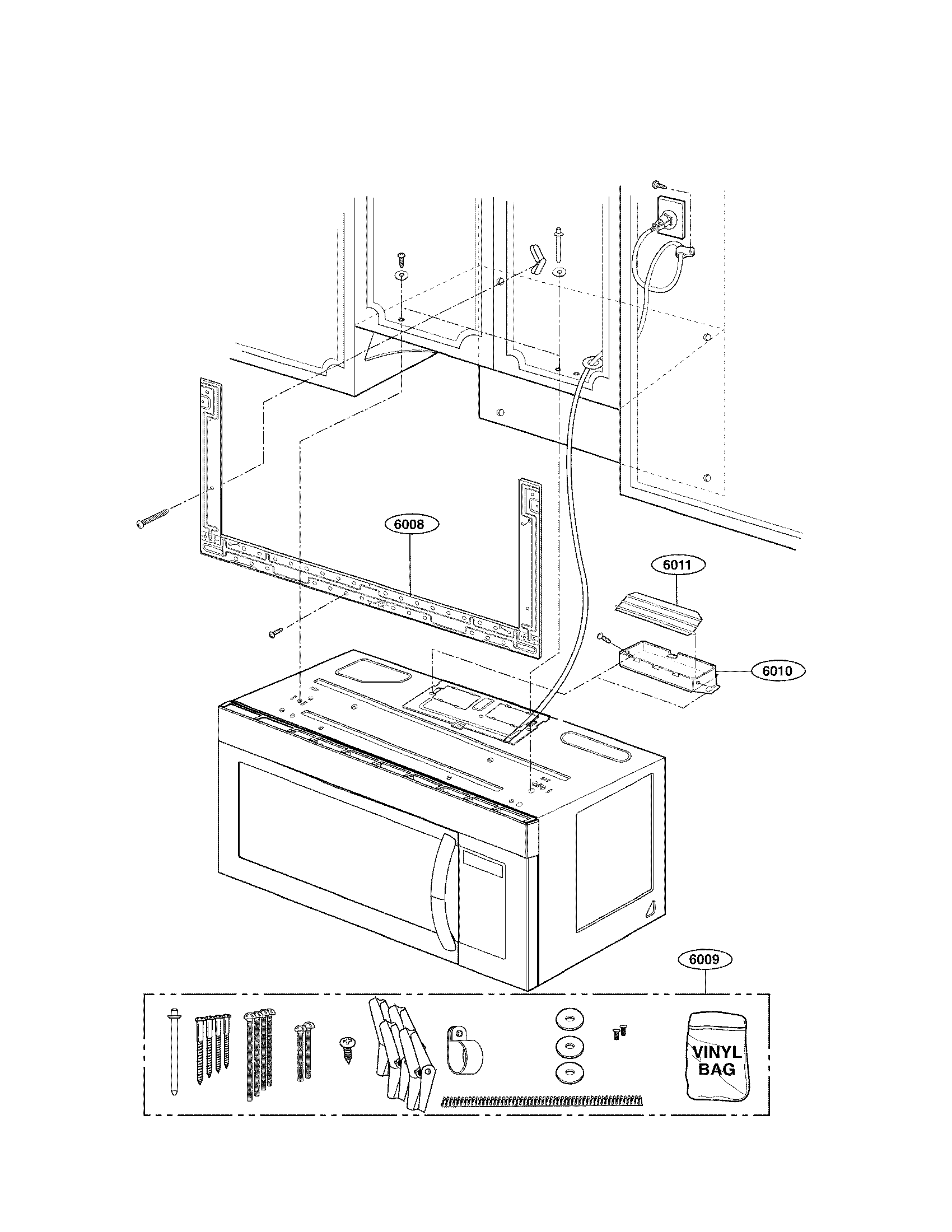

Installation parts diagram

Microwave mounting plate

Part #3300W0A045A

BEST SELLER
This item is not returnable
$14.64
12% OFF Phone Price : $16.64
In Stock
Microwave Door Latch Spring 4970WRA001G
#1007

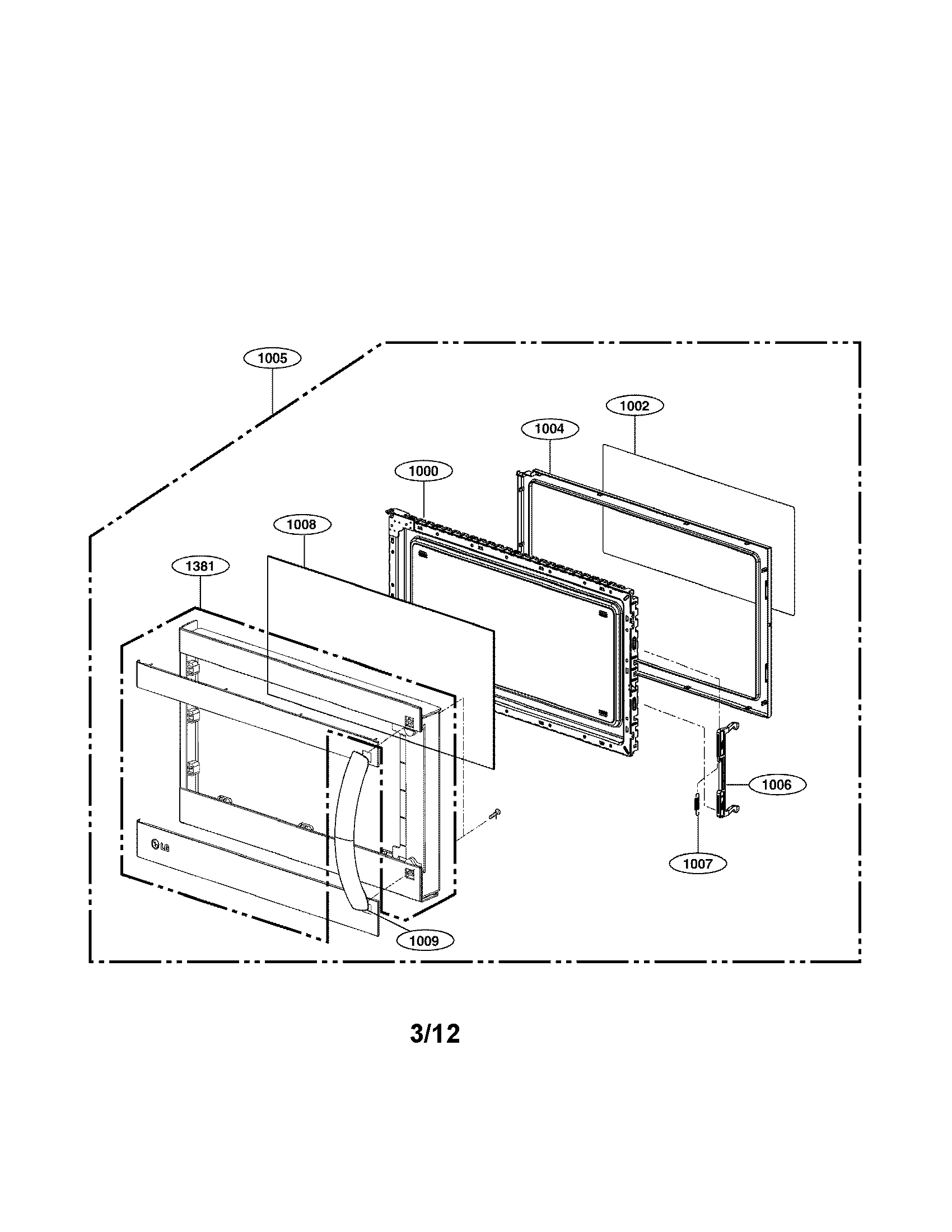

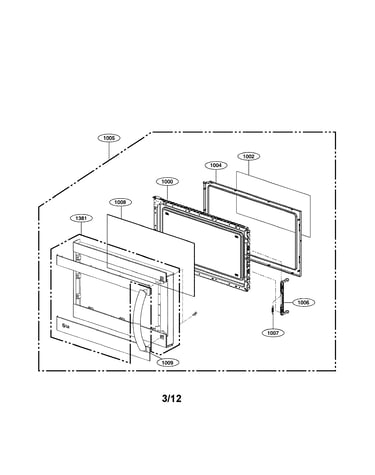

Door parts diagram

Microwave door latch spring

Part #4970WRA001G

BEST SELLER
This item is not returnable
$6.13
14% OFF Phone Price : $7.13
In Stock
