Model # 580325600 Official Craftsman ac generator

Here are the diagrams and repair parts for Official Craftsman 580325600 ac generator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

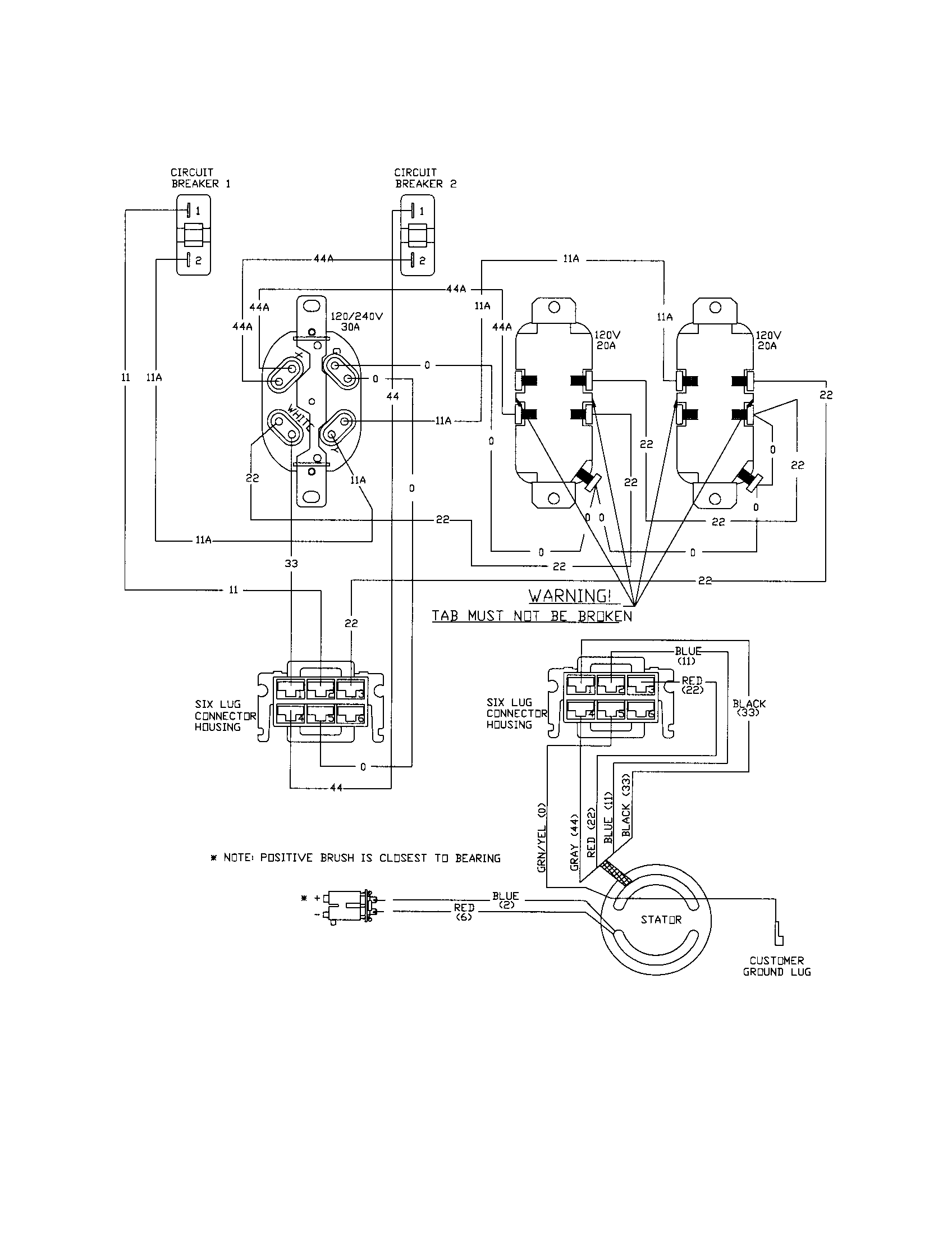

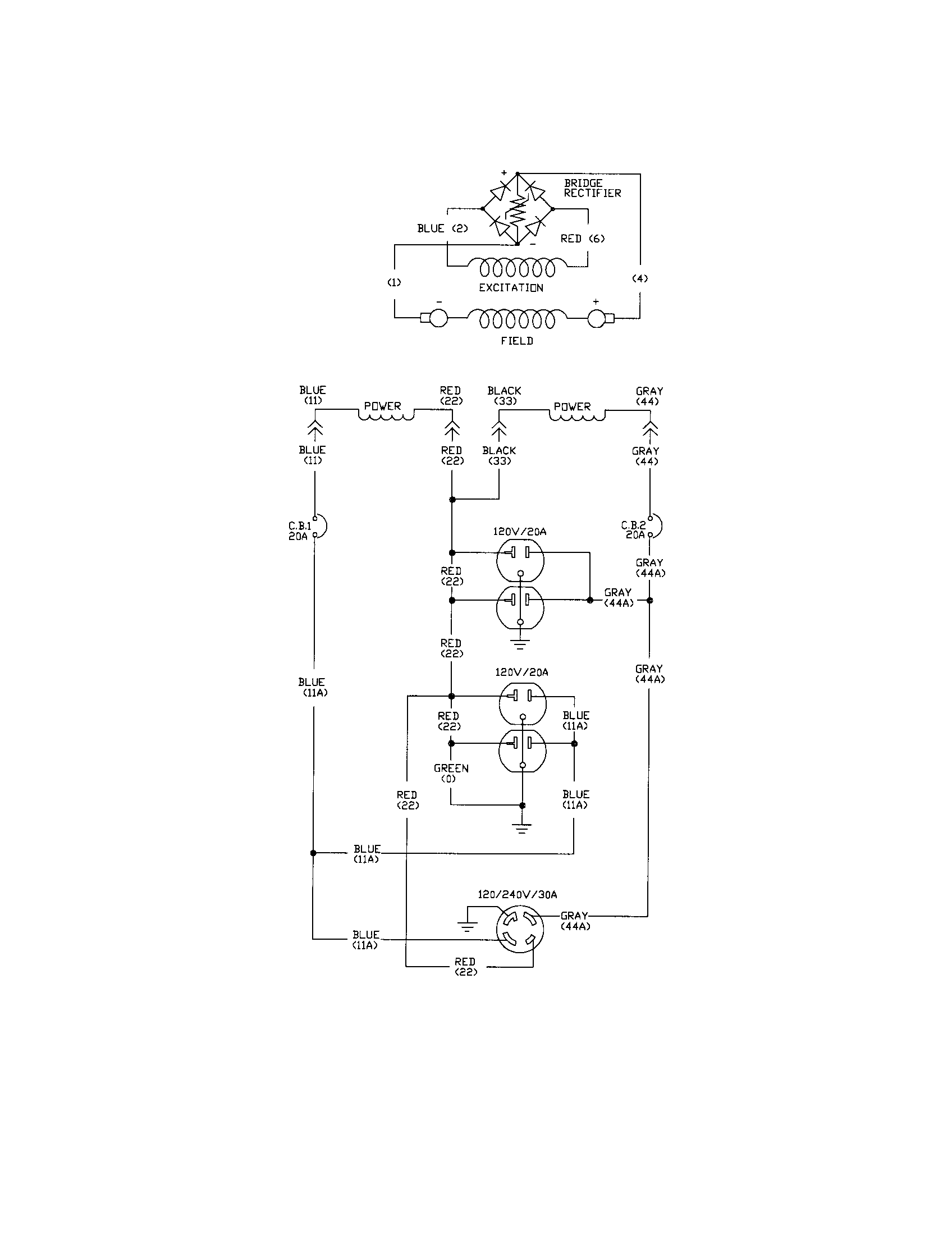

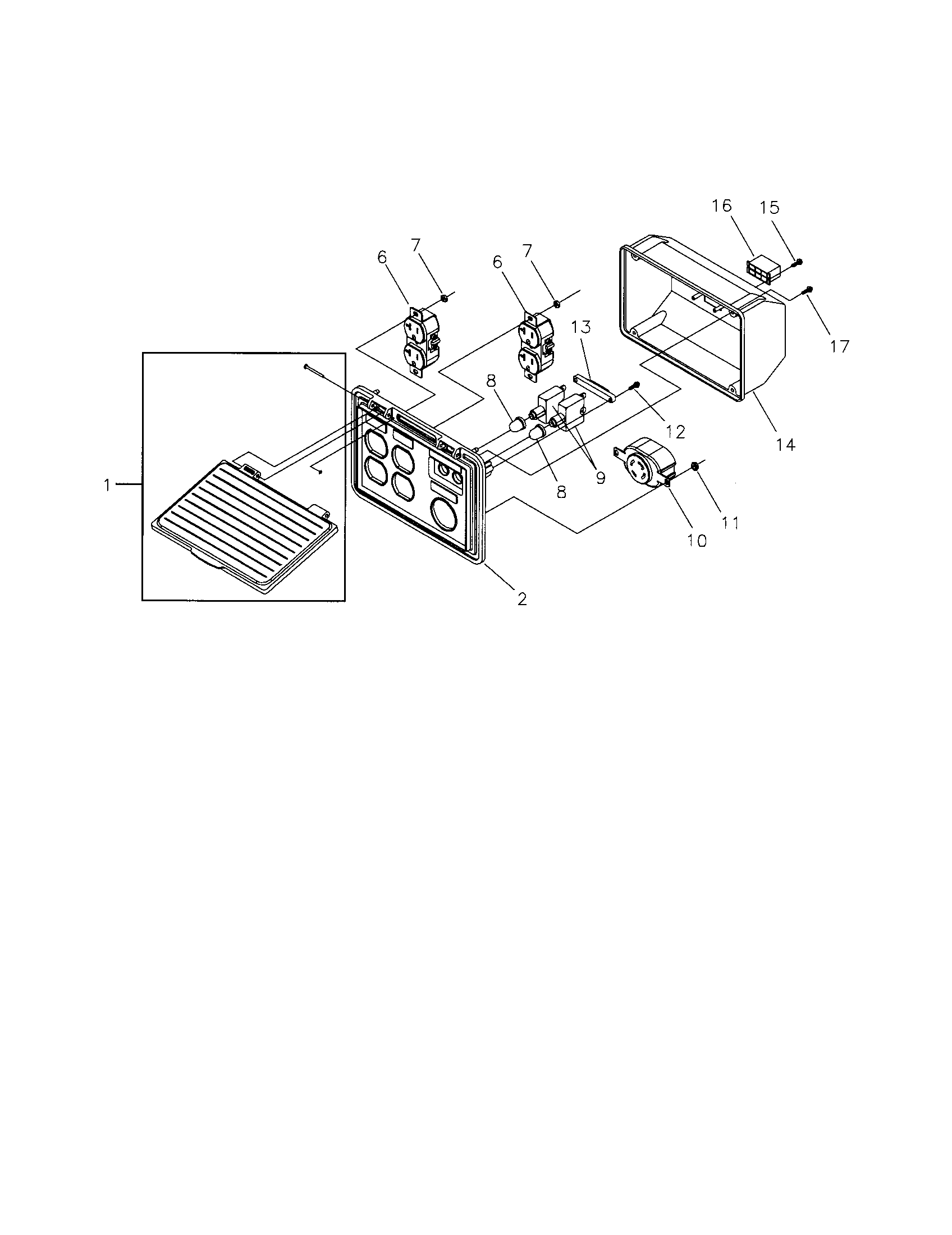

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |

Generator Fuel Shut-off Valve Kit (replaces 78299gs, 80270gs) 192980GS
#41

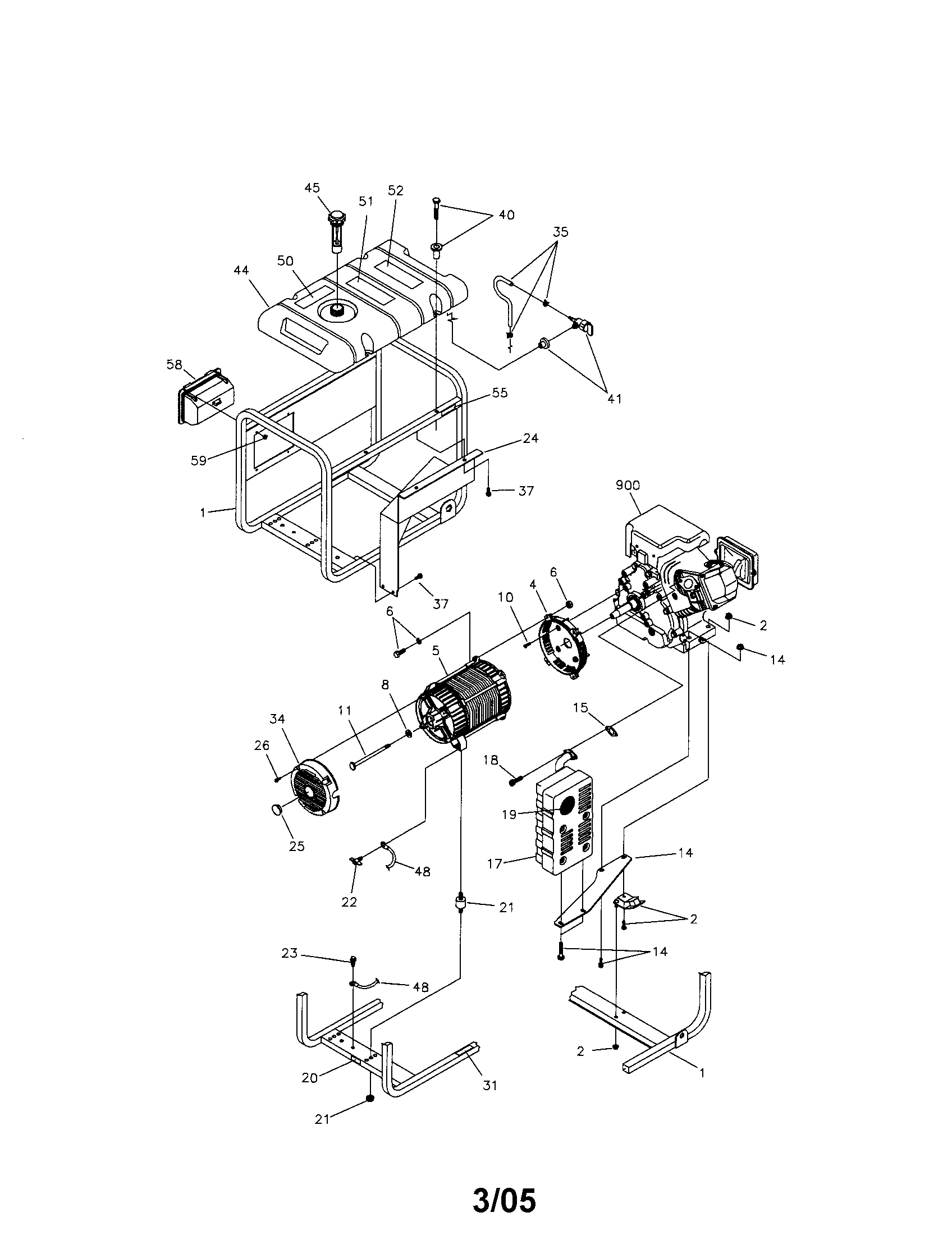

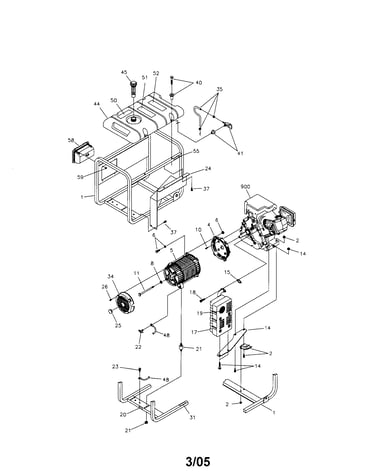

Main unit diagram

Generator fuel shut-off valve kit (replaces 78299gs, 80270gs)

Part #192980GS

BEST SELLER
$25.94
16% OFF Phone Price : $30.94
In Stock
Generator Fuel Tank Cap With Gauge (replaces 85134) B4363GS
#45

Main unit diagram

Generator fuel tank cap with gauge (replaces 85134)

Part #B4363GS

$55.19
8% OFF Phone Price : $60.19
In Stock
Generator Cover 195422GS
#34

Main unit diagram

Generator cover

Part #195422GS

$20.42
20% OFF Phone Price : $25.42
In Stock
Generator E-ring 191265GS
#7

Wheel kit diagram

Generator e-ring

Part #191265GS

Replaced by #703977

?
Manufacturer substitution
This part replaces 191265GS. Substitute parts can look different from the original.
This item is not returnable
In Stock
Hardware 194151GS
#6

Main unit diagram

Hardware

Part #194151GS

In Stock
Hex Head Cap Screw 86308HGS
#5

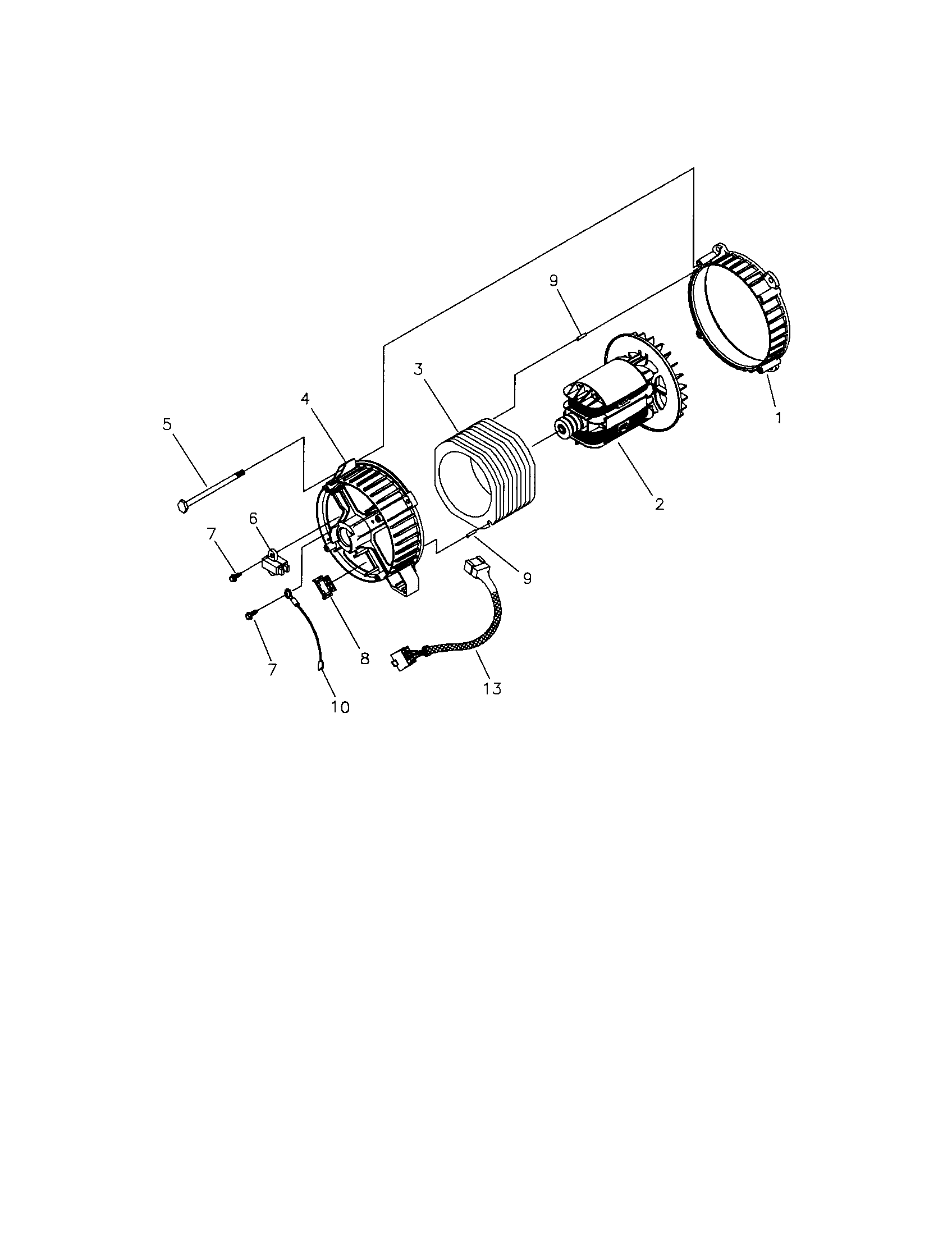

Alternator diagram

Hex head cap screw

Part #86308HGS

In Stock
Belt Cap Rotor 191190GS
#25

Main unit diagram

Belt cap rotor

Part #191190GS

This item is not returnable
In Stock
Lawn & Garden Equipment Screw 66849GS
#7

Alternator diagram

Lawn & garden equipment screw

Part #66849GS

In Stock
Cap 189716GS

#NI08

All parts diagram

Cap

Part #189716GS

This item is not returnable
In Stock
Generator Brush Holder And Rectifier Assembly 91825GS
#6

Alternator diagram

Generator brush holder and rectifier assembly

Part #91825GS

$73.02
6% OFF Phone Price : $78.02
In Stock
