What is the most common problem with the Maytag dryer?
On the Maytag MDG4000AWW dryer, the most common problems we see are no heat or weak heat from restricted airflow (lint buildup or a clogged vent) and noisy or poor tumbling from normal wear on drum support parts. Fixing airflow first prevents repeat failures.
Most common symptoms and what they usually mean
- Runs but won’t heat (gas model): ignition or flame sensing issue, or airflow restriction causing overheating and shutdown
- Takes too long to dry: vent restriction, crushed vent hose, or lint buildup in the blower housing
- Loud rumbling or thumping: worn drum support roller(s)
- Squealing: worn idler pulley or belt routing/tension issue
- Stops mid-cycle or won’t start: overheating protection opening due to blocked venting or poor internal airflow
Quick checks we recommend first (fastest wins)
- Clean the lint screen and confirm strong airflow at the outside vent hood.
- Inspect the vent path for kinks, long runs, or lint blockage (dryer outlet to exterior).
- Confirm proper power: gas dryers still need 120V, 60 Hz on a 15A circuit for the motor and controls.
- If it tumbles but heat is inconsistent, check common gas-heat components like the radiant sensor and igniter.
Common parts involved on MDG4000AWW
| Symptom | Common suspect part | Example part for this model |
|---|---|---|
| No heat or intermittent heat | Radiant sensor or igniter | Gas sensor WP338906, gas igniter 4391996 |

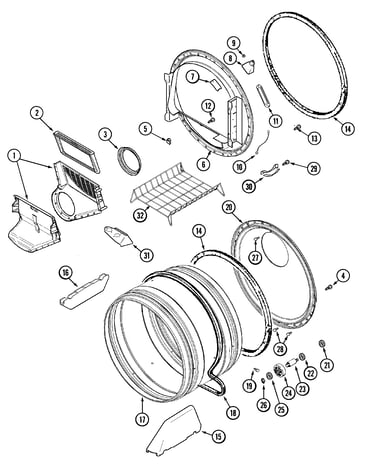

| Loud rumble/thump | Drum support roller | Roller w/bea 12001541 |
| Won’t tumble or slips | Drive belt | Belt, tumble WP33002535 |
Why it matters
A restricted vent is the root cause behind many “dryer problems” because it traps heat and lint inside the cabinet. That extra heat stresses thermostats, sensors, and ignition components, and it also makes loads take longer to dry.
Safety and installation note for gas dryers
For MDG4000AWW gas installations, use the correct gas type (Natural or LP) and follow the shutoff valve and supply line requirements in the installation guide. LP conversion should be done by a qualified technician.
Last updated: January 2026
What's the life expectancy of a Maytag dryer?
Most Maytag dryers, including the Maytag MDG4000AWW, typically last 10 to 15 years with normal household use. Regular lint and vent maintenance, plus replacing wear items like belts and rollers when needed, is what most often determines whether you land closer to 10 years or closer to 15.
Typical lifespan and what affects it
A dryer’s life is mainly driven by heat, airflow, and moving-part wear. For the MDG4000AWW gas dryer, correct installation and safe gas and electrical setup also help prevent premature failures (see the MDG4000AWW installation guide).
Common factors that shorten dryer life:
- Restricted venting (overheats the dryer and stresses thermostats)
- Overloading (stresses the belt, drum rollers, and motor)
- Skipping lint removal (reduces airflow and increases heat)
- Running on the wrong gas type or improper conversion (gas models)
- Worn drum support parts causing drag and noise
Maintenance checklist to reach the high end of the range
We recommend these habits for Maytag gas dryers:
- Clean the lint screen before every load
- Inspect and clean the vent path regularly (dryer outlet to exterior hood)
- Keep loads medium-sized so the drum turns freely
- Listen for squealing, thumping, or grinding and address it early
- If heat becomes inconsistent, test common heat-control parts before repeated cycling
Wear parts you may replace during ownership
These are common “life-extending” repairs on a dryer like the MDG4000AWW:
| Symptom | Common wear area | Example part for this model |
|---|---|---|
| Drum not turning, burning rubber smell | Drive belt | Belt, tumble WP33002535 |
| Thumping or rumbling | Drum support rollers | Roller w/bea 12001541 |
| Noisy scraping at rear of drum | Drum bearing/seal area | Dryer drum bearing kit 306508 |
Why it matters
A dryer that is venting well and turning smoothly runs cooler, dries faster, and puts less strain on the motor, thermostat, and gas ignition system. That combination is what most often pushes a Maytag dryer into the 15-year range.
Last updated: January 2026
What is the capacity of the Maytag MDG4000AWW?
The Maytag MDG4000AWW gas dryer has a 5.9 cu. ft. drum capacity, which is a full-size 27-inch class dryer. Use the MDG4000AWW installation guide to confirm model identification details so you match the correct specifications to your exact unit.
How to confirm you are matching the right specs
We recommend these quick checks before comparing capacity, parts, or features:
- Confirm the model tag reads MDG4000AWW (usually on the door opening or cabinet frame)
- Verify fuel type: gas models use an igniter and gas valve assembly
- Check for any suffixes or revision codes on the tag that can affect parts compatibility
- Compare only to listings that specifically state MDG4000AWW
What 5.9 cu. ft. means for real-world loads
A 5.9 cu. ft. Maytag dryer drum is designed for typical family-size loads and bulky items with proper airflow.
| Load type | What to expect in a 5.9 cu. ft. drum |
|---|---|
| Everyday mixed laundry | One full washer load dries evenly when not packed tight |
| Towels | Dry in smaller batches for better tumbling and airflow |
| Bulky items | Comforters dry best when the drum is not overfilled |
Why it matters
Capacity affects tumbling space and airflow. Even with a 5.9 cu. ft. drum, overloading or restricted venting causes long dry times and uneven drying.
Related performance tip (heat and airflow)

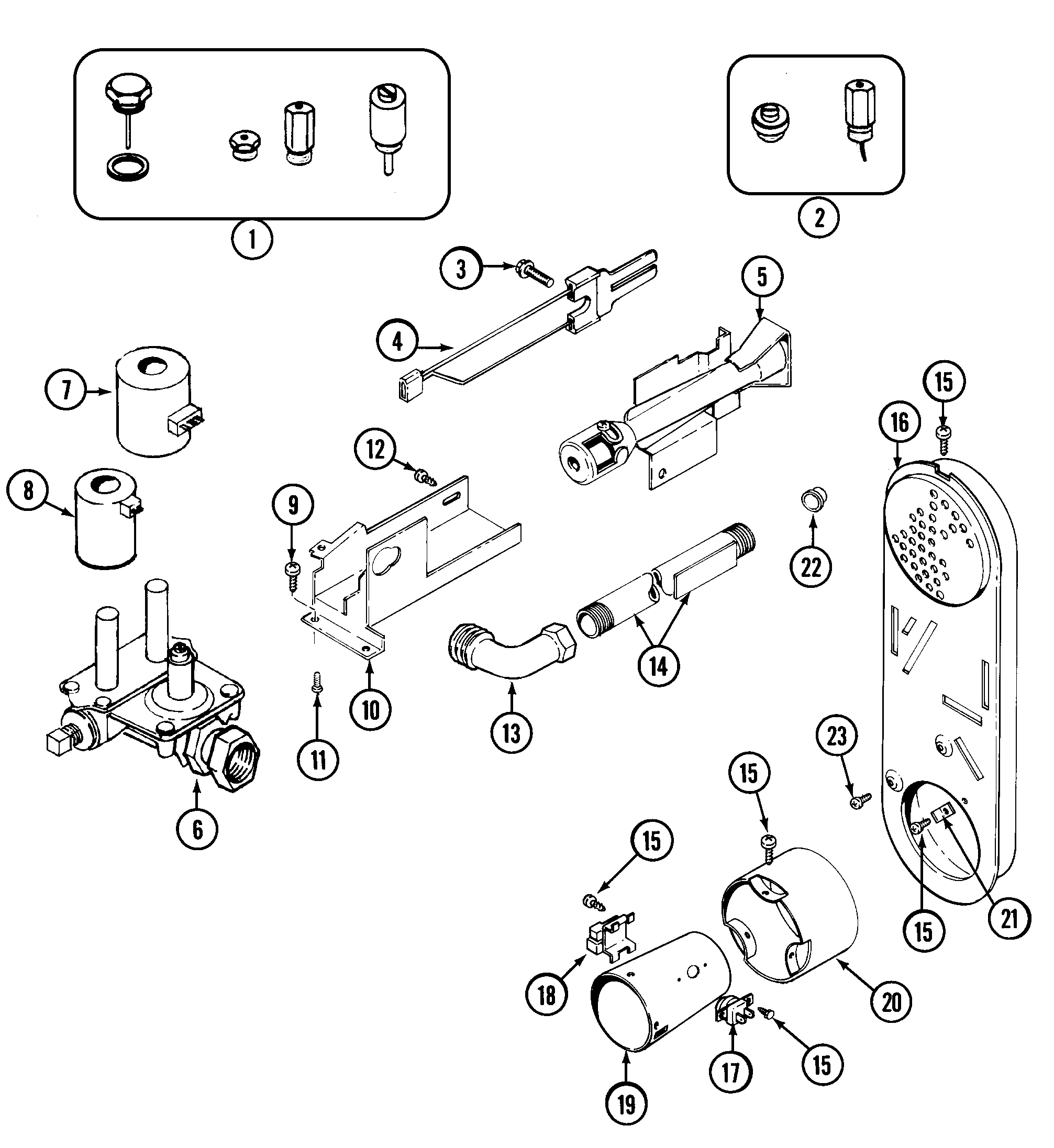

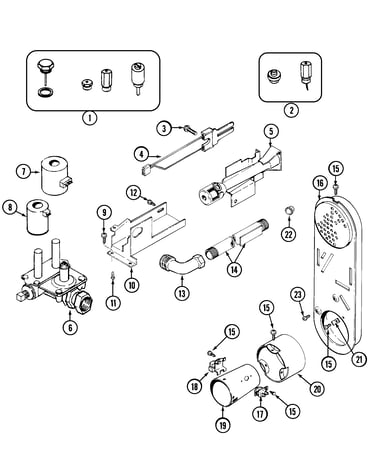

If the dryer tumbles but does not heat consistently, these gas-heat components are common checks:
- Radiant sensor operation
- Igniter glow and burner ignition
- Gas valve coil performance
A commonly replaced heating-system sensor is the gas sensor WP338906.
Last updated: January 2026
