GE WSM2420SBZWW compact gas washer/dryer Parts
Here are the diagrams and repair parts for GE WSM2420SBZWW compact gas washer/dryer, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM

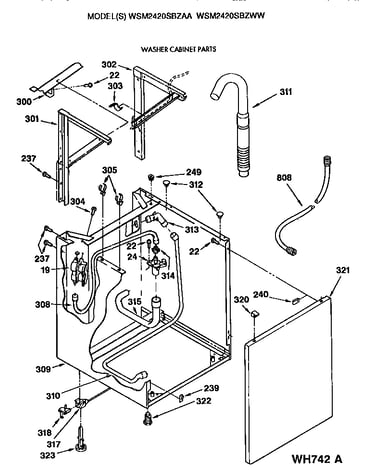

Browse Parts forWSM2420SBZWW Compact Gas Washer/Dryer
#46
All parts diagram
Dial, Time
Part #WH1X2690
The manufacturer no longer makes this part, and there's no substitute part
#147
All parts diagram
Sleeve
Part #WH1X2682
The manufacturer no longer makes this part, and there's no substitute part
#265
All parts diagram
Dryer Terminal Block
Part #WE4X825
The manufacturer no longer makes this part, and there's no substitute part
#131
All parts diagram
Grommet,mt
Part #WH2X1169
The manufacturer no longer makes this part, and there's no substitute part
#59
All parts diagram
Spring Clip
Part #WH1X2694
The manufacturer no longer makes this part, and there's no substitute part
#32
All parts diagram
Bracket
Part #WH16X512
The manufacturer no longer makes this part, and there's no substitute part
#314
All parts diagram
Siphon Cap
Part #WH1X2695
The manufacturer no longer makes this part, and there's no substitute part
#250
All parts diagram
Cove,trans
Part #WE20X782
The manufacturer no longer makes this part, and there's no substitute part
#53
All parts diagram
Lid
Part #WH44X1157
The manufacturer no longer makes this part, and there's no substitute part
#50
All parts diagram
Knob,wtr L
Part #WH1X2679
The manufacturer no longer makes this part, and there's no substitute part
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
Rack,conne
In Stock
$110.53
Qty
Most common symptoms to help you fix your laundry centers
Choose a symptom to see related laundry center repairs.
Main causes: broken dryer drive belt, weak drive motor, binding drum seals...
Main causes: door not fully shut, bad door switch, faulty push-to-start switch, wiring failure, bad drive motor, blown f...
Main causes: blocked exhaust vent, clogged lint screen, bad timer, moisture sensing problems, weak gas valve coils, bad ...
Main causes: broken lid switch or lid lock, faulty drive motor, drain system problem, broken drive system components...
Main causes: bad lid switch or lid lock, drive motor failure, broken motor coupler, bad timer, faulty electronic control...
Main causes: clogged drain system, blocked drain hose, bad drain pump...
Main causes: control system failure, broken heating element, bad gas valve coils, gas supply failure, voltage supply pro...
Main causes: unbalanced load, broken suspension springs or shocks, worn snubber ring...
Main causes: lack of water supply, failed lid switch or lid lock, bad water level pressure switch, control system failur...
Most common repair guides to help fix your laundry centers
These step-by-step repair guides will help you safely fix what’s broken on your laundry center.
How to replace a laundry center washer lid lock switch
If the washer fills but won’t start the agitation cycle, the lid lock switch could be defective. ...
Repair time and Difficulty
15 minutes or less
How to replace a laundry center washer timer
If the washer doesn't fill, spin or drain, the timer could be the problem. ...
Repair time and Difficulty
15 minutes or less
How to replace a laundry center washer snubber ring
If the washer tub bangs the cabinet during the spin cycle even though the load is balanced, you might need to replace th...
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your laundry centers
Use the advice and tips in these articles and videos to get the most out of your laundry center.
Tired of dull laundry? These 7 expert tips help you get cleaner clothes, brighten whites, and fix common washer mistakes...
Find out how to stay safe when repairing your appliances....
Find out how to clean and flush household appliances once a boil water advisory is lifted....
