White-Westinghouse
Washer

Model #WWS445RBW2 White-Westinghouse washer - 5995273793

Here are the diagrams and repair parts for White-Westinghouse WWS445RBW2 washer - 5995273793, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 134 parts

    Washer Drive Belt#28

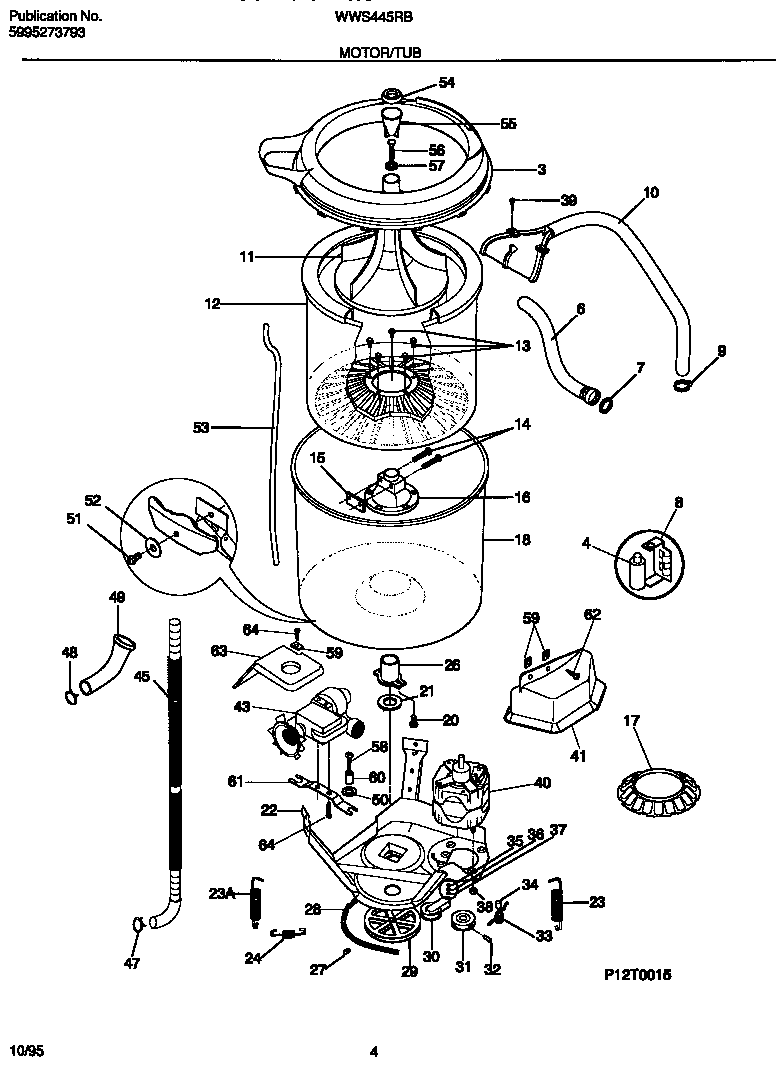

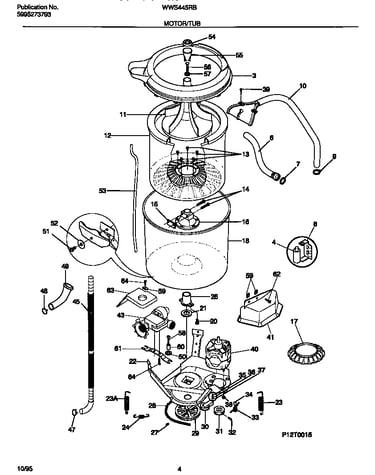

    Motor/tub Diagram

    Belt

    Part #131234000
    Replaced by #134511600
    ?
    Manufacturer substitution
    This part replaces 131234000. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $19.99
    Washer Tub Seal Assembly#26

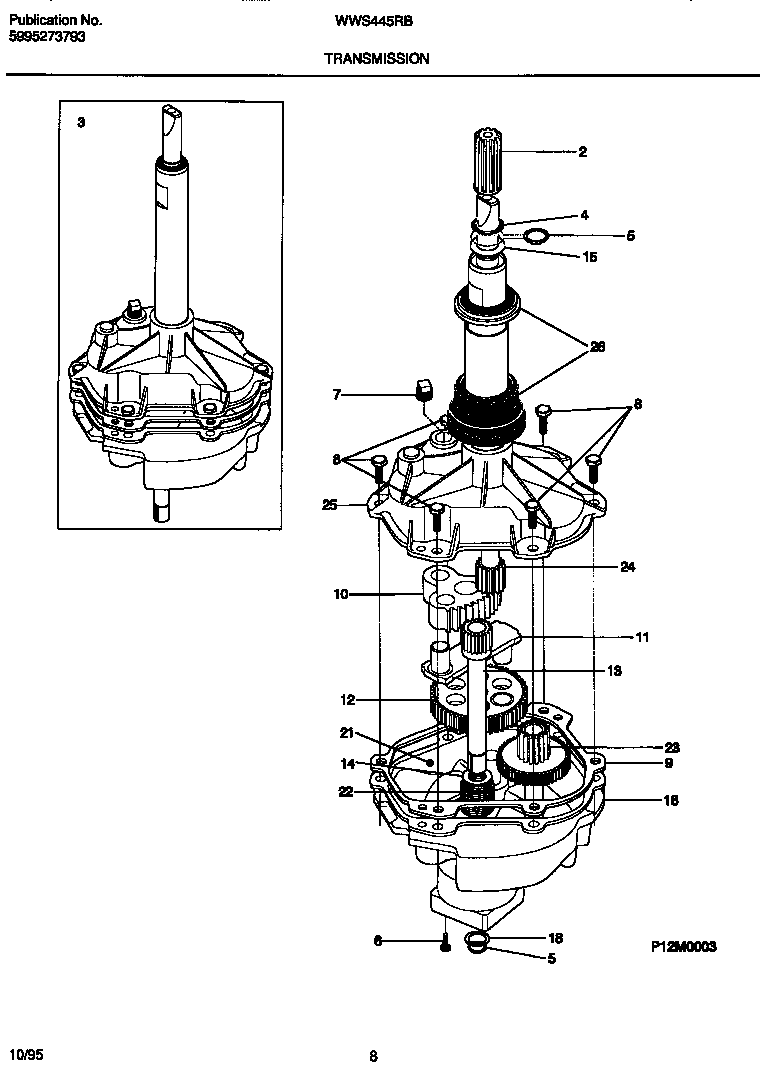

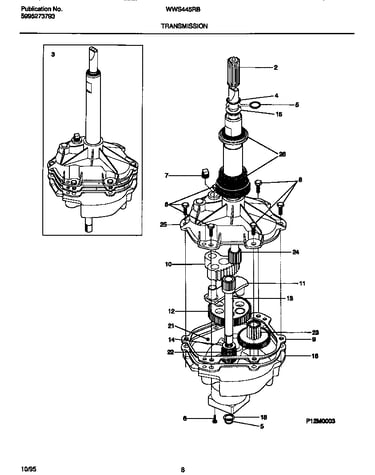

    Transmission Diagram

    Washer tub seal assembly

    Part #5303279394
    BEST SELLER
    In Stock
    $49.89 |
    17% OFF
    MSRP: $60.00
    Laundry Appliance Screw, #8-18 x 31/100-in

    See All Related Diagrams

    In Stock
    $13.09
    Washer Idler Pulley#30

    Motor/tub Diagram

    Idler arm

    Part #3204422
    Replaced by #131862900
    ?
    Manufacturer substitution
    This part replaces 3204422. Substitute parts can look different from the original.
    In Stock
    $22.09
    Washer Baffle Screw#41

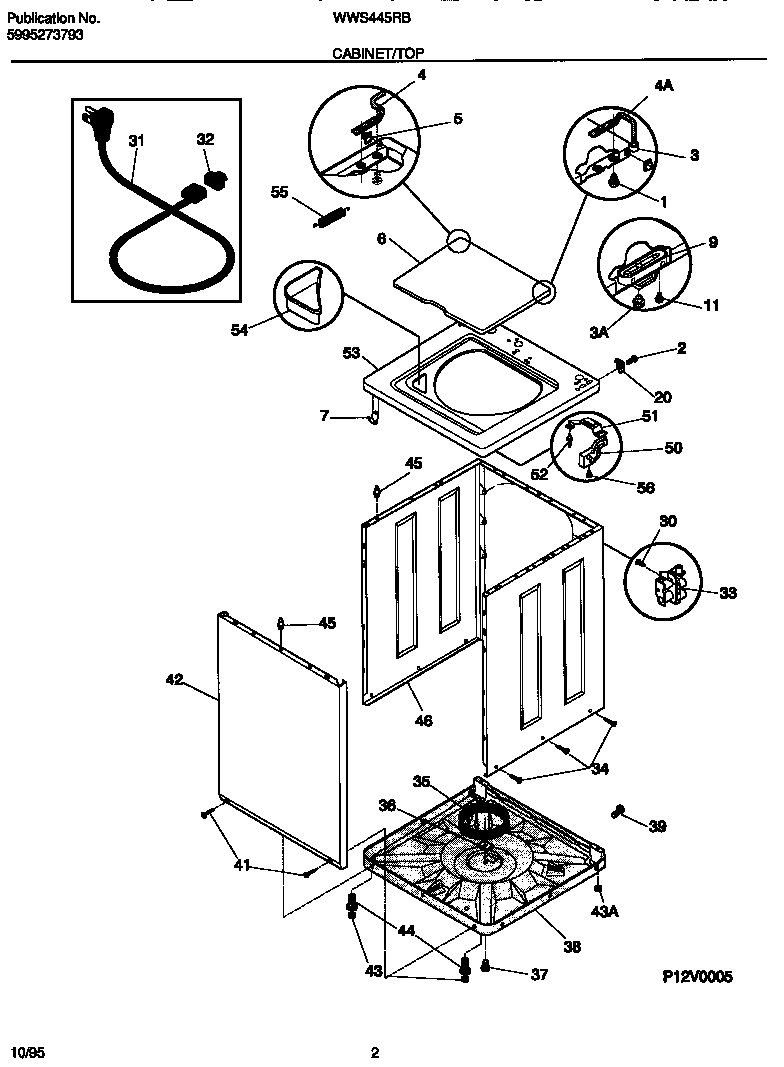

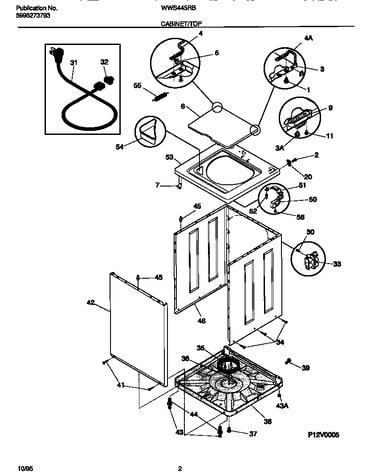

    Cabinet/top Diagram

    Screw

    Part #131258400
    Replaced by #131302800
    ?
    Manufacturer substitution
    This part replaces 131258400. Substitute parts can look different from the original.
    In Stock
    $13.29
    Washer Agitator Drive Hub#2

    Transmission Diagram

    Drive hub

    Part #131475100
    Replaced by #134418700
    ?
    Manufacturer substitution
    This part replaces 131475100. Substitute parts can look different from the original.
    In Stock
    $58.89
    Washer Drain Pump#43

    Motor/tub Diagram

    Washer drain pump

    Part #131268401
    In Stock
    $129.39
    Washer Leveling Leg#44

    Cabinet/top Diagram

    Washer leveling leg

    Part #5303309673
    Replaced by #134548800
    ?
    Manufacturer substitution
    This part replaces 5303309673. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $13.97
    Laundry Center Washer Trunnion#16

    Motor/tub Diagram

    Trunnion

    Part #131154501
    Replaced by #131545101
    ?
    Manufacturer substitution
    This part replaces 131154501. Substitute parts can look different from the original.
    In Stock
    $93.29
    Washer Drain Hose#45A

    Motor/tub Diagram

    Drain hose

    Part #131268800
    Replaced by #131461200
    ?
    Manufacturer substitution
    This part replaces 131268800. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $25.31

    Symptoms common to all washers

    Choose a symptom to see related washer repairs.

    Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board
    Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interface board
    Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water temperature sensor
    Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in drain pump
    Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system
    Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control board or timer
    Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspension component failure
    Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lock or lid switch
    Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve assembly
