Model #79045499500 Kenmore electric range

Here are the diagrams and repair parts for Kenmore 79045499500 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

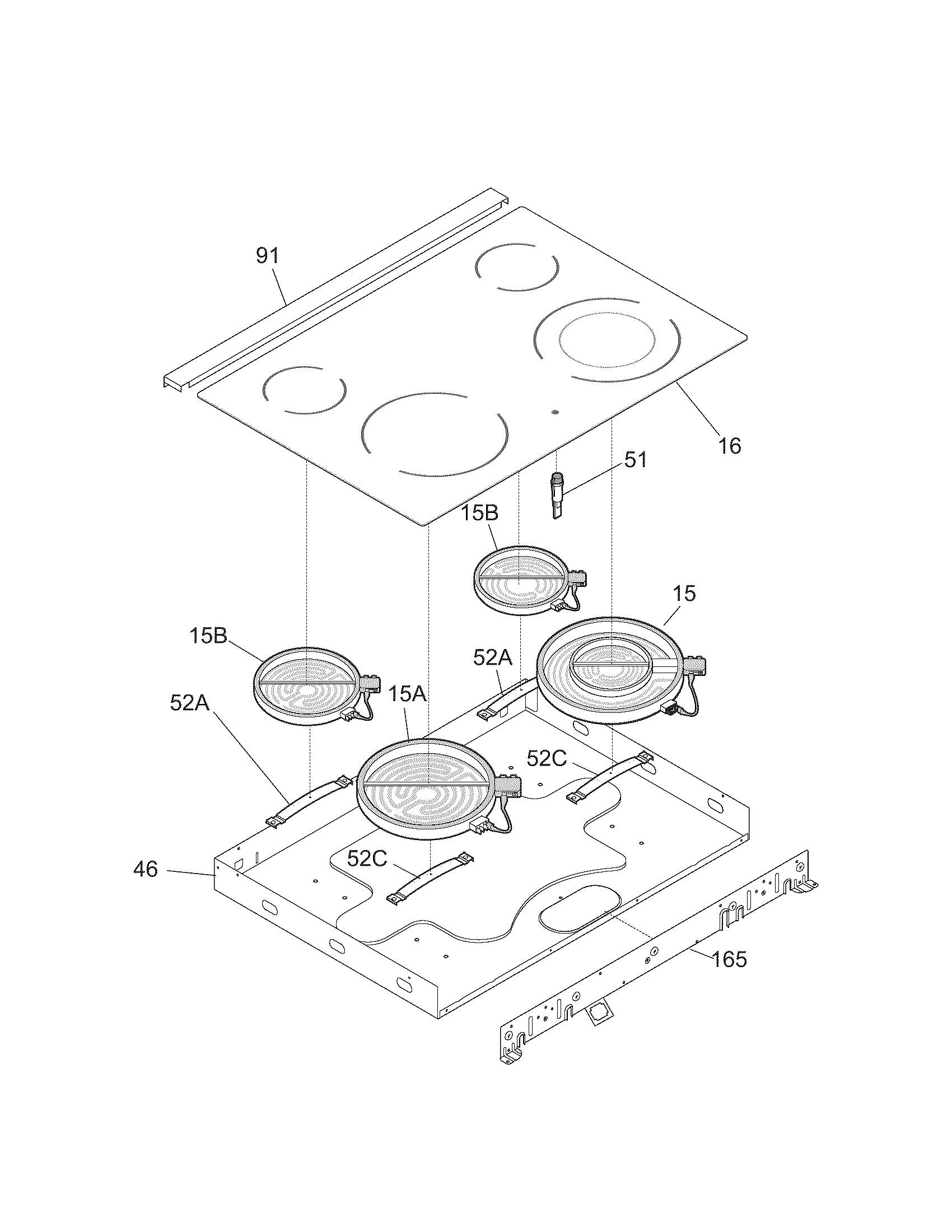

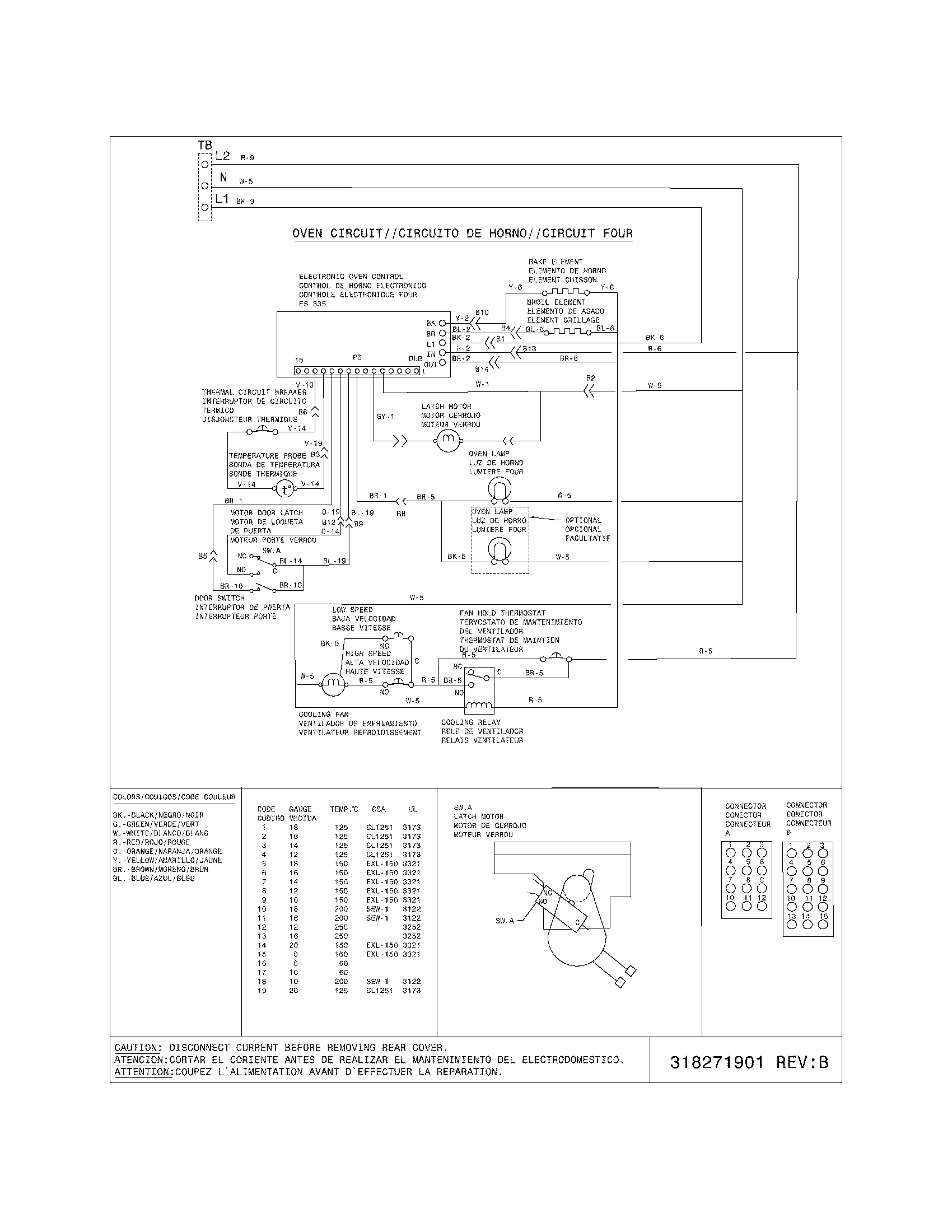

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 153 parts

    Range Oven Door Inner Glass#8

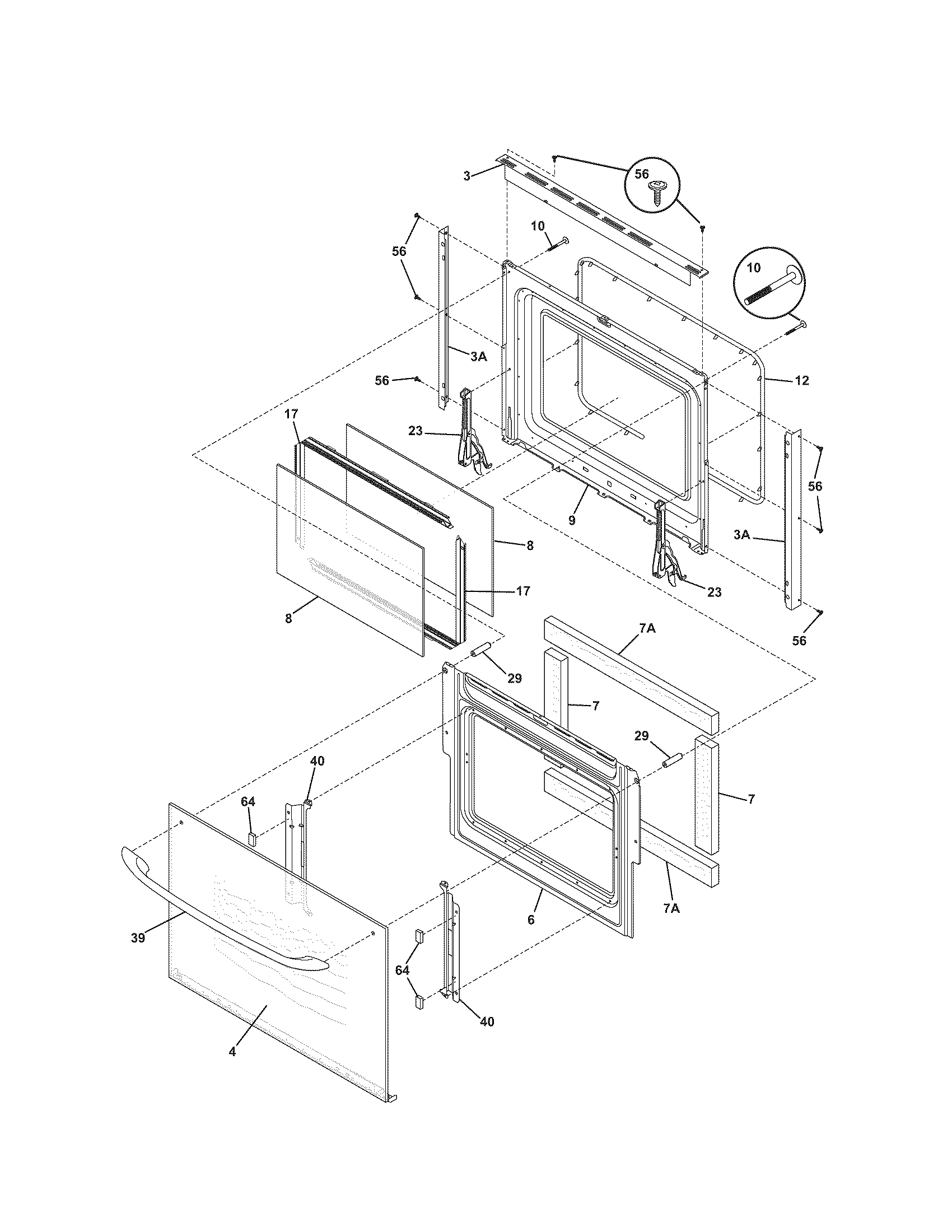

    Door Diagram

    Range oven door inner glass

    Part #316117500
    Replaced by #316117502
    ?
    Manufacturer substitution
    This part replaces 316117500. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $162.39
    Range Bake Element#67

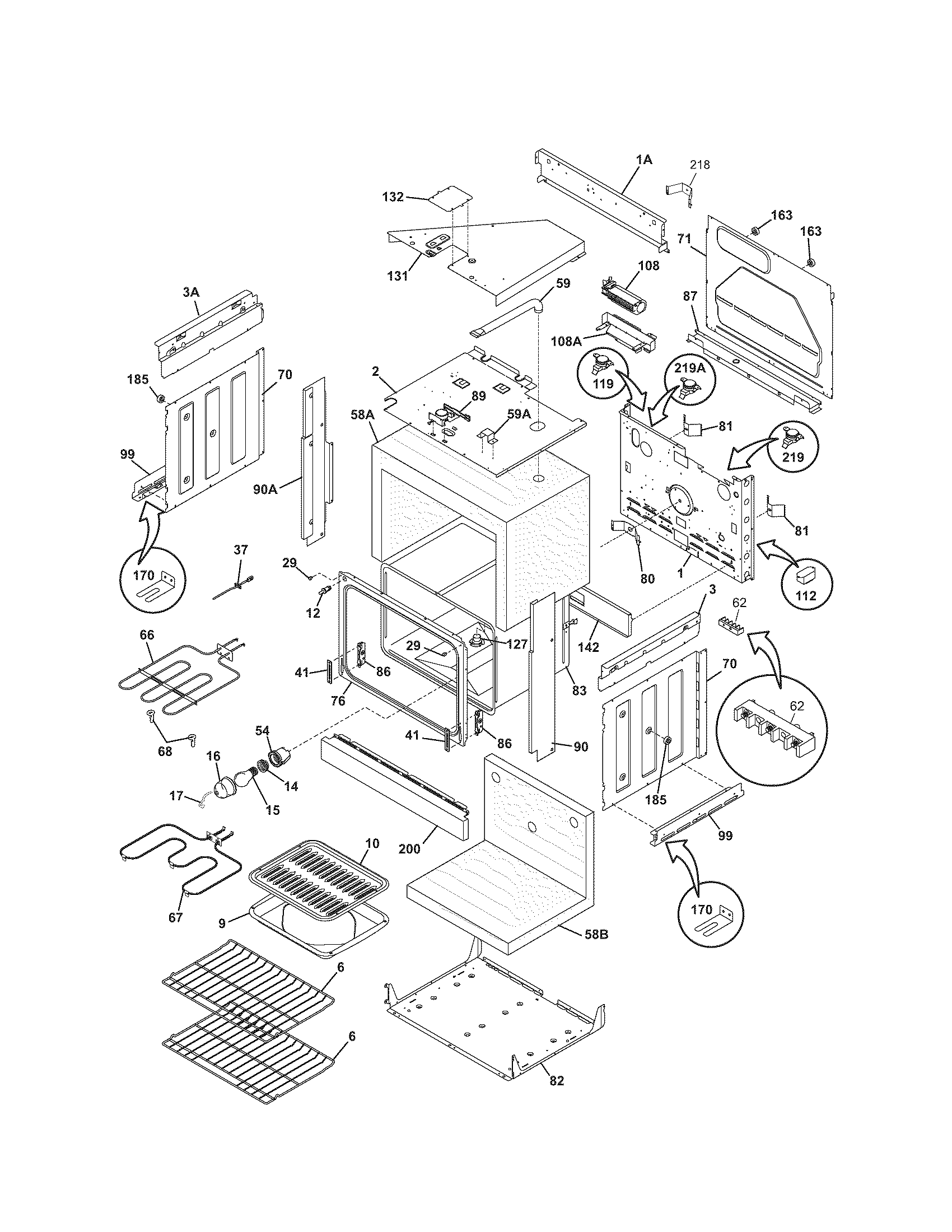

    Body Diagram

    Range bake element

    Part #318255401
    BEST SELLER
    In Stock
    $123.99 |
    27% OFF
    MSRP: $170.00
    Range Surface Element Control Switch Kit#54

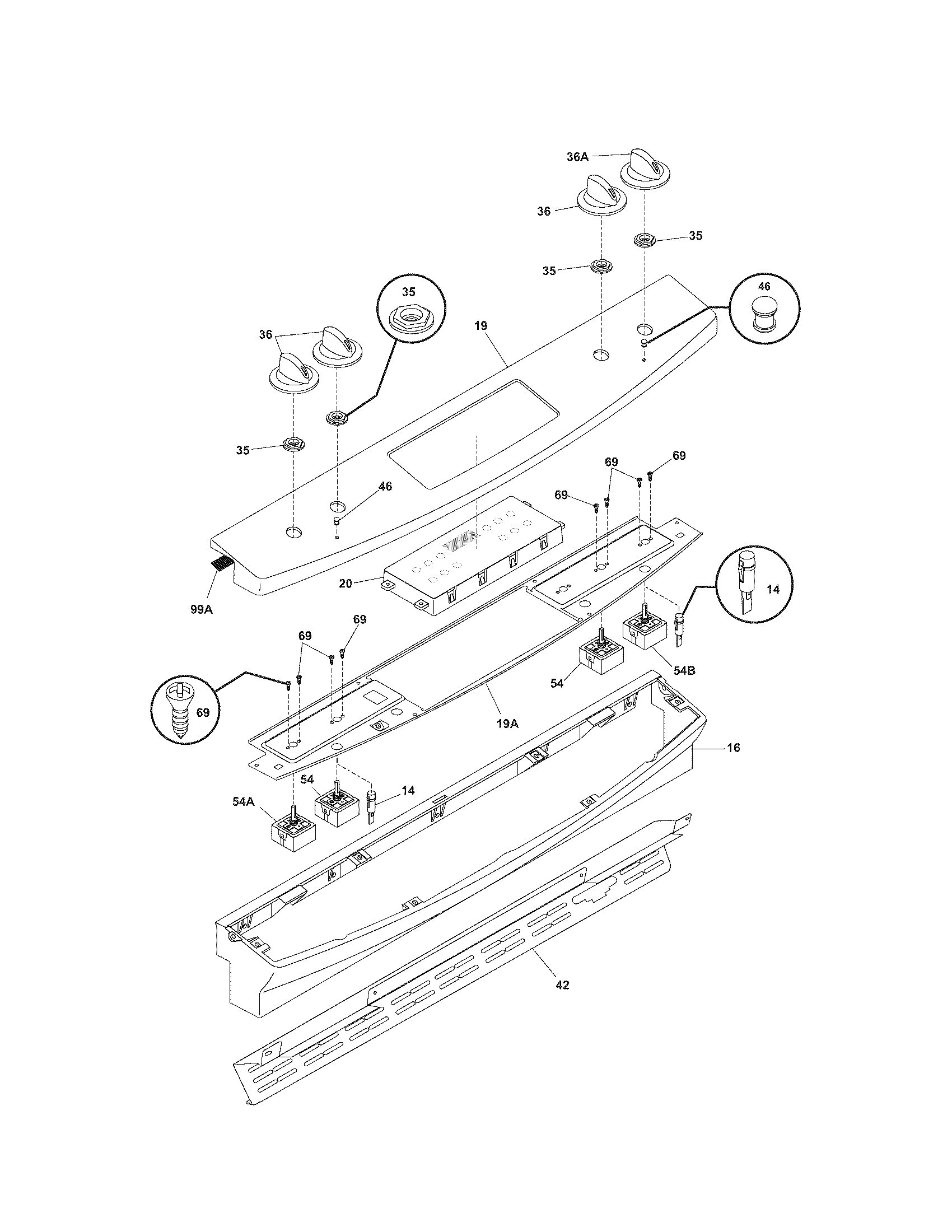

    Backguard Diagram

    Switch

    Part #318220080
    Replaced by #903136-9010
    ?
    Manufacturer substitution
    This part replaces 318220080. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $39.69 |
    10% OFF
    Was: $44.09
    Range Broil Element#66

    Body Diagram

    Range broil element

    Part #318255600
    Replaced by #318255605
    ?
    Manufacturer substitution
    This part replaces 318255600. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $175.09
    Range Surface Element Infinite Switch#54B

    Backguard Diagram
