What kind of engine does a Craftsman riding lawn mower have?
The Craftsman riding lawn mower model 917270760 is an 18.5 HP, electric-start, automatic lawn tractor. For the exact engine manufacturer and engine model details (as listed for your tractor), we recommend checking the specifications and engine section in the 917270760 owner's manual.
From the model-specific documentation, this tractor is set up as a gas-powered riding mower with these key specs:
- 18.5 HP rating (as shown on the manual cover)
- Electric start
- Automatic transmission (automatic lawn tractor)
- 42-inch mower deck
- Unleaded regular gasoline, 1.25-gallon capacity
- Charging system: 16 amps @ 3600 RPM
These specs help you choose the right tune-up items and fluids for the engine on your 917270760.
| Item | Specification (model 917270760) |
|---|---|
| Gas type | Unleaded regular |
| Fuel capacity | 1.25 gallons |
| Oil type | SAE 30 (above 32°F); SAE 5W-30 (below 32°F) |
| Oil capacity | 4.0 pints |
| Spark plug | Champion RC12YC (gap .030 in) |
The engine brand and model determine the correct air filter, fuel filter, starter, and carburetor parts, and they also affect tune-up intervals and settings. Using the correct oil viscosity and spark plug type helps prevent hard starting, poor performance, and charging issues.
If you are troubleshooting starting or run issues, these are common quick checks:
- Confirm the ignition key is in good shape (a worn key can cause intermittent contact); see molded ignition key 532140403
- Use full throttle for best performance and battery charging rate (per the manual)
- Avoid leaving the ignition switch on when parked; it can drain the battery
- Verify battery condition and cable connections if cranking is weak
- Use the correct oil type for the temperature range
Last updated: February 2026
What year did Craftsman make the 917270760?
Craftsman model 917270760 was made during the LT1000-era production run (late 1990s through mid-2000s); the exact build year for your specific tractor is identified on the model and serial number label and in the documentation for this model. Use the 917270760 owner's manual to confirm where to find the ID label and how to record it.
We use the tractor’s serial number (not just the model number) to pinpoint the manufacturing date.
- Look under the seat area and around the rear fender pan for a model/serial label
- Check the frame rail near the engine compartment
- Write down the full model number (917270760) and the full serial number exactly as shown
- Compare the decal/label information to the identification guidance in the manual
- If decals are missing or unreadable, use the parts diagrams in the manual to confirm you are matching the correct tractor configuration
The documentation for this unit identifies it as a Craftsman 18.5 HP, electric start, 42-inch mower, automatic lawn tractor, model 917.270760.
| Item | What it tells you | Why it helps with “what year” |
|---|---|---|
| Model number (917270760) | The design family and configuration | Narrows the correct manual and parts list |
| Serial number | The unique production identifier | Used to determine the exact build date |

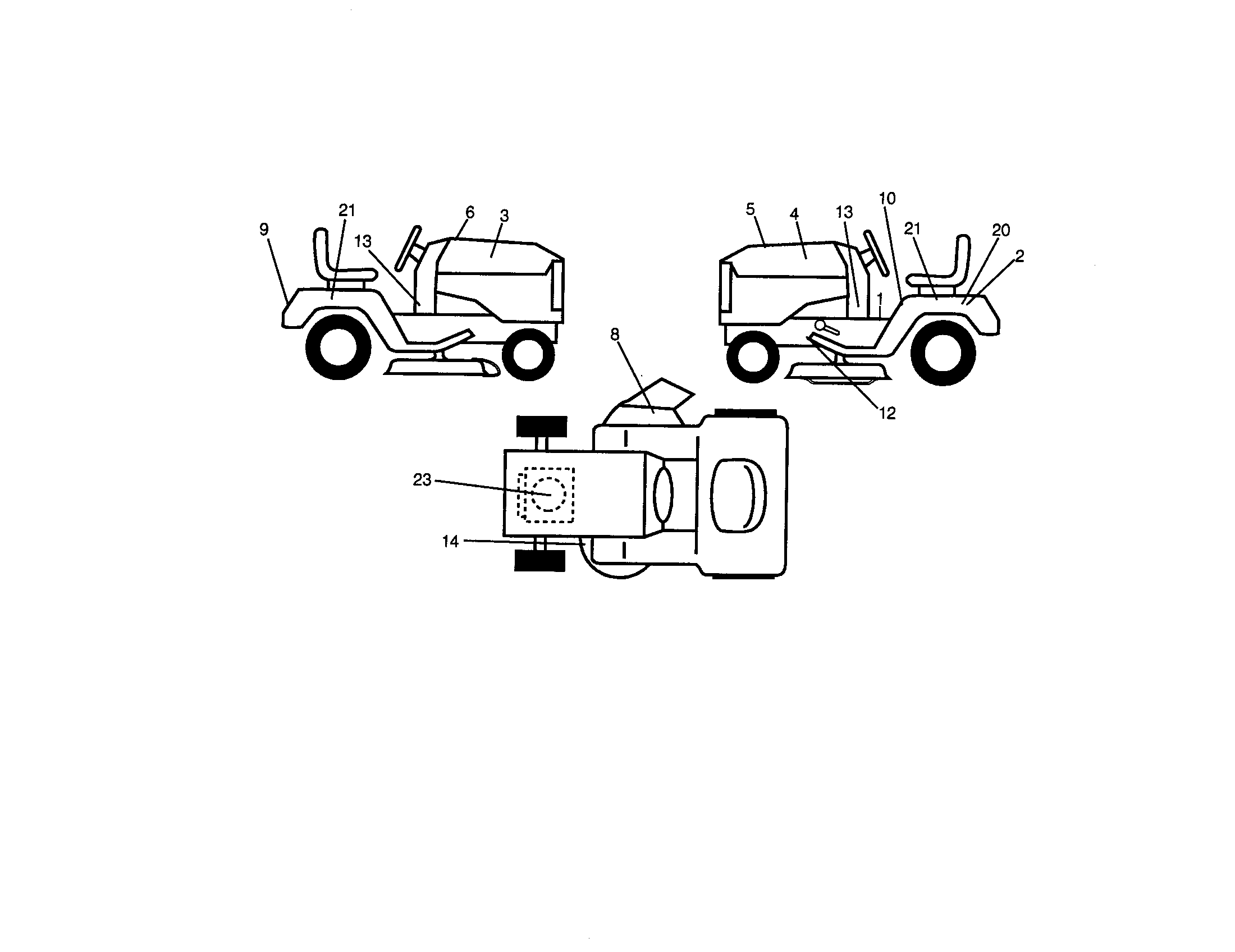

| Decals/labels | Equipment and safety markings | Often correlate with production batches |

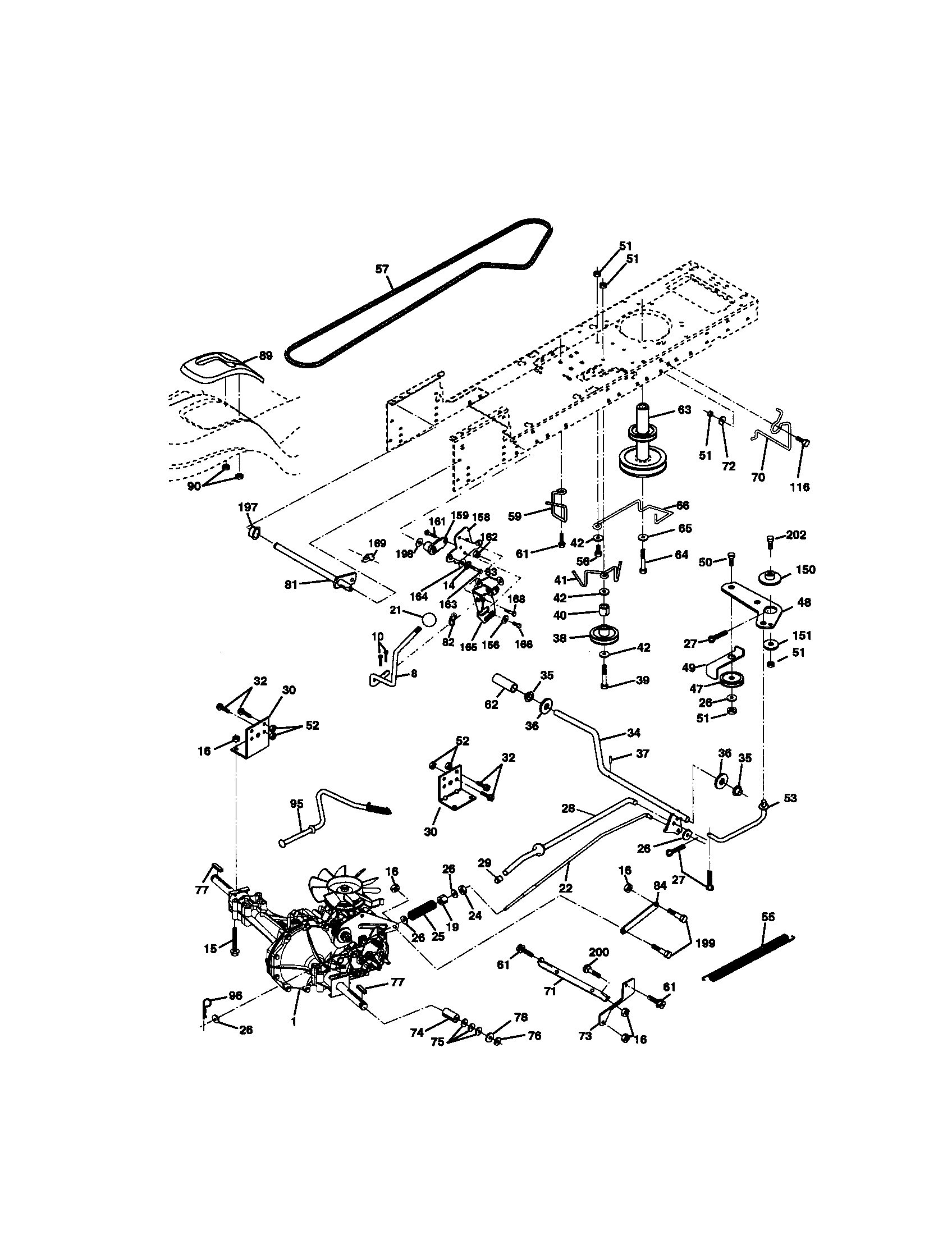

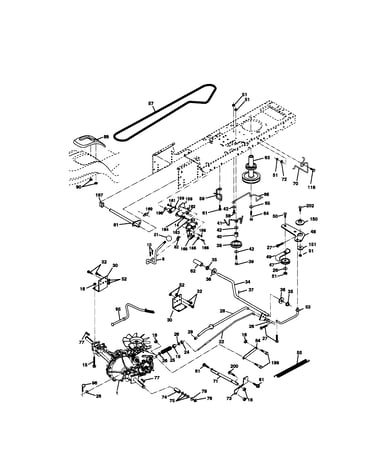

The build year affects parts compatibility for common repairs like belts, steering components, and deck hardware. For example, when ordering a ground drive belt such as the lawn tractor ground drive belt 532140294, the serial number helps ensure you get the correct length and routing for your exact configuration.
Last updated: February 2026
What are the parts of a tractor engine?
On the Craftsman 917270760 riding tractor, the engine system includes core internal engine components (like the crankshaft, pistons, valves, and cylinder head) plus the supporting fuel, exhaust, and controls that make it start, run, and deliver power safely. For the exact engine breakdown used on this model, use the 917270760 owner's manual.
These are the most common “engine parts” people mean when talking about how a small tractor engine is built:
- Cylinder block and cylinder head: forms the combustion chamber and supports valves
- Pistons and piston rings: compress the air-fuel mix and transfer force to the crankshaft
- Connecting rods and crankshaft: convert piston motion into rotating power
- Camshaft, valves, and valve guides: control intake and exhaust timing
- Bearings and seals: support rotating parts and prevent oil leaks
- Gaskets: seal mating surfaces (head, valve cover, intake, exhaust)

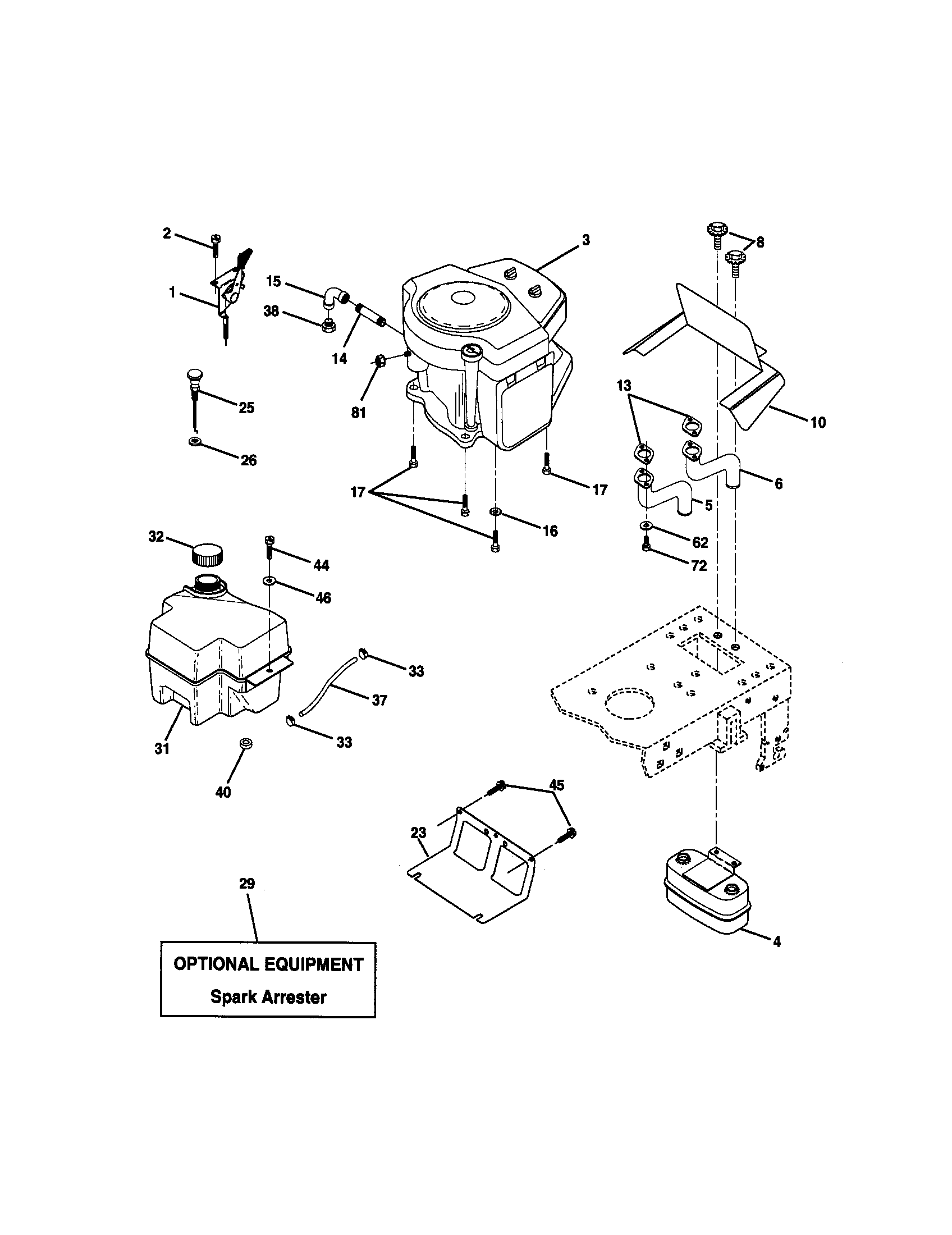

Your 917270760 manual’s engine section lists several external engine system parts that commonly need service, including the throttle/choke controls, fuel tank and cap, fuel line and clamp, spark arrester (optional equipment), and the muffler assembly.
If you are replacing a noisy or damaged exhaust component, the model-specific muffler shown for this tractor is the husqvarna lawn tractor muffler 532149723.
| Category | Examples | Typical symptoms when worn |
|---|---|---|
| Internal engine | pistons, rings, crankshaft, valves | low power, smoke, hard starting |
| Fuel system | tank, fuel line, carburetor (engine-specific) | surging, won’t start, stalls |
| Exhaust | muffler, exhaust pipes, spark arrester | loud running, poor performance |
| Controls/safety | throttle, choke, ignition switch, interlocks | no-start, won’t stay running |
Knowing whether you need an internal engine repair (compression, valves, crankshaft) or an external system fix (fuel delivery, muffler, controls) saves time and helps you order the right Craftsman parts the first time.
