We can’t confirm the exact cubic-foot capacity for Whirlpool model WRS322FDAB05 from the model-specific information available here, but you can still determine it reliably by checking the product rating label or by calculating an estimate from the interior dimensions. For model-specific reference points, use the WRS322FDAB05 installation guide.

Fast ways to find capacity for WRS322FDAB05

• Check the rating label inside the fresh-food section (often on a side wall or near the door frame); capacity is sometimes listed as “cu. ft.”
• Look up the model’s spec sheet using the exact model number WRS322FDAB05 (capacity is typically listed with dimensions)
• Estimate by measurement if you can’t find a listed capacity

How to estimate cubic feet (good approximation)

1. Empty a section enough to measure.
2. Measure the interior:
   • Width (inches)
   • Depth (inches)
   • Height (inches)
3. Compute:

What to do	Formula	Notes
Convert cubic inches to cubic feet	(W × D × H) ÷ 1728	Use interior measurements for best estimate
Estimate total capacity	Add refrigerator section + freezer section	Side-by-side models have two tall compartments

Measurement tips

• Measure to the inside liner, not the outside cabinet.
• Exclude obvious unusable space (large air channels, thick interior housings).
• Expect your estimate to be slightly higher than “usable” shelf space.

Why it matters

Knowing cubic feet helps us match your needs for food storage, compare side-by-side refrigerator sizes, and plan kitchen fit and airflow clearances (especially if you are moving or reinstalling the unit).

Last updated: January 2026

The biggest problem we see most often in Whirlpool refrigerators like model WRS322FDAB05 is cooling performance (food not staying cold enough or temperatures swinging). In many cases, the root cause is airflow or heat-exchange related, such as dirty condenser coils, a failing evaporator fan, or a defrost system issue.

What “cooling problems” usually look like

• Refrigerator section is warm but freezer seems OK
• Frost buildup on the freezer back wall
• Compressor runs a lot, but temperatures do not recover
• Food freezes in the fresh-food section (airflow imbalance)
• Unusual fan noise or no fan sound when the door is closed

Quick checks we recommend first (WRS322FDAB05)

Use the troubleshooting and care steps in the WRS322FDAB05 installation instructions and owner's manual.

• Make sure air vents inside both compartments are not blocked by food
• Confirm doors close fully and gaskets seal all the way around
• Clean dust from the condenser area behind the base grille
• Allow 24 hours after temperature changes or a power outage for temps to stabilize
• If you have an ice maker or dispenser, verify the water supply valve is fully open and the line is not kinked

Parts that commonly relate to the “biggest problem”

If basic cleaning and airflow checks do not help, these model-compatible parts are often involved in cooling complaints:

Symptom	Common suspect	Example model-compatible part
Warm fridge, freezer OK	Evaporator fan not moving air	Refrigerator evaporator fan WPW10236142
Frost buildup, weak airflow	Defrost system not clearing ice	Refrigerator defrost heater WPW10495967
Temps erratic or not responding	Control not regulating correctly	Refrigerator electronic control board WPW10366605

Why it matters

Cooling issues can spoil food quickly and also make the refrigerator run longer than normal, which increases wear on the sealed system. Catching airflow, defrost, or control problems early usually prevents bigger repairs later.

Last updated: January 2026

To reset the freezer side on your Whirlpool WRS322FDAB05 side-by-side refrigerator, we recommend doing a power reset: unplug the refrigerator (or switch off the breaker) for 5 minutes, then restore power and allow up to 24 hours for temperatures to stabilize. For model-specific control steps, use the WRS322FDAB05 installation instructions and owner's manual.

Quick reset steps (safe for this model)

• Unplug the refrigerator or turn off the circuit breaker.
• Wait 5 minutes (this lets the electronic control fully power down).
• Restore power.
• Confirm cooling is turned on (some models have a “cooling off” setting).
• Keep doors closed as much as possible for the next few hours.
• Check temps after 24 hours (freezer should be back to normal operation).

If you are trying to reset a specific feature

Different “resets” do different things. On the WRS322FDAB05, the exact button sequence can vary by control style, so we use the manual for the correct key presses.

What you want to reset	What to try first	What to expect
Control board / odd behavior after outage	Power reset (5 minutes off)	Display and cooling logic restart
Dispenser not working	Verify dispenser is not locked; power reset	Dispenser may respond immediately
Ice maker not making ice	Power reset, then verify ice maker is on	Ice can take 24 hours to start, 72 hours to fill bin
Error code or flashing lights	Note the code, then power reset	Code may return if the problem remains

When a reset points to a part issue

If the freezer warms up again soon after a reset, the issue is usually not the reset itself; it is often a cooling, airflow, or control problem. Common suspects on side-by-side models include:

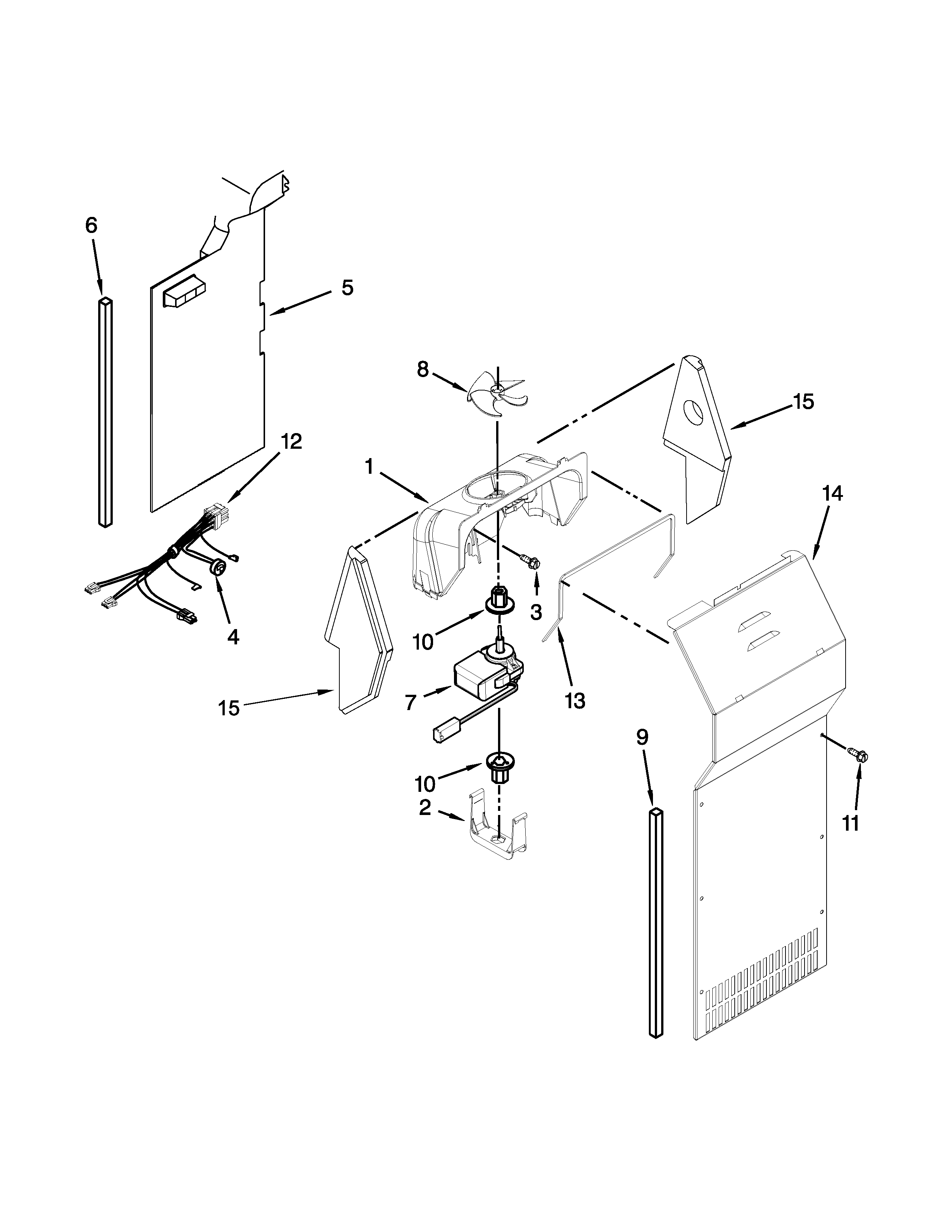

• Evaporator fan (moves cold air through the freezer and into the fresh food section)
• Defrost heater (prevents heavy frost that blocks airflow)
• Electronic control board (manages compressor, fans, and defrost)
• Condenser area airflow and dust buildup

If you suspect a control problem after resetting, the compatible board for this model is the refrigerator electronic control board WPW10366605.

Why it matters

A proper reset clears temporary control glitches after a power outage or voltage dip. If temperatures do not recover within 24 hours, a reset helps confirm you are dealing with a true cooling or component issue rather than a one-time electronics hiccup.
