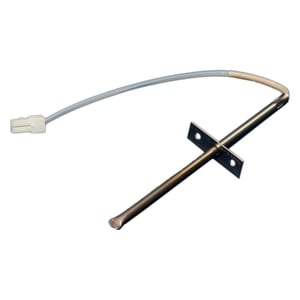

Frigidaire Range Oven Temperature Sensor (replaces 316111203, 318198500, 318198510, 318198520, 7316217002) 316217002

Basic Information

• Part Name: Range Oven Temperature Sensor
• Manufacturer: Frigidaire
• Category: Oven Part
• Primary Function: The oven temperature sensor measures the temperature inside the oven to ensure accurate heating.

Technical Specifications

• Electrical Resistance: 1,080 ohms at 72 degrees Fahrenheit

Installation & Compatibility

• Compatible Models:
  • Kenmore, Kenmore Elite, and Kenmore Pro series: 790
  • Crosley series: BEC, BES, CBES, SCK, MRMF
  • Electrolux series: E30, E36, EW27, EW30
  • Gibson series: CGEF, GEF
  • Tappan series: 57, TEB, TED, TGF
  • White-Westinghouse series: CWEF
  • Frigidaire series: BFE, CFC, CFE, CFG, CGC, CGD, CGE, CGL, CME, CPC, CPD, CPE, CPG, CPL, CPM, DGE, FCS, FEB, FED, FEF, FES, FFE, FFG, FGB, FGD, FGE, FGG, FGM, FGS, FPC, FPD, FPE, FPG, FPM, FPW, GLC, GLE, GLG, LEE, LES, LGE, LGS, MEF, PFE, PGL, PLC, PLE, PLG, RE, REG, REM.
• Installation Difficulty: Medium — Some familiarity with oven internal components is recommended.
• Tools Required: Porcelain wire connectors (if wire splicing is necessary)

Additional Information

Oven temperature sensor 316217002 is an Original Equipment Manufacturer (OEM) part designed to fit a wide range of Kenmore, Crosley, Electrolux, Gibson, Tappan, and White-Westinghouse ranges and wall ovens, as well as several Frigidaire models. This sensor is essential for monitoring and regulating oven temperature, ensuring optimal cooking performance.

Installation Guides

For installation help, you can access detailed, step-by-step guides from Sears PartsDirect: - Electric Wall Oven Installation Guide - Gas Wall Oven Installation Guide - Electric Range Installation Guide with Video - Gas Range Installation Guide with Video

The wire connector for this oven temperature sensor might differ from your original part. In such cases, connections must be made using porcelain wire connectors for proper installation. This part replaces several older sensor models, providing improved functionality and a reliable fit.

Always ensure compatibility with your specific appliance model prior to purchase to avoid any installation issues.
