Most GE side-by-side refrigerators stand about 69 to 71 inches tall (without the door hinge cover). For your GE PSS26SGPASS, the exact height depends on how the leveling legs are set and whether you measure to the top of the case or the hinge cover; confirm the exact spec in the PSS26SGPASS owner's manual.

How to measure refrigerator height the right way

• Measure from the floor to the top of the cabinet (case height).
• Measure again to the top of the hinge cover (overall height).
• Make sure the refrigerator is leveled; raising the front legs can add a little height.
• Measure with the refrigerator in its final spot (floors can slope).
• If you have overhead cabinets, leave at least 1 inch of clearance for airflow and easier installation.

Typical height ranges (what you will usually see)

Refrigerator type	Typical height range
Standard-depth side-by-side	69 to 71 in.
Counter-depth side-by-side	68 to 70 in.
With hinge cover (overall)	Add about 0.5 to 1.5 in.

Why it matters

Height affects whether the refrigerator will clear overhead cabinets, whether doors open fully, and whether you can roll the unit in and out safely for service. The manual also includes handling and moving guidance that helps prevent floor damage and pinched cords or water lines.

Related parts and fit tips

If you are planning a move or reinstall and need to disconnect water, we recommend checking your water line routing and shutoff access first. If you are also servicing the dispenser system, common related parts for this model include the refrigerator water inlet valve assembly WR57X33326 and the refrigerator water filter MWFP. You can order these from the parts list for your model, or search by model number on Sears PartsDirect.

Last updated: February 2026

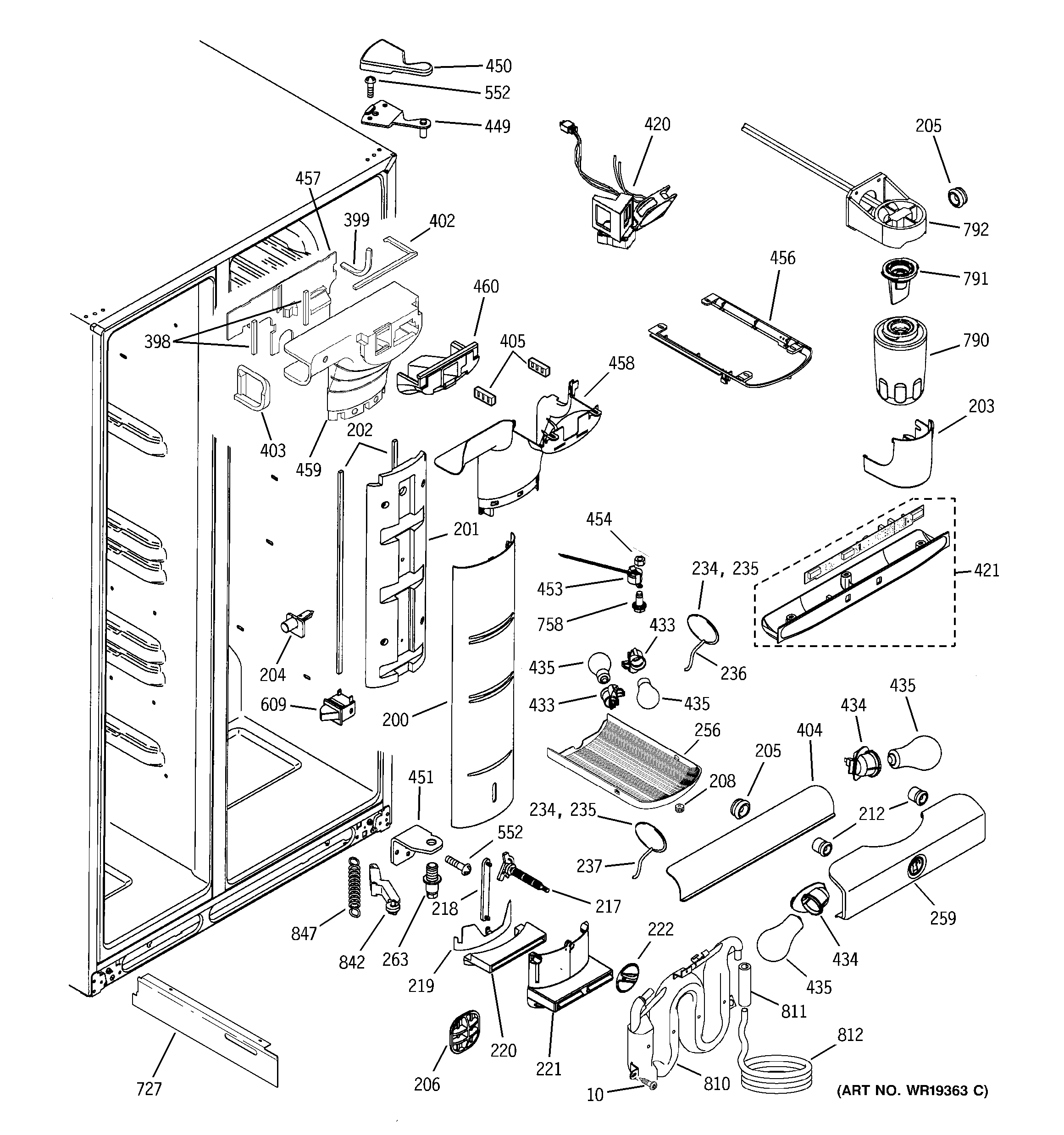

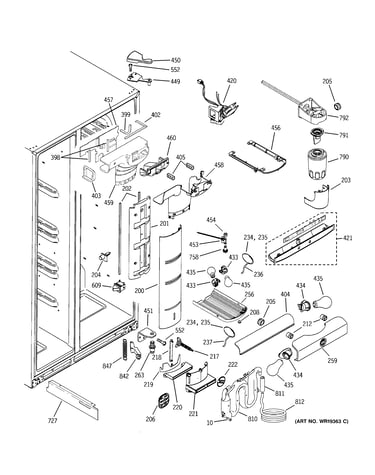

On the GE PSS26SGPASS side-by-side refrigerator, the water filter cartridge is located inside the fresh food (refrigerator) compartment in the back, upper-right corner. You access it from inside the refrigerator, not from the grille or the back of the unit; see the PSS26SGPASS owner's manual.

How to find it and remove the old filter

• Open the refrigerator (fresh food) door.
• Look at the back wall, upper-right corner.
• Find the cartridge holder and the filter cartridge.
• Turn the old cartridge slowly to the left to unlock it.
• Do not pull down on the cartridge while turning; a small amount of water can drip.

How to install the new filter (basic steps)

We install the replacement by placing the top of the cartridge into the holder and slowly turning it to the right until it seats.

Task	What to do	What to watch for
Remove old filter	Turn left slowly	Avoid pulling down; expect a few drips
Install new filter	Insert and turn right slowly	Do not force it; it should turn smoothly
Restore water flow	Dispense water after install	Flow may sputter briefly as air clears

When to replace the filter

The filter should be replaced when the dispenser’s replacement indicator turns red, or when water flow to the dispenser or icemaker decreases.

Why it matters

A correctly installed filter helps maintain normal water flow to the dispenser and icemaker and reduces the chance of leaks from a cartridge that is not fully seated.

If you need the correct replacement cartridge for this model, we list the refrigerator water filter MWFP on this page, and you can also search by model number on Sears PartsDirect.

Last updated: February 2026

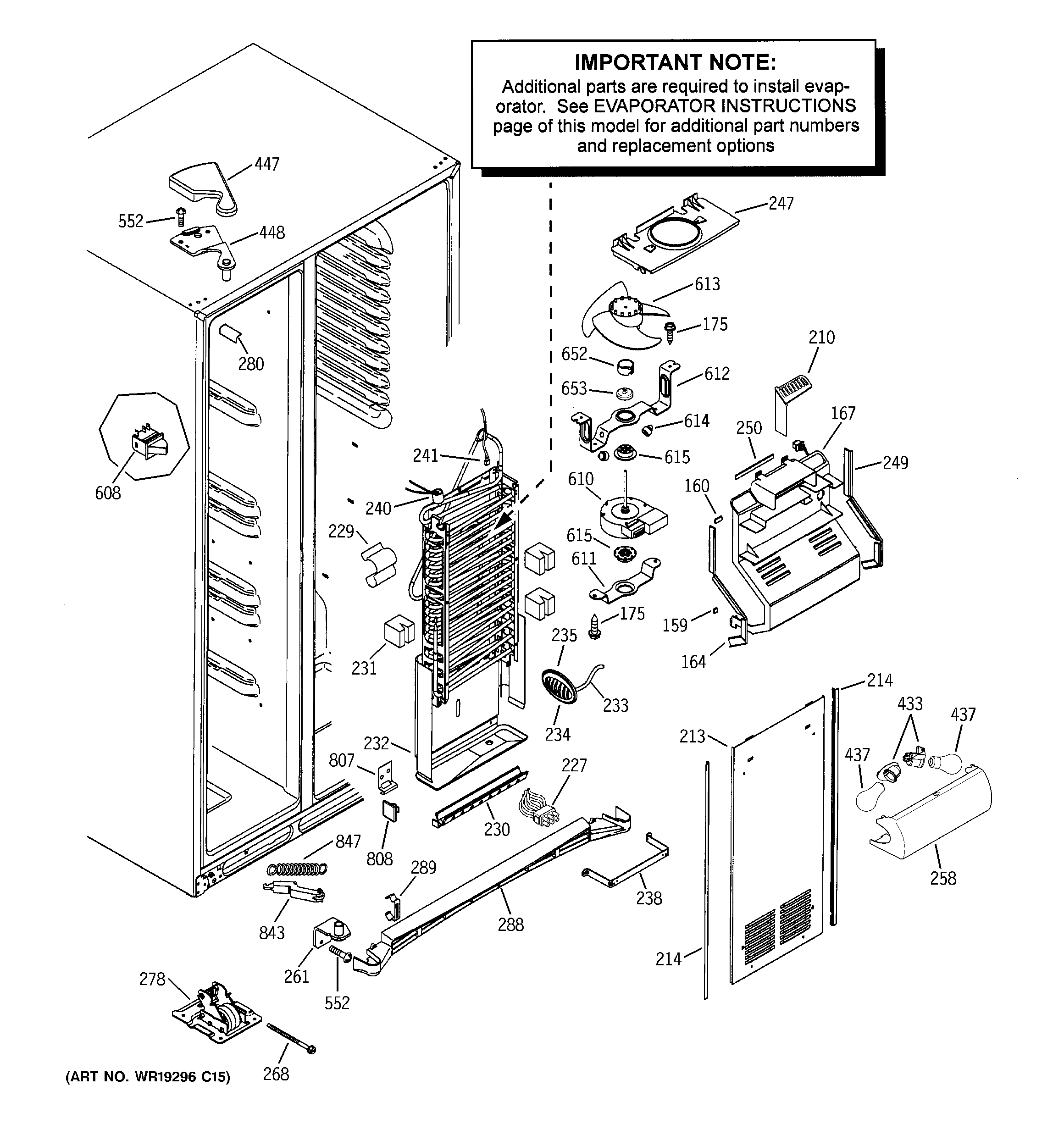

On the GE PSS26SGPASS side-by-side refrigerator, “freezing up” is usually caused by an airflow or defrost problem (ice buildup on the evaporator) or by temperatures set too cold. Start by confirming the control settings, then check for blocked vents and signs of frost behind the freezer’s rear panel using the owner's manual.

Quick checks we recommend first

• Make sure food packages are not blocking the air tower or air tunnel louvers; the manual notes the Performance Air-Flow System uses these passages to control temperatures.
• Verify the freezer and fresh food settings; after changes, allow 24 hours for temperatures to stabilize.
• Check that doors are closing fully and not being held open by packaging.
• If the issue is a frozen water dispenser line, shut off the water supply and inspect for slow seepage at the valve.

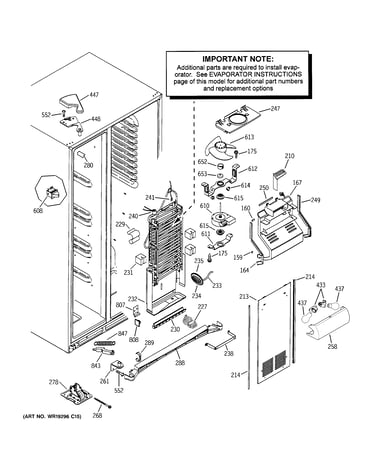

• If you see heavy frost on the freezer back wall, plan to inspect the defrost system.

Most common causes (and what they look like)

What you notice	Most likely cause	What to do next
Frost/ice sheet on freezer rear panel, weak airflow	Defrost system issue	Test/replace the defrost thermostat; consider refrigerator defrost thermostat WR50X10068.
Fresh food section freezing, freezer seems “too cold”	Control set too cold or damper stuck open	Reset temps, then inspect the damper; consider refrigerator air damper assembly WR60X10063.
Freezer cold but refrigerator warm, noisy or no airflow	Evaporator fan problem	Check fan operation; consider refrigerator evaporator motor WR60X10307.
Water line to dispenser freezes repeatedly	Water inlet valve seeping or low use	Inspect valve for seepage; consider refrigerator water inlet valve assembly WR57X33326.

Why it matters

Ice buildup and restricted airflow force the compressor and fans to run longer, which can cause temperature swings (freezing in the fresh food section, warming elsewhere) and can lead to recurring frost problems.

Safety and handling notes

• Unplug the refrigerator before cleaning or making repairs.
• Setting controls to OFF stops cooling but does not remove power to the refrigerator.
• We strongly recommend service be performed by a qualified individual.

Ordering the right parts

We list model-matched replacement parts for GE PSS26SGPASS on this page; you can also search by model number on Sears PartsDirect if you are comparing options.
