Maytag MDB7601AWS dishwasher Parts

You can get replacement parts for your Maytag dishwasher model MDB7601AWS directly from the parts list for this model, which helps ensure the part fits your exact dishwasher. For diagrams, part lookups, and maintenance guidance, use the MDB7601AWS owner's manual.

Best way to find the right part for MDB7601AWS

We recommend matching parts by model number first, then confirming the part name and ID before ordering.

• Use the model number MDB7601AWS to narrow results to compatible parts
• Compare the part name to what you are replacing (handle, valve, heater, hose)
• Check symptoms to choose the correct system (fill, drain, heat, wash)
• Verify mounting style and connections before installing
• Keep your serial number handy for service and documentation reference (it’s typically found on the tub)

Common replacement parts customers order for this model

If you already know what’s broken, these are frequently replaced items for MDB7601AWS:

What you’re fixing	Part to check	What it affects
Door won’t open/close normally	Dishwasher door handle WPW10130695	Latching and door operation
Not drying or water not heating	Heater element W10283681	Water temperature and drying performance
Dishwasher won’t fill or fills slowly	Dishwasher water inlet valve W11082871	Water entering the dishwasher
Not draining properly	Dishwasher drain hose WP99002652	Draining to the sink/disposer

Why it matters

Dishwashers often have similar-looking parts across Maytag models, but small differences in mounting, wiring, or hose routing can cause leaks, poor cleaning, or repeat failures. Ordering by MDB7601AWS helps you get the correct fit the first time.

Last updated: February 2026

The most common Maytag dishwasher problems are not draining and not cleaning well. On your Maytag MDB7601AWS, these issues usually trace back to a clogged drain path, a restricted filter area, or wash water not heating properly, which also affects cycle time and drying.

Most common symptoms and what they usually mean

• Water left in the bottom: drain hose or pump area is restricted
• Food debris on dishes: filter area or wash arm flow is blocked
• Cycle takes too long: dishwasher is trying to heat water; incoming water should be about 120°F (49°C)
• Poor drying: Heated Dry not selected, low water temperature, or rinse aid not used
• Odor: standing water from a drain issue, or dishes sitting too long between cycles

For model-specific operating and care tips, use the MDB7601AWS owner's manual.

Quick checks we recommend first (no parts needed)

1. Confirm hot water at the sink before starting; the manual calls out 120°F (49°C) as the target.
2. Check loading so nothing blocks the wash arms (a thump can be the arm hitting an item).
3. Use the right detergent and measure carefully; suds can cause overflow and performance issues.
4. Use rinse aid and make sure the cap is tight to prevent leaks.
5. If odor is strong, run a cleaning cycle approach (baking soda in the detergent cup is a common method described in the manual).

Parts that commonly fix these problems on MDB7601AWS

If the quick checks do not help, these are common repair paths for draining, cleaning, and heating complaints:

Problem you notice	Common part to check	Why it matters
Not draining	Dishwasher drain hose WP99002652	Kinks or internal buildup can restrict drain flow
Not filling or weak wash	Dishwasher water inlet valve W11082871	Low fill reduces spray pressure and cleaning
Not drying, long cycles	Heater element W10283681	Heating supports drying and helps maintain wash temp
Poor cleaning, debris recirculating	Filter flow plate WPW10192799	Helps manage filtration and water flow through the sump

Why it matters

Drain and wash performance problems tend to cascade: restricted draining can cause odor and redeposit debris, and low water temperature can extend cycle time and reduce drying. Fixing the root cause improves cleaning, drying, and reliability.

Last updated: February 2026

In a Maytag MDB7601AWS dishwasher, the most commonly replaced parts are the ones tied to heating, filling, draining, and door sealing. When you see poor cleaning, wet dishes, leaks, or no-fill/no-drain symptoms, these wear items are the first places we check; confirm your model’s features and maintenance steps in the owner's manual.

Common dishwasher parts that get replaced most often

• Heating and drying parts: heating element, heater mounts and related hardware
• Water fill parts: water inlet valve

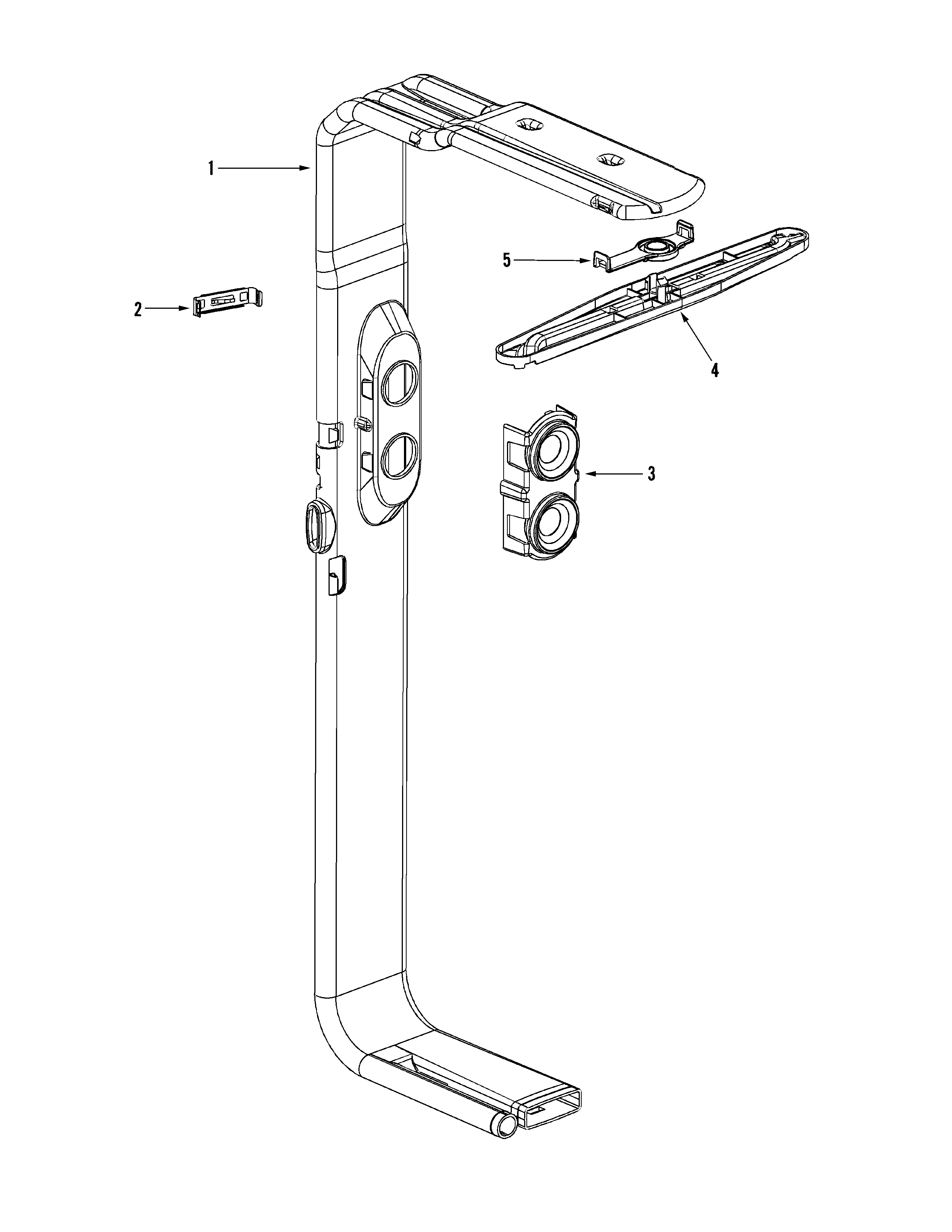

• Wash and circulation parts: pump impeller, wash arms, manifolds
• Drain parts: drain hose, drain pump components (varies by design)
• Filtration parts: filter flow plate, filter guards

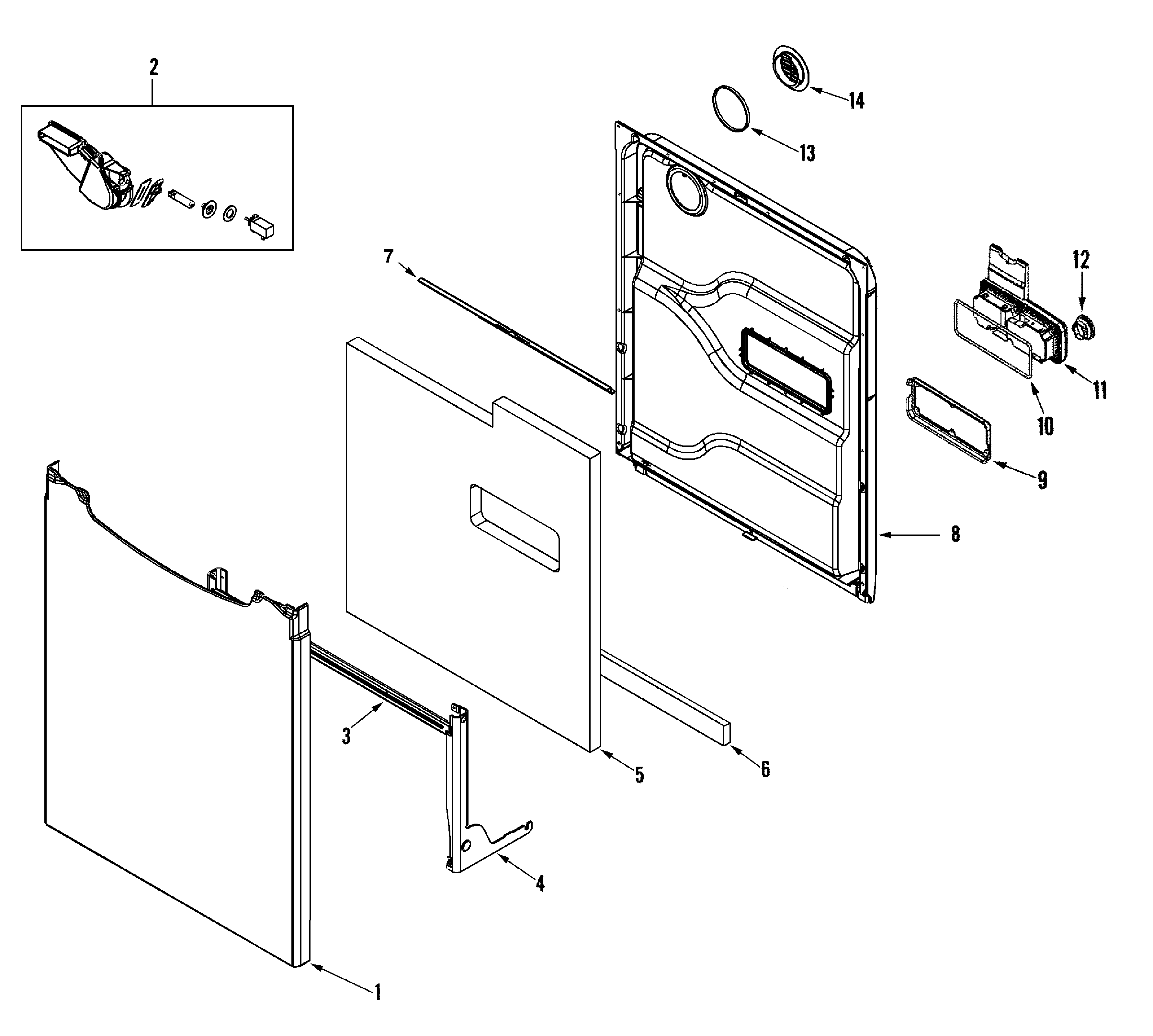

• Door and dispenser parts: door handle, hinge hardware, rinse-aid cap, detergent dispenser components

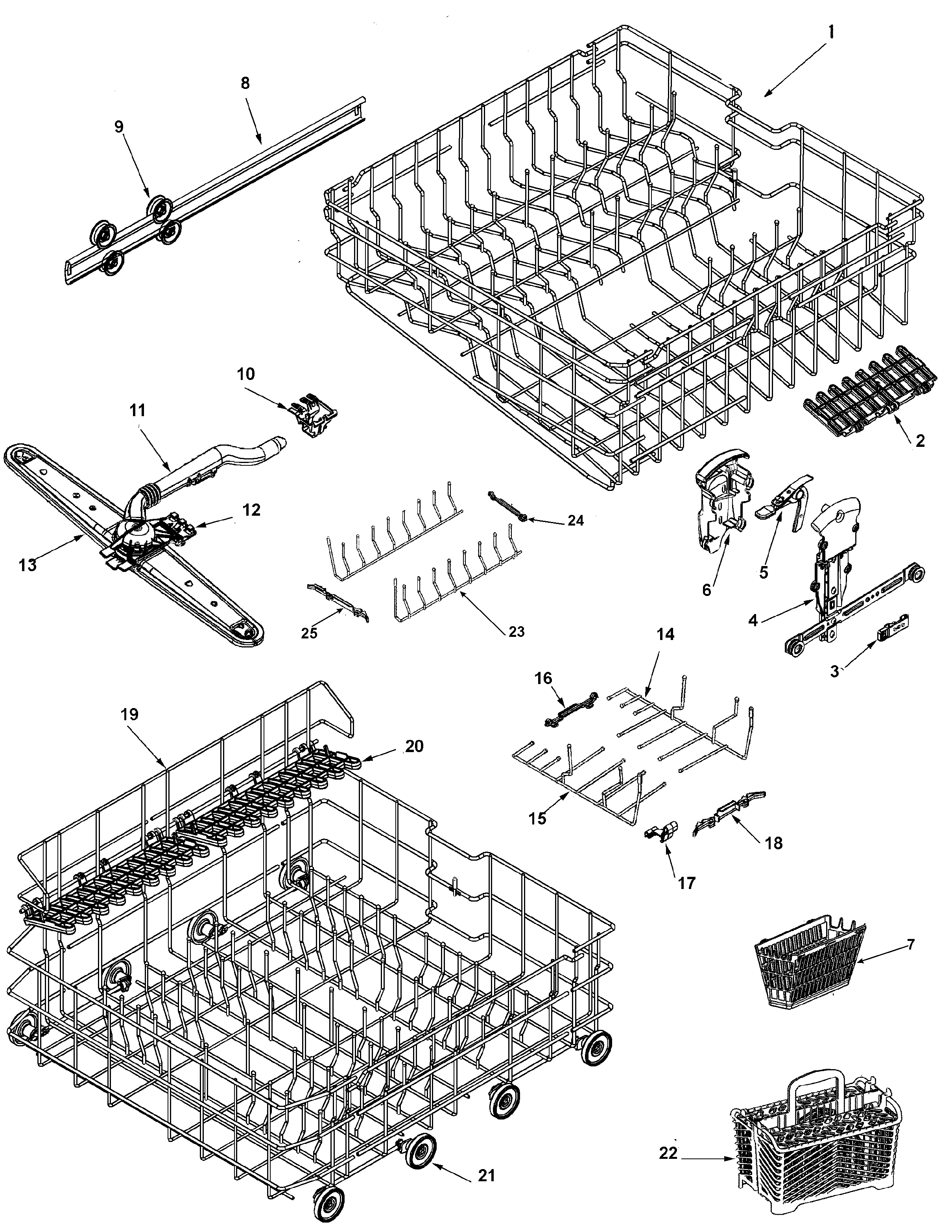

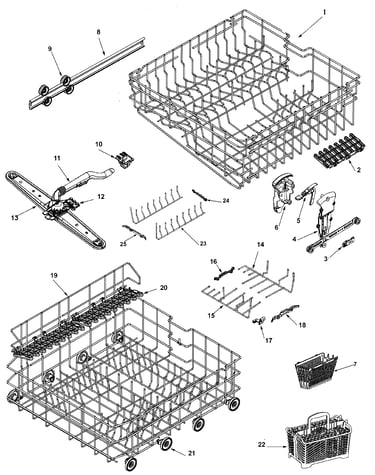

• Rack hardware: tine clips, folding clips, rack adjusters

Model-relevant examples for MDB7601AWS

These are examples of parts on this model that commonly solve the symptoms customers report:

Symptom	Parts to check first	Example part on this model
Dishes not drying	Heating circuit, rinse aid use	Heater element W10283681, dishwasher rinse-aid dispenser cap WP99002614
Dishwasher not filling	Water supply and fill valve	Dishwasher water inlet valve W11082871
Poor cleaning or debris left behind	Filters, wash circulation	Filter flow plate WPW10192799, dishwasher pump impeller WP99002659
Leaks at the door or front	Leveling, suds, door and dispenser sealing	Dishwasher door handle WPW10130695, dishwasher rinse-aid dispenser cap WP99002614

Why it matters (and what to check before buying parts)

A lot of “bad part” symptoms are caused by setup or maintenance issues. For example, this Maytag manual calls out that incoming water should be 120°F (49°C) for best cleaning and drying, and that suds from the wrong detergent or too much detergent can cause overflow leaks. It also notes that some noises (like a snap from the detergent cup lid at end of cycle) are normal.

Quick checks that prevent repeat failures

• Run hot water at the sink before starting so the dishwasher fills with hot water.
• Use only dishwasher detergent; measure carefully to prevent suds and leaks.
• Use rinse aid and keep the cap tight to reduce spotting and prevent dispenser leaks.
• Load so items do not block the wash arms.
• If cycles seem long, verify water temperature and options that extend heating.

Last updated: February 2026

Yes, for the Maytag MDB7601AWS dishwasher we see many owners successfully replace basic, non-wiring parts (like rack clips, a handle, or a cap) with common hand tools. For repairs involving electrical components or water connections, we recommend extra caution: shut off power first and follow the steps in the owner's manual.

What you can usually DIY on MDB7601AWS

These repairs are typically straightforward if you work carefully and keep track of screws and clips:

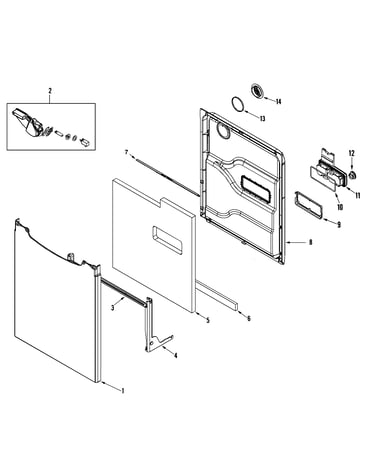

• Replace a broken door handle: dishwasher door handle WPW10130695
• Replace a rinse-aid cap: dishwasher rinse-aid dispenser cap WP99002614
• Replace rack hardware (clips/retainers) if the rack won’t stay configured
• Clean and re-seat filters and guards after removing debris
• Replace a drain hose if it’s split or leaking at the hose itself: dishwasher drain hose WP99002652

Repairs that take more skill (and more safety steps)

These jobs are still doable for experienced DIYers, but they involve higher risk because they touch wiring, heating, or active water fill:

• Heating and drying issues (heater circuit): heater element W10283681
• Not filling or overfilling (water supply and valve): dishwasher water inlet valve W11082871
• Poor wash performance tied to circulation components: dishwasher pump impeller WP99002659

Quick safety checklist before any repair

The manual’s safety guidance is clear: disconnect electrical power before servicing, and avoid contact with the heater during or right after a cycle.

• Turn off power at the breaker (not just the control panel)
• Shut off the dishwasher water supply valve
• Let the unit cool completely before working near the heater
• Protect the floor; keep towels ready for residual water
• Take photos as you disassemble so reassembly is easier

DIY decision guide

Repair type	Typical difficulty	Why it matters
Clips, caps, handle	Low	Restores normal use without disturbing wiring or plumbing
Hoses, clamps	Medium	Prevents leaks that can damage cabinets and flooring
Heater, inlet valve, sensors	Medium to high	Incorrect installation can cause no-heat, no-fill, leaks, or electrical issues

Why it matters

Choosing the right DIY level helps you avoid repeat failures and prevents water damage. The manual also notes that inlet and drain hose connections should be checked periodically for leaks, which makes careful reassembly and leak checks part of a successful repair.

Last updated: February 2026
