KitchenAid
Freestanding Ice Maker

Model #KUIS18NNXW0 KitchenAid ice cube maker

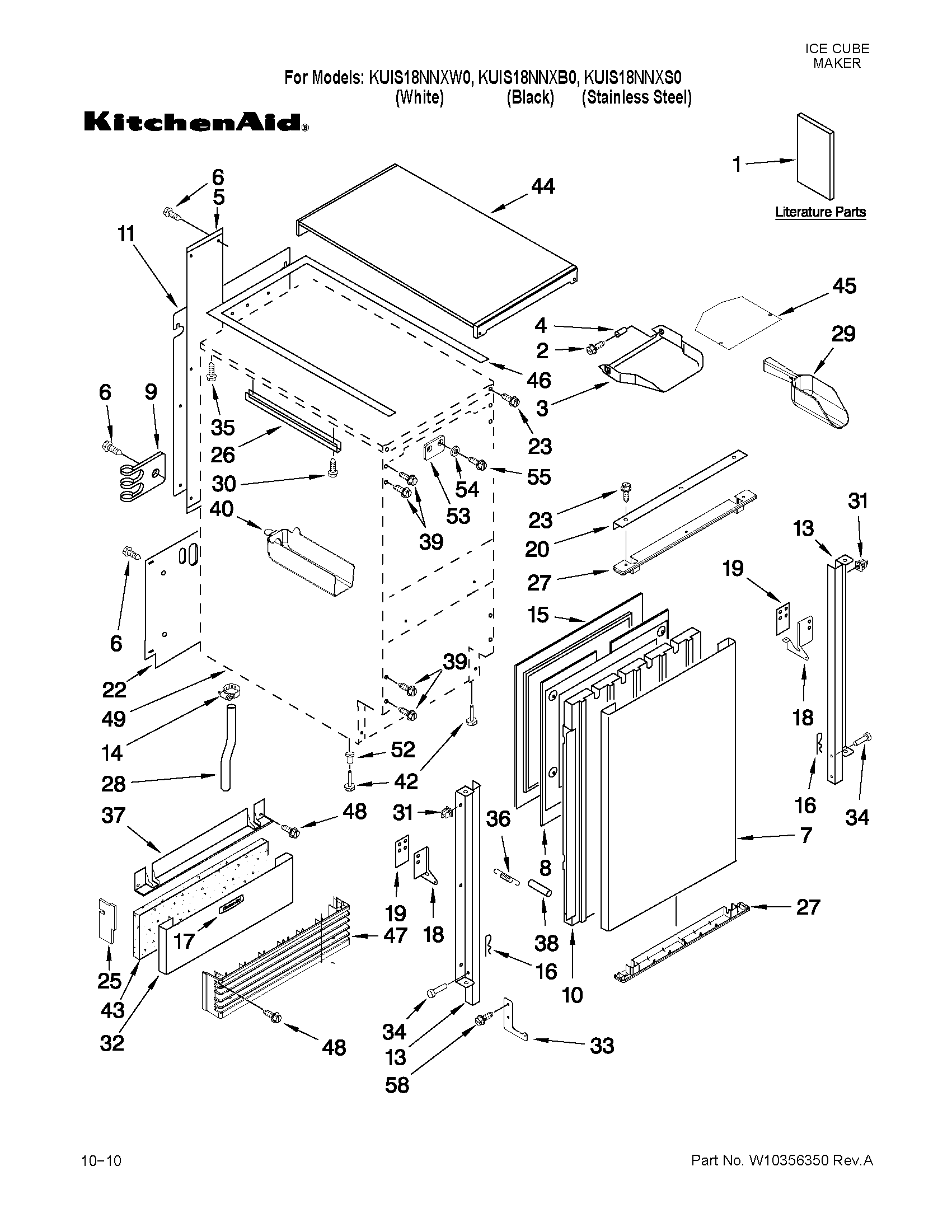

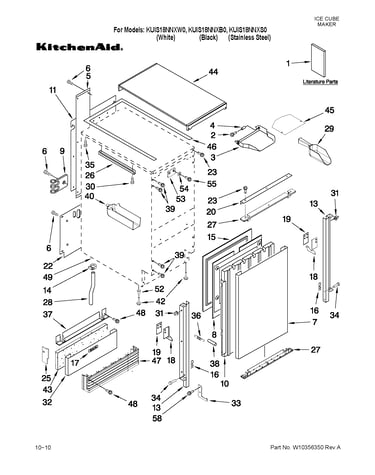

Here are the diagrams and repair parts for KitchenAid KUIS18NNXW0 ice cube maker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

    Showing 10 of 162 parts

    Refrigerator Light Switch#6

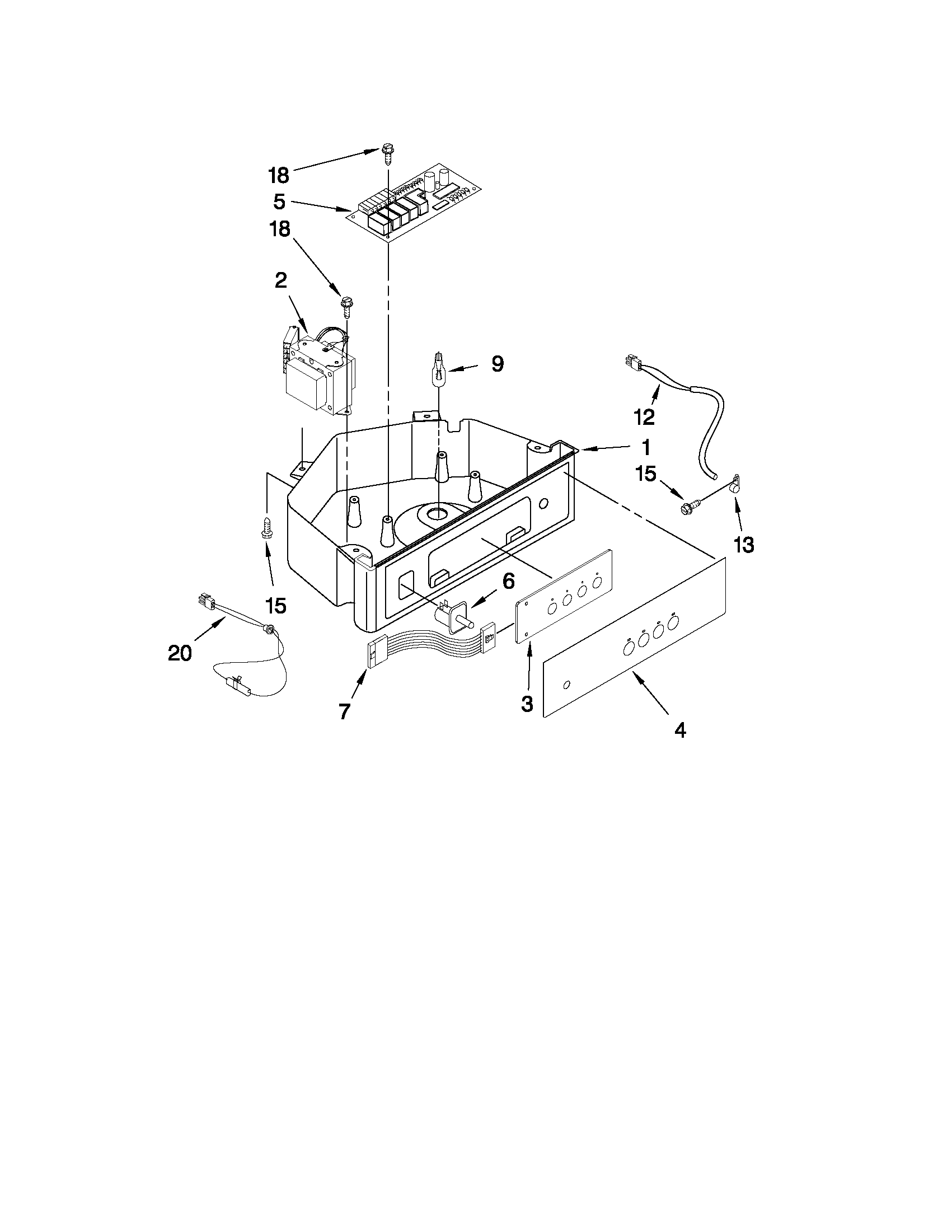

    Control panel parts Diagram

    Refrigerator door switch

    Part #2149705
    Replaced by #WP2149705
    ?
    Manufacturer substitution
    This part replaces 2149705. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $34.79 |
    13% OFF
    Phone Price: $39.79
    Ice Maker Cutter Grid#28

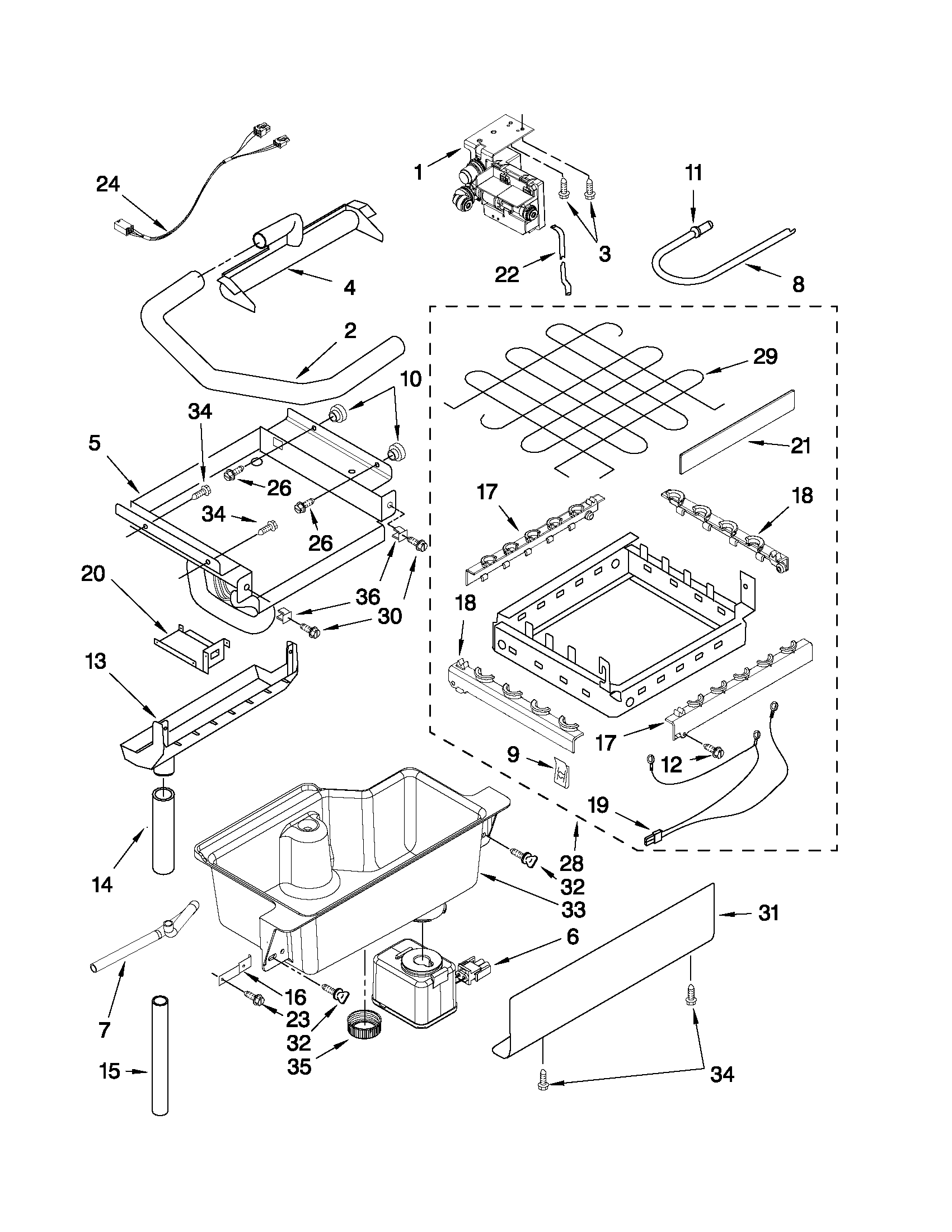

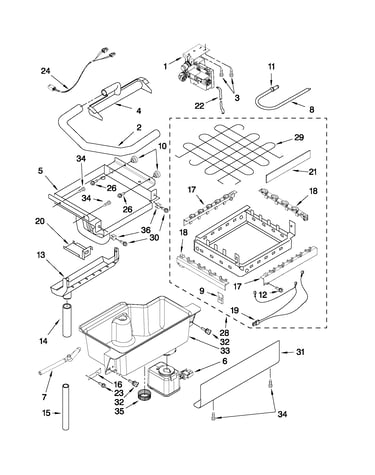

    Evaporator, ice cutter grid and water parts Diagram

    Ice maker cutter grid

    Part #2313637
    Replaced by #WP2313637
    ?
    Manufacturer substitution
    This part replaces 2313637. Substitute parts can look different from the original.
    In Stock
    $228.54 |
    $10 OFF
    Phone Price: $238.54
    Ice Maker Bin Temperature Sensor#12

    Control panel parts Diagram

    Ice maker bin thermostat

    Part #2313633
    Replaced by #WPW10503764
    ?
    Manufacturer substitution
    This part replaces 2313633. Substitute parts can look different from the original.
    In Stock
    $57.49 |
    8% OFF
    Phone Price: $62.49
    Appliance Silicone Sealant#NI

    Optional parts Diagram

    Cement

    Part #797403
    Replaced by #WP279368
    ?
    Manufacturer substitution
    This part replaces 797403. Substitute parts can look different from the original.
    In Stock
    $41.59 |
    11% OFF
    Phone Price: $46.59
    Ice Maker Recirculation Pump#1

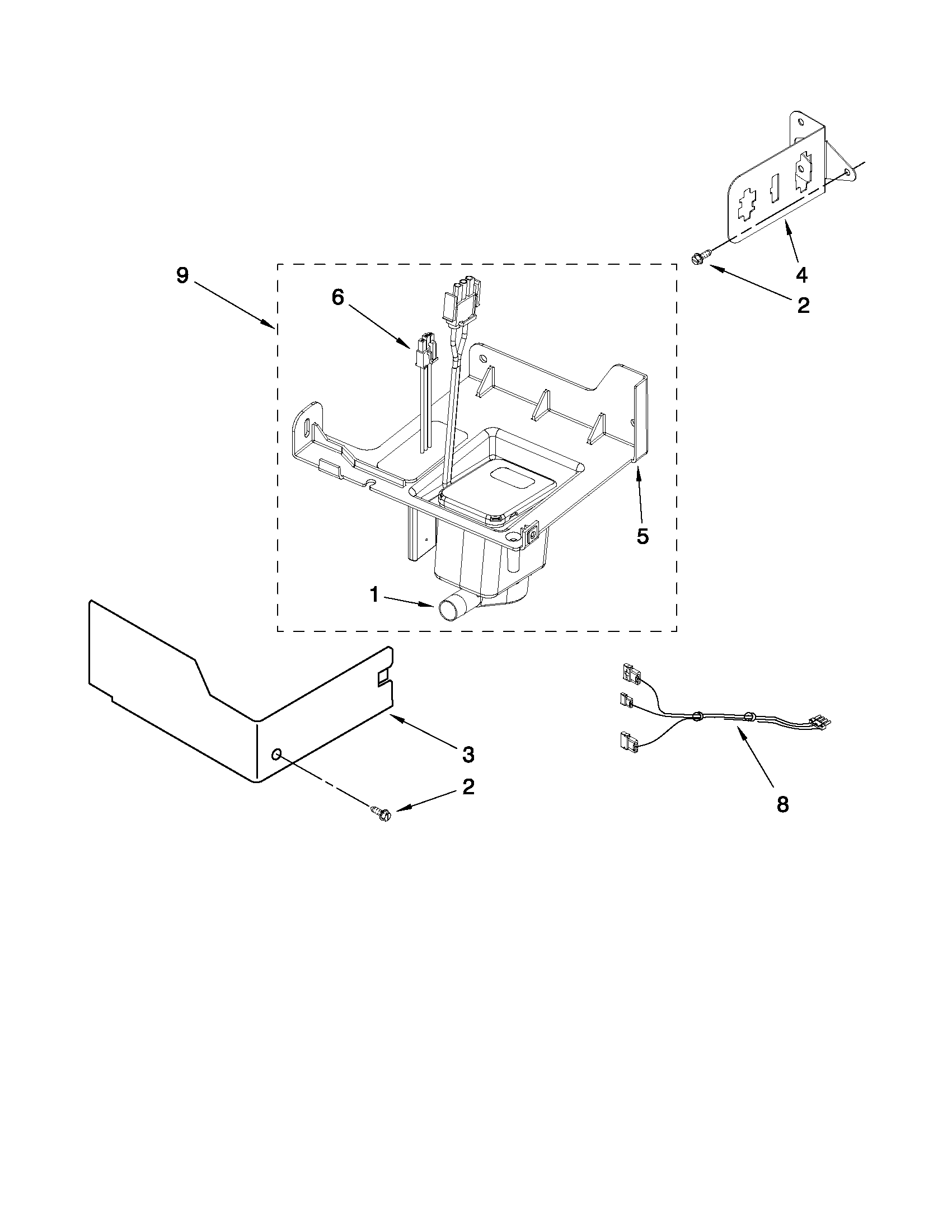

    Pump parts Diagram

    Freestanding ice maker recirculation pump

    Part #2313628
    Replaced by #W11566405
    ?
    Manufacturer substitution
    This part replaces 2313628. Substitute parts can look different from the original.
    Back Order
    $52.49 |
    9% OFF
    Phone Price: $57.49
    Refrigerator Screw#31

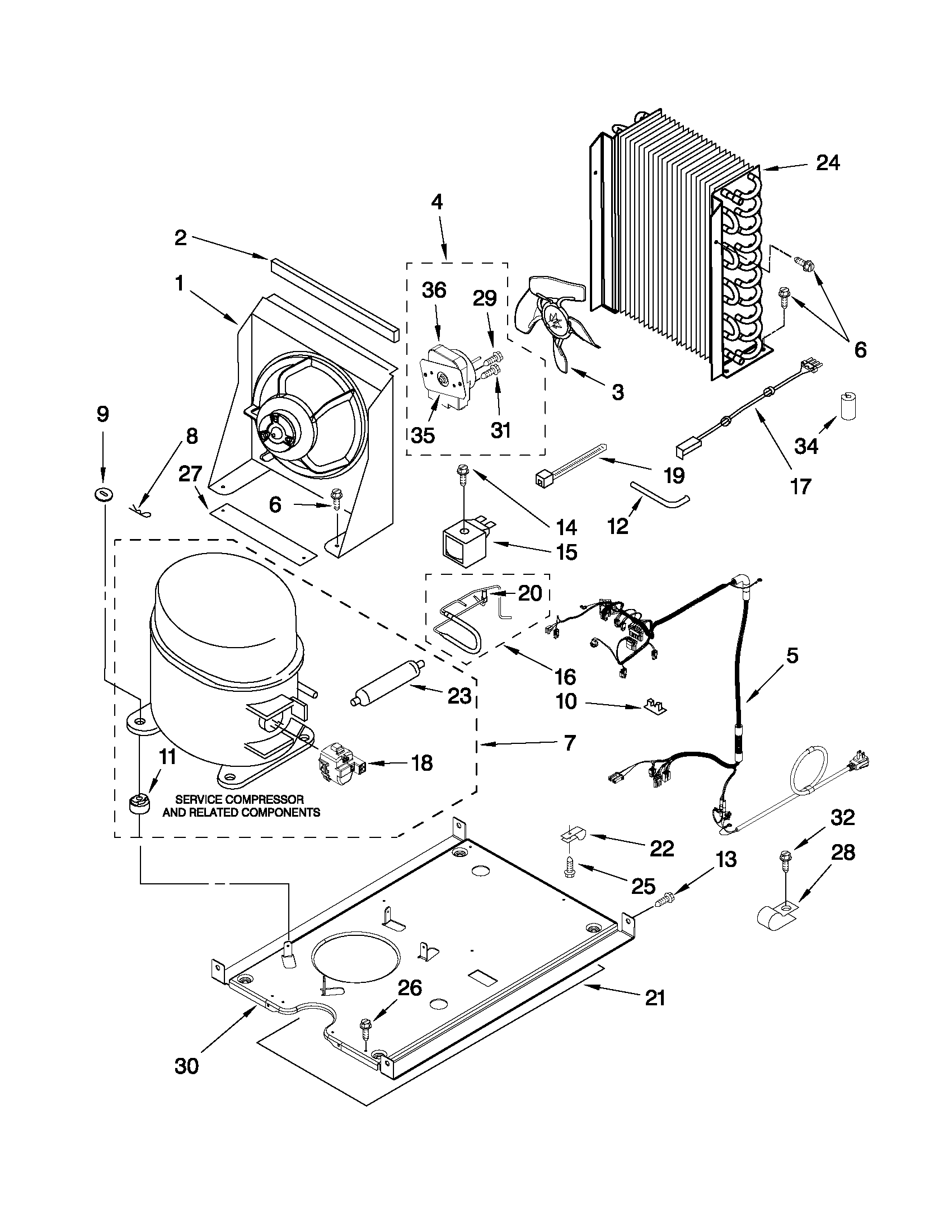

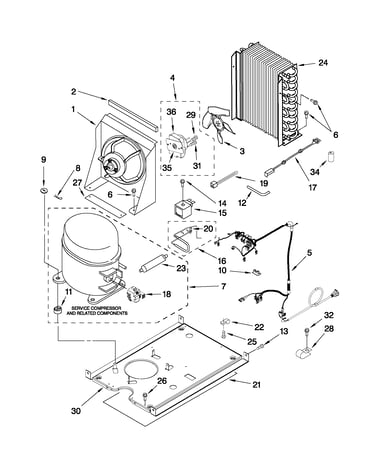

    Unit parts Diagram

    Refrigerator screw

    Part #8281196
    Replaced by #WP8281196
    ?
    Manufacturer substitution
    This part replaces 8281196. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $6.49 |
    13% OFF
    Phone Price: $7.49
    Ice Maker Water Inlet Valve#1

    Evaporator, ice cutter grid and water parts Diagram

    Freestanding ice maker water inlet valve

    Part #W10163596
    Replaced by #W10585391
    ?
    Manufacturer substitution
    This part replaces W10163596. Substitute parts can look different from the original.
    In Stock
    $222.29 |
    18% OFF
    MSRP: $270.00
    Ice Maker Water Reservoir#33

    Evaporator, ice cutter grid and water parts Diagram

    Ice maker water reservoir

    Part #2324334
    Replaced by #WP2324334
    ?
    Manufacturer substitution
    This part replaces 2324334. Substitute parts can look different from the original.
    In Stock
    $65.89 |
    7% OFF
    Phone Price: $70.89
    Refrigerator Permagum Sealer#NI

    Optional parts Diagram

    Refrigerator permagum sealer

    Part #212643
    This item is not returnable
    In Stock
    $50.09 |
    9% OFF
    Phone Price: $55.09
    Ice Maker Screw#12

    Evaporator, ice cutter grid and water parts Diagram

    Ice maker screw

    Part #489443
    Replaced by #WP489443
    ?
    Manufacturer substitution
    This part replaces 489443. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.39 |
    19% OFF
    Phone Price: $5.39

    Symptoms common to all freestanding ice makers

    Choose a symptom to see related ice maker repairs.

    Main causes: failing compressor, bad condenser fan motor, faulty drain pump, bad recirculation pump, water supply problems, bad water valve
    Main causes: water supply problems, control board failure, weak recirculation pump, clogged water distributer, faulty cutting grid
    Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, faulty bin thermistor, bad evaporator thermistor
    Main causes: bad bin thermistor, condenser fan failure, faulty control board
    Main causes: wiring failure, broken cutting grid, faulty electronic control board
    Main causes: bad electronic control board, water supply problems, faulty recirculation pump, sealed system failure, broken cutting grid
    Main causes: cracked water supply line, leaky drain line, broken drain pump, cracked water reservoir, leaky ice bin
    Main causes: dirty evaporator plate, untreated water supply, food items being stored in ice storage bin

    Repair guides common to all freestanding ice makers

    These step-by-step repair guides will help you safely fix what’s broken on your ice maker.

    How to replace a freestanding ice maker cutter grid

    When the cutting grid is broken, ice cubes don’t drop into the ice bin. Use the steps in this repair guide to replace a broken cutter grid.

    Repair difficulty
    Time required
     15 minutes or less
    How to replace a freestanding ice maker electronic control board

    When the electronic control board won’t activate the ice maker components, follow these steps to install a new one.

    Repair difficulty
    Time required
     45 minutes or less
    How to replace a freestanding ice maker recirculation pump

    If your ice maker isn’t making ice, the pump could be the problem. Here’s how to replace it.

    Repair difficulty
    Time required
     45 minutes or less
