$13.40 |Â
44% OFFÂ MSRP : $24.00
CONFIRM THE PART FITS
Refrigerator Condenser Fan Motor Kit (replaces 2188538, 2188727, 2188729, 2188732, 2206005, 2315538, 2315558, W10130108, W10204250, W10861645) W10124096
Part #W10124096
Online Only Price
$103.86 |Â
9% OFFÂ Phone Price : $113.86
In Stock
For ZIP codes near Edit
Part Information
Special details: Condenser fan motor kit W10124096 replaces several earlier part numbers; the motor may look different but is a functional equivalent. If your original motor used a 3-pin wire harness connector, use the jumper wire harness included in the kit to connect the new motor.
This condenser fan motor kit (part number W10124096) is for refrigerators.

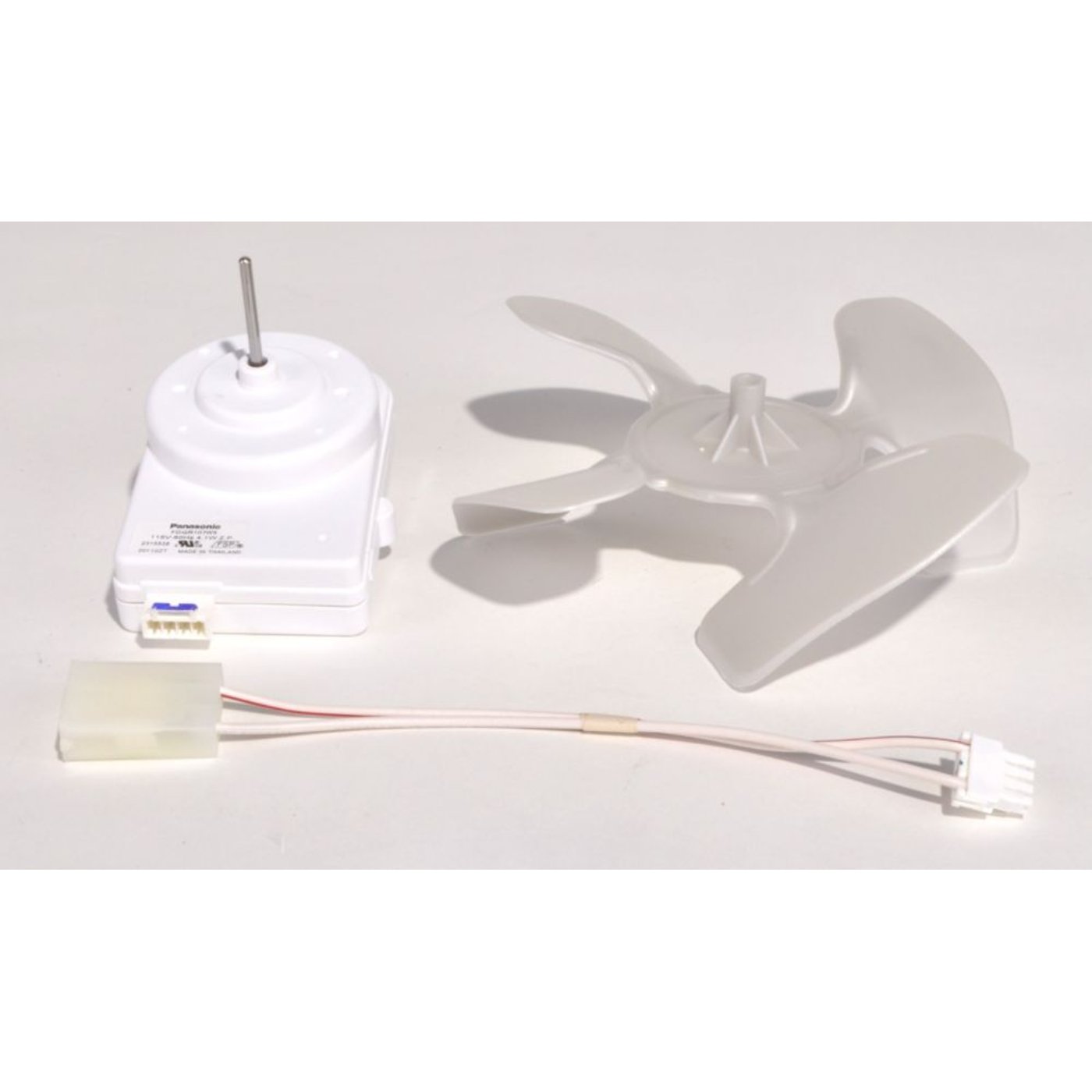

Condenser fan motor kit W10124096 includes the fan blade that moves air across the condenser and the motor that turns the fan blade. The kit includes the fan motor, fan blade and jumper wire harness.
Safely store any food that could deteriorate while the power is off. Unplug the refrigerator before installing this part. Follow the instructions provided with the kit to install the condenser fan.
Frequently Used Together
- $71.45 |Â7% OFFÂ Phone Price : $76.45
- $11.52 |Â18% OFFÂ MSRP : $14.00
- $114.64 |Â18% OFFÂ MSRP : $140.00
- $239.80 |Â$10.00 OFFÂ Phone Price : $249.80
- $66.17 |Â8% OFFÂ MSRP : $72.00
- $55.09 |Â28% OFFÂ MSRP : $77.00
- $13.51 |Â13% OFFÂ Phone Price : $15.51
- $368.59 |Â20% OFFÂ MSRP : $460.00
Top models using the same part
| Model Name | Model Number | Diagram Name |
|---|---|---|
| Model #KUIS18PNJW8 KitchenAid freestanding ice maker | KUIS18PNJW8 | Unit parts, optional parts (not included) |
| Model #KUIS18NNJS8 KitchenAid freestanding ice maker | KUIS18NNJS8 | Unit parts, optional parts |
| Model #KUIA18NNJS8 KitchenAid freestanding ice maker | KUIA18NNJS8 | Unit parts, optional parts |
| Model #KUIS18PNJB8 KitchenAid freestanding ice maker | KUIS18PNJB8 | Unit parts, optional parts (not included) |
| Model #KUIV18NNMM4 KitchenAid freestanding ice maker | KUIV18NNMM4 | Unit parts, optional parts (not included) |
| Model #KUIS18NNJB8 KitchenAid freestanding ice maker | KUIS18NNJB8 | Unit parts, optional parts |
| Model #KUIV18NNMS4 KitchenAid freestanding ice maker | KUIV18NNMS4 | Unit parts, optional parts (not included) |
| Model #KUIS18NNJT8 KitchenAid freestanding ice maker | KUIS18NNJT8 | Unit parts, optional parts |
| Model #JUD278DBCX00 Jenn-Air drawers & bin | JUD278DBCX00 | Unit parts |
| Model #KUIS18NNJW8 KitchenAid freestanding ice maker | KUIS18NNJW8 | Unit parts, optional parts |
Reviews
Lower fan motor
The part fit perfectly & solved the problem. Only issue was it came a few days later than I was told. But my refrigerator was still running when it came so no harm done. The ordering was easy & the operator was very easy to work with & knew what she was doing.
Timothy, Washington State
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- 30 minutes - 1 hour
Yes, I would recommend this to a friend
Not app
Did not show up the day promised. 2 days llate. ..
Not a, NA
Did you find this review helpful?
- Ease of Installation
- Moderate
- Duration of Installation
- 1 - 2 hours
Yes, I would recommend this to a friend
Refrigerator condenser fan motor kit
Refrigerator condenser fan motor kit my Son installed this for me, and he is by no means an installation Man, but he watched a video and was able to do this with total ease. The parts were super easy to install and I was so thankful for that!!! Finding the part was very easy to do with the help of the site that you have up
Carol S, Reisterstown MD
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- 30 minutes - 1 hour
Yes, I would recommend this to a friend
Very straightforward repair
The fan motor is not an exact duplicate of the original, but it fits perfectly in same space. It comes with two sets of mounting screws for different applications. I was able to reuse the original screws. The new fan wiring connection & plug location do not match the original, but the included jumper adapter cleanly resolves this issue. You will have to route the wiring a different direction from original to clear the fan mounting frame - this is obvious once you have the new fan in place. I recommend attaching the jumper to the new fan before installing the fan - it's much easier than trying to attach the plug once the fan is in place. In my particular refrigerator, small hands would make this repair easier. I have "large" hands by normal measurements, and I was just barely able to squeeze in between the frame, tubing, & wiring. Still, total time the fridge had to be out of normal position was no more than 20 minutes.
Danny57, Georgia
Did you find this review helpful?
- Ease of Installation
- Easy
- Duration of Installation
- 30 minutes - 1 hour
Yes, I would recommend this to a friend
Appliance repairman installed
Your assuming that I installed it, no, don't have those abilities, had an appliance repairman install it for me. However I noticed that there were no installation instructions in the box. The parts were just put in a box with no wrapping around the motor at all, so it's just bouncing around in the box. Very poor packaging.
nam v, West Virginia
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- 30 minutes - 1 hour
Yes, I would recommend this to a friend
New Fan Motor Wire harness doesn't match up
The wiring harness for the new Condenser Fan Motor does not match up with the wiring harness from the condenser. There's no way to make the connection. This is the part recommended by the person I spoke with at Sears Parts Direct. Any help would be appreciated.
burkerm, Seattle, WA
Did you find this review helpful?
- Ease of Installation
- Very Difficult
- Duration of Installation
- More than 2 hours
Yes, I would recommend this to a friend
Easy to install
It fixed my noisy refrigerator. Took no time at all to replace maybe 10 minutes. Exact replacement for kenmore refrigerator fan motor. Better quality then the cheaper ones that are just as loud as I replced. Sounds like brand new.
Hank, Indiana
1 person thought this review was helpful.
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
Yes, I would recommend this to a friend
Easy
Easy installation. Better than before. Quite. Socket required. This Recomondation site was more difficult!
Handyman, VA
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- 30 minutes - 1 hour
Yes, I would recommend this to a friend
