Hotpoint HTDX100GD5WW gas dryer Parts

On the Hotpoint gas dryer model HTDX100GD5WW, the model number is printed on the rating label located on the front of the dryer behind the door. Open the dryer door and look along the front frame area for the label that lists both the model and serial numbers.

Quick steps to locate the label

• Open the dryer door fully.
• Look on the front frame (the front panel area behind the door opening).
• Find the rating label that shows Model # and Serial #.
• Write the model number exactly as shown (letters and numbers).
• Use that model number when ordering parts or checking diagrams in the HTDX100GD5WW owner's manual.

What the label typically includes

Label item	What it’s used for
Model number	Matching the correct parts and diagrams
Serial number	Identifying production details for service
Electrical and gas info	Confirming installation requirements

Why it matters

Hotpoint dryers can look similar across model families, but parts like a door switch, belt, or thermostat can vary by model. Using the exact model number helps us match the correct replacement part the first time.

Last updated: February 2026

A Hotpoint tumble dryer like model HTDX100GD5WW typically lasts 10 to 15 years with normal household use. Keeping airflow strong (clean lint filter, correct venting) and fixing wear items early helps you reach the high end of that range.

What affects lifespan most

• Venting and airflow: Poor venting makes the dryer run longer and hotter, which increases wear.
• Lint control: A full lint filter restricts airflow and lengthens dry times.
• Load habits: Overloading strains the drum, belt, idler pulley, and motor.
• Heat type and duct condition: Drying times vary with gas type, load size, fabric, and exhaust duct condition.
• Routine maintenance: Cleaning the exhaust hood and checking for obstructions helps prevent overheating.

Maintenance checklist (best ROI)

• Clean the lint filter before every load.
• Inspect and clean the vent duct; use 4-inch rigid metal or UL-listed flexible metal ducting.
• Keep the vent run short, avoid kinks, and make sure the outside damper moves freely.
• Sort loads (heavy vs. lightweight fabrics) to reduce long cycles.
• If you hear squealing or thumping, address drum support parts early.

Common wear parts and what symptoms mean

Symptom	Likely wear area	Example part for this model
Drum not turning, motor runs	Belt or idler system	Dryer drum belt WE03X29897
Squealing, scraping, rough drum movement	Drum glides/bearings or felt seal	Dryer drum glide bearing, upper WE03X37320
Dryer will not start when door is closed	Door switch circuit	Dryer door switch WE4M415

Why it matters

A dryer that takes longer to dry is not just inconvenient; it usually points to restricted airflow or a worn drive component. Fixing those issues reduces energy use and helps your HTDX100GD5WW reach its full service life.

For model-specific operating and venting requirements, follow the HTDX100GD5WW owner’s manual.

Last updated: February 2026

To remove the top on your Hotpoint HTDX100GD5WW gas dryer, we unplug the dryer first, then remove the screws along the back edge of the top panel and slide the top back slightly to lift it off. Follow the cabinet access steps in the HTDX100GD5WW installation guide.

Safety first (before you open the cabinet)

• Unplug the dryer; turning the cycle knob to Off does not disconnect power.
• Let the dryer cool completely.
• Wear gloves; sheet metal edges inside the cabinet are sharp.
• If you need to move the dryer, avoid stressing the gas line.
• Keep screws organized so the top and rear panel reassemble correctly.

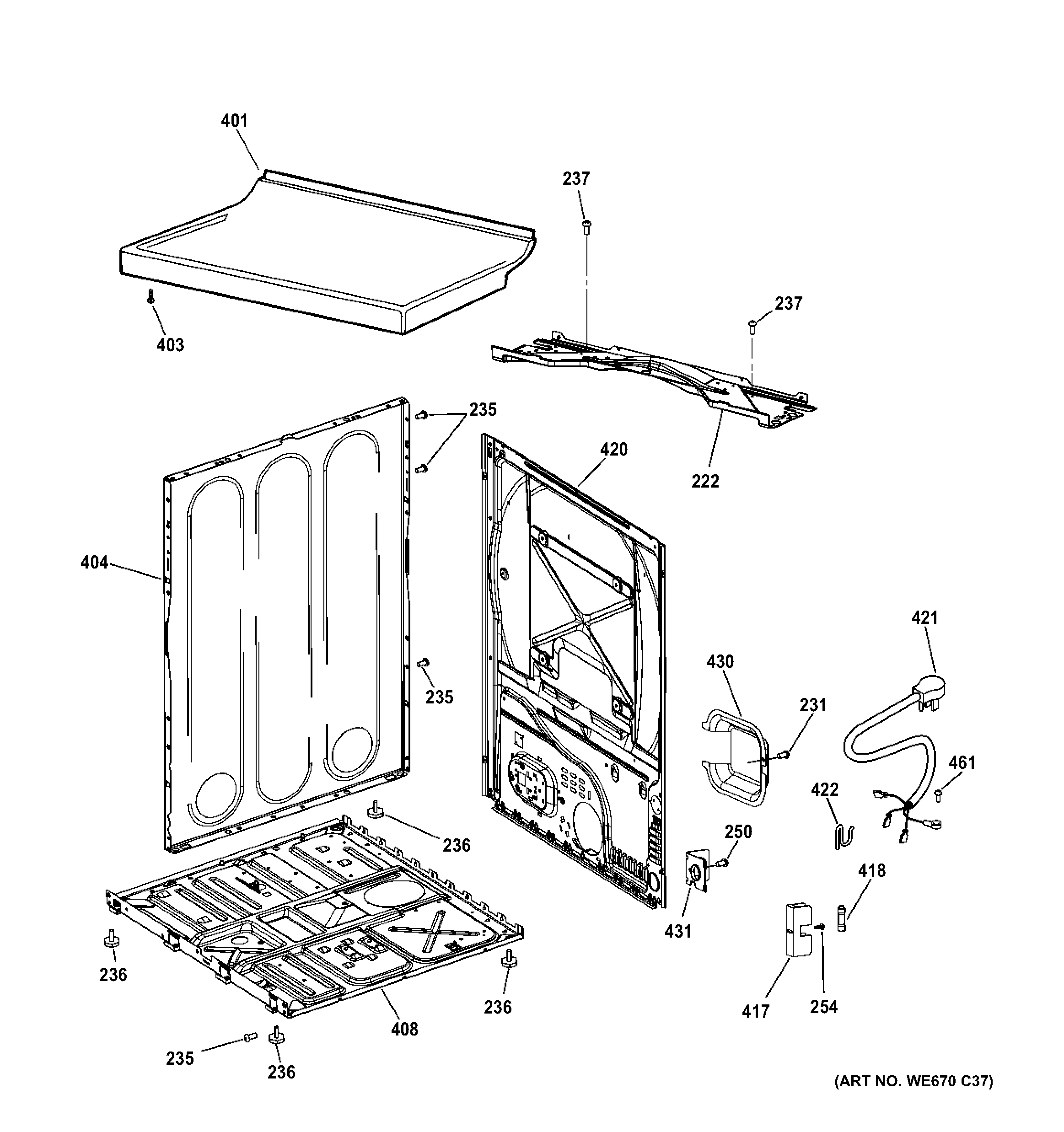

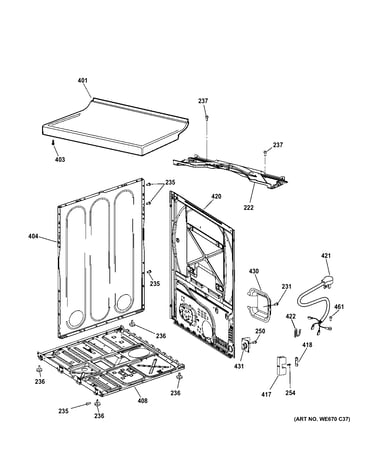

Steps to remove the top panel

1. Pull the dryer forward enough to access the rear edge.
2. Remove the screws along the back edge of the top (typically several across the rear lip).
3. Slide the top panel back about 1 to 2 inches to disengage the front retaining tabs.
4. Lift the rear of the top up, then lift the panel off.

What you can access after the top is off

What you are trying to reach	What usually comes off next	Common related parts

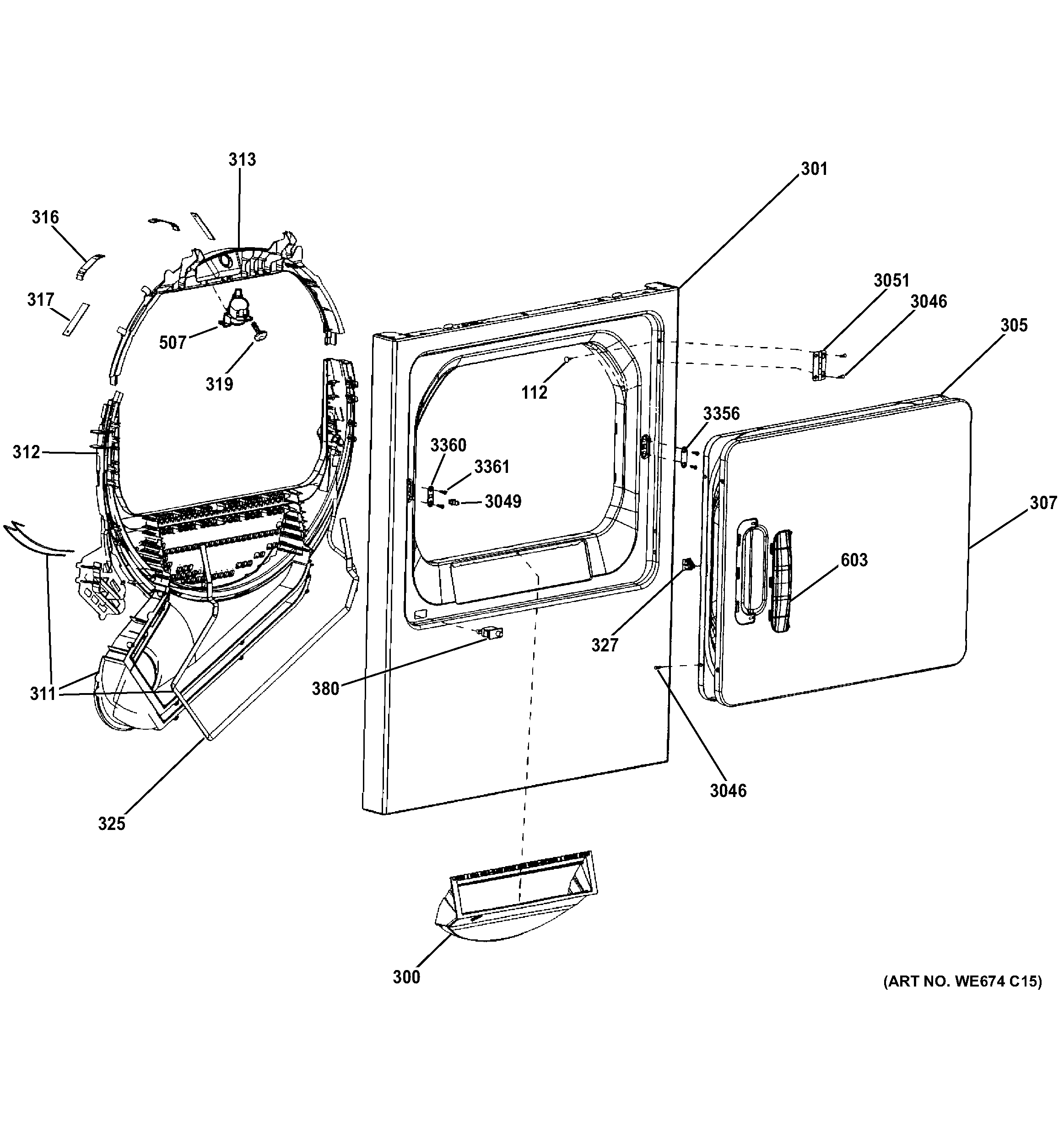

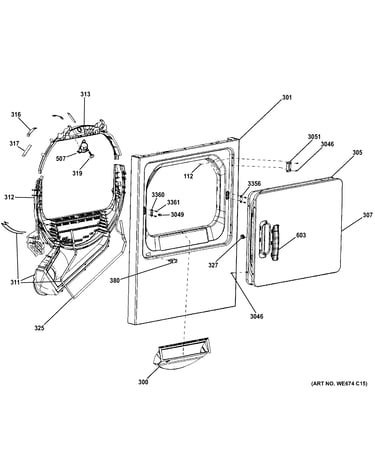

Door switch area	Front panel (after top removal)	Dryer door switch WE4M415

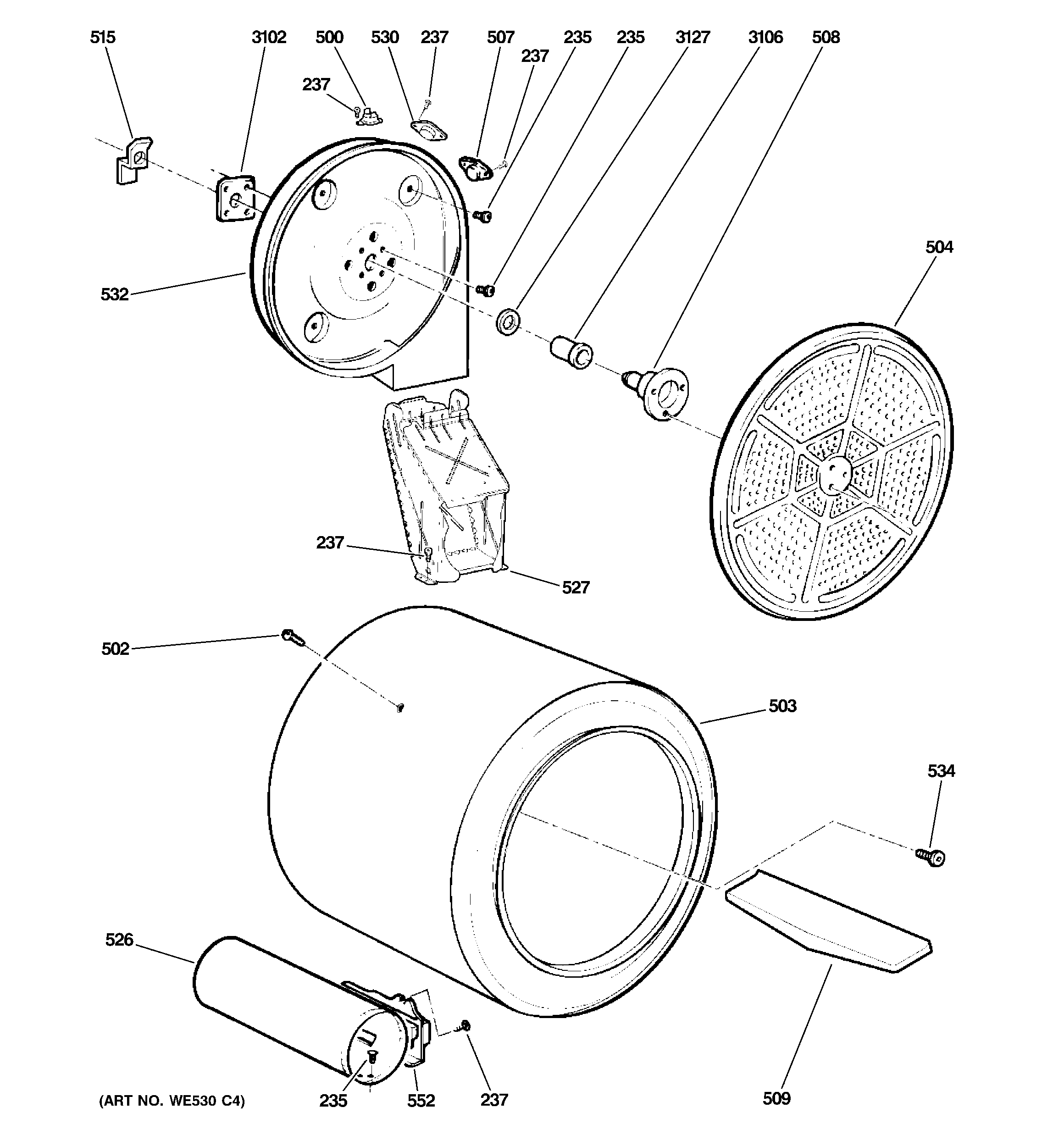

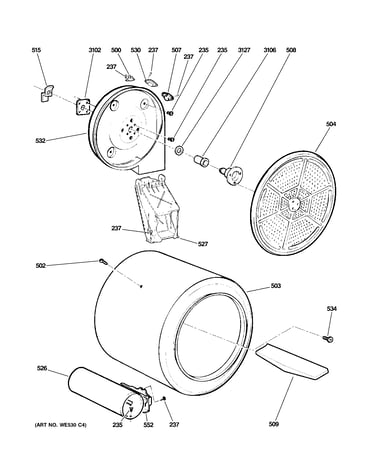

Belt and drum support	Front panel and drum	Dryer drum belt WE03X29897, dryer idler pulley WE03X31620

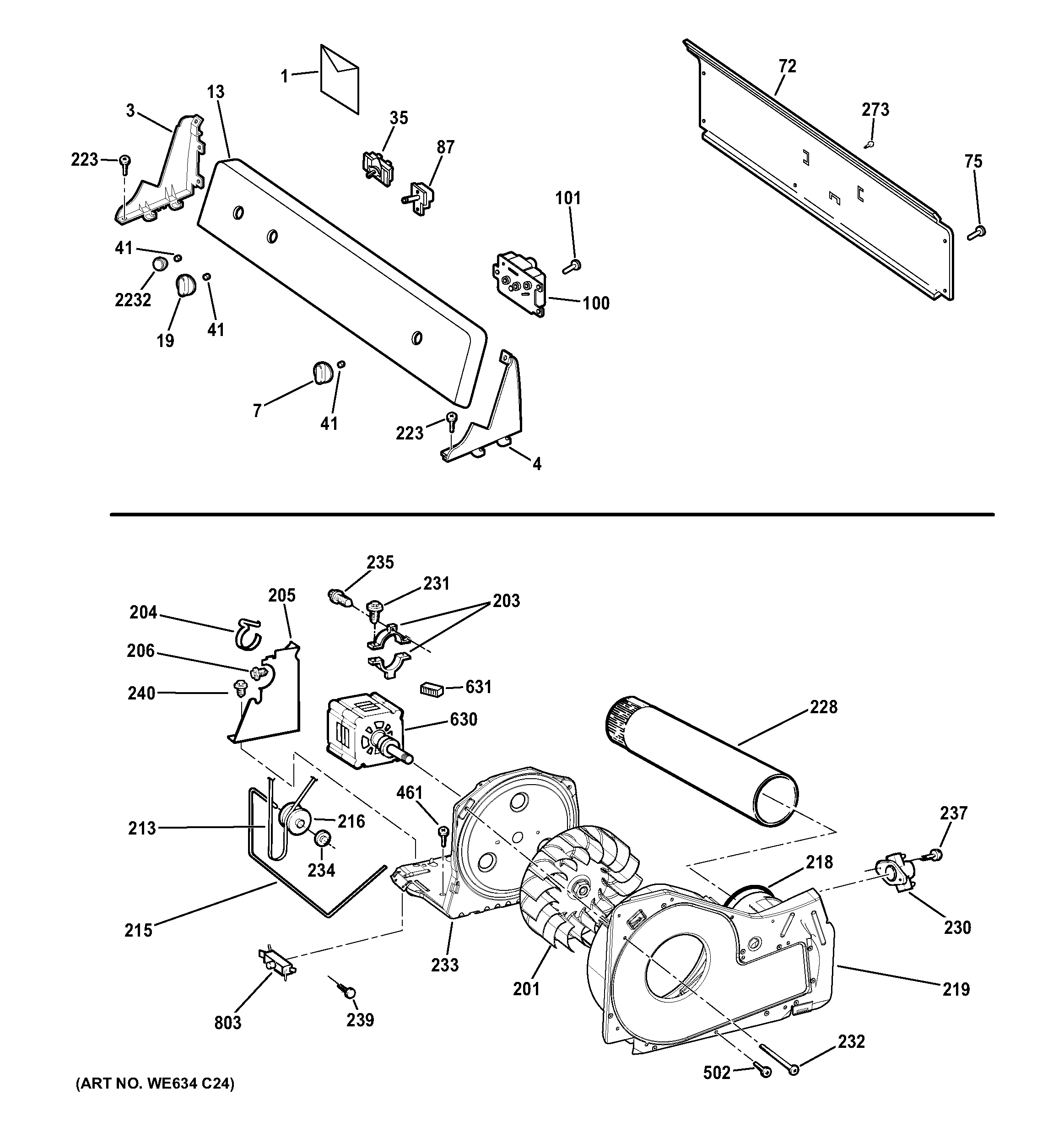

Controls/timer area	Control console (varies by version)	Dryer push-to-start switch WE4M416

Why it matters

Removing the top correctly prevents bending the panel and breaking the front retaining tabs. It also gives safe access to common service items like the drum belt, idler pulley, and door switch without damaging wiring or the cabinet.

Last updated: February 2026
