Kenmore
Canister Vacuum

Model #11621514011 Kenmore vacuum

Here are the diagrams and repair parts for Kenmore 11621514011 vacuum, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileOwner’s manual

    Showing 10 of 83 parts

    Vacuum Twist-On Wire Connector

    #19

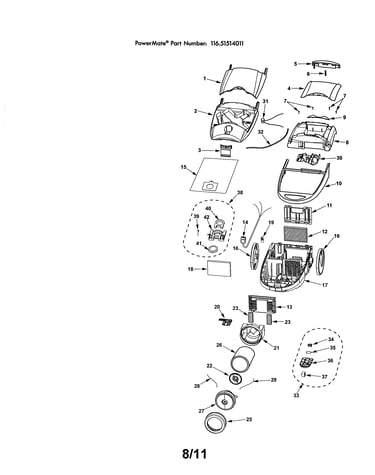

    Canister Diagram

    Vacuum twist-on wire connector

    Part #KS4154460
    This item is not returnable
    $2.49

    In Stock

    Vacuum Crevice Tool

    #2

    Attachments Diagram

    Vacuum crevice tool

    Part #KC60RDKNZV06
    ?
    Manufacturer substitution
    This part replaces KC60RDKNZV06. Substitute parts can look different from the original.
    This part replaces KC60RDKNZV06
    $8.84

    Back Order

    Vacuum Hose

    #17

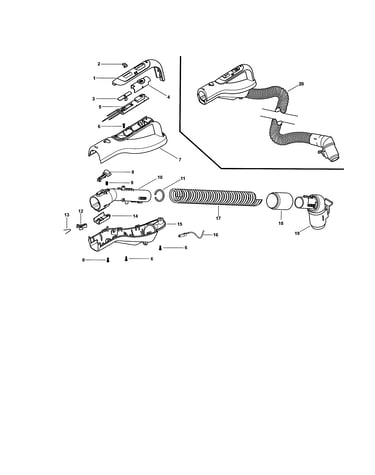

    Hose Diagram

    Vacuum hose

    Part #8192774
    ?
    Manufacturer substitution
    This part replaces 8192774. Substitute parts can look different from the original.
    This part replaces 8192774
    $30.03

    In Stock

    Vacuum Floor Brush

    #1

    Attachments Diagram

    Vacuum floor brush

    Part #KC83QDKMZV06
    ?
    Manufacturer substitution
    This part replaces KC83QDKMZV06. Substitute parts can look different from the original.
    This part replaces KC83QDKMZV06
    $12.04

    In Stock

    Vacuum Exhaust Filter

    #12

    Canister Diagram

    Vacuum exhaust filter

    Part #KC38KCEN1000

    The manufacturer no longer makes this part, and there's no substitute part

    Motor Support

    #25

    Canister Diagram

    Motor support

    Part #KC02FCUMZ000
    ?
    Manufacturer substitution
    This part replaces KC02FCUMZ000. Substitute parts can look different from the original.
    This part replaces KC02FCUMZ000
    $23.59

    In Stock

    Vacuum Attachment Release Button

    #8

    Hose Diagram

    Vacuum attachment release button

    Part #KC13DDKNZMUH
    ?
    Manufacturer substitution
    This part replaces KC13DDKNZMUH. Substitute parts can look different from the original.
    This part replaces KC13DDKNZMUH
    This item is not returnable
    $6.31

    Back Order

    Vacuum On/Off Switch Cover

    #1

    Hose Diagram

    Vacuum on/off switch cover

    Part #KC68GDKNZWUH
    ?
    Manufacturer substitution
    This part replaces KC68GDKNZWUH. Substitute parts can look different from the original.
    This part replaces KC68GDKNZWUH
    This item is not returnable
    $6.14

    In Stock

    Spring

    #5

    Attachments Diagram

    Spring

    Part #KC23DDKNZ000
    ?
    Manufacturer substitution
    This part replaces KC23DDKNZ000. Substitute parts can look different from the original.
    This part replaces KC23DDKNZ000
    This item is not returnable
    $2.47

    In Stock

    Vacuum Hose Handle Center Tube

    #10

    Hose Diagram

    Vacuum hose handle center tube

    Part #KC30PDKNZV06
    ?
    Manufacturer substitution
    This part replaces KC30PDKNZV06. Substitute parts can look different from the original.
    This part replaces KC30PDKNZV06
    $17.10

    In Stock
