Model # DGBD2432KF1A Official Frigidaire dishwasher
Here are the diagrams and repair parts for Official Frigidaire DGBD2432KF1A dishwasher, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part

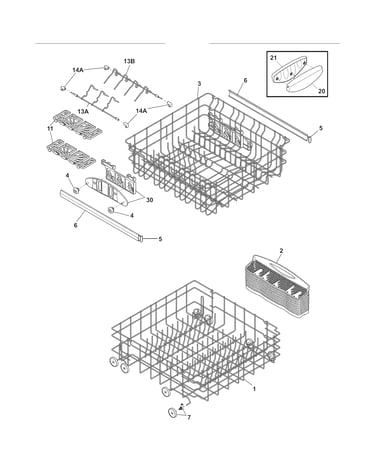

SELECT DIAGRAM
Browse Parts forDGBD2432KF1A Dishwasher
- #3

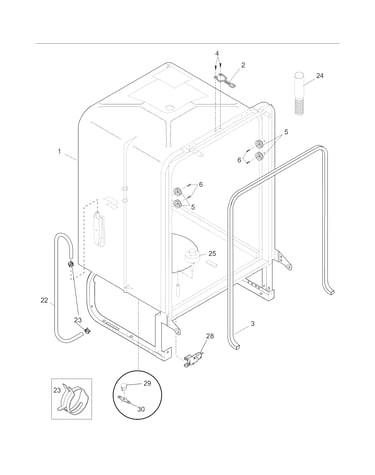

Tub diagram
Dishwasher tub gasketPart #154782401
Replaced by #154827601
?Manufacturer substitutionThis part replaces 154782401. Substitute parts can look different from the original.$26.69 |18% OFF Phone Price : $32.69In Stock - #24

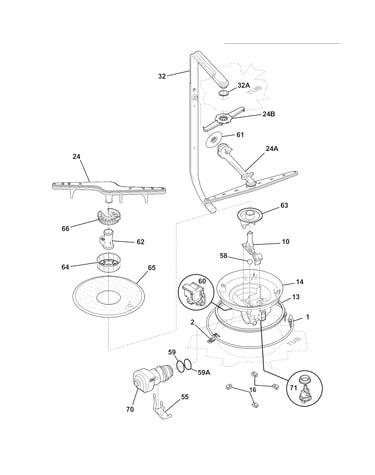

Motor & pump diagram
Dishwasher spray armPart #154568002
Replaced by #5304517203
?Manufacturer substitutionThis part replaces 154568002. Substitute parts can look different from the original.$33.33 |15% OFF Phone Price : $39.33In Stock - #60
Motor & pump diagram
PumpPart #154736201
Replaced by #A00126401
?Manufacturer substitutionThis part replaces 154736201. Substitute parts can look different from the original.$87.46 |6% OFF Phone Price : $93.46In Stock - #49

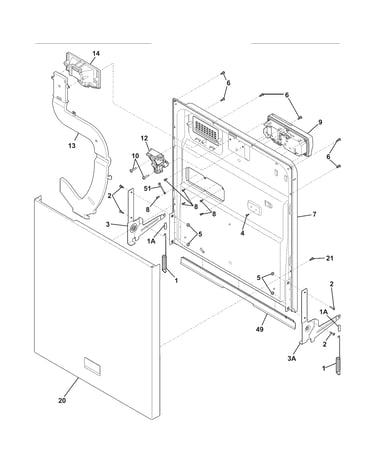

Door diagram
Door gasketPart #154759101
Replaced by #809006501
?Manufacturer substitutionThis part replaces 154759101. Substitute parts can look different from the original.$25.06 |19% OFF Phone Price : $31.06In Stock - #70
Motor & pump diagram
Dishwasher pump and motor assemblyPart #154844301
$183.41 |6% OFF Phone Price : $195.41In Stock - #1
Motor & pump diagram
HeaterPart #154663801
Replaced by #154825001
?Manufacturer substitutionThis part replaces 154663801. Substitute parts can look different from the original.$58.43 |9% OFF Phone Price : $64.43In Stock - #12
Door diagram
Dishwasher door latchPart #154722401
Replaced by #5304516818
?Manufacturer substitutionThis part replaces 154722401. Substitute parts can look different from the original.$36.57 |14% OFF Phone Price : $42.57In Stock - #59
Motor & pump diagram
Dishwasher pump o-ring, rearPart #154246901
$38.32 |14% OFF Phone Price : $44.32In Stock - #3
Frame diagram
Dishwasher water inlet valvePart #154637401
$45.62 |12% OFF Phone Price : $51.62In Stock - #24
Tub diagram
Drain hosePart #154753201
Replaced by #807117001
?Manufacturer substitutionThis part replaces 154753201. Substitute parts can look different from the original.$30.29 |17% OFF Phone Price : $36.29In Stock
